Sony BRAVIA VPL-VW60 Manuel utilisateur
VIDEO PROJECTOR
VPL-VW60
PROTOCOL MANUAL
1st Edition
VPL-VW60
!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
1
VPL-VW60
Table of Contents
1. Introduction
2. RS-232C
2-1. Communication Specifications .......................................... 1
2-2. Command Block Format .................................................... 2
2-3. Block Format ..................................................................... 3
2-4. Connection ......................................................................... 4
2-5. Communication Procedure ................................................ 4
2-5-1. Outline of Communication ....................................... 4
2-6. Communication Rules ....................................................... 5
2-7. Approximate Return Waiting Times ................................. 5
2-8. Other .................................................................................. 5
2-8-1. AMX Device Discovery ........................................... 5
Appendix
1
VPL-VW60

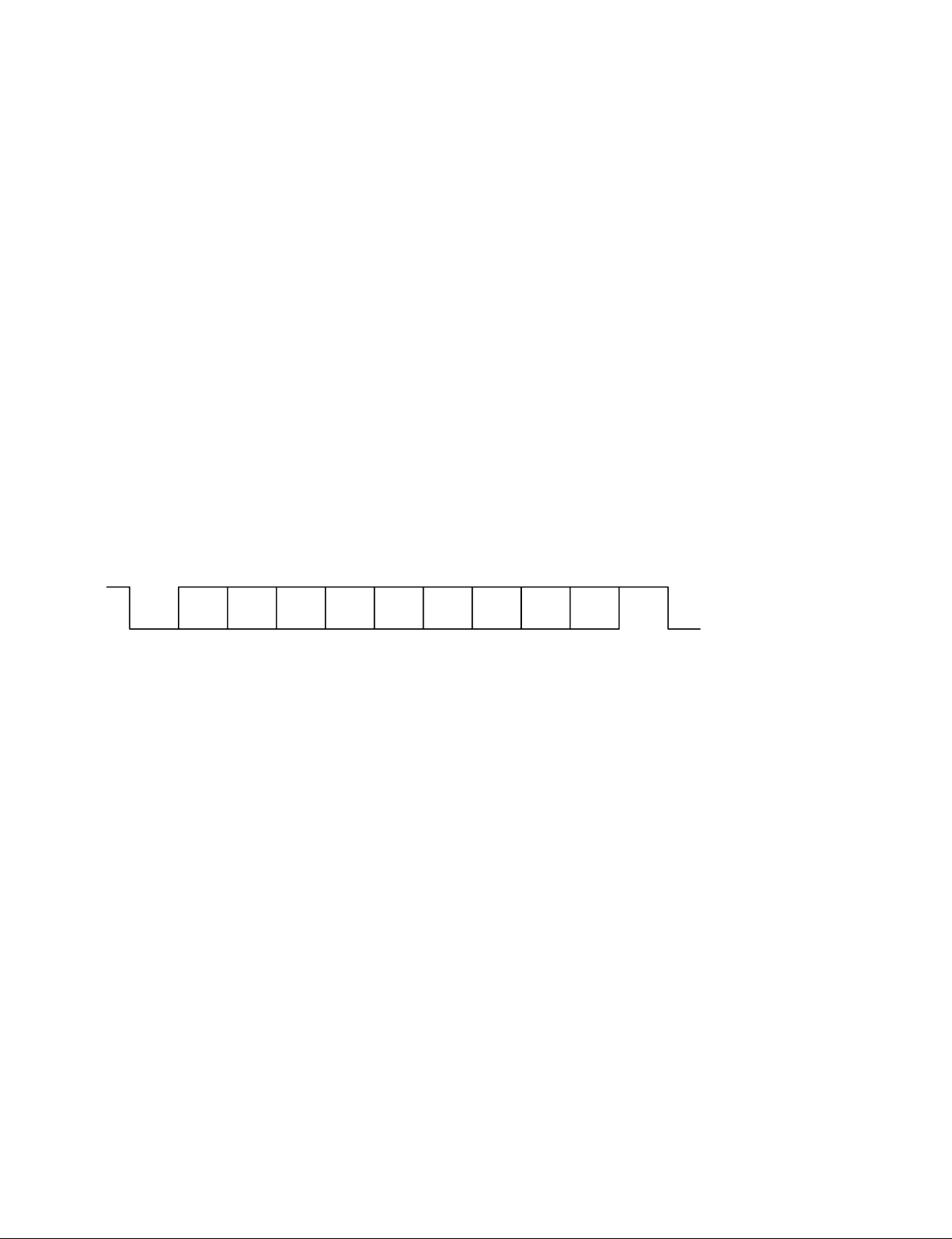

EVEN Parity ...... Total number of “1”s from D0 to D7 is an even number. 80
...... Total number of “1”s from D0 to D7 is an odd number. 81
D4 D5 D6 D7
(MSB)(LSB) (EVEN) BIT
PARITY STOP
BIT
START D3D2D1D0
1. Introduction
This protocol manual describes the basic configuration and basic operations of various commands used
for projector. Projector can be controlled using the commands provided in “Appendix”. Using an external
CONTROLLER , etc., inputs can be switched and the power can also be turned on and off. In the follow-
ing paragraphs, “CONTROLLER” means an external device such as a PC which controls projector using
these commands.
2. RS-232C
2-1. Communication Specifications
<RS-232C Communication Signal>
.Full duplex communication channels (Flow control not performed.)
.Start-stop synchronism system
.Baud rate: 38.4 kbps (bits per second)
.The bit configuration is defined as follows.
1 START Bit +8 DATA Bits +1 PARITY Bit +1 STOP Bit
2VPL-VW60
2-2. Command Block Format
The code from B0 to B7 as described below are transmitted.
START CODE : 0xA9
B0
B1
B2
B4
B3
DATA
ITEM NUMBER ACK / NAK ITEM NUMBER
SET / GET ACK
DUMMY DATA
CHECK SUM
END CODE : 0x9A
DATA
REPLY
B5
B6
B7
Transmission from
the Master side
Reception in
the Master side
Reception in the Master side
(With Data)
B0 START CORD
Common in the all FORMAT
B6 CHECK SUM
B1 to B5 are calculated by OR;
<Example of Calculation>
0xA9 1010 1001 0xA9 1010 1001
0xA9 1010 1001 0x9A 1001 1010
Answer 1010 1001 Answer 1011 1011
0xA9 0xBB
B7 END CODE
Common in the all FORMAT
3
VPL-VW60
2-3. Block Format
START CODE
B0
B1
B2
B4
B3
DATA
ITEM NUMBER
SET / GET
CHECK SUM
END CODE
B5
B6
B7
START CODEB0
B1
B2
B4
B3
DUMMY DATA
ACK / NAK
ACK
CHECK SUM
END CODE
B5
B6
B7
START CODEB0
B1
B2
B4
B3
DATA
ITEM NUMBER
REPLY
CHECK SUM
END CODE
B5
B6
B7
Transmission from the Master side
Reception in the Master side
Reception in the Master side (With Data)
Data transmission to the Projector
Start of Command
Set the Data Category Value desired.
Refer to the Appendix Table 1 for details.
SET: 0x00 (Set data)
GET: 0x01 (Get data)
SET: Data to be set (Refer to the Appendix Table 2)
GET: Unused. Set Dummy data [0x00, 0x00]
Check Sum
End of Command
Receive results of the data transmission from the Projector.
Start of Command
Results correspond with the data transmission
Refer to the Appendix Table 3 for the data in detail.
[0x03]
Express Reply data either of ACK, or NAK
This data does not mean any senses.
Dummy Data [0x00, 0x00] is stored.
Check Sum
End of Command
Check Sum
End of Command
Receive data from the Projector
Start of Command
Data to acquire
Refer to the Appendix Table 1 in detail.
[0x02]
Express data to be Reply data
Received data
Refer to the Appendix Table 2 in detail.
4VPL-VW60
2-5. Communication Procedure
2-5-1. Outline of Communication
All communication between CONTROLLER (PC, etc.) and DEVICE (PROJECTOR) is performed by the
command block format. Communication is started by the issue of a command at CONTROLLER and
ended when the return data is sent to CONTROLLER after DEVICE receives the command.
CONTROLLER is prohibited from sending several commands at one time. This means that after CON-
TROLLER sends one command, it cannot send other commands until DEVICE returns the return data.
DEVICE sends the return data after processing the command. The time from when CONTROLLER sends
the command until the return data is returned differs according to the contents of the command.
n
When Sircs Direct Command is sent, return data may not be returned in some cases.
2-4. Connection
<RS-232C Connection>
Communication is enabled by the use of a D-Sub 9 Pin cross (reverse) cable.
The pin assignment of D-Sub 9 Pin and D-Sub 25 Pin is as follows.
Pins indicated as D-Sub 25 Pin are not used.
Assured cable length: 15 m (However, assurance may not be applicable for some cables.)
The software for controlling the projector from a PC is intended for performing transmission and recep-
tion for only the TxD and RxD lines.
Therefore there is no handshake normally performed by RS-232C.
D-Sub 9 Pin
Shell = FG
3
2
7
8
6
5
1
4
9
D-Sub 25 Pin
1
2
3
4
5
6
7
8
20
22
Name
FG
TxD
RxD
RTS
CTS
DSR
SG
DCD
DTR
RI
Grounding for safety protection or cable shield
Transmission data
Reception data
Transmission request
Transmission permission
Data set ready
GND for signal
Data channel signal carrier detection
Data terminal ready
Calling display (Presence/absence of calling signal)
5
VPL-VW60
2-6. Communication Rules
.When sending a command from CONTROLLER, the return data from PROJECTOR should be re-
ceived first before sending the next command. Even if the next command is sent before receiving the
return data, since PROJECTOR will not be able to receive that command, it does not return a response
to CONTROLLER. Consequently, no error code is also sent.
The following lists the approximate waiting times for PROJECTOR to return the return data after
CONTROLLER sends the command.
.When a communication error occurs, PROJECTOR ignores the data received until now, and set into the
reception standby state.
.For undefined commands or commends determined as invalid by PROJECTOR, PROJECTOR will
send the “NAK” return data to CONTROLLER .
.Take note that when data is written when the input signal of PROJECTOR is unstable, that data (value)
will not be incorporated.
.When INDEX specified SIRCS direct command is transmitted, leave an interval of 45 msec until the
next transmission. (Do not return the return data (ACK, NAK) when the SIRCS direct command is
received.)
2-7. Approximate Return Waiting Times
The await-return time is approx. 30 msec.
n
This is the case, unless the communications are interfered anyway.
2-8. Other
2-8-1. AMX Device Discovery
This model is equipped with the protocol that conforms to the Device Discovery stipulated by
AMX.Contact AMX for details about the Device Discovery.
6VPL-VW60
Appendix
<Table 1> <Table 2> Remarks
Item Number Data
Item Upper byte Lower byte Data Upper byte Lower byte
Input 00h 01h Video 00h Set/Get
S Video 01h
Input A 02h
Component 03h
HDMI1 04h
HDMI2 05h
Picture Mode 00h 02h Dynamic 00h
Standard 01h
Cinema 02h
User1 03h
User2 04h
User3 05h
Contrast 00h 10h 00h to 64h (0 to 100)
Brightness 00h 11h 00h to 64h (0 to 100)
Color 00h 12h 00h to 64h (0 to 100)
Hue 00h 13h 00h to 64h (0 to 100)
Sharpness 00h 14h Normal 00h to 64h (0 to 100)
ColTemp 00h 17h High 00h
Mid 01h
Low 02h
Custom1 03h
Custom2 04h
Custom3 05h
Lamp Control 00h 1Ah Low 00h
High 01h
DDE 00h 1Bh Off 00h
DDE Progressive 01h
DDE Film 02h
Black Level Adj. 00h 1Ch Off 00h
Low 01h
High 02h
Advanced Iris 00h 1Dh Off 00h
On 01h
Auto1 02h
Auto2 03h
Real Color Processing 00h 1Eh off 00h
User1 01h
User2 02h
User3 03h
