This chapter explains each part of your CLIÉ handheld and the supplied accessories.

Front panel

01US01COV.book Page 98 Friday, June 20, 2003 6:29 AM

Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1)

CLIÉ™ handheld components

ACamera Lens

(Pages 48, 50)

BPOWER LED

(Page 9)

Lights or blinks when turned on. The

LED shows the status of your CLIÉ

handheld by its color.

Lights green: The power is on. (It

also lights in HOLD mode)

Blinks green: Blinks a few

moments when you operate any

button on your CLIÉ handheld in

HOLD mode.

Lights orange: The battery is being

charged.

Blinks orange: Alarm function that

notifies you at a preset time if you

have set an alarm in an application,

such as Date Book.

OFF: The power is off.

CPOWER/HOLD Switch

(Pages 11, 101)

Turns your CLIÉ handheld on and

off, and sets your CLIÉ handheld to

HOLD mode.

DIR Port

(Page 103)

You can beam data between your

CLIÉ handheld and another CLIÉ

handheld or Palm OS®PDA.

EUSB connector (Page 19)

For connecting the supplied USB

cable.

FStrap Ring

GMicrophone

(Page 53)

Use this to record sounds.

HJog Dial™ navigator

(Page 26)

Use to select and run applications or

items. Depending on the application,

unique features are assigned.

IDisplay Panel

(Page 9)

JScreen

(Page 106)

KSilk Screen Area

(Page 108)

LWireless LAN LED

(for PEG-UX50 only)

(Page 42)

MBluetooth LED

(Page 68)

NCAPTURE/REC Button

Press the CAPTURE/REC button to

take pictures, record movies (Pages

48, 51) or to record voice memos

(Page 53).

OREC LED

(Page 53)

Lights when you are recording a

voice memo.

P“Memory Stick” LED

(Page 102)

Blinks orange while your CLIÉ

handheld is writing data to, or reading

data from a “Memory Stick” media.

QHardware Keyboard

(Page 103)

RApplication Buttons

(Page 28)

Even when your CLIÉ handheld is

turned off, pressing an application

button turns on your CLIÉ handheld

and starts that application.

SBACK Button

Cancels the selection of an item or an

operation. Depending on the

application, unique features such as

restoring to the previous screen are

assigned.

01US01COV.book Page 99 Friday, June 20, 2003 6:29 AM

100

Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1)

Back panel

AHeadphone Jack

For connecting stereo mini-jack

headphones sold separately.

B“Memory Stick” Slot

(Page 102)

Insert a “Memory Stick” media into

this slot.

CSpeaker

DStylus

(Page 11)

A pointed tool to operate your CLIÉ

handheld by touching the screen with it.

ERESET Button

(Pages 32, 33)

Press to restart your CLIÉ handheld.

01US01COV.book Page 100 Friday, June 20, 2003 6:29 AM

101

Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1)

CLIÉ™ handheld components

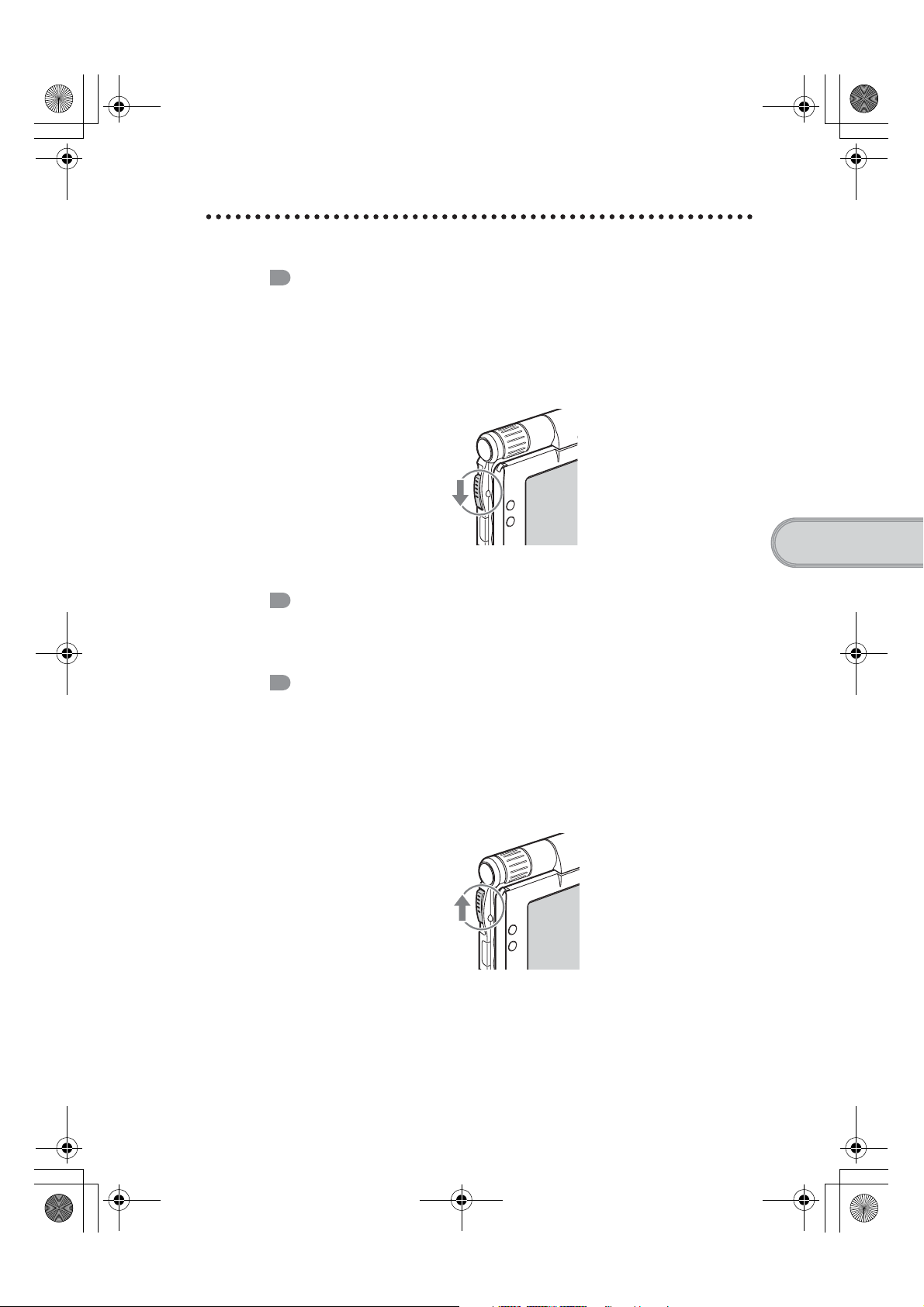

POWER/HOLD switch

Turning on/off your CLIÉ handheld

Slide down the POWER/HOLD switch

The POWER/HOLD switch will return to the center position after being

released. Your CLIÉ handheld powers on, the last screen viewed is

displayed, and the POWER LED lights green. To turn off your CLIÉ

handheld, slide down the POWER/HOLD switch again and then release.

Turning on/off the LCD backlight

Slide down the POWER/HOLD switch and hold it for more than two

seconds.

Turning on/off the HOLD mode

Slide up the POWER/HOLD switch

Putting your CLIÉ handheld in HOLD mode deactivates the touch screen.

If you put the POWER/HOLD switch into the HOLD position while the

power is on, the screen display turns off, even during an operation. To

release the HOLD mode, slide up the POWER/HOLD switch again and

then release.

POWER/HOLD Switch

01US01COV.book Page 101 Friday, June 20, 2003 6:29 AM

102

Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1)

Using “Memory Stick” media

Inserting “Memory Stick” media

Removing “Memory Stick” media

Note

Insert a “Memory Stick” media in the right direction. If you forcibly insert a

“Memory Stick” media in the wrong direction, the “Memory Stick” slot may

be damaged.

Note

Make sure that your CLIÉ handheld is not writing files/data to, or reading

files/data from, a “Memory Stick” media before removing it. (The “Memory

Stick” LED blinks when it is reading or writing files/data.) If you remove a

“Memory Stick” media while the “Memory Stick” LED is blinking, recorded

files/data may be deleted or damaged.

The “Memory Stick” LED blinks orange

while your CLIÉ handheld is writing data to,

or reading data from a “Memory Stick” media.

Pull “Memory Stick” media outPush “Memory Stick” media in

01US01COV.book Page 102 Friday, June 20, 2003 6:29 AM

103

Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1)

CLIÉ™ handheld components

IR port

You can beam data or applications between your CLIÉ handheld and another

CLIÉ handheld or Palm OS®PDA.

bFor details, refer to “Beaming” in the supplied “Handbook”.

Hardware Keyboard

You can use the hardware keyboard in the same way as you would use the

keyboard of your computer.

For details about the key arrangement, check your CLIÉ handheld.

Input commands

You can perform commands using the hardware keys in combination.

Key combinations

Example: Ctrl + C tHold down the Ctrl key and press the character C key.

Basic operations

Combination Function

(Blue) +

blue character

Types the characters in blue. To type them

continuously, press (Blue) twice to lock the

shift, and press it again to unlock.

Shift Types capital letters. To type capital letters

continuously, press the Shift key twice to lock the

shift, and press it again to unlock.

*Move your CLIÉ handheld gradually to find the most

sensitive direction.

Blue key

Continued on next page

• • • • • • • • • • • • • • • • • • • • •

01US01COV.book Page 103 Friday, June 20, 2003 6:29 AM

104

Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1)

Edit

Functions

* You can change this function by selecting Preferences and tapping [Buttons] -

[Pen].

Dialogs

Combination Function

Ctrl + C Copies the selected text.

Ctrl + D Deletes the selected text.

Ctrl + V Pastes the selected text.

Ctrl + X Cuts the selected text.

Ctrl + Right/Left Selects until the last/first letter of the word.

Shift + Right/Left Selects a continuing/preceding text.

Combination Function

Ctrl + G Shows/hides the silk screen area.

Ctrl + H Goes to the CLIE 3D Launcher.

Ctrl + L Turns the backlight on/off.

Ctrl + M Displays the menu.

Ctrl + O Goes to the previous field.

Ctrl + P Goes to the next field.

Ctrl + R Performs a full-screen pen stroke.*

Combination Function

Ctrl + A Displays the Adjust Volume dialog box.

Ctrl + B Displays the Battery Information dialog box.

Ctrl + E Displays the Media Info dialog box.

Ctrl + F Displays the Find dialog box.

Ctrl + K Displays the Keyboard Help dialog box.

Ctrl + T Displays the command tool bar.

01US01COV.book Page 104 Friday, June 20, 2003 6:29 AM

105

Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1)

CLIÉ™ handheld components

Button operations

Tip

When you use a Palm OS application that assigns a function to the scroll buttons,

the same function can be performed by using a key combination, (Blue) + Up/

Down.

Combination Function

Ctrl + Up/Down Same as Jog Dial Up/Down.

Ctrl + Enter Same as pressing Jog Dial.

Ctrl +

Enter (Long Push)

Same as holding down the Jog Dial.

Ctrl + BS Same as pressing the BACK button.

Ctrl + BS (Long Push) Same as holding down the BACK button.

Combination Function

Ctrl + (Blue) + S Turns off your CLIÉ handheld using Power Saving

mode.

01US01COV.book Page 105 Friday, June 20, 2003 6:29 AM

106

Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1)

Locating the components of the CLIE 3D

Launcher

Tip

If a different screen is displayed, tap (Home).

AScroll Bar

B3D Adjust Bar

Scroll the bar with the stylus to adjust

the 3D degree.

CResize Application Icon

Tap to change application icons to

small or large.

DInformation Icon

Tap to display the information for a

selected application icon.

EApplication Summary Area

Description of a selected application

is displayed here

FApplication Icons

GFavorite Applications

(shortcuts)

You can create shortcuts to favorite

applications.

HCLIE 3D Launcher Groups List

The list of CLIE 3D Launcher groups

is displayed.

IStatus Bar

(page 108)

JResize Icon

If you tap this icon, the screen view

will be switched.

KCalculator

Tap to display the on-screen

Calculator.

LFind Icon

Tap to display the dialog box finding

data or applications.

MBrightness Adjustment Icon

Tap to display the dialog box for

adjusting brightness.

01US11NAM.fm Page 106 Friday, June 20, 2003 2:21 PM

107

Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1)

CLIÉ™ handheld components

NGraffiti 2 Writing Area

Write strokes of Graffiti 2 here.

Decuma Input can be launched

from this area.

For details, refer to “Entering text on

your CLIÉ™ handheld: Using

Decuma Input to enter text” in the

supplied “Handbook”.

OMenu Icon

Tap to display menu of the current

application.

PHome Icon

Tap to display the CLIE 3D Launcher

or Palm OS Standard Screen.

01US01COV.book Page 107 Friday, June 20, 2003 6:29 AM

Ce manuel convient aux modèles suivants

Autres manuels Sony portable

Sony

Sony CLIE PEG-T415 Manuel utilisateur

Sony

Sony CLIE PEG-S320 Manuel utilisateur

Sony

Sony PEG-TJ25 CLIE Handbook (primary manual) Manuel utilisateur

Sony

Sony PEG-NZ90 Intellisync Manuel utilisateur

Sony

Sony PEG-TG50 - Personal Entertainment Organizer Manuel utilisateur

Sony

Sony PEG-UX50 - Clie Handheld Manuel utilisateur

Sony

Sony PEG-SL10 - CLIE Handheld Manuel utilisateur

Sony

Sony CLIE PEG-NX73V Mode d’emploi

Sony

Sony CLIE PEG-NX73V Guide de démarrage rapide

Sony

Sony PEG-N710C Memory Stick Gate v2.0 Feuille d'instructions

Sony

Sony CLIE PEG-UX40 Mode d’emploi

Sony

Sony CLIE PEG-TH55 Manuel du système

Sony

Sony CLIE PEG-S300 Manuel utilisateur

Sony

Sony VAIO SVJ2021 Manuel utilisateur

Sony

Sony PEG-TJ25 CLIE Handbook (primary manual) Mode d'emploi

Sony

Sony PEG-NZ90 - Personal Entertainment Organizer Manuel utilisateur

Sony

Sony CLIE PEG-TJ27 Mode d’emploi

Sony

Sony CLIE PEG-N610C Manuel utilisateur

Sony

Sony CLIE PEG-S320 Guide de l'utilisateur

Sony

Sony CLIE PEG-T615C Manuel utilisateur

Sony

Sony CLIE PEG-TJ27 Manuel utilisateur

Sony

Sony PEG-S300 Read This First Manuel utilisateur

Sony

Sony PEG-SL10 - CLIE Handheld Manuel utilisateur

Sony

Sony CLIE PEG-TJ27 Manuel utilisateur

Manuels portable populaires d'autres marques

Honeywell

Honeywell Dolphin 9900 Manuel utilisateur

Honeywell

Honeywell CN75 Manuel utilisateur

MiTAC

MiTAC Mio 168 Manuel utilisateur

Wasp

Wasp WDT92 Manuel utilisateur

Texas Instruments

Texas Instruments TI-Nspire Manuel utilisateur

AXEM Technology

AXEM Technology MBS Manuel utilisateur

Armstrong

Armstrong Brain Wave Instructions de montage

Unitech

Unitech TB128 Manuel utilisateur

Symbol

Symbol MC9000-G Manuel d'installation et d'exploitation

Unitech

Unitech HT1 1D Batch Manuel utilisateur

Ingenico

Ingenico IWL220 GPRS Manuel utilisateur

Intermec

Intermec CK61 Manuel utilisateur

Symbol

Symbol c2000 Manuel utilisateur

Symbol

Symbol MC18 Manuel d'installation et d'exploitation

Acer

Acer n20 Manuel utilisateur

Intermec

Intermec CK61 Manuel utilisateur

Docomo

Docomo F-04H Manuel utilisateur

Toshiba

Toshiba e350 Series Manuel utilisateur
