Operating Instructions for Web Control Function

Contents

Introduction ............................................................................................................................................................3

1. Open the Web page ..........................................................................................................................................3

2. Identify a user ...................................................................................................................................................3

3. Select a tool .......................................................................................................................................................5

4. How to use "Controller" .................................................................................................................................6

5. How to use "Dial/Disconnect" .........................................................................................................................8

6. How to use "Phone Book" ...............................................................................................................................9

7. How to use "Setup" ........................................................................................................................................12

8. How to use "Info" ..........................................................................................................................................15

9. Monitor a meeting over the Web ..................................................................................................................18

10.How to use “FTP” ..........................................................................................................................................19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

“IPELA” and are trademarks of Sony Corporation.

Introduction / 1. Open the Web page / 2. Identify a user 3

Introduction

This document introduces the Web Control Function which is used to operate the PCS-TL50 over a LAN. The Web

Control Function helps you control the PCS-TL50, or change its setup configuration, using a Web browser installed on

your PC, such as Internet Explorer or Netscape Navigator. The following is a set of Operating Instructions for the Web

Control Function.

Internet Explorer is a product of the Microsoft Corporation. Please use Version 5.0, or above (Version 6.0

recommended).

Netscape Navigator is a product of Netscape Communications Corporation. Please use Version 6.2, or above (Version

7.0 recommended).

1. Open the Web page

Enter the IP address assigned to the PCS-TL50 in the address line of your browser.

The format of an address is:

http://XXX.XXX.XXX.XXX/

For instance, if the IP address is "192.47.100.117", enter "http://192.47.100.117/" in the address line.

Note

When a proxy server in an external network segment has been set, the Gateway address in the PCS-TL50 LAN setting

must also be set. Or set your Web browser proxy setting to "No Proxy" for the PCS-TL50.

2. Identify a user

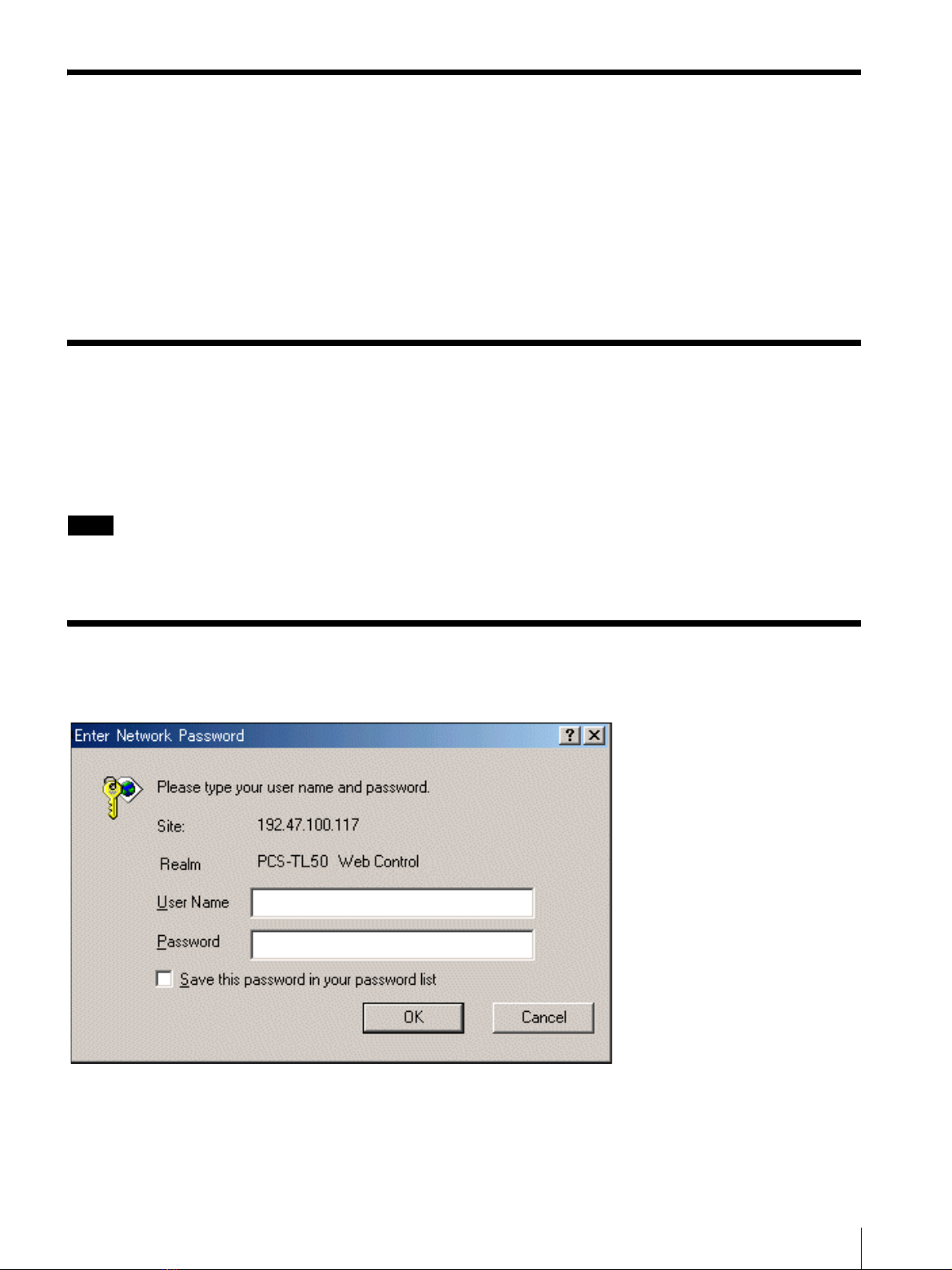

Once you reach the Web page, the following window will be displayed asking you to identify yourself as the user.

Enter one of the following user names (see below) into the "User Name" box and the corresponding password into the

"Password" box, then click the [OK] button.

2. Identify a user

Each character of a password is shown as "*" on the screen. When the user name and password are correct, the "Dial/

Disconnect" page will come up. If an incorrect user name or password is entered three times, an error message appears

on the screen.

Notes on the user name and the password

• When you enter "user" in the "User Name" box and then its password (Remote Access Password) in the "Password"

box, you can access and check the "Phone Book" and "Setup" pages.

• When you enter "super" in the "User Name" box and then its password (Superuser Password) in the "Password" box,

you can access the "Phone Book" page, change the setting of the page, and register a new entry onto the page. And

you can check the "Setup" page.

• When you enter "sonypcs" in the "User Name" box and then its password (Administrator Password) in the "Password"

box, you can access the "Phone Book" page, change the setting of the page, and register a new entry onto the page.

And you can check and modify the "Setup" page.

• If the corresponding password is not assigned, leave the "Password" box blank and click the [OK] button.

• Administrator Password, Superuser Password and Remote Access Password settings are in the Administrator Setup

menu.

3. Select a tool 5

3. Select a tool

By clicking a tool button on the top part of the page, you can jump to the corresponding tool page. A brief introduction

of each tool is presented below.

•[Controller]

Controls the PCS-TL50 using the on-screen controller, or controls using the on-screen Remote Commander in the same

manner as you do with the PCS-RTL50 Remote Commander.

• [Dial/Disconnect]

Calls a remote party, or ends a meeting.

•[PhoneBook]

Displays the dial list.

Connects from the dial list.

Registers, confirms or edits the dial list.

For a private address book, the "Phone Book" button changes to the "Private Address

Book" button.

•[Setup]

Confirms or modifies the setup.

Sends messages.

Resets the setup functions (only when "sonypcs" has been entered as the user name).

•[Info]

Displays the connection status, line status, or other machine information.

Displays the "Cause Code."

Displays the "Call Log"(only when "sonypcs" has been entered as the user name).

•[Monitor]

Monitors a meeting being held with the PCS-TL50 over the Web.

Note

When Web Monitor is set to Off in the Administrator Setup menu, the "Monitor" page cannot be used.

•[FTP]

Downloads the still images uploaded from the FTP server.

You can save the downloaded images in the “Memory Stick” inserted into the PCS-TL50 and use them for the Phone

Book and One Touch Dial registration.

4. How to use "Controller"

To control the PCS-TL50 from the on-screen controller

When you click the [Controller] button, the on-screen control panel appears. By clicking the buttons on this control

panel, you can control the PCS-TL50, sending still images, operating the camera, registering preset camera settings, and

so on.

For example, in order to preset and load a camera setting:

ASet the camera at the desired position using the Camera Control buttons.

BClick one of the "Preset Save" 1 to 6 buttons on the image.

CThe preset is done.

DClick one of the "Preset Load" 1 to 6 buttons on the image to load it.

4. How to use "Controller" 7

To control the PCS-TL50 from the on-screen Remote Commander

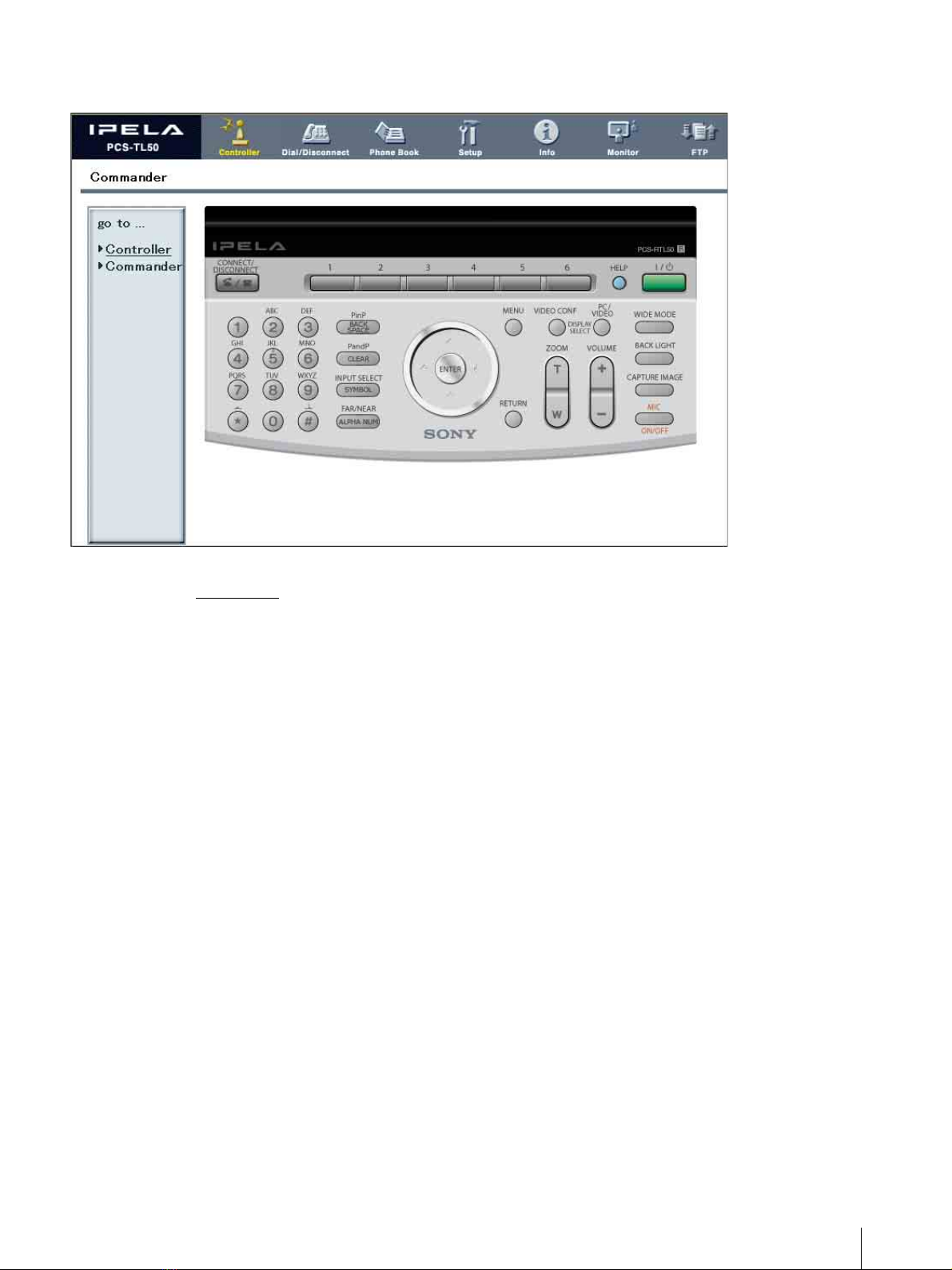

When you click BCommander on the left part of the screen, the Remote Commander screen appears.

By clicking the various buttons on the Remote Commander image, you can control the unit in the same way you can

when using a real Remote Commander (PCS-RTL50), operating the camera, and dialing phone numbers.

5. How to use "Dial/Disconnect"

By clicking the [Dial/Disconnect] button, you can jump to the "Dial/Disconnect" page.

• To connect:

AEnter the telephone number(s) of a remote party into the box(es): A1( to C2) (When using a LAN, enter an IP address

or a DNS name.)

BSet the communication attribute.

CClick the [DIAL] button.

DThe message, "Now dialing..." appears.

EAfter the connection is made, the message, "Connect OK." will appear, and the screen will return to the "Dial/

Disconnect" page.

• To disconnect:

AClick the [DISCONNECT] button.

BThe message, "Now disconnecting..." appears.

CAfter the disconnection is completed, the message "Disconnect OK." will appear, and the screen will return to the

"Dial/Disconnect" page.

• To clear the dial number:

AClick the [CLEAR] button.

BThe number(s) entered on this menu will be cleared and the screen will return to the "Dial/Disconnect" page.

Note

When More Options Enable is set to Off in the Dial Setup menu, only Line I/F and LAN Bandwidth are displayed.

6. How to use "Phone Book" 9

6. How to use "Phone Book"

By clicking the [Phone Book] button, you can jump to the "Phone Book list" page.

• To connect:

AClick sDial next to the index title that you are dialing. Then, the message, "Now dialing..." will appear.

BAfter the connection is made, you will see the message, "Connect OK.," and the screen will return to the list page.

6. How to use "Phone Book"

"Phone Book-Edit" page

• To edit the communication attribute (only when "super" or "sonypcs" has been entered as the user

name):

AClick sEdit... next to the index title whose communication attribute you want to edit or modify on the list page.

Then, the "Phone Book-Edit" page will appear.

BEdit or modify the telephone numbers and attributes.

CClick the [SAVE] button. After saving the changes, the screen will return to the list page.

• To delete data from the Phone Book (only when "super" or "sonypcs" has been entered as the user

name):

AClick sEdit... next to the index title whose data you want to delete on the list page. Then, the "Phone Book-Edit"

page will appear.

BClick the [DELETE] button. After the deletion is complete, the list page will appear.

• To return to the list page:

AClick sReturn on the left part of the page. The list page will appear.

Note

When More Options Enable is set to Off in the Dial Setup menu, only Line I/F, Number of Lines, LAN Bandwidth and

One Touch Dial are displayed.
