VGN-SRxx Series Optical Disk Drive

Replacement Instructions

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N Rev. X2 1/2

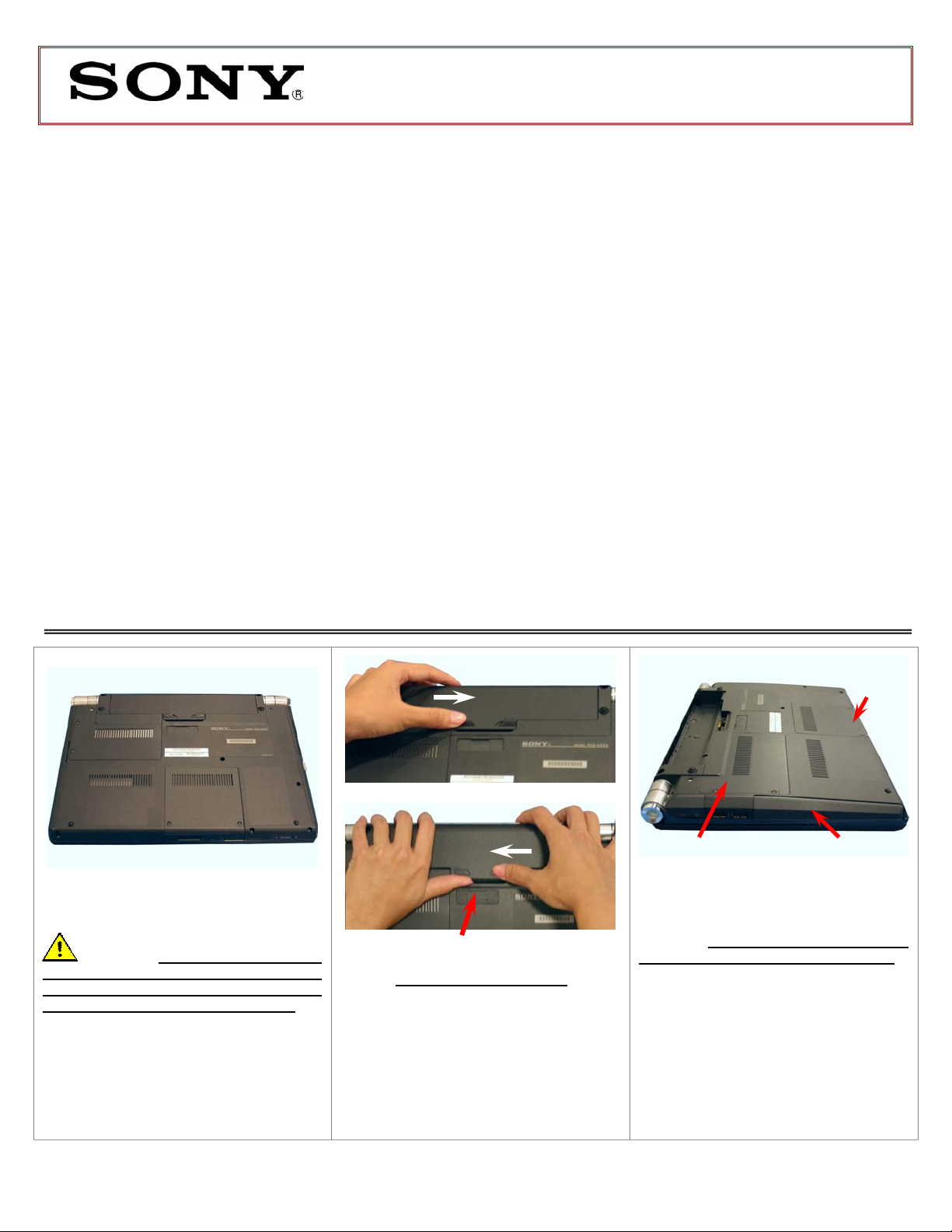

Step 1. Prepare the Computer.

CAUTION: Make sure the computer

is turned off, the lid is closed, and the AC

Adapter is disconnected. Failure to do so

can result in damage to the computer.

Place the computer upside down on a

protected surface with the front edge

facing you.

Step 2. Remove the Battery Pack.

1. Slide the left battery tab to the

unlock position.

2. With your right thumb, slide the

right battery tab in the release

direction and hold.

3. Remove the battery by lifting the

side where the arrow is pointing.

(ODD Removal) Steps 3-8

Step 3. Locate ODD Bay, Memory

Access Cover and HDD Access Cover.

Rotate the computer with the Optical

Disk Drive (ODD) Bay facing you as

shown in the picture. The Memory and

HDD access covers will need to be

removed to reveal the screws securing

the ODD in place.

These easy instructions are intended to guide you through the replacement process. If you need

additional help, please call 1-866-651-7669 for technical support from 9:00 am to 11:00 pm EST.

9Before you begin, place your notebook computer on a clean or covered surface to avoid

damage to the computer's case.*

9Follow the ESD (Electrostatic Discharge) damage prevention instructions:

oHold parts by the edges, away from exposed circuitry when possible.

oDo not walk around excessively as this promotes static build-up.

9Remove jewelry before you begin work to avoid scratching the surface of your notebook

computer.*

9The appearance of the electronic components shown in the illustrations may be different from

the components shipped. This slight difference does not affect the accuracy of these

instructions.

* Sony is not responsible for any loss of data associated with your computer or any damage caused by

incorrect handling of the computer under these procedures. The terms of your Sony limited warranty

continue to a

IMPORTANT!

PLEASE READ BEFORE YOU START

ODD Bay

Lift to remove

Push left tab in the unlock position

Memory

ccess

Cover

HDD Access Cover

VGN-SRxx Series Optical Disk Drive

Replacement Instructions

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N Rev. X2 2/2

Step 4. Using the magnetic screwdriver,

loosen the four screws securing the Memory

and HDD access covers.

Step 5. Remove the Memory and HDD

access covers. Start by lifting from the side

where the screws held them in place.

Step 6. Remove the two (2) screws shown

in the picture. These are the screws that

secure the ODD in place.

Step 7. To initiate the removal of the ODD

Bay, pull slightly the ODD door as shown in

the picture.

Step 8. With even force, slide out the ODD

as shown. Some force may be required to

unlock the ODD from the connector.

(ODD Reinstallation) Steps 9-12

Step 9. Hold the new ODD Bay by the

edges and align it with the opening.

IMPORTANT! Install the new ODD in the

correct position as shown in picture.

Step 10. Make sure the new ODD Bay is

seated flush on the edge of the computer.

Step 11. Reinstall the two (2) screws

securing the ODD in place.

Step 12. Reinstall the Memory and HDD

access covers.

Reinstall the battery pack. Return the old

ODD to Sony following the included

shipping instructions.
