Main Features

The XC-505/505P is a small color video camera module

that incorporates a 1/3-type IT CCD.

Main Features

Small Size and Lightweight

The camera is so small and light that you can install it

anywhere: even in locations where conventional video

cameras cannot be installed.

High Sensitivity

A built-in Super HAD II (Hole Accumulated Diode II)

sensor, allows high sensitivity, low smear images. You can

shoot, even under poor lighting conditions.

Simple Configuration via DIP Switch

Gain, shutter speed, and white balance can be configured

using the 8-bit DIP switch located on the side of the unit.

Five White Balance Adjustment

Settings

Using the white balance DIP switches, you can choose

from among five white balance modes (3200K/5600K/

One Push WB/ATW/MAN) to choose the best settings for

shooting conditions, and the most appropriate color

compensation.

Electronic Shutter with a Wide

Range of Operating Speeds

Using the electronic shutter DIP switches, these levels of

shutter speed (OFF, 1/1,000, and FLICKERLESS) are

available to allow you to match the shutter speed to the

shooting conditions.

When you set the DIP switches for the CCD IRIS function,

the shutter speed is adjusted automatically, based on the

amount of light allowed to enter, ensuring the most

appropriate level of image signal.

Advanced settings can be configured via RS-232C serial

communication. For details, see “Communication

Specifications” on page 14.

Function Setting via RS-232C

Transmissions

Using computer communications software such as

HyperTerminal and Tera Term, function switching can be

performed.

A variety of functions such as NR (2D/3D), edge

enhancement, γ, Nega/Posi, and Flip can be set via serial

communication. For details, see “Communication

Specifications” on page 14.

Overview

4Connection Diagram

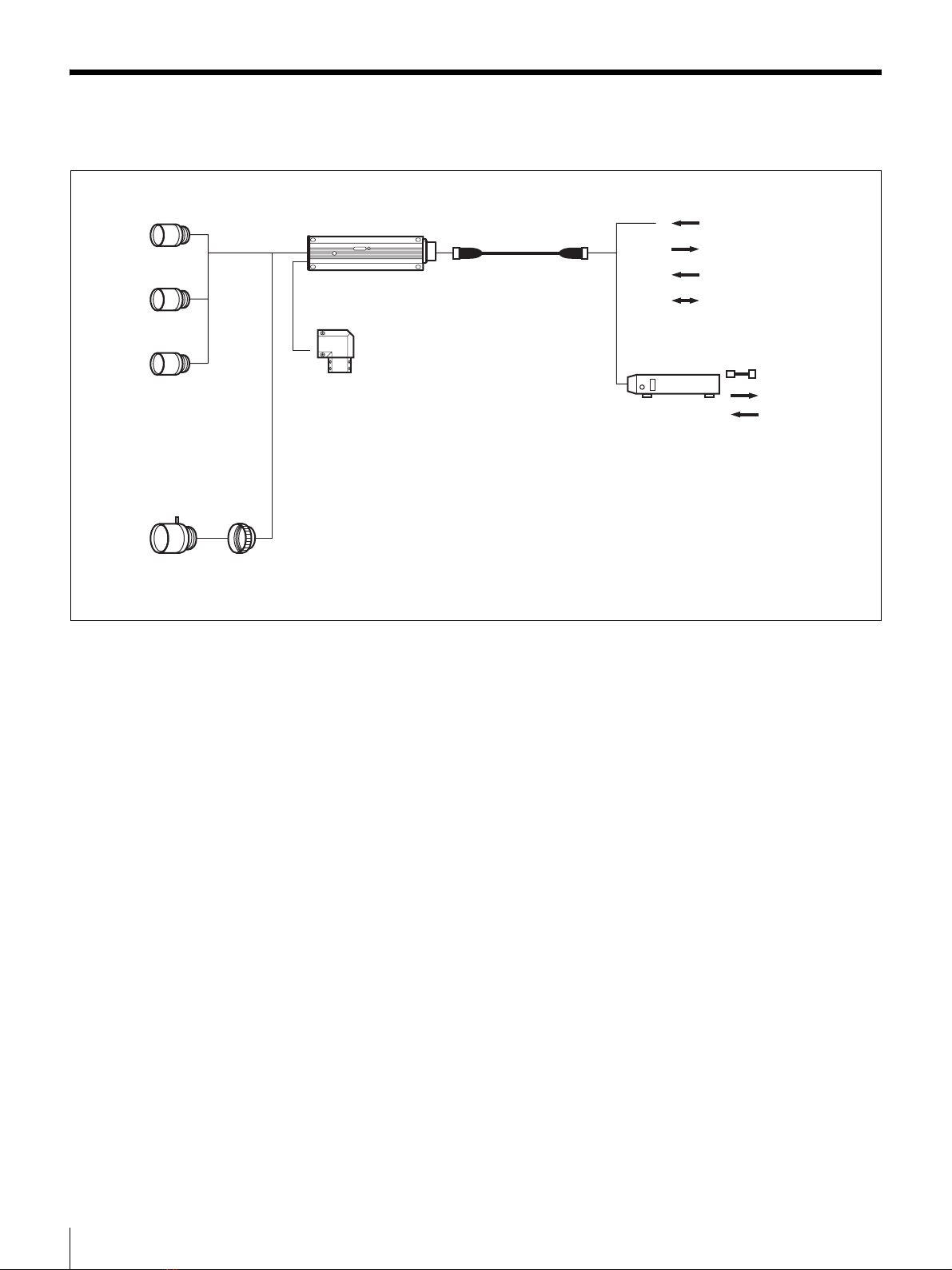

Connection Diagram

VCL-12S12XM

VCL-06S12XM

C mount lens

(Manual iris)

LO-999CMT

(C-mount adaptor)

12P 12P

CCXC-12P02N

05N

10N

25N

NF mount lens

VCL-03S12XM

DC12V

VIDEO

DC-700 HD/VD, VS, VBS

VIDEO

XC-505/505P

HD/VD, VS, VBS

RS-232C

XCK-L555

(Angle case kit)

Connection Diagram

XCK-L555 Angle Case Kit

The XCK-L555 allows you to bend the XC-505/505P 90

degrees horizontally (HL).

You can install XC-505/505P in only HL (horizontal)

directions. VL (vertical) is not available with this model.

Dimensions

Angle type

On the upper position of the Front block zis located. Set

the direction correctly while looking at the Front block

from the front so that zis in the upper position.

Dip switch: rear

Installation

Use angle case A/B and screws.

Remove the four screws (+PM1.7 × 3) from the front

panel.

The front block will pop out due to pressure from the

flexible cable.

Attach the angle case (B) to the underside of the front

block.

Do not pull the front block out forcibly. If you do so,

you may damage the flexible cable.

Attach the angle case (A) to the front block.

Note

85.3

74.3

505HL

UNIT: mm

Note

Front

block

Camera case

Flexible cable

Angle case (B)

Angle case (A)

6Connection Diagram

Insert the front block into the camera case, and attach

it securely using the four screws (+PM1.7 × 3)

removed in step 1.

Tighten the screws to a torque level of 0.15 N•m for

the XC-505/505P.

Using the four screws (+K2 × 2.5) provided, attach

the angle case (A/B) and the front block securely.

Tighten the screws to a torque level of 0.18•Em.

Note

Screw (+PM1.7 × 3)

Screw (+K2 × 2.5)

Location of Parts and Operation

aDip switches for setting functions

This switches are used to adjust white balance and shutter

speed; and to flip AGC (ON/OFF) and output signals (Y/

C/VBS).

For details, see “Mode Setting by Dip Switch” on page 8.

bOne Push WB switch

One Push white balance functions when the white balance

adjustment mode is set to One Push WB. The white

balance is automatically adjusted when this switch is

pressed, and the color balance is retained after adjustment.

cNF mount

dDC IN/SYNC/VIDEO connector (multi 12-pin)

This connector inputs DC 12 V power and outputs the

video signal when the CCXC-12P02N/12P05N/12P10N/

12P25N camera cable is connected.

If the unit is connected to devices that originate a

synchronized signal, the external synchronous signal (VS,

VBS, HD/VD) can be used to move the color camera

module.

VBS signals input as external synchronized signals

perform the same functions as VS signals. (Burst signals

are not locked and are free running.)

8Mode Setting by Dip Switch

Pin Assignment of the DC IN/SYNC/

VIDEO Connector Mode Setting by Dip

Switch

By flipping the DIP switches located on the side of this

camera, you can adjust the following functions.

Each switch is assigned to a function. The switches that

should be set to adjust a certain function (white balance,

shutter speed), to switch the AGC (ON/OFF), or to switch

the output signals (Y/C/VBS) are specified and indicated

by shading in the illustrations of the corresponding

descriptions of the function. The switches that are not

shaded are not related to these functions.

Factory Settings

White balance: ATW

Shutter speed: OFF

AGC: ON

Output signal (Y/C/VBS): VBS

Signal

Rin No.

Sync signal types

External Sync signal Internal Sync

signal

HD, VD VS/VBS Input

1 GND GND GND

2 +12 V +12 V +12 V

3 VBS/Y Output

(GND)

VBS/Y Output

(GND)

VBS/Y Output

(GND)

4 VBS/Y Output

(signal)

VBS/Y Output

(signal)

VBS/Y Output

(signal)

5 HD Input (GND) – –

6 HD Input

(signal)

––

7 VD Input

(signal)

VS/VBS Input

(signal)

–

8 GND (–/C) GND (–/C) GND (–/C)

9 –/C Output

(signal)

–/C Output

(signal)

–/C Output

(signal)

10 RS-232C (TXD)

11 RS-232C (RXD)

12 VD Input (GND) VD Input (GND) GND

RS-232C (GND)

456

11 12

Note

Mode Setting by Dip Switch

To Adjust the White Balance

Select the white balance setting according to the lighting

conditions.

To adjust the white balance, use bitXX (the shaded

switches).

The correct white balance is obtained when a white subject

is shot on the whole detection area.

The correct color reproduction may not be obtained during

a normal scene shooting.

To Adjust the Shutter Speed

Set the shutter speed switches to select the desired shutter

speed. Using the CCD IRIS function, set the CCD IRIS

mode.

To adjust the shutter speed, use the shaded switches.

AGC (Auto Gain Control) ON/OFF

To switch the AGC on or off, use the shaded switch.

To Switch the Output Signals (Y/C/

VBS)

Select the camera output signal.

To switch the output signals (Y/C/VBS), use the shaded

switch.

Lighting condition DIP switch

setting

3200K

(fixed)

For indoor shooting under

incandescent light.

5600K

(fixed)

For outdoor shooting on

sunny days.

One Push WB

(One Push

white balance)

The white balance is

automatically adjusted

when the One Push WB

switch is pressed, and the

color balance is retained

after adjustment.

AT W

(auto tracing

white balance)

The white balance is

adjusted according to the

color temperature

transition of the subject.

This mode is suitable for

shooting with variable

lighting (factory setting).

MAN

(manual)

Manual white balance is adjusted using the

DIP switches in combination with the One

Push WB switch.

Red hues are subdued

with each press of the

One Push WB switch.

Red hues are enhanced

with each press of the

One Push WB switch.

Blue hues are subdued

with each press of the

One Push WB switch.

Blue hues are enhanced

with each press of the

One Push WB switch.

Note

1······8

Shutter speed DIP switch

setting

OFF 1/60 sec. (XC-505)

1/50 sec. (XC-505P)

(factory setting)

1/1000 1/1,000 sec.

CCD IRIS Set the CCD IRIS mode.

FLICKERLESS

1/100 sec.

Gain DIP switch

setting

ON Auto gain control

(factory setting)

OFF 0 dB

Output signal DIP switch

setting

VBS Select this position to

output the VBS signal

from the DC IN/VIDEO

(factory setting).

Y/C Select this position to

output the Y/C separated

signal from the DC IN/

VIDEO connector.

1······8

10 Installation

Installation

Usable Lenses

•NF-mountlens

- VCL-06S12XM (f=6 mm)

- VCL-03S12XM (f=3.5 mm)

- VCL-12S12XM (f=12 mm)

The mounting thread of the NF-mount lens should not

extend more than 4.1 mm from the lens mount shoulder

(See below).

• C-mount lens

C-mount lens for 1/3-type sensor (The mounting thread

should not extend more than 4.1 mm from the lens mount

shoulder) (See below). When a C-mount type lens is

attached, a C-mount adaptor (LO-999CMT) is required.

• When connecting a heavy lens, make sure that it is

supported properly.

• When connecting heavy lens, make sure that it is not

subject to shocks or vibration.

To Attach a Lens

Remove the lens mount cap by turning it

counterclockwise.

Screw the C-mount adaptor (LO-999CMT) into the

lens mount of the camera. (only when using a C mount

lens)

Screw the lens.

Notes

4.1 mm or

less

Lens mount

shoulder

Autres manuels pour XC505

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony Accessoires pour appareils photo

Sony

Sony CBK-55BK Manuel utilisateur

Sony

Sony IPT-DS1 - Party-shot Digital Camera Docking... Manuel utilisateur

Sony

Sony MPK-PEA Manuel utilisateur

Sony

Sony FDA-EV1MK Manuel utilisateur

Sony

Sony VCT-670RM Manuel utilisateur

Sony

Sony CAC-6 Manuel utilisateur

Sony

Sony VG-C4EM Manuel utilisateur

Sony

Sony SAL-24105 Manuel utilisateur

Sony

Sony HDVF-9900 Manuel utilisateur

Sony

Sony VF-62CPK Manuel utilisateur

Sony

Sony MPK-THA Manuel utilisateur

Sony

Sony SPK-TRV1 Manuel utilisateur

Sony

Sony SPK-WB Marketing Manuel utilisateur

Sony

Sony SPK-CXA Manuel utilisateur

Sony

Sony VG-C90AM Manuel utilisateur

Sony

Sony HVR-Z1J Manuel utilisateur

Sony

Sony SH-L32W Manuel utilisateur

Sony

Sony XCD-SX910CR Manuel utilisateur

Sony

Sony PR10-D6A Manuel d'instructions d'installation

Sony

Sony VCT-550RM Manuel utilisateur

Sony

Sony XC-ST30 Manuel utilisateur

Sony

Sony MPK-THG Manuel utilisateur

Sony

Sony Electronic Viewfinder HDVF-C30W Manuel utilisateur

Sony

Sony UNI-ID7T3 Manuel utilisateur

Manuels Accessoires pour appareils photo populaires d'autres marques

Viltrox

Viltrox EF-NEX Instructions d'installation

Calumet

Calumet 7100 Series CK7114 Manuel utilisateur

Ropox

Ropox 4Single Series Manuel utilisateur

Cambo

Cambo Wide DS Digital Series Mode d'emploi

Samsung

Samsung SHG-120 Manuel utilisateur

Ryobi

Ryobi BPL-1820 Manuel d'utilisation

Aegis

Aegis ABL-36020P Manuel utilisateur

Pentax

Pentax Data Back Fc Manuel utilisateur

Fantasea

Fantasea EyeGrabber F Series Manuel utilisateur

Honeywell

Honeywell HDZ20HD Manuel utilisateur

EGO

EGO BA1400T Manuel utilisateur

Sima

Sima SRW-62 Manuel utilisateur

Shape

Shape A7SSMKIT Manuel utilisateur

Slide Kamera

Slide Kamera HST-2 Manuel utilisateur

Power works

Power works 2902613 Manuel utilisateur

SES

SES SE-2047-2 Manuel utilisateur

Olympus

Olympus PT-EP05L Manuel utilisateur

Starlite

Starlite OctoDome nxt Manuel utilisateur
