SERVICE MANUAL

Ver. 1.1 2006. 09

SPECIFICATIONS

Material

Plastic (PC, ABS), glass

Waterproof

O-ring, buckles

Built-in microphone

Stereo

Dimension

Approx. 159 ×148 ×203 mm (w / h / d) (6 3/8 ×5 7/8 ×8 inches)

Mass

Approx. 930 g (2 lb 1 oz) (only sports pack)

Included items

Sports pack (1), Shoulder strap (1), Camera mounting shoe (A (1)/B (1)/C (1)),

Tripod screw plate (1), Reflex prevention ring (Ø 25 (1)/M30 ×Ø 62 (1)/M30 ×Ø 43

(1)), Grease (1), Spacer (1), Anti-fogging lens solution (1), Desiccant (1), Set of

printed documentation

Design and specifications subject to change without notice.

— 2 —

SPK-HCB

TABLE OF CONTENTS

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINEWITH

MARK 0ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS

LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE

COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS

APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS

PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!

LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0SUR LES

DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT

CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE

REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY

DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU

DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

1. Check thearea ofyourrepair for unsolderedorpoorly-soldered

connections. Checkthe entire boardsurfaceforsolder splashes

and bridges.

2. Check the interboard wiring to ensure that no wires are

"pinched" or contact high-wattage resistors.

3. Look for unauthorized replacement parts, particularly

transistors, that were installed during a previous repair. Point

them out to the customer and recommend their replacement.

4. Look for partswhich,through functioning, show obvioussigns

of deterioration. Point them out to the customer and

recommend their replacement.

5. Check the B+ voltage to see it is at the values specified.

6. Flexible Circuit Board Repairing

• Keep the temperature of the soldering iron around 270˚C

during repairing.

• Do not touch the soldering iron on the same conductor of the

circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering

or unsoldering.

SAFETY CHECK-OUT

After correcting the original service problem, perform the following

safety checks before releasing the set to the customer.

1. GENERAL

Precautions on Use ······································································· 3

Handling the O-ring······································································ 3

Maintenance ················································································· 3

Troubleshooting ············································································ 3

Using the Sports Pack··································································· 3

2. REPAIR PARTS LIST

2.1 EXPLODED VIEWS ························································· 5

2-1-1.OVERALL SECTION························································ 5

2-1-2.FRONT CASE SECTION ·················································· 6

ACCESSORIES LIST ·································································· 7

—3 —

SPK-HCB

1. GENERAL

—4 —

SPK-HCB

— 5 —

SPK-HCB

2. REPAIR PARTS LIST

2-1. EXPLODED VIEWS

NOTE:

• -XX, -X mean standardized parts, so they may

have some differences from the original one.

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delayshouldbe anticipated when orderingthese

items.

• Themechanicalpartswith no reference number

in the exploded views are not supplied.

2-1-1. OVERALL SECTION

Ref. No. Part No. Description Ref. No. Part No. Description

1 2-580-983-01 SHAFT, HINGE

2 2-668-973-01 CASE, REAR

03 2-668-985-01 O RING, MAIN (Note1)

4 A-1174-866-A HOOD ASSY, MIRROR

5 2-580-955-01 MIRROR

6 2-580-954-01 HOOD, MIRROR

7 2-580-969-01 SHAFT, BUCKLE

8 2-589-138-01 RETAINER, GRIP

9 3-076-866-01 BIND (2X6), TAPPING SCREW

10 A-1105-402-A GRIP BELT ASSY

11 2-634-715-01 TUBE, GRIP BELT

12 2-580-957-01 BUCKLE

13 3-951-813-11 SCREW (2X6) (TYPE 2), +K

014 3-073-881-01 CAP (RED), AIR PUNCHING

15 2-580-959-01 KNOB, BUCKLE SLIDER

16 2-589-297-01 LOCK, BUCKLE

17 2-589-298-01 SPRING, BUCKLE LOCK

18 2-593-190-01 SLIDER (LOWER), BUCKLE

19 2-651-030-01 SPRING, SLIDER

20 2-580-958-01 SLIDER, BUCKLE

21 2-580-961-01 PLATE, BUCKLE RETAINER

22 3-052-424-01 SHAFT, GRIP

(Note1) When putting grease the main O-ring (Ref. No. 3),

always use the grease of the blue tube of the accessory.

When using the grease of the yellow tube and the grease

of the other Inc., it hurts the main O-ring and it causes the

water leakage.

Note :

The marked “

” are parts in

relation to waterproof.

Replacethesecomponents with

Sony parts.

Be sure to check up waterproof

after repair.

Note :

La0marquée sontdes piècespar

rapport à imperméable à l’eau.

Ne les remplacer que par une

pièceportant lenumérospécifié.

Soyez sûrdevérifiervers lehaut

d’imperméable à l’eau après la

réparation.

(Note 1)

Front case section

(See page 6)

ns : not supplied

— 6 —

SPK-HCB

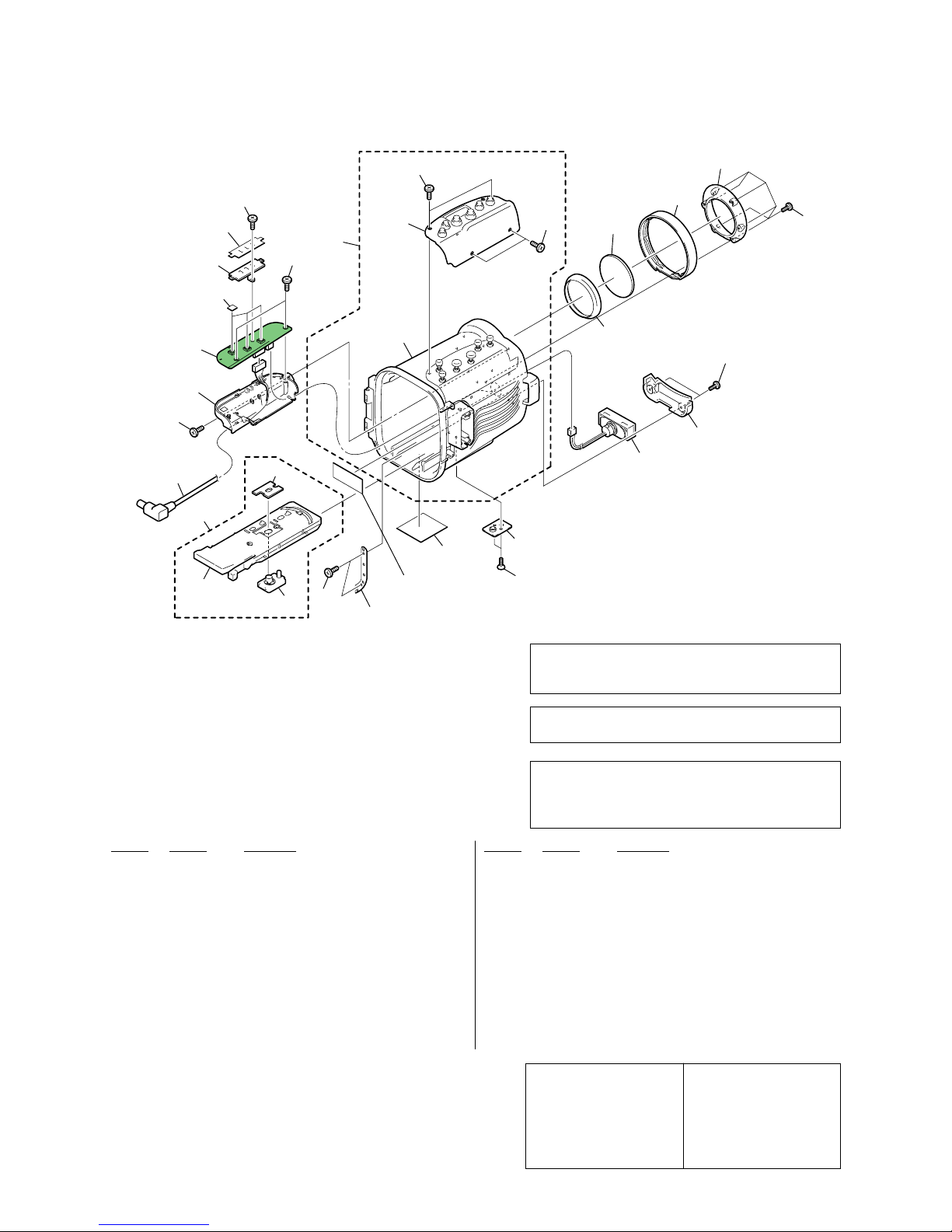

2-1-2. FRONT CASE SECTION

Ref. No. Part No. Description Ref. No. Part No. Description

51 3-076-866-01 BIND (2X6), TAPPING SCREW

52 A-1175-085-A SPK-001 BOARD, COMPLETE (Note2)

53 2-668-979-01 BOX, CONTROL

54 - CAUTION - HIMERON

*55 3-959-469-01 PLATE, TRIPOD SCREW

56 3-091-040-01 SCREW (2.6X6), TAPPING

57 2-668-974-01 LENS (WINDOW RETAINER)

58 2-668-987-01 GLASS, LENS WINDOW

059 2-668-986-01 PACKING, LENS WINDOW (Note3)

60 X-2108-848-1 FRONT CASE ASSY

061 A-7095-209-A MICROPHONE BLOCK ASSY

62 2-668-980-01 LIGHT, GUIDE,

63 2-342-952-01 SCREW (1.7X4 #0-1), TP

64 2-668-977-01 COVER, MICROPHONE

65 2-668-992-01 SHEET, INDICATION

66 2-668-976-01 COVER, CONTROL

67 1-832-162-11 CORD, CONNECTION (AV MULTIPLE)

68 A-1174-862-A BASE (A) BLOCK ASSY

69 X-2048-702-1 BASE ASSY, SCREW

70 2-593-204-01 LABEL, TEMPERATURE CAUTION

71 2-668-975-01 COVER, LENS WINDOW

72 2-668-993-01 COVER, CODE

ns : not supplied

(Note2) In this model, parts are exchange in order to repair only

the mounted board.

CAUTION :

For the part of 54: HIMERON (3-091-327-01) , cut WOVEN (T0.25),

FABRIC NON (3-076-631-01) into the desired length and use it.

Note :

The marked “

” are parts in

relation to waterproof.

Replace these components with

Sony parts.

Be sure to check up waterproof

after repair.

Note :

La 0marquée sont des pièces par

rapport à imperméable à l’ eau.

Ne les remplacer que par une

pièce portant le numéro spécifié.

Soyez sûr de vérifier vers le haut

d’ imperméable à l’ eau après la

réparation.

(Note3) When putting grease the lens window packing (Ref. No.

59), always use the grease of the blue tube of the acces-

sory. When using the grease of the yellow tube and the

grease of the other Inc., it hurts the lens window packing

and it causes the water leakage.

SPK

-001

65 60

(Note 3)

(SIZE : 12mm

38mm)

(Note 2)

CAUTION

— 7 —

SPK-HCB

Checking supplied accessories.

Other accessories

*2-667-229-11 OPERATING INSTRUCTIONS

(ENGLISH/FRENCH/SPANISH/GERMAN)

*2-667-229-21 OPERATING INSTRUCTIONS

(ITALIAN/DUTCH/PORTUGUESE/SWEDISH)(AEP)

*2-667-229-31 OPERATING INSTRUCTIONS

(RUSSIAN/ARABIC/TRADITIONAL CHINESE/

SIMPLIFIED CHINESE/KOREAN)(AEP)

2-667-230-01 OPERATING INSTRUCTIONS (PREPARATION)

(JAPANESE/ENGLISH/FRENCH/GERMAN/

SPANISH/DUTCH/SWEDISH/ITALIAN/

PORTUGUESE/RUSSIAN/ARABIC/

TRADITIONAL CHINESE/

SIMPLIFIED CHINESE/KOREAN)

Make sure that the following accessories are supplied with your camcorder.

Note :

The marked “

” are parts in

relation to waterproof.

Replace these components with

Sony parts.

Be sure to check up waterproof

after repair.

Note :

La 0marquée sont des pièces par

rapport à imperméable à l’ eau.

Ne les remplacer que par une

pièce portant le numéro spécifié.

Soyez sûr de vérifier vers le haut

d’ imperméable à l’ eau après la

réparation.

Grease (blue)

2-582-620-01

Anti-fogging lens solution

3-072-039-01

Reflex prevention ring (M30

× φ

43)

3-061-059-01

Reflex prevention ring (

25)

3-088-917-01

Reflex prevention ring (M30

× φ

62)

2-668-984-01

2-672-371-01

Shoulder strap

A-1174-864-A

Base (C) block assy

3-959-469-01

Tripod screw plate

A-1174-863-A

Base (B) block assy

Screw base assy

not supplied

Spacer

3-941-348-01

Desiccant

2-672-372-01

Base (A) block assy

A-1174-862-A

X-2048-702-1

Sony EMCS Co.

2006I1600-1

Published by Kohda TEC

9-876-923-82

SERVICE MANUAL

SUPPLEMENT-1

File this supplement-1 with the service manual.

(DI06-067)

• Change of repair parts list

Ver.1.1 2006. 09

Page

XXX

54 - CAUTION - HIMERON

Ref. No. Part No. DescriptionRef. No. Part No. Description

2. REPAIR PARTS LIST

2-1. EXPLODED VIEWS : Deleted portion

Before change After change

2-1-2. FRONT CASE SECTION

SPK-HCB

US Model

Canadian Model

AEP Model

CAUTION :

For the part of 54: HIMERON (3-091-327-01) , cut WOVEN (T0.25),

FABRIC NON (3-076-631-01) into the desired length and use it.

(SIZE : 12mm

38mm)

54 CAUTION

Revision History

987692312.pdf

SPK-HCB

Ver.

1.0

1.1

Date

2006.01

2006.09

History

Official Release

Supplement-1

(DI06-067)

Contents

—

• Change of repair parts list

S.M. Rev.

issued

—

Reverse

Autres manuels pour SPK-HCB

Table des matières

Autres manuels Sony Accessoires pour appareils photo

Sony

Sony HDVF-EL100 Manuel utilisateur

Sony

Sony PCK-LM14 Manuel utilisateur

Sony

Sony VG-C99AM Manuel utilisateur

Sony

Sony DXF-701 Manuel utilisateur

Sony

Sony HDCE-TX30 Manuel utilisateur

Sony

Sony VCT-670-RM Manuel utilisateur

Sony

Sony VG-C77AM Manuel utilisateur

Sony

Sony SPK-CXB Manuel utilisateur

Sony

Sony Alpha HVL-MT24AM Manuel utilisateur

Sony

Sony LCM-FD88 Manuel utilisateur

Sony

Sony CSS-PHB - Cybershot Station For DSCP200 Digital... Manuel utilisateur

Sony

Sony HVL-F20M Manuel utilisateur

Sony

Sony CBK-MH01 Manuel utilisateur

Sony

Sony SPK-CXB Mode d'emploi

Sony

Sony Cyber-shot Marine Pack MPK-WB Manuel utilisateur

Sony

Sony VG-B30AM Manuel utilisateur

Sony

Sony SRMASTER SR-PC4 Manuel utilisateur

Sony

Sony BC M150 Instructions d'installation et d'utilisation

Sony

Sony VCT-MP1K Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Sony

Sony VCT-870RM Manuel utilisateur

Sony

Sony CBK-DCB01 Manuel utilisateur

Sony

Sony SPK-DVF5 Manuel utilisateur

Sony

Sony SPK-HCF Manuel utilisateur

Manuels Accessoires pour appareils photo populaires d'autres marques

Viltrox

Viltrox EF-NEX Instructions d'installation

Calumet

Calumet 7100 Series CK7114 Manuel utilisateur

Ropox

Ropox 4Single Series Manuel utilisateur

Cambo

Cambo Wide DS Digital Series Mode d'emploi

Samsung

Samsung SHG-120 Manuel utilisateur

Ryobi

Ryobi BPL-1820 Manuel d'utilisation

Aegis

Aegis ABL-36020P Manuel utilisateur

Pentax

Pentax Data Back Fc Manuel utilisateur

Fantasea

Fantasea EyeGrabber F Series Manuel utilisateur

Honeywell

Honeywell HDZ20HD Manuel utilisateur

EGO

EGO BA1400T Manuel utilisateur

Sima

Sima SRW-62 Manuel utilisateur

Shape

Shape A7SSMKIT Manuel utilisateur

Slide Kamera

Slide Kamera HST-2 Manuel utilisateur

Power works

Power works 2902613 Manuel utilisateur

SES

SES SE-2047-2 Manuel utilisateur

Olympus

Olympus PT-EP05L Manuel utilisateur

Starlite

Starlite OctoDome nxt Manuel utilisateur
