Installation Instruction, Mechanical

1/00021-1/FEA 209 544/601 B

©Sony Ericsson Mobile Communications AB

Installation Instruction, Mechanical

Applicable for W710 and Z710

Contents

1General............................................................................................................... 2

2Hardware............................................................................................................ 2

2.1 Test Setup ............................................................................................. 2

2.2 Computer............................................................................................... 3

2.3 Service Card Reader/Service Card ....................................................... 3

2.4 Sony Ericsson programming interface cable – DCU-60........................ 3

2.5 Infrared Device ...................................................................................... 3

2.6 Bluetooth Device ................................................................................... 3

2.7 Power Supply ........................................................................................ 4

2.8 Battery Eliminator (optional) .................................................................. 4

2.9 Battery Eliminator Support .................................................................... 4

2.10 Label Printer (optional) .......................................................................... 5

3Software ............................................................................................................. 5

3.1 EMMA III................................................................................................ 5

3.2 Labelmake II software (optional) ........................................................... 5

4Revision History................................................................................................ 5

Installation Instruction, Mechanical

1/00021-1/FEA 209 544/601 B

©Sony Ericsson Mobile Communications AB

2(5)

1 General

This document describes the installation procedure for the Mechanical repair package.

The Mechanical repair package consists of a Computer and Interface Cables. A service

card is required for security reasons. A label printer can be installed to be able to print

new labels (optional).

2 Hardware

All hardware must be approved by Sony Ericsson and is documented in the Equipment

List.

2.1 Test Setup

BLUETOOTH

DEVICE

INFRARED

DEVICE

ZEBRA PRINTER

NULL MODEM CABLE

SERVICE CARD READER

DCU-60

USB CABLE

The equipment in this picture is specified in the Equipment List.

Installation Instruction, Mechanical

1/00021-1/FEA 209 544/601 B

©Sony Ericsson Mobile Communications AB

3(5)

2.2 Computer

IBM compatible computer is required. The computer should include at least two USB-

ports. Refer to Equipment List for minimum requirements.

2.3 Service Card Reader/Service Card

NOTE! The Service Card is only needed for printing labels and when flashing

offline

The Service Card Reader is delivered with the necessary software and instructions for

installation. The Service Card Reader should be connected to an USB-port on the

computer. The Service Card should be inserted into the Service Card Reader.

Smart Card Reader Service Card

2.4 Sony Ericsson programming interface cable – DCU-60

The cable is the interface between the computer and the phone. DCU-60 cable should

be connected to an USB-port on the computer.

2.5 Infrared Device

An RS 232 or USB type infrared adapter or another phone may be used.

Install according to the manufacturer’s instructions.

2.6 Bluetooth Device

Any Bluetooth device as headset, other Bluetooth phone or other Bluetooth device can

be used to verify the Bluetooth function in the phone. Set up the connection according to

the chosen equipments manufacturer instructions.

Installation Instruction, Mechanical

1/00021-1/FEA 209 544/601 B

©Sony Ericsson Mobile Communications AB

4(5)

2.7 Power Supply

A Power Supply according to Mechanical Equipment List may be used.

Set the output of the Power Supply as follows

•Voltage: 3.8Vdc

•Current: 2.0Amps

2.8 Battery Eliminator (optional)

A Battery eliminator is to be used together with a power supply to power the phone.

Connect the cables from the battery eliminator to the power supply, red cable to positive

output terminal and black cable to negative output terminal.

2.9 Battery Eliminator Support

In some situations, a device may be needed to hold the battery eliminator in place when

it is being used. The following is a set of simple instructions for making a support that

holds the battery eliminator in place during use.

1. Obtain a battery cover. (The battery cover is listed in the Mechanical Parts List.)

2. Cut off the bottom half of the battery cover using the dimensions specified in the

picture below.

3. Assemble the Battery Eliminator (Dummy Battery) and modified battery cover to

the phone. Make sure that the Battery Eliminator (Dummy Battery) and the

modified battery cover both mount correctly, easily, and that there is no

interference between the battery cover and the wires of the battery eliminator.

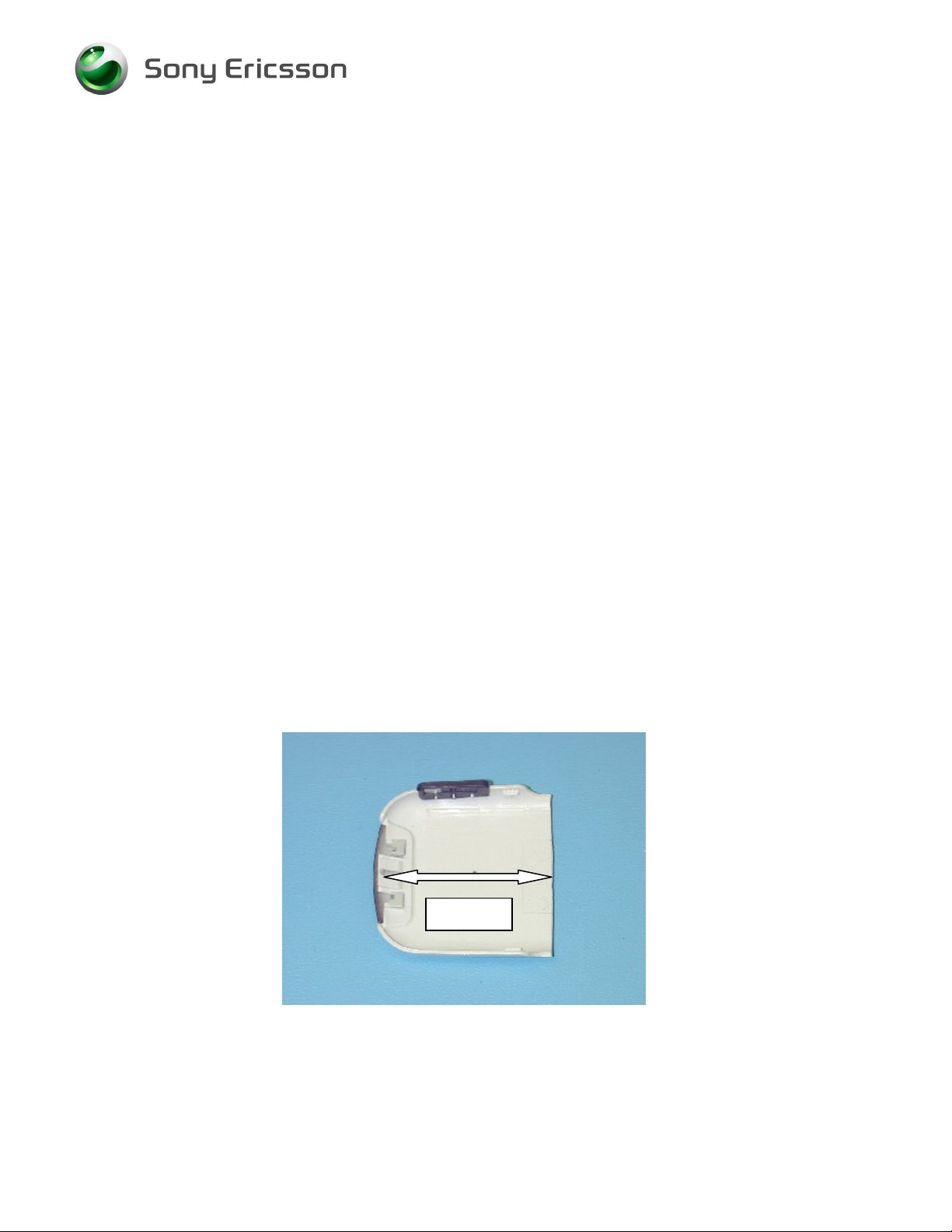

43 MM

Installation Instruction, Mechanical

1/00021-1/FEA 209 544/601 B

©Sony Ericsson Mobile Communications AB

5(5)

2.10 Label Printer (optional)

A Zebra printer shall be used. Connect the printer with a Null Modem cable [refer to the

Zebra printer manual] to the serial port on the computer. Read the Zebra installation

manual for more information about the installation.

3 Software

3.1 EMMA III

EMMA III contains software upgrades and tools required for servicing this phone. Emma

III is accessible through the CSPN web page. Installation and user manuals are

available at the EMMA III start page.

http://ma3.extranet.sonyericsson.com/ma3/

3.2 Labelmake II software (optional)

LabelMake II is an application installed through Java Web Start.

Access the Labelmake II software from CSPN Web page.

You will find LabelMake II in the dropdown menu on the CSPN web page.

http://cspn.extranet.sonyericsson.com

Press “START LabelMake II “button and you will be directed to the LABELMAKE II client

page.

Product labels are downloaded on-line from a remote server database.

4 Revision History

Rev. Date Changes / Comments

A 2006-08-25 Initial Release

B 2006-10-18 Updated Service Card requirements
