SOLTEK SL-PT880E-R Manuel utilisateur

Contents

Item Checkup..................................................................................7

Chapter 1 Specification ............................................. 8

1-1 PT880E-R / PT880E-RL Components Locations ................9

1-2 Chipset System Block Diagram........................................... 10

1-3 Mainboard Specification Table ............................................11

1-4 Mainboard Specifications .................................................... 12

1-4.1 CPU Socket ................................................................................... 12

1-4.2 System Chipsets ........................................................................... 12

1-4.3 Memory ......................................................................................... 12

1-4.4 AGP (Accelerated Graphics Port) interface .......................... 12

1-4.5 BIOS............................................................................................... 13

1-4.6 Multi-I/O Functions: ................................................................... 13

1-4.7 SATA RAID Interface ................................................................. 13

1-4.8 Expansion Slots ............................................................................ 14

1-4.9 Hardware Monitor on board ..................................................... 14

1-4.10 AC’97 Audio Codec on board.................................................. 14

1-4.11 Advanced System Power Management .................................. 14

1-4.12 LAN on board (for PT880E-RL only) .................................... 14

1-4.13 Form Factor................................................................................ 14

Chapter 2 Hardware Setup..................................... 16

2-1 CPU Installation with Socket 478B .................................... 17

2-1.1 To Identify a Pentium 4 CPU..................................................... 17

2-1.2 CPU Installation with Socket 478B .......................................... 18

2-2 Pentium 4 CPU Fan Installation: ....................................... 19

2-3 Memory Installation ............................................................. 20

2-3.1 Dual Channel Memory Features............................................... 20

2-3.2 To Install DDR SDRAM Module .............................................. 20

Contents

2-4 AGP slot Installation ............................................................. 21

2-5 IDE Connector Installation ................................................. 22

2-6 Floppy Drive Connector Installation ................................. 23

2-7 SATA RAID Connectors Installation ................................. 24

2-8 ATX V2.03 Power Supply Installation ............................... 25

2-9 Jumper Settings ..................................................................... 26

2-9.1 JCLK1&JCLK2: CPU Frequency Select ................................ 27

2-9.2 JBAT1: Clear CMOS .................................................................. 28

2-9.3 JKB1: Keyboard / Mouse Wake Up ......................................... 28

2-10 Other Connectors Configuration...................................... 29

2-10.1 On Board FAN Connectors ...................................................... 29

2-10.2 CD-ROM Audio Connector ..................................................... 30

2-10.3 Chassis Panel Connector .......................................................... 30

2-10.4 Thermal Detector....................................................................... 31

2-10.5 PS/2 Mouse And PS/2 Keyboard ............................................. 31

2-10.6 Complex Header ........................................................................ 32

2-10.7 USB Ports and USB Pin-headers ............................................ 34

2-10.8 RJ45 Connector ( for PT880E-RL only)................................ 35

2-10.9 External Audio Connector ...................................................... 35

Chapter 3 Software Setup ....................................... 36

3-1 To Open Up Support CD:..................................................... 37

3-2 VIA 4-IN-1 Drivers Installation .......................................... 38

3-3 To Install AC’97 Audio Driver ............................................ 40

3-3.1 Installation ................................................................................... 40

3-3.2 To verify 6-channel Audio .......................................................... 41

3-4 USB 2.0 Driver installation .................................................. 43

3-5 Install Hardware Monitor Utility ....................................... 45

3-5.1 Installation ................................................................................... 45

3-5.2 Verification .................................................................................. 46

3-6 LAN Driver Installation (for PT880E-RL only)............... 47

3-6.1 Installation ................................................................................... 47

Contents

3-6.2 Verification .................................................................................. 47

Chapter 4 BIOS Setup............................................. 48

4-1 About BIOS Setup ................................................................. 49

4-2 To Run BIOS Setup ............................................................... 49

4-3 About CMOS .......................................................................... 49

4-4 The POST ( Power On Self Test ) ....................................... 49

4-5 To Upgrade BIOS .................................................................. 50

4-5.1 Before Upgrading BIOS ............................................................. 50

4-5.2 Upgrade Process........................................................................... 50

4-6 BIOS SETUP --- CMOS Setup Utility................................ 54

4-6.1 CMOS Setup Utility .................................................................... 54

4-6.2 Standard CMOS Setup ............................................................... 56

4-6.3 Advanced BIOS Features ........................................................... 59

4-6.4 Advanced Chipset Features ....................................................... 62

4-6.4.1 DRAM Clock/Drive Control.................................................... 63

4-6.4.2 AGP & P2P Bridge Control ..................................................... 65

4-6.4.3 CPU & PCI Bus Control .......................................................... 67

4-6.5 Integrated Peripherals................................................................ 68

4-6.5.1 VIA OnChip IDE Device.......................................................... 69

4-6.5.2 VIA OnChip PCI Device .......................................................... 71

4-6.5.3 SuperIO Device ......................................................................... 72

4-6.6 Power Management Setup ......................................................... 74

4-6.6.1 IRQ/Event Activity Detect ....................................................... 77

4-6.7 PnP / PCI Configuration ............................................................ 80

4-6.8 SmartDoc Anti-Burn Shield....................................................... 82

4-6.9 CPU Ratio/Voltage Control........................................................ 83

4-6.10 Load Optimized Defaults ......................................................... 84

4-6.11 SET SUPERVISOR / USER PASSWORD............................. 85

4-6.12 SAVE & EXIT SETUP.............................................................. 86

4-6.13 EXIT WITHOUT SAVING ...................................................... 86

Chapter 5 VIA SATA RAID Setup ......................... 87

Contents

Item Checkup

5-0 About Disk Array................................................................... 88

5-0-1 Disk Array Interpretation.......................................................... 88

5-0-2 Disk Array Member .................................................................... 88

5-0-3 Disk Array Types Supported by VT8237 ................................ 88

5-1 Enable SATA RAID in System BIOS (VT8237) ............... 89

5-2 Select SATA-RAID Interface in System BIOS ................. 90

5-3 To Enter VIA Tech. RAID BIOS Setup .............................. 91

5-4 Using VIA RAID BIOS Setup to Create Disk Array ....... 92

5-5 Using VIA RAID BIOS Setup to change Array mode ..... 96

5-6 To Install SATA-RAID Driver ............................................. 98

5-6-1 To Install SATA RAID Driver on Windows 2000/XP.......... 98

5-6-2 To Install SATA RAID Driver on Windows 98SE/Me........... 99

APPENDICES........................................................ 101

Appendix-1 Identify BIOS Version & BIOS Part Number . 102

Appendix-2 Identify Mainboard Model Number ................. 103

Appendix-3 Technical Terms .................................................... 104

• Mainboard

• Multi-lingual Quick Installation Guide

• User Manual (Mainboard)

• Support CD

• Bundled Bonus Pack CD

• Bundled Bonus Pack Manual

• SATA RAID Driver Diskette

• Cable :

ATA66/100/133 IDE Cable

2 x Serial ATA Cable

Serial ATA Power Cable

FDD Cable

USB Cable (Optional)

SL-PT880E-R/PT880E-RL

This series features an integration of the powerful processor Intel

Pentium 4 and the single-chip North Bridge of VIA PT880 plus South

Bridge VT8237. The Intel P4 processor is a rapid execution engine pro-

viding 800/533/400MHz quadpumped system bus, while North Bridge

PT880 is a high performance integrated chipset providing Dual Cheannel

DDR 400/333/266/200 SDRAM memory interface, Hub interface, and

AGP interface.

Integrated with PT880, South Bridge VT8237 supports the LPC Su-

per I/O, the USB 2.0 interface, ATA 133/100/66 data transfer rate, SATA

RAID interface and AC’97 6 channel Audio interface. This chapter is to

introduce to users every advanced function of this high performance

integration.

Topics included in this chapter are:

1-1 Component Locations

1-2 Chipset Diagram

1-3 Mainboard Specification Table

1-4 Mainboard Specifications**

Introduction

Chapter 1 Specification

** If any difference is found between the mainboard description

and the Mainboard you are using, please look up the Errata/

Update Slip enclosed inside for the correction or updated

information, or else contact the mainboard Dealer or visit our

Web Site for the latest manual update.

Chapter 1 Specification

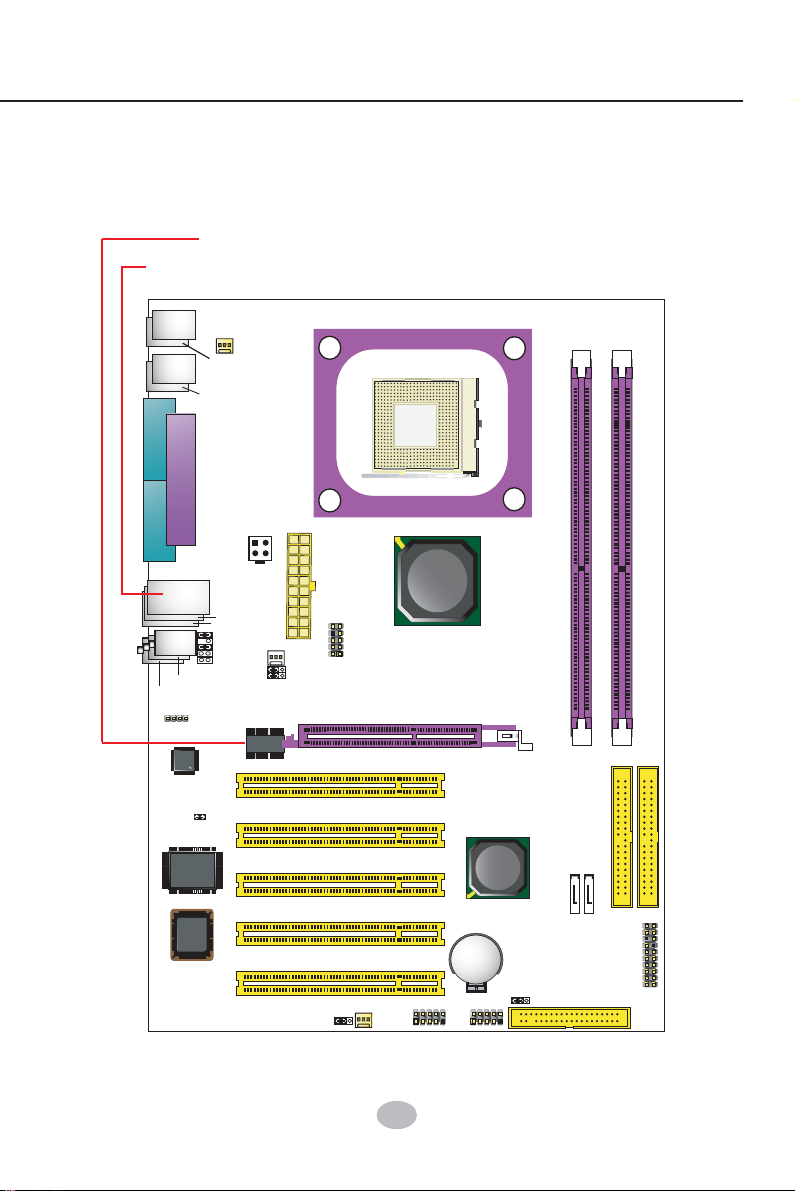

1-1 PT880E-R / PT880E-RL Components Locations

BIOS

mPGA478B

USB2

AGP 8X/4X

IDE1IDE2

Dual Channel DDR 400/333/266MHz

DIMM2

PCI 1

PCI 2

PCI 3

PCI 4

PCI 5

LPT1

COM1

COM2

PS/2 Keyboard

USB1

(underside)

USB0

FDD1

ITE

IT8705F

CD-IN1

PS/2 Mouse

(on top)

Battery

HDD IR PWR

SPK RST

PWLED

NJ1

LED

RJ45

(on top)

Linein

(ontop)

LineOut

(middle)

USB3

(underside)

USB2

(middle)

Mic

(underside)

DIMM1

PW2

PW1

JBAT1

JCLK1

JCLK2

JKB1

RT2

VT1616

VIA

VT6103

VIA

PT880

Fan1

Fan3

Fan2

USB3

USB0

(on top)

ATA1 ATA 2

VIA

VT8237

Main Power

+12V Power

(underside)

JAUD1

LAN Controller

RJ45 LAN Connector for PT880E-RL only

}

SL-PT880E-R/PT880E-RL

Intel Pentium 4 + VIA PT880 + VT8237 Diagram

1-2 Chipset System Block Diagram

Intel Pentium 4 CPU

(Hyper-Threading)

System Bus 800/533/400MHz

System

Memory

Dual Channel

DDR 400/333/

266/200 SDRAM

VIA PT880

AGP Slot AGP 8X/4X

8X V-Link

533MB/s

VT8237

PCI Bus

AC’97 2.2

ATA 133/100/66

2 IDE

Connector

USB Bus V2.0/1.1 USB

Ports

PCI Slots

Audio

Connectors

(VT6103)

RJ45

(Optional)

FDD

Serial Ports

Printer Port

Game/MIDI

H/Monitor

BIOS

LPC I/O

IT8705F

(6-channel)

Keyboard & Mouse

North Bridge

South

Bridge

SATA RAID 2 SATA

Connectors

Chapter 1 Specification

1-3 Mainboard Specification Table

CPU Socket 478 for P4 CPU (HT CPU included)

SL-PT880E-R / PT880E-RL Specifications and Features

PT880E-R

LAN Controller

Optional

Features

Models

Keyboard/Mouse Wake Up

2 SATA Connectors for 2 SATA RAID Hard

Disks configuration.

8 USB V2.0, 1 FDD port, 2 COM ports, 1 LPT,

1 IrDA, 1 PS/2 K/B, 1 PS/2 Mouse

5 PCI Master slots on board

2 UATA 33/66/100/133 IDE ports

AC’97 Audio 2.2 compliant, 6 channel audio

AGP8X/4X Mode only; 1 AGP Slot on board

ITE IT8705F

Supporting Dual Channel DDR 400/333/266

SDRAM, up to 2GB in 2 DIMM slots

Award BIOS

VIA VT8237

VIA PT880, 800/533/400MHz FSB

Yes

PT880E-RL

Other common

feature

Serial ATA RAID

Interface

I/O Connectors

PCI Slots

IDE Interface

Audio

AGP Interface

I/O Chip

Memory

BIOS

South Bridge

North Bridge

SL-PT880E-R/PT880E-RL

1-4.4 AGP (Accelerated Graphics Port) interface

AGP Controller is embedded on board, supporting:

• 1.5V (8x/4x) power mode

• 8X 66MHz AD and SBA signaling; AGP pipelined split-transaction

longburst transfers up to 2GB/sec.

• One AGP Slot on board, AGP v3.0 compliant

1-4.1 CPU Socket

CPU Socket 478B on board, supporting Intel®Pentium 4 and

Northwood processors (including Intel Hyper-Threading CPUs) in

the 478-pin package for :

• 800 / 533 / 400 MHz System Bus;

• Hyper-pipelined technology;

• Advanced dynamic execution;

• Advanced transfer cache;

1-4.2 System Chipsets

North Bridge VIA PT880:

• Supporting 800/400/533MHz Front Side Bus officially

• Supporting Dual Channel DDR 400/333/266/200 SDRAM memory

interface, HUB interface, AGP 8x/4X interface as well as Hyper

Threading Technology.

• Showing Hyper Threading Logo when booting with a Hyper Threading

CPU.

South Bridge VT8237:

• Supporting the 8X V-Link, LPC Super I/O, Upstream Hub interface,

PCI interface, IDE interface, LAN interface, USB V2.0 interface, SATA

RAID interface as well as the AC’97 6 channel Audio interface.

1-4.3 Memory

2 DDR DIMM 184-pin slots on board for non-ECC Dual-channel DDR

400/333/266 SDRAMs:

• DIMMs to be populated in identical pairs for Dual-channel operation

• Installation of mixed volumes yet same type of DDR SDRAM modules

supported .

1-4 Mainboard Specifications

Chapter 1 Specification

1-4.6 Multi-I/O Functions:

• PCI EIDE Controller, supporting:

-- 2x Ultra ATA 133/100 / 66 / 33 IDE Connectors supporting up to 4 IDE

devices;

• Dedicated IR Functions:

-- Third serial port dedicated to IR function either through the two complete

serial ports or the third dedicated port Infrared-IrDA (HPSIR) and ASK

(Amplitude Shift Keyed) IR.

• Multi-mode parallel Data transfer:

-- Standard mode, ECP and EPP support;

• Floppy Disk connector:

-- One FDD connector with drive swap support;

• Universal Serial Bus Transfer Mode:

-- USB V2.0 compliant, 480 Mb/s USB Bus, supporting Windows 98 and later

operating systems; USB drivers provided in Support CD for installation

-- 4 built-in USB connectors and 2 USB Headers which require 2 additional

USB cables to provide 4 more optional USB ports;

• PS/2 Keyboard and PS/2 Mouse

• UARTs (Universal Asynchronous Receiver / Transmitter):

-- 2x Serial Ports COM1 and COM2 on board;

1-4.5 BIOS

Flash Memory for easy upgrade, supporting Year 2000 compliant, and sup-

porting various hardware configuration during booting system (See Chapter

4 BIOS Setup):

• Standard CMOS Features (Times, Date, Hard Disk Type etc,)

• Advanced BIOS Features (Password Check, Boot Sequence etc.)

• Advanced Chipset Features (AT Clock, DRAM Timing etc.)

• Power Management Features (Sleep Timer, Suspend Timer etc.)

• PNP/PCI Configurations (IRQ Settings, Latency Timers etc.)

• Integrated Peripherals (Onboard I/O, IRQ, DMA Assign. etc.)

• Hardware Monitor Status (CPU/System Temp., Fan speed etc.)

• Frequency/Voltage Control (CPU clock, Voltage of CPU, DIMM, AGP etc.)

1-4.7 SATA RAID Interface

Serial ATA RAID Interface supported by VT8237:

• Supporting 2 Serial ATA RAID connectors for 2 SATA Hard Disks with

150Mb/s transfer rate

• Serial ATA RAID Drivers enclosed in Support CD/Floppy Diskette for user’s

installation

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SOLTEK Carte mère

SOLTEK

SOLTEK SL-PM800I Manuel utilisateur

SOLTEK

SOLTEK 85LIR-C Manuel utilisateur

SOLTEK

SOLTEK 85DRV5-L Manuel utilisateur

SOLTEK

SOLTEK SL-63AV Manuel utilisateur

SOLTEK

SOLTEK SL-65ME-T Manuel utilisateur

SOLTEK

SOLTEK SL-75LIV Manuel utilisateur

SOLTEK

SOLTEK SL-67D Manuel utilisateur

SOLTEK

SOLTEK SL-865G Manuel utilisateur

SOLTEK

SOLTEK SL-B8D-F Manuel utilisateur

SOLTEK

SOLTEK SL-65KVB Manuel utilisateur

SOLTEK

SOLTEK SL-65MIV-C Manuel utilisateur

SOLTEK

SOLTEK SL-67G60 Manuel d'utilisation et d'entretien

SOLTEK

SOLTEK SL-PM800I-R Manuel utilisateur

SOLTEK

SOLTEK SL-K8T-939FL Manuel utilisateur

SOLTEK

SOLTEK SL-53D5-S Manuel d'utilisation et d'entretien

SOLTEK

SOLTEK B9A-FGR Manuel utilisateur

SOLTEK

SOLTEK SL-85LIR Manuel utilisateur

SOLTEK

SOLTEK SL-85DRV3 Manuel utilisateur

SOLTEK

SOLTEK SL-65KV2-T Manuel utilisateur

SOLTEK

SOLTEK SL-B9D-FGR Manuel utilisateur

SOLTEK

SOLTEK SL-85MIR3 Manuel utilisateur

SOLTEK

SOLTEK 865Pro-FGR Manuel utilisateur

SOLTEK

SOLTEK SL-85DIV Manuel utilisateur

SOLTEK

SOLTEK SL-75DRV5 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
