SIG-5600 User Manual Ver. 1.5
- 1 -
https://www.ezTCP.com
This symbol, found on your product or on its packaging, indicates that
this product should not be treated as household waste when you wish to
dispose of it. Instead, it should be handed over to an applicable collection
point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences to the environment and human health, which could otherwise be caused by
inappropriate disposal of this product. The recycling of materials will help to conserve
natural resources. For more detailed information about the recycling of this product,
please contact your local city office, household waste disposal service or the retail
store where you purchased this product.
Note:
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
SIG-5600 User Manual Ver. 1.5
- 2 -
https://www.ezTCP.com
Contents
1Overview .......................................................- 4 -
1.1 Introduction ........................................................ - 4 -
1.2 Features ............................................................ - 4 -
1.3 Specification ....................................................... - 4 -
1.4 Interface ........................................................... - 6 -
1.4.1 Power .................................................................. - 6 -
1.4.2 Ethernet ............................................................... - 7 -
1.4.3 Setup Port ............................................................. - 7 -
1.4.4 Function Button ........................................................ - 7 -
1.4.5 Analog Input Port ...................................................... - 7 -
1.4.6 LED .................................................................... - 8 -
1.4.7 Digital Output Port .................................................... - 9 -
1.4.8 Digital Input Port .................................................... - 10 -
1.4.9 USB Host Port ......................................................... - 12 -
2Preparation ...................................................- 13 -
2.1 Installing the Setting Tool ........................................ - 13 -
2.2 Connecting a Product ............................................... - 13 -
2.3 Searching Devices .................................................. - 13 -
2.4 Logging in ......................................................... - 13 -
3Settings ......................................................- 14 -
3.1 Network ............................................................ - 14 -
3.1.1 Obtain an IP address automatically..................................... - 14 -
3.1.2 Use a Static IP address................................................ - 15 -
3.2 WLAN ............................................................... - 16 -
3.2.1 Infrastructure ........................................................ - 16 -
3.2.2 Soft AP ............................................................... - 17 -
3.2.3 Advanced Settings ..................................................... - 18 -
3.3 General ............................................................ - 19 -
3.3.1 Comment ............................................................... - 19 -
3.3.2 TCP ................................................................... - 19 -
3.3.3 Modbus ................................................................ - 20 -
3.3.4 Analog Input .......................................................... - 20 -
3.3.5 Digital Input ......................................................... - 20 -
3.3.6 Digital Output ........................................................ - 20 -
3.4 Security ........................................................... - 22 -
3.4.1 Password .............................................................. - 22 -
3.4.2 Certificate ........................................................... - 22 -
3.4.3 spFinder .............................................................. - 22 -
3.4.4 Client ID ............................................................. - 23 -
SIG-5600 User Manual Ver. 1.5
- 3 -
https://www.ezTCP.com
4Management ....................................................- 24 -
4.1 Checking Status .................................................... - 24 -
4.1.1 Product Information ................................................... - 24 -
4.1.2 Communication Status .................................................. - 25 -
4.1.3 Timeout ............................................................... - 26 -
4.1.4 Copy status ........................................................... - 26 -
4.2 Changing Firmware .................................................. - 27 -
4.2.1 Online Upgrade ........................................................ - 27 -
4.2.2 Manual Upgrade ........................................................ - 28 -
4.3 Console ............................................................ - 29 -
4.3.1 Output Tab ............................................................ - 29 -
4.3.2 FW Log Tab ............................................................ - 30 -
4.3.3 Timeout ............................................................... - 30 -
4.4 Export/Import Setting Values ....................................... - 30 -
4.5 Factory Reset ...................................................... - 31 -
5Register Map ..................................................- 32 -
5.1 Read Only .......................................................... - 32 -
5.1.1 Analog Input Value Register............................................ - 32 -
5.1.2 Minimum Analog Input Value Register.................................... - 32 -
5.1.3 Maximum Analog Input Value Register.................................... - 32 -
5.1.4 Digital Input Status Register.......................................... - 33 -
5.1.5 Inverted Digital Input Status Register................................. - 33 -
5.1.6 Digital Input Counter Register......................................... - 33 -
5.1.7 Device Information Register............................................ - 34 -
5.2 Read/Write ......................................................... - 35 -
5.2.1 Digital Output Control Register........................................ - 35 -
5.2.2 Digital Output Pulse Control Register.................................. - 35 -
5.2.3 Reset Digital Input Counter Register................................... - 35 -
5.2.4 Reset Analog Input Min/Max Value Register.............................. - 36 -
5.2.5 Activating DI/DO Status Change Notification Register................... - 36 -
6Technical Support and Warranty ................................- 37 -
6.1 Technical Support .................................................. - 37 -
6.2 Warranty ........................................................... - 37 -
6.2.1 Free Repair Services .................................................. - 37 -
6.2.2 Charged Repair Services................................................ - 37 -
7Precaution and Exemption from Liability .......................- 38 -
7.1 Precaution ......................................................... - 38 -
7.2 Exemption from Liability ........................................... - 39 -
7.2.1 English version ....................................................... - 39 -
7.2.2 French version ........................................................ - 40 -
8Revision History ..............................................- 42 -
SIG-5600 User Manual Ver. 1.5
- 4 -
https://www.ezTCP.com
1 Overview
1.1 Introduction
SIG-5600 is an industrial I/O gateway equipped with 4 analog input ports, 4
digital input ports and 4 digital output ports. Users can remotely monitor the
values of sensors connected to the digital and analog input ports of this product
using Modbus/TCP. In addition, users can transmit ON/OFF signals to remote user
devices using the digital output port of this product.
1.2 Features
⚫4 analog input ports: voltage or current
⚫4 digital input ports: Wet Contact or Dry Contact input
⚫4 digital output ports (Relay): both NO and NC output
⚫Support pulse mode on digital output ports
⚫Support counter function on digital input ports
⚫Support Modbus/TCP
⚫Support multiple TCP connection (Max. 4 channels)
⚫Support a master mode for the
Internet Switch
⚫Support a 1-bit ADC function for the
Internet Switch
⚫Industrial temperature range (-40℃ ~ +85℃)
Internet Switch: A configuration that connects devices to each other without an
HMI to transmit digital signals in both directions
1.3 Specification
Digital Input
Input Type
Dry Contact / Wet Contact / NPN / PNP
Input Voltage Range
4.5V ~ 25V
Number of Ports
4 ports
Digital Output
Output Type
Relay (Type C - NO: Max DC 30V/5A with resistive load, NC:
Max DC 30V/1A with resistive load)
Number of Ports
4 ports
Analog Input
Input Type
Voltage (0V ~ 5V) or Current (4mA ~ 20mA / 0mA ~ 20mA)
Resolution
12 bits
Number of Ports
4 ports
SIG-5600 User Manual Ver. 1.5
- 5 -
https://www.ezTCP.com
Network Physical Interface
Wired LAN
10Base-T/100Base-TX Ethernet (RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense
Wireless LAN
IEEE802.11b/g Wireless LAN with a USB dongle
Software Functions
Wireless LAN Mode
Infrastructure, Soft-AP
Protocols
IPv4/IPv6 Dual Stack
TCP/UDP, ICMP, DHCP, mDNS, Modbus/TCP, SSL/TLS
WPA-PSK / WPA2-PSK, WPA-Enterprise (TTLS / PEAP)
Indicators
LED
PWR, RUN, STS, LINK, MTX, MRX, Di0~Di3, Do0~Do3
Management
spFinder
Configuration and Monitoring Tool
Security
Password
Dimension
Size
180mm x 110mm x 26mm
Weight
about 485g
Operating Environment
Input Voltage
PWR1 - Terminal Block, DC8.5V~38V
PWR2 - DC jack, DC5V±0.5V
USB (Setup) - micro-USB, DC5V±0.5V
Protection
Reverse Voltage Protection / Surge Protection
Current Consumption
typically, 3.3W
Operating Temperature
-40℃ ~ +85℃ (with 5% ~ 85% RH, avoiding icing and
condensation)
Storage Temperature
-40℃ ~ +85℃
Certificate
KC
Registration (KN 32, KN 35)
CE
EMC 2014/30/EU, RoHS 2011/65/EU
FCC
FCC Part 15 Subpart B, Class A
Table 1-1 Specification
SIG-5600 User Manual Ver. 1.5
- 6 -
https://www.ezTCP.com
1.4 Interface
Figure 1-1 Interface
1.4.1 Power
⚫PWR1 Port
This port is one of the main input ports for supplying power (DC 8.5V ~ 38V).
This port is interfaced with a 2-pole terminal block.
⚫PWR2 Port
This port is one of the main input ports for supplying power (DC 5 ±0.5V).
The specification is as follows:
Figure 1-2 Power
SIG-5600 User Manual Ver. 1.5
- 7 -
https://www.ezTCP.com
1.4.2 Ethernet

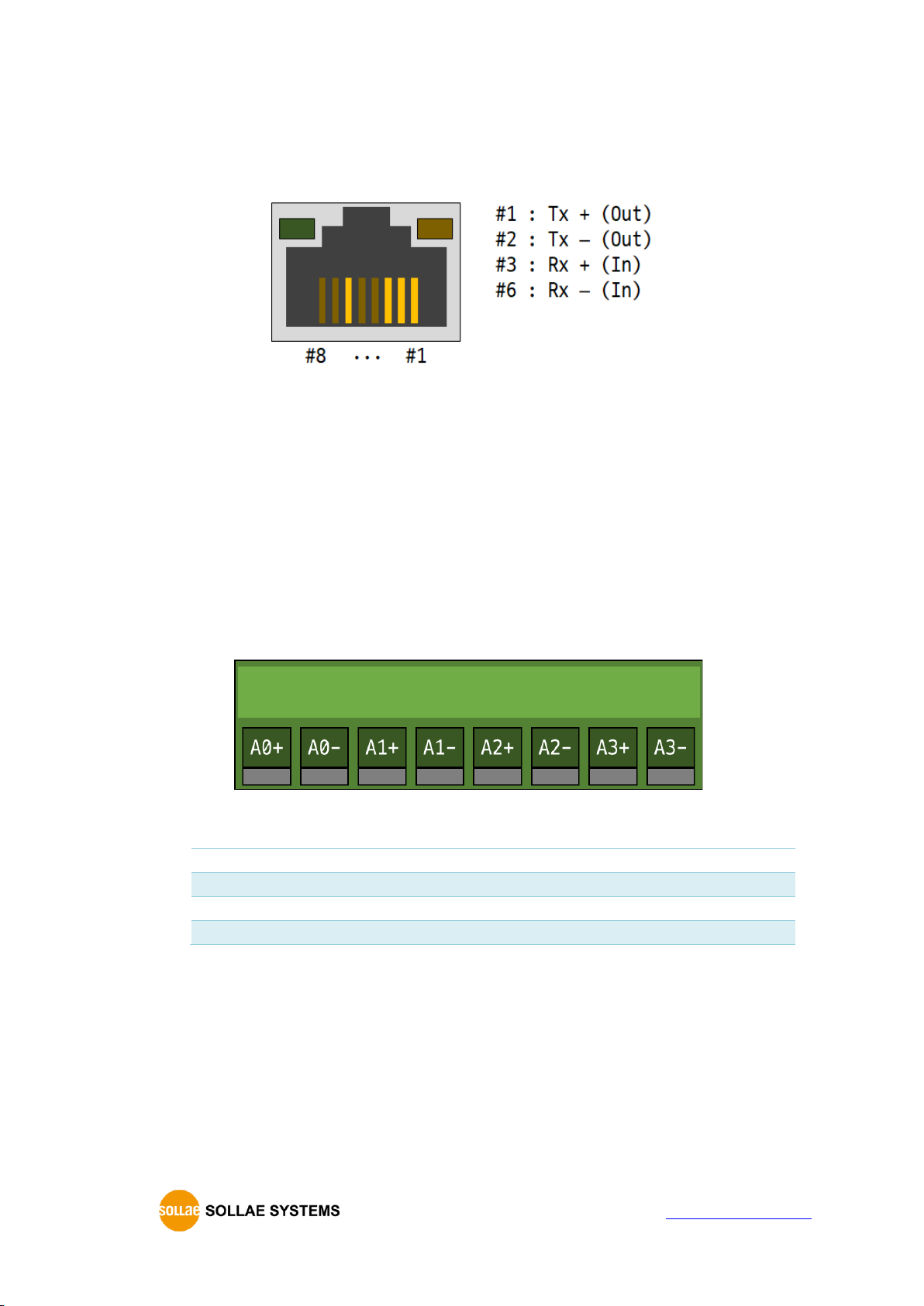

SIG-5600 provides 10/100Mbps Ethernet. The pin assignment is as follows:
Figure 1-3 Ethernet
1.4.3 Setup Port
This port is used for making a connection with a PC via USB cable.
1.4.4 Function Button
This button is used to implement a factory reset.
1.4.5 Analog Input Port
This port is interfaced with a 5mm pitch 8-pole terminal block.
Figure 1-4 Analog Input Port
⚫Port Specification
Division
Value
Number of ports
4
Input mode
Voltage (0 ~ 5V) or Current (4 ~ 20mA / 0 ~ 20mA)
Resolution
12-bit (0 ~ 4,095)
Table 1-2 Port Specification
SIG-5600 User Manual Ver. 1.5
- 8 -
https://www.ezTCP.com

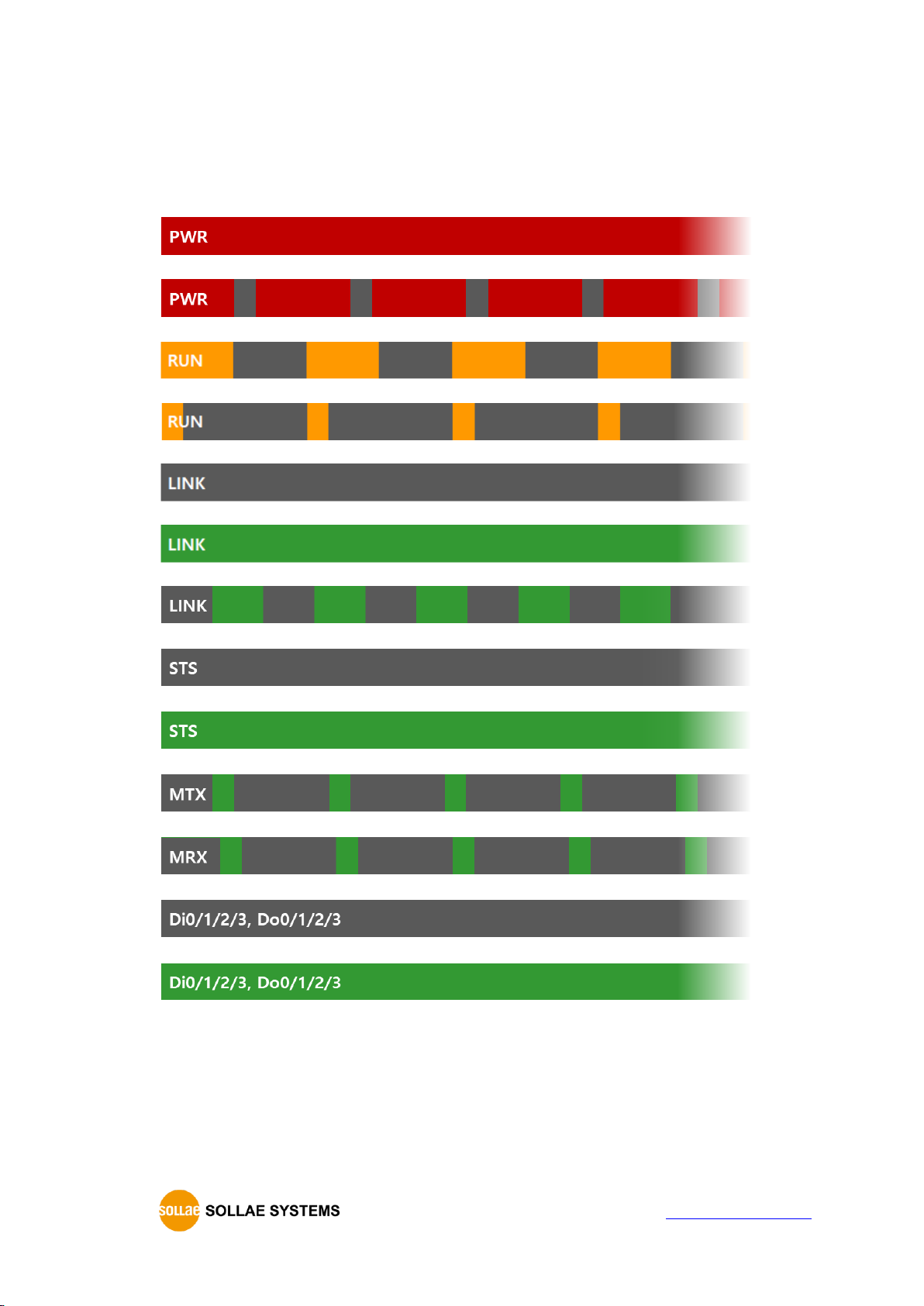

1.4.6 LED
LED operations according to each state are as follows:
When the supplied power is stable: PWR
When the supplied power is NOT stable: PWR
When the script is running: RUN
When the script is NOT running: RUN
When a network is NOT connected: LINK
When a network is connected: LINK
When an IP address is NOT assigned: LINK
When a TCP connection is NOT established: STS
When a TCP connection is established: STS
When sending data to the TCP: MTX
When receiving data from the TCP: MRX
When the input/output port is OFF: Di0 ~ Di3, Do0 ~ Do3
When the input/output port is ON: Di0 ~ Di3, Do0 ~ Do3
SIG-5600 User Manual Ver. 1.5
- 9 -
https://www.ezTCP.com
1.4.7 Digital Output Port
This port is interfaced with a 5mm pitch 12-pole terminal block.

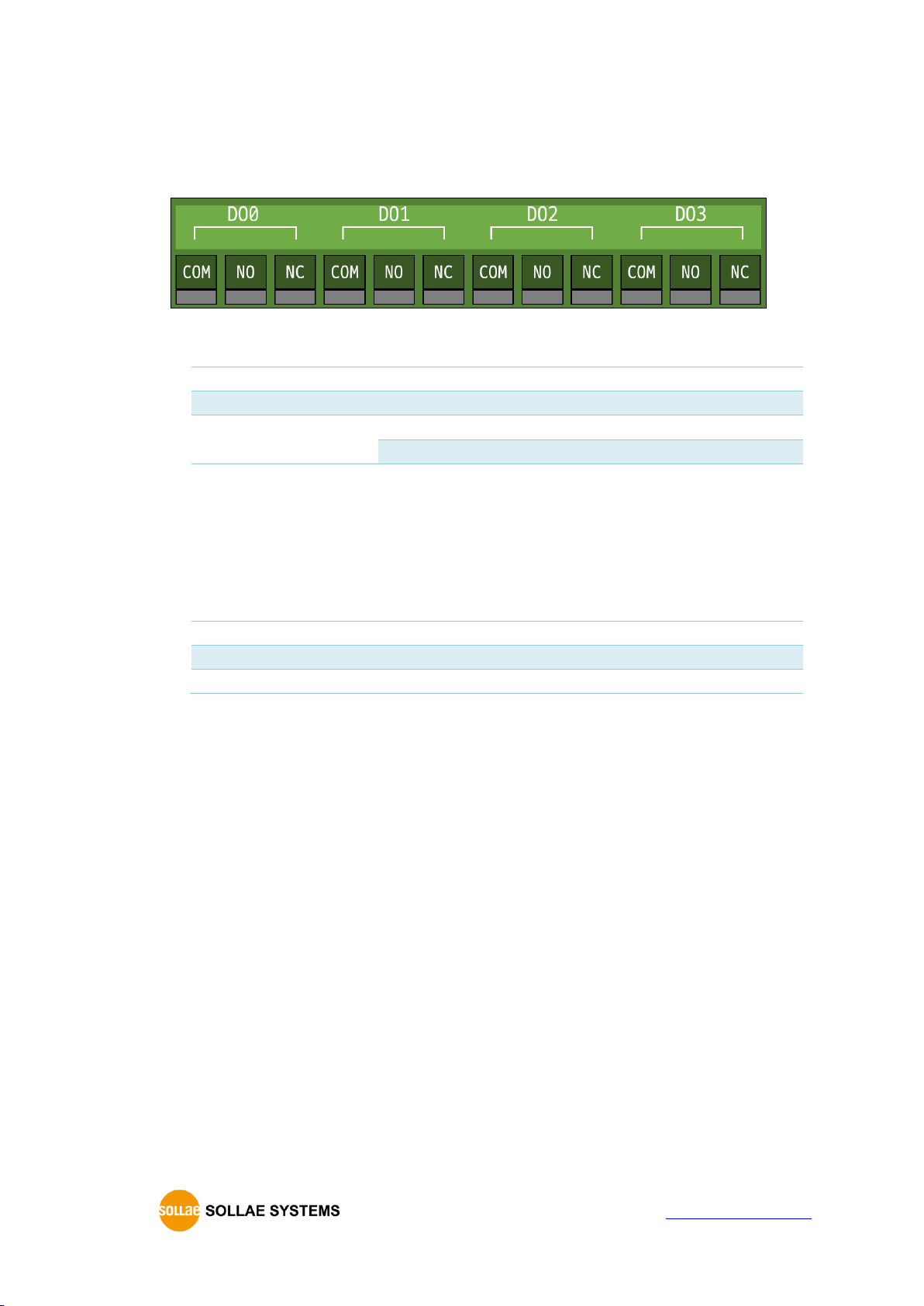

Figure 1-5 Digital output port
⚫Port Specification
Division
Value
Number of ports
4
Max. Allowed Current
at DC 30V
Normal Open
5A
Normal Close
1A
Table 1-3 Port Specification
The port specifications are for resistive loads. It is recommended to design
about 10 ~ 20% of the maximum allowable current for capacitive loads such as SMPS
and inductive loads such as motors.
⚫Port Operation
Division
NO Operation
NC Operation
OFF
NOT connected to COM
Connected to COM
ON
Connected to COM
NOT connected to COM
Table 1-4 Port Operation
Table des matières
Autres manuels Sollae Porte
Manuels Porte populaires d'autres marques
LST
LST M500RFE-AS Manuel utilisateur
Kinnex
Kinnex Media Gateway Manuel utilisateur
2N Telekomunikace
2N Telekomunikace 2N StarGate Manuel utilisateur
Mitsubishi Heavy Industries
Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur
ZyXEL Communications
ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur
Telsey
Telsey CPVA 500 - SIP Manuel utilisateur
