SolidRun ClearFog PRO Manuel utilisateur

ClearFog

PRO

User Manual

 USER MANUAL MARCH 2017

SolidRun Ltd www.solid-run.com Page 2 of 22
 7 HaMada Street, Yokne’am Illit, Israel
TABLE OF CONTENTS
1Overview......................................................................................................................................................................4
1.1 GENERAL INFORMATION.........................................................................................................................................4
1.2 SUMMARY OF FEATURES.........................................................................................................................................4
1.3 Block Diagram....................................................................................................................................................5
2Main Hardware Components...................................................................................................................................6
3Connector Layout.......................................................................................................................................................7
3.1 Certified Cables .................................................................................................................................................8
4Installation and Switching On..................................................................................................................................9
4.1 Unpacking your SolidRun ClearFog Pro........................................................................................................9
4.2 Power...................................................................................................................................................................9
4.3 SD card with operating system and boot select.........................................................................................9
4.4 MicroUSB connectivity (UART to microUSB) .............................................................................................10
4.5 LEDs ...................................................................................................................................................................10
4.6 Clock options....................................................................................................................................................10
4.7 SIM card slot.....................................................................................................................................................11
4.8 Additional Required Components ...............................................................................................................11
5Operational Data......................................................................................................................................................12
5.1 OPERATING VOLTAGE ..........................................................................................................................................12
5.2 ENVIRONMENTAL DATA .......................................................................................................................................12
6Mechanical Drawings and Dimensions.................................................................................................................13
7WARRANTY TERMS AND CONDITIONS ...........................................................................................................................14
8LEGAL NOTICE...............................................................................................................................................................15
9REGULATORY ................................................................................................................................................................16
9.1 SAFETY NOTICE.....................................................................................................................................................16
9.2 SAFETY SYMBOLS NOTES AND INFORMATION .......................................................................................................16
9.3 UNPACKING..........................................................................................................................................................17
9.4 STORAGE,SERVICE,CLEANING AND CARING FOR THE PRODUCT.............................................................................17
9.5 OPERATION..........................................................................................................................................................18
9.6 AC/DC ADAPTER OR POWER SUPPLY -ELECTRICAL SAFETY .................................................................................19
9.7 ELECTRONIC EMISSION NOTICES............................................................................................................................20
10 CONTACT INFORMATION AND RESOURCES................................................................................................................22


USER MANUAL MARCH 2017

SolidRun Ltd www.solid-run.com Page 3 of 22

7 HaMada Street, Yokne’am Illit, Israel

1REVISIONS AND NOTES

Date

Owner

Revision

Notes

01 Aug 2017

Matthew Dunbar

1.0

All rights on this documentation and the devices are with SolidRun Ltd.

No warranty of accuracy is given concerning the contents of the information contained in this publication.

To the extent permitted by law no liability (including liability to any person by reason of negligence) will

be accepted by SolidRun Ltd., its subsidiaries or employees for any direct or indirect loss or damage

caused by omissions from or inaccuracies in this document. SolidRun Ltd. reserves the right to change

details in this publication without prior notice. Product and company names herein may be the trademarks

of their respective owners.

Verify that you have the most current version of this document from www.solid-run.com

USER MANUAL MARCH 2017

SolidRun Ltd www.solid-run.com Page 4 of 22

7 HaMada Street, Yokne’am Illit, Israel

2OVERVIEW

2.1 GENERAL INFORMATION

The SolidRun ClearFog Pro is a high performance platform featuring SolidRun’s SOM (A388 SOM).

ClearFog Pro provides a foundation for building various applications and tailors well to a wide range of

target markets requiring high performance processing power, connectivity & storage interfaces. The

ClearFog Pro ensures compact dimensions and low power consumption, utilizing an ARM Cortex A9 Dual

core CPU.

SolidRun ClearFog Pro carrier board components:

A388 based SOM for the SolidRun ClearFog Pro

ClearFog Pro Carrier Board

Heat sink

Power adapter - 110V/220V US or EU plug (optional)

Enclosure (optional)

Micro SD card (optional)

Officially released distributions

oOpen WRT

oYocto

Please contact SolidRun support for further information: [email protected].

2.2 SUMMARY OF FEATURES

Customizable configurations of the ClearFog PRO:

Marvell ARMADA 38x series SoC Dual ARM® Cortex™-A9 Core at 1.6 GHz (1.6 GHz commercial / 1.3

GHz Industrial)

1 GB DDR3 RAM (optional up to 2GB RAM)

4 MB NOR Flash [storage memory / boot]

MicroSD based storage (Can be upgraded with an on-board eMMC)

M.2 slot (key type M) supporting 2242 SSD modules.

Two slots supporting either Mini PCIe or mSATA SSD modules

SIM Card slot (functions in conjunction with Mini PCIe based cellular modem)

10/100/1000 Mbps Ethernet WAN port

SFP Port

Five switched 10/100/1000 Mbps Ethernet LAN ports

One USB 3.0 host port

Telephony/Audio Header supporting PSTN and analog audio modules

mikroBUS header supporting serial interfaces such as SPI, UART, etc.

One MicroUSB supporting Serial communication for development purposes using FTDI 230X IC –

Please see more details in our wiki pages at http://wiki.solid-run.com

JTAG Interface for low level development and debug

Power over Ethernet (PoE Expansion Header - for optional module development)

Real Time Clock (RTC) with backup battery

Wide range power supply 9-32V

Push button connected to a GPIO.

LEDs:

oOne power indicator

oOne pair of LEDs for each RJ45

Link / Activity indicator

1000 vs. 10/100 indicator

USER MANUAL MARCH 2017

SolidRun Ltd www.solid-run.com Page 5 of 22

7 HaMada Street, Yokne’am Illit, Israel

2.3 BLOCK DIAGRAM

The SolidRun ClearFog Pro Single Board Computer block diagram displays all relevant elements of the full

SBC. For further details please visit www.solid-run.com and wiki.solid-run.com:

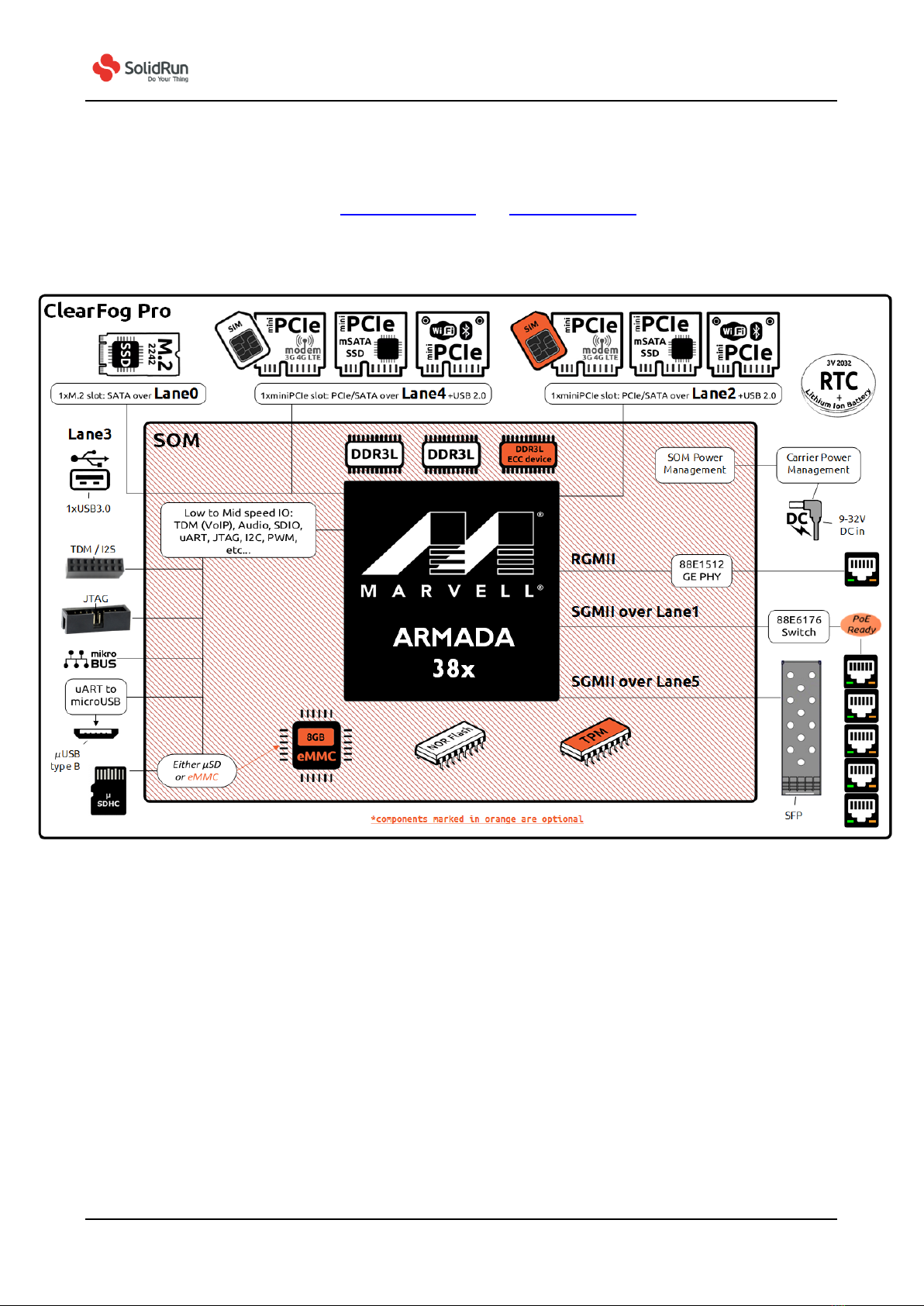

Figure 1 SolidRun ClearFog Pro Block Diagram

USER MANUAL MARCH 2017

SolidRun Ltd www.solid-run.com Page 6 of 22

7 HaMada Street, Yokne’am Illit, Israel

3MAIN HARDWARE COMPONENTS

This chapter highlights the location of the main hardware components and interfaces of the SolidRun

ClearFog Pro, including the A388 SOM:

Figure 2 SolidRun ClearFog Pro Top View

USER MANUAL MARCH 2017

SolidRun Ltd www.solid-run.com Page 7 of 22

7 HaMada Street, Yokne’am Illit, Israel

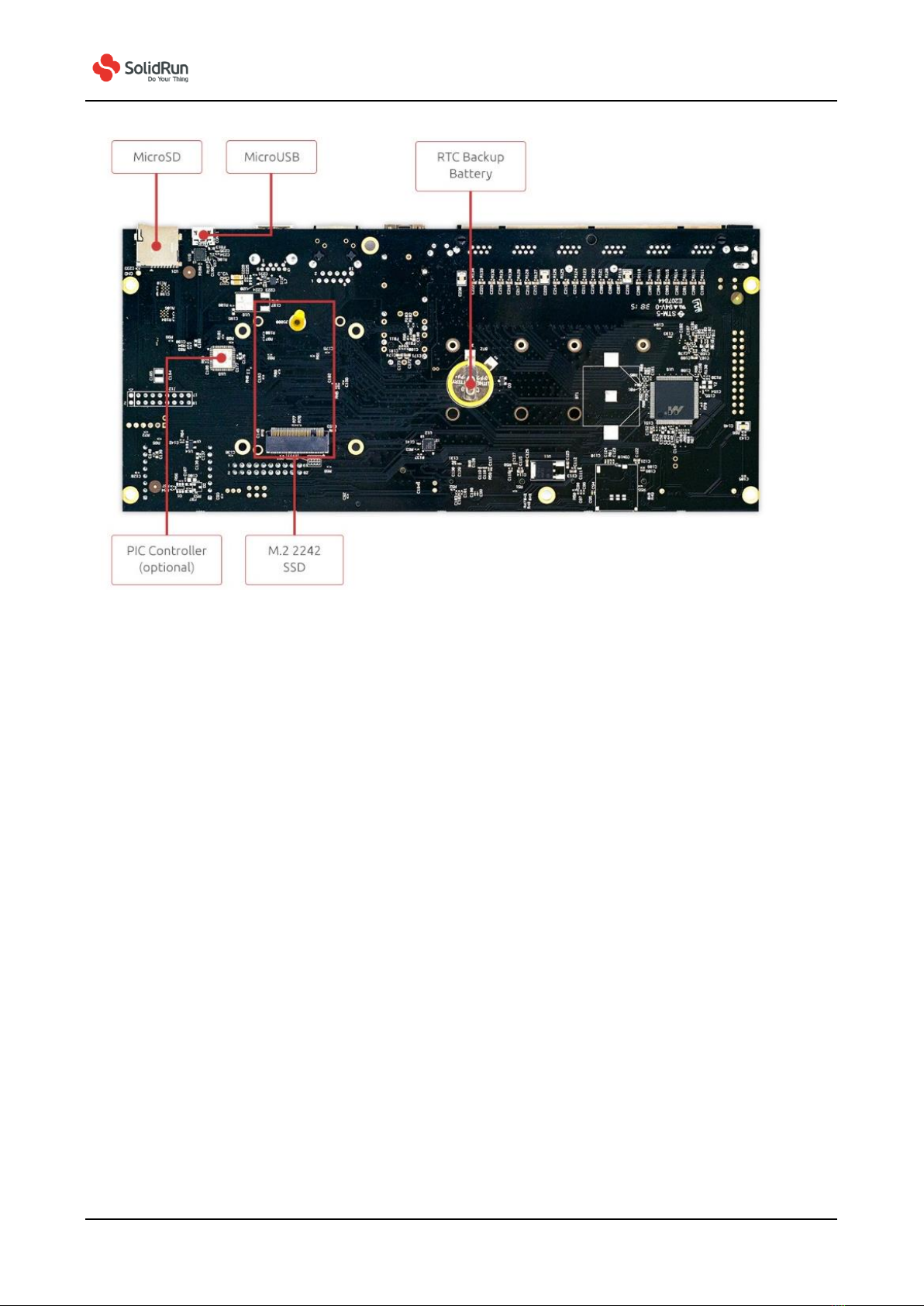

Figure 3 SolidRun ClearFog Pro Bottom View

USER MANUAL MARCH 2017

SolidRun Ltd www.solid-run.com Page 8 of 22

7 HaMada Street, Yokne’am Illit, Israel

4CONNECTOR LAYOUT

SolidRun’s ClearFog PRO has standard interfaces. The non-standard interfaces are listed below:

1. mikroBUS Header

2. TDM Telephony Audio Header

3. Power over Ethernet (PoE Expansion Header - for optional module development)

oPlease refer to the previous chapter for specific locations on the board.

The schematics by components can be found SolidRun’s wiki pages, please look for the file under the

product documentation tab.

4.1 CERTIFIED CABLES

The following is a list of industry-standard cables, sorted by type, with the necessary compliance

requirements that have been proven to work well with the Clearfog product family.

These examples are the cables which SolidRun uses for testing, and should provide enough information to

source products from your prefered cable vendor.

Ethernet cable: Monoprice 24AWG Cat6A 500MHz STP

USB Cable: SuperSpeed USB 3.0 Type A Male to Female Extension Cable in Black

SFP connector: GigaLite GE-GB-P1RT-E SFP module with Monoprice 24AWG Cat6A 500MHz STP

cable

USER MANUAL MARCH 2017

SolidRun Ltd www.solid-run.com Page 9 of 22

7 HaMada Street, Yokne’am Illit, Israel

5INSTALLATION AND SWITCHING ON

This chapter explains the SolidRun ClearFog Pro packaging, how to prepare it for initial use and in what

manner to power it on in its default state. Please note that this section references the diagrams in chapter

5.1 UNPACKING YOUR SOLIDRUN CLEARFOG PRO

The package contains:

ClearFog Pro Board

A388 SOM

Heat Sink

Power adapter - 110V/220V US or EU plug (optional)

Blank SD card, 8GB (optional) / eMMC (optional)

Aluminum Enclosure (optional)

User Manual

5.2 POWER

A suitable external power supply must be connected to the DC power socket, which has the

dimensions 5.5mm x 2.1 mm cylindrical barrel connector The power supply must be in the range of 9-

32VDC. Recommended values are: 12VDC/2.5A

Please note that the DC jack must have positive polarity in the center pin:

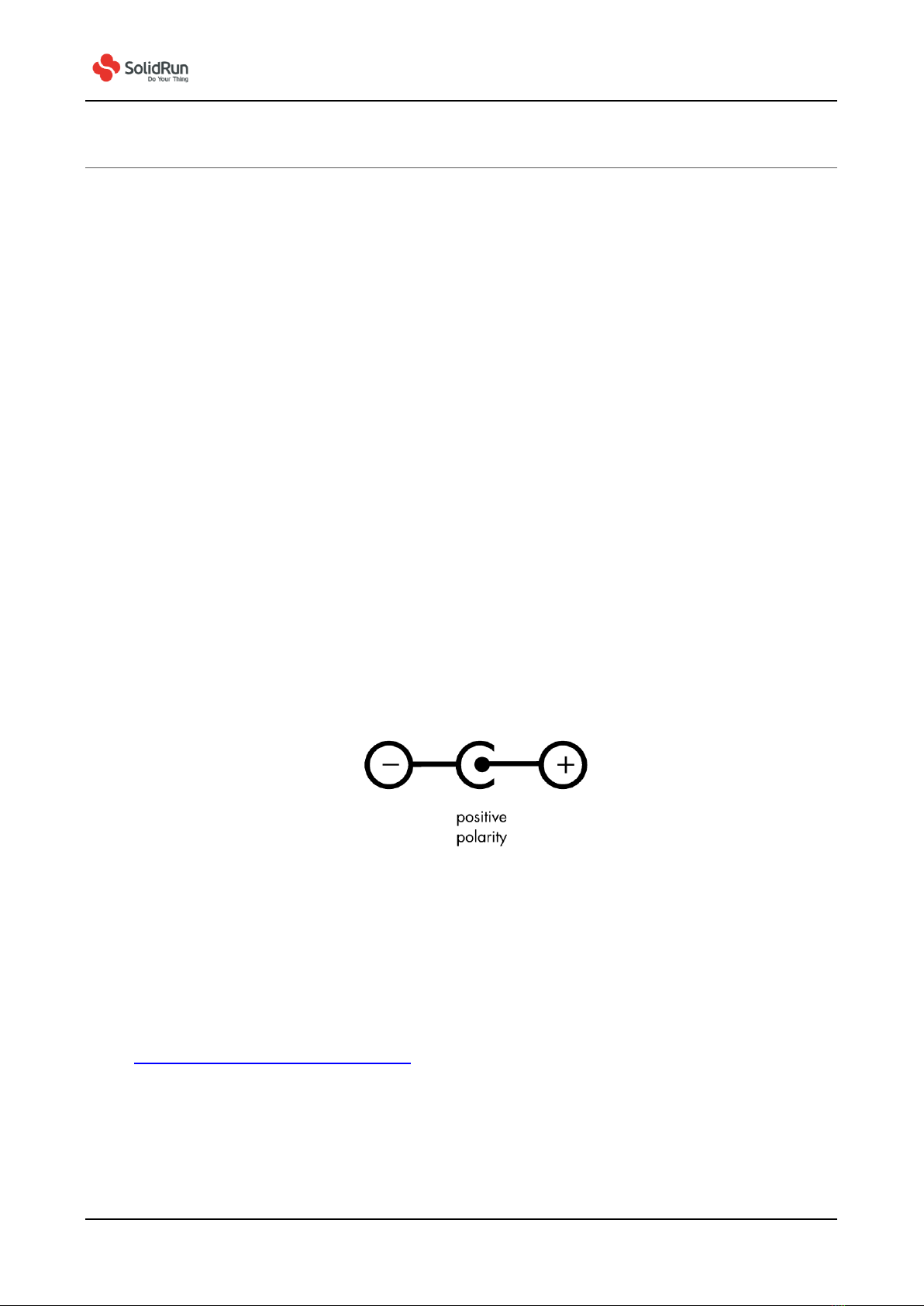

Figure 4 DC Barrel Socket Polarity

5.3 SD CARD WITH OPERATING SYSTEM AND BOOT SELECT

You will need to download an operating system for the ClearFog Pro and flash in to a blank SD card in

order to use the system. You can download official release distributions and find flashing instructions

at https://www.solid-run.com/downloads/. In addition there are also several community released

distributions available. Once downloaded and flashed, the SD card with the flashed OS image must be

inserted into the MicroSD slot on the ClearFog Pro. Before powering up the board for the first time it

is recommended to select the boot media. In order to configure the boot media to MicroSD, please set

the S1 switch to match the second option from the following graphic (SD/eMMC):

USER MANUAL MARCH 2017

SolidRun Ltd www.solid-run.com Page 10 of 22

7 HaMada Street, Yokne’am Illit, Israel

Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

SPI

Off

SD/eMMC

Off

M.2 SSD

Off

UART

Off

Table 1 Boot Selection Table

For additional insights on operating system, please visit the Downloads section of our home page.

Additional extensive resources are available in the Support section of our Wiki.

5.4 MICROUSB CONNECTIVITY (UART TO MICROUSB)

The ClearFog Pro Single Board Computer has an FTDI 230x UART to USB bridge allowing convenient

connection to the device console. This configuration is typically used by developers for debugging

purposes (e.g. kernel or drivers). Such serial console connection is of USB-to-UART type. The

connection speed should be set to 115200 bps. Further information is displayed on our wiki page with

tags #UART & #serial & #console.

5.5 LEDS

There are multiple LEDs on the ClearFog Pro. These are indicating for example power on, connection

and port activity. For further details, please refer to our wiki.solid-run.com pages.

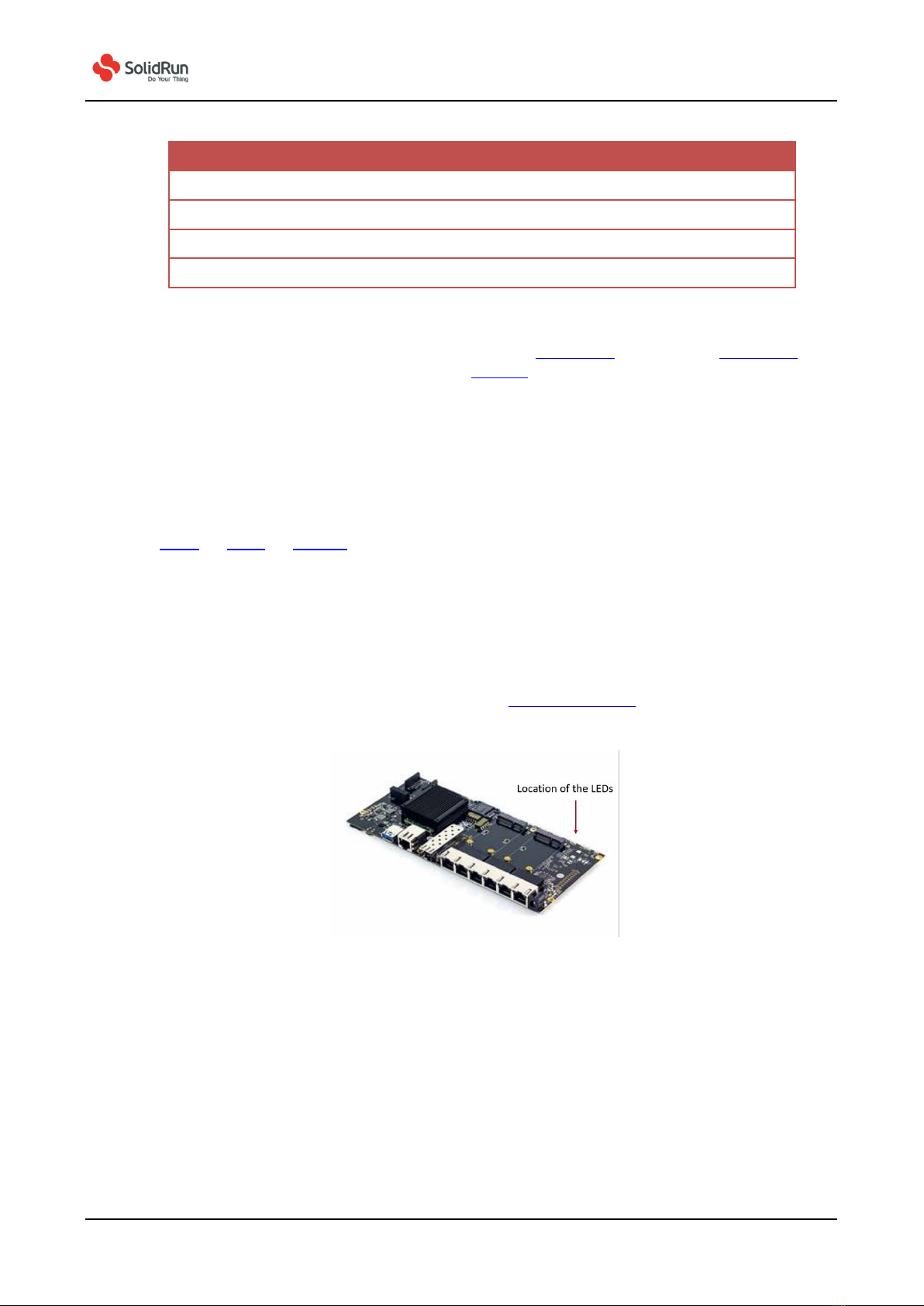

Figure 5 Location of LEDS on the ClearFog

5.6 CLOCK OPTIONS

For frequency configuration the ClearFog Pro utilizes a dip switch. The default setting is the off-

position for all 5 switches as in the picture here:
