© Socket Mobile, Inc. Command Barcodes for CHS 7Ci, 7Di, 7DiRx 1
COMMAND BARCODES
BLUETOOTH® CORDLESS HAND SCANNER (CHS)
1D Imager models — 7Ci, 7Di, 7DiRx
This document pertains to the following CHS models:
•7Ci SKU# CX2870-1409 (P/N 8550-00062)
•7Di SKU# CX2877-1472 (P/N 8550-00065)
•7DiRx SKU# CX2879-1474 (P/N 8550-00066)
The part number (P/N) is labeled inside the battery compartment.
© Socket Mobile, Inc. Command Barcodes for CHS 7Ci, 7Di, 7DiRx 2
1 | General Command Barcodes
INSTRUCTIONS: Scan command barcode(s) to quickly configure the barcode scanner.
Many of the command barcodes only work with a scanner in a particular Bluetooth mode as indicated
by the header row of each table.
All Bluetooth Connection Modes OK
Scan only with CHS in SPP or iOS Mode
Scan only with CHS in HID Mode
Make sure the CHS is not connected to a host computer or device before scanning a command
barcode!
To use the CHS on multiple hosts, perform the unpair sequence. For instructions, see User’s Guide.
By default, the CHS is in HID mode as a Keyboard device.
You may want to cover adjacent barcodes before scanning a command barcode to prevent scanning the
wrong code.
For scanners in Bluetooth SPP or iOS mode, you can alternatively configure some settings by using the
Scanner Settings app.
© Socket Mobile, Inc. Command Barcodes for CHS 7Ci, 7Di, 7DiRx 3
Bluetooth Connection Modes
SPP Mode
Configures the CHS to Serial Port Profile (SPP) mode.
Required for BlackBerry, optional for Windows and Android.
HID Mode (default)
Configures the CHS to Human Interface Device (HID) mode. The CHS will be
discoverable as a Keyboard to other Bluetooth devices.
Required for Apple iOS, Mac OS, Nokia E71.
HID-Peripheral
Changes a CHS in HID-Keyboard mode to HID-Peripheral mode.
Optional for Windows and Android.
HID-Keyboard (default)
Changes a CHS in HID-Peripheral mode to HID-Keyboard mode.
Required for Mac OS and Nokia E71, optional for Apple iOS.
iOS Mode
Changes a CHS 7Ci to iOS mode.
Required for Apple iOS applications developed with SocketScan 10 SDK.
Bluetooth Connection Roles — For SPP or iOS Mode Only
Acceptor (default)
Configures the CHS to accept a Bluetooth connection puts the CHS in discoverable
mode.
Initiator
Configures the CHS to initiate a connection to a computer / device with the Bluetooth
Device Address specified in the barcode.
The barcode must be formatted in Code 128 and contain the data
#FNIaabbccddeeff#
such that aabbccddeeff is the BluetoothDevice Address of the computer/device you
want to connect to the CHS.
Required for Windows when using SPP mode.
You must create a custom barcode for each
computer / device that you want to connect to the
CHS.
Use barcode generating software or website (e.g.,
http://barcode.tec-it.com))
© Socket Mobile, Inc. Command Barcodes for CHS 7Ci, 7Di, 7DiRx 4

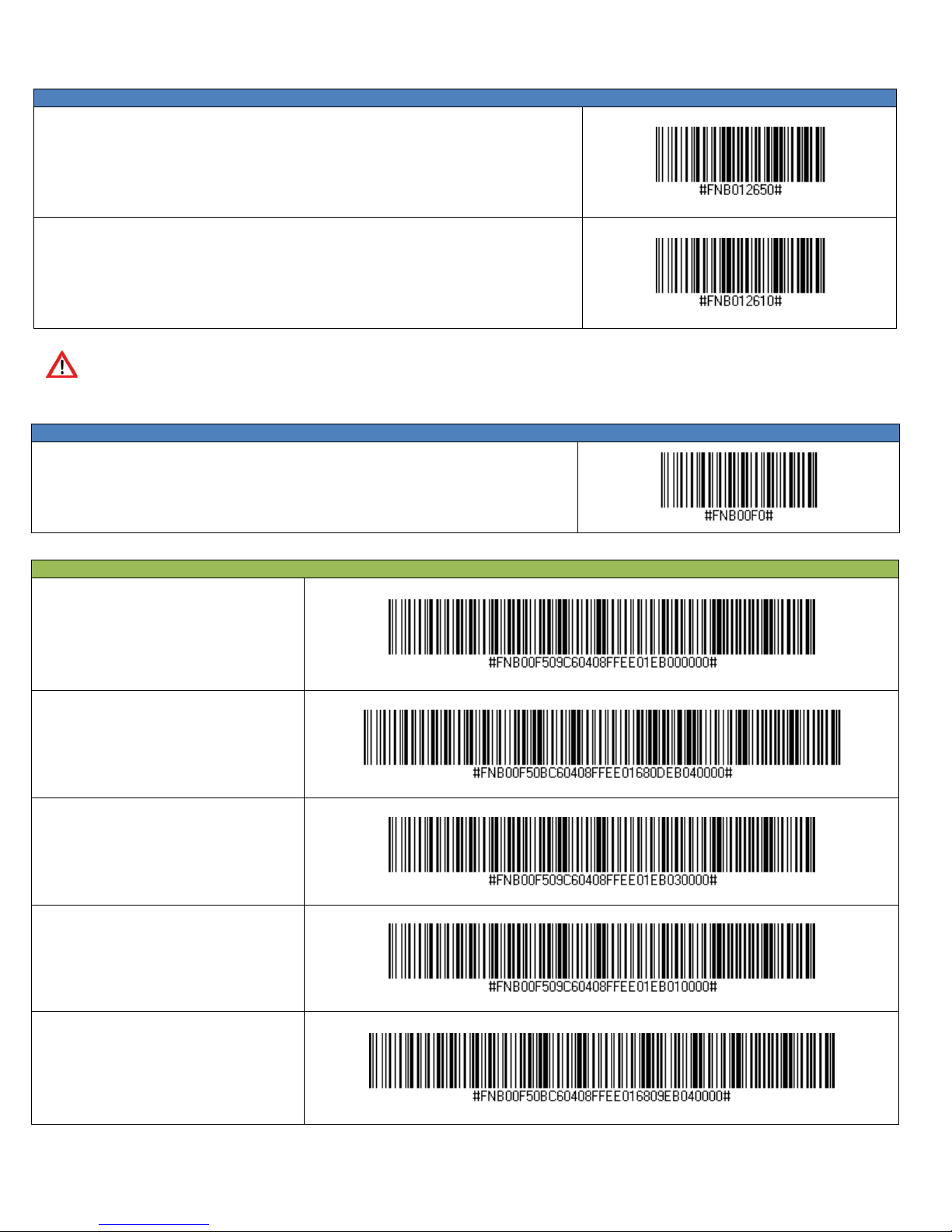

Automatic Reconnection Settings
ENABLE Automatic Reconnection from CHS (default)
Configures the CHS to automatically initiate a connection to the last paired computer / device
after the CHS is powered on.
DISABLE Automatic Reconnection from CHS
Configures the CHS to wait for a computer / device to initiate a Bluetooth connection after the
CHS Is powered on.
After scanning the Enable/Disable Automatic Reconnection from CHS command barcode above, power off and
power on the CHS to make sure it is configured properly!
Factory Defaults
Factory Reset
Configures the CHS to revert all settings to factory defaults. The CHS will power off after
scanning this barcode.
Data Suffix — For HID Mode
Data As Is
Configures the CHS to return only the
decoded data (i.e., no prefix or suffix).
Suffix – Carriage Return (default)
Configures the CHS to add a carriage return
after decoded data.
Suffix – Line Feed
Configures the CHS to add a line feed after
decoded data.
Suffix – Carriage Return & Line Feed
Configures the CHS to add a carriage return
and line feed after decoded data.
Suffix – Tab
Configures the CHS to add a tab after
decoded data
© Socket Mobile, Inc. Command Barcodes for CHS 7Ci, 7Di, 7DiRx 5
Data Suffix — For SPP or iOS Mode
Data As Is (Default)
Configures the CHS to return only the decoded data
(i.e., no prefix or suffix).
Suffix – Carriage Return
Configures the CHS to add a carriage return after
decoded data.
Suffix – Tab
Configures the CHS to add a tab after decoded data
Suffix – Carriage Return & Line Feed
Configures the CHS to add a carriage return and line
feed after decoded data.
The Data-Editing – Suffix – For SPP Mode command barcodes above only work with Revision B or later of the CHS 7Ci!
They work with all Revisions of the CHS 7Di and 7DiRx.
Power Button Double Press Key Combination — For HID Mode Only
Scan to Enable WITH BEEP
Description
Scan to Enable WITHOUT BEEP
CTRL + Z
CTRL + A
SHIFT + TAB
CTRL + S
© Socket Mobile, Inc. Command Barcodes for CHS 7Ci, 7Di, 7DiRx 6
Good Scan Indicators – For HID Mode
Scan to Enable
Description
Scan to Disable
Beep after Decoding
Data (default)
Good Scan Indicators — For SPP or iOS Mode
Scan to Enable
Description
Scan to Disable
Beep after decoding
data (default)
Beep after computer
/ device
acknowledges a
successful scan
VIN (Vehicle Identification Number) Prefix Removal — For HID Mode Only
Scan to Enable
Description
Scan to Disable
Return only the last
17 characters of a
Code 39 barcode.
Apple iOS Onscreen Keyboard — For HID Mode Only
Scan to Enable
Description
Scan to Disable
With Beep when onscreen keyboard appears
Double-press CHS
power button to
access onscreen
keyboard of Apple
device.
(default with beep)
No Beep when onscreen keyboard appears
© Socket Mobile, Inc. Command Barcodes for CHS 7Ci, 7Di, 7DiRx 7
HID Keyboard Language – For HID Mode Only
US – English (Default)
French
German
Spanish
The command barcodes above are for enabling Microsoft Windows Keyboard Layouts for different languages.
Data Mode — For SPP Mode Only
Packet Mode (default)
Configures the CHS to transmit decoded data in packet format.
Raw Mode
Configures the CHS to transmit decoded data in raw (unpacketed) format.
Do not scan thesebarcodesin iOS or HID mode.
© Socket Mobile, Inc. Command Barcodes for CHS 7Ci, 7Di, 7DiRx 8
2 | Scanner Engine Command Barcodes
INSTRUCTIONS: Scan command barcode(s) to quickly configure the barcode scanner.
Make sure the CHS is not connected to a host computer or device before scanning a command
barcode!
To use the CHS on multiple hosts, perform the unpair sequence. For instructions, see User’s Guide.
By default, the CHS is in HID mode as a Keyboard device.
You may want to cover adjacent barcodes before scanning a command barcode to prevent scanning the
wrong code.
For scanners in Bluetooth SPP or iOS mode, you can alternatively configure some settings by using the
Scanner Settings app.
Parameter Menus 4 - 13
UPC/EAN
Enable/Disable UPC-A
Parameter # 01h
To enable or disable UPC-A, scan the appropriate bar code below.
*Enable UPC-A
(01h)
Disable UPC-A
(00h)
Enable/Disable UPC-E
Parameter # 02h
To enable or disable UPC-E, scan the appropriate bar code below.
*Enable UPC-E
(01h)
Disable UPC-E
(00h)
CHS 7Ci, 7Di, 7DiRx Command Barcodes
9
4 - 14 SE655 Decoded Linear Imaging Engine
Enable/Disable UPC-E1
Parameter # 0Ch
To enable or disable UPC-E1, scan the appropriate bar code below.
Enable UPC-E1
(01h)
*Disable UPC-E1
(00h)
Enable/Disable EAN-8
Parameter # 04h
To enable or disable EAN-8, scan the appropriate bar code below.
*Enable EAN-8
(01h)
Disable EAN-8
(00h)
NOTE UPC-E1 is not a UCC (Uniform Code Council) approved symbology.
CHS 7Ci, 7Di, 7DiRx Command Barcodes
10
