Parts Manual fo

Revision IR,

LARGE FRAME TWO STAG

2008 MODELS

McDonough, GA, 30253 U.S.A.

TP 400-5286-IR-LF-N

8/27/2007 Manual No. 7006185

SNOW THROWERS 26", 28", 30", & 32"

Briggs & Startton Yard Power Products Group

Briggs & Startton Corporation

MODEL

L1226E (1695324)

L1226EX (1695325)

L1428E (1695328)

L1428EX (1695329)

L1530E (1695332)

L1530EX (1695333)

L1632E (1695336)

L1632EX (1695337)

Table Of Content

TP 400-5286-IR-LF-N

Manual No. 7006185LARGE FRAME TWO STAGE

2008 MODELS 3

PAGE GROUP

4Handle & Controls Group

8Auger Housing & Chute Group

12 Auger Drive Group

14 Engine Group

18 Traction Drive Group - Standard

20 Traction Drive Group - EZ Turn

24 Wheel & Tire Group

26 Decals Group

TP 400-5286-IR-LF-N

Manual No. 7006185 LARGE FRAME TWO STAGE

2008 MODELS

Handle & Controls Group

Footnotes:

TP 400-5286-IR-LF-N

Manual No. 7006185LARGE FRAME TWO STAGE

2008 MODELS 5

Part No Descri

tionItem Qt

Note

1 1923701 2 CAPSCREW, Hex Head 3/8-16 x 2 G5

2 1732470 1 KNOB, Interior Thread 3/8-16

3 1732427 1 ROD, 3/8 Diameter 5" Large, 3/8-16 x 1 Chute

4 1924356 1 WASHER, 3/8

5 724361 2 SPRING

6 1918266 2 WASHER, 3/8

7 1919439 2 NUT, Hex Lock ESNA Light 3/8-16

8 1722667 1 HANDLE, Clutch L.H.

9 1733192 1 KNOB, Slot Speed

10 1733205 1 ROD & PLATE ASSEMBLY, Speed Control

11 1923282 1 CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5

12 1921962 3 CAPSCREW, Hex Head 1/4-20 x 1-3/4 G5

13 1733045A 1 BRACKET, Trac & Deflector Control

14 1734354 1 ROD

15 1931277 3 NUT, Hex Flange 5/16-18, Whiz Lock Small

16 1732971 1 CABLE, Deflector Control

17 2820263 2 NUT, Hex 5/16-24

18 1960608 1 NUT, Hex Flange 1/4-20 Centerlock Large

19 724360 1 BALLJOINT, Steel

20 1917356 1 LOCKWASHER, Spring 5/16

21 1732970 1 SPRING, Extension

22 1732365 1 TUBE & BRACKET ASSEMBLY, Cable Support

23 1924856 4 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2

25 1732364 1 SUPPORT, Chute Control 14GA

26 1927429 4 SCREW, Hex Washer Head Taptite 1/4-20 x 5/8

27 1732944 1 BOLT, Shoulder 1/4-20

28 1733142 1 BRACKET, Support Quick Turn

29 1732369 1 ROD, Chute

30 1920397 8 NUT, Hex Lock ESNA Light 1/4-20

31 1917421 1 NUT, Hex Jam 3/8-16

32 723122 1 GRIP, Lever

33 1733777D 1 COVER, Panel

34 1960715 4 SCREW, Truss Head Torx Drive 1/4-20 x 3/4

35 1733204 1 BELLOWS, Black Rubber Quick Turn

36 1922837 2 CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5

37 1931333 3 CARRIAGE BOLT, 5/16-18 x 3/4 G5

39 1732064A 1 SUPPORT, Dash Panel Cover

Handle & Controls Group

TP 400-5286-IR-LF-N

Manual No. 7006185 LARGE FRAME TWO STAGE

2008 MODELS

Handle & Controls Group

Footnotes:

TP 400-5286-IR-LF-N

Manual No. 7006185LARGE FRAME TWO STAGE

2008 MODELS 7

Part No Descri

tionItem Qt

Note

40 1732471 1 CABLE & SPRING ASSEMBLY, Auger Drive R.H.

41 1722638 1 HANDLE, Clutch R.H.

42 1923358 2 NUT, Hex Centerlock 1/4-20

43 1726317 2 GRIP

44 1715655 2 SPACER

45 1678392 2 SPACER

47 1734587A 1 HANDLE, Upper R.H.

48 1734586A 1 HANDLE, Upper L.H.

49 1960723 4 CARRIAGE BOLT, 5/16-18 x 2-1/4 G5

50 1732781A 1 HANDLE, Lower

51 1960686 4 NUT, Hex Flange 5/16-18

52 1935048 2 NUT, Hex Flange 5/16-18 Two-Way Lock

53 1664847 2 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4

54 723259 1 BRACKET, Cable Adjusting

55 723154 1 BOOT, Spring End Cover

56 727331 1 CABLE,

57 1921333 2 CAPSCREW, Hex Head 5/16-18 x 1 G5

58 1679166 1 SPACER, Powdered Metal

59 1733505A 1 BRACKET, Free Hand Control 12GA

60 1733095 1 SPACER, Powdered Metal

61 1733509 1 ROD & SPRING ASSEMBLY, w/Pin

62 1960027 4 WASHER, 1/2

63 2108360 1 SPRING, Compression

64 1960353 1 WASHER, 1/4

65 1722630 1 ROD, Hold Down E-Coat

66 1732321 1 HEADLIGHT ASSEMBLY, Oval Amber

67 1704351 5 FASTENER, Panel

69 1725702 1 SCREW, Pan Head Torx #10 x 1/2 Thick Cut

70 724621 1 SPOOL CABLE, Auger Control

72 1960589 1 SCREW, Round Head Phillips #10-24 x 3/4

73 1933896 1 NUT, Hex Lock 10-24 w/Nylon Insert

74 1718791 1 CABLE & HANDLE ASSEMBLY

Auger Housing & Chute Group

TP 400-5286-IR-LF-N

Manual No. 7006185 LARGE FRAME TWO STAGE

2008 MODELS

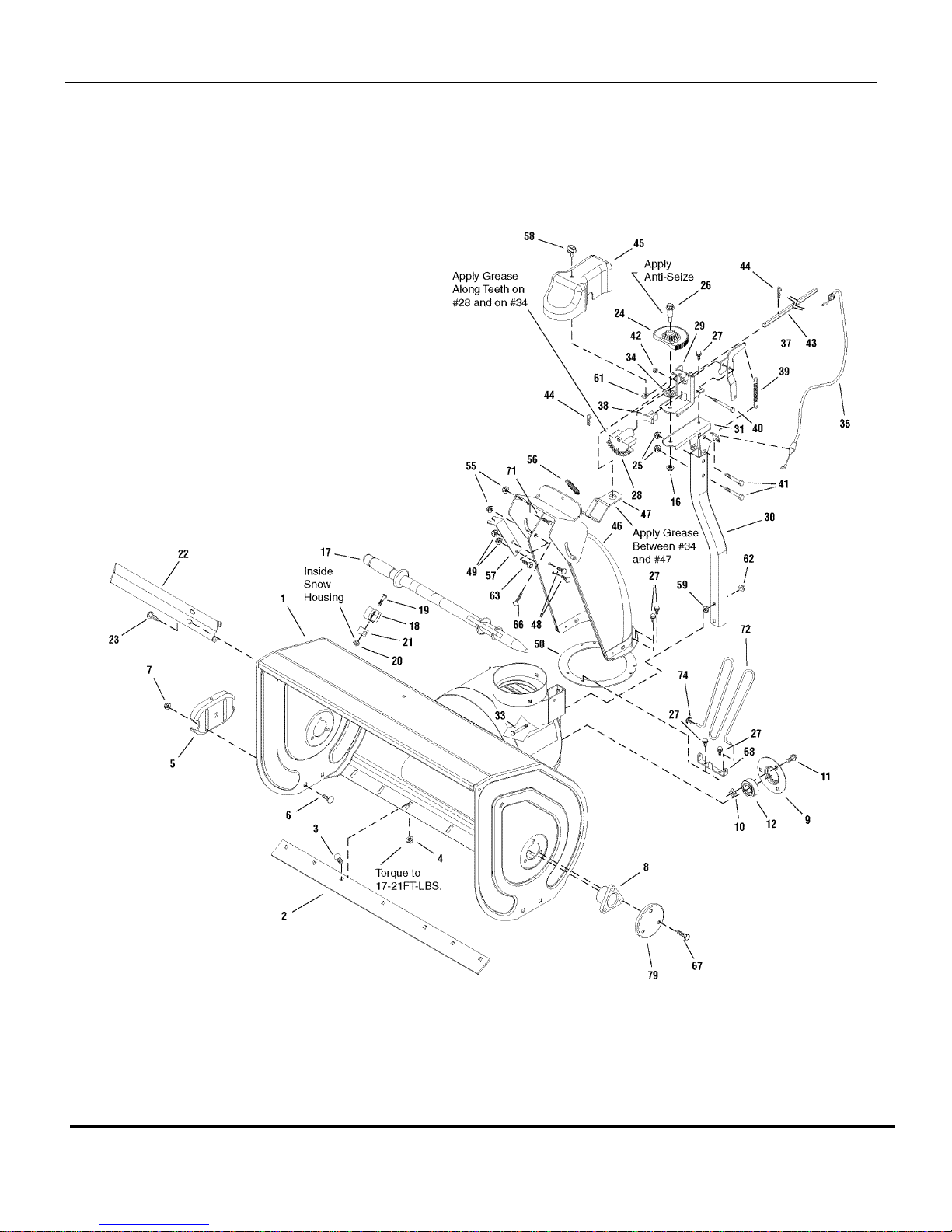

Auger Housing & Chute Group

Footnotes:

TP 400-5286-IR-LF-N

Manual No. 7006185LARGE FRAME TWO STAGE

2008 MODELS 9

Part No Descri

tionItem Qt

Note

1 1734555D 1 HOUSING ASSEMBLY, 26”

1 1734556D 1 HOUSING ASSEMBLY, 28”

1 1734557D 1 HOUSING ASSEMBLY, 30”

1 1734558D 1 HOUSING ASSEMBLY, 32”

2 1732384A 1 BLADE, Scraper 26”

2 1709947A 1 BLADE, Scraper 28”

2 1732385A 1 BLADE, Scraper 30”

2 1709948A 1 BLADE, Scraper 32”

3 1960699 5/7 CARRIAGE BOLT, 5/16-18 x 5/8 G5 (Quantity 7 used on 30" & 32"

Models)

4 1935048 5/7 NUT, Hex Flange 5/16-18 Two-Way Lock

5 1727854A 2 SKID, Shoe Reversible

6 1960711 4 CARRIAGE BOLT, 3/8-16 x 3/4 G5

7 1960687 4 NUT, Hex Flange 3/8-16 ESNA

8 1733103 2 BEARING, Flange

9 1665982 1 BEARING, Retainer

10 1930659 3 RETAINER, Nut, 5/16-18

11 1960738 3 SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4

12 2108202 1 BEARING

16 1931277 7 NUT, Hex Flange 5/16-18, Whiz Lock

17 1733209 1 STICK, Cleanout w/Brush

18 722242 2 CLIP, Retainer

19 2860604 2 SCREW, Hex Washer Head

20 1933896 2 NUT, Hex Lock 10-24 w/Nylon Insert

21 724565 2 BLOCK, Universal Pivot

22 1733102A 2 CUTTER, Drift w/Tabs

22 1733102C 2 CUTTER, Drift w/Tabs

23 1664847 2 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4

24 1732608 1 GEAR, 13 Tooth

25 1960684 2 NUT, Hex KEPS 5/16-18 Conical Washer

26 1732412 1 BOLT, Shoulder 5/16-18 x 3/5

27 1925003 6/8 SCREW, Hex Washer Head Taptite 1/4-20 x 1/2 (Quantity 8 used only on

CE/Export Models)

28 1732607 1 GEAR, Sector 34 Tooth Powdered Metal

29 1732602A 1 SUPPORT, Driver Gear

30 1734414A 1 TUBE

31 1732606A 1 BRACKET, Gear Support

Auger Housing & Chute Group

TP 400-5286-IR-LF-N

Manual No. 7006185 LARGE FRAME TWO STAGE

2008 MODELS
