Snapper 1696001 Manuel utilisateur

Not for

Reproduction

Parts Manual fo

27" & 29" TWO STAG

2011

INTERMEDIATE SNOWTHROWERS

Revision: - 6/14/2011

Briggs & Stratton Yard Power Products Group

Manual No. 7105285

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

1696001 M1227E

169600

M1227EX

169600

M1529E

Not for

Reproduction

Not for

Reproduction

Table Of Content

TP 400-5494---IS-N

27" & 29" TWO STAGE

2011 3

Manual No. 7105285

PAGE GROUP

4Handles & Controls Group

8Auger Housing Group

10 Auger Drive Group

12 Gear Case Assembly

14 Discharge Chute Group

16 Engine & Frame Group

20 Traction Drive Group - Standard

22 Decals Group

24 Wheels & Tires Group

Not for

Reproduction

Manual No. 7105285 27" & 29" TWO STAGE

2011

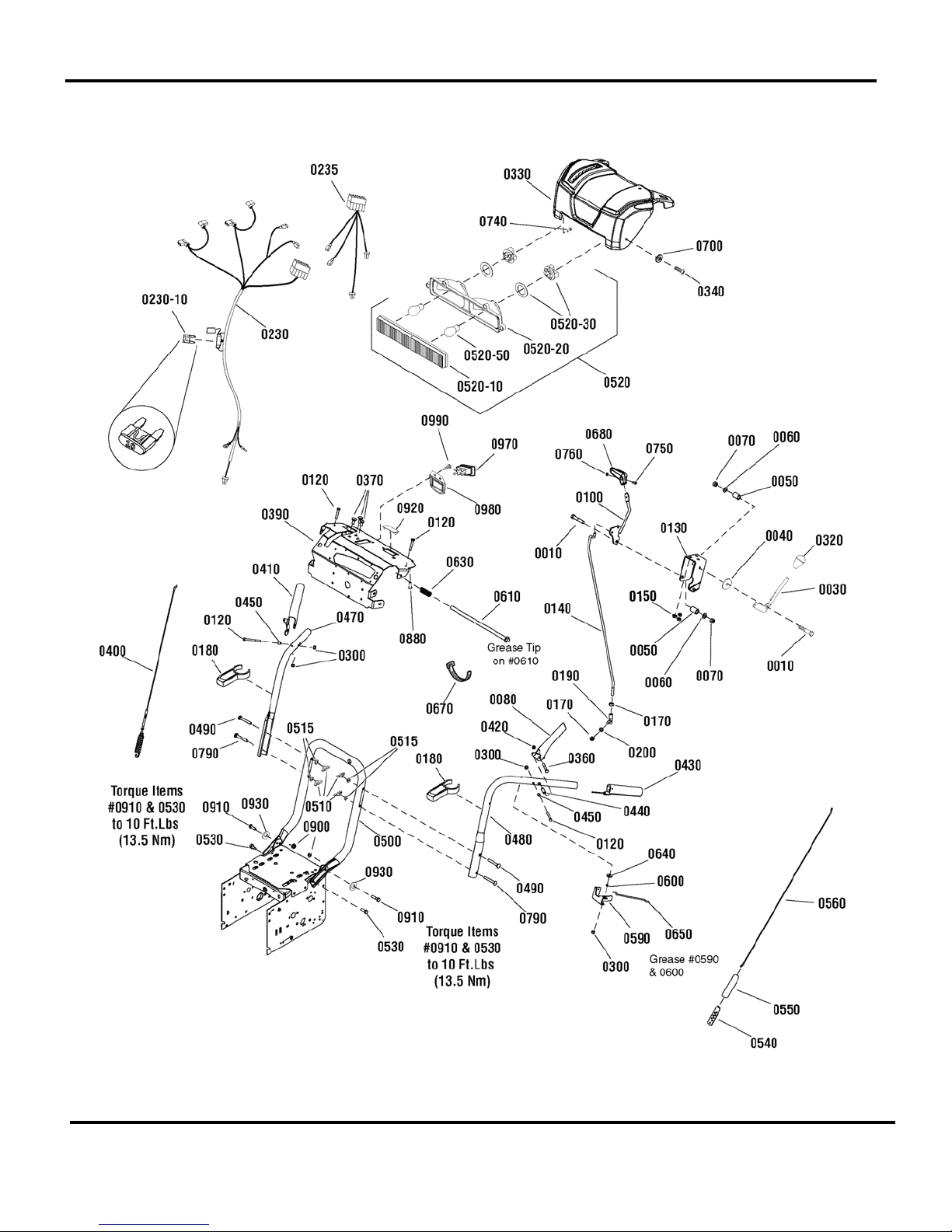

Handles & Controls Group

Not for

Reproduction

Footnotes:

Manual No. 710528527" & 29" TWO STAGE

2011 5

Handles & Controls Group

Part No Descri

tionItem Qty

0010 1923701 2 CAPSCREW, Hex Head, 3/8-16 x 2 G5

0030 1736192 1 LEVER, Deflector Control (Remote Chute)

0040 1924356 1 WASHER, 3/8 (Remote Chute)

0050 724361 2 SPRING

0060 1918266 2 WASHER, 3/8

0070 1919439 2 NUT, Hex Lock, Esna Light, 3/8-16

0080 1737690 1 LEVER, Clutch, Left

0100 1736836 1 SPEED LEVER

0120 1921962 4 CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5

0130 1737684 1 BRACKET, Controls

0140 1734354 1 ROD, 25.3/8 Long

0150 1931277 3 NUT, Hex Flange, Whiz Lock, 5/16-18

0170 2820263 2 NUT, Hex, 5/16-24

0180 1739487 2 BRACKET, Mounting, Dash

0190 724360 1 BALLJOINT

0200 1917356 1 LOCKWASHER, Spring, 5/16

0230 1750775 1 HARNESS, Wire, Headlights (Remote Chute)

0230 1750773 1 HARNESS, Wire, Electric Deflector (Electric Chute)

0230-10 ----- 1 * FUSE, Mini, 10 Amp

0235 1752164 1 HARNESS, Heated Hand Grip (M1227EX & M1529E)

0300 1920397 4 NUT, Hex Lock, Esna Light, 1/4-20

0320 1732470 1 KNOB, Internal Thread, 3/8-16 (Remote Chute)

0330 1738327 1 DASH ASSEMBLY, Twin Light (Remote Chute)

0330 1738330 1 DASH ASSEMBLY, Twin Light (Electric Chute)

0340 1960001 2 SCREW, Hex Washer Head, Plastite, 10-14 x 5/8

0360 1922837 2 CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5

0370 723873 3 BOLT, Carriage, 5/16-18 x 3/4

0390 1739500A 1 SUPPORT, Dash Panel

0400 1737544 1 CABLE, Auger Drive

0410 1736323 1 LEVER, Clutch, Right

0420 1923358 2 NUT, Hex Centerlock, 1/4-20

0430 1726317 2 GRIP (M1227E)

0430 1738124 2 GRIP, Heated (M1227EX & M1529E)

0440 1736542 2 SPACER, Stepped

0450 1678392 2 SPACER, 1/4ID x 3/8OD x 5/16

0470 1734587A 1 HANDLE, Upper, Right

0480 1734586A 1 HANDLE, Upper, Left

0490 1750299 2 BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4

0500 1737274A 1 HANDLE, Lower

0510 7035744 4 KNOB, Wing, 5/16-18

0515 7090391 4 WASHER, Internal Tooth, 5/16

0520 1736176 1 HEADLIGHT ASSEMBLY

0520-10 ----- 1 LENS, Twin Light

0520-20 ----- 2 DEFLECTOR, Twin Light

Note* See your local hardware store for replacement bulbs & fuses.

Not for

Reproduction

Manual No. 7105285 27" & 29" TWO STAGE

2011

Handles & Controls Group

Not for

Reproduction

Footnotes:

Manual No. 710528527" & 29" TWO STAGE

2011 7

Handles & Controls Group

Part No Descri

tionItem Qty

0520-30 1736180 2 SOCKET/GASKET ASSEMBLY

0520-50 ----- 2 * BULB, 12V - 20W Halogen

0530 1664847 2 SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4

0540 723259 1 BRACKET, Cable Adjusting

0550 723154 1 BOOT, Spring End Cover

0560 727331 1 CABLE, FR-DR P7 EXT-HDL

0590 1733505A 1 BRACKET, Pivot, Free Hand

0600 1733095 1 SPACER, 1/4ID x 3/8OD x 1/8

0610 1736363 1 ROD & SPRING ASSEMBLY (Remote Chute)

0610 1733509 1 ROD & SPRING ASSEMBLY (Electric Chute)

0630 2108360 1 SPRING, Compression, 2-1/2 Inch

0640 1960353 1 WASHER, 1/4

0650 1736360 1 ROD, 5-1/2 Long

0670 7012080 3 TIE, Cable

0680 1733192 1 KNOB, Slot Speed

0700 1921319 2 WASHER, 1/4

0740 7091105 4 SCREW, Hex Washer Head, Hi-Lo, #10-16 x 1/2

0750 1960589 1 SCREW, Round Head Phillips, #10-24 x 3/4

0760 7091290 1 NUT, Hex Lock, 10-24

0790 7091189 2 BOLT, Carriage, Curved Head, 5/16-18 x 2

0880 7091081 2 SCREW, Hex Washer Head, Self Tap, 1/4-15 x 3/4

0900 1960684 2 NUT, Hex KEPS, 5/16-18

0910 723873 2 BOLT, Carriage, 5/16-18 x 3/4

0920 1709188 1 PLUG (Remote Chute)

0930 725331 2 WASHER, Flat

0970 1752242 1 SWITCH, Heated Hand Grip (M1227EX & M1529E)

0980 1739861 1 BRACKET, Heated Hand Grip (M1227EX & M1529E)

0990 1960556 1 SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4 (M1227EX & M1529E)

Note* See your local hardware store for replacement bulbs & fuses.

Not for

Reproduction

Manual No. 7105285 27" & 29" TWO STAGE

2011

Auger Housing Group

Not for

Reproduction

Footnotes:

Manual No. 710528527" & 29" TWO STAGE

2011 9

Auger Housing Group

Part No Descri

tionItem Qty

0010 1687616 1 HOUSING, 27"

0010 1687617 1 HOUSING, 29"

0020 1736620 2 CLIP, Retainer

0030 1960569 2 SCREW, Truss Head Torx, #10-24 x 3/8

0040 7091290 2 NUT, Nylock, 10 x 24

0060 1736094 1 BRUSH, Cleanout

0070 724427 2 BEARING, Auger Shaft

0080 722839 4 SCREW, Hex Washer Head, 5/16-18 x 3/4

0090 7091547 4 BOLT, Carriage, 3/8-16 x 3/4 GR5

0100 7091619 4 NUT, Hex Flange, 3/8-16

0110 725273 7 NUT, Hex Flange, Serrated Lock, 5/16-18

0150 1727854A 2 SKID, Shoe Reversible

0160 1740745A 1 BLADE, Scraper, 27"

0160 1740746A 1 BLADE, Scraper, 29"

0170 724712 1 RETAINER, Ball Bearing

0180 1705897 1 BEARING, Ball

0190 720018 3 BOLT, Hex, 5/16-18 x 5/8

0200 725521 2 PLUG

0210 7090799 4 BOLT, Carriage, 5/16-18 x 5/8 GR5

0220 1733102A 2 DRIFT CUTTER

0230 723873 2 BOLT, Carriage, 5/16-18 x 3/4

0240 725347 2 NUT, Wing, 5/16-18

Not for

Reproduction

Manual No. 7105285 27" & 29" TWO STAGE

2011

Auger Drive Group
