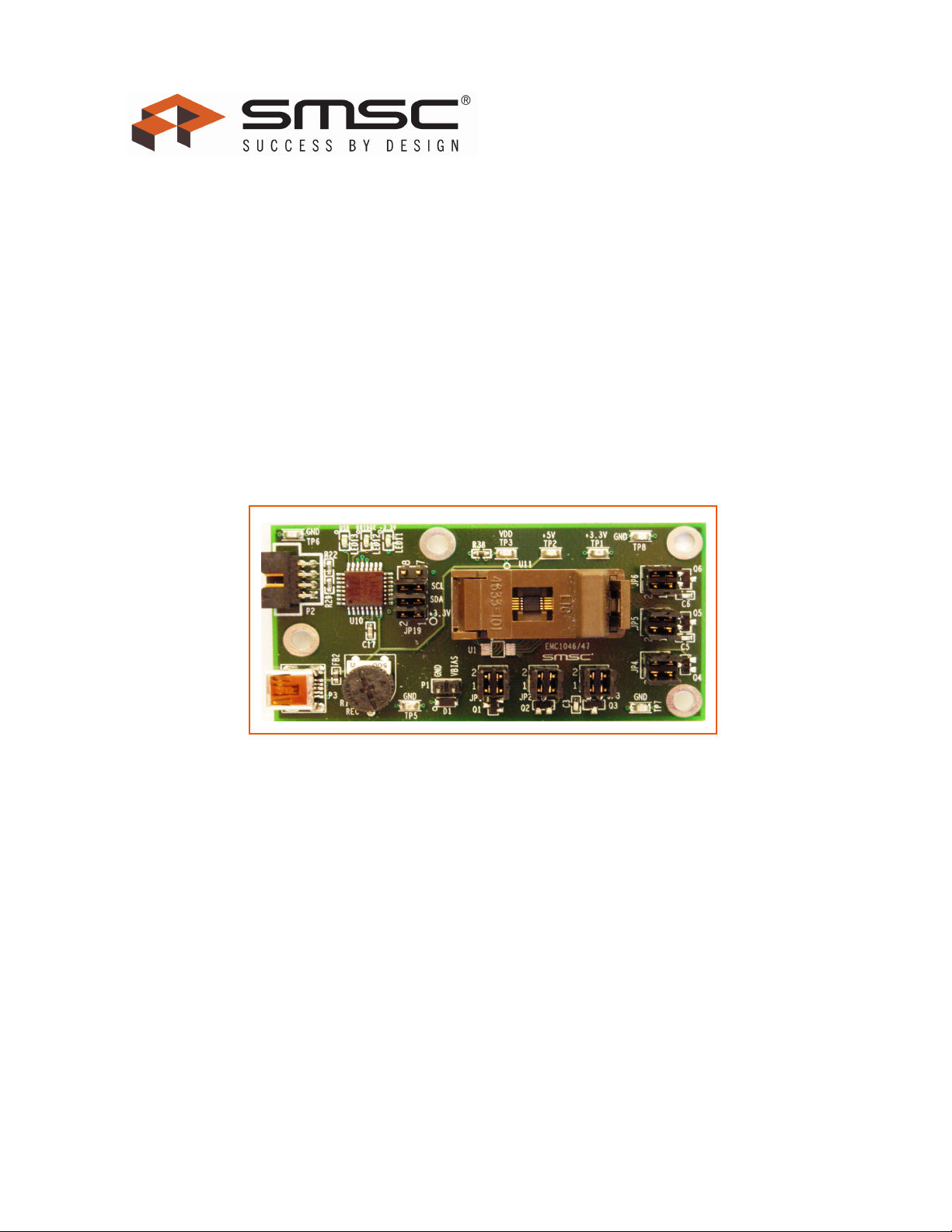

Insert EVB graphic/photo here

(this text can be removed on master page view)

SMSC EMC1046/47 Revision 1.0 (08-21-07)

The information contained herein is proprietary to SMSC, shall be used solely in accordance with the agreement pursuant to which it is provided,

and shall not be reproduced or disclosed to others without the prior written consent of SMSC. Although the information is believed to be accurate,

no responsibility is assumed for inaccuracies. SMSC reserves the right to make changes to this document and to specifications and product

descriptions at any time without notice. Neither the provision of this information nor the sale of the described semiconductor devices conveys any

licenses under any patent rights or other intellectual property rights of SMSC or others. The product may contain design defects or errors known as

anomalies, including but not necessarily limited to any which may be identified in this document, which may cause the product to deviate from pub-

lished specifications. SMSC products are not designed, intended, authorized or warranted for use in any life support or other application where

product failure could cause or contribute to personal injury or severe property damage. Any and all such uses without prior written approval of an

officer of SMSC will be fully at the risk of the customer. SMSC is a registered trademark of Standard Microsystems Corporation (“SMSC”).

SMSC DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL IMPLIED WARRAN-

TIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY

AND ALL WARRANTIES ARISING FROM ANY COURSE OF DEALING OR USAGE OF TRADE. IN NO EVENT SHALL SMSC BE LIABLE FOR

ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES; OR FOR LOST DATA, PROFITS, SAVINGS

OR REVENUES OF ANY KIND; REGARDLESS OF THE FORM OF ACTION, WHETHER BASED ON CONTRACT; TORT; NEGLIGENCE OF

SMSC OR OTHERS; STRICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE; WHETHER OR NOT ANY REMEDY OF BUYER IS

HELD TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, AND WHETHER OR NOT SMSC HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES.

EMC1046/47 EVB User Manual

Revision 1.0 (08-21-07) SMSC EMC1046/47

1 Overview

The EMC1046/47 device is a multi channel SMBus temperature sensor. Five (EMC1046) or six

(EMC1047) externally connected temperature diodes and one internal diode are available for

temperature sensing.

All of the functions of the EMC1046/47 can be tested and observed with the USB-based EVB-

EMC1046/47. A block diagram of this EVB is shown in Figure 1.1.

1.1 Related Documents

The CD included with the evaluation board contains the following documents:

nBill Of Materials

nSchematic

nDatasheets

nChip Manager Application

nChip Manager Register Definition File (EMC1046_47.xml)

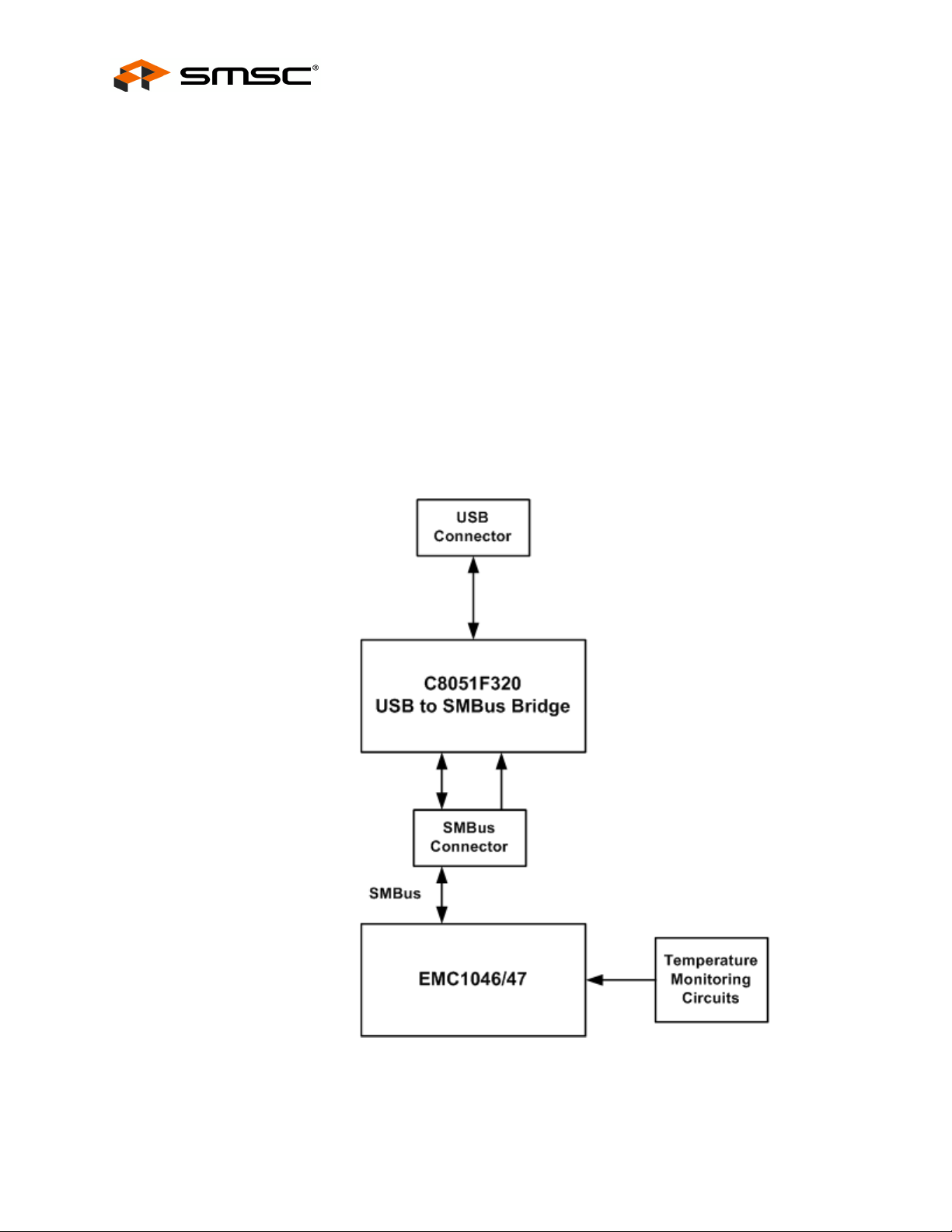

Figure 1.1 EVB-EMC1046/47 Block Diagram

EMC1046/47 EVB User Manual

SMSC EMC1046/47 Revision 1.0 (08-21-07)

2 Getting Started

2.1 System Requirements

To use the EVB you will need:

nA PC running Windows 2000 or XP

nDisplay resolution 800x600 (or larger to view several windows simultaneously)

nAn available USB port

2.2 Feature Summary

nThe SMSC Chip Manager (ChipMan) application allows viewing and changing register values

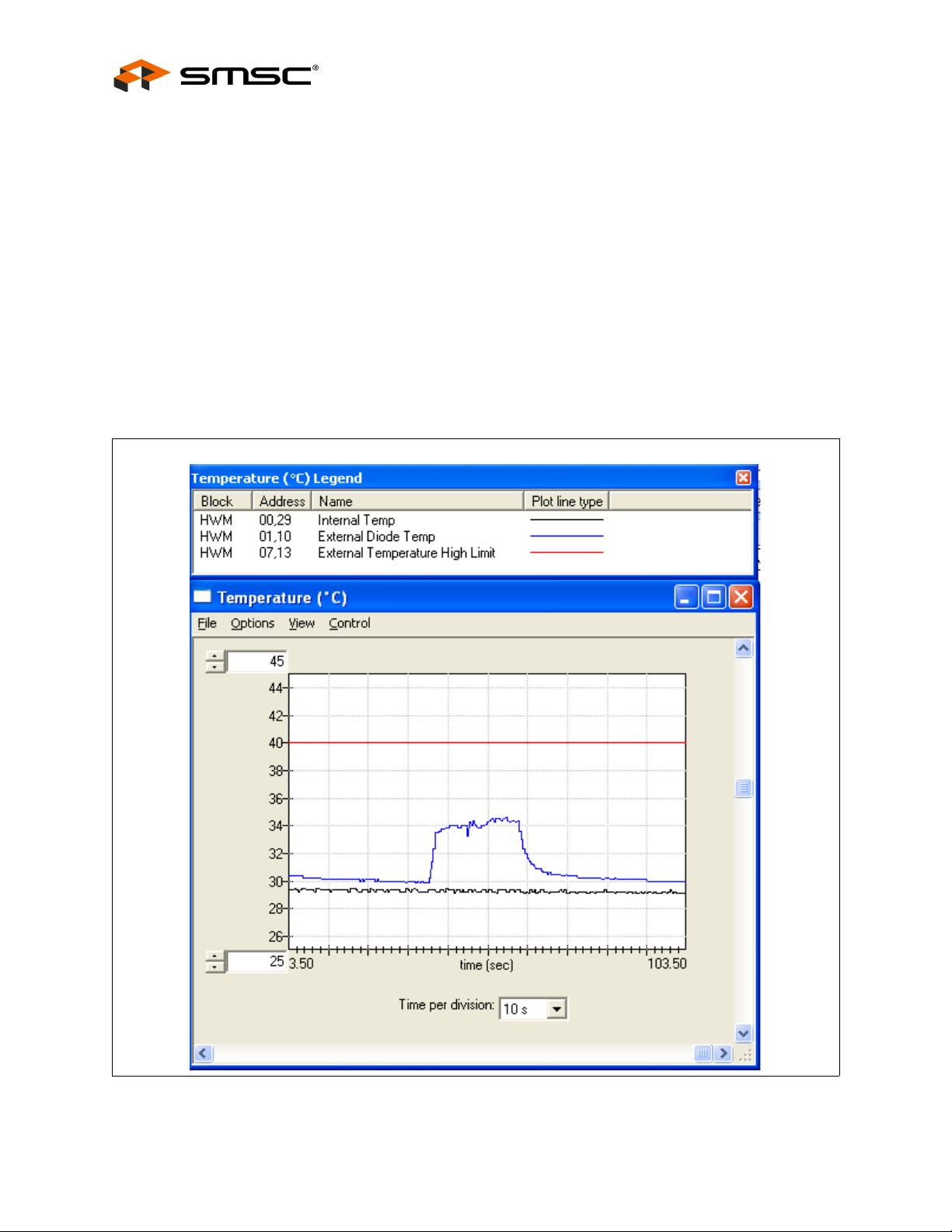

nGraphing of any register

nHeaders for connecting an external diode or CPU/GPU

nResistance Error Correction verification

nSaving of settings of all registers allowing for quick loading at a later time

nUSB communication to evaluation board

nAn external SMBus master may be easily connected

2.3 Installing the EVB

1. Install the Chip Manager application and device driver on a PC by running Setup.exe from the Chip

Manager distribution CD. A revision history and install/un-install notes may be found in the

readme.txt file on the disk.

2. Connect the supplied USB cable to an available USB port on the PC. Plug the “mini-B” end of the

USB cable into EVB connector P3. The +3.3V and Bridge ACT LEDs should illuminate. After the

EVB is connected to the PC the “Find New Hardware” wizard will pop up for USB driver installation.

Follow the instructions in the readme.txt file to complete the installation process.

3. Start the EVB Software by selecting the Chip Manager application from the SMSC folder from the

Programs Windows Start menu. The EVB will initialize and the Chip Manager Quick Help screen

will appear as in Figure 2.1. The USBAct LED should be blinking when the Chip Manager is

running. For more help with Chip Manager, select Help -> Contents for an html based help

document as shown in Figure 2.2.

Note: The SMSC Chip Manager application allows viewing and changing register values for a variety

of EVBs including the EMC1001, EMC1002, EMC1023, EMC1033 and the entire family of

EMC14XX. The Chip Manager software only needs to be installed once to support all of these

EVBs. The list of supported EVBs may be found in the pulldown menu under Options -> Select

Device.

EMC1046/47 EVB User Manual

Revision 1.0 (08-21-07) SMSC EMC1046/47

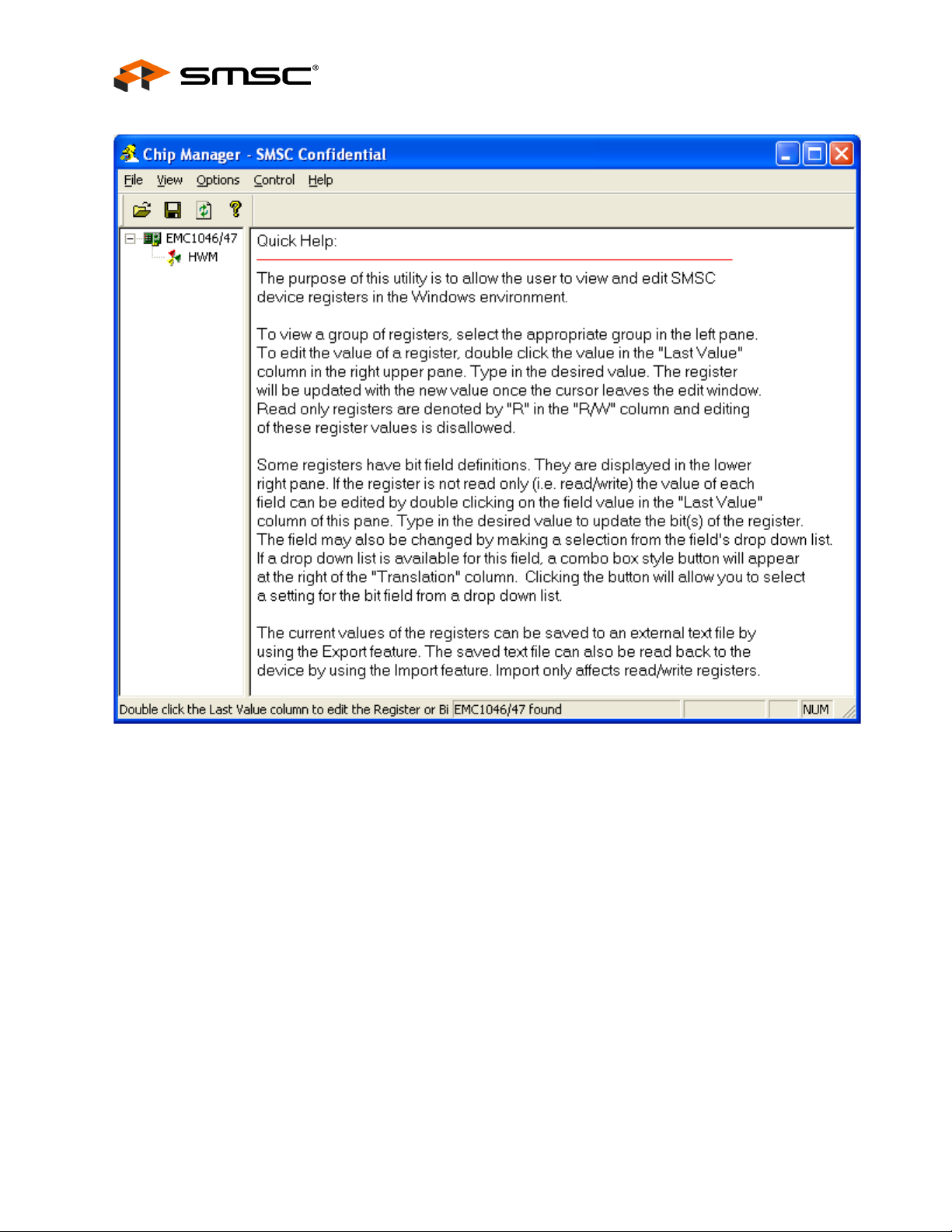

Figure 2.1 Chip Manager Quick Help Startup Screen

EMC1046/47 EVB User Manual

SMSC EMC1046/47 Revision 1.0 (08-21-07)

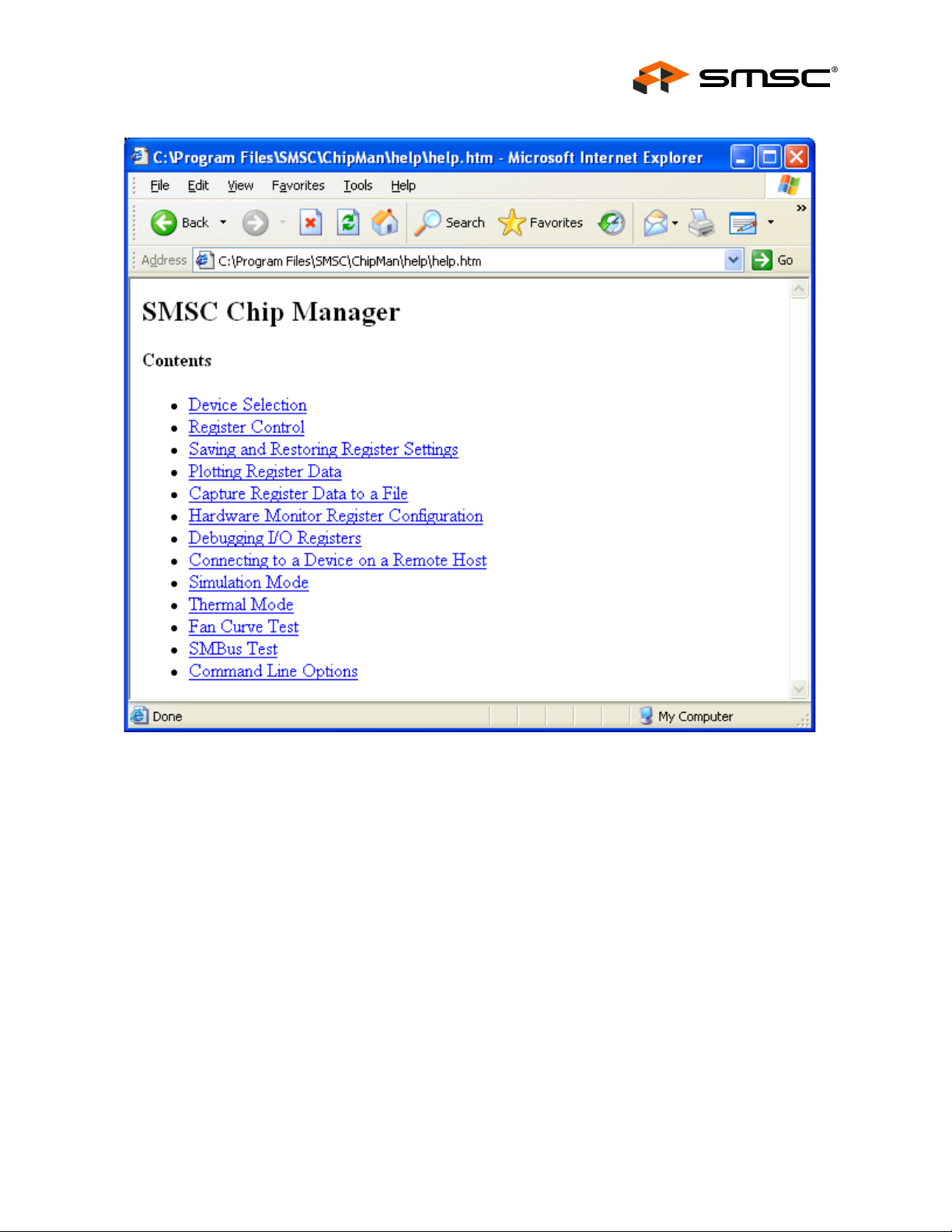

Figure 2.2 Chip Manager Help Screen

EMC1046/47 EVB User Manual

Revision 1.0 (08-21-07) SMSC EMC1046/47

2.4 Board Layout

The EVB was designed for ease of use and user experimentation with easily accessible jumpers and

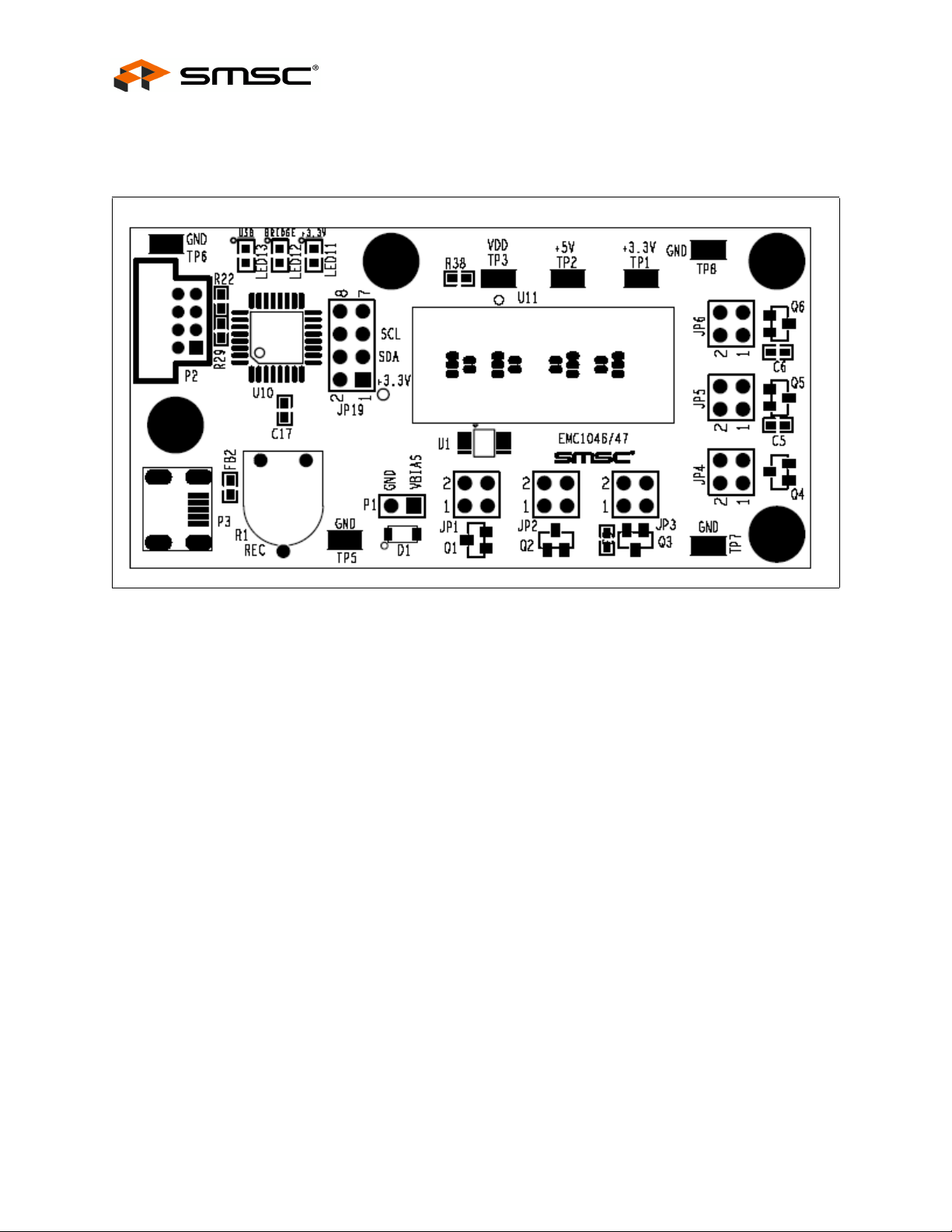

access to the SMBus data lines. Figure 2.3 below shows the silk-screen for the EVB-EMC1046/47.

Figure 2.3 EVB-EMC1046/47 Board Outline and Silk-screen

EMC1046/47 EVB User Manual

SMSC EMC1046/47 Revision 1.0 (08-21-07)

3 Hardware Description

3.1 Introduction

The EVB-EMC1046/47 provides the means to demonstrate all of the EMC1046/47 features and to view

and modify registers. LEDs indicate status information and test points are included to monitor system

voltages with a user provided voltmeter or oscilloscope.

3.2 USB to SMBus Bridge

The USB to SMBus bridge is based on an 8051 micro controller with integrated USB and SMBus

interfaces as well as internal flash and RAM. During EVB manufacture, firmware is loaded into the

bridge that provides the interface between the USB and the SMBus. Power is sourced to the micro

controller from the USB interface for device power and communication.

3.2.1 Direct SMBus Connect Option

It is also possible to connect an external SMBus master to the EVB-EMC1046/47. A few jumper

settings are all that is required to drive the EMC1046/47 on the EVB:

nSimply remove the jumpers on JP19 and connect the SMBus master to the SCL, SDA and an

external supply for +3.3V.

nThe +3.3V can be supplied by the SMBus bridge by leaving the +3.3V jumper in place and retaining

the USB connection.

3.3 Connecting to Remote Diodes

This EVB is populated with jumpers to connect to an external diode or CPU/GPU. If connecting to a

CPU’s thermal diode, it is necessary to provide a common ground. Also, it is usually necessary to bias

the appropriate CPU Vcc plane above this common ground to avoid forward-biasing the ESD diodes

with the temperature sensor signals. These connections have been provided on P1. Consult the CPU

manufacturer’s datasheet for guidance on interfacing to the thermal diode. Refer to the schematic EVb-

EMC104647_SCH-7121-RevA.pdf for details on the EVB header connections.

3.4 Resistance Error Correction (REC)

External diode 1 on board the EVB-EMC1046/47 has a series resistance adjustment on the DN line.

Checking the REC (Resistance Error Correction) feature is accomplished by turning the resistor wheel

R1. With REC off, a significant temperature error will result. When the REC bit is set, the error will be

corrected for.

3.5 Power Source

This EVB requires only one USB connection to power the entire board. The USB-SMBus bridge

regulates the +5V USB power to +3.3V used by the EMC1046/47 and other EVB circuitry.

3.6 Test Points

Test points are provided for:

nGround

nVDD supply pin

n+3.3V power

n+5V_USB power

EMC1046/47 EVB User Manual

Revision 1.0 (08-21-07) SMSC EMC1046/47

3.7 LED Indicators

LEDs indicate the status of the following signals (Ta ble 3.1 ).

3.8 Jumper Settings

This EVB has many jumper configurations to evaluate all of the features of the EMC1046/47 family of

devices.

This EVB also allows for an off-board diode to be tested (see Ta b l e 3 . 2 ). This is done by removing

both jumpers of the channel of interest. Then connect Pin 1 to the ‘remote+’ terminal of the remote

diode and Pin 3 to the ‘remote-‘ terminal of the remote diode. Make sure a common ground exists

between the remote diode (GPU, etc.) and the EVB-EMC1046/47. Also ensure that the remote diode

is properly biased according to the diode manufacture.

Table 3.1 LED Status Indicators

LED SIGNAL OFF GREEN

LED11 +3.3V +3.3V power OFF +3.3V power ON

LED12 Bridge Activity NO Activity on

USB/SMBus Bridge

Activity on

USB/SMBus Bridge

LED13 USB Activity NO Activity on USB port Activity on USB port

Table 3.2 Remote Diode Configurations

JUMPER CONFIGURATION PIN 1 PIN 2 PIN 3 PIN 4

JP1

On-board diode (Q1) short / DP short / DN
