Smith DA014 Manuel utilisateur

DA014

─ 3 ─

Important Safety Instructions

Before beginning any fitness program, you should obtain a complete

physical examination from your physician. When using exercise equipment,

basic precautions should always be taken, including the following:

* Read all instructions before using the equipment. These instructions are

written to ensure your safety and to protect the unit.

* Do not allow children on or near the equipment.

* Use the equipment only for its intended purpose as described in this

guide. Do not use accessory attachments that are not recommended by

the manufacturer: such attachments might cause injuries.

* Wear proper exercise clothing and shoes for your workout----no loose

clothing.

* Be careful when getting on or off the equipment.

* Do not overexert yourself or work to exhaustion.

* If you feel any pain or abnormal symptoms, stop your workout immediately

and consult your physician.

* Never operate the unit when it has been dropped or damaged.

* Never drop or insert anything into any opening in the equipment.

* Always check the unit and its cables before each use. Make sure that all

fasteners and cables are secure and in good working condition.

* Frayed or worn cables can be dangerous and may cause injury.

Periodically check these cables for any indication of wear.

* Keep hands, limbs, loose clothing and long hair well out of the way of

moving parts.

* Do not attempt to lift more weight than you can control safely.

* Do not use the equipment outdoors.

Personal Safety During Assembly

* Read each step in the assembly instructions and follow the steps in

sequence. Do not skip ahead. If you skip ahead, you may learn later that

you have to disassemble components and that you may have damaged

the equipment.

* Assemble and operate the equipment on a solid, level surface. Locate the

unit a few feet from walls or furniture to provide easy access. The

equipment is designed for your enjoyment. By following these precautions

and using common sense, you will have many safe and pleasurable hours

of healthful exercise with the equipment.

Instructions

Before beginning assembly please take the time to read instructions

thoroughly. Please use the various lists in this manual to make sure that all

parts have been included in your shipment. When ordering, use part number

and description from the lists. Use only our replacement part when servicing.

Failure to do so will void your warranty and could result in personal injury.

The equipment is designed to provide the smoothest, most effective

exercise motion possible. After assembly, you should check all functions to

ensure correct operation. If you experience problems, first recheck the

assembly instructions to locate any possible errors made during assembly. If

you are unable to correct the problem, call your authorized dealer. Be sure to

have your serial number and this manual when calling. When all parts have

been accounted for, continue on.

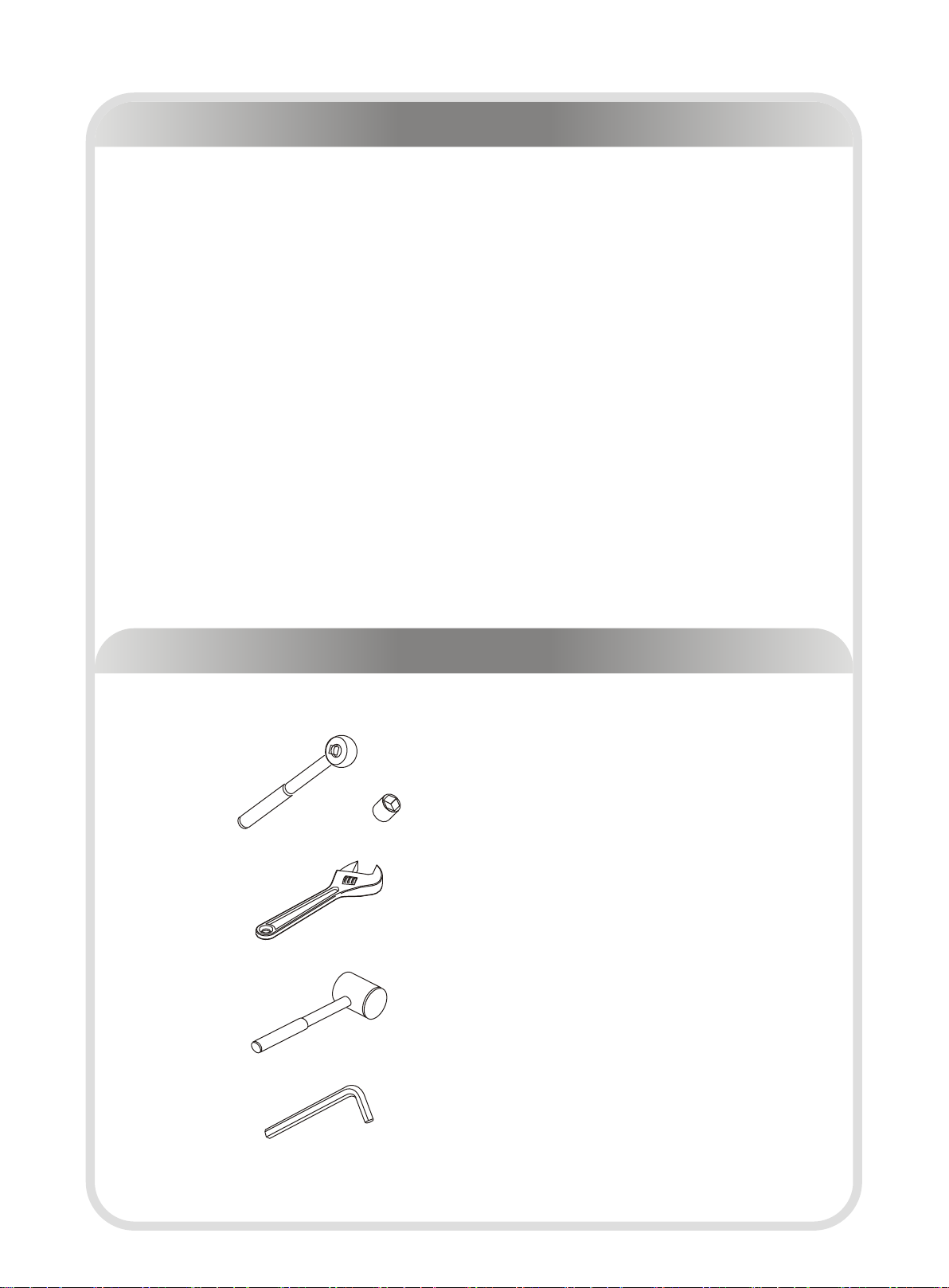

Tools Required

Ratchet Wrench and Socket

Adjustable Wrench

Rubber Mallet

Hex Key Wrench Set

─ 4 ─

Item No. Description Qty Item No. Description Qty

1 Weight Stack Frame 1 46 Aluminium Cap φ60*φ12.5*10.6 1

2 Bottom Cross Brace 1 47 Aluminium Cap φ50*8 4

3 Rear Cross Brace 1 48 Spacer 1

4 Main Frame 1 49 Grip 2

5 Main Bracket 1 50 Plug PT50*100 5

6 Swing Support 1 51 Aluminium Grip Cap 2

7 Cam 1 52 Aluminium Grip Ring 2

8 Swing Tube 1 53 Bushing 2

9 Back Pad Support 1 54 Bearing Φ50.8*Φ25.4*15.9 4

10 Adjustable Tube 1 55 Flat Head Hex Rivet Nuts M10*19.5 4

11 Handle 1 56 Hex Head Bolt M12*35 4

12 Adjustable Handle 1 57 Flat Washer φ13*φ24*2 11

13 Flange 2 58 Nylon lock Nut M12 7

14 Seat Pad Plate 1 59 Flat Head Cap Screw M10*25 7

15 Front Shroud 1 60 Hex Head Bolt M10*130 4

16 Rear Shroud 1 61 Hex Head Bolt M10*125 6

17 Adjustable Support 1 62 Hex Head Bolt M10*95 2

18 Counter Poise Block 1 63 Hex Head Bolt M10*80 1

19 Seat Pad 1 64 Hex Head Bolt M10*75 1

20 Back Pad 1 65 Hex Head Bolt M10*70 2

21 Roller 1 66 Hex Head Bolt M10*50 2

22 Aluminium Grip Ring 2 67 Hex Head Bolt M10*30 8

23 Bumper 1 68 Hex Head Bolt M10*20 8

24 Pin 1 69 Flat Washer φ11*φ20*2 56

25 Shaft 1 70 Spring Washer φ10 2

26 Adjustable Plate 1 71 Nylon lock Nut M10 23

27 Bushing 2 72 Socket Set Screw M8*10 6

28 Plug PT40*80 1 73 Socket Head Cap Screw M8*60 1

29 Cable 1 74 Socket Head Cap Screw M8*45 1

30 L Board 2 75 Socket Head Cap Screw M8*50 2

31 Guide Rod 2 76 Socket Head Cap Screw M8*30 1

32 Fixing Sleeve 2 77 Socket Head Cap Screw M8*20 2

33 Sleeve 2 78 Flat Washer φ16*φ9*1.6 6

34 Spring 1 79 Nylon lock Nut M8 6

35 Top Shroud 1 80 Button Head Cap Screw M6*12 2

36 4.5" Pulley 3 81 Hex Nut M6 2

37 Plastic Tube Guide 2 82 Cross Recess Pan Head Screw M5*12 4

83 Flat Washer φ5.3*φ10*1 4

39 Rubber Foot 4 84 Socket Set Screw M5*3 8

40 Spacer 2 85 Socket Head Cap Screw M4*15 1

41 Lock Nut 1 86 Weight Plate 5KG 15

42 Chain Buckle 1 87 Top Plate 1

43 Spring 1 88 Weight Rubber Bumper 2

44 Handlebar 1 89 Selector Pin W/Coil 1

45 Shaft 1

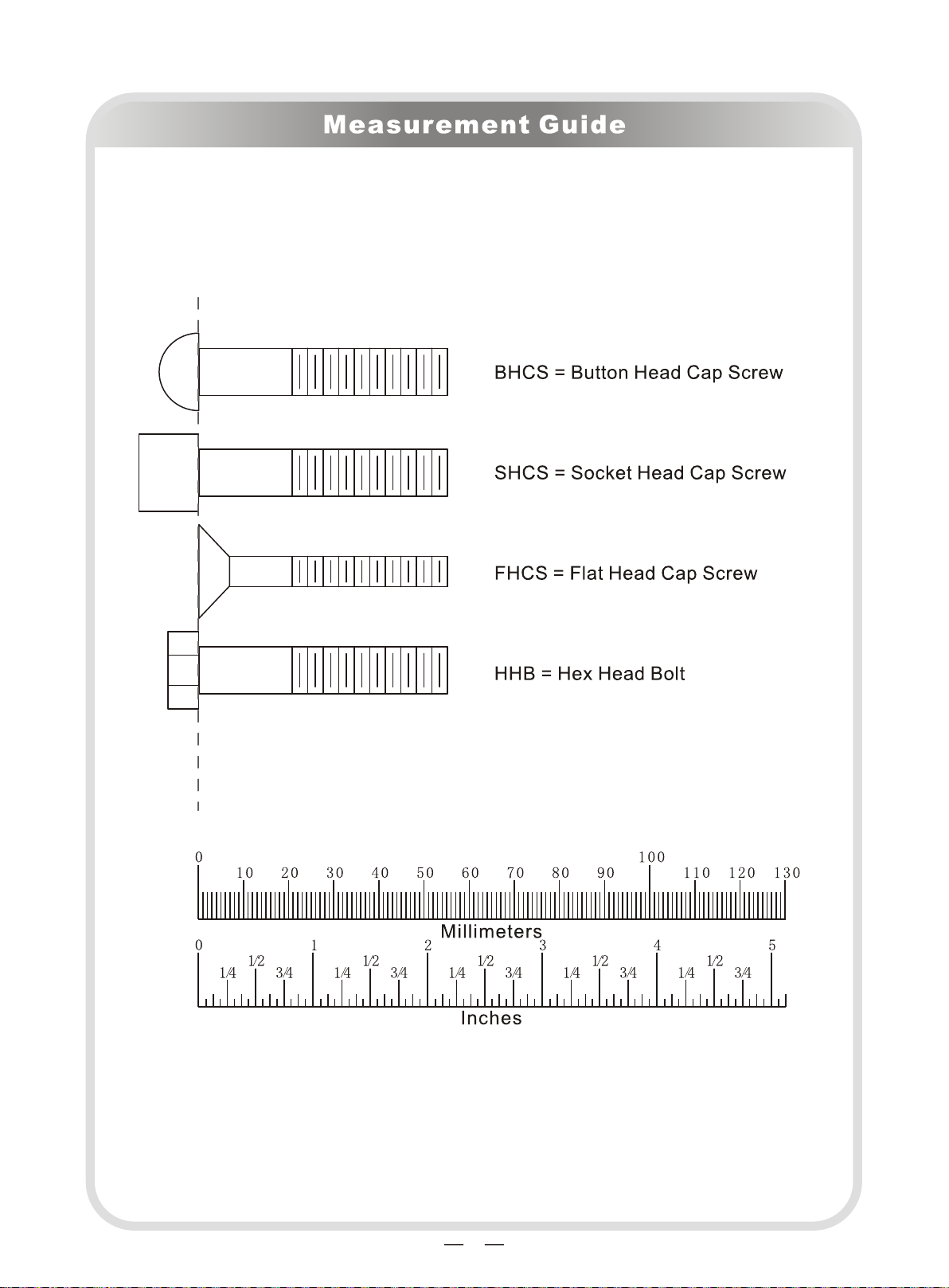

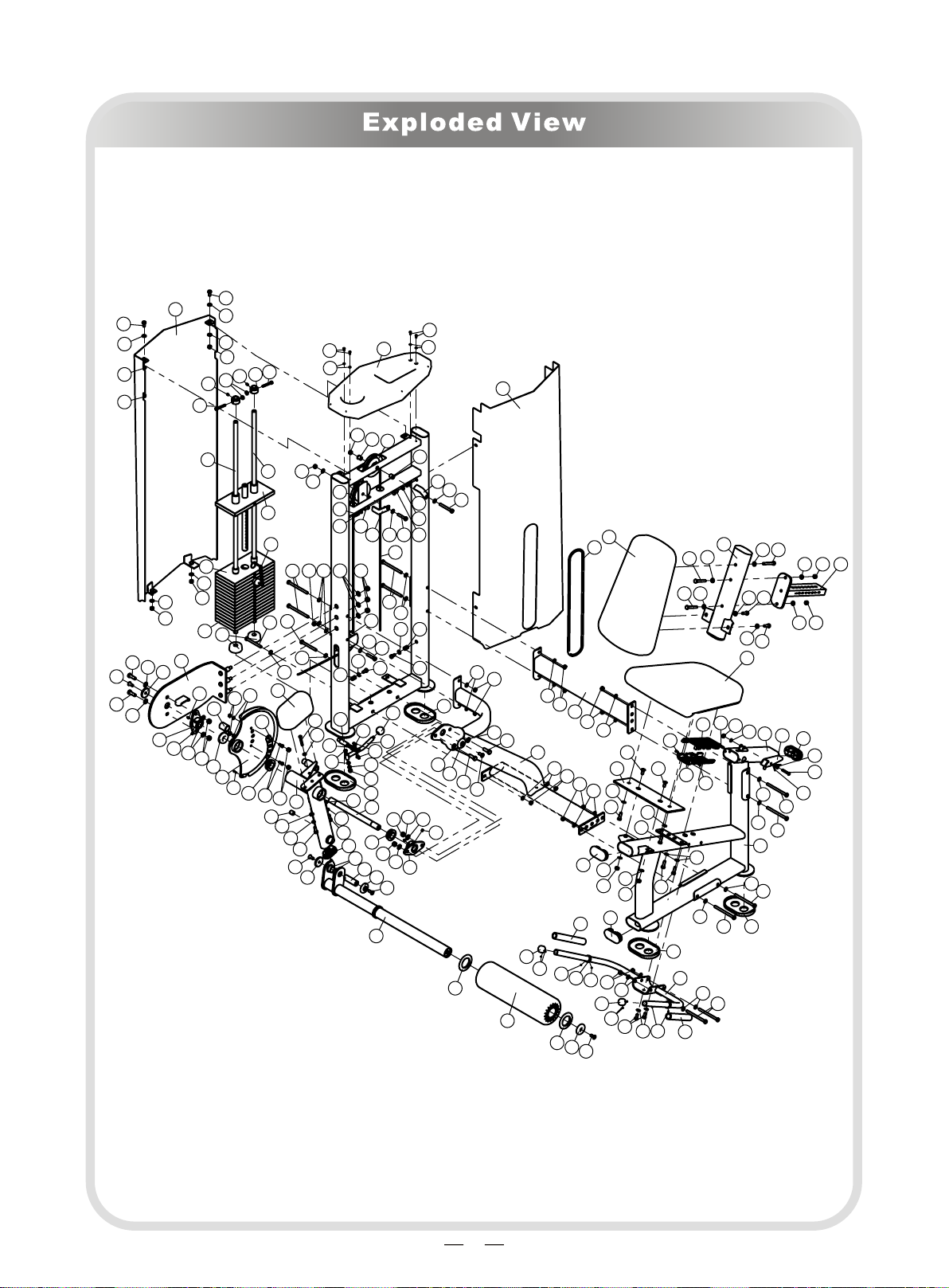

20 9

65 69

69 67

69 64

7169 10

69 71

3960

5914

67 69

50 69

52 84

68 69

57 47

69 68

5569

6971 5857

71 33 36

666930

69 68

57 69 71 71 69

71 3

69 71

1.Attach the Bottom Cross Brace (#2) to the Weight Stack Frame (#1) using:

two M10*125 HHB (#61) two M10*95 HHB (#62)

eight φ11*φ20*2 Flat Washer (#69) four M10 Nylon lock Nut (#71)

2.Attach the Rear Cross Brace (#3) to the Weight Stack Frame (#1) using:

two M10*125 HHB (#61) four φ11*φ20*2 Flat Washer (#69)

two M10 Nylon lock Nut (#71)

3.Attach the Bottom Cross Brace (#2) to the Main Frame (#4) using:

two M10*130 HHB (#60) four φ11*φ20*2 Flat Washer (#69)

two M10 Nylon lock Nut (#71)

4.Attach the Rear Cross Brace (#3) to the Main Frame (#4) using:

two M10*130 HHB (#60) four φ11*φ20*2 Flat Washer (#69)

two M10 Nylon lock Nut (#71)

69 71

65 69

625

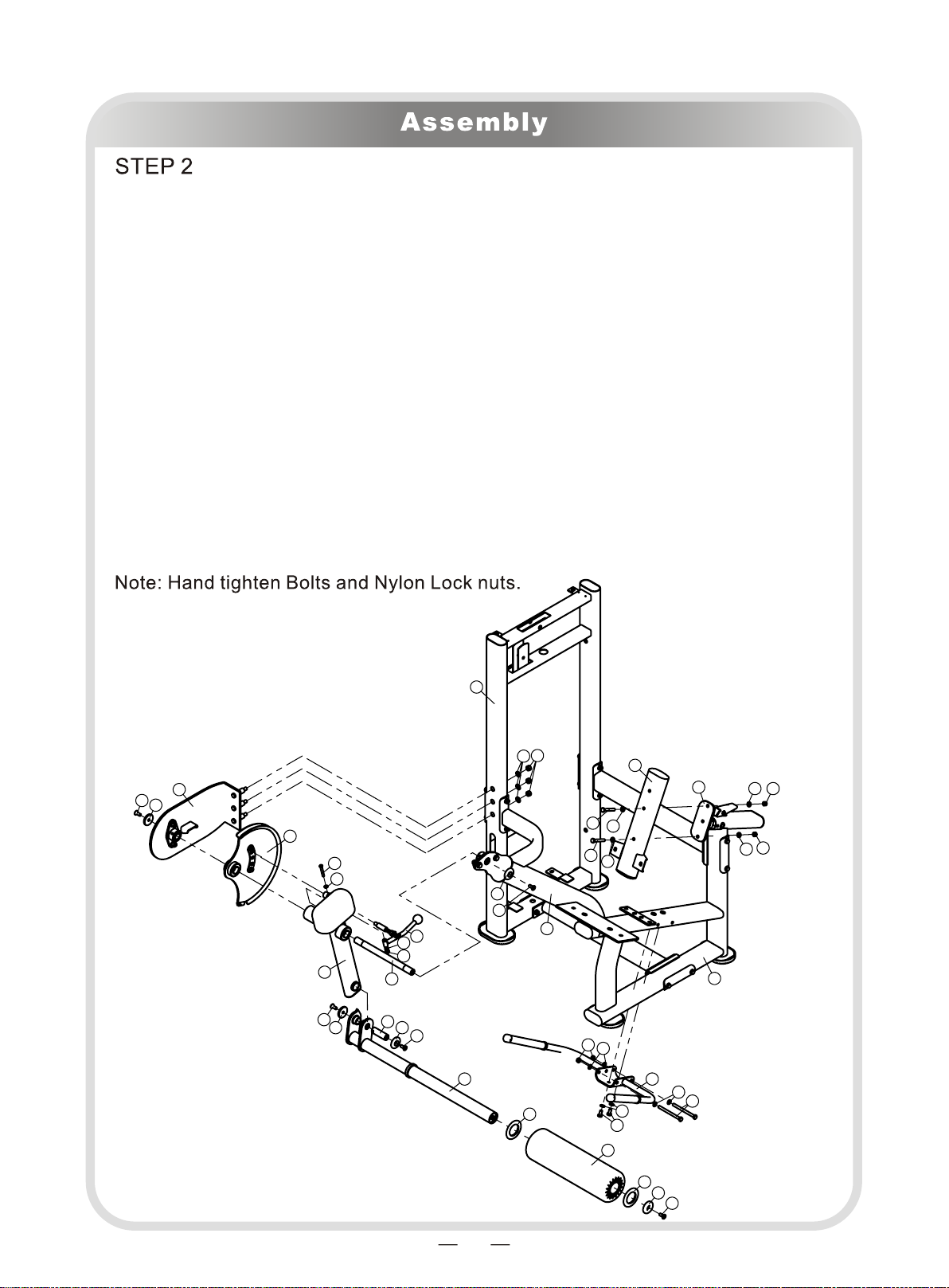

1.Attach

one Main Bracket (#5) one Cam (#7)

one Swing Support (#6) one Shaft (#25)

to the Weight Stack Frame (#1) and the Main Frame (#4) using:

two M10*25 FHCS (#59) two φ50*8 Aluminium Cap (#47)

2.Attach the Swing Tube (#8) to the Swing Support (#6) using:

one Shaft (#45) two M10*25 FHCS (#59)

two φ50*8 Aluminium Cap (#47)

3.Attach the Roller (#21) to the Swing Tube (#8) using:

two Aluminium Grip Ring (#22) two M10*25 FHCS (#59)

two Aluminium Cap φ60*φ12.5*10.6 (#46)

4.Attach the Adjustable Handle (#12) to the Swing Support (#6) using:

one M8*60 SHCS (#73) two φ16*φ9*1.6 Flat Washer (#78)

one M8 Nylon lock Nut (#79)

5.Attach the Back Pad Support (#9) to the Adjustable Tube (#10) using:

two M10*70 HHB (#65) four φ11*φ20*2 Flat Washer (#69)

two M10 Nylon lock Nut (#71)

6.Attach the Handle (#11) to the Main Frame (#4) using:

two M10*125 HHB (#61) two M10*20 HHB (#68)

six φ11*φ20*2 Flat Washer (#69) two M10 Nylon lock Nut (#71)
