SMITH SYSTEM Planner Studio Bench Manuel utilisateur

Assembly Instructions

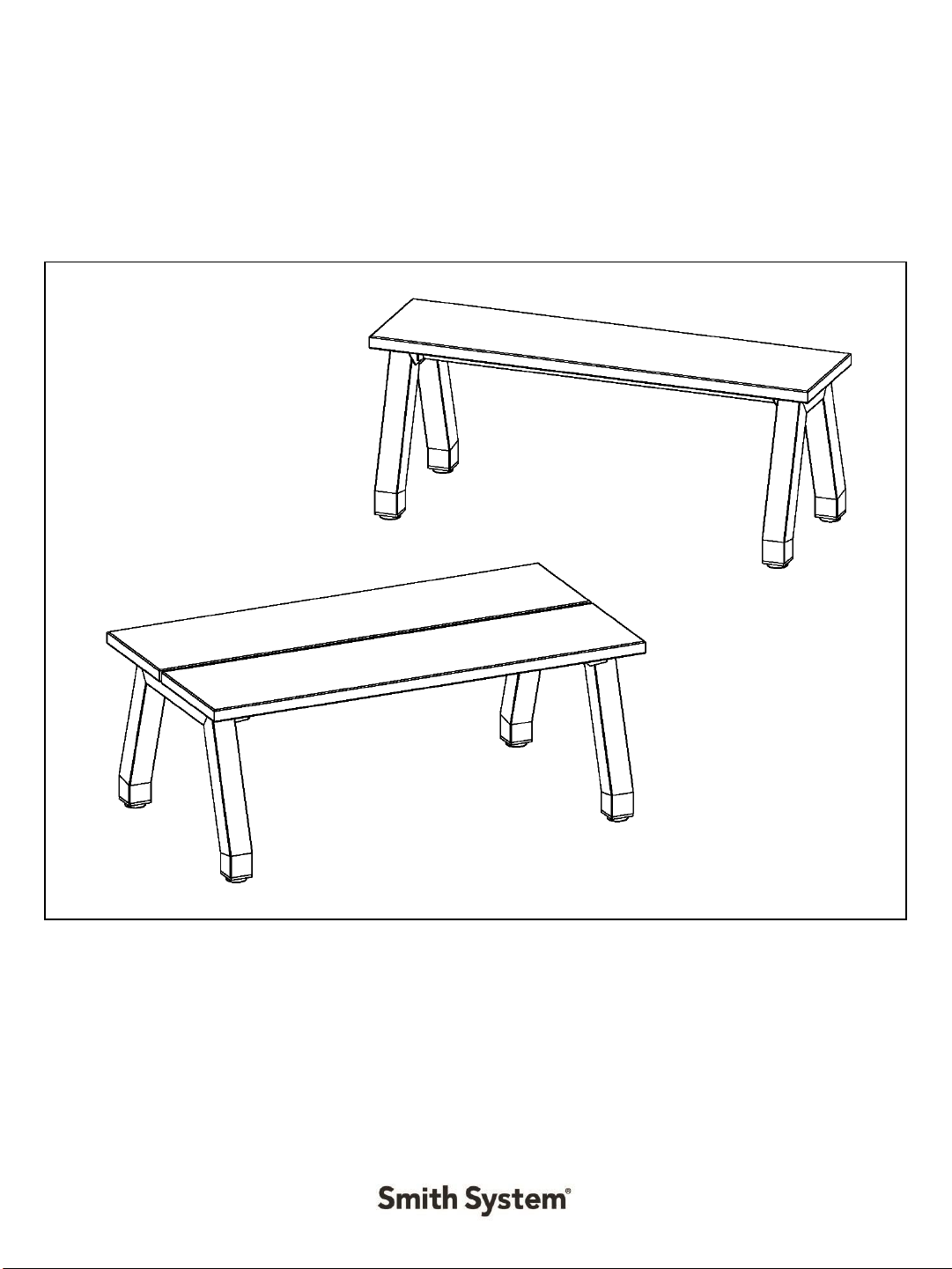

Planner Studio Bench

If you have damaged or missing components,

please contact customer service at 1-800-328-1061

Document #: 179670 REVISED: 08/2020

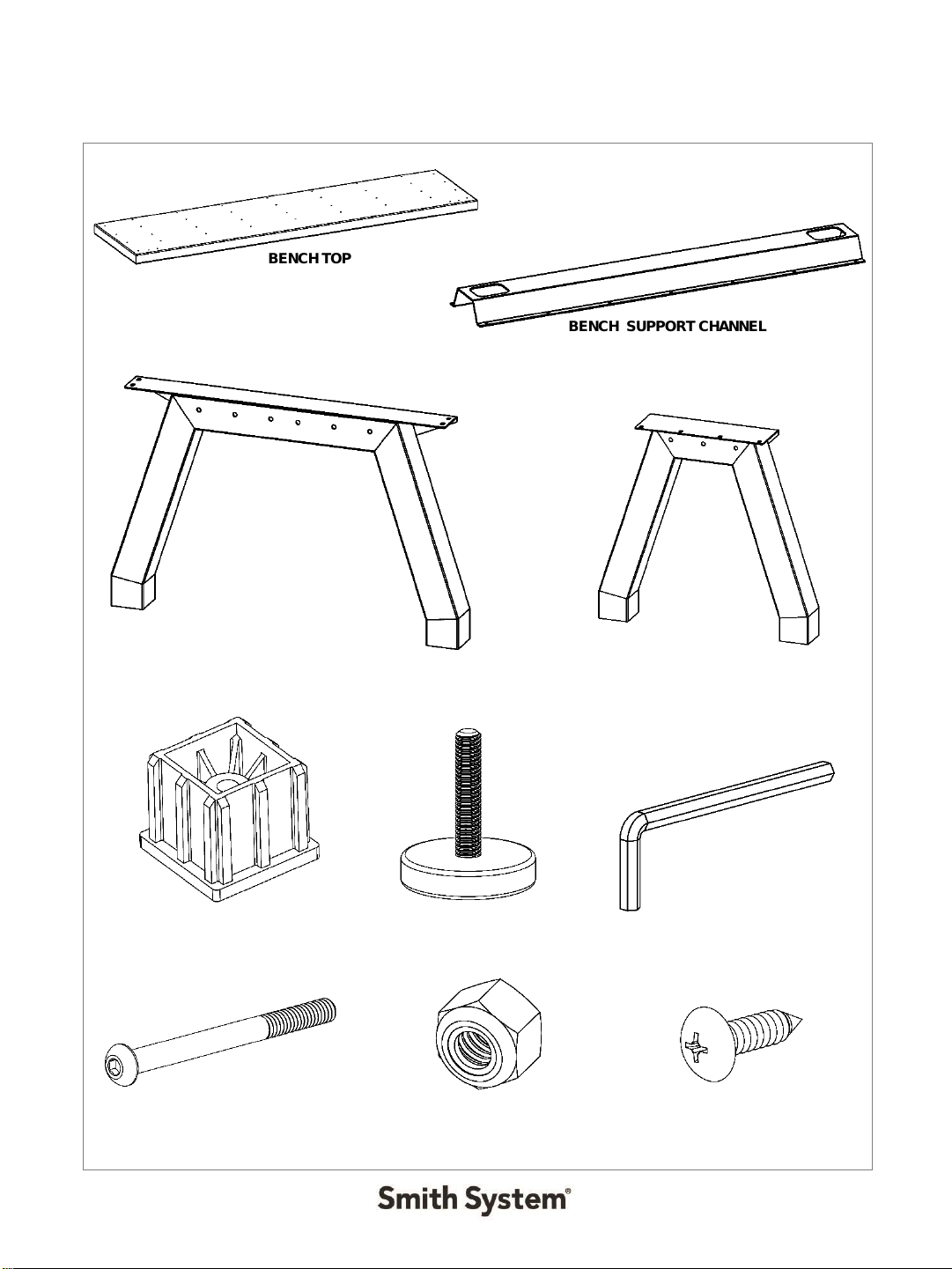

Hardware and Components

Document #: 179670 REVISED: 08/2020

12” DEEP BENCH LEG BASE

QTY. 2

24” DEEP BENCH LEG BASE

QTY. 2

#10 X 3/4”WOOD SCREW

12” DEEP: QTY. 22

24” DEEP: QTY. 36

BENCH TOP

12” DEEP: QTY. 1

24” DEEP: QTY. 2

BENCH SUPPORT CHANNEL

12” DEEP: QTY. 1

24” DEEP: QTY. 2

3/16”ALLEN WRENCH

QTY. 1

1/4”-20 X 3” BOLT

12” DEEP: QTY. 6

24” DEEP: QTY. 12

1/4”-20 LOCK NUT

12” DEEP: QTY. 6

24” DEEP: QTY. 12

GLIDE INSERT

QTY. 4 GLIDE

QTY. 4

Special Notes:

•TOOLS REQUIRED:

•Drill w/#2 Phillips driver bit, or #2 Phillips head screwdriver.

•7/16” socket & ratchet, or 7/16” wrench.

•Hammer

•Check that all components are accounted for and undamaged before assembling.

•Please assemble the product in a clean and dry area.

•Clean the product with a mild cleaner and a damp cloth.

Document #: 179670 REVISED: 08/2020

Assembly Instructions

Document #: 179670 REVISED: 08/2020

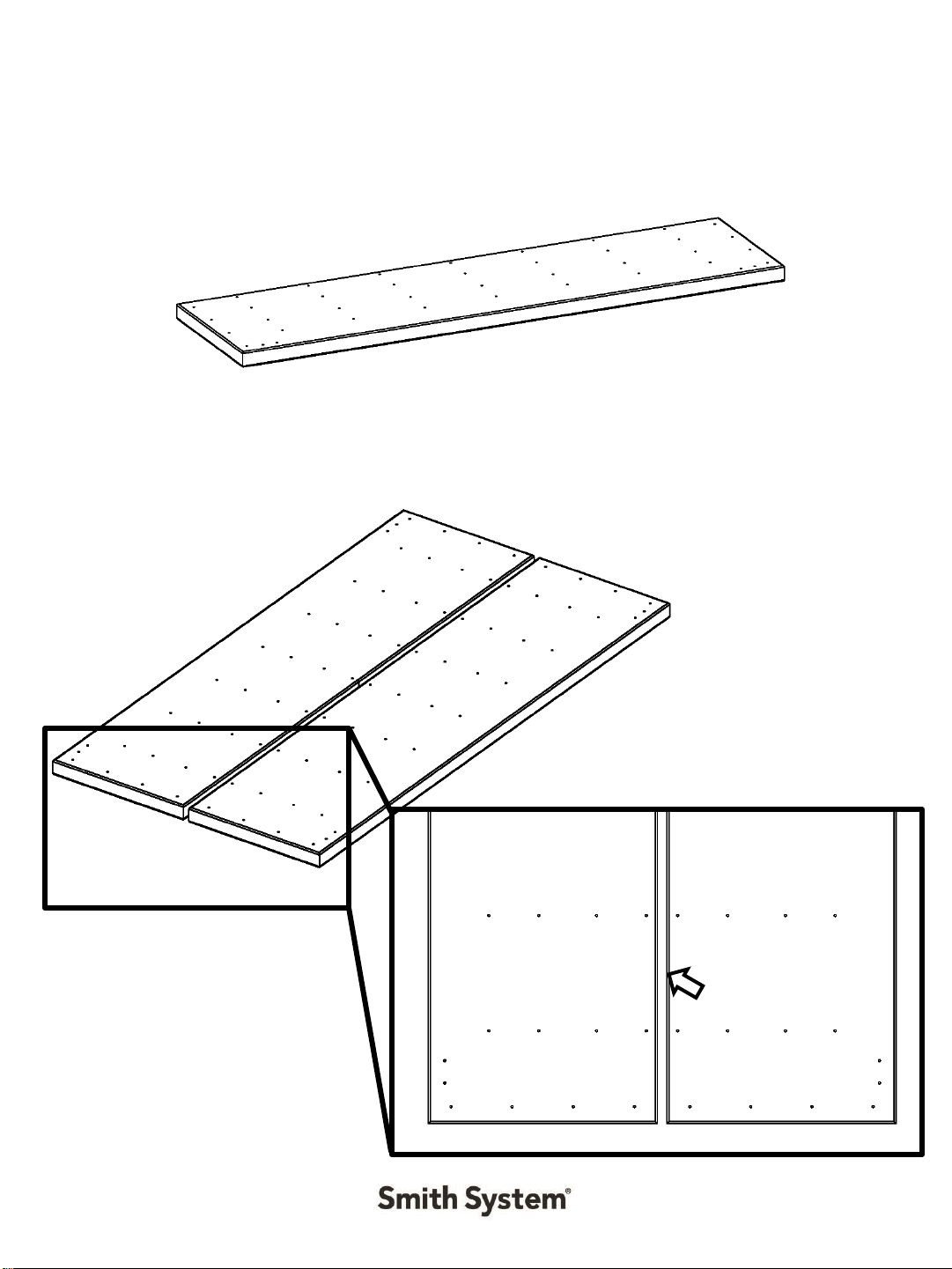

1. Lay top down on a clean smooth surface that will not harm the top finish. Underside

of top should be exposed.

2. For the 24” deep bench, lay both tops down on a clean smooth surface that will not

harm the top finish. Underside of tops should be exposed. Arrange tops as shown with

pre-drilled holes closest to the edge facing inwards. Leave about 1/2” gap between the

tops.

½”

Document #: 179670 REVISED: 08/2020

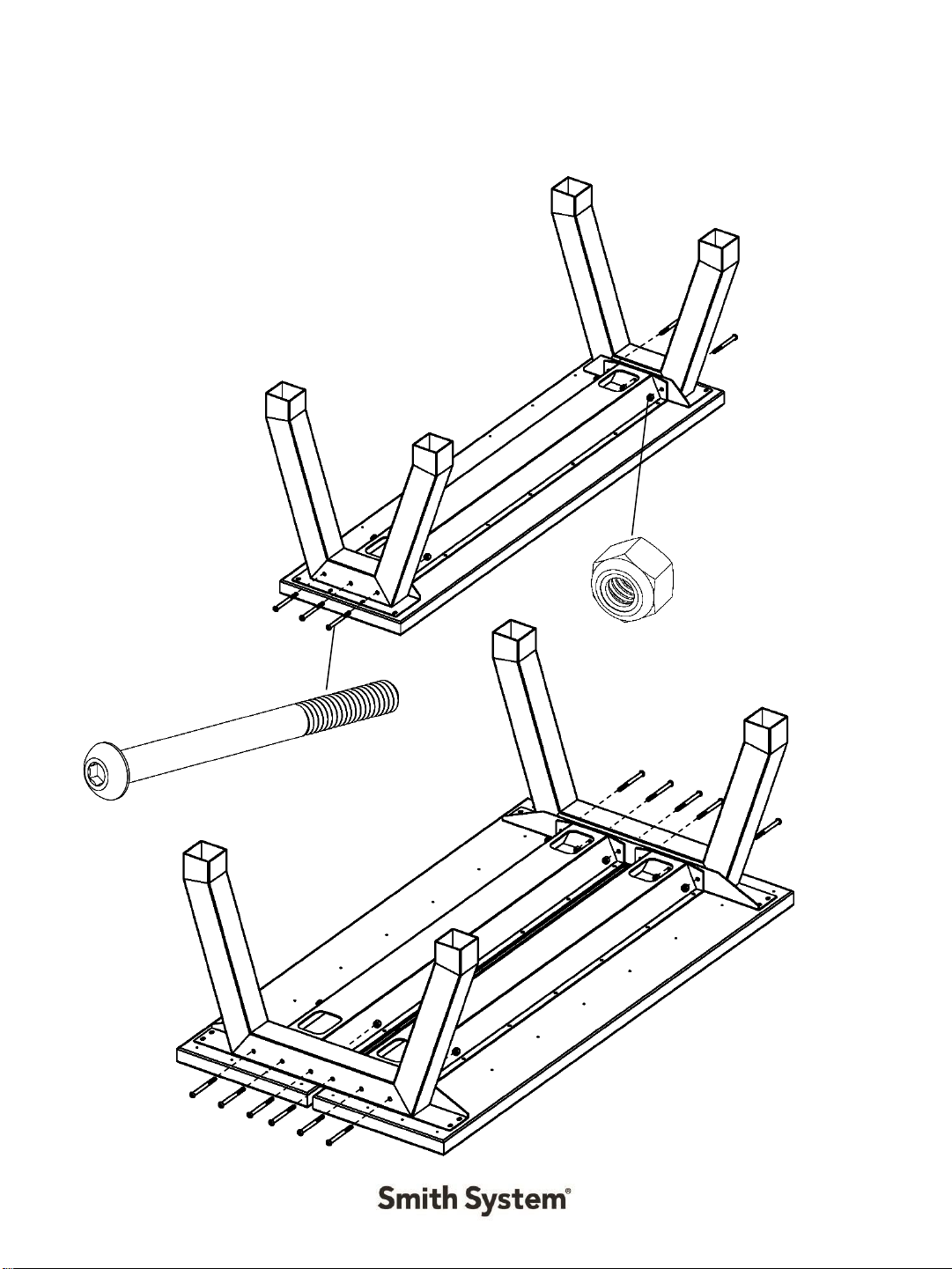

3. Position the support channel(s) onto the top, as shown. Do not attach support

channel to top yet. First attachthe legs, one at a time, to the support channel(s) by

using the supplied 1/4”-20 x 3” bolts and 1/4”-20 lock nuts.

Helpful Hint: The nut goes on the inside; bolt head seen on the outside.

Helpful Hint: Make sure legs are facing the right direction, as shown.

Document #: 179670 REVISED: 08/2020

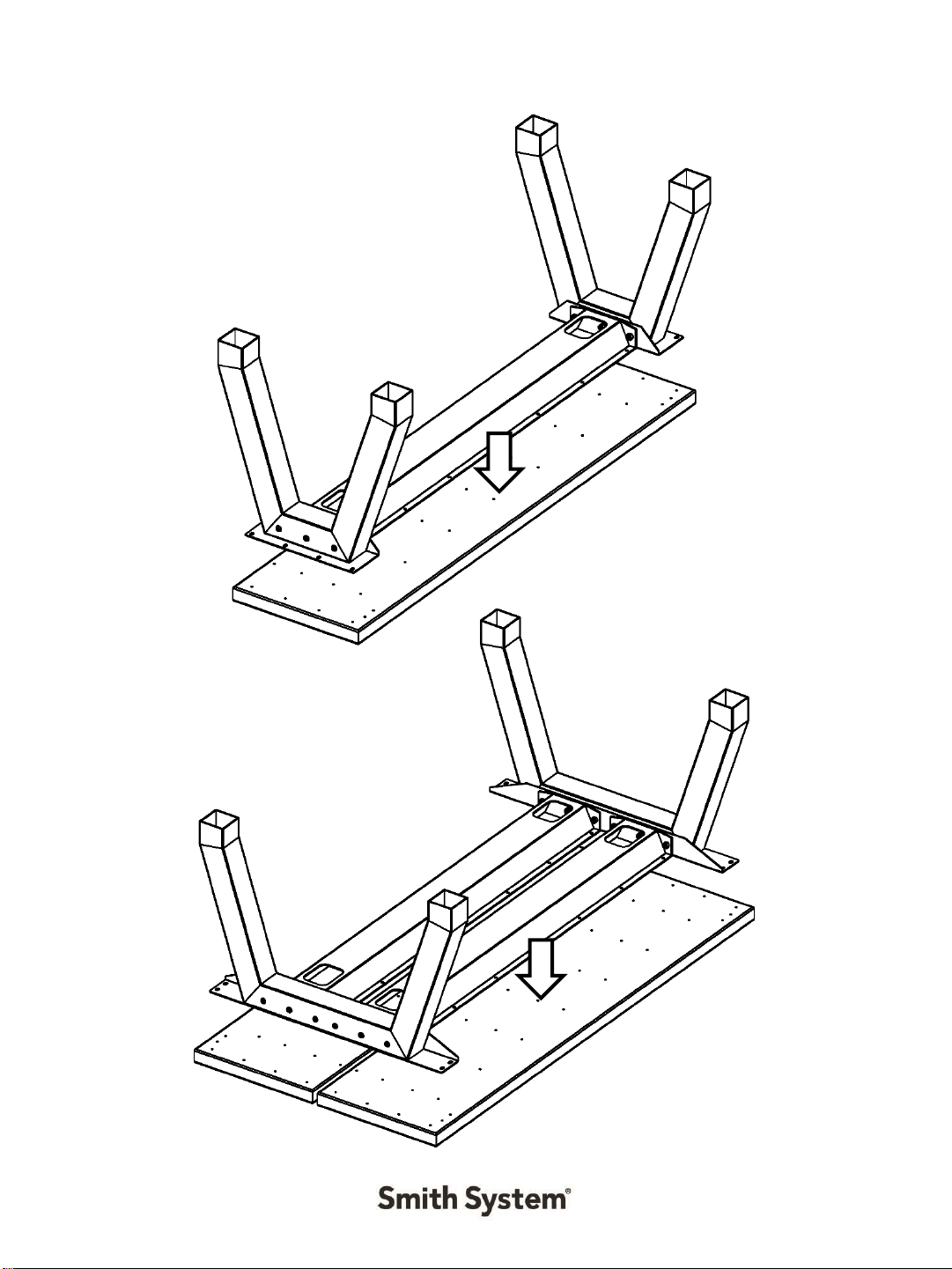

4. Lay assembled frame on top and line up holes on frame with the hole pattern on the

top.

Document #: 179670 REVISED: 08/2020

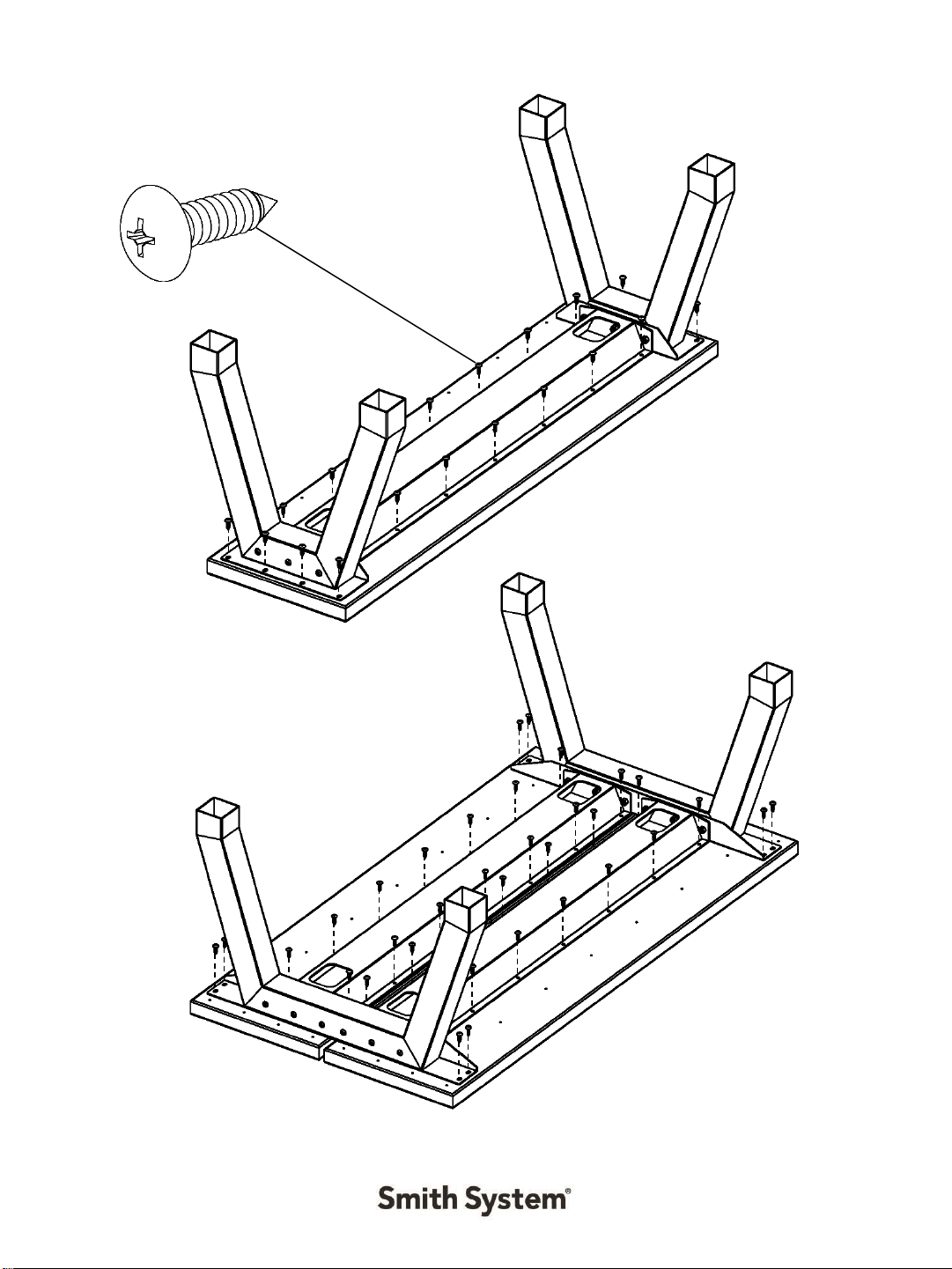

5. Attach the frame to the wood top using #10 x 3/4” wood screws.

Document #: 179670 REVISED: 08/2020

6. Hammer in glide inserts into the legs. Make sure to carefully trim off any excess

plastic between the edge of the leg and glide insert.

7. Install glides by screwing them into the glide inserts.

Document #: 179670 REVISED: 08/2020

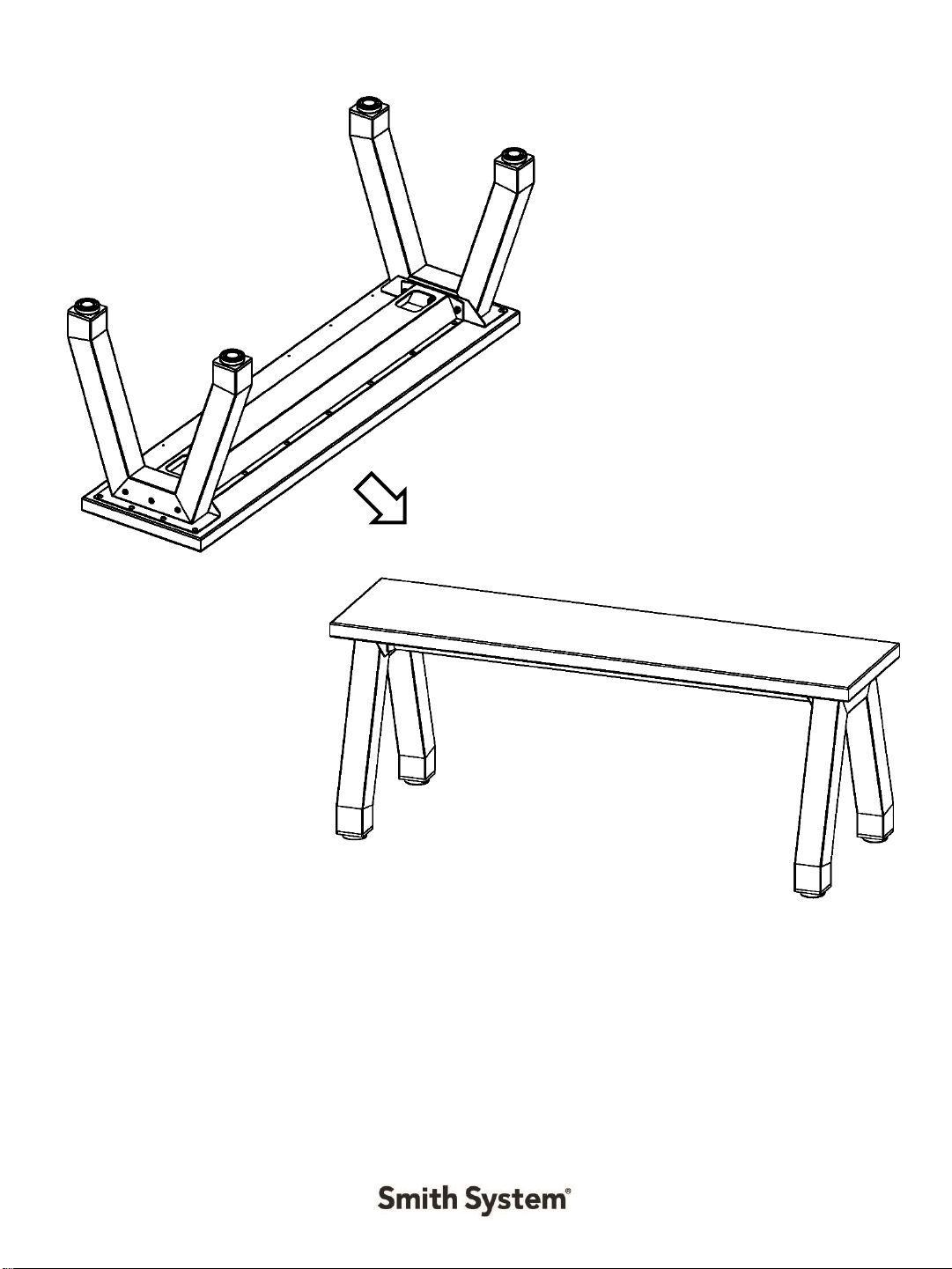

8. Flip bench over.

ASSEMBLY COMPLETE
