SMITH SYSTEM Flowform Manuel utilisateur

Document #: 179687

REVISED: 10/2020

Assembly Instructions

Flowform Adjustable Height Tables

If you have damaged or missing components,

please contact customer service at 1-800-328-1061

Document #: 179687

REVISED: 10/2020

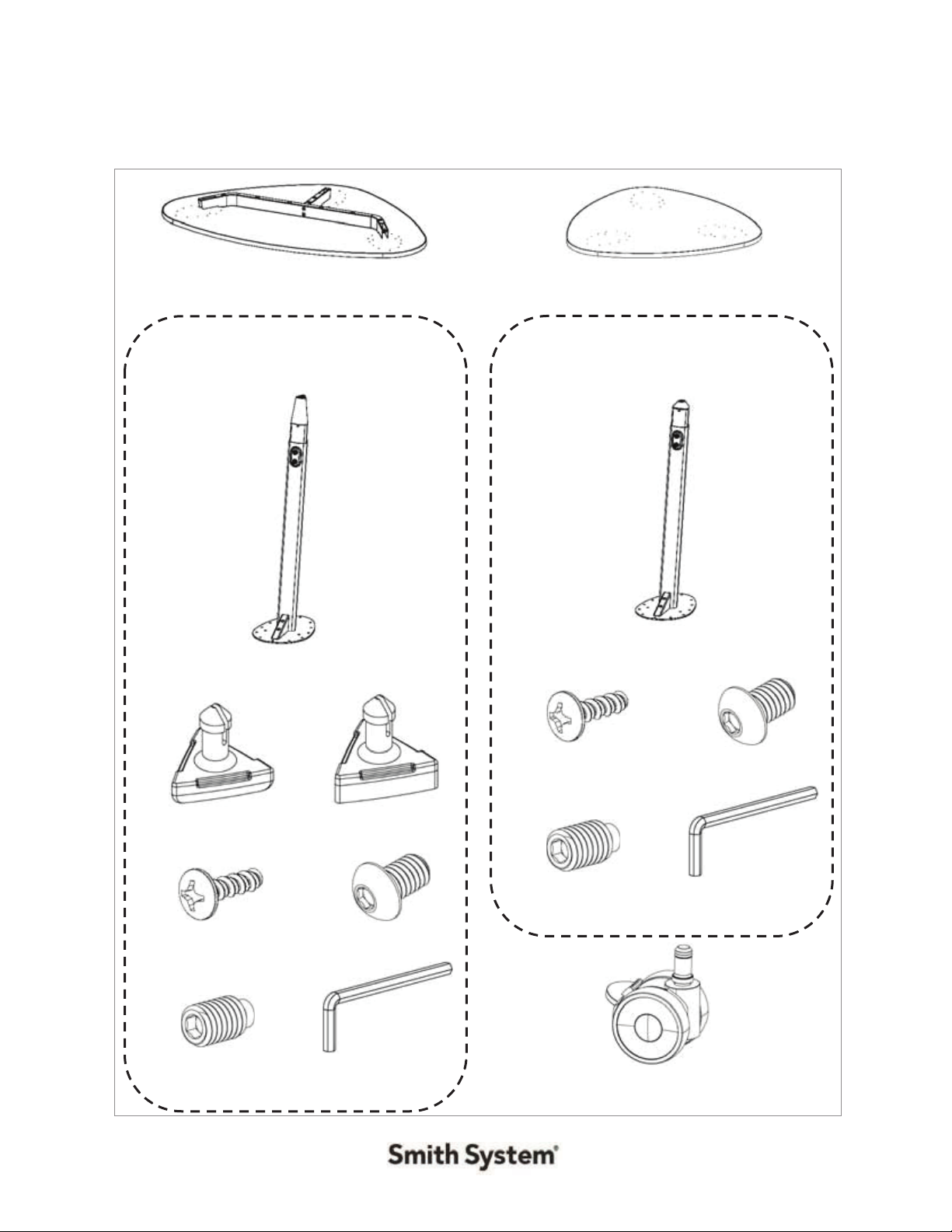

Hardware and Components

PACK #60001

(

3 TO 4 LEGS

PER TABLE )

ORBIT LEG FOR CASTER

QTY. 1

5/16”-18 X 1/2”BOLT

QTY. 2

NYLON GLIDE TIP

QTY. 1

#10 X 3/4”HI-LO WOOD

SCREW

QTY. 14

3/8”-16 X 5/8”SET SCREW

QTY. 2

ORBIT LEG WITH GLIDE

QTY. 1

3/16”ALLEN WRENCH

QTY. 1

FELT GLIDE TIP

QTY. 1

2" CASTER 7/16" STEM W/LOCK

(PN: 60021)

QTY. 1

5/16”-18 X 1/2”BOLT

QTY. 2

3/8”-16 X 5/8”SET SCREW

QTY. 2

3/16”ALLEN WRENCH

QTY. 1

PACK #60002

( 3 TO 4

LEGS

PER TABLE )

ORBIT TOP WITH FRAME

(MAY APPEAR

DIFFERENT THAN SHOWN)

QTY. 1

ORBIT TOP, NO FRAME

(MAY APPEAR DIFFERENT THAN SHOWN)

QTY. 1

#10 X 3/4”HI-LO WOOD

SCREW

QTY. 14

Document #: 179687

REVISED: 10/2020

Special Notes:

xTOOLS REQUIRED:

• Drill w/#2 Phillips driver bit, or #2 Phillips head screwdriver.

xCheck that all components are accounted for and undamaged beforeassembling.

xPlease assemble the product in a clean and dry area.

xYou may need another person to help assemble the product. Team lifting may be

required.

xClean the product with a mild cleaner and a damp cloth.

Document #: 179687

REVISED: 10/2020

Assembly Instructions

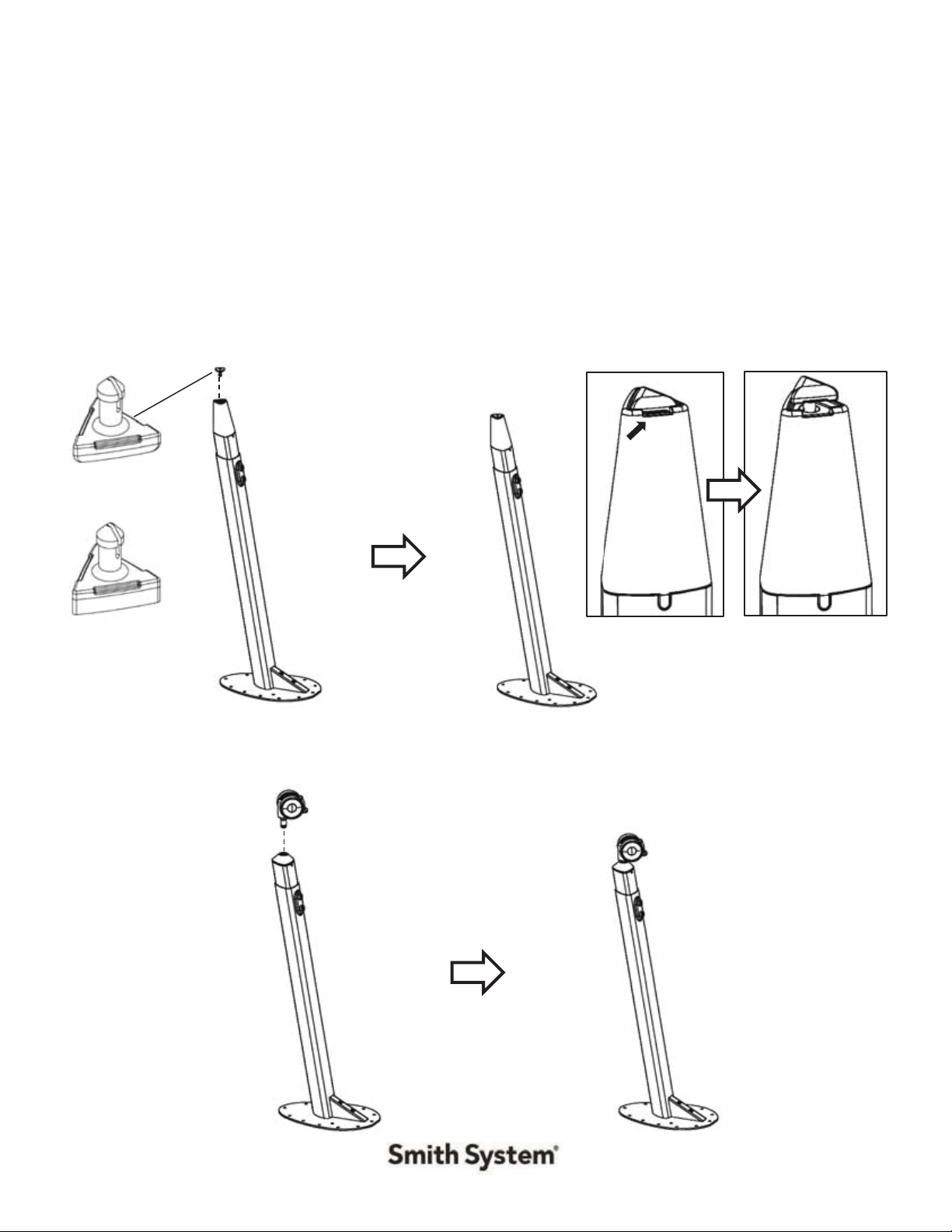

1. FOR LEGS WITH GLIDES: Insert either the Nylon or Felt Tip into the Glide. Press down

on tip until it snaps into place.

Helpful Hint: It is recommended that the Nylon Glide Tip is used for carpeted areas

and the Felt Glide Tip is used for hard surfaces such as hardwood floors.

NOTE: To remove Glide Tip, use a flat-head screwdriver inserted into the notch in the

back of the Glide to pry up the Glide Tip.

2. FOR LEGS WITH CASTERS: Insert stem of caster into Casket Socket on leg. Press down

until the caster stem is fully inserted into the leg.

Document #: 179687

REVISED: 10/2020

3. FOR FRAMELESS TABLES: Lay top down on a clean smooth surface that will not harm

the top finish. Underside of top should be exposed. Top may be heavy, team lifting is

encouraged.

4. Align leg mounting plate holes with pilot holes on underside of top. Install all 14 of the

#10 x 3/4” Hi-Lo Wood Screws to secure the leg to the top.

5. Next install the 5/16”-18 x 1/2” Bolts into leg gusset.

Helpful Hint: These bolts are used on current and future accessories.

Document #: 179687

REVISED: 10/2020

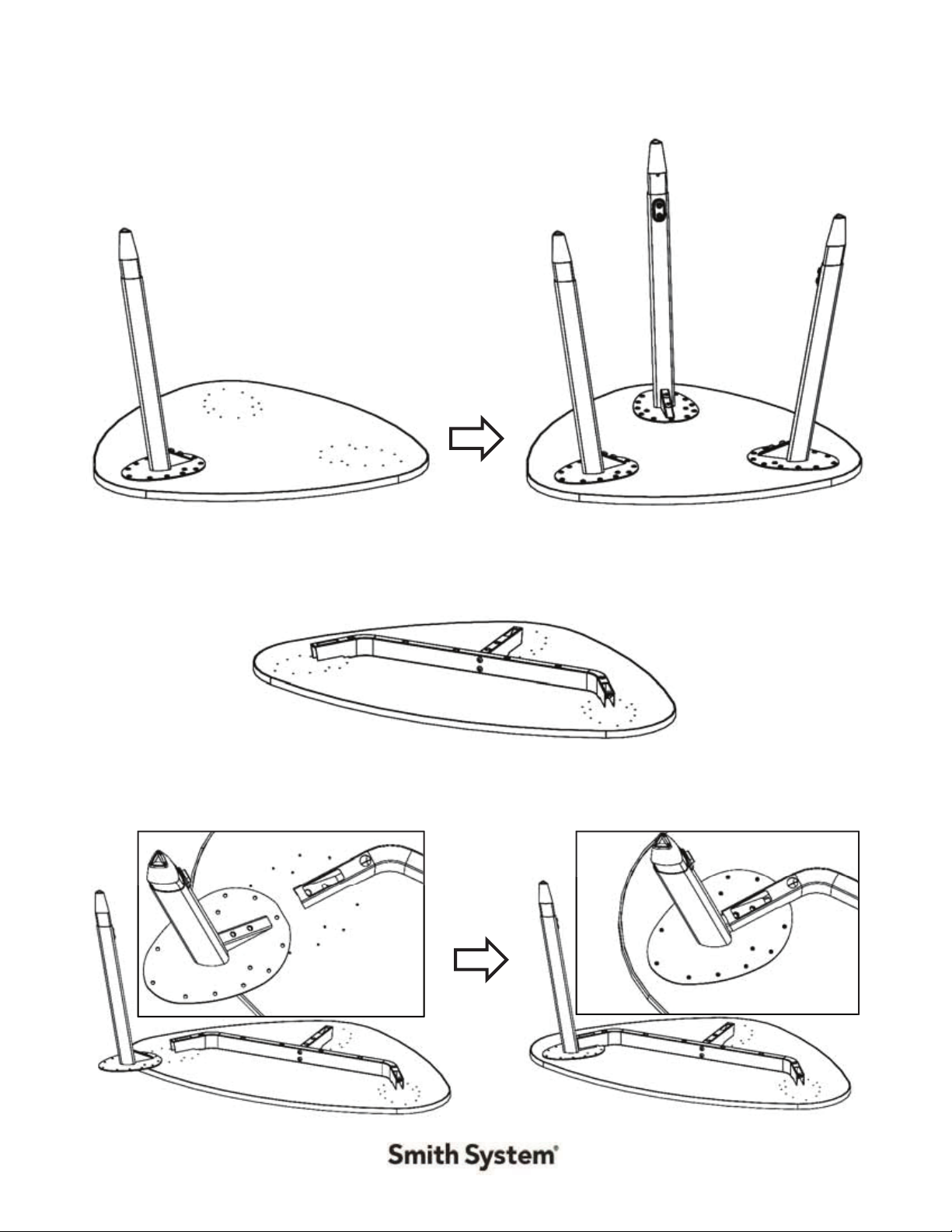

6. Install the other legs as previously shown.

7. FOR TABLES WITH FRAMES: Lay top down on a clean smooth surface that will not harm

the top finish. Underside of top and frame should be exposed. Top may be heavy, team

lifting is encouraged.

8. Slide gusset of leg into frame and align leg mounting plate holes with pilot holes on

underside of top.

Document #: 179687

REVISED: 10/2020

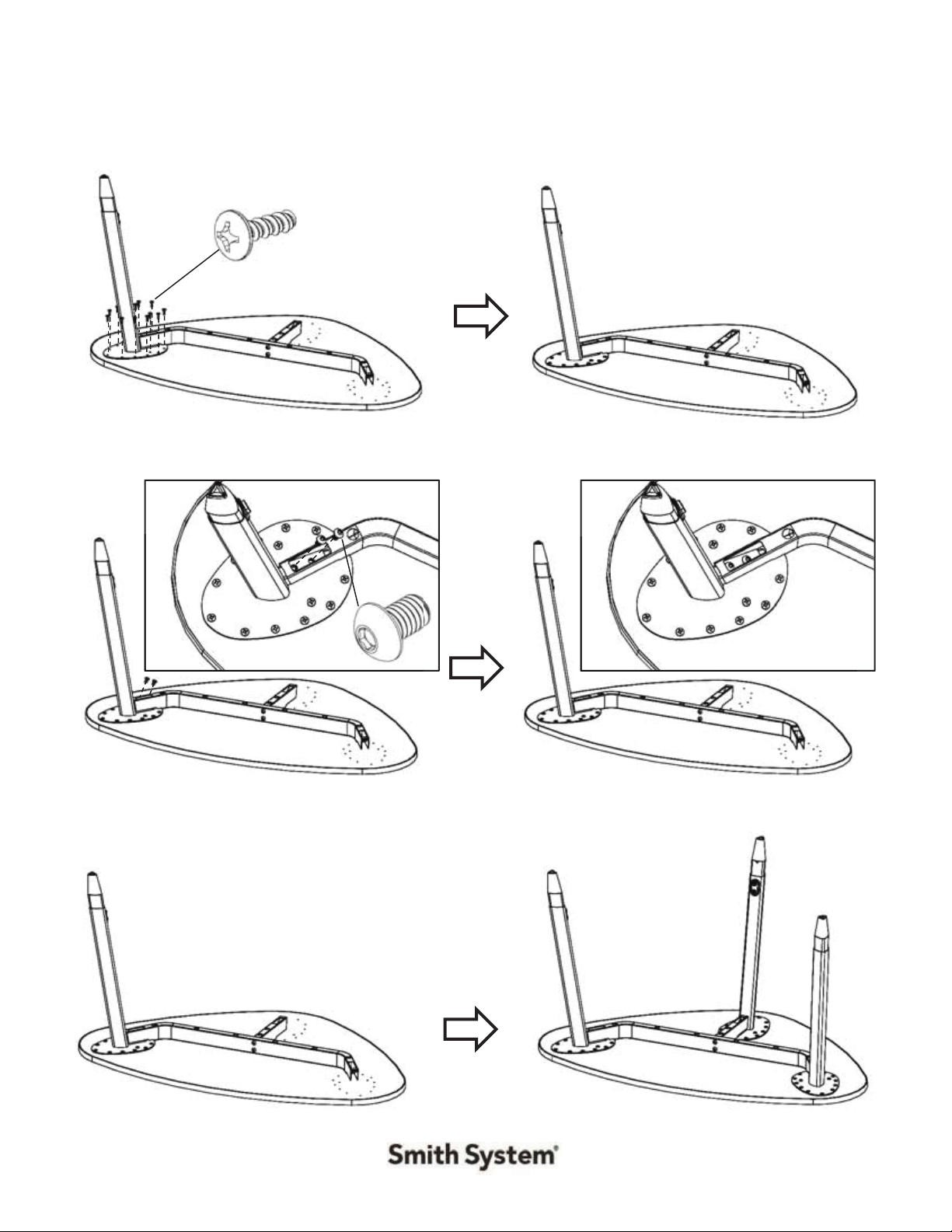

9. Install 13 of the #10 x 3/4” Hi-Lo Wood Screws to secure the leg to the top leaving out

one of the screws as the hole is covered by the frame.

10. Next install the 5/16”-18 x 1/2” Bolts to connect the frame to the leg gusset.

11. Install the other legs as previously shown.

Document #: 179687

REVISED: 10/2020

12. TO ADJUST LEG HEIGHT: Remove the two 3/8”-16 x 5/8” set screws, adjust leg to the

desired height and reinstall the two set screws. Repeat this for all legs.

Helpful Hint: The spacing between each hole in the inner leg is for 1” of adjustment.

13. Lift table and flip to the upright position. You may need a partner to team lift the heavier

tables.

Helpful Hint: If equipped with casters, lock all casters to prevent unexpected rolling when table

legs touch down.

ASSEMBLY COMPLETE
