SMITH SYSTEM CASCADE RISER SHELF Manuel utilisateur

ASSEMBLY

INSTRUCTIONS

For assistance in assembling product, missing or damaged parts,

or to place an order, please contact Customer Service at 800-328-1061.

Form# 179973 www.smithsystem.com 08.31.2015

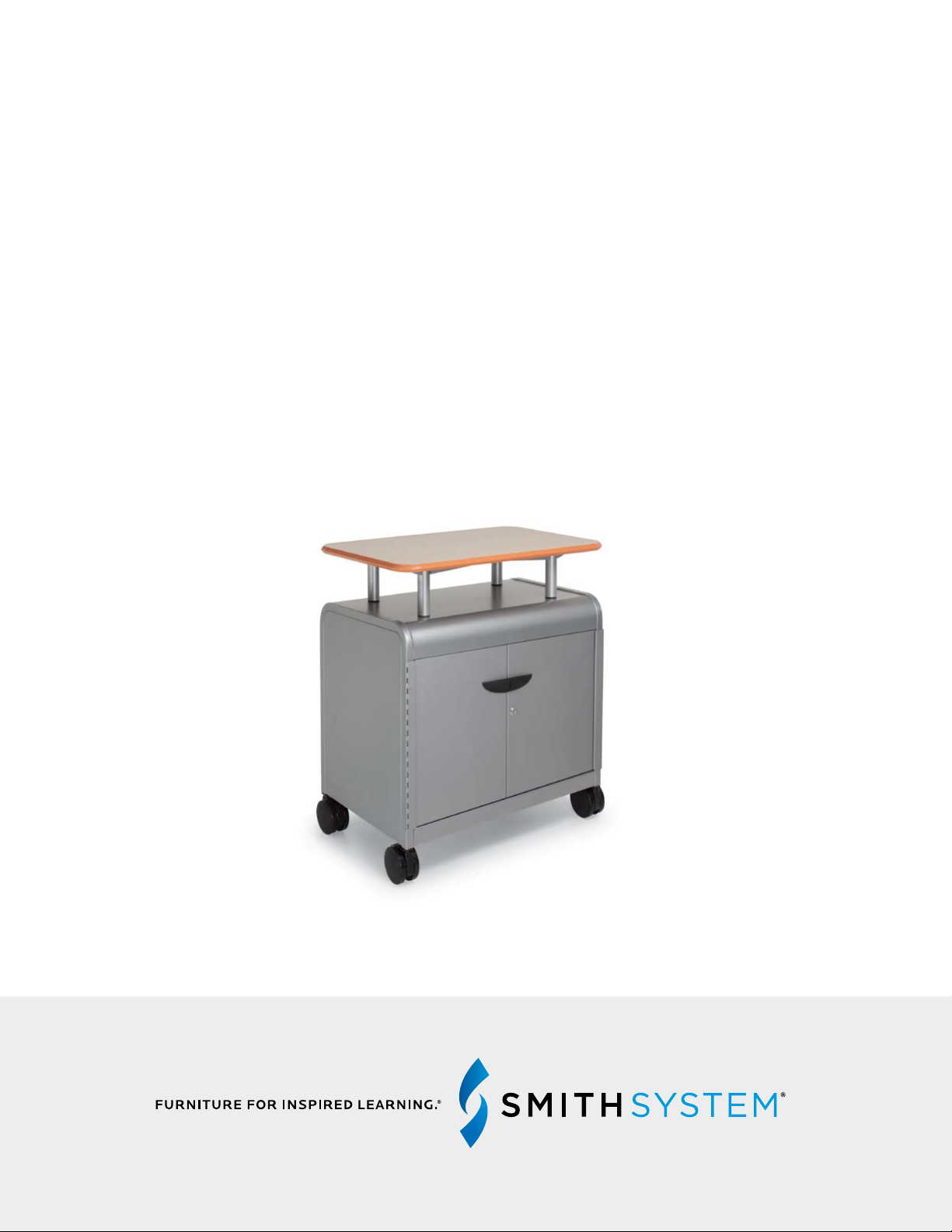

CASCADE™ RISER SHELF

CASCADE RISER SHELF

AVAILABLE OPTION FOR CASCADE™ CASES OR CABINETS.

(NOT APPLICABLE TO CASCADE™ TOWERS).

[ 1 ] 69725 ZINC-R HARDWARE PACK, CASCADE RISER

QTY 16 #70080 -WOOD SCREW

QTY 4 3/8 - 16 X 1.25 HEX HEAD BOLTS

QTY 4 STEEL WASHERS

QTY 16 #70054 - #10 X 3/4” WOOD SCREW HI/LO PTH

CASCADE™ RISER SHELF

REPLACEMENT HARDWARE PACK

HARDWARE AND COMPONENTS

Form# 179973 www.smithsystem.com 08.31.2015

For assistance in assembling product, missing or damaged parts, or to place an order, please contact

customer service at 1-800-328-1061. You may also place your order online at

Form#179973 www.smithsystem.com 5/2014

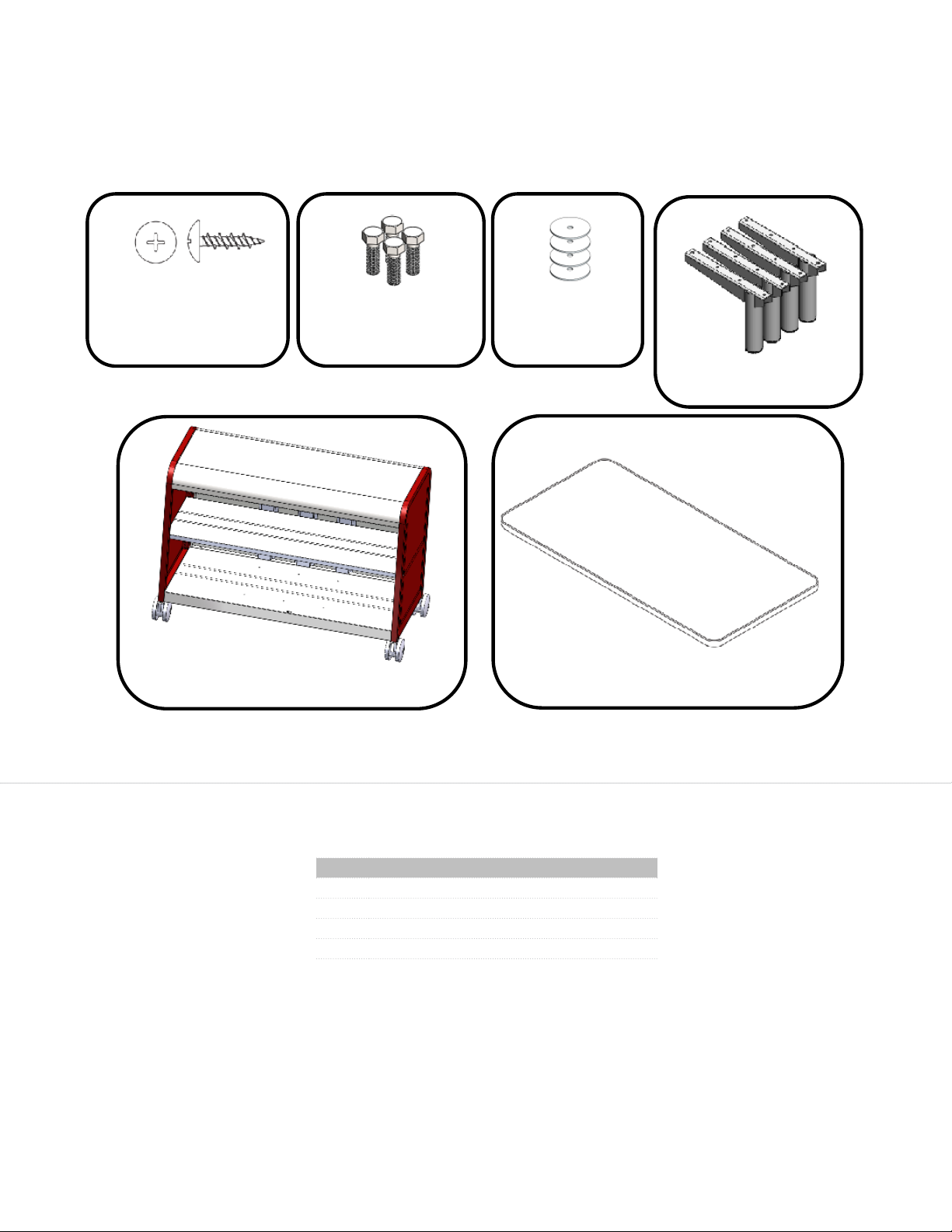

Components and Hardware List

Replacement Hardware Pack 69725 ZINC-R includes:

(16) 70080 - Wood Screws

(4) 3/8-16 X1.25 Hex Head Bolts

(4) Steel Washers

#10X5/8” Wood Screws

P/N –70080

QTY. 16

Hex Head Bolt

QTY. 4

Steel Washer

QTY. 4

Cascade Riser Handles

QTY. 4

Cascade Unit

QTY. 1

Riser Shelf Top

Qty. 1

For assistance in assembling product, missing or damaged parts, or to place an order, please contact

customer service at 1-800-328-1061. You may also place your order online at

Form#179973 www.smithsystem.com 5/2014

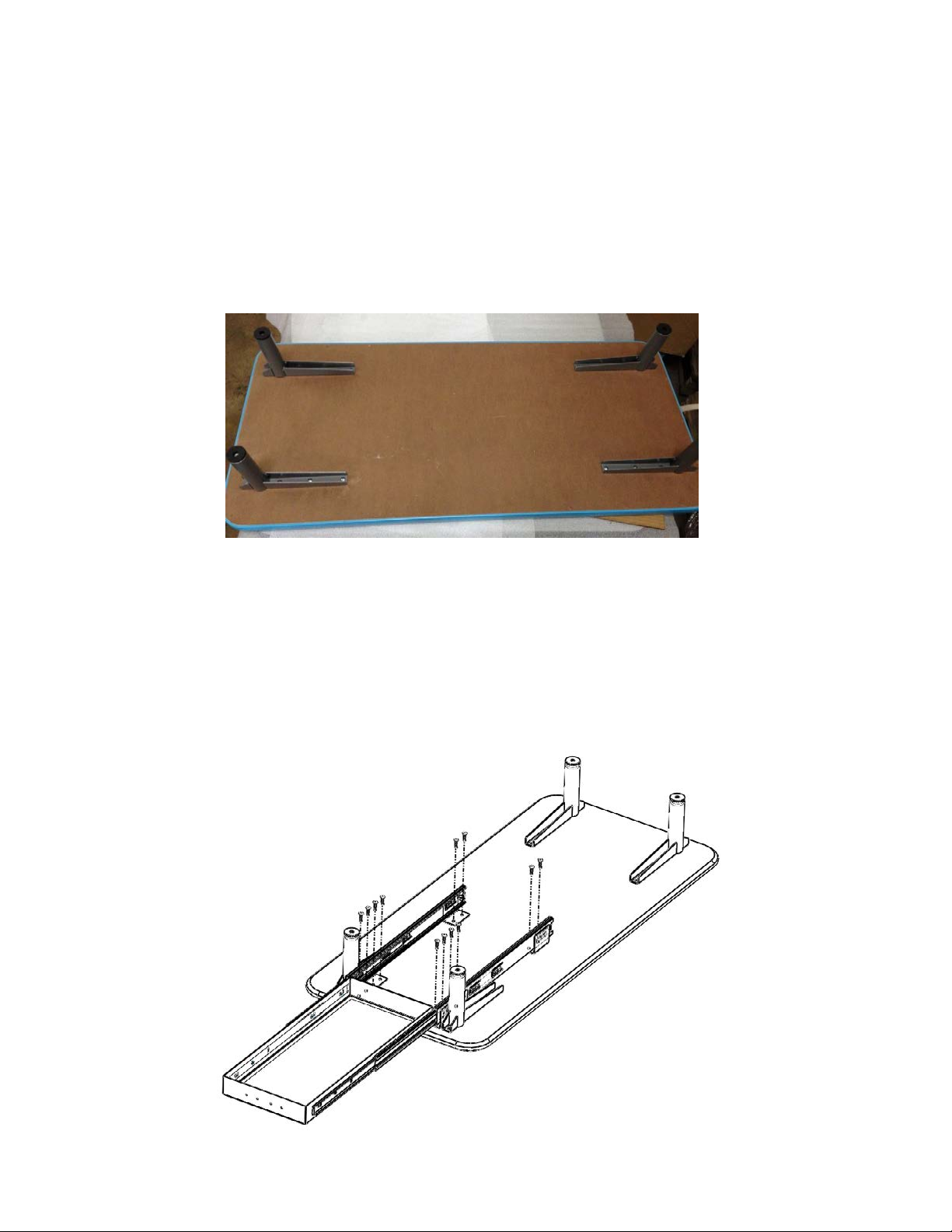

Step 1: Flip the laminated top face down, so that the pre-drilled holes face up.

Step 2: Align the Pole Handles with the predrilled holes as shown and screw to the top using

(16) wood screws provided.

Optional Step: If you ordered a 17670 Laptop Shelf with your Cascade, now’s the time to attach

the shelf to the storage unit. Place the Laptop Shelf on the bottom of the riser shelf. The shelf

can be placed to be facing any direction as long as there’s clearance for the shelf to extend

forward. Once the shelf is placed as desired, fasten the shelf to the table top with the provided

wood screws as shown below.

STEP 1: Flip the laminated top face down, so that the pre-drilled holes face up.

ASSEMBLY INSTRUCTIONS

Form# 179973 www.smithsystem.com 08.31.2015

STEP 2: Align the pole handles with the predrilled holes as shown and screw to the top using the

(x16) wood screws provided.

NOTE: Step #3 is for Cascade™ Cabinets/Cases with optional Laptop Shelf #17670.

For assistance in assembling product, missing or damaged parts, or to place an order, please contact

customer service at 1-800-328-1061. You may also place your order online at

Form#179973 www.smithsystem.com 5/2014

Step 1: Flip the laminated top face down, so that the pre-drilled holes face up.

Step 2: Align the Pole Handles with the predrilled holes as shown and screw to the top using

(16) wood screws provided.

Optional Step: If you ordered a 17670 Laptop Shelf with your Cascade, now’s the time to attach

the shelf to the storage unit. Place the Laptop Shelf on the bottom of the riser shelf. The shelf

can be placed to be facing any direction as long as there’s clearance for the shelf to extend

forward. Once the shelf is placed as desired, fasten the shelf to the table top with the provided

wood screws as shown below.

STEP 3: If your Cascade™ Cabinet or Case was ordered with a #17670 Laptop Shelf, attach now:

STEP 3a: Place the laptop shelf on the bottom of the riser shelf. The shelf can be

placed in any orientation as long as there is clearance for the shelf to extend

forward.

STEP 3b: Once the shelf is positioned as desired; fasten the shelf to the table top with

the provided wood screws as shown below.

STEP 4: Using a Ratchet and socket or wrench, bolt in the Riser Shelf top and Poles to the

Cascade™ unit with the Washer plate placed on the underside (interior) of the Cascade™

as shown below.

STEP 4: Flip the top with pole handles attached (entire assembly) into the upright position and

align on the Cascade™ unit.

ASSEMBLY INSTRUCTIONS

Form# 179931 www.smithsystem.com 08.31.2015

For assistance in assembling product, missing or damaged parts, or to place an order, please contact

customer service at 1-800-328-1061. You may also place your order online at

Form#179973 www.smithsystem.com 5/2014

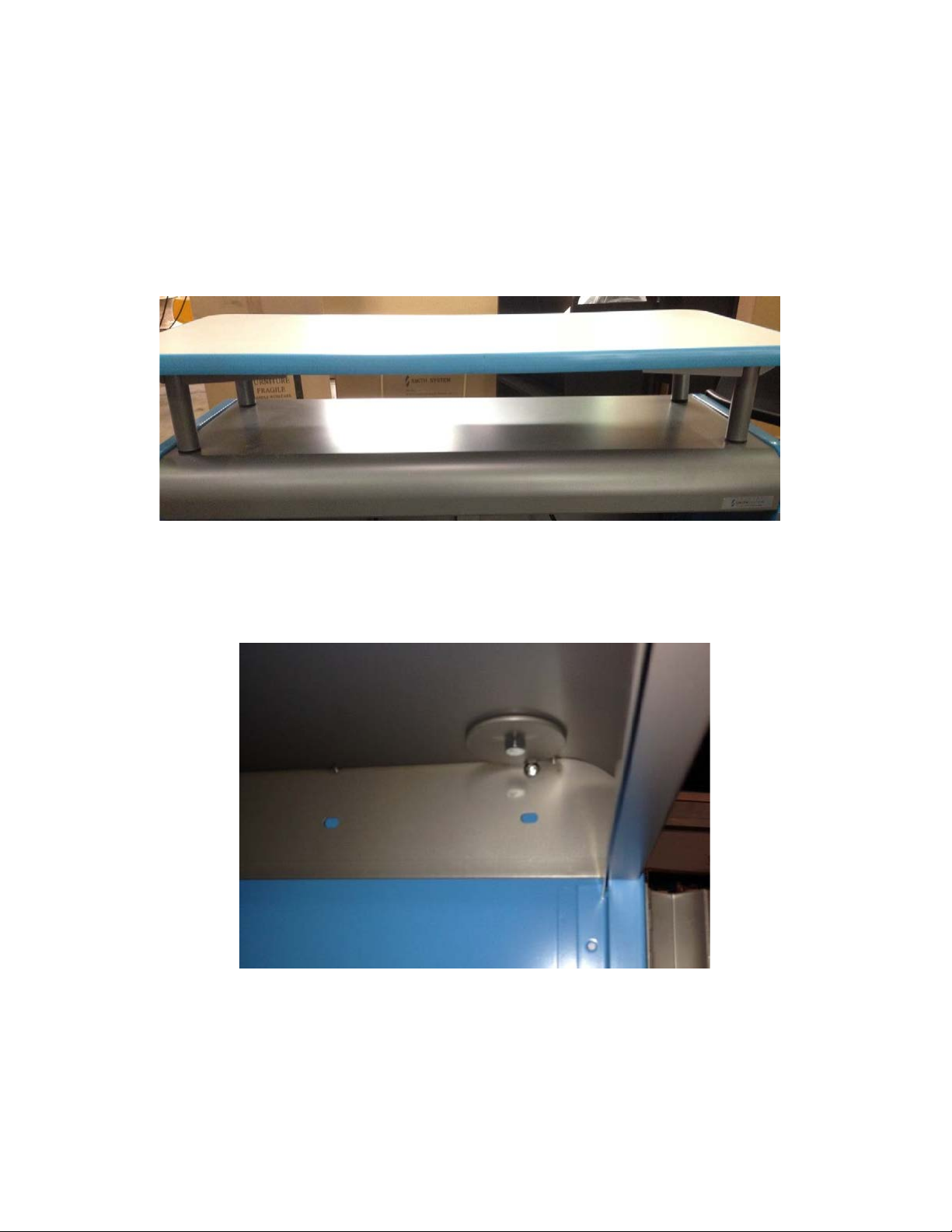

Step 3: Flip the top with pole handles attached into upright position, and align on cascade unit.

Step 4: Using a Ratchet and socket or wrench, bolt in the top to the cascade with the washer

underneath the cascade as shown.

For assistance in assembling product, missing or damaged parts, or to place an order, please contact

customer service at 1-800-328-1061. You may also place your order online at

Form#179973 www.smithsystem.com 5/2014

Step 3: Flip the top with pole handles attached into upright position, and align on cascade unit.

Step 4: Using a Ratchet and socket or wrench, bolt in the top to the cascade with the washer

underneath the cascade as shown.
