Smith & Noble Metro Chic Hardware Manuel utilisateur

STEP BY STEP INSTALLATION INSTRUCTIONS

Ceiling Mount

Single Return Rod Set

Metro Chic

Hardware

800.248.8888

1smithandnoble.com

A Smooth Set-Up

We want you to love your new hardware and that includes having

a smooth installation experience. We suggest saving this guide. If

you encounter any difculties or questions, please reach out to us

for help. It’s why we’re here. Call us at 800.248.8888 for more info

on installation.

We recommend you hold on to all packaging until your hardware is

fully installed. Should something go wrong (we strongly doubt it), we

want any potential returns to be a painless as possible.

Customer Service Hours

Monday — Friday: 6am — 6pm PT

Saturday — Sunday: 7am — 4pm PT

smithandnoble.com

Everything

You Need

Table of Contents

Step 1 -

Getting Started ..................................3

Overview - Ceiling Mount Return Rod Set .....................4

Step 2 - Marking the Bracket Placement................. 5 - 6

Step 3 - Attaching the Rod Connector......................7

Step 4 - Adding or Removing Carriers & End Stops ..........8

Step 5 - Attaching Brackets to Rod ........................9

Step 6 - Attaching Returns...............................10

Step 7 - Attaching Brackets to Ceiling.....................11

Step 8 - Attaching Drapery to Rod ........................12

Accessories - Baton/Wand ...................................13

Care & Cleaning ...........................................14

Warranty ..........................................Back Cover

smithandnoble.com

800.248.8888

CEILING

MOUNTING

BRACKET

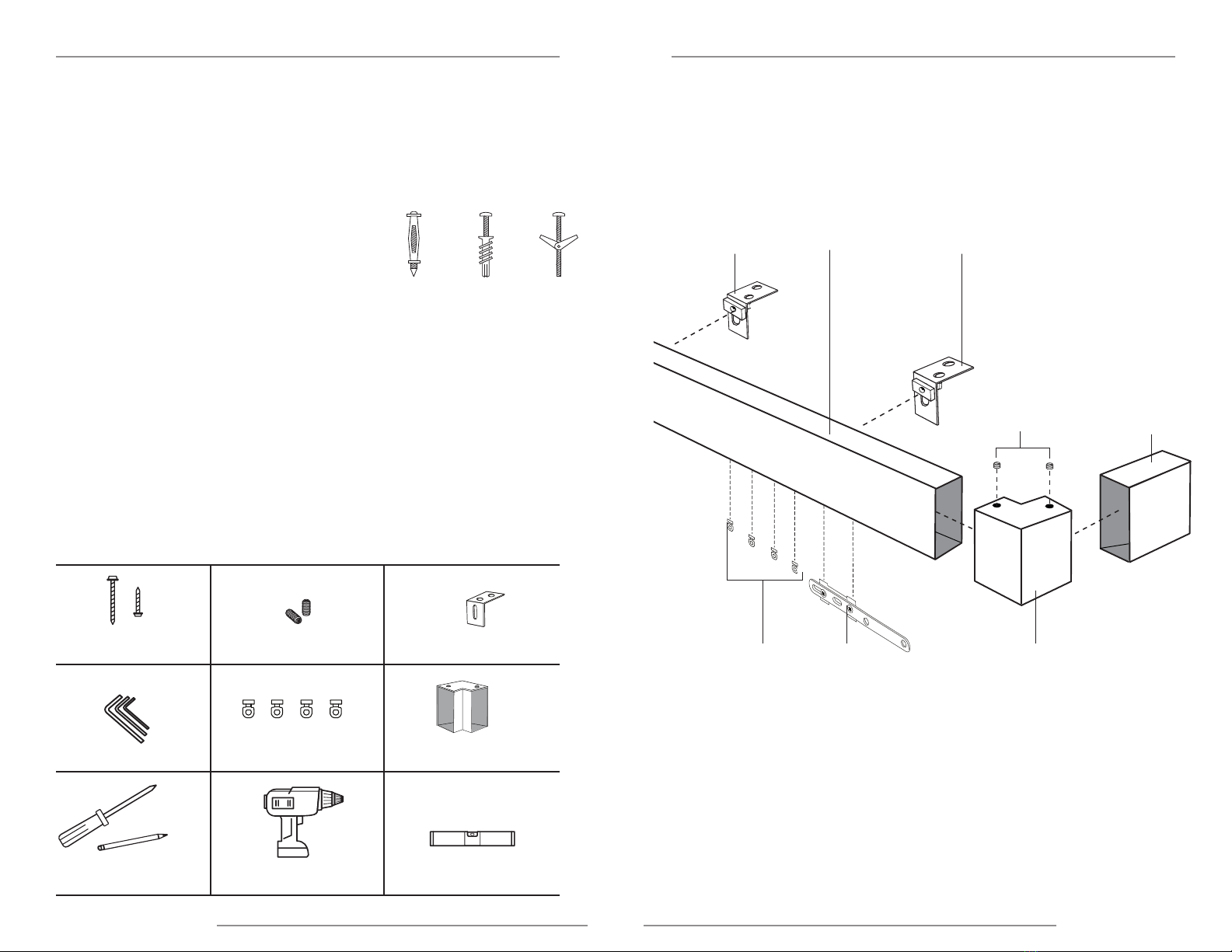

STEP 1 - GETTING STARTED OVERVIEW

Before you begin, check the accompanying diagram to make sure you have all the parts you

need.

You’ll need to make sure the surface you intend to install your hardware is sturdy

enough to accommodate the brackets. If you’re screwing directly into a surface this means

locating wood studs that are strong enough to securely bond with the included screws.

Otherwise, you’ll need to use a secure fastener (as illustrated) but please note this piece is

not included.

Getting Started Metro Chic Ceiling Mount Return Rod

WALLBOARD OR PLASTER:

Hollow wall applications: Use a secure fastener designed

specically for this purpose.

METAL:

Prepare by pre-drilling holes and then using the included screws.

CONCRETE, STONE, BRICK OR TILE:

Use a masonry drill and surface-specic plugs, anchors, or screws. When selecting a

fastener be sure it’s designed to support the weight of the product being installed (if you’re

not sure, either give us a call or ask a professional at your local hardware store). Once

obtained, follow the fastener manufacturer’s instructions regarding proper installation.

TOOLS YOU WILL NEED TO INSTALL YOUR HARDWARE:

Pencil, screwdriver, ¼" nut driver, level, and a drill with a 7⁄64" drill bit.

Note: It’s important to monitor the amount of pressure you apply when using a drill. If the

screws are too tight this may cause the screw itself to break off in the wall or window frame.

MOLLY

BOLT

SELF DRILLING

ANCHOR

TOGGLE

BOLT

PENCIL & SCREWDRIVER

(NOT INCLUDED) POWER DRILL

(NOT INCLUDED)

LEVEL

(NOT INCLUDED)

CORNER BRACKET

SCREWS SET SCREWS

ALLEN WRENCHES

CORNER

BRACKET

MASTER

CARRIER

RETURN

ROD

CEILING

MOUNTING

BRACKET

SET SCREWS

CARRIERS

CEILING MOUNT BRACKET

smithandnoble.com 800.248.8888

Mounting the Brackets

1. Place the panel on the rod. Hold it up

to the spot you wish to install it mak-

ing sure there is enough spacing from

wall to where the back of drapery will

hit. Usually about 2” away from wall

or window. After you’ve located the

ideal location, use a pencil to mark

the ceiling where the back of the rod

is resting.

2. Remove the panel from the rod

and then center the rod over

the window opening at the de-

sired height. Using the pencil,

mark where the ends of each rod

are positioned; if you’re using a

center bracket, note the middle

point between these two spots.

If you have more than one center

bracket spread these evenly be-

tween the two end brackets and

center point. If you have a spliced

rod, mark where that splice is on the

wall since you will need to add the

special splice bracket at that point.

Measure 6” inward from the marks

you’ve made on both ends and

mark those spots. This is where the

end brackets will be installed.

STEP 2 - MARKING BRACKET PLACEMENT

STEP 3 - ATTACHING THE ROD CONNECTOR

Depending on your order, you may

have received a rod connector.

A rod connector is the short piece

of metal placed inside each end of

the rods in a multi-segment system

to join them together.

Join track sections together and

fasten securely with set screws.

Attach the splice cover.

SPLICE COVER

SPLICE

2 SEGMENTS OF RODBACK VIEW

SPLICE COVER

ROD CONNECTOR

SET

SCREWS

SET

SCREWS

SPLICE

COVER

ROD CONNECTOR

CHANNEL ROD

SET

SCREWS

BACK VIEW

FRONT VIEW

smithandnoble.com

800.248.8888

Adding or Removing Carriers

to the Rod

Your track rod will come with all master

carriers and regular carriers pre-installed.

If you need to add or take out some carriers

depending on your drapery, unscrew the

return from the rod.

Remove the carrier & end stop and either

add or take out the carriers needed.

Placing End Stop on the Rod

SPLIT DRAPERY (A)

Once all carriers have been placed in the

track, for split drapery, place end stop in

between the rst carrier from each end

and the second carrier so end of drape

does not move when drape is closed.

ONE WAY DRAW DRAPERY (B)

For one way draw drapery, place end

stop in between the first carrier from

the end and the second carrier of the

side you won’t be opening it from so

the end of drape does not move when

drape is closed.

Place another end stop right before

the beginning of the return to prevent

master carrier from moving all the way

to the end.

STEP 4 - PLACING CARRIERS & END STOPS

CARRIER

END STOP

One Way Draw

End stop & Carrier positions

Split Draw

End stop & Carrier positions

END STOP

CARRIERS

STEP 5 - ATTACHING BRACKETS TO ROD

CHANNEL

CEILING

BRACKET

CHANNEL

MOUNTING

POST

HEX

SCREW

CEILING

BRACKET

MOUNTING

POST

SPLICE COVER

SPLICE

CONNECTOR

SPLICE

Insert the mounting posts into the

channel in the back of the track.

Do not tighten at this time.

Attach Return (go to step 6)

SPLICE

BRACKET

If your rod was spliced, attach the

center spliced bracket by taking off the

little metal plate and screwing it in the

middle hole of the splice connector.

910

smithandnoble.com

800.248.8888

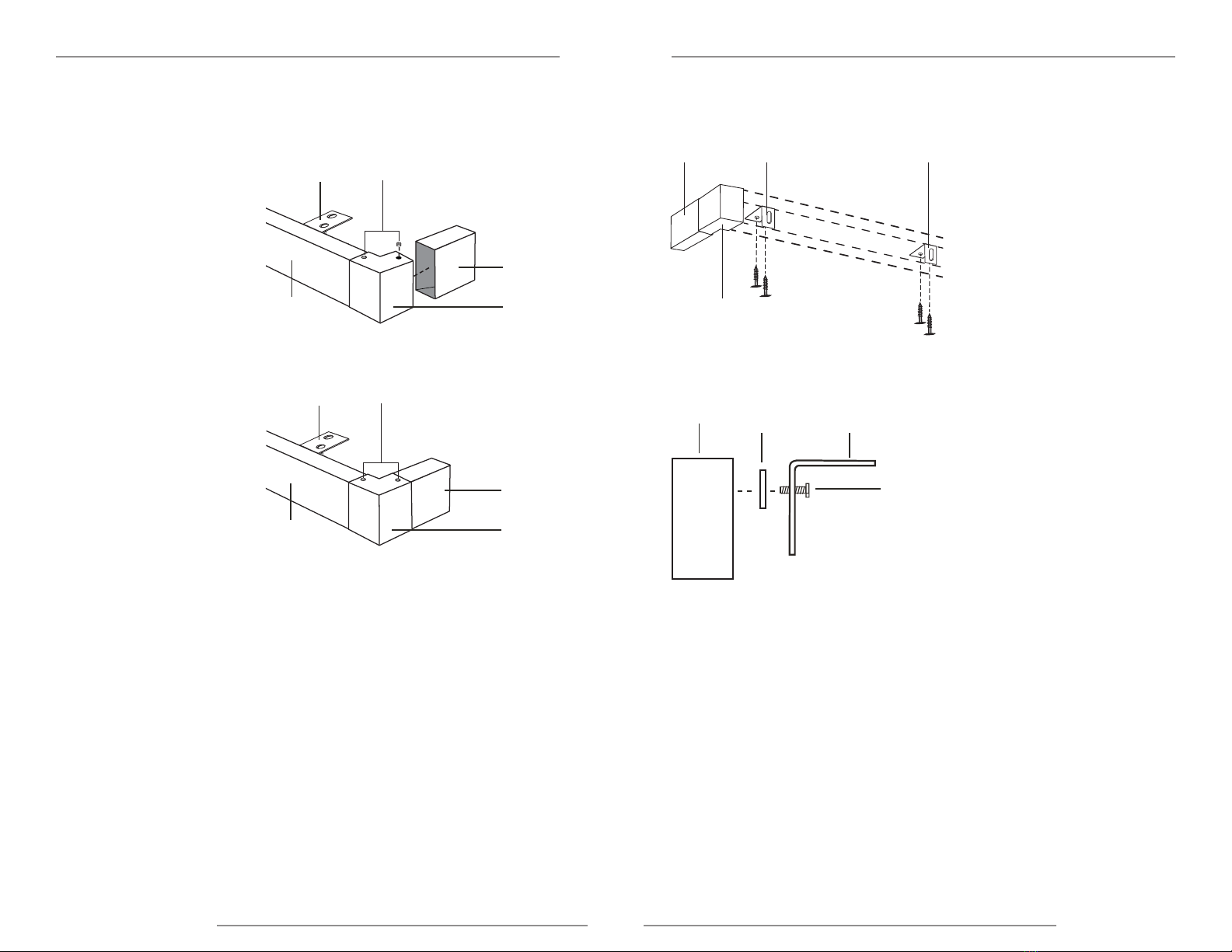

STEP 6 - ATTACHING RETURNS

Slide Return onto rod and tighten

set screw.

RETURN

CEILING

BRACKET

SET

SCREWS

ELBOW

BRACKET

ROD

RETURN

CEILING

BRACKET

SET

SCREWS

ELBOW

BRACKET

ROD

STEP 7 - ATTACHING BRACKETS TO THE CEILING

Hold the rod up and attach the brack-

et to the ceiling, aligning the holes of

the bracket with the marks you made

on ceiling on a previous step.

Be sure and attach the bracket to the

ceiling with the appropriate mount-

ing hardware.

(It is always recommended to try

and attach to the ceiling joists found

inside ceiling. Where this is not pos-

sible please use an anchor suitable

to carry the weight of your hardware

selection as well as your draperies

and any accessories.)

Tighten the hex screw on the back of the

ceiling bracket to make sure the rod is

attached strongly to the bracket.

Single Rod

Ceiling Mount

Return Rod

Ceiling Mount

HEX

SCREW

CEILING

BRACKET

SPLICE

CONNECTOR

CEILING

BRACKET

RETURN

CORNER

FINIAL

CEILING

BRACKET

ROD

11 12

smithandnoble.com 800.248.8888

Insert drapery pin hooks into carriers

and master carriers.

Split Drapery

For Split drapery, start pining from

the center and go towards the ends.

Draw one side

For drapery opening from one side

only, start pining from the opening

side towards the end.

STEP 7 - ATTACHING DRAPERY TO ROD

MASTER

CARRIER

DRAPERY

PINS CARRIERS

BACK VIEW OF ROD

Baton/Wand (optional)

Baton/Wand will be pre-attached to the

master carrier(s).

ACCESSORIES

CLIP

BATON/

WAND

MASTER CARRIER

13 14

smithandnoble.com

800.248.8888

Minimal care and cleaning is needed to maintain the beauty of your Hardware.

To Vacuum: Use brush or dust head attachment.

To Dust: Use soft, clean cloth.

CARE & CLEANING NOTES

Warranty Service

The enjoyment of your hardware should be everlasting, which is why our products

come with a limited lifetime warranty. The warranty applies to the original owner,

requires a proof of purchase (hang on to your receipt!) and covers defects in material

or craftsmanship. Hardware must have been properly installed. We reserve the right to

determine if your hardware warrants a repair or a replacement. Visit smithandnoble.

com/guarantee to see full details. In need of warranty service? Call us at 800.248.8888

and we’ll arrange for a repair or replacement ASAP.

Autres manuels pour Metro Chic Hardware

Table des matières

Autres manuels Smith & Noble Support et étagère

Smith & Noble

Smith & Noble Euro Track Basics Hardware-Heavy Duty Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Marrakesh Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
