STEP BY STEP INSTALLATION INSTRUCTIONS

Bay Wall Mount

Single Rod Set

Metro Chic

Hardware

800.248.8888

1smithandnoble.com

A Smooth Set-Up

We want you to love your new hardware and that includes having

a smooth installation experience. We suggest saving this guide. If

you encounter any difculties or questions, please reach out to us

for help. It’s why we’re here. Call us at 800.248.8888 for more info

on installation.

We recommend you hold on to all packaging until your hardware is

fully installed. Should something go wrong (we strongly doubt it), we

want any potential returns to be a painless as possible.

Customer Service Hours

Monday — Friday: 6am — 6pm PT

Saturday — Sunday: 7am — 4pm PT

smithandnoble.com

Everything

You Need

Table of Contents

Step 1 -

Getting Started ..................................3

Overview - Corner Bay Wall Mount Single Rod Set .............4

Step 2 - Mounting the Brackets ........................ 5 - 6

Step 3 - Attaching the Rod Connector......................7

Step 4 - Adding or Removing Carriers & End Stops ..........7

Step 5 - Attaching Bracket to Posts ........................7

Step 6 - Attaching the Finials .............................8

Step 7 - Attaching Corner/Elbow Bracket...................9

Step 8 - Attaching Bracket Posts to Bracket Bases ..........10

Step 9 - Attaching Drapery to Rod ........................11

Accessories - Baton/Wand ...................................12

Care & Cleaning ...................................Back Cover

Warranty ..........................................Back Cover

smithandnoble.com

800.248.8888

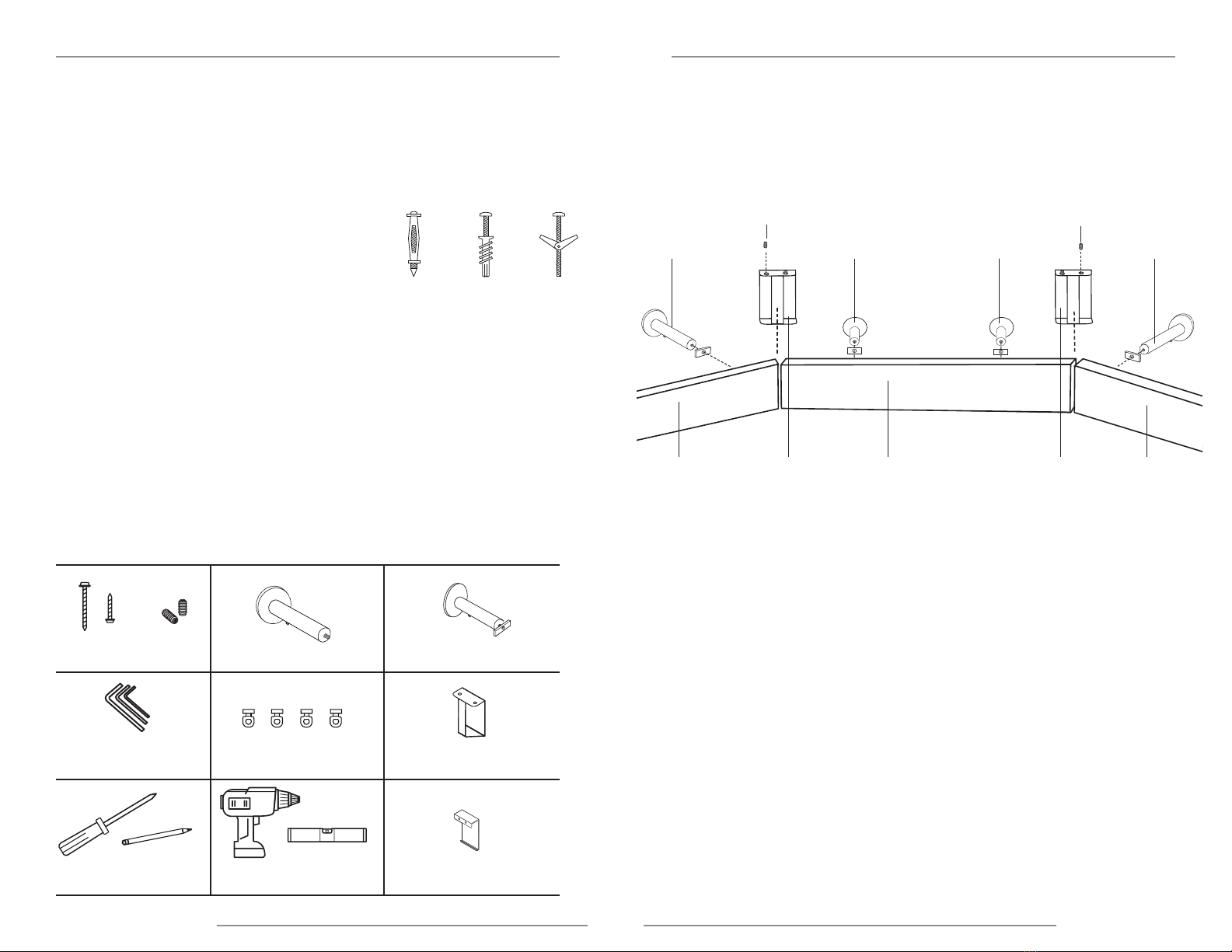

STEP 1 - GETTING STARTED OVERVIEW

Before you begin, check the accompanying diagram to make sure you have all the parts you

need.

You’ll need to make sure the surface you intend to install your hardware is sturdy

enough to accommodate the brackets. If you’re screwing directly into a surface this means

locating wood studs that are strong enough to securely bond with the included screws.

Otherwise, you’ll need to use a secure fastener (as illustrated) but please note this piece is

not included.

Getting Started Metro Chic Wall Bay Mount Rod Set

WALLBOARD OR PLASTER:

Hollow wall applications: Use a secure fastener designed

specically for this purpose.

METAL:

Prepare by pre-drilling holes and then using the included screws.

CONCRETE, STONE, BRICK OR TILE:

Use a masonry drill and surface-specic plugs, anchors, or screws. When selecting a

fastener be sure it’s designed to support the weight of the product being installed (if you’re

not sure, either give us a call or ask a professional at your local hardware store). Once

obtained, follow the fastener manufacturer’s instructions regarding proper installation.

TOOLS YOU WILL NEED TO INSTALL YOUR HARDWARE:

Pencil, screwdriver, ¼" nut driver, level, and a drill with a 7⁄64" drill bit.

Note: It’s important to monitor the amount of pressure you apply when using a drill. If the

screws are too tight this may cause the screw itself to break off in the wall or window frame.

MOLLY

BOLT

SELF DRILLING

ANCHOR

TOGGLE

BOLT

ELBOW BRACKETS

CENTER

ROD ELBOW

BRACKET RIGHT

ROD

LEFT

ROD

MOUNTING

BRACKET MOUNTING

BRACKET

MOUNTING

BRACKET

MOUNTING

BRACKET

SET

SCREWS

SET

SCREWS

ELBOW

BRACKET

SCREWDRIVER & PENCIL

(NOT INCLUDED)

POWER DRILL & LEVEL

(NOT INCLUDED)

SPLICE COVER

END & CENTER

MOUNTING BRACKET

ALLEN

WRENCHES

CARRIERS

(FRONT ROD)

MOUNTING

SCREWS

SET

SCREWS

CENTER

SPLICE BRACKET

smithandnoble.com 800.248.8888

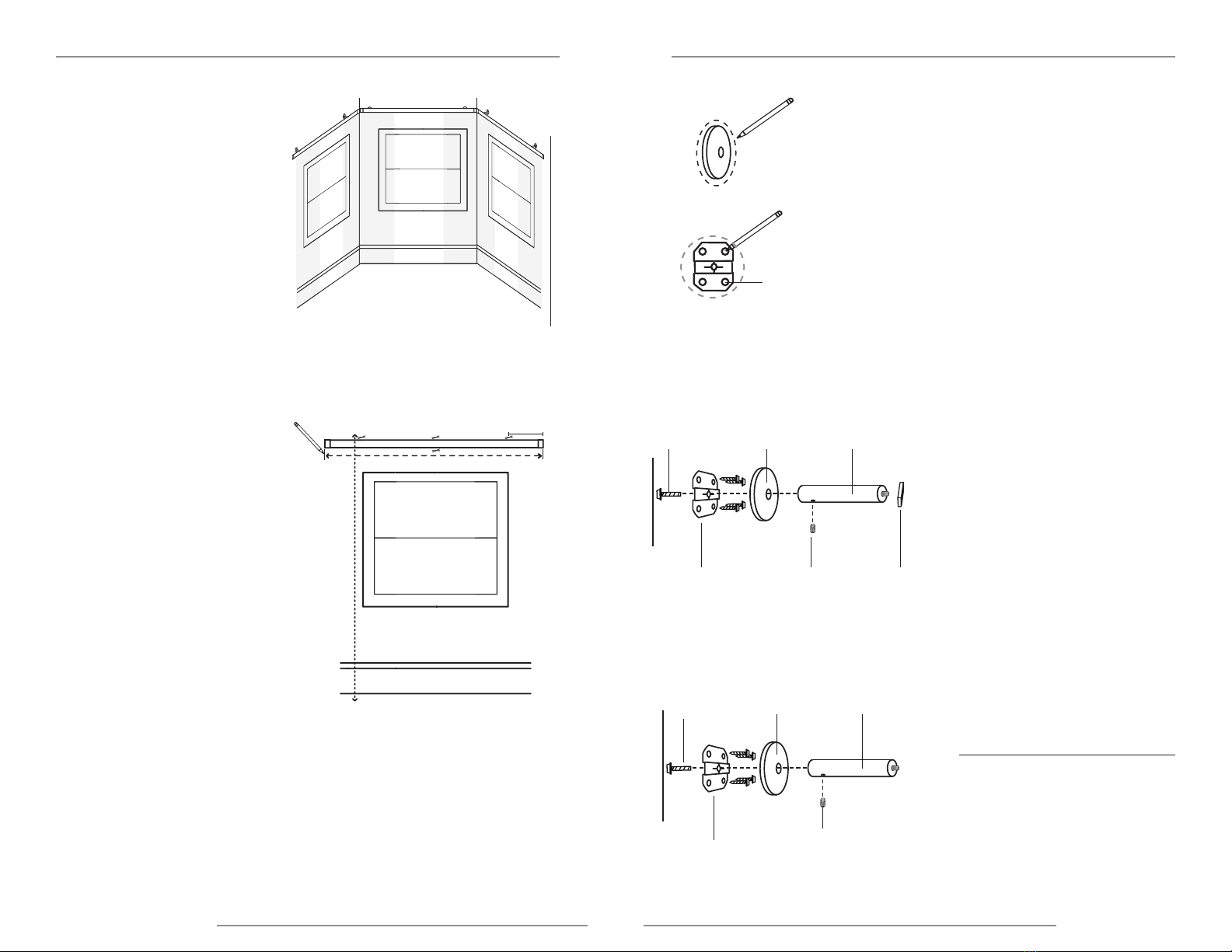

Mounting the Brackets

1. Place the panel on one of the rods.

To ensure it drapes at the correct

length, hold it up to the spot you

wish to install it; this will allow you

to raise or lower your treatment

as desired. After you’ve located

the ideal location, use a pencil to

mark the wall where the top of the

rod is resting.

2. Remove the panel from the rod and

then center the rod over the

window

opening at the desired height. Us-

ing the pencil, mark where the ends

of each rod are positioned; if you’re

using a center bracket, note the

middle point between these two

spots. If you have more than one

center bracket spread these evenly

between the two end brackets and

center point. If you have a spliced

rod, mark where that splice is on

the wall since you will need to add

the special splice bracket at that

point. Measure 6” inward from the

marks you’ve made on both ends

and mark those spots. This is where

the end brackets will be installed.

Proceed to do the same for the oth-

er sides.

STEP 2 - MOUNTING BRACKETS STEP 2 - MOUNTING BRACKETS

3. Place center of bracket cover plate

level against wall at the marked spots.

Using a pencil, lightly draw a circle

around the base of the bracket onto

wall, see Figure A. Check to make

sure the circles are level & aligned

with each other.

4. Remove mounting plate and center

it inside of the circle outline on

wall. Mark the screw hole loca-

tions for all brackets. See Figure B.

5. Attach the metal mounting plate to

the wall, aligning the holes in the

plate with the marks made in the

previous step, see figure B. Be sure

and attach the plate to the wall with

the appropriate mounting hardware.

(It is always recommended to try

and attach to the wood studs inside

the wall. Where this is not possible

please use a wall anchor suitable to

carry the weight of your hardware

selection as well as your draperies

and any accessories.)

6. Place bracket cover plate on top of

back plate and thread in the inside

post. Make sure to screw on inside

post very tightly.

Do not leave any play or wiggle room.

Figure A

Figure B

6" CENTER

BOLT COVER

PLATE POST

MOUNTING

PLATE SET

SCREW METAL

MOUNTING

PLATE

End & Center Brackets

COVER

PLATE

SET

SCREW

Splice Bracket

POST

Mark all holes needed

showing locations of screw

holes for all brackets.

MOUNTING

PLATE

CENTER

BOLT

smithandnoble.com

800.248.8888

CARRIERS

POST

STEP 4 - PLACING CARRIERS & END STOPS (CON'T)

STEP 5 - ATTACHING BRACKET TO THE POSTSSTEP 4 - PLACING CARRIERS & END STOPS

Adding or Removing Carriers

to the Rod

Your track rods will come with all master

carriers and regular carriers pre-installed.

If you need to add or take out some

carriers depending on your drapery,

unscrew the elbow bracket from the rod.

Remove the carrier & end stop and either

add or take out the carriers needed.

END STOP

Placing End Stop on the Rod

SPLIT DRAPERY (A)

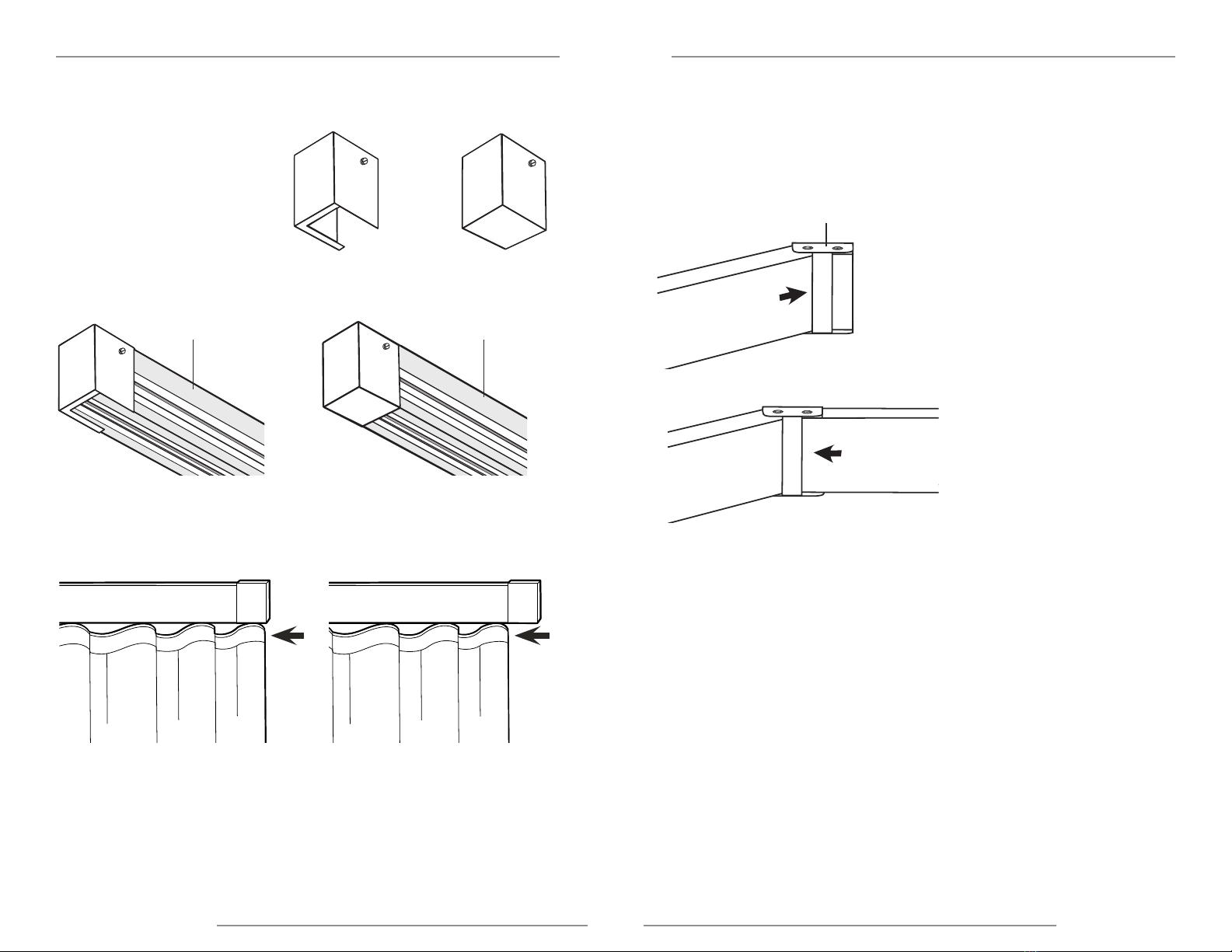

Once all carriers have been placed in the

track, for split drapery, place end stop in

between the first carrier from each end

and the second carrier so end of drape

does not move when drape is closed.

ONE WAY DRAW DRAPERY (B)

For one way draw drapery, place end

stop in between the first carrier from the

end (A) and the second carrier of the side

you won’t be opening it from so the end

of drape does not move when drape is

closed. Repeat for all rods.

Place another end stop right before the

beginning of the end cap to prevent

master carrier from moving all the way

to the end (B)

Insert the mounting posts into the channel

in the back of the track. Do not tighten at

this time.

Attach End Cap Finial.

CHANNEL

CHANNELPOST

MOUNTING

PLATE

ROD

MOUNTING

BRACKET

END STOP

CARRIERS

ELBOW

BRACKET

One Way Draw

End stop &

Carrier positions

Split Draw

End stop &

Carrier positions

END STOP

CARRIERS

END STOP

CARRIERS

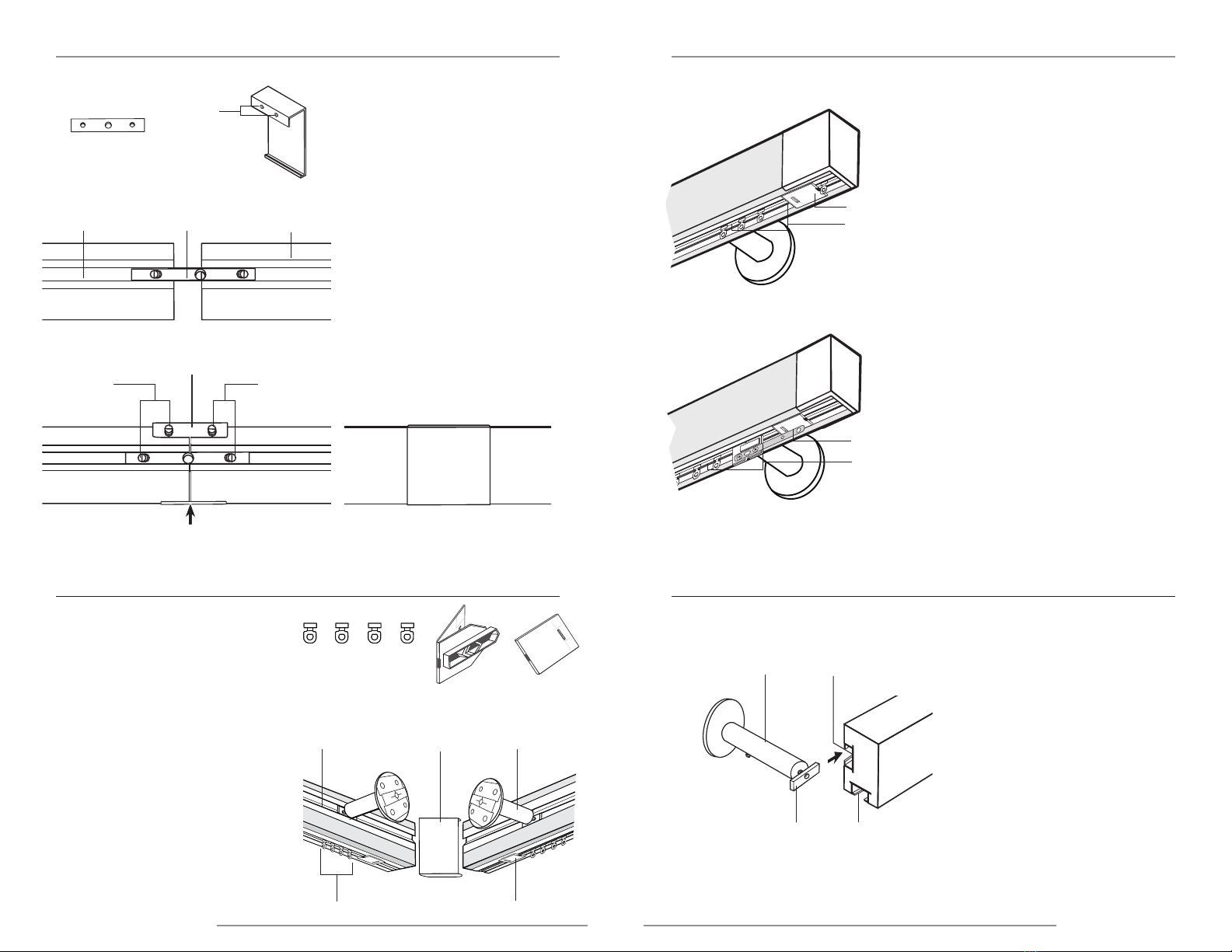

STEP 3 - ATTACHING THE ROD CONNECTOR

Depending on your order, you may

have received a rod connector. A rod

connector is the short piece of metal

placed inside each end of the rods in

a multi-segment system to join them

together.

Join track sections together and fasten

securely with set screws.

Attach the splice cover.

JOINING TRACK SECTIONSBACK VIEW

ROD CONNECTORCHANNEL ROD

SPLICE COVER

SPLICE

FASTEN SET SCREWS

SET

SCREWS

SET

SCREWS

BACK VIEW

SPLICE

COVER

ROD CONNECTOR

SET

SCREWS

FRONT VIEW

SPLICE

COVER

910

smithandnoble.com

800.248.8888

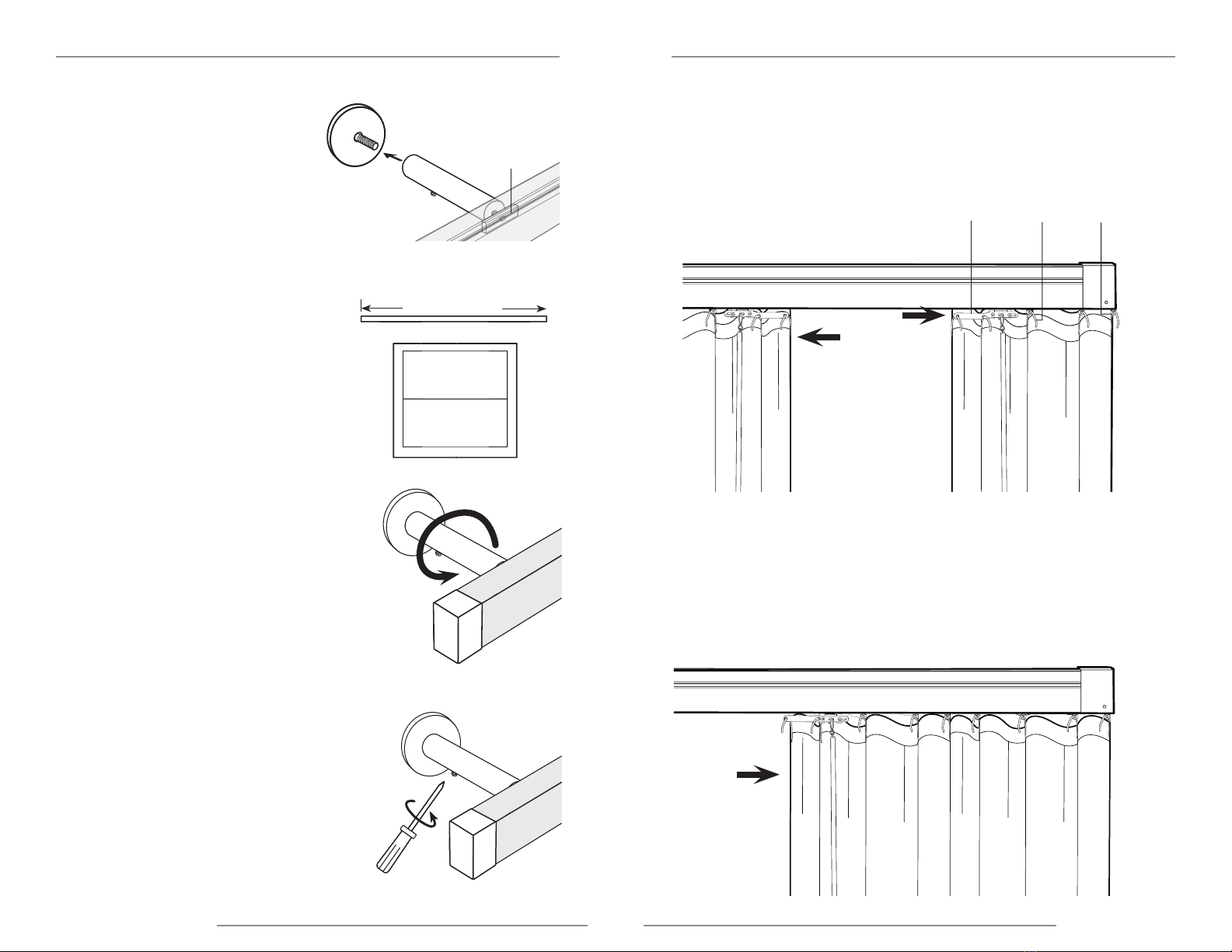

STEP 7 - ATTACHING ELBOW BRACKETSTEP 6 - ATTACHING FINIALS

Elbow Bracket

Slide in elbow onto the end of the left

rod where there is no finial end cap and

tighten set screw.

Proceed to attach the elbow to the right

side of the center rod as well.

Repeat to attach right rod.

Slide in End Cap onto rod and tighten

set screw.

End Cap can be attached with the

opening at the bottom or top

depend-

ing on look you want to achieve.

If you want to get your drapery all the

way to the end of the rod, then place

opening of end cap at the bottom of

rod where track is.

If you want your draperies to stop

where the end cap starts, move the

open side of the end cap to the top of

track. The covered part of end cap will

be at the bottom where track is.

END CAP FINIALS

OPEN COVERED

OPEN

END CAP FINIAL

COVERED

END CAP FINIAL

ELBOW BRACKET

BACK OF RODBACK OF ROD

11 12

smithandnoble.com 800.248.8888

STEP 9 - ATTACHING DRAPERY TO ROD

Insert drapery pin hooks into carriers

and master carriers.

Split Drapery

For Split drapery, start pining from

the center and go towards the ends.

Draw one side

For drapery opening from one side

only, start pining from the opening

side towards the end.

STEP 8 - ATTACHING BRACKET POSTS TO BRACKET BASES

Align the mounting posts in the back of

the left rod with the brackets mounted

to the wall. Slide the mounting posts

onto the brackets but don’t tighten.

Center the track over the widow open-

ing by sliding the track left or right on

the posts.

When the track is centered, rotate the

posts clockwise to tighten against the

track. (A)

Tighten the set screw on the mounting

post. (B)

Repeat all above steps for center rod

but make sure, before you tighten up

posts, that the rod is inside the end of

the left elbow and you have tightened

the set screws on that part to hold the

rod in place. Proceed to install the right

rod and that it is inserted in the elbow

and tightened down.

MOUNTING

POST

CENTER THE ROD

(A)

(B)

MASTER

CARRIER

DRAPERY

PINS CARRIERS

BACK VIEW OF ROD

13 14

smithandnoble.com 800.248.8888

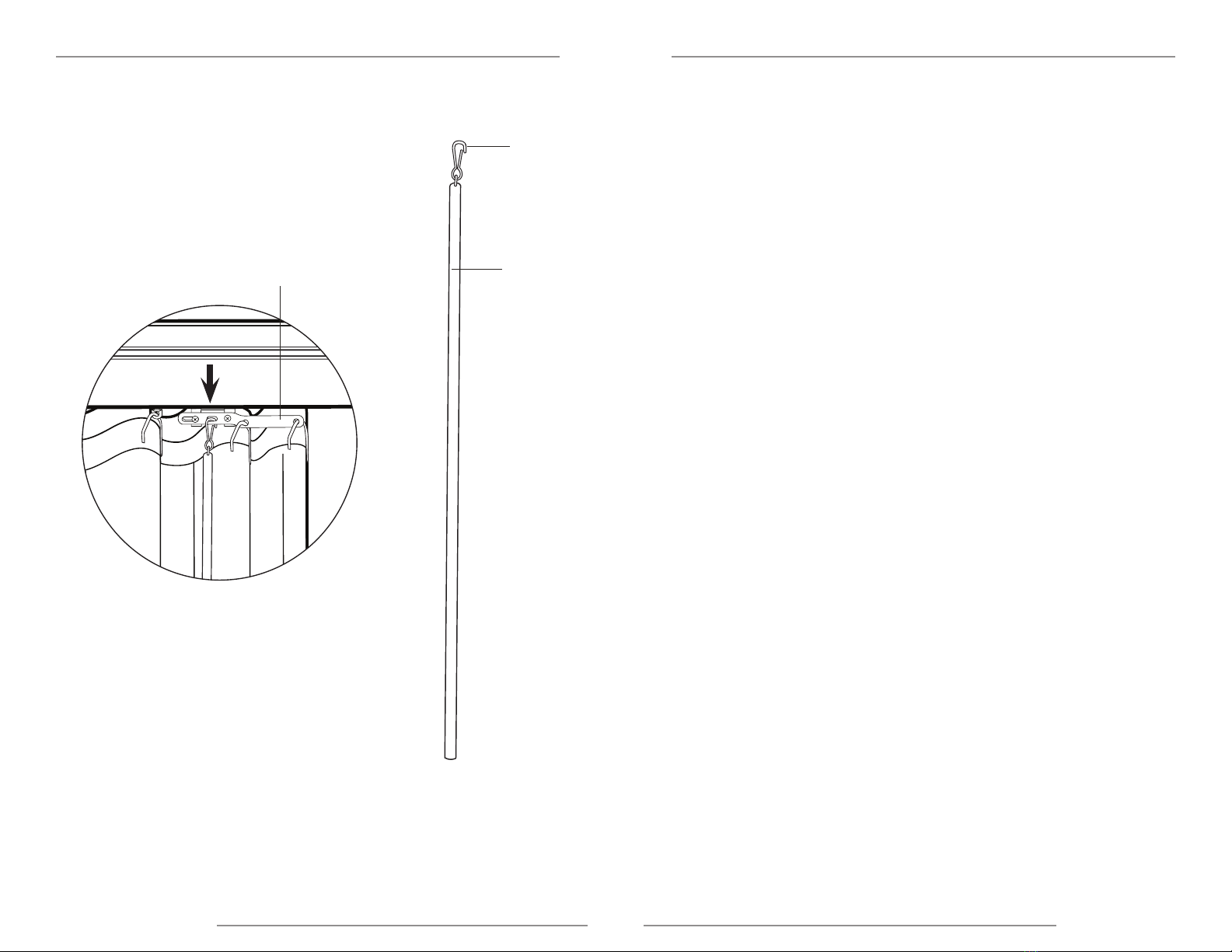

Baton/Wand (optional)

Baton/Wand will be pre-attached to the

master carrier(s).

CLIP

BATON/

WAND

MASTER

CARRIER

ACCESSORIES

Minimal care and cleaning is needed to maintain the beauty of your Hardware.

To Vacuum: Use brush or dust head attachment.

To Dust: Use soft, clean cloth.

CARE & CLEANING

Warranty Service

The enjoyment of your hardware should be everlasting, which is why our products

come with a limited lifetime warranty. The warranty applies to the original owner,

requires a proof of purchase (hang on to your receipt!) and covers defects in material

or craftsmanship. Hardware must have been properly installed. We reserve the right to

determine if your hardware warrants a repair or a replacement. Visit smithandnoble.

com/guarantee to see full details. In need of warranty service? Call us at 800.248.8888

and we’ll arrange for a repair or replacement ASAP.

Autres manuels pour Metro Chic Hardware

Table des matières

Autres manuels Smith & Noble Support et étagère

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Euro Track Basics Hardware-Heavy Duty Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Aluminum Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Track Flat Wood Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Smith & Noble

Smith & Noble Metro Chic Hardware Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
