Smeg SFP6401TVS Manuel utilisateur

Contents

1 Instructions 46

1.1 General safety instructions 46

1.2 Appliance purpose 49

1.3 Manufacturer’s liability 49

1.4 This user manual 50

1.5 Identification plate 50

1.6 Disposal 50

1.7 How to read the user manual 51

2 Description 52

2.1 General Description 52

2.2 Control panel 53

2.3 Other parts 54

2.4 Available accessories 55

3 Use 57

3.1 Instructions 57

3.2 First use 57

3.3 Using the accessories 58

3.4 Using the oven 59

3.5 Cooking advice 66

3.6 Special functions 68

3.7 Secondary menu 71

4 Cleaning and maintenance 74

4.1 Instructions 74

4.2 Cleaning the appliance 74

4.3 Removing the door 74

4.4 Cleaning the door glazing 75

4.5 Pyrolytic cycle 77

4.6 Extraordinary maintenance 79

5 Installation 81

5.1 Electrical connection 81

5.2 Cable replacement 81

5.3 Positioning 82

We advise you to read this manual carefully, which contains all the instructions for

maintaining the appliance’s aesthetic and functional qualities.

For further information on the product: www.smeg.com

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Smeg SFP6401TVS o

cerca il tuo prodotto tra le migliori offerte di Forni

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

Never touch the heating elements

during use.

• Protect your hands by wearing

oven gloves when moving food

inside the oven.

• Never try to put out a fire or flames

with water: Turn off the appliance

and smother the flames with a fire

blanket or other appropriate

cover.

• This appliance may be used by

children aged at least 8 and by

people of reduced physical,

sensory or mental capacity, or

lacking in experience in the use of

electrical appliances, provided

that they are supervised or

instructed by adults who are

responsible for their safety.

• Children must not play with the

appliance.

• Keep children under the age of

eight at a safe distance unless they

are constantly supervised.

• Keep children under the age of 8

away from the appliance when it

is in use.

• Cleaning and maintenance must

not be carried out by unsupervised

children.

• The cooking process must always

be monitored. A short cooking

process must be continuously

monitored.

• Never leave the appliance

unattended during cooking

operations where fats or oils could

be released, as these could then

heat up and catch fire. Be very

careful.

• Do not pour water directly onto

very hot trays.

• Keep the oven door closed during

cooking.

• If you need to move food or at the

end of cooking, open the door 5

cm for a few seconds, let the

steam come out, then open it fully.

• Do not insert pointed metal objects

(cutlery or utensils) into the slots in

the appliance.

• Switch off the appliance

immediately after use.

Instructions

• DO NOT USE OR STORE

FLAMMABLE MATERIALS NEAR

THE APPLIANCE.

• DO NOT USE AEROSOLS IN THE

VICINITY OF THIS APPLIANCE

WHILST IT IS IN USE.

• DO NOT MODIFY THIS

APPLIANCE.

• Have qualified personnel carry out

installation and assistance

interventions according to the

standards in force.

• Do not try to repair the appliance

yourself or without the intervention

of a qualified technician.

• Do not pull the cable to remove

the plug.

Risk of damaging the appliance

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

Use wooden or plastic utensils.

• Do not use rough or abrasive

materials or sharp metal scrapers.

• Switch off the burners or the

electric hot plates of the hob

installed above the appliance

during the pyrolytic process

(where available).

• Do not seat on the appliance.

• Do not use cleaning products

containing chlorine, ammonia or

bleach on parts made of steel or

that have metallic surface finishes

(e.g. anodizing, nickel- or

chromium-plating).

• Racks and trays should be inserted

as far as they will go into the side

guides. The mechanical safety

locks that prevent them from being

removed must face downwards

and towards the back of the oven

cavity.

• Do not use steam jets to clean the

appliance.

• Do not spray any spray products

near the appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

• Never leave objects on the

cooking surface.

• DO NOT FOR ANY REASON

USE THE APPLIANCE AS A

SPACE HEATER.

Instructions

• Do not use plastic cookware or

containers when cooking food.

• Do not put sealed tins or

containers in the oven.

• Remove all trays and racks which

are not required during cooking.

• Do not cover the bottom of the

oven cavity with aluminium or tin

foil sheets.

• Do not place pans or trays directly

on the bottom of the oven cavity.

• If you wish to use greaseproof

paper, place it so that it will not

interfere with the hot air circulation

inside the oven.

• Do not use the open door to rest

pans or trays on the internal glass

pane.

• Never use the oven door to lever

the appliance into place when

fitting.

• Avoid exerting too much pressure

on the oven door when open.

• Do not use the handle to lift or

move the appliance.

Installation and maintenance

•THIS APPLIANCE MUST NOT BE

INSTALLED IN BOATS OR

CARAVANS.

• The appliance must not be

installed on a pedestal.

• Position the appliance into the

cabinet cut-out with the help of a

second person.

• To avoid potential overheating, the

appliance must not be installed

behind a decorative door or a

panel.

• Have qualified personnel carry out

installation and assistance

interventions according to the

standards in force.

• Have the electrical connection

performed by authorised technical

personnel.

• The appliance must be connected

to earth in compliance with

electrical system safety standards.

• Use cables withstanding a

temperature of at least 90 °C.

• The tightening torque of the screws

of the terminal supply wires must

be 1.5 - 2 Nm.

Instructions

• If the power supply cable is

damaged, contact technical

support immediately and they will

replace it.

• Always use any necessary/

required personal protective

equipment (PPE) before

performing any work on the

appliance (installation,

maintenance, positioning or

movement).

• Before performing any work on

the appliance, switch off the

power supply.

• This appliance can be used up to a

maximum altitude of 4,000 metres

above sea level.

For this appliance

• Take care because steam may not

be visible at certain temperatures.

• Open the appliance door

carefully during or after cooking.

• Dishes must be heat and steam

resistant.

• Ensure that the appliance is

switched off before replacing the

bulb.

• Do not rest any weight or sit on the

open door of the appliance.

• Take care that no objects are stuck

in the doors.

• Do not install / use the appliance

outdoors.

1.2 Appliance purpose

• This appliance is intended for

cooking food in the home

environment. Every other use is

considered improper.

• The appliance is not designed to

operate with external timers or with

remote-control systems.

1.3 Manufacturer’s liability

The manufacturer declines all liability

for damage to persons or property

caused by:

• Use of the appliance other than

that specified

• Failure to comply with the

instructions in the user manual

• Tampering with any part of the

appliance

• The use of non-original spare parts.

Instructions

1.4 This user manual

This user manual is an integral part of the

appliance and must therefore be kept in its

entirety and within the user’s reach for the

whole working life of the appliance.

Read this user manual carefully before using

the appliance.

1.5 Identification plate

The identification plate bears the technical

data, serial number and brand name of the

appliance. Do not remove the identification

plate for any reason.

1.6 Disposal

This appliance must be disposed

of separately from other waste

(Directives 2002/95/EC,

2002/96/EC, 2003/108/EC). The

appliance does not contain substances in

quantities sufficient to be considered

hazardous to health and the environment, in

accordance with current European

directives.

To dispose of the appliance:

• Cut the power supply cable and remove

it along with the plug.

• Deliver the appliance to the appropriate

recycling centre for electrical and

electronic equipment waste, or return it to

the retailer when purchasing an equivalent

product, on a one for one basis.

Our appliances are packaged in non-

polluting and recyclable materials.

• Deliver the packing materials to the

appropriate recycling centre.

Power voltage

Danger of electrocution

• Disconnect the mains power supply.

• Unplug the appliance.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or any part

of it unattended.

• Do not let children play with the plastic

bags.

Instructions

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1. Sequence of instructions for use.

• Standalone instruction.

Instructions

General information on this user

manual, on safety and final disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories,

cooking advice.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for the qualified

technician: Installation, operation

and inspection.

Safety instructions

Information

Advice

Description

2 Description

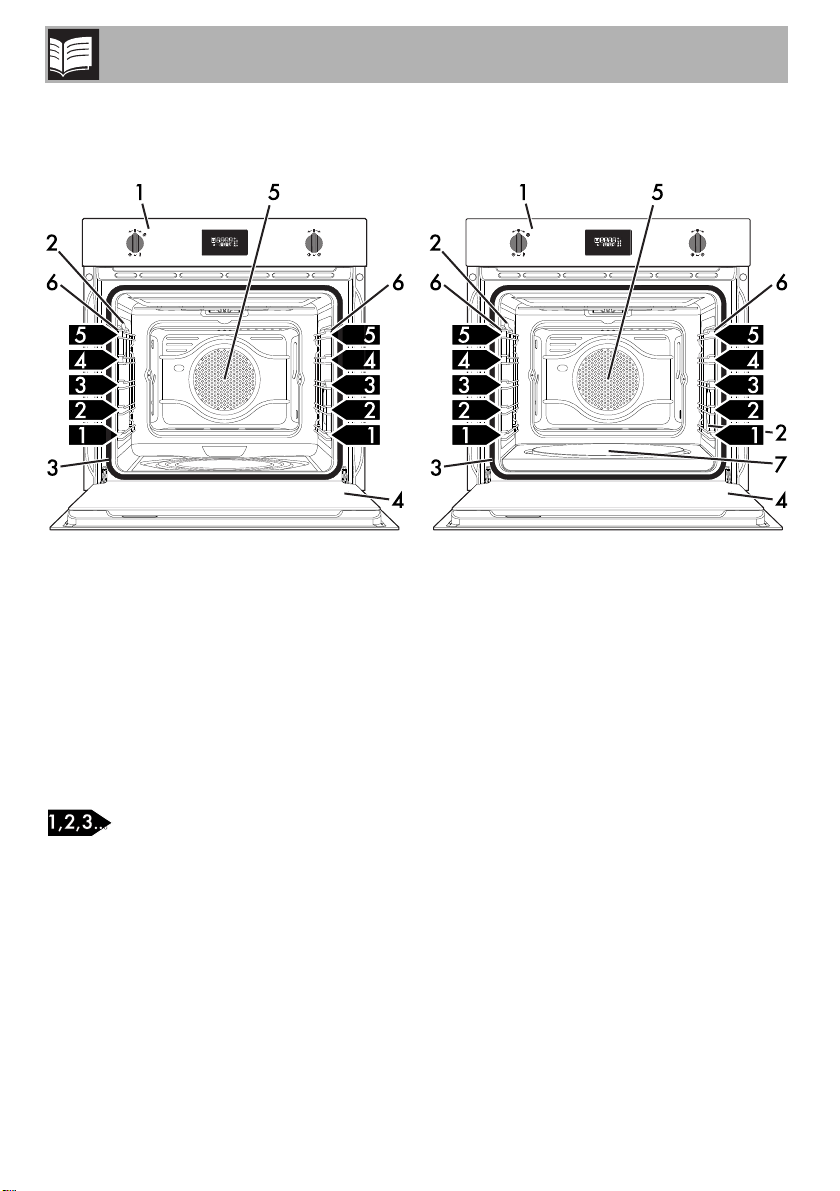

2.1 General Description

Multifunction/Pyrolytic models

1 Control panel

2 Oven light

3 Seal

4 Door

5 Fan

6 Rack/tray support frames

7 Pizza stone

Frame shelf

Models with pizza stone

Description

2.2 Control panel

1 Programming knob

This knob can be used to select:

• The cooking temperature

• The duration of a function

• Programmed cooking procedures

• The current time

• The turning on or off of the light inside the

appliance.

2 Display

Displays the current time, the selected

cooking temperature, power and function

and any time set.

3 Function knob

This knob can be used to:

• Turn the appliance on and off

• Select a function

• Temporarily start or stop a function.

Press and hold the function knob

down for around 3 seconds to

immediately terminate any cooking

operation.

Description

2.3 Other parts

Interior lighting

The appliance’s interior lighting comes on:

• When the door is opened (on some

models only).

• When any function is selected, apart

from the , and

functions (where present)

• When no function is selected, turn the

programming knob briefly to the right to

activate or deactivate internal lighting.

Shelves

The appliance features shelves to position

trays and racks at different heights. The

insertion heights are indicated from the bottom

upwards (see 2.1 General Description).

Cooling fan

The fan cools the appliance and comes into

operation during cooking.

The fan causes a steady outflow of air from

above the door which may continue for a

brief period of time even after the appliance

has been turned off.

In order to save energy, the light

turns off after a minute at the start of

cooking (this function can be

deactivated via the secondary

menu).

When the door is open, it is not

possible to turn off the interior

lighting (on some models only).

Table des matières

Autres manuels Smeg Four

Smeg

Smeg Oven SC709X Manuel utilisateur

Smeg

Smeg SCP480X-8 Manuel utilisateur

Smeg

Smeg SA109-8 Manuel utilisateur

Smeg

Smeg SOP6102S2PN Manuel utilisateur

Smeg

Smeg SA109-8 Manuel utilisateur

Smeg

Smeg LEV-31RU Manuel utilisateur

Smeg

Smeg SA987CX Manuel utilisateur

Smeg

Smeg SF465N Manuel utilisateur

Smeg

Smeg SF6905NO1 Manuel utilisateur

Smeg

Smeg SF750AS Manuel utilisateur

Smeg

Smeg SE990XKG Manuel utilisateur

Smeg

Smeg Linear SAP112-8 Manuel utilisateur

Smeg

Smeg FMI325X Manuel utilisateur

Smeg

Smeg Double Soft Line Oven 7015PA Manuel utilisateur

Smeg

Smeg LEV 101X Manuel utilisateur

Smeg

Smeg FS61XNG8 Manuel utilisateur

Smeg

Smeg SAP306 Mode d’emploi

Smeg

Smeg SF468 Manuel utilisateur

Smeg

Smeg Oven Mode d’emploi

Smeg

Smeg SC805AO-9 Manuel utilisateur

Smeg

Smeg SF6388X Manuel utilisateur

Smeg

Smeg SF7302TX Manuel utilisateur

Smeg

Smeg SFA4395VCX1 Manuel utilisateur

Smeg

Smeg SE365MF-5 Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur

DeLonghi

DeLonghi XA660 Manuel
