Smeg SFA4395VCX1 Manuel utilisateur

Contents

1Instructions 4

1.1 General safety instructions 4

1.2 Appliance purpose 8

1.3 Manufacturer liability 8

1.4 This user manual 8

1.5 Identification plate 8

1.6 Disposal 8

1.7 How to read the user manual 9

2 Description 10

2.1 General Description 10

2.2 Control panel 11

2.3 Other parts 12

2.4 Advantages of steam cooking 12

2.5 Available accessories 13

2.6 Other cooking containers 14

3Use 15

3.1 Instructions 15

3.2 Preliminary operations 16

3.3 Using the accessories 16

3.4 Using the oven 17

3.5 Cooking advice 39

3.6 Special functions 40

3.7 Preset programs 53

3.8 Personal recipes 63

3.9 Settings 70

4 Cleaning and maintenance 76

4.1 Instructions 76

4.2 Cleaning the surfaces 76

4.3 Cleaning the door 77

4.4 Cleaning the oven 79

4.5 Cleaning the reservoir 85

4.6 Extraordinary maintenance 88

5Installation 90

5.1 Electrical connection 90

5.2 Positioning 91

We advise you to read this manual carefully, which contains all the instructions for

maintaining the appliance’s aesthetic and functional qualities.

For further information on the product: www.smeg.com

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

Never touch the heating elements

during use.

• Protect your hands by wearing

oven gloves when handling food

inside the oven cavity.

• Never try to put out a fire or flames

with water: turn off the appliance

and smother the flames with a fire

blanket or other appropriate

cover.

• This appliance may be used by

children aged at least 8 and by

people of reduced physical,

sensory or mental capacity, or

lacking in experience in the use of

electrical appliances, as long they

are supervised or instructed by

adults who are responsible for

their safety.

• Children must not be allowed to

play with the appliance.

• Keep children under eight years of

age at a safe distance if they are

not constantly supervised.

• Do not allow children younger

than 8 years old to come near the

appliance when in operation.

• Cleaning and maintenance must

not be carried out by unsupervised

children.

• Fats and oils can catch fire if they

overheat. Do not leave the

appliance unattended while

preparing foods containing oils or

fats. If fats or oils catch fire, never

put water on them. Place the lid on

the pan and turn off the relevant

cooking zone.

• The cooking process must always

be monitored. Short cooking

processes must be monitored

continuously.

• Do not cook dishes containing

large quantities of strong alcoholic

beverages. Alcohol vapour inside

the oven could ignite.

• Do not insert pointed metal objects

(cutlery or utensils) into the slots in

the appliance.

• Do not pour water directly onto

very hot trays.

Instructions

• Keep the oven door closed during

cooking.

• If you need to move food or at the

end of cooking, open the door 5

cm for a few seconds, let the

steam come out, then open it fully.

• DO NOT USE OR STORE

FLAMMABLE MATERIALS NEAR

THE APPLIANCE.

• NEVER USE AEROSOL CANS

NEAR THE APPLIANCE WHILE IT

IS IN OPERATION.

• Switch the appliance off

immediately after use.

• Do not clean the appliance

immediately after switching it off,

rather wait for it to cool down.

• DO NOT MODIFY THIS

APPLIANCE.

• Before carrying out any work on

the appliance (installation,

maintenance, positioning or

moving), wear personal protective

equipment.

• Before carrying out any work on

the appliance, disconnect the

mains power supply.

• Have authorised persons carry out

installation and assistance

interventions according to the

standards in force.

• Do not try to repair the appliance

yourself or without the intervention

of authorised persons.

• Do not pull the cable to remove

the plug.

• If the power supply cable is

damaged, contact technical

support immediately and they will

replace it.

Risk of damaging the appliance

• Do not use cleaning products

containing chlorine, ammonia or

bleach on steel parts or parts with

metallic surface finishes (e.g.

anodizing, nickel- or chromium-

plating).

• Racks and trays must be inserted

as far as they will go into the side

guides. The mechanical safety

locks that prevent them from being

removed must face downwards

and towards the back of the oven

cavity.

• Do not seat on the appliance.

Instructions

• Do not use steam jets to clean the

appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

• Never leave the appliance

unattended during cooking

operations in which fats or oils

could be released that could

overheat and catch fire. Be very

careful

• Never leave objects on the

cooking surface.

• DO NOT USE THE APPLIANCE

TO HEAT ROOMS FOR ANY

REASON.

• Do not spray any spray products

near the appliance.

• Do not use plastic kitchenware or

containers when cooking food.

• Do not put sealed tins or

containers in the oven.

• Remove all trays and racks which

are not required during cooking.

• Do not cover the bottom of the

oven cavity with aluminium or tin

foil sheets.

• Do not place pans or trays directly

on the bottom of the oven cavity.

• If you wish to use greaseproof

paper, place it so that it will not

interfere with the hot air circulation

inside the oven.

• Do not use the open door to rest

pans or trays on the internal glass

panel.

• Do not use steam jets to clean the

appliance.

• Do not remove the seal on the

front of the oven.

• Do not use rough or abrasive

materials or sharp metal scrapers.

• Never use the oven door to lever

the appliance into place when

fitting.

• Avoid exerting too much pressure

on the oven door when open.

• Do not use the handle to lift or

move the appliance.

Instructions

Installation

• THIS APPLIANCE MUST NOT BE

INSTALLED IN BOATS OR

CARAVANS.

• The appliance must not be

installed on a stand.

• Position the appliance into the

cabinet cutout with the help of a

second person.

• To prevent overheating, the

appliance must not be installed

behind a decorative door or a

panel.

• Have the electrical connection

performed by authorised persons.

• The appliance must be connected

to earth in compliance with

electrical system safety standards.

• Use cables withstanding a

temperature of at least 90 °C.

• The tightening torque of the screws

of the terminal supply wires must

be 1.5 - 2 Nm.

For this appliance

• Take care because steam may not

be visible at certain temperatures.

• Keep the oven door closed during

cooking.

• Open the appliance door

carefully during or after cooking.

• When steaming, always place the

tray below the perforated tray in

order to catch any drips.

• Do not cover the bottom of the

oven cavity with aluminium or tin

foil sheets.

• The base of the oven and the

evaporation tray must always be

left free.

• Dishes must be heat and steam

resistant.

• Do not use silicon moulds when

steaming.

• Ensure that the appliance is

switched off before replacing the

bulb.

•Donotrestanyweight or sit on the

open door of the appliance.

• Take care that no objects are stuck

in the doors.

Instructions

1.2 Appliance purpose

• This appliance is intended for

cooking food in the home

environment. Every other use is

considered improper.

• The appliance is not designed to

operate with external timers or with

remote-control systems.

1.3 Manufacturer liability

The manufacturer declines all liability

for damage to persons or property

caused by:

• use of the appliance other than the

one envisaged;

• failure to comply with the

instructions in the user manual;

• tampering with any part of the

appliance;

• the use of non-original spare parts.

1.4 This user manual

This user manual is an integral part of

the appliance and must therefore be

kept in its entirety and in an

accessible place for the whole

working life of the appliance.

Read this user manual carefully

before using the appliance.

1.5 Identification plate

The identification plate bears the

technical data, serial number and

brand name of the appliance. Do not

remove the identification plate for

any reason.

1.6 Disposal

This appliance must be

disposed of separately from

other waste (Directives

2002/95/EC, 2002/96/EC,

2003/108/EC). The appliance

does not contain substances in

quantities sufficient to be considered

hazardous to health and the

environment, in accordance with

current European directives.

To dispose of the appliance:

• Cut the power supply cable and

remove it along with the plug.

Power voltage

Danger of electrocution

• Disconnect the mains power supply.

• Unplug the power cable from the

socket.

Instructions

• Deliver the appliance to the

appropriate recycling facility for

electrical and electronic

equipment waste, or deliver it

back to the retailer when

purchasing an equivalent product,

on a one for one basis.

Our appliances are packaged in

non-polluting and recyclable

materials.

• Deliver the packing materials to

the appropriate recycling facility.

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1. Sequence of instructions for use.

• Standalone instruction.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or any part

of it unattended.

• Do not let children play with the plastic

bags.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories,

cooking advice.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for authorised persons:

installation, operation and

inspection.

Safety instructions

Information

Advice

Description

2 Description

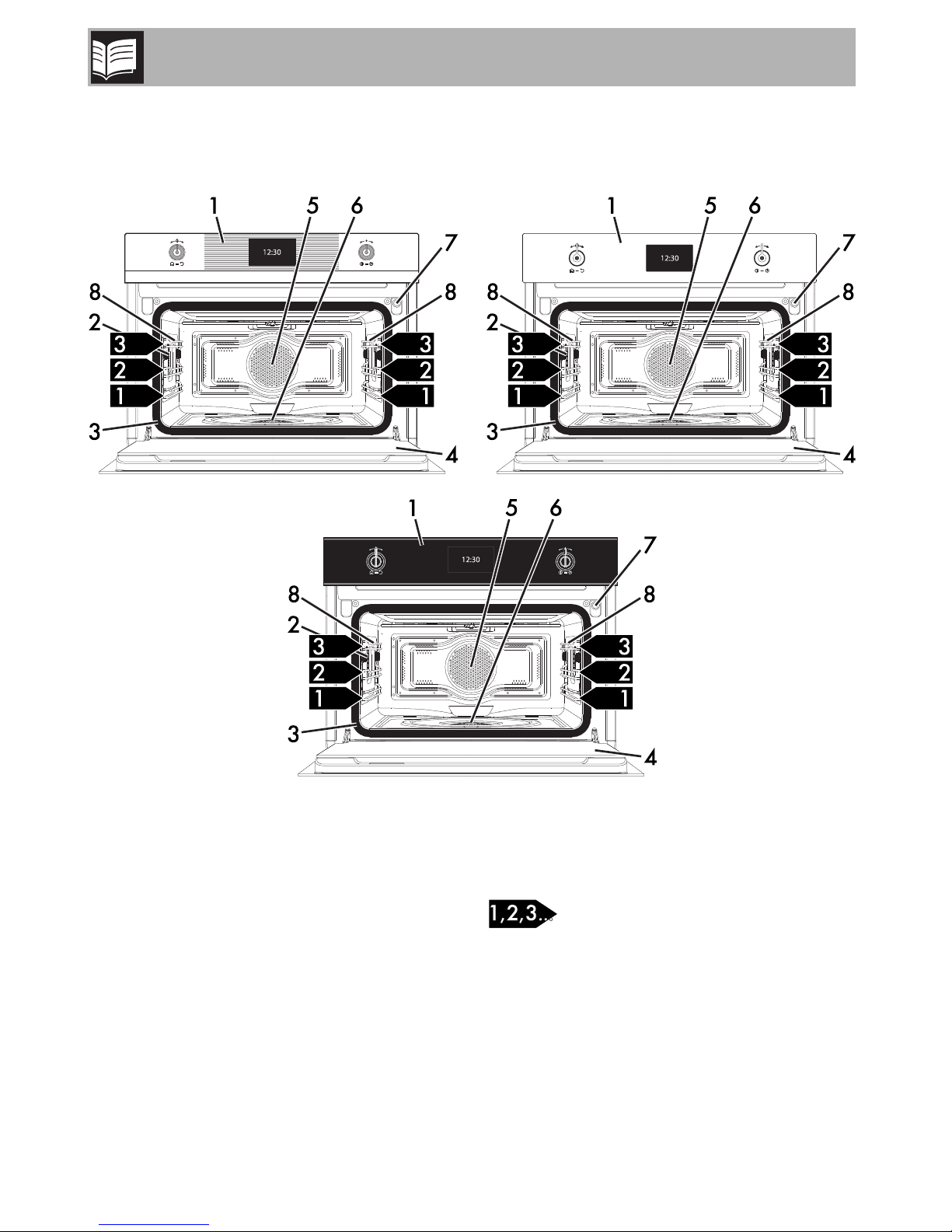

2.1 General Description

1 Control panel

2 Oven light

3 Seal

4 Door

5 Fan

6 Evaporation tray

7 Water supply tube

8 Rack support frames

Frame shelf

Description

2.2 Control panel

1 Return knob

Using this knob you can return to the

appliance’s previous menu item. It also lets

you turn the oven light on and off manually.

2 Display

Displays the current time, the cooking

parameters, and all the appliance’s

functions.

3 Control knob

This knob allows you to turn the appliance

on and off and select the various available

functions.

Turn the knob right or left to change/select

the required item. Press to confirm.

To interrupt the function in progress

and switch off the appliance, press

the control knob for a few

seconds.

Description

2.3 Other parts

Interior lighting

The appliance’s interior lighting comes on:

• When the door is opened.

• When any function is selected, apart

from the Descaling , Sabbath

mode and Vapour Clean

function.

• When no function is selected, or during a

cooking function, turn the return knob

briefly to the right to activate or

deactivate the internal lighting.

Shelves

The appliance features shelves to position

trays and racks at different heights. The

insertion heights are indicated from the

bottom upwards (see 2.1 General

Description).

Cooling fan

The fan cools the appliance and comes into

operation during cooking.

The fan causes a steady outflow of air from

above the door which may continue for a

brief period of time even after the appliance

has been turned off.

2.4 Advantages of steam cooking

The steam cooking system cooks any type

of food very gently.

It is also ideal for quick defrosting, for

heating foods without making them tough or

dry out and for naturally removing the salt

from salted foods.

In order to save energy, the light

turns off after a minute at the start of

cooking (this function can be

deactivated via the secondary

menu).

When the door is open, it is not

possible to turn off the interior

lighting (on some models only).

Table des matières

Autres manuels Smeg Four

Smeg

Smeg SA109M-8 Manuel utilisateur

Smeg

Smeg SA112-8 Manuel utilisateur

Smeg

Smeg SFA304X Manuel utilisateur

Smeg

Smeg Linea Series Manuel utilisateur

Smeg

Smeg SAP399X-8 Manuel utilisateur

Smeg

Smeg SFA6300X Manuel utilisateur

Smeg

Smeg SAP3900X Manuel utilisateur

Smeg

Smeg Multi-function Built-in Ovens Manuel utilisateur

Smeg

Smeg Electric Multifunction Pizza Oven 166PZ-5 Manuel utilisateur

Smeg

Smeg Classica SF6303TPX Manuel utilisateur

Smeg

Smeg Four Oven Manuel du système

Smeg

Smeg 91 477 1153 02 Manuel d'installation et d'exploitation

Smeg

Smeg SF166 Manuel utilisateur

Smeg

Smeg SCA705X Manuel utilisateur

Smeg

Smeg SA304X-8 Fiche technique

Smeg

Smeg SAP112N-8 Manuel utilisateur

Smeg

Smeg S10XMF Manuel utilisateur

Smeg

Smeg SO4606APNR Manuel utilisateur

Smeg

Smeg SE1055MF Manuel utilisateur

Smeg

Smeg SFA4920VC Manuel utilisateur

Smeg

Smeg Oven Manuel utilisateur

Smeg

Smeg 91 477 1428/01 Manuel utilisateur

Smeg

Smeg SC0521X-8 Manuel utilisateur

Smeg

Smeg SC0485X-8 Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur

DeLonghi

DeLonghi XA660 Manuel
