Smeg SF465N Manuel utilisateur

Contents

1 Instructions 30

1.1 General safety instructions 30

1.2 Manufacturer liability 31

1.3 Appliance purpose 31

1.4 Disposal 31

1.5 Identification plate 32

1.6 This user manual 32

1.7 How to read the user manual 32

2 Description 33

2.1 General Description 33

2.2 Control panel 34

2.3 Other parts 35

2.4 Available accessories 36

3 Use 38

3.1 Instructions 38

3.2 First use 38

3.3 Using the accessories 39

3.4 Using the oven 40

3.5 Cooking advice 42

4 Cleaning and maintenance 45

4.1 Instructions 45

4.2 Cleaning the surfaces 45

4.3 Ordinary daily cleaning 45

4.4 Food stains or residues 45

4.5 Removing the door 45

4.6 Cleaning the door glazing 46

4.7 Removing the internal glass panels 46

4.8 Cleaning the inside of the oven 47

4.9 Vapor Clean: assisted oven cleaning (on some models only) 49

4.10 Extraordinary maintenance 51

5 Installation 52

5.1 Electrical connection 52

5.2 Cable replacement 52

5.3 Positioning 53

We advise you to read this manual carefully, which contains all the instructions for

maintaining the appliance's aesthetic and functional qualities.

For further information on the product: www.smeg.com

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

• Never touch the heating elements

during use.

• Keep children under eight years

of age at a safe distance if they

are not constantly supervised.

• Children must never play with the

appliance.

• Never rest metallic objects such

as knives, forks, spoons and lids

on the appliance during use.

• Switch the appliance off

immediately after use.

• Never try to put out a fire or

flames with water: turn off the

appliance and smother the flames

with a fire blanket or other

appropriate cover.

• The appliance must never be

cleaned by unsupervised children.

• Have qualified personnel carry

out installation and assistance

interventions according to the

standards in force.

• Do not modify this appliance.

• Do not insert pointed metal

objects (cutlery or utensils) into the

slots in the appliance.

• Do not try to repair the appliance

yourself or without the intervention

of a qualified technician.

• If the power supply cable is

damaged, contact technical

support immediately and they will

replace it.

Risk of damaging the appliance

• Do not use abrasive or corrosive

detergents on glass parts (e.g.

powder products, stain removers

and metallic sponges).

• Use wooden or plastic utensils.

• Do not seat on the appliance.

• Do not use steam jets for cleaning

the appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

• Never leave the appliance

unattended during cooking

operations where fats or oils

could be released.

• Never leave objects on the

cooking surface.

• Do not use the appliance to heat

rooms for any reason.

Instructions

For this appliance

• Ensure that the appliance is switched off

before replacing the bulb.

• Do not rest any weight or sit on the open

door of the appliance.

• Take care that no objects are stuck in the

doors.

1.2 Manufacturer liability

The manufacturer declines all liability for

damage to persons or property caused by:

• use of the appliance other than the one

envisaged;

• non-observance of the user manual

provisions;

• tampering with any part of the

appliance;

• use of non-original spare parts.

1.3 Appliance purpose

• This appliance is intended for cooking

food in the home environment. Every

other use is considered improper.

• This appliance may be used by children

aged at least 8 and by people of

reduced physical and mental capacity,

or lacking in experience in the use of

electrical appliances, as long they are

supervised or instructed by adults who

are responsible for their safety.

• The appliance is not designed to

operate with external timers or with

remote-control systems.

1.4 Disposal

This appliance must be disposed of

separately from other waste

(Directives 2002/95/EC, 2002/

96/EC, 2003/108/EC). The appliance

does not contain substances in quantities

sufficient to be considered hazardous to

health and the environment, in accordance

with current European directives.

To dispose of the appliance:

• Cut the power supply cable and remove

it along with the plug.

• Consign the appliance to the

appropriate selective collection centres

for electrical and electronic equipment

waste, or deliver it back to the retailer

when purchasing an equivalent product,

on a one for one basis.

Power voltage

Danger of electrocution

• Disconnect the main power supply.

• Disconnect the power cable from the

electrical system.

Instructions

Our appliances are packed in non-

polluting and recyclable materials.

• Consign the packing materials to the

appropriate selective collection centres.

1.5 Identification plate

The identification plate bears the technical

data, serial number and brand name of the

appliance. Do not remove the identification

plate for any reason.

1.6 This user manual

This user manual is an integral part of the

appliance and must therefore be kept in its

entirety and in an accessible place for the

whole working life of the appliance.

Read this user manual carefully before using

the appliance.

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1. Use instruction sequence.

• Single use instruction.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or any part

of it unattended.

• Do not let children play with the

packaging plastic bags.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories,

cooking advice.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for the qualified

technician: installation, operation

and inspection.

Safety instructions

Information

Advice

Description

2 Description

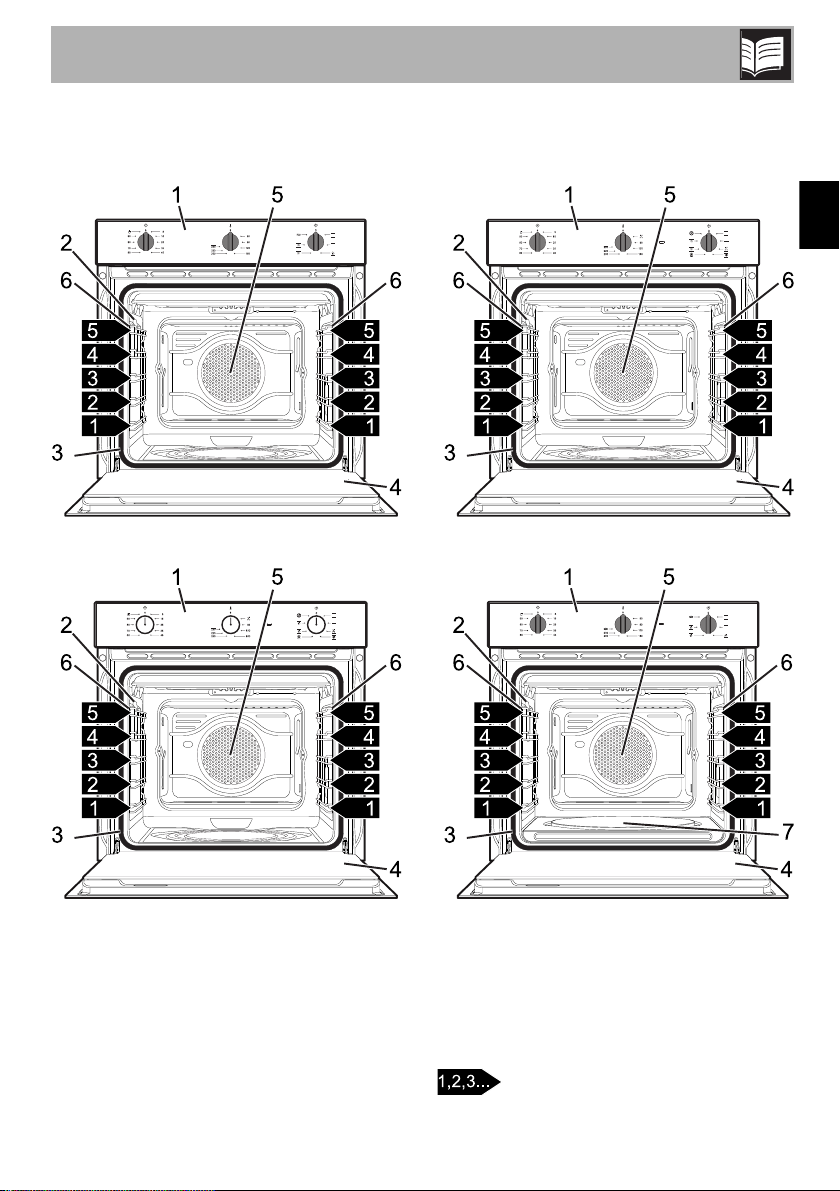

2.1 General Description

Multifunction models

Multifunction models Models with pizza plate

1 Control panel

2 Oven light

3 Seal

4 Door

5 Fan

6 Rack/tray support frames

7 Pizza plate

Frame shelf

Description

2.2 Control panel

Multifunction models

Models with pizza plate

Description

Minute minder knob (1)

It allows you to use the minute minder timer

or to perform manual cooking.

Temperature knob (2)

This knob allows you to select the cooking

temperature.

Turn the knob clockwise to the required

value, between the minimum and maximum

settings.

Thermostat indicator light (3)

The indicator light comes on to indicate that

the oven is heating up. It turns off as soon as

it reaches the set temperature. It will then

turn on and off regularly, indicating that the

temperature set inside the oven is being

kept constant.

Function knob (4)

The oven's various functions are suitable for

different cooking modes. After selecting the

required function, set the cooking

temperature using the temperature knob.

2.3 Other parts

Shelves

The appliance features shelves for

positioning trays and racks at different

heights. The insertion heights are indicated

from the bottom upwards (see 2.1 General

Description).

Cooling fan

The fan cools the oven and comes into

operation during cooking.

The fan causes a steady outflow of air from

above the door which may continue for a

brief period of time even after the appliance

has been turned off.

Interior lighting

The oven interior lighting comes on when

the door is opened (only on some models),

or any function is selected.

Description

2.4 Available accessories

Rack

Useful for supporting containers with food

during cooking.

Tray rack

To be placed over the top of the oven tray;

for cooking foods which may drip.

Oven tray

Useful for collecting fat from foods placed

on the rack above.

Deep tray

Useful for collecting fat from foods placed

on the rack above and for cooking pies,

pizzas and baked desserts.

Pizza plate

Specially designed for cooking pizza and

similar dishes.

Some models are not provided

with all accessories.

Description

Pizza spatula

For easily placing the pizza on the pizza

plate.

Pizza plate cover

To be placed in the recess on the bottom of

the oven, replacing the pizza plate when it

is not being used.

Self-cleaning panels

Useful for absorbing small grease residues.

The oven accessories intended to

come into contact with food are

made of materials that comply with

the provisions of current legislation.

Original supplied and optional

accessories can be requested to

Authorised Assistance Centres.

Use only original accessories

supplied by the manufacturer.

Use

3 Use

3.1 Instructions

3.2 First use

1. Remove any protective film from the

outside or inside of the appliance,

including accessories.

2. Remove any labels (apart from the

technical data plate) from the

accessories and from the oven cavity.

3. Remove and wash all the appliance

accessories (see 4 Cleaning and

maintenance).

4. Heat the empty oven at the maximum

temperature to burn off any residues left

by the manufacturing process.

High temperature inside the oven

during use

Danger of burns

• Keep the oven door closed during

cooking.

• Protect your hands wearing heat

resistant gloves when moving food

inside the oven.

• Do not touch the heating elements inside

the oven.

• Do not pour water directly onto very hot

trays.

• Do not allow children to get near the

oven when it is in operation.

High temperature inside the oven

during use

Danger of fire or explosion

• Do not spray any spray products near

the oven.

• Do not use or leave flammable materials

near the oven.

• Do not use plastic kitchenware or

containers when cooking food.

• Do not put sealed tins or containers in

the oven.

• Do not leave the oven unattended

during cooking operations where fats or

oils could be released.

• Remove all trays and racks which are

not required during cooking.

Improper use

Risk of damage to enamelled

surfaces

• Do not cover the bottom of the oven

cavity with aluminium or tin foil sheets.

• If you wish to use greaseproof paper,

place it so that it will not interfere with the

hot air circulation inside the oven.

• Do not place pans or trays directly on

the bottom of the oven cavity.

• Do not pour water directly onto very hot

trays.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Smeg Four

Smeg

Smeg classic SA45VX2 Manuel

Smeg

Smeg SFA4130VC Manuel utilisateur

Smeg

Smeg FS9606AS Manuel utilisateur

Smeg

Smeg SFA4920MCB Manuel utilisateur

Smeg

Smeg CB51GV1 Manuel utilisateur

Smeg

Smeg Multi-function Built-in Ovens Manuel utilisateur

Smeg

Smeg FOVP Manuel utilisateur

Smeg

Smeg KE250X Manuel utilisateur

Smeg

Smeg S709X-5 Manuel utilisateur

Smeg

Smeg SFPA6140N Manuel utilisateur

Smeg

Smeg AP420X Manuel utilisateur

Smeg

Smeg Oven SC106ALU Manuel utilisateur

Smeg

Smeg F65-7 Manuel utilisateur

Smeg

Smeg EBB7143.3 Manuel utilisateur

Smeg

Smeg DOSC36X Manuel utilisateur

Smeg

Smeg Electric Oven SCA301X Manuel utilisateur

Smeg

Smeg SY62MX8 Manuel utilisateur

Smeg

Smeg Free-standing Fan Oven 100.700 Instructions de montage

Smeg

Smeg SF750AS Manuel utilisateur

Smeg

Smeg ALFA130X Manuel utilisateur

Smeg

Smeg SFPA6603NX Manuel utilisateur

Smeg

Smeg SFU4302VCX Manuel utilisateur

Smeg

Smeg ALFA135V6 Guide de l'utilisateur

Smeg

Smeg SO6302S3PX Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur

DeLonghi

DeLonghi XA660 Manuel
