1. INSTRUCTIONS FOR SAFE AND PROPER USE_______________ 27

2. INSTALLATION _________________________________________ 29

3. DESCRIPTION OF CONTROLS ____________________________ 33

4. USE OF THE OVEN______________________________________ 37

5. AVAILABLE ACCESSORIES _______________________________ 38

6. COOKING HINTS________________________________________ 39

7. CLEANING AND MAINTENANCE ___________________________ 45

8. ADDITIONAL MAINTENANCE ______________________________ 47

INSTRUCTIONS FOR THE INSTALLER: these are intended for the

qualified technician who must install the appliance, set it functioning

and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the controls and the correct procedures for cleaning and

maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. WE ADVISE

CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS

THEREIN BEFORE USING THE OVEN. INSTALLATION MUST BE CARRIED

OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE

REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC

USES AND CONFORMS TO CURRENT REGULATIONS IN FORCE. THE

APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING

FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES

ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE EARTHED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT

BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE

COMPLYING WITH APPLICABLE REGULATIONS.

THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN

BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

DO NOT OBSTRUCT VENTILATION OUTLETS AND HEAT DISPERSAL SLITS.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE OVEN, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD

THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND

CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

Introduction

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE “ZERO” (OFF)

POSITION WHEN YOU FINISH USING THE OVEN.

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE

ACCIDENTALLY CATCH LIGHT AND CAUSE FIRES.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO

TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND

BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.

THE PLATE MUST NOT BE REMOVED.

THE OVEN IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN

TO GO NEAR OR PLAY WITH IT.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE

2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

(WEEE).

THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF

RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND

PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above guidlines or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2. INSTALLATION

2.1 Electrical connection

Check that the mains voltage and power cable ratings are as per the

information provided on the label attached to the oven door frame.

This label must never be removed.

It is obligatory for the electrical system to be earthed according to the

methods required by safety rules.

If a plug and socket connection is being used make sure that the plug

and socket are compatible. Avoid use of adapters and shunts as these

could cause overheating and risk of burns.

If a fixed connection is being used fit cable with an omnipolar circuit

breaker with a contact opening gap equal to or greater than 3 mm in an

easily accessible position near to the oven.

For operation on 220-240V

∼

:use an

H05RR-F / H05RN-F type three-core cable

(3 x 1.5 mm2).

The cable end to be connected to the

appliance must be provided with an ground

wire (yellow-green) at least 20 mm longer.

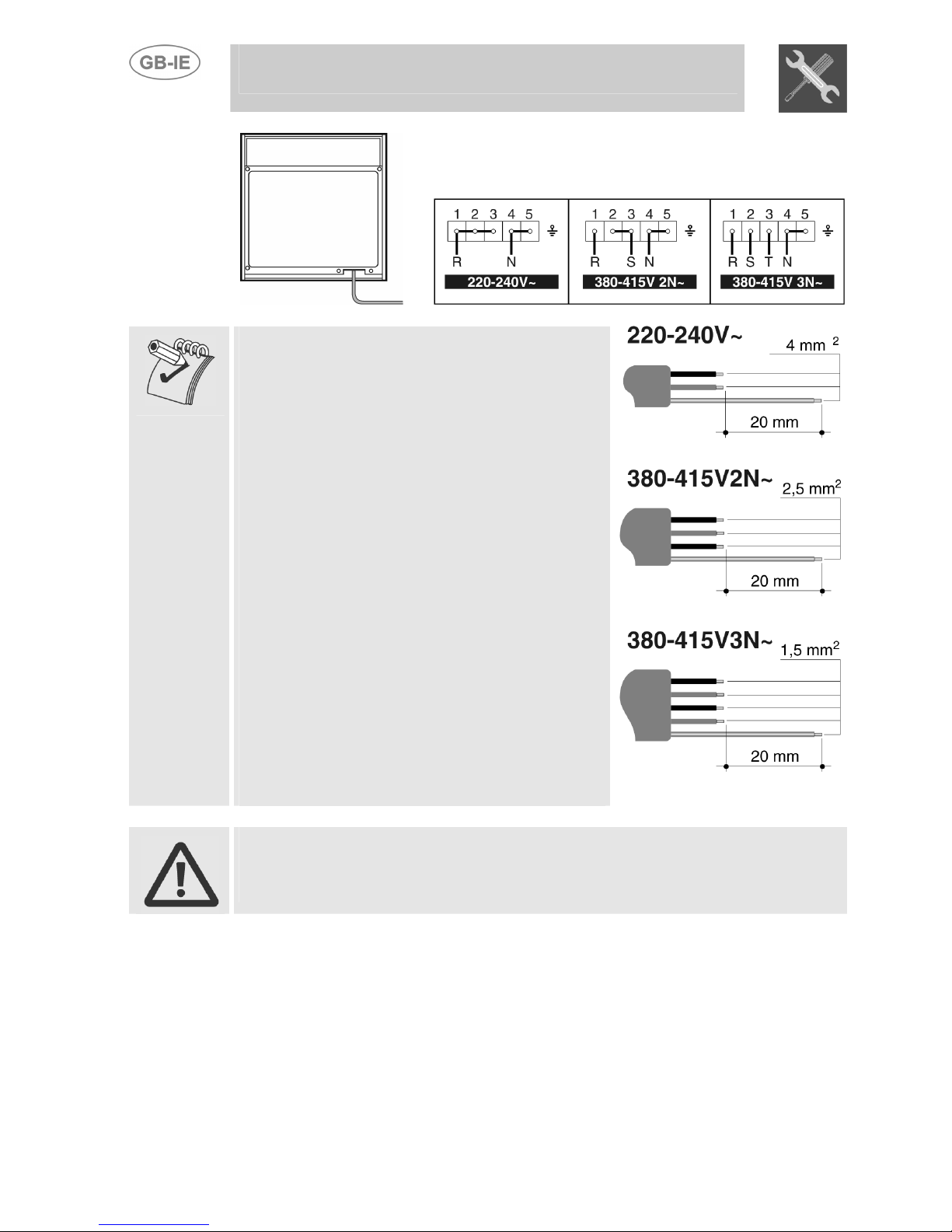

2.1.1 Ovens with hob controls

In the ovens with hob controls the power cable is not supplied. Use a

H05RR-F or H05RN-F rubber-sheathed cable making sure that it does

not come into contact with any external metal parts of the oven when

routing.

Remove rear cover by loosening relevant screws to gain access to the

terminal strip. If necessary change jumper configuration as shown in the

diagram and then connect wires making sure that the earth wire is at

least 20 mm longer than the others. Secure power cable to oven by

means of an appropriate fitting.

Instructions for the installer

For operation on 220-240V

∼

:use an

H05RR-F / H05RN-F type three-core cable

(3 x 4 mm2).

For operation on 380-415V2N

∼

:use an

H05RR-F / H05RN-F type four-core cable

(4 x 2.5 mm2).

For operation on 380-415V3N

∼

:use an

H05RRF / H05RN-F type five-core cable

(5 x 1.5 mm2).

The cable end to be connected to the

appliance must be provided with an earth

wire (yellow-green) at least 20 mm longer.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above guidelines or by

interference with any part of the appliance.

Instructions for the installer

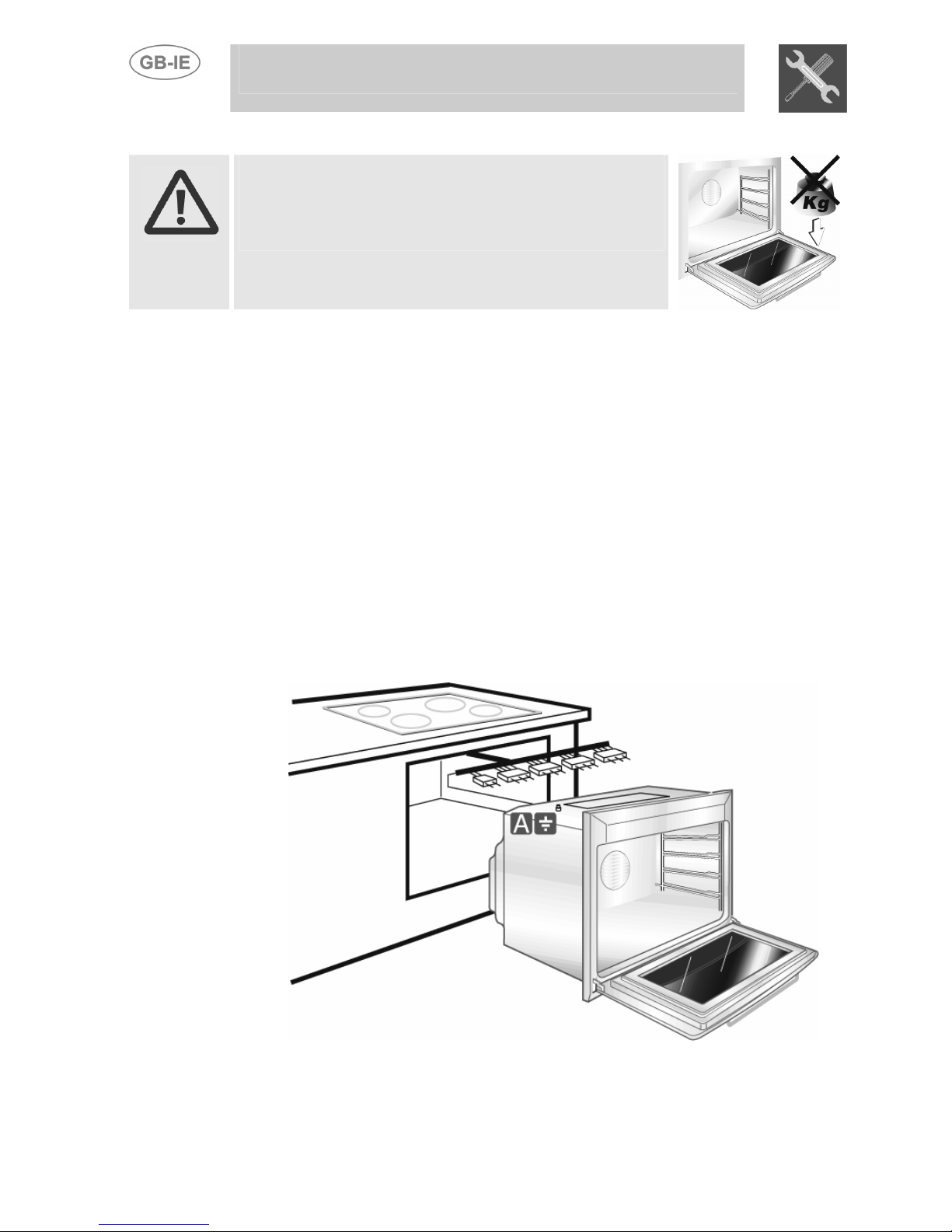

2.2 Installing the oven

The oven is designed for installation into any piece of furniture as long as

it is heat-resistant. Proceed according to the dimensions shown in

Figures 1, 2and 3. For installing under a work top, follow the dimensions

given in Figure 3. For installing under a work top beneath a hob with

controls connected to the oven, ensure a minimum clearance from any

side walls of at least 110 mm as shown in Figure 1.

For installing in a column, follow the dimensions given in Figure 2

allowing for a clearance of 35 to 40 mm at the top and sides of the

column.Tighten the four screws (ref.A) inside the frame to secure (Fig. 1).

For installing beneath a separate hob, allow for a rear and bottom

clearance as shown in Figure 1(ref. B). See relevant instructions for

fitting and securing the hob.

Instructions for the installer

Never use the oven door to lever the oven into

place when fitting.

Avoid exerting too much pressure on the oven door

when open.

2.3 Connecting the hob to the oven

Once installed, the hob must be connected to the oven. Install the oven

allowing enough room for the following operations to take place.

•Connect the earth wire (yellow-green) of the hob to the earth terminal

Aof the oven (see figure).

•Fit the hob connectors into the appropriate sockets in the top cover

of the oven. Make sure that the colours and symbols of the

connectors match those of the oven sockets.

•If the hob is equipped with a connector for the residual heat indicator,

this must be fitted into the free socket on the right handside.

The oven can now be fully mounted into the cabinet; make sure that the

power cable is properly routed and does not come into contact with parts

which may become hot during operation.

Instructions for the user

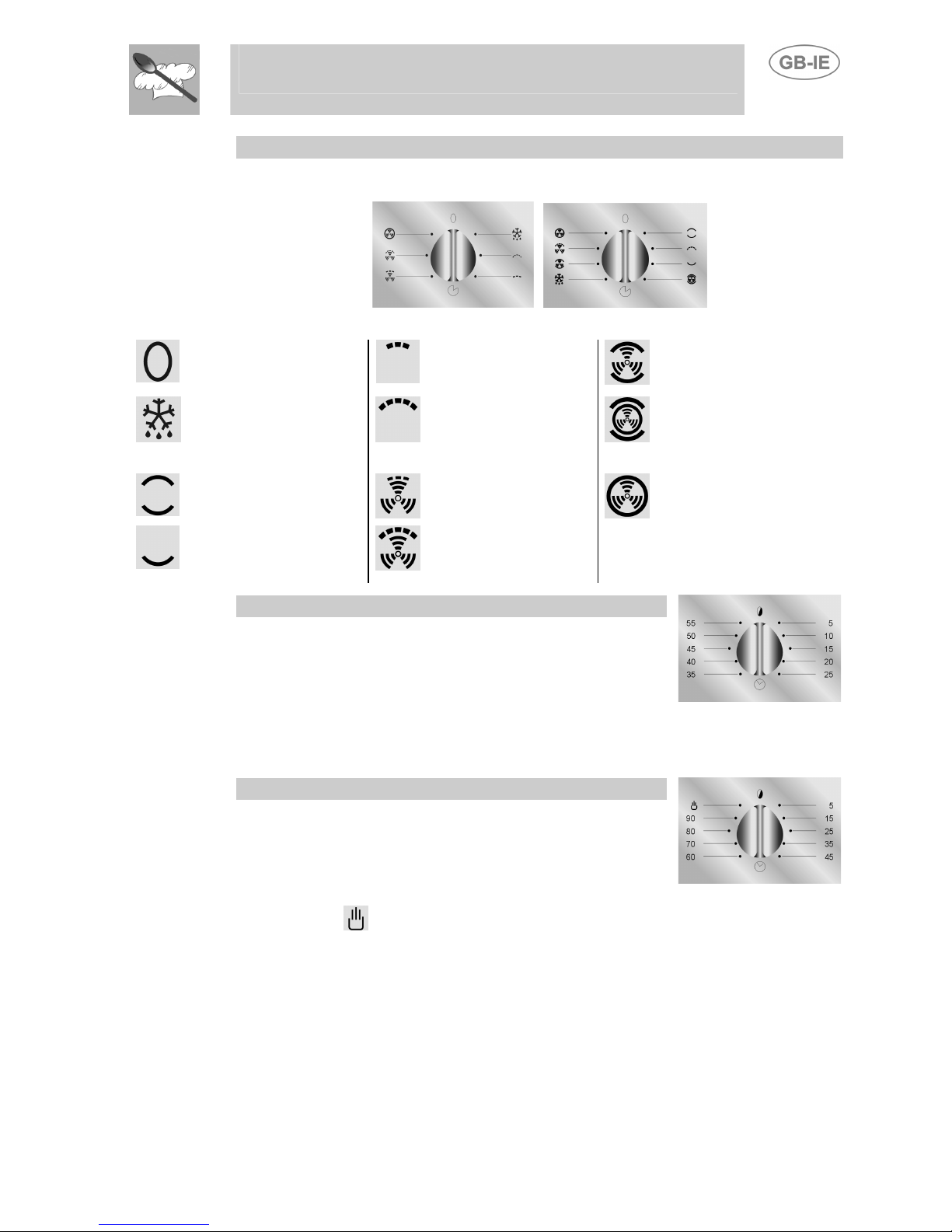

3. DESCRIPTION OF CONTROLS

3.1 Front control panel

All the oven controls are grouped together on the front panel.

STATIC MODEL

6- FUNCTION MODEL

8- FUNCTION MODEL

STATIC MODEL + HOB CONTROLS

5-FUNCTION MODEL + HOB CONTROLS

6-FUNCTION MODEL + HOB CONTROLS

Instructions for the user

FUNCTION CONTROL KNOB

(static oven)

Cooking temperature is selected by

turning the knob clockwise to the

desired setting, between 50° and

240 -250°C (Depending on

models).

This knob allows selection of either the bottom ( )or top (grill) ( )

heating element. A further symbol at end of knob rotation permits to

turn on the spit motor and the top grill heating element.

THERMOSTAT KNOB

(multifunction oven)

Cooking temperature is selected by turning the

knob clockwise to the desired setting, between 50°

and 240 -250°C (Depending on models).

Maximum temperature in models with front glass

panel is 260°C.

THERMOSTAT INDICATOR LIGHT

When this light comes on, the oven is heating up.

When this light goes out, the preset heating

temperature has been reached.

When the light flashes, the temperature inside the

oven is steady.

Instructions for the user

FUNCTION CONTROL KNOB

Rotate the knob in either direction to select desired function from the

following:

NO FUNCTION SET

HALF GRILL

ELEMENT

UPPER AND LOWER

HEATING ELEMENT +

VENTILATION

DEFROSTING

FULL GRILL

ELEMENT

UPPER AND LOWER

HEATING ELEMENT +

VENTILATED

HEATING ELEMENT

UPPER AND LOWER

HEATING ELEMENT

GRILL ELEMENT +

VENTILATION

VENTILATED

HEATING ELEMENT

LOWER HEATING

ELEMENT

FULL GRILL

ELEMENT +

VENTILATION

MINUTE COUNTER KNOB

Turn the knob clockwise to the desired time.

Time is expressed in minutes (maximum 55

minutes).

Adjustment is continuous so that intermediate times between markings

can also be set. Alarm activation at end of pre-set time does not turn off

the oven (no end of cooking).

TIMER KNOB

Lets you choose manual cooking or the timer with

automatic turn-off of the oven when done.

For manual control of cooking time, turn the knob anticlockwise to

the symbol .

To set cooking time turn the knob clockwise. The numbers from 5to 90

correspond to minutes. Adjustment is progressive and intermediate

positions between the numbers shown may be used.

At the end of programmed cooking, an audible alarm sounds which goes

off automatically after 4-5 seconds.
