1. INSTRUCTIONS FOR SAFE AND PROPER USE_______________ 28

2. INSTALLATION _________________________________________ 30

3. DESCRIPTION OF CONTROLS ____________________________ 32

4. USE OF THE OVEN______________________________________ 38

5. AVAILABLE ACCESSORIES _______________________________ 39

6. COOKING HINTS________________________________________ 40

7. CLEANING AND MAINTENANCE ___________________________ 46

8. ADDITIONAL MAINTENANCE______________________________ 48

INSTRUCTIONS FOR THE INSTALLER: these are intended for the

qualified technician who must install the appliance, set it functioning

and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the controls and the correct procedures for cleaning and

maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE OVEN. WE ADVISE

CAREFUL READING OF THIS MANUAL AND ALL THE INSTRUCTIONS

THEREIN BEFORE USING THE OVEN. INSTALLATION MUST BE CARRIED

OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE

REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC

USES AND CONFORMS TO CURRENT REGULATIONS IN FORCE. THE

APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING

FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES

ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE EARTHED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT

BOTH ARE COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE

COMPLYING WITH APPLICABLE REGULATIONS.

THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN

BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

DO NOT OBSTRUCT VENTILATION OUTLETS AND HEAT DISPERSAL SLITS.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE OVEN, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD

THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE SUPPLY AND

CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

Introduction

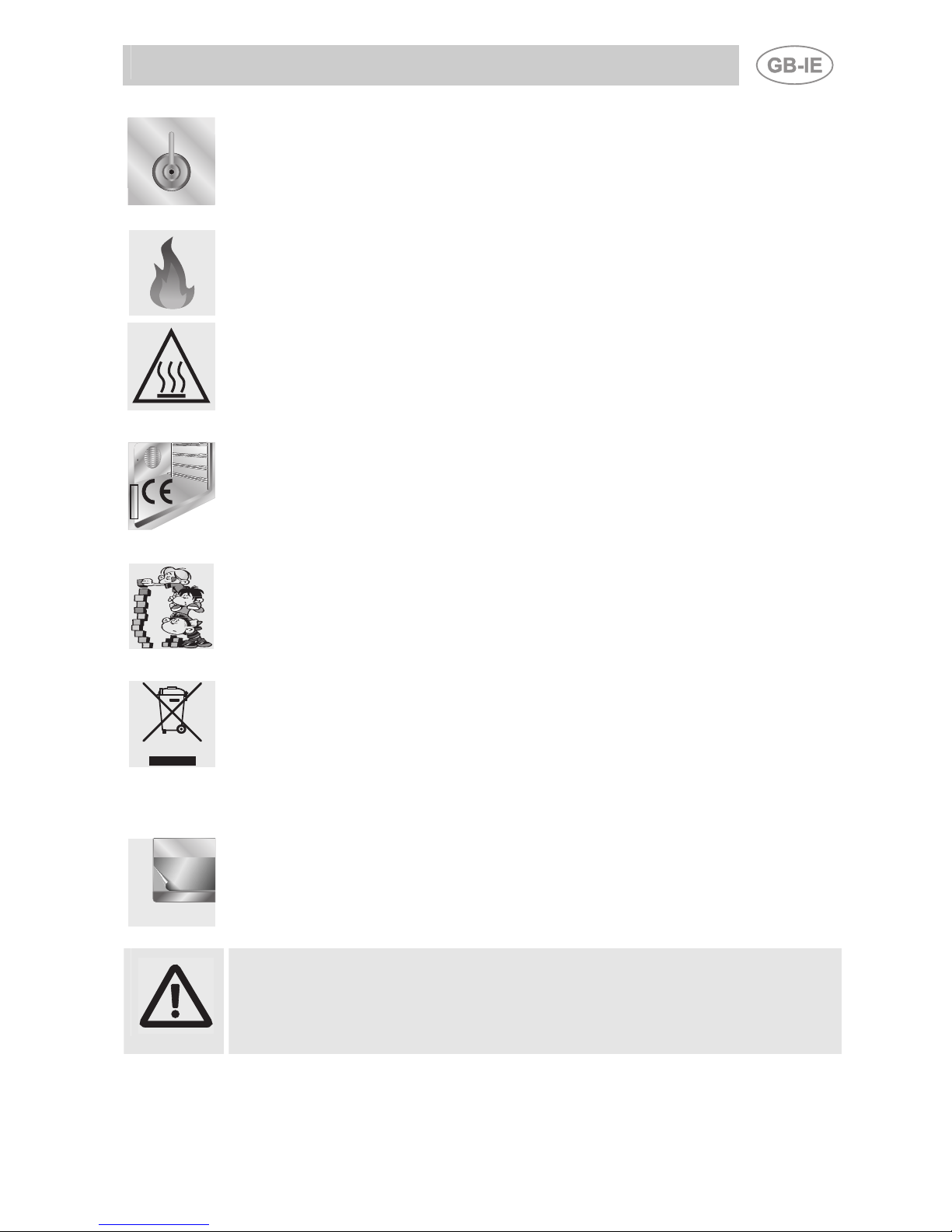

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE “ZERO” (OFF)

POSITION WHEN YOU FINISH USING THE OVEN.

NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE

ACCIDENTALLY CATCH LIGHT AND CAUSE FIRES.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO

TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND

BRAND NAME IS POSITIONED VISIBLY ON THE OVEN DOOR FRAME.

THE PLATE MUST NOT BE REMOVED.

THE USE OF THIS APPLIANCE IS NOT PERMITTED TO PEOPLE (INCLUDING

CHILDREN) OF REDUCED PHYSICAL AND MENTAL ABILITY, OR LACKING IN

EXPERIENCE IN THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY

ARE SUPERVISED OR INSTRUCTED BY ADULTS OR PEOPLE

RESPONSIBLE FOR THEIR SAFETY.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE

2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

(WEEE).

THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF

RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND

PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above guidlines or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2. INSTALLATION

2.1 Electrical connection

Check that the mains voltage and power cable ratings are as per the

information provided on the label attached to the oven door frame.

This label must never be removed.

It is obligatory for the electrical system to be earthed according to the

methods required by safety rules.

If a plug and socket connection is being used make sure that the plug

and socket are compatible. Avoid use of adapters and shunts as these

could cause overheating and risk of burns.

If a fixed connection is being used fit cable line with an omnipolar circuit

breaker with a contact opening gap equal to or greater than 3 mm in an

easily accessible position in proximity to the oven.

For operation on 220-240V

∼

:use an

H05RR-F / H05RN-F type three-core cable

(3 x 1.5 mm2).

The cable end to be connected to the

appliance must be provided with an earth

wire (yellow-green) at least 20 mm longer.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above guidelines or by

interference with any part of the appliance.

Instructions for the installer

2.2 Installing the oven

The oven is designed for installation into any piece of furniture as long as

it is heat-resistant. Proceed according to the dimensions shown in

Figures 1, 2and 3. For installing under a work top, follow the dimensions

given in Figure 3. For installing under a work top beneath a hob with

controls connected to the oven, ensure a minimum clearance from any

side walls of at least 110 mm as shown in Figure 1.

For installing in a column, follow the dimensions given in Figure 2allowing for a

clearance of 80 to 90 mm at the top and sides of the column. Tighten the four

screws (ref.A) inside the frame to secure (Fig. 1).

For installing beneath a separate hob, allow for a rear and bottom

clearance as shown in Figure 1(ref. B). See relevant instructions for

fitting and securing the hob.

Never use the oven door to lever the oven into

place when fitting.

Avoid exerting too much pressure on the oven door

when open.

Instructions for the user

3. DESCRIPTION OF CONTROLS

3.1 Front control panel

All the oven controls are grouped together on the front panel.

The user has only to press the central key for 1 - 2 seconds to enable

use of the oven on first use or after a power blackout.

FUNCTION CONTROL KNOB

Rotate the knob in either direction to

select desired function from the

following:

NO FUNCTION SET

UPPER AND LOWER

HEATING ELEMENT

LOWER HEATING ELEMENT +

VENTILATED

HEATING ELEMENT

WIDE GRILL ELEMENT VENTILATED

HEATING ELEMENT

GRILL ELEMENT

UPPER AND LOWER HEATING

ELEMENT + VENTILATION

FULL GRILL ELEMENT +

VENTILATION

LOWER HEATING ELEMENT +

VENTILATION

Instructions for the user

THERMOSTAT CONTROL KNOB

Cooking temperature is selected by turning the

knob clockwise to the desired setting, between

50° and 250°C.

THERMOSTAT INDICATOR LIGHT (ORANGE)

When this light comes on, the oven is heating up.

When this light goes out, the preset heating temperature

has been reached.

When the light flashes, the temperature inside the oven is

steady.

PILOT LIGHT (GREEN)

This light comes on when any of the oven elements is

receiving power.

Instructions for the user

3.2 Electronic Analogue Clock

LIST OF FUNCTIONS

MINUTE-MINDER BUTTON

AUTOMATIC SWITCH-OFF TIMING BUTTON

TIME SETTING AND RESET

VALUE DECREASE BUTTON

VALUE INCREASE BUTTON

3.2.1 Setting the time

When the oven is used for the first time, or after a power blackout, the

display flashes on and off at regular intervals. Press the key for 1/2

seconds to stop the display flashing and start setting of the current time.

Press the value modification keys or to increase or decrease by

one minute for each time a key is pressed.

Press one of the two value modification keys until the current time

appears. The clock will start from the time set 6/7 seconds after the last

key is pressed.

At the end of each programmed cooking operation, the clock gives 8

beeps, repeated 3/4 times at intervals of about 1 and a half minutes.

The beeps can be stopped at any moment by pressing any key.

Instructions for the user

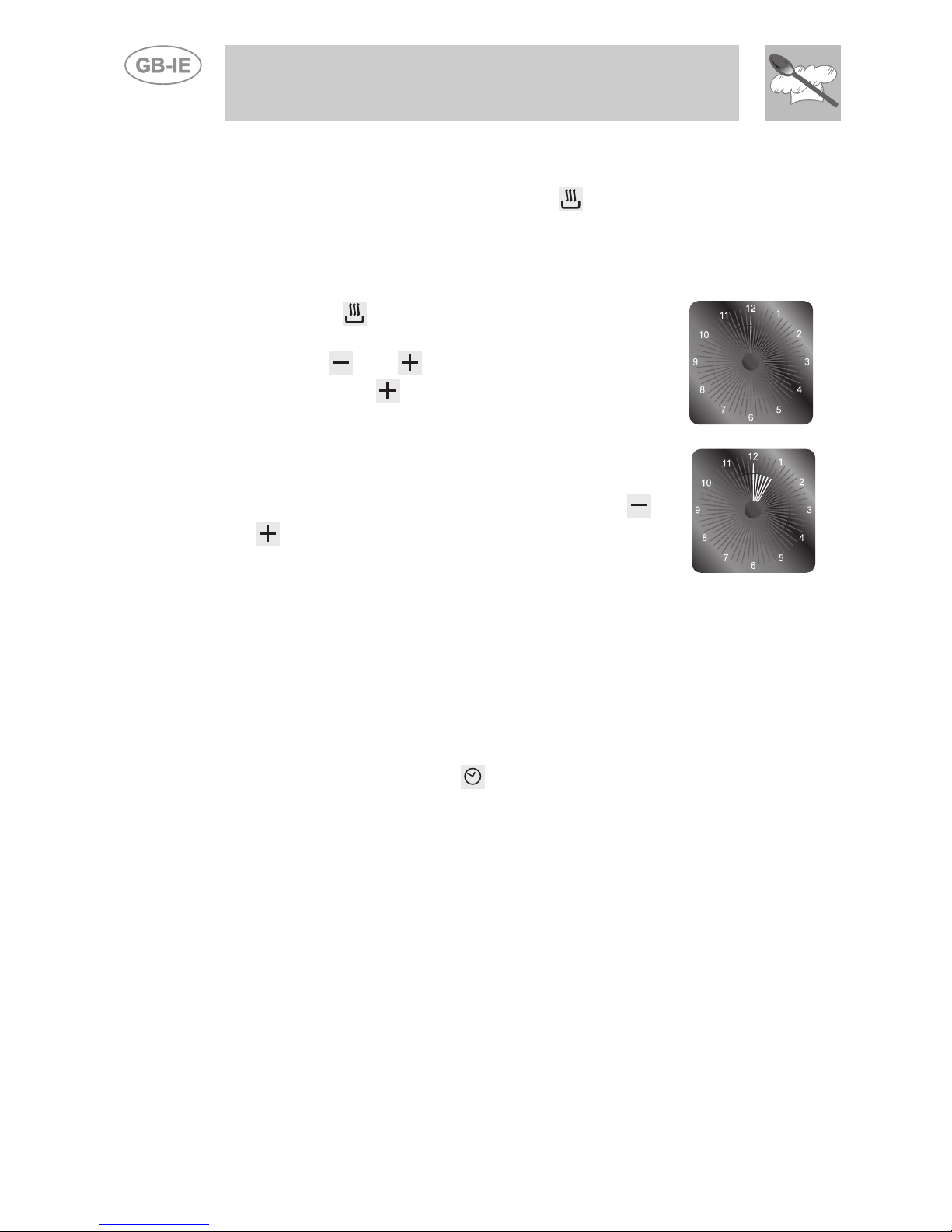

3.2.2 Minute-minder

This function does not stop cooking but just triggers the beeps.

-When the key is pressed the display

illuminates, appearing as shown in figure 1;

-Press the or keys within 6/7 seconds to

set the minute-minder. Whenever a key is

pressed, 1 outside segment, representing 1

cooking minute will light up (figure 2 shows 10

cooking minutes).

-The countdown will start 6/7 seconds after the

last key is pressed; at the end of it, you will hear

the beeps.

-During cooking with countdown, the current

time can be displayed by pressing the key

once; press again to return to the minute-

minder display.

-At the end of the countdown, the oven has

to be switched off by hand, by turning the

thermostat and the function selector to 0.

Instructions for the user

3.2.3 Programming

Cooking duration time: the 2nd button can be used to set the cooking

time. Before setting it, turn the thermostat to the cooking temperature of

choice and the function selector knob to any setting. To set the cooking

time, proceed as follows:

- Press the key for 1/2 seconds; the pointer will

move to position 12 (Fig. 1).

- Use the and keys to set the cooking time;

whenever the key is pressed, 1 minute will be

added to the cooking time, and every 12 minutes a

new inside segment will light up (figure 2 shows a

cooking time of 1 hour).

- Once the required time has been set, cooking will

start about 6 seconds after the last time the or

. key is pressed.

- Once cooking has started, the display will show

the current time, represented by the constantly on

segments, and the minutes left until cooking

finishes, represented by the flashing segments

(every flashing segments indicates 12 minutes of

cooking time left).

- When the end of the cooking time is reached, the timer will switch off

the oven heating elements, the beeps will start and the numbers on

the dial will flash.

- The cooking time can also be reset by deleting the program set;

pressing the central key for 1 or 2 seconds will delete the time set

and the oven will have to be switched off by hand.

Caution: cooking times of more than 6 hours cannot be set.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Smeg Four

Smeg

Smeg SCV38X Manuel utilisateur

Smeg

Smeg ALFA135V6 Guide de l'utilisateur

Smeg

Smeg FS64MF Manuel utilisateur

Smeg

Smeg SAC399X-8 Manuel utilisateur

Smeg

Smeg SFP390X-1 Manuel utilisateur

Smeg

Smeg S200 Manuel utilisateur

Smeg

Smeg S18 Manuel utilisateur

Smeg

Smeg SOPA6301TN Manuel utilisateur

Smeg

Smeg SFP140NE Manuel utilisateur

Smeg

Smeg SC371X-8 Manuel utilisateur

Smeg

Smeg SCA705X Manuel utilisateur

Smeg

Smeg Classica SCB91XI9 Manuel utilisateur

Smeg

Smeg ALFA 150 Manuel utilisateur

Smeg

Smeg SFA304X Manuel utilisateur

Smeg

Smeg SCB 60 Manuel utilisateur

Smeg

Smeg DO10PSS Manuel utilisateur

Smeg

Smeg SOU130S1 Manuel utilisateur

Smeg

Smeg SC445MCX Manuel utilisateur

Smeg

Smeg Oven Mode d’emploi

Smeg

Smeg LEV135X LEV 135X Instructions de montage

Smeg

Smeg SA301X Manuel utilisateur

Smeg

Smeg SF4920MCX Manuel utilisateur

Smeg

Smeg CX61EAG Manuel utilisateur

Smeg

Smeg SA301W-5 Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur

DeLonghi

DeLonghi XA660 Manuel
