SMC Networks EZSwitch SMCGS24C-Smart Manuel utilisateur

OVERVIEW

SMC Networks’ EZ Switch 10/100/1000 (SMCGS24C-Smart) is a new 24 port gigabit smart switch with

4 combo ports that bring the speed of gigabit copper to the desktop with the added ﬂexibility of ﬁber.

SMCGS24C-Smart provides a ﬂexible web based management interface to enable the conﬁguration of switch

features, port settings including security, QoS with 4 priority queues, link aggregation and VLANs. These

features allow traditionally unmanaged networks to increase throughput and ﬂexibility. Security is becoming

critical in next generation networks so this switch has added security features to protect your network. Ideal

for users looking to migrate from unmanaged to managed networks, this Smart switch is easy to install and

provides 10 times the throughput of 100M switches. Notebook and desktop computers are being conﬁgured

with 1000BASE-T Ethernet ports, combined with SMC’s gigabit Smart switches, computers on your network

will work to their fullest potential; downloading ﬁles from the server or other central network resources,

better control and conﬁguration options, non-blocking wire-speed throughput, and scalable solutions for

increased performance and productivity needs. The SMCGS24C-Smart switch is a perfect solution for enter-

prise and SOHO businesses.

www.smc.com

SMCGS24C-Smart

EZSwitch™ 10/100/1000 24 Port Gigabit

Web Managed Smart Switch including 4 Combo ports (RJ-45/SFP)

10G FIBER

1G FIBER

10G COPPER

1G COPPER

10/100

PoE

WIRELESS

LEGEND

@ek\ie\k

JD:>J)+:$JD8IK

JD:.''+M9I

=`i\nXcc

J\im\i

E\knfib\[

G:Ëj

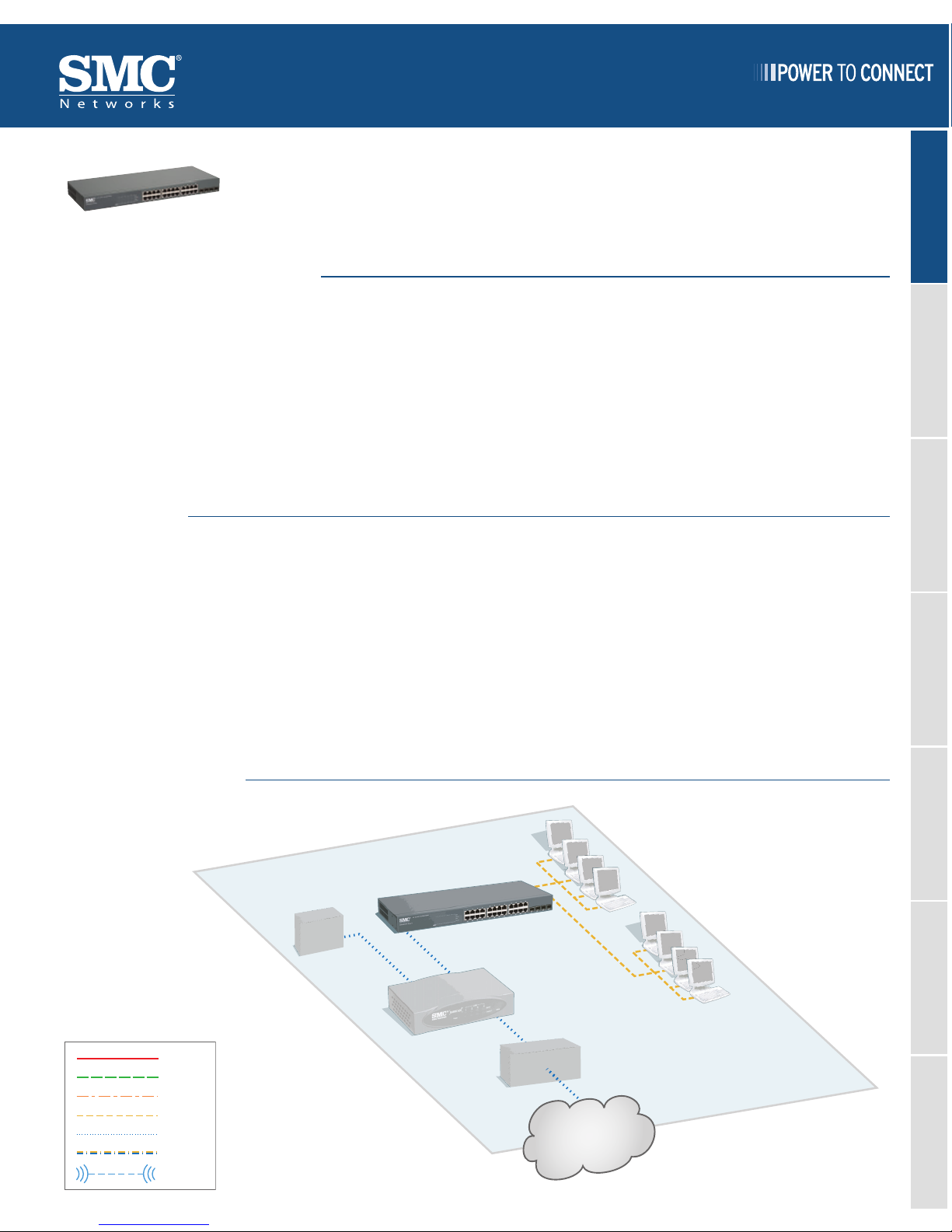

APPLICATION DIAGRAM

KEY FEATURES

10/100/1000 Gigabit Copper Ports and 4 combo ports

(RJ-45/SFP)

Flexible QoS and VLAN

The gigabit Ethernet ports provide high speed and legacy connec-

tions to all nodes on the network, while the combo port allows ﬁ-

ber connections to be connected. These ports allows for maximum

ﬂexibility for the connections in any network.

Qos allows prioritization based on 802.1p and DSCP using 4 prior-

ity queues for better network performance and VLAN support both

port and tag based VLANs for more efﬁcient management.

Smart Web Management Allows up to 8 ports within a single aggregation

Flexible and easy to use web interface enables quick installation

and conﬁguration for any user

Link aggregation eliminates bottlenecks in any network.

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

PORTS

• 24 Auto-MDIX 10BASE-T/100BASE-TX/1000BASE-T RJ-45 ports

• 4 Combo SFP ports

NETWORK INTERFACE

• 10BASE-T: RJ-45 UTP Cat. 3,4,5

• 100BASE-TX: RJ-45 UTP Cat. 5

• 1000BASE-T: RJ-45 connector

• Multi-mode ﬁber cable; 62.5/125 or 50/125 microns

• Single-mode ﬁber cable: 9/125 micron

SWITCH FABRIC

• 48Gbps

SWITCHING DATABASE

• 8K MAC address entries

LED

• System: Power

• Port: Link/activity

• 1000/100M

WEIGHT

• 3.72kg

• 8.44 lbs

SIZE

• 44.0 x 17.5 x 4.4cm

• 17.4 x 6.9 x 1.8 in.

MEMORY BUFFER

• 400 Kbits

POWER CONSUMPTION

• 28 Watts

TEMPERATURE

• Operating: 0 ~ 40 ºC / 32 ~ 104 ºF

• Storage: -40 ~ 70 ºC / -40 ~ 158 ºF

HUMIDITY

• 10% to 90% (non-condensing)

MANAGEMENT FEATURES

• In-Band Management

• Web-based HTTP

• Software Loading

• HTTP InBand

SWITCH FEATURES

• Forwarding Mode

• Store-and-forward

• VLAN Support

• Up to 255 groups; port-based or with 802.1Q

• VLAN tagging

• Quality of Service

• Supports four levels of priority with ﬂexible classiﬁcation and

prioritization based on 802.1p / DSCP

• Port Trunking

• Port Mirroring

• Rate limiting

• Jumbo Frame support

• Cable Diagnostics

• IP Filter

• Static Port Security

• IGMP Snooping

STANDARDS

• IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet,

• IEEE802.1p Priority tags

• IEEE802.1Q VLAN

• IEEE802.1ac VLAN tagging

EMC/SAFETY COMPLIANCES

• CE Mark

IMMUNITY

• EN 61000-4-2/3/4/5/6/8/11

EMISSIONS

• FCC Class A, CISPR Class A, EN 61000-3-2/3

• VCCI Class A

SAFETY

• CSA/CUS (CSA60950-1 & UL60950-1)

• TUV / GS EN60950-1

• CB IEC60950-1

WARRANTY

• Please check www.smc.com for the warranty

terms in your country/region

SMC1GSFP-SX

• 1G SX SFP Transciever, 550M, Multimode ﬁber

SMC1GSFP-LX

• 1G LX SFP Transciever, 10Km, Singlemode ﬁber

SMCBGZLCX1

• 1G LH SFP Transciever, 70Km Singlemode ﬁber
