SMCFS1601/SMCFS2401

EZ SwitchTM 10/100

16-/24-Port Unmanaged Fast Ethernet Switches

Product Overview

The EZ Switch 10/100 SMCFS1601 and SMCFS2401 are unmanaged,

rack-mountable 16- and 24-port Fast Ethernet switches for workgroup and small

office environments. All 10BASE-T/ 100BASE-TX ports deliver dedicated 10/100

Mbps links to each attached LAN segment – all with conventional cabling and

adapters. Auto-negotiation is used to select the optimal communication mode for

each connection, auto-sensing selects the optimal transmission speed. With

store-and-forward switching and flow control, maximum data integrity is always

maintained, even under heavy loading. Environmentally friendly, the switches

consume less power than non-Green Ethernet switches without reducing network

performance. Easy installation and reliability make these plug-and-play switches an

ideal choice for smooth Fast Ethernet integration in workgroup and small office

network environments.

Key Features and Benefits

10G FIBER

1G FIBER

10G COPPER

1G COPPER

10/100

PoE

WIRELESS

LEGEND

IEEE 802.3az Energy-Efficient Ethernet Support

When two 802.3az-compliant switches are connected, up to

49%* of power consumption can be saved.

Support for Quality of Service

When the switches receive a frame tagged with an 802.1p

priority tag, it is placed in the appropriate priority queue.

Priority queuing is useful in environments where time-

sensitive data, such as voice and video, are streamed across

the network.

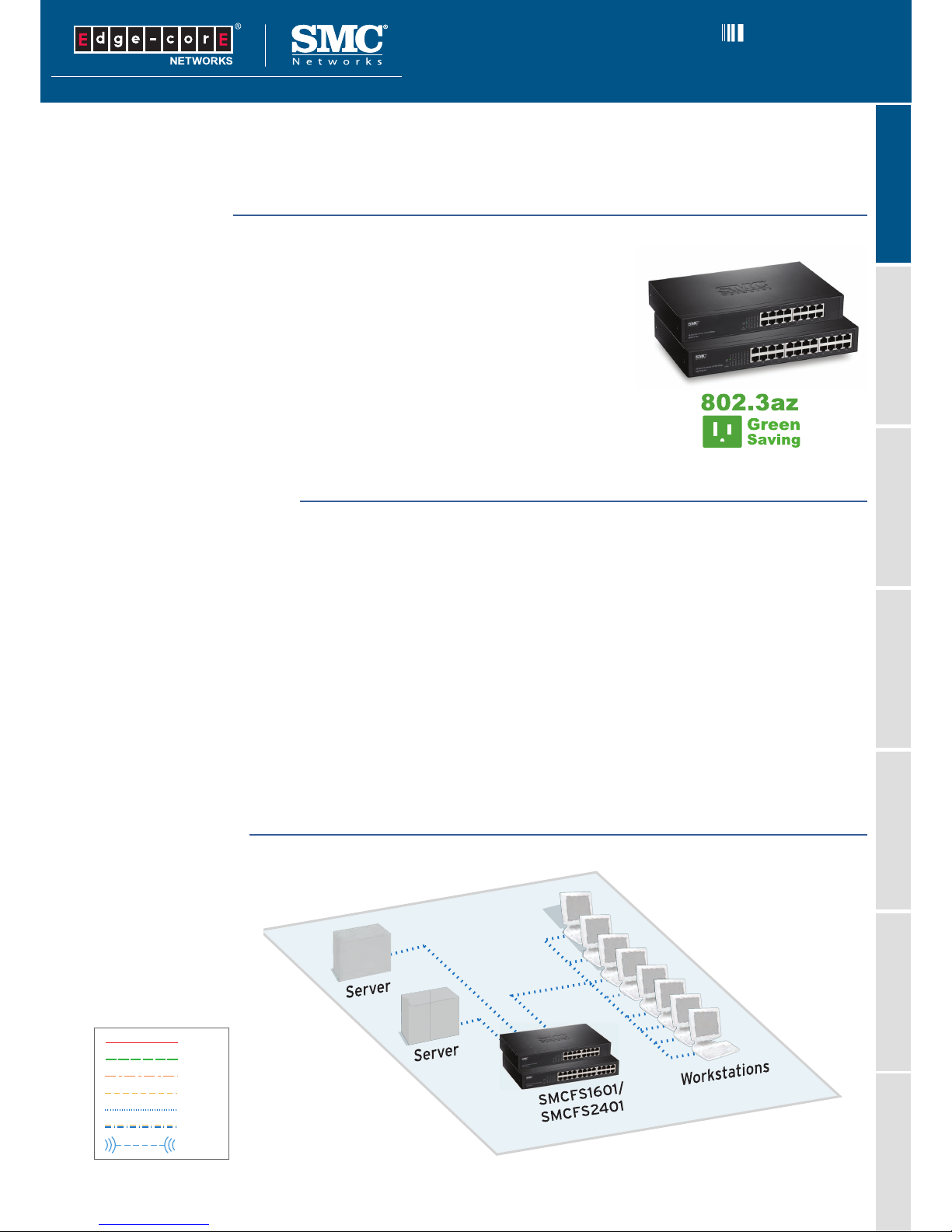

Application Diagram

Auto MDI/MDI-X on Each Port

Support for Auto-MDIX means that no crossover cables

are required. Straight-through cables can be used for all

connections.

Metal Chassis Fan-less Design

The compact, rack mountable metal chassis is ideal for

desktop or rack mounting. In addition, the lack of fans

provides silent operation.

* According to an IEEE 802.3az Energy Efficient Ethernet

measurement test conducted by an independent testing

company, the SMCFS1601 and SMCFS2401 save up to

49% when each is compared to a non-Green Ethernet

switch.

www.smc.com

POWER TO CONNECT

www.edge-core.com

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

Ordering Information

SMC-DS-0811-02

Features

PHYSICAL PORTS

SMCFS1601:

■ 16 x 10/100 Mbps auto-negotiation RJ-45 ports

SMCFS2401:

■ 24 x 10/100 Mbps auto-negotiation RJ-45 ports

NETWORK INTERFACE

■ 10BASE-T (IEEE 802.3)

■ 100BASE-TX (IEEE 802.3u)

FEATURE

■ IEEE 802.3x Flow Control

■ IEEE 802.1p QoS

■ Auto-MDI/MDIX

■ IEEE 802.3az

■ Fan-less design

LED

■ System: Power

■ Ports: Link/Activity

SWITCHING DATABASE

■ SMCFS1601: 8K MAC address entries

■ SMCFS2401: 8K MAC address entries

BUFFER MEMORY

■ SMCFS1601: 256 KBytes/device

■ SMCFS2401: 256 KBytes/device

SWITCHING CAPACITY

■ SMCFS1601: 3.2 Gbps non-blocking

■ SMCFS2401: 4.8 Gbps non-blocking

POWER REQUIREMENT

■ 100-240V~50/60Hz, 0.3A

FRAME FILTER RATE

■ 10BASE-T: 14881 pps/port

■ 100BASE-TX: 148810 pps/port

FRAME FORWARDING RATE

■ 10BASE-T: 14881 pps/port

■ 100BASE-TX: 148810 pps/port

THROUGHPUT

■ SMCFS1601: 2.4 Mpps

■ SMCFS2401: 3.6 Mpps

DIMENSIONS

■ 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in)

WEIGHT

■ SMCFS1601: 1.287 kg (2.83 lbs)

■ SMCFS2401: 1.321 kg (2.91 lbs)

ELECTROMAGNETIC COMPATIBILITY

■ CE Mark

■ FCC Class A

■ KCC

IMMUNITY

■ EN55024

■ IEC61000-4/2/3/4/5/6/8/11

EMISSIONS

■ FCC Class A, EN55022/EN61000-3-2/3

SAFETY

■ LVD (EN60950)

TEMPERATURE

■ Operating Temperature: 0°C~40°C (32°F~104°F)

■ Operating Humidity: 10%~90% non-condensing

■ Storage Temperature: -40°C~70°C (-40°F~158°F)

■ Storage Humidity: 5%~90% non-condensing

WARRANTY

Please check www.smc.com for the warranty terms in your country.

Contact

Worldwide Corporate and Sales Headquarters

No. 1 Creation Road III,

Science-based Industrial Park,

Hsinchu 30077, Taiwan, R.O.C.

Tel: +886 3 5770270 Fax: +886 3 5780764

Singapore

1 Coleman Street

#07-09, The Adelphi

Singapore 179803

Tel: 65-63387667 Fax: 65-63387767

Check www.smc-asia.com for your local country contact information

Europe/Africa

C/Fructuós Gelabert 6-8 2º, 2ª,

Edificio Conata II,

08970 Sant Joan Despí

Barcelona - Spain

Phone: +34 93 477 4920

Check www.smc.com for your local country contact information

Other trademarks or registered trademarks are the property of their

respective owners. Information is subject to change without notice.
