SMC7004ABR Barricade Broadband Router

Installation Instructions

SPECIAL NOTE: Part D – Upgrading the Firmware in Your Barricade MUST occur

in ALL installations for multiple VPN sessions to work!!!

SPECIAL NOTE: Part F – Adjusting MTU Value. This procedure MUST be followed

in order to prevent chronic disconnections of the VPN tunnel!

Part A – General Setup

1. Open your Web browser and enter the following in the “Address” field:

http://192.168.2.1

2. The Barricade login screen will appear. Leave the password field empty and click on

“login”.

3. On the main page of the Barricade Web console, click “Setup”.

4. The Barricade’s automated setup process will take you through each step for setting up

your Barricade. Click “Enter” to start the process.

5. In the “Change Password” screen type lower-case “galileo” in the “New Password”

field. Confirm this entry by entering the lower-case “galileo” again in the “Re-enter

Password for Verification” field.

6. Click “Enter” to complete this step.

7. Select your time zone from the list and click “Enter”.

8. The LAN screen is where you configure the Local Area Network settings of your

Barricade. Unless you have an existing network with Domain information there is no

reason to change these settings. Click “Enter” to complete this step.

9. At this point the LAN side of your Barricade is configured. The next step is to

configure it for the Internet connection with the information provided by your ISP.

10. This screen has no information necessary for configuration. Please click on “Enter” to

complete this step.

11. The next few steps will be to configure the Barricade router for Internet access. There

are generally two different configurations used by most ISP’s.

•If you use a DSL Modem your ISP probably requires you to manually

enter your TCP/IP settings. If you have a DSL connection or if you know

you use a Static IP address please move to “Part B - Configuring Your

Barricade for Static IP Address”.

•If you connect to the Internet using a Cable Modem your ISP provider

probably used DHCP to issue an IP address to you. If you use a cable

modem or you know that the ISP uses dynamic IP address please move to

“Part C - Configuring Your Barricade for a Dynamic IP Address.

Part B – Configuring Your Barricade for Static IP Addressing.

1. Select “Static IP Address” and click on “More Configuration”

2. Enter the IP Address, subnet mask and gateway provided to you by your ISP in

the appropriate fields. Click “Enter” when finished.

A Domain Name Server (DNS) is like an index of names and Web addresses. If you type

a Web address into your browser, such as www.whitehouse.gov, a DNS server will find

that name in its index and find the matching IP address: 198.137.240.92. Most ISPs

provide a DNS server for speed and convenience. Since you are connecting to the

Internet with static IP settings, it is likely that your ISP also provided DNS server

addresses.

3. Enter the DNS server address(es) in the spaces provided. Click “Enter” when

finished.

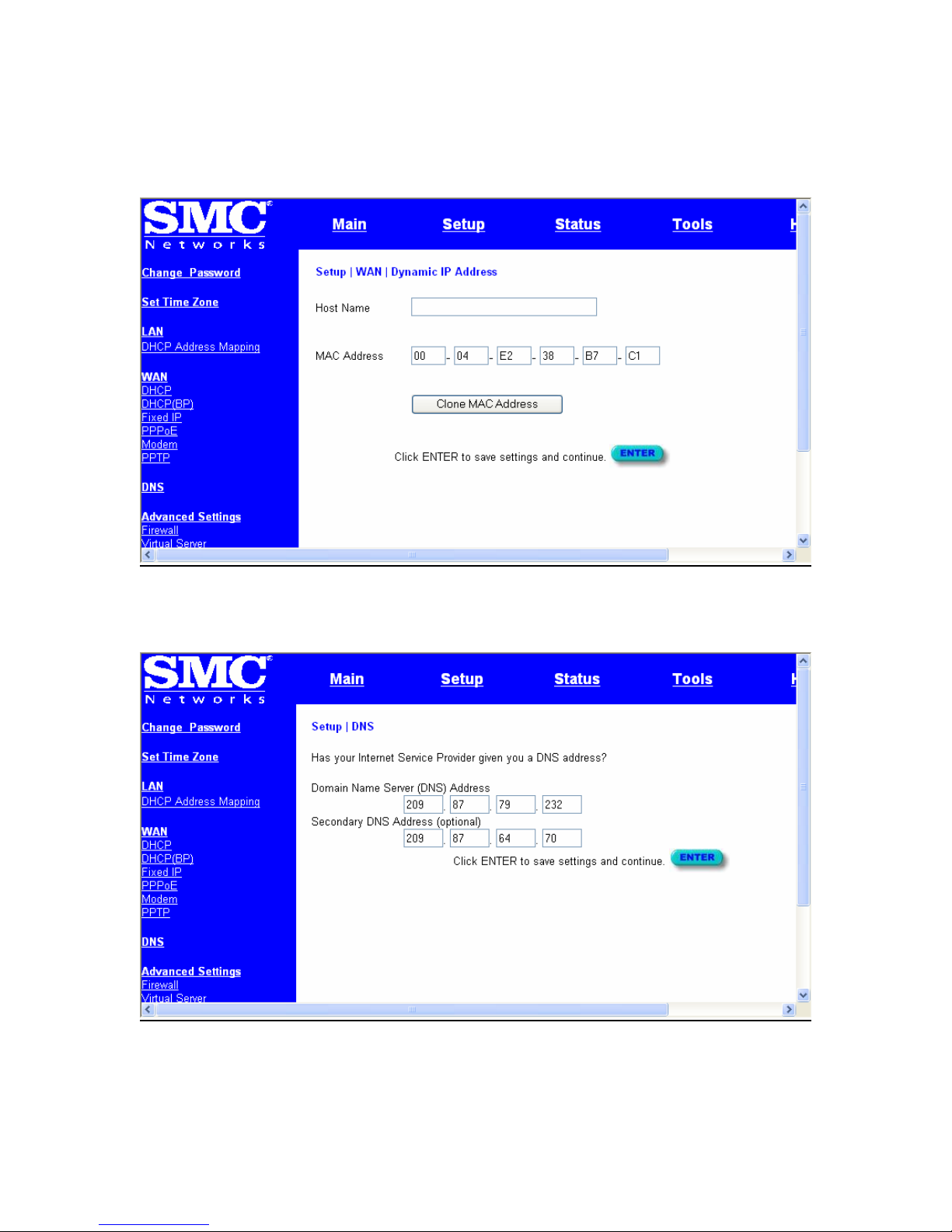

Part C – Configuring Your Barricade for Dynamic IP Addressing.

1. Select “Dynamic IP Address” and Click “More Configuration.

2. If you have a Host name provided by your ISP enter it here and Click “Enter” to

continue.

3. Enter DNS Information as provided by your ISP and Click “Enter to finish the process.

Part D – Upgrading the Firmware in Your Barricade.

IN ORDER TO MAINTAIN MULTIPLE VPN TUNNELS YOU MUST update your

firmware to VERSION 140018 or later!

Upgrades for your Barricade Broadband are readily available on the Internet at

www.smc.com. They are stored in compressed format to minimize the time it takes to

download. The files take one of two forms.

1. “Zipped” format – this format requires you to have special software in order to extract

the update files.

2. “Self-extracting” format – this format does not require any special software in order to

extract the files.

The preferred form to download is “Self-extracting”. This will eliminate the necessity of

having special software to extract the files.

When you downloaded the latest update you execute the self-extracting file and it will

create a directory with the name “SMC” and place the extracted files in this directory.

The actual update file has the extension of .DLF This will be important later on in this

process.

Once you have completed the download and extraction process you can start the

Firmware Update Process.

1. To Upgrade the Firmware in your Barricade you must Login to the Barricade and

begin from the main menu screen. Select “Tools” from the menu.
