Install Guide

EZ Connect™Wireless Cable Modem Gateway

- 1 -

SMC8014WG-SI

- 2 -

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or

other rights of third parties which may result from its use. No license is granted by implication or

otherwise under any patent or patent rights of SMC. SMC reserves the right to change

specifications at any time without notice.

SMC Networks, Inc.

38 Tesla

Irvine, California 92618

Trademarks

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or

other rights of third parties which may result from its use. No license is granted by implication or

otherwise under any patent or patent rights of SMC. SMC reserves the right to change

specifications at any time without notice.

- 3 -

TABLE OF CONTENTS

CHAPTER 1 | Introduction

Features and Benefits

Package Contents

Minimum Requirements

CHAPTER 2 | Getting to know the SMC8014WG-SI Gateway

LED Indicators

Rear Panel Description

Resetting and Restoring the SMC8014WG-SI Gateway

CHAPTER 3 | Installation

Basic Installation Procedure

CHAPTER 4 | Configuring your Computer

Configuring Windows 95/98/Me

Configuring Windows 2000

Configuring Windows XP

Configuring a Macintosh Computer

CHAPTER 5 | Configuring the SMC8014WG-SI Gateway

Browser Configuration

Disable Proxy Connection

Accessing the SMC8014WG-SI Gateway Web Management

CHAPTER 6 | Navigating the Web-based Administration

Making Configuration Changes

System

LAN

Wireless

NAT

Firewall

Tools

Status

APPENDIX A | Telnet/CLI Information

APPENDIX B | Troubleshooting

APPENDIX C | Technical Specifications

APPENDIX D | Compliances

APPENDIX E | Technical Support

CHAPTER 1 | Introduction

Congratulations on your purchase of the SMC8014WG-SI Gateway. SMC is proud to provide you with

a powerful yet simple communication device for connecting your local area network (LAN) to the

Internet.

Features and Benefits

•Internet connection to cable modem service via an integrated cable modem port

•Local network connection via 10/100 Mbps Ethernet port or 54 Mbps wireless interface

•802.11g - interoperable with multiple vendors

•Wireless: WEP and WPA encryption, Hide SSID, and MAC Filtering

•DHCP for dynamic IP configuration, and DNS for domain name mapping

•Firewall with Stateful Packet Inspection, client privileges, hacker prevention, DoS, and

NAT

•User-definable application sensing tunnel supports applications requiring multiple

connections

•Built-in Parental controls allow you to limit certain web sites – configurable by time and

date

•Easy setup through a web browser on any operating system that supports TCP/IP

•Compatible with all popular Internet applications

- 4 -

- 5 -

Package Contents

Before installing the SMC8014WG-SI Gateway, verify that you have the items listed under below.

Also be sure that you have the necessary cabling. If any of the items are missing or damaged,

contact your local SMC distributor.

•1 - SMC8014WG-SI Gateway

•1 - Power adapter (5V/1.5A)

•1 - CAT-5 Ethernet cable

•Installation CD, including:

oUser Guide

If possible, retain the carton and original packing materials in case there is a need to return the

product.

Please register your product on SMC’s web site at http://www.smc.com.

System Requirements

You must meet the following minimum requirements:

•Provisioned Internet access from a cable operator that has approved the SMC8014WG-SI

•A computer equipped with a wired or wireless network adapter with TCP/IP installed.

•A Java-enabled web browser, such as Microsoft Internet Explorer 5.5 or above, or

Netscape Communicator 5.0 or above.

•Windows 98 Second Edition or higher is required for USB driver support.

CHAPTER 2 | Getting to Know the SMC8014WG-SI Gateway

The SMC8014WG-SI Gateway is the perfect all in one solution, for the home or business

environment. This full-featured device has:

•An approved DOCSIS 1.1 and 2.0 Cable modem

•Advanced SPI Firewall Gateway

•High-speed 54 Mbps 802.11g Wireless Access Point

•Comprehensive LEDs for network status and troubleshooting

•Reset Button

•1 – 10/100 Mbps Auto-Sensing LAN port

NOTE: Cable modems provide up to 38 Mbps downstream and 10 Mbps upstream. However, you

should note that the actual rate provided by specific service providers may vary dramatically from

these upper limits.

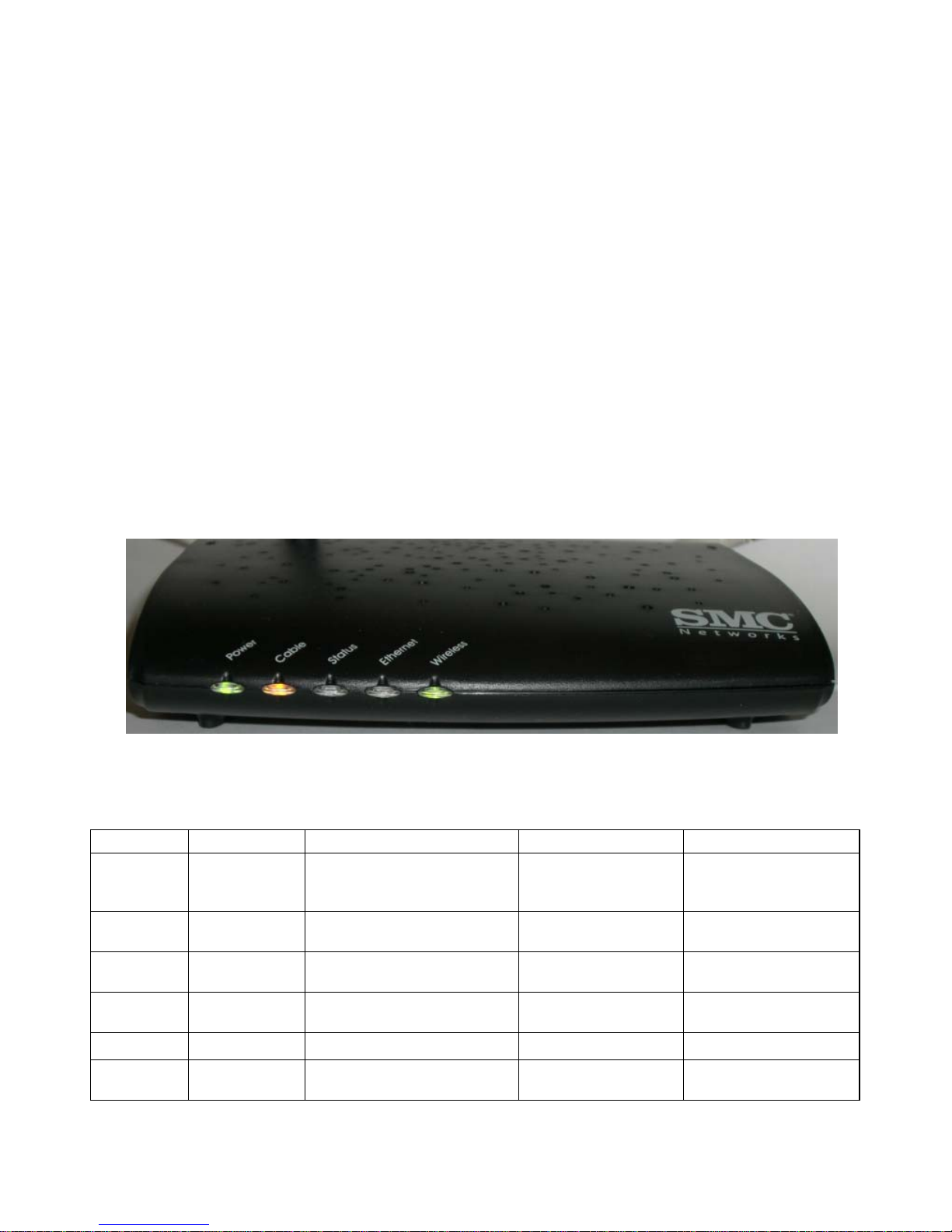

LED Indicators

The Gateway includes LED indicators on the front panel that simplify installation and network

troubleshooting.

The Gateway includes LED indicators on the front panel that simplify installation and network

troubleshooting.

LABEL LED COLOR ON FLASHING OFF

Power Green Power is supplied to the

Gateway N/A Power is not

supplied to the

Gateway

Cable Amber N/A Attempting to

connect to network

Cable Green Successfully connected to

cable network N/A N/A

Status Green Cable Modem has finished

CMTS registration Attempting to

Wireless Green Good Wireless Link Data transmitting No Wireless Link

Ethernet Green Connected at 10 or 100

Mbps Data transmitting No Ethernet link

detected

- 6 -

Rear Panel Description

Power

CATV

Connector Reset

Button LAN

Port

Item Description

Power Connect the included power adapter to this port.

CATV Connect your cable line to this port.

Reset Use this button to reset the power or restore the default factory settings.

ETH 10/100 Auto-sensing switch port (RJ-45). Connect devices on your local area

network to this port (such as a PC, hub, or switch).

Rebooting and Restoring the SMC8014WG-SI Gateway

The Reset button is located on the rear panel of the Gateway. Use a paper clip or a pencil tip to

push the Reset button.

Reboot

If the Gateway is having problems connecting to the Internet, simply hold down the reset button

for less than 2 seconds then release.

Restore Factory Defaults

If rebooting the Gateway does not resolve your issue, then you can follow these steps:

1. Leave power plugged into the Gateway.

2. Locate the reset button on the back panel, press and hold button for at least 10 seconds.

3. Release reset button. The Power, Status, and Ethernet LEDs will light up green, and the Cable

LED will blink amber while reconnecting to the network.

- 7 -

CHAPTER 3 | Installation

The SMC8014WG-SI Gateway can be installed in any location where you have cable Internet

access, and your cable Internet service provider has approved the Gateway. To confirm you meet

these 2 criteria points, please contact your cable operator.

For general installation please follow the guidelines outlined below to best performance:

•Keep the Gateway away from any heating devices.

•Do not place the Gateway in a dusty or wet environment.

•For optimum wireless performance, install the Gateway away from other electronic

devices, such as Monitors / TV / 2.4GHz Cordless Phones. These devices can hamper your

wireless throughput and distance.

Basic Installation Procedure

1. Connect the LAN: You can connect the Gateway to your PC, or to a hub or switch. Run

Ethernet cable from one of the LAN ports on the rear of the Gateway to your computer’s

network adapter or to another network device. You should use a standard straight through

Ethernet cable.

You can also connect the Gateway to your PC (using a wireless client adapter) via radio

signals.

NOTE: It is recommended that for first-time setup you use a wired connection.

2. Connect the WAN: Connect a coax cable to the CATV port on the back of the Gateway from a

cable port located in your home. When connecting to the CATV port, use only manufactured

coaxial patch cables with F-type connectors at both ends for all connections.

Note: If this modem was NOT installed by your cable provider (ISP) or is being used to replace

another cable modem – please contact your Cable Operator to register the SMC8014WG-SI.

Without registering the modem with your cable operator it will be unable to connect to the

cable network system.

3. Power on: Connect the power adapter to the Gateway.

Warning: Only use the power adapter that was provided with the Gateway, using another power

adapter may damage your unit and void the warranty.

- 8 -

CHAPTER 4 | Configuring your Computer

The information outlined in this chapter will guide you through the configuration for the following

Operating Systems:

•Windows 95/98

•Windows Me

•Windows 2000

•Windows XP

•Apple Macintosh

Configuring Windows 95/98/Me

1. Access your Network settings by clicking

[Start], choose [Settings], and then select

[Control Panel].

2. In the Control Panel, locate and double-click

the [Network] icon.

3. Highlight the TCP/IP line that has been

assigned to your network card on the

[Configuration] tab of the [Network] properties

window. (see network dialog box to the right)

4. Next, click the [Properties] button to view that adapter’s TCP/IP settings.

5. From the TCP/IP Properties dialog box, click the [Obtain an IP address automatically]

option. (see TCP/IP dialog box to the right)

6. Next click on the [Gateway] tab and verify

the Gateway field is blank. If there are IP

addresses listed in the Gateway section,

highlight each one and click [Remove]

until the section is empty.

7. Click the [OK] button to close the TCP/IP

Properties window.

8. On the Network Properties Window, click

the [OK] button to save these new

changes.

NOTE: Windows may ask you for the

original Windows installation disk or

additional files. Check for the files at

c:\windows\options\cabs, or insert your

Windows CD-ROM into your CD-ROM drive

- 9 -

and check the correct file location, for example, D:\win98, D:\win9x. (Assume “D” is your

CD-ROM drive).

9. Windows may prompt you to restart the PC. If so, click the [Yes] button. If Windows does

not prompt you to restart your computer, do so anyways to ensure your settings.

Configuring Windows 2000

1. Access your Network settings by clicking

[Start], choose [Settings], and then

select [Control Panel]

2. In the Control Panel, locate and double-

click the [Network and Dial-up

Connections] icon

3. Locate and double-click the [Local Area

Connection] icon for the Ethernet

adapter that is connected to the

Gateway. When the Status dialog box

window opens, click the [Properties]

button.

4. On the [Local Area Connection]

Properties box, verify the box next to

Internet Protocol (TCP/IP) is checked.

Then highlight the Internet Protocol (TCP/IP), and click the Properties button.

5. Select Obtain an IP address automatically to configure your computer for DHCP. Click the

[OK] button to save this change and close the Properties window.

6. Click the [OK] button again to save these new changes.

7. Reboot your PC.

Configuring Windows XP

The following instructions assume you are running Windows XP with the default interface. If you

are using the Classic interface (where the icons and menus look like previous Windows versions),

please follow the instructions for Windows 2000

outlined above.

- 10 -

1. Access your Network settings by clicking

[Start], choose [Control Panel], select

[Network and Internet Connections] and then

click on the [Network Connections] icon.

2. Locate and double-click the Local Area

Connection icon for the Ethernet adapter that

is connected to the Gateway. Next, click the

[Properties] button.

Autres manuels pour EZ Connect SMC8014WG-SI

Table des matières

Autres manuels SMC Networks Porte

SMC Networks

SMC Networks SMCWTVG Manuel utilisateur

SMC Networks

SMC Networks SMCD3GN Manuel utilisateur

SMC Networks

SMC Networks D3G0804W Manuel utilisateur

SMC Networks

SMC Networks EX510-GMJ1 Series Manuel utilisateur

SMC Networks

SMC Networks EX500-GPR1A-X8 Series Manuel utilisateur

SMC Networks

SMC Networks FieldServer FS-EZX-MOD-BAC Guide de l'utilisateur

SMC Networks

SMC Networks ProtoAir FPA-W34 Guide de l'utilisateur

SMC Networks

SMC Networks LEC-GMJ2 Series Manuel utilisateur

SMC Networks

SMC Networks EZ Connect 2.4GHz 54Mbps Wireless Cable Modem Gateway... Manuel utilisateur

SMC Networks

SMC Networks EliteConnect SMCWHSG44-G Manuel utilisateur

SMC Networks

SMC Networks EZ Networking SMC8013WG Manuel utilisateur

SMC Networks

SMC Networks LEC-GEN1 Manuel utilisateur

SMC Networks

SMC Networks SMCD3GNV Manuel utilisateur

SMC Networks

SMC Networks DOCSIS 3.0 Commercial Cable Modem Gateway... Manuel utilisateur

SMC Networks

SMC Networks EX500-GPR1A Manuel utilisateur

SMC Networks

SMC Networks EliteConnect SMCWHSG14-G Manuel utilisateur

SMC Networks

SMC Networks EtherNet/IP EX500-GEN1 Manuel utilisateur

SMC Networks

SMC Networks 56-EX500-GPR1A Series Manuel utilisateur

SMC Networks

SMC Networks FieldServer FS-QS-2XX0 Guide de l'utilisateur

SMC Networks

SMC Networks EliteConnect SMCWHSG14-G Manuel utilisateur

SMC Networks

SMC Networks SMCD3G Manuel utilisateur

SMC Networks

SMC Networks EZ Connect Commercial Cable Modem Gateway... Manuel utilisateur

SMC Networks

SMC Networks SMC8004CM Manuel utilisateur

SMC Networks

SMC Networks EX510-GMJ1 Series Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
