Air-cooled

Peltier-type Chiller

Thermo-con/

Compact Type

150 mm

210 mm

130 mm

Replaceable

Compact

130 mm x 210 mm x 150 mm

HeightWidth Depth

Display/Operation panel

Dustproof filter

Circulating fluid level gauge

86 % reduction (294 s a41 s)

∗Compared with the existing product HECR002

∗Time to change the circulating ﬂuid temperature from 30 °C to 20 °C

(when the circulating ﬂuid IN and OUT are directly connected)

Now only takes about 41 seconds

to lower the temperature by 10 °C

Superior temperature

control

Cooling capacity: 220 W

Low-noise design

(at low load):

37 dB

Temperature stability:

±0.1 °C

Set temperature range:

10 °C to 60 °C

HEF Series

CAT.EUS40-76A-UK

Peltier-type Chiller

Thermo-con/Compact Type Air-cooled HEF Series

Actual size 130 mm

Can precisely control the temperature

Precisely control the temperature of the

circulating fluid by using the Peltier device.

Refrigerant-free and environmentally friendly

37 dB (at low load)

This product generates less vibration, dust, and noise due to its lack of

moving parts, such as a compressor.

The noise is kept low by reducing the fan speed in low-load operation.

Customers can reduce the noise by setting the unit to constant fan speed

mode when the noise at high load is concerned.

∗Note that in constant fan speed mode, cooling performance is reduced.

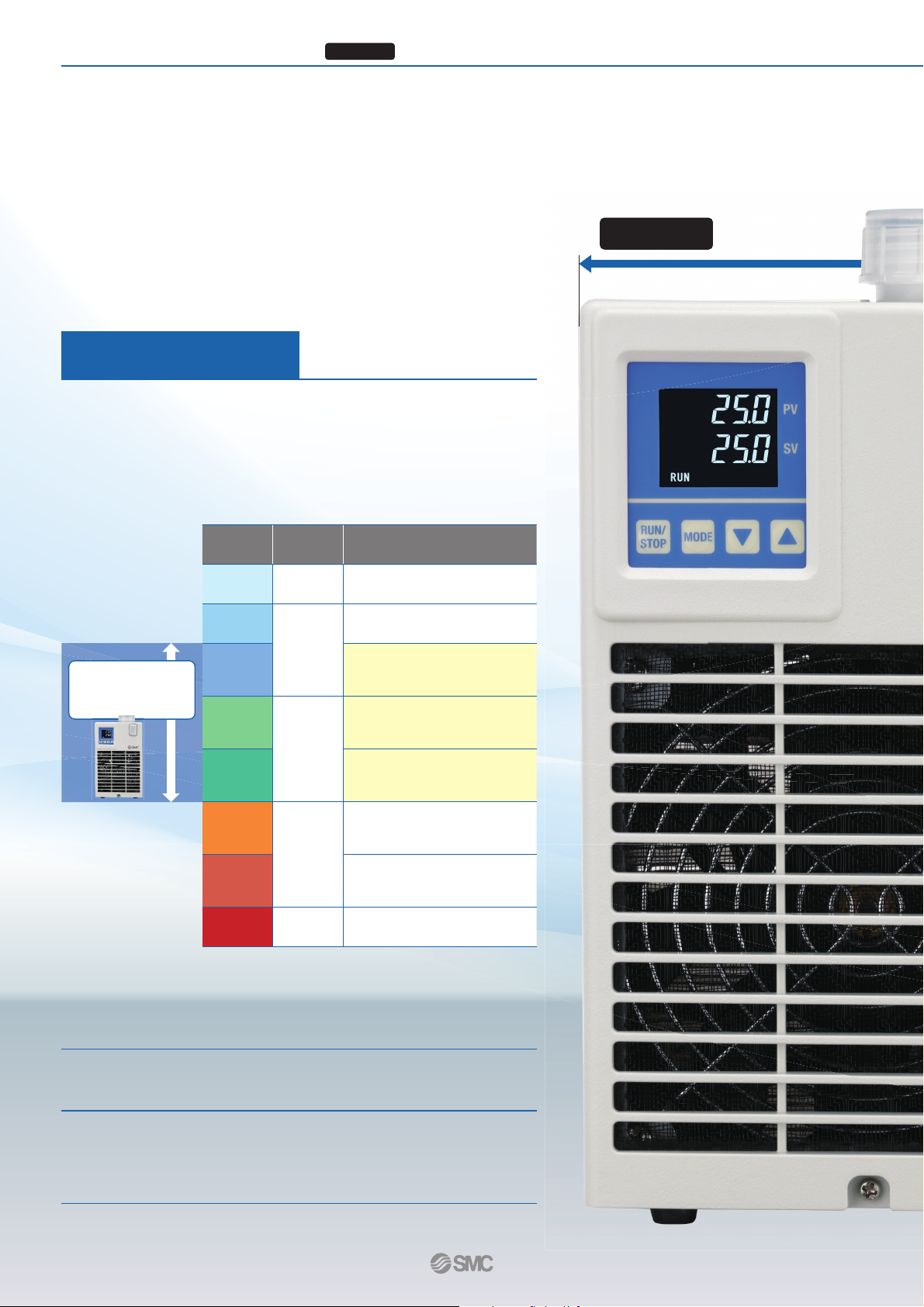

Low-noise design

Noise Level

Sound level Noise level

reference Sound example

20 dB Whisper The sound of leaves touching each

other or the sound of snow falling

30 dB

Very quiet

Suburbs late at night or the sound

of writing with a pencil

40 dB A quiet residential area in the

daytime or in the library

50 dB

Normal

External unit of a home air

conditioner (close distance) or in a

quiet ofﬁce

60 dB

In a moving car, normal

conversation, or in a department

store

70 dB

Noisy

In a car driving at high speed, in a

noisy ofﬁce, or the sound of cicadas

(close distance)

80 dB

On a running train, ambulance siren

(close distance), or inside a

pachinko parlor

90 dB Very loud Karaoke bar (in the centre) or the

barking of a dog (close distance)

HEF002 Noise

level range

Refrigerant-free

Fluid contact material:

Stainless steel, Resin, Rubber

(Aluminum and copper material-free)

Peltier-type Chiller

Thermo-con/Compact Type Air-cooled HEF Series

210 mm

of a heat source or process fluid

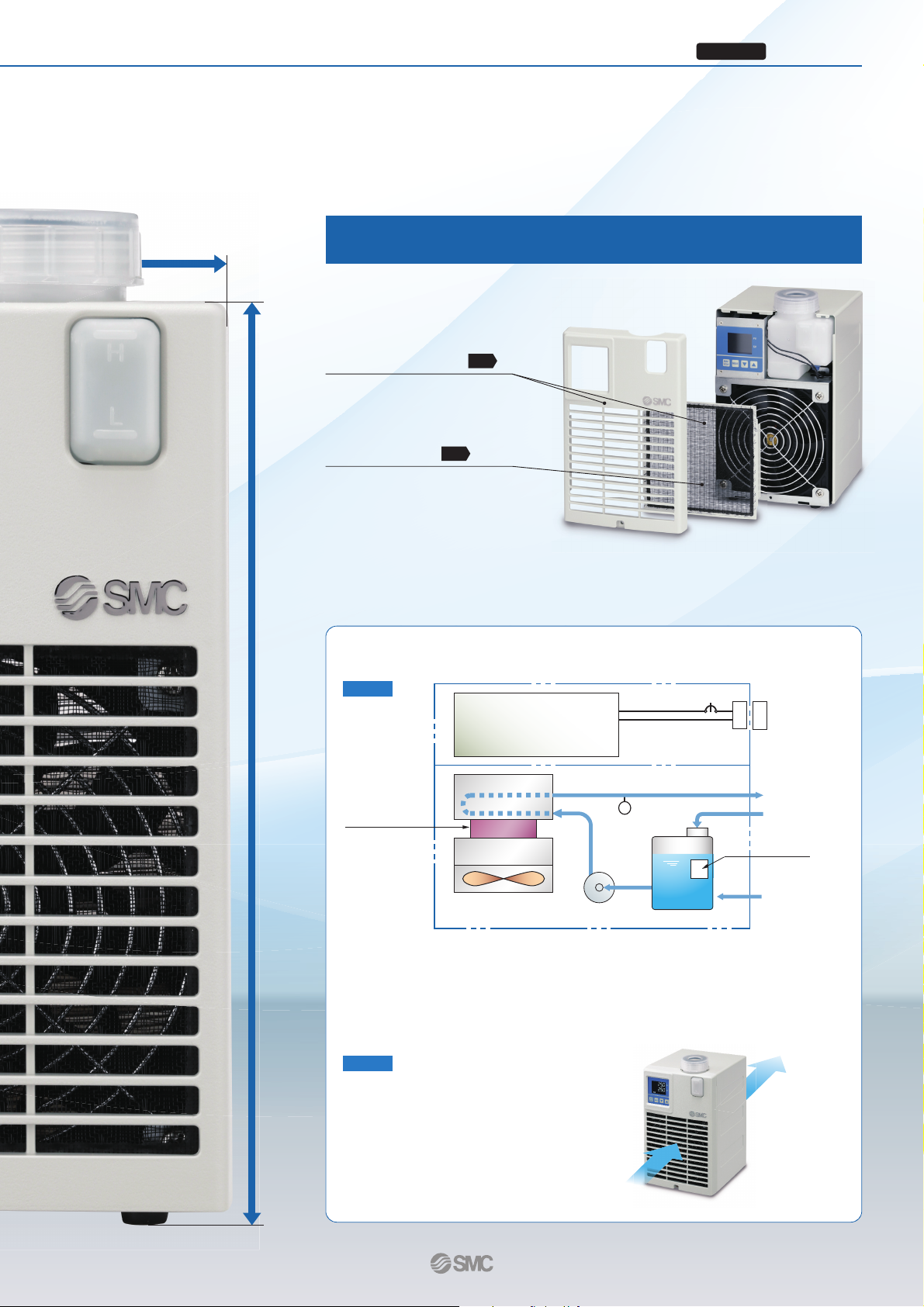

Construction and Principles

Heat dissipation air ﬂow direction

The thermo-con is constructed as shown in Figure 1. The circulating ﬂuid outlet temperature

is controlled precisely by a Peltier element (thermo module) between the heat exchanger

and heat sink which is controlled by supplying DC power supply. The circulating ﬂuid returns

to the tank and is transferred by the pump which is built into the thermo-con, then it goes

through the heat exchangers and temperature sensor and out from the circulating ﬂuid outlet.

The heat dissipation air ﬂow direction is as

shown in Figure 2. Air is taken from the front

of the Thermo-con and discharged from the

rear. Do not cover the inlet and outlet vents.

Integrated with the front panel

grille. Easy to install and remove

Easy to remove dust, cutting

chips, etc., stuck to the ﬁlter with

a brush or vacuum cleaner

Dustproof ﬁlter set

Dustproof ﬁlter

p. 11

Easy maintenance

Easy to clean and replace the

dustproof ﬁlter

Air

p. 11

Peltier device T

(Thermo-module)

Controller

Figure 1

Figure 2

Tan k

Pump

Heat sink

Heat exchanger

Fan

Level switch

Power switch

Power supply

(24 VDC)

Circulating ﬂuid

OUT

Temperature

sensor

Circulating ﬂuid

ﬁll port (Tank lid)

Circulating ﬂuid

IN (Drain)

Cool Diode Laser

Microscope Cooling Plate

Cool Power Device

Cooling Glass Heat Exchanger

Cooling Sample Embedding Machine

Cool Optical Camera

Laser Oscillator

Beam Bumper

Circulation Between Gas Generation Analyzer and Jacketed Vessel

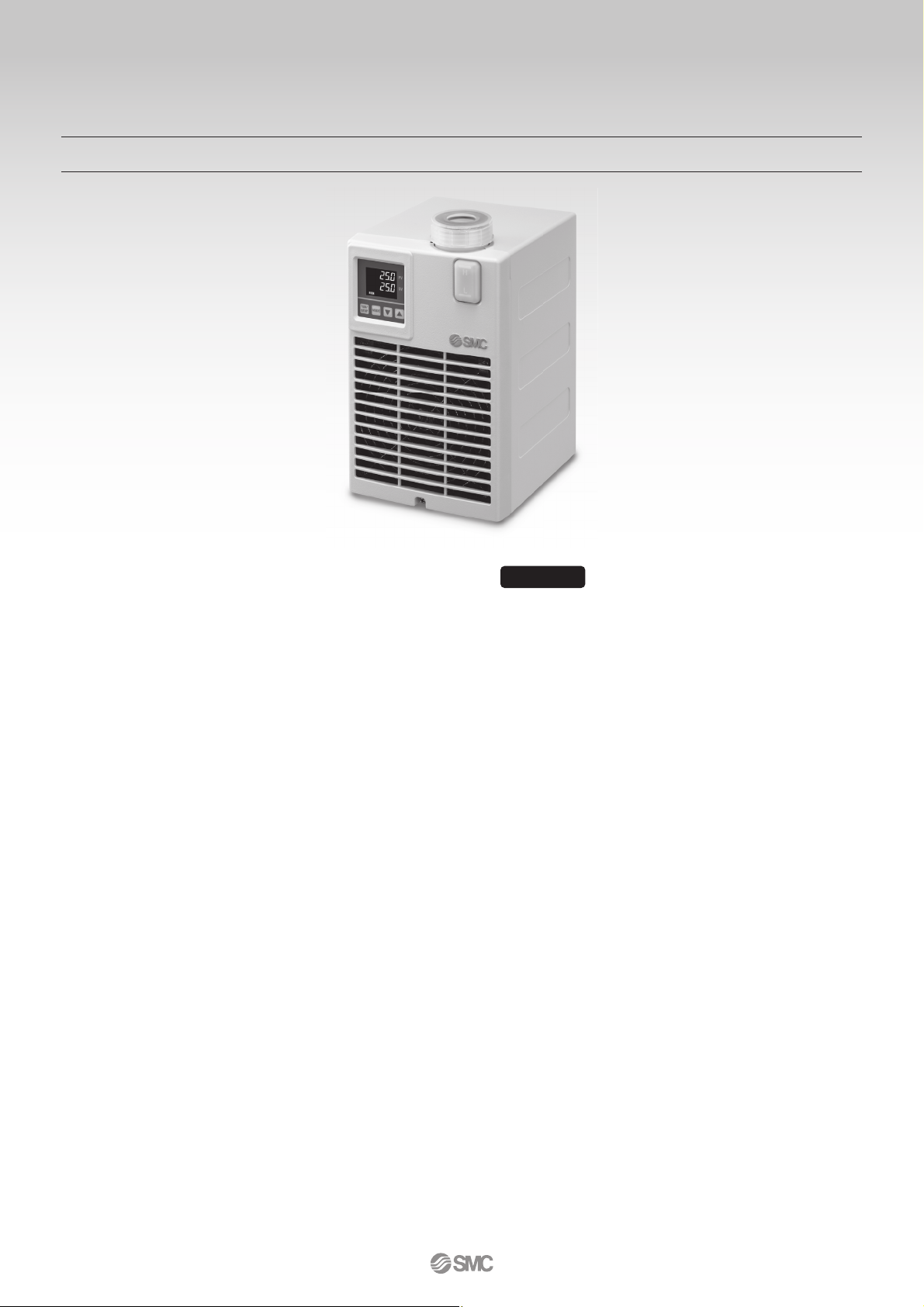

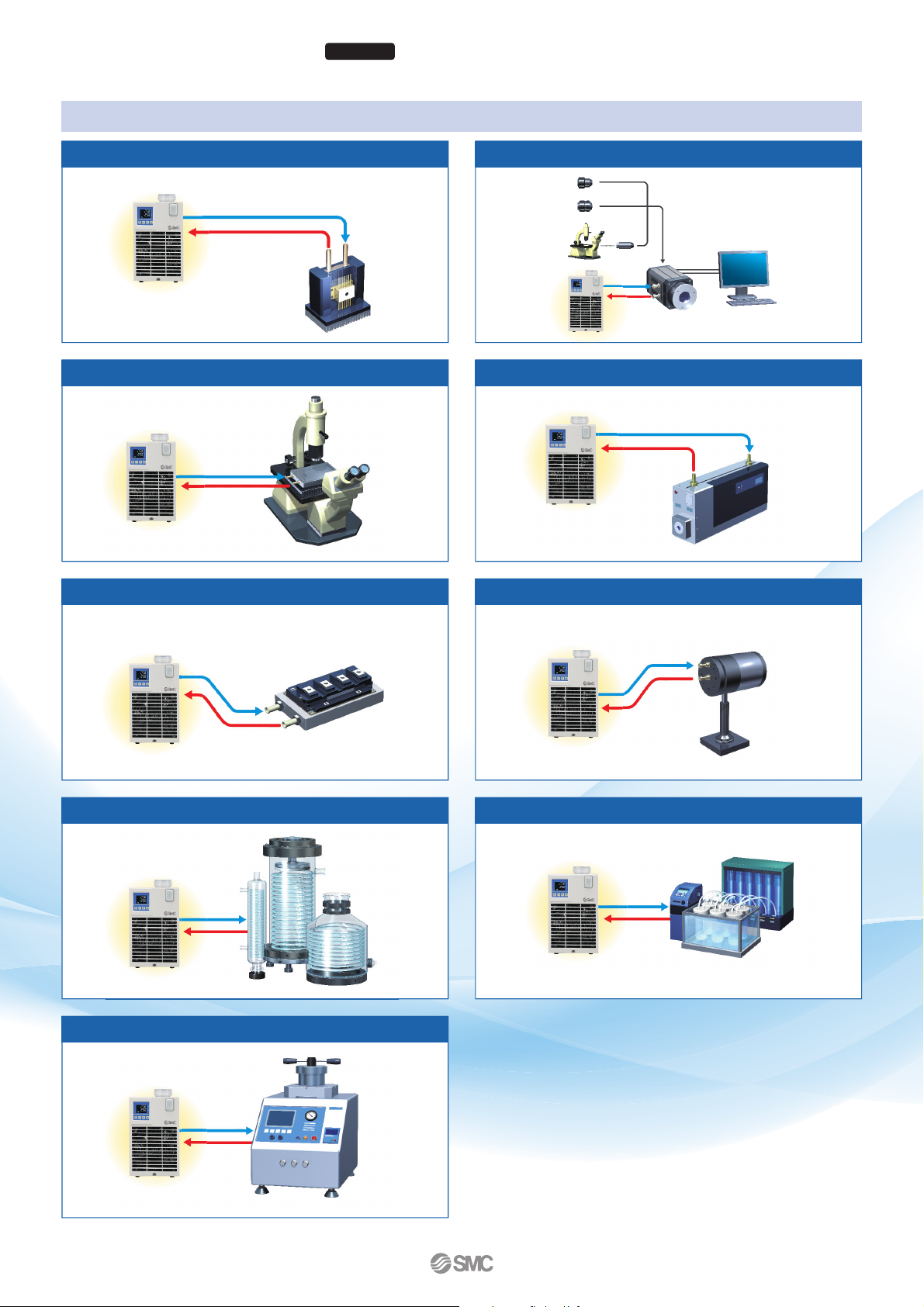

Application Examples

Peltier-type Chiller

Thermo-con/Compact Type Air-cooled HEF Series

C-mount lens

F-mount lens

Microscope

C-mount

TV adapter

Data analyzer

Compatible with digital cameras

∗Open bath type (Can be connected to a water tank, etc., and the

temperature can be directly controlled.)

CONTENTS

HEF Series

Thermo-con/Compact Type Air-cooled

HEF Series

Cooling Capacity Calculation............................................................ p. 5

How to Order/Specifications ............................................................. p. 6

Cooling Capacity............................................................................... p. 7

Heating Capacity .............................................................................. p. 7

Pump Capacity (Thermo-con Outlet)................................................ p. 7

Dimensions....................................................................................... p. 8

Operation Display Panel................................................................... p. 9

Alarm ................................................................................................ p. 9

Maintenance ..................................................................................... p. 9

앬Option

High-Pressure Pump Mounted ....................................................... p. 10

앬Optional Accessories

AC Adapter ..................................................................................... p. 11

Power Supply Cable ....................................................................... p. 11

Dustproof Filter ............................................................................... p. 11

Specific Product Precautions............................................................... p. 12

Temperature [°C] Density ρ[kg/m3] Specific heat C [J/(kg·K)]

10 1.03 x 1033.93 x 103

20 1.03 x 1033.95 x 103

30 1.02 x 1033.97 x 103

40 1.02 x 1033.98 x 103

50 1.01 x 1034.00 x 103

60 1.01 x 1034.02 x 103

HEF Series

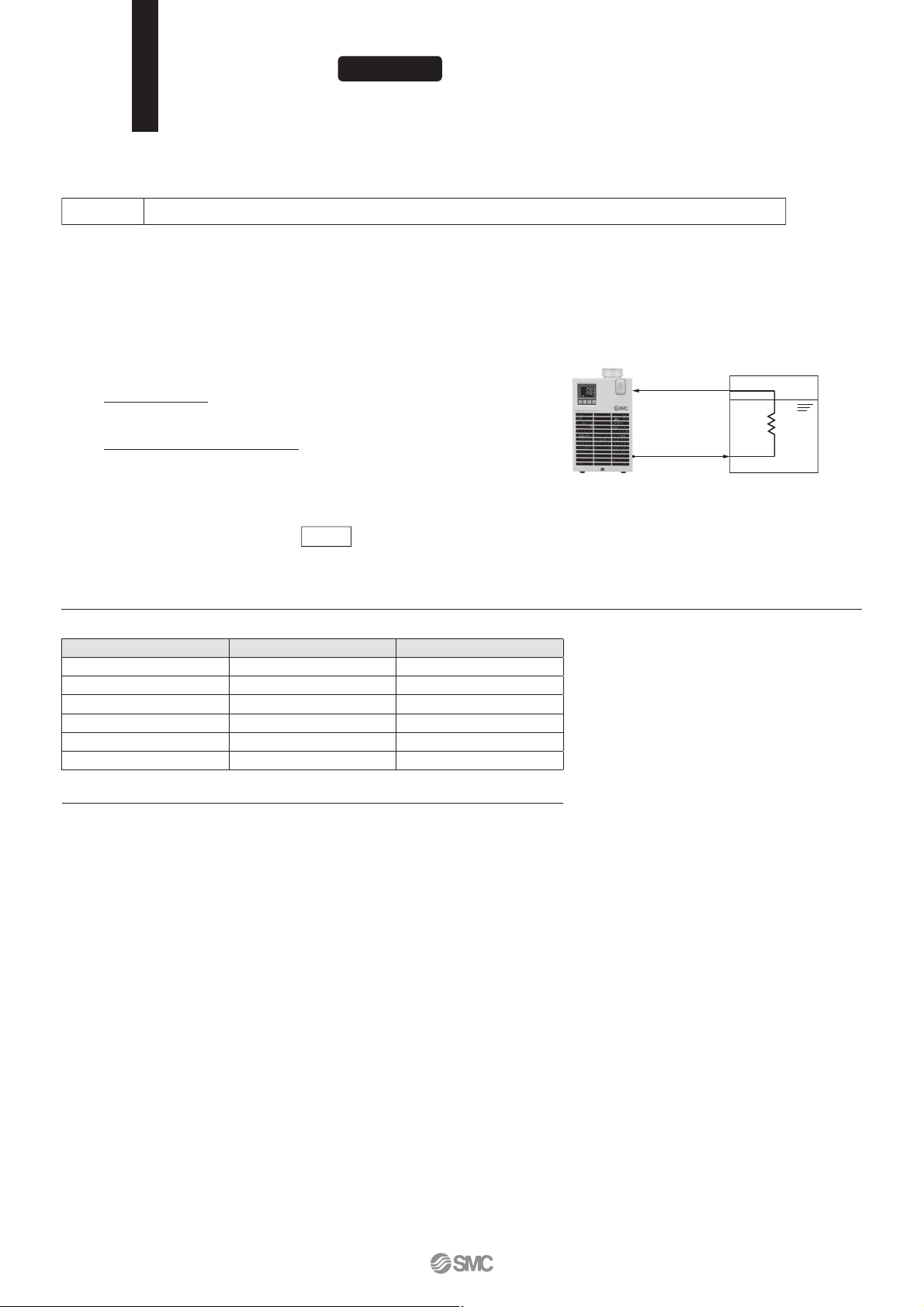

Cooling Capacity Calculation

Q = ΔT x V x 웂x C

h x 60 x 1000

10 x 2 x 1 x 103x 4.2 x 103

15 x 60 x 1000

= 93.3 W

Cooling capacity = Considering a safety factor of 20 %,

93.3 W x 1.2 = 112 W

After 15 min,

cool 30 °C down to 20 °C.

Water bath

Example When cooling the object below a certain temperature in certain period of time.

Cooled substance total volume V : 2 L

Cooling time h : 15 min

Cooling temperature difference ΔT : Temperature difference: 10 °C (10 K). Cool from 30 °C (303 K) to 20 °C (293 K).

Circulating ﬂuid : Tap water

Density 웂: 1 x 103kg/m3

Speciﬁc heat C: 4.2 x 103J/(kg·K)

∗Refer to the information shown below for the typical physical property values by circulating ﬂuid.

Circulating Fluid Typical Physical Property Values

Ethylene Glycol Solution 20 %

Water

Density 웂: 1 x 103[kg/m3] Speciﬁc heat C: 4.2 x 103[J/(kg·K)]

Air-cooled

20 °C V

002 220 W

Cooling capacity

AAir-cooled

Radiating method

624 VDC

Power supply

—None

PHigh-pressure pump mounted

Option

—Rc

NNPT thread

Pipe thread

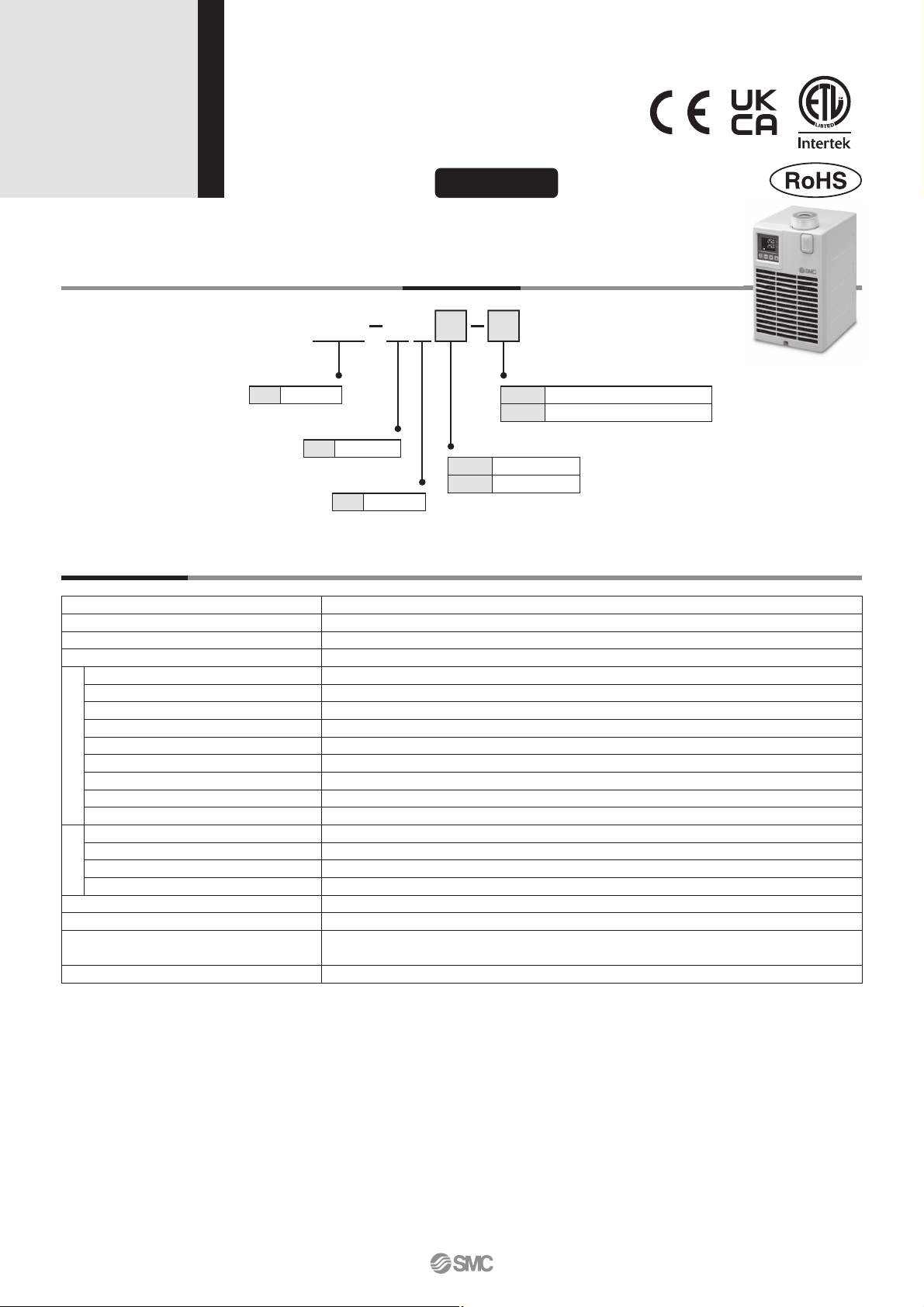

How to Order

Speciﬁcations

Cooling method Thermoelectric device (Thermo-module)

Radiating method Forced air cooling

Control method Cooling/Heating automatic shift PID control

Ambient temperature/humidity 10 to 35 °C, 35 to 70 % RH (No condensation)

Circulating ﬂuid system

Circulating ﬂuid Tap water, Ethylene glycol aqueous solution (20 % or less)

Set temperature range 10.0 to 60.0 °C (No condensation)

Cooling capacity 220 W (Tap water)∗1

Heating capacity 500 W (Tap water)∗1

Temperature stability ±0.1 °C∗2

Pump capacity Refer to the performance charts.

Tank capacity Approx. 110 mL

Port size Rc1/4

Fluid contact material Stainless steel, EPDM, NBR, Ceramics, PPE, PPS, Carbon, PP, POM

Electrical system

Power supply 24 VDC ±10 %

Power consumption 12.5 A (Peak current 18 A)

Alarm Refer to “Alarm.”

Communications RS-232C/RS-485

Weight Approx. 3.5 kg

Noise level 37 to 60 dBA

Accessories DC input power supply cable (1 m), Operation Manual

(The 24 VDC power supply should be prepared by the customer.)∗3

Safety standards CE/UKCA marking, UL (NRTL) standards

∗1 Conditions: Set temperature 25 °C, Ambient temperature 25 °C, Circulating ﬂuid ﬂow rate 1 l/min (For options, refer to the performance charts.)

∗2 The indicated values are when there is a stable load without turbulence. It may be out of this range depending on the operating conditions.

∗3 An AC adapter and a power supply cable suitable to this product are available as optional accessories.

For details, refer to the optional accessory (page 11).

Thermo-con/

Compact Type

HEF Series

HEF 002 A 6

Air-cooled

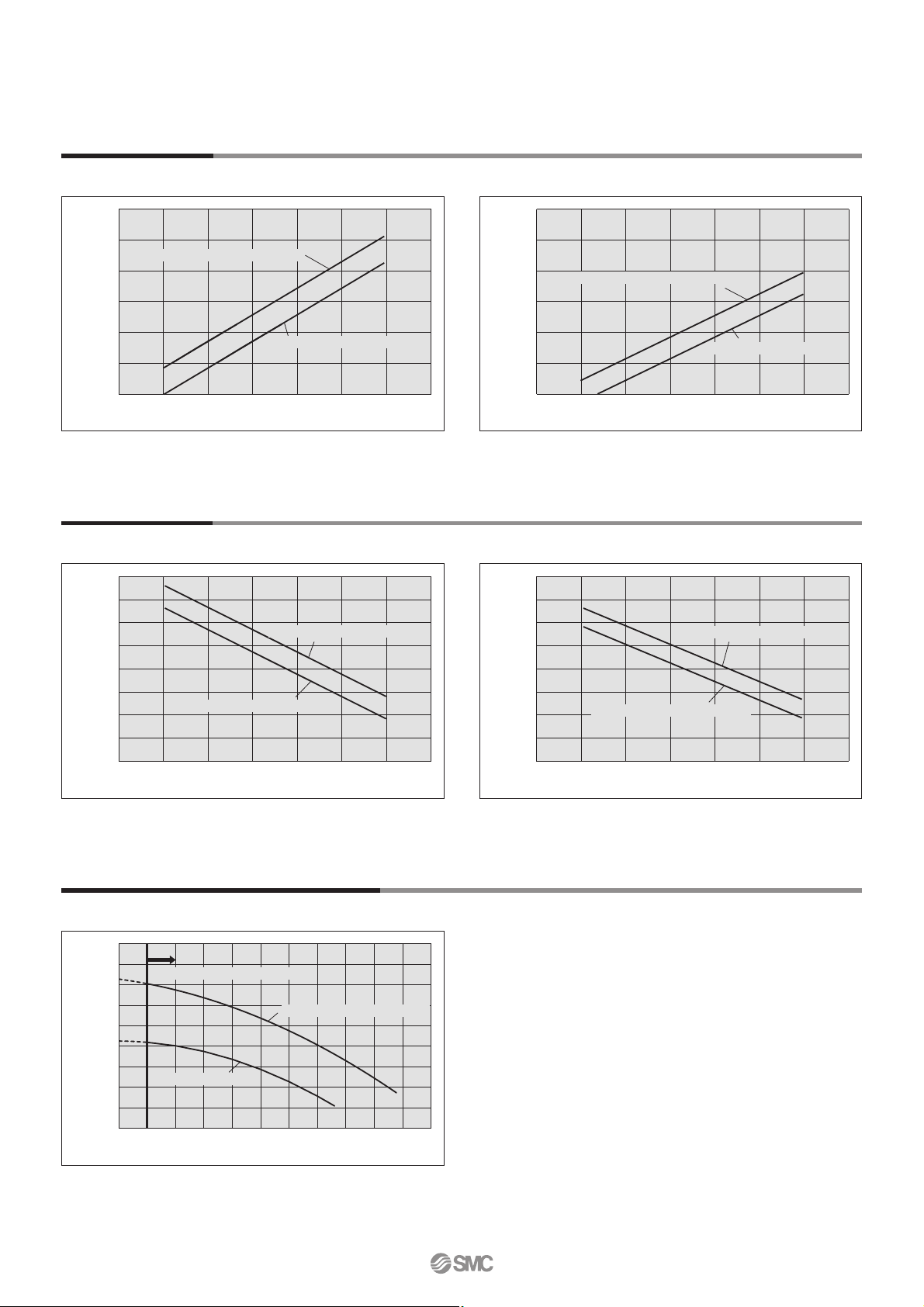

Cooling Capacity

Heating Capacity

Circulating ﬂuid: Water, Flow rate: 1 l/min

Circulating ﬂuid: Water, Flow rate: 1 l/min, When constant fan speed mode is selected

600

500

400

300

200

100

00 1020304050 60 70

800

700

600

500

400

300

200

100

00 1020304050 60 70

600

500

400

300

200

100

00 1020304050 60 70

800

700

600

500

400

300

200

100

00 1020304050 60 70

∗For the high-pressure pump (Option), the cooling capacity decreases by approx. 20 W.

∗For the high-pressure pump (Option), the heating capacity increases by approx. 10 W.

Pump Capacity (Thermo-con Outlet)

Circulating ﬂuid: Water

0.18

0.16

0.14

0.12

0.10

0.08

0.06

0.04

0.02

00 1 1.50.5 2 2.5 3 3.5 4 4.5 5 5.5

HEF Series

Circulating ﬂuid temperature [°C]

Circulating ﬂuid ﬂow rate [l/min]

Circulating ﬂuid temperature [°C]

Ambient temperature 25 °C

Ambient temperature 35 °C

Ambient temperature 25 °C

Ambient temperature 35 °C

Ambient temperature 25 °C

Allowable operating range

High-pressure pump (Option)

Standard pump

Ambient temperature 35 °C

Ambient temperature 25 °C

Cooling capacity [W]Cooling capacity [W]Discharge pressure [MPa]

Cooling capacity [W]Cooling capacity [W]

130

150

115

110

100

185

163

148 40

110

9020

(10)

(20)

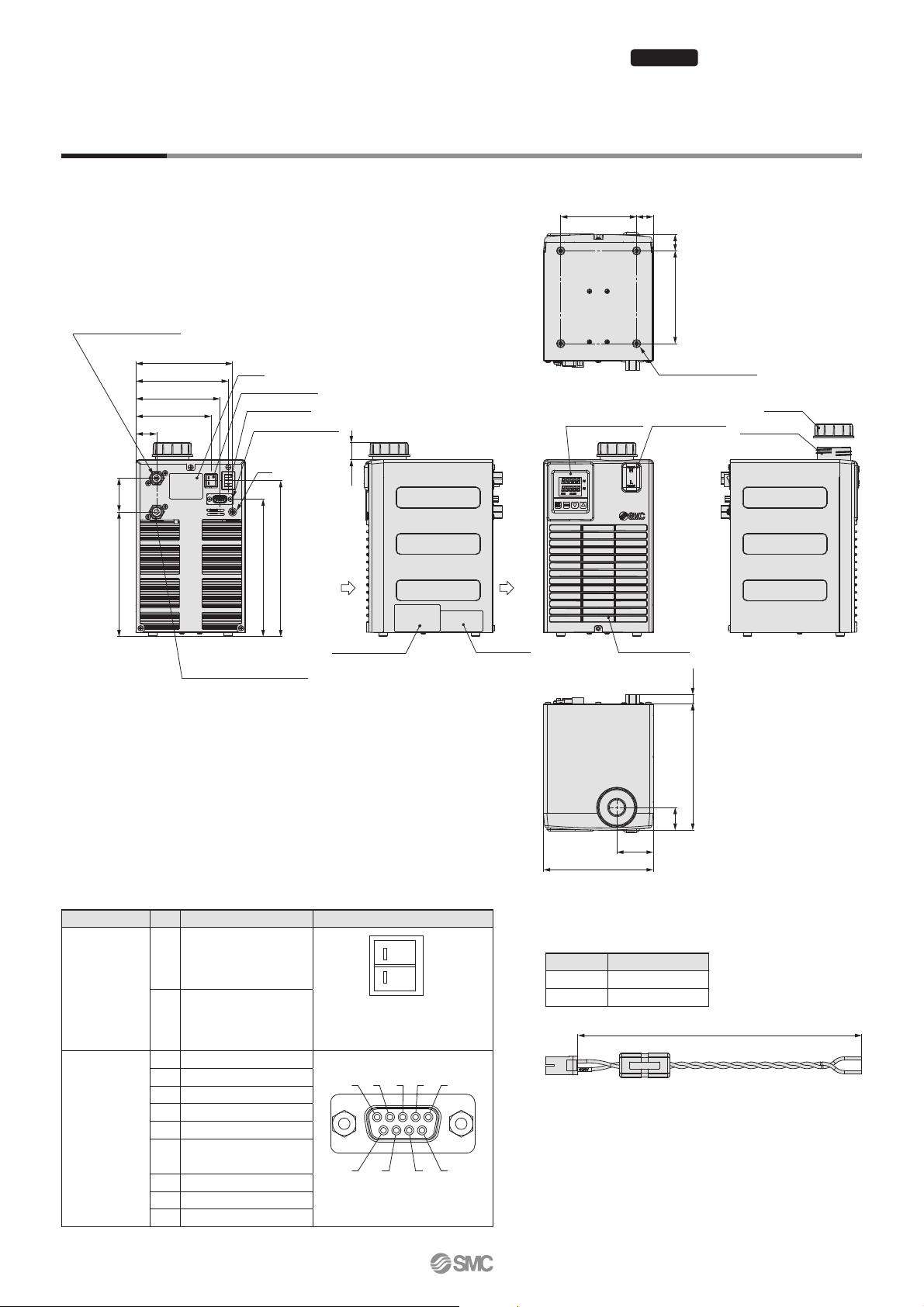

Dimensions

Connector

Connector name

No. Signal contents Connector type/Part no.

Power

connector

124 VDC +

J.S.T. Mfg. Co., Ltd.

JFA connector J4000 series

SC02B-J42SK-GHXR

224 VDC −

Alarm,

RUN/STOP,

Communication

connector

1RS-485 BUS +

12345

9876

D-sub 9 pin (socket type)

Holding screw: M2.6

2RS-232C RD

3RS-232C SD

4RUN/STOP signal input

5SG

Output cutoff alarm

(open when alarm occurs)

Common for output cutoff alarm

8RUN/STOP signal input

9RS-485 BUS −

Power Cable (Accessory)

Connector: J42FSC-02V-KX (J.S.T. Mfg Co., Ltd.-made)

Cable: 16AWG

Wire colour Contents

Brown 24 VDC +

Blue 24 VDC −

(1000)

Thermo-con/Compact Type Air-cooled HEF Series

Circulating ﬂuid OUT

Rc1/4

Circulating ﬂuid IN (drain)

Rc1/4

Model no. label

Tank lid

Rubber legs (4 pcs.)

Label

Power connector

Power switch

Alarm, RUN/STOP

Communication

connector

Fluid ﬁll port

Dustproof ﬁlter

Display/

Operation panel

Circulating ﬂuid

level gauge

NRTL label

Air Air

Alarm

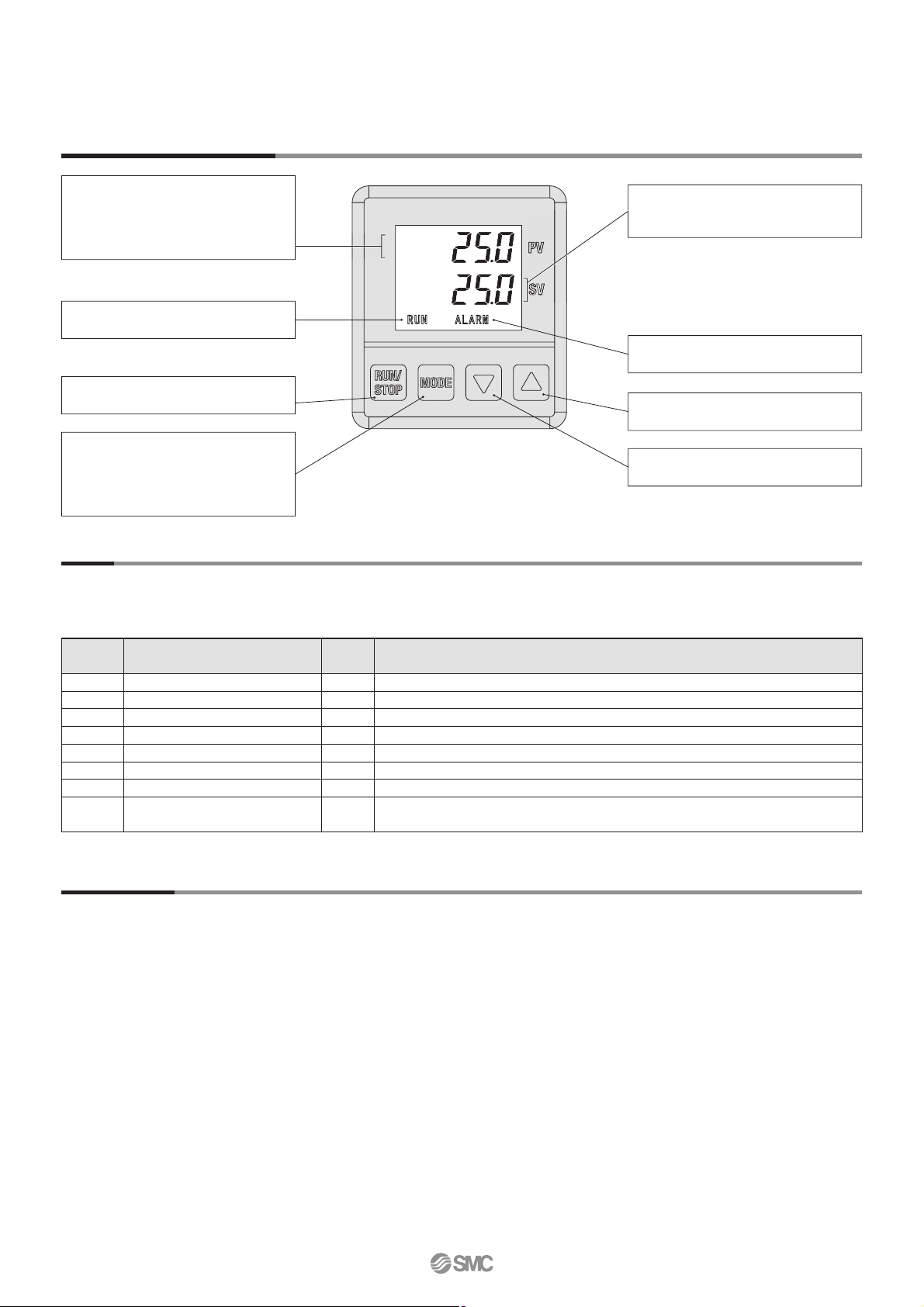

Operation Display Panel

This product can display eight types of alarm codes and they can be read using serial communication.

In addition, it can relay output as an alarm contact output when an alarm is generated.

RUN/STOP key

For switching the control status (RUN/STOP)

1st line

Displays the current temperature value

[PV]

Displays the alarm code when an alarm

is generated

RUN display

Turns on during control status (RUN status)

2nd line

Displays the setting temperature value

[SV] and each selected input value

왖key (UP key)

Increases set data

ALARM display

Turns on when the unit is alarming

MODE key

For switching the screen

It can be switched between the parameter

screen and operation mode screen when

it is pressed for two seconds.

왔key (DOWN key)

Decreases set data

Maintenance

The maintenance of this unit can only be performed by returning it to be repaired at one of SMC’s sites. As a rule, SMC will not

conduct on-site maintenance.

Alarm

Alarm code

Alarm description

Operation

status

Main reason

AL0 Memory error Stop There is an abnormality with the memory data in the controller due to a high level of noise.

AL1 Controller error Stop There is an abnormality with the data in the controller due to a high level of noise.

AL2 Temp. sensor disconnection alarm Stop The temperature sensor has been disconnected or short-circuited.

AL3 Temp. sensor short circuit alarm Stop There is a short-circuit in the temperature sensor.

AL4 Temp. sensor high temp. error alarm Stop The temperature sensor has exceeded the high temperature cutoff setting.

AL5 Temp. sensor low temp. error alarm Stop The temperature sensor has exceeded the low temperature cutoff setting.

AL6 Low fluid level alarm Stop The amount of circulating fluid in the tank has dropped.

AL7 Thermostat alarm Stop The thermostat has activated due to clogging of the heat sink of the filter or product, or failure

of the fan or pump.

HEF Series

Table des matières

Autres manuels SMC Networks Refroidisseur

SMC Networks

SMC Networks HRL Series Manuel utilisateur

SMC Networks

SMC Networks HRS090 Series Manuel utilisateur

SMC Networks

SMC Networks HRR050-A-20 Series Manuel utilisateur

SMC Networks

SMC Networks HRZ002-WS-F Manuel utilisateur

SMC Networks

SMC Networks HRR018-A-10 Series Manuel utilisateur

SMC Networks

SMC Networks HRSE018-A Manuel utilisateur

SMC Networks

SMC Networks HRL100-A Manuel utilisateur

SMC Networks

SMC Networks HRLE Series Manuel utilisateur

SMC Networks

SMC Networks HRR010-A-10 Series Manuel utilisateur

SMC Networks

SMC Networks HRS100-A 46 Series Manuel utilisateur

SMC Networks

SMC Networks HRR012-A-10 Series Manuel utilisateur

SMC Networks

SMC Networks EX510-GDN1 Manuel utilisateur

SMC Networks

SMC Networks HRS-040 Mode d’emploi

SMC Networks

SMC Networks HRS100-A?-20-? Manuel utilisateur

SMC Networks

SMC Networks HRL300-A*-20 Series Manuel utilisateur

SMC Networks

SMC Networks HECR Series Manuel utilisateur

SMC Networks

SMC Networks HRSH200-A*-20 Series Manuel utilisateur

SMC Networks

SMC Networks HRS Series Manuel utilisateur

SMC Networks

SMC Networks Thermo-con INR-244-831 Manuel utilisateur

SMC Networks

SMC Networks Series HRS012-A Manuel utilisateur

SMC Networks

SMC Networks HRS100 Series Manuel utilisateur

SMC Networks

SMC Networks HRL100-A*-20 Series Manuel utilisateur

SMC Networks

SMC Networks HRSH Series Series Manuel utilisateur

SMC Networks

SMC Networks HRS012-A*-10-* Manuel utilisateur

Manuels Refroidisseur populaires d'autres marques

Aqua Optima

Aqua Optima Corona Manuel utilisateur

York

York YGWH 115 Mode d’emploi

Galletti

Galletti PERFORMA MPE Series Manuel utilisateur

Daikin

Daikin EWAQ016CAW Manuel utilisateur

Trane

Trane CVHE Mode d'emploi

Moffat

Moffat Friginox TSR-11SC Manuel utilisateur

Gree

Gree GWH07AGA-K6DNA1C Manuel utilisateur

Denali

Denali M1 Manuel utilisateur

MP Systems

MP Systems PURGE Series Manuel utilisateur

AEC

AEC PCA SERIES Fiche technique

Carrier

Carrier AquaEdge 19XRV series Mode d'emploi

Telemark

Telemark TVP-2000 Manuel

TICA

TICA MINI VRF CHR Series Manuel utilisateur

Penguin

Penguin COLD THERAPY CHILLER Manuel utilisateur

MAXA

MAXA A68 Manuel utilisateur

SABROE

SABROE ChillPAC Manuel utilisateur

Daikin

Daikin EWWQ-AJYNN Manuel utilisateur

AERMEC

AERMEC NRL FC 2000 Manuel utilisateur
