SMC Networks EZ Connect N SMCWUSB-N2 Manuel utilisateur

OVERVIEW

The EZ Connect™ N 802.11n Wireless USB2.0 Adapter (SMCWUSB-N2) enables Wireless-N connectiv-

ity to your desktop or notebook computer and provides improved throughput and range than existing

802.11g technology. The SMCWUSB-N2 is 802.11n draft v2.0 compliant while maintaining full backwards

compatibility with the Wireless-G (802.11g) and Wireless-B (802.11b) standards. It utilizes advanced MIMO

(Multiple-In, Multiple-Out) technology to deliver incredible speed and range. With wireless speeds up to

300Mbps and extended coverage, there is enough bandwidth to simultaneously stream video and audio, play

online games, transfer large ﬁles, make VoIP calls and surf the Internet. With security being a key consider-

ation, SMCWUSB-N2 supports the latest WPA and WPA2 wireless encryption standards, which prevent un-

authorized access to wireless networks and ensure data is secure. Wireless security can also be set up easily

using Wi-Fi Protected Setup™ (WPS) that enables push button (PBC) or PIN conﬁguration. The SMCWUSB-

N2 includes an easy installation wizard which guides you step-by-step through the process. Once installed

the WLAN utility allows you to scan for available wireless networks and manage multiple network proﬁles so

connecting becomes instantaneous.

www.smc.com

SMCWUSB-N2

EZ Connect™ N 802.11n Wireless USB2.0 Adapter

10G FIBER

1G FIBER

10G COPPER

1G COPPER

10/100

PoE

PHONE CABLES

WIRELESS

LEGEND

10G FIBER

1G FIBER

10G COPPER

1G COPPER

10/100

PoE

WIRELESS

LEGEND









































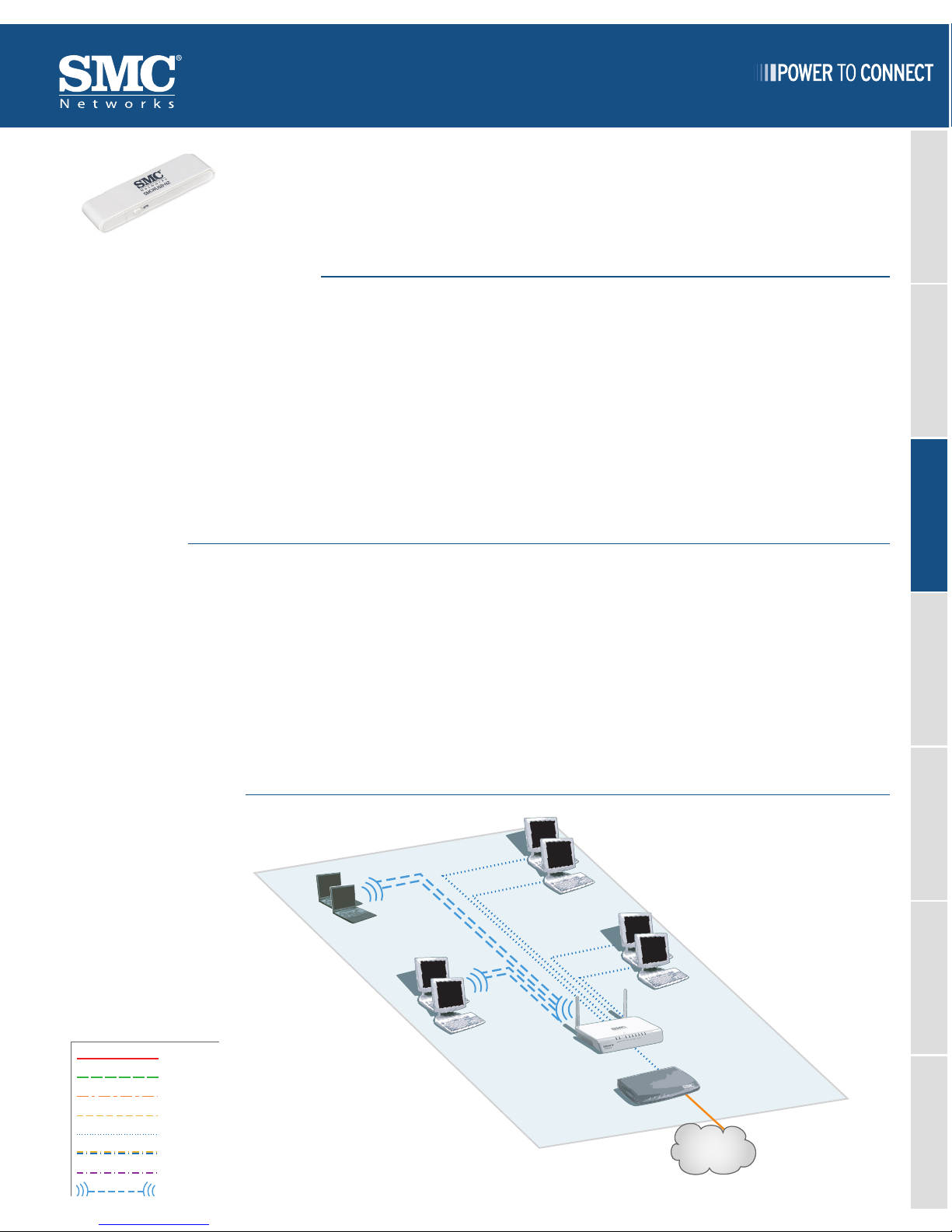

APPLICATION DIAGRAM

POWER TO CONNECT

KEY FEATURES

Wireless-N (802.11n draft v2.0) compliant WPA/WPA2 Encryption

Delivers speeds up to 300Mbps and extended coverage. Perfect

for streaming video and music, online gaming and networking

multiple PC’s. Fully backwards compatible with Wireless-G and

Wireless-B products.

Prevents unauthorized access to your wireless network and

ensures your data is secure.

Wi-Fi Protected Set-up™ (WPS) Installation Wizard

Makes wireless security setup easy with push button (PBC) or PIN

conﬁguration.

Easy installation with step-by-step guidance.

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

INTERFACE

• USB 2.0 Interface

EASE OF USE

• EZ Installation Wizard

SECURITY FEATURES

• WEP 64-/128-bit Encryption

• WPA-/WPA2-PSK (Pre Shared Key)

• WPA/WPA2 Enterprise mode (802.1x)

• Wi-Fi Protected Setup™ - PBC and PIN

STANDARDS

• IEEE802.11b, IEEE802.11g, IEEE802.11n draft v2.0

OPERATING SYSTEM SUPPORT

• Windows 2000, XP, Vista

LED INDICATOR

• Link/Activity Status

ANTENNA TYPE

• Internal Omni-directional antenna, 2x2 MIMO

OPERATING FREQUENCY

• FCC: 2412~2462MHz (Ch1~Ch11)

• ETSI: 2412~2472MHz (Ch1~Ch13)

MAX. OUTPUT POWER EIRP

• 20dBm

TEMPERATURE

• Operating: 0 ~40°C (32 ~104°F)

• Storage: -20 ~ 70°C (-4 ~158°F)

HUMIDITY

• Storage: 5% to 95% Non-condensing

• Operating: 10% to 90% Non-condensing

DIMENSIONS

• 93.5 x 26 x 11mm

• 3.7 x 1.0 x 0.4 in

WEIGHT

• 0.023kg

• 0.8 oz

CERTIFICATIONS

• FCC

• CE

SYSTEM REQUIREMENTS

• 2.4 GHz 802.11n draft wireless network or 2.4 GHz 802.11b/g

wireless network

• Microsoft Windows 2000 , XP or Vista

• A Notebook or Desktop computer with:

• 300MHz CPU or above

• Available USB2.0 port

• 20MB of available hard disk space

• CD-ROM drive

• We recommend using this product with SMC’s Barricade™ N Routers

PACKAGE CONTENTS

• EZ Connect™ N 802.11n Wireless USB2.0 Adapter (SMCWUSB-N2)

• EZ Installation Wizard & Documentation CD

• USB2.0 Extension Cable

• Quick Installation Guide

• Warranty Information Card

WARRANTY

• Please check www.smc.com for the warranty terms in

your country/region.

CONTACT

North America

20 Mason

Irvine, CA 92618

1-800-SMC-4YOU

24/7 Technical Support

Europe/Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despí

Barcelona, Spain

Check www.smc.com for your local country

contact information

of SMC Networks in the United States or other countries. Other trademarks

or registered trademarks are the property of their respective owners. Infor-

10/2009

www.smc.com

TECH SPECS - SMCWUSB-N2
