Smartrise C4 Manuel d'installation et d'exploitation

CONTROLLER GROUNDING REQUIREMENTS

NOTE – For the controller to function properly it is very important to provide

proper building ground connections to the controller.

Examples of a proper building-to-controller ground connection is to attach the

ground cable to:

•The street side of the incoming water main.

•To a grounding rod that has been driven into the pit flooring.

The controller has a common ground bus terminal connection.

•All grounds need to land at this common point including building, motor,

transformer, and filter grounds. This prevents ground loops, and will limit the

impedance between the grounds and noise will be channeled back to

building ground.

Providing a proper ground is mandatory and will improve the performance

of the controller.

TABLE OF CONTENTS

CONTROLLER GROUNDING REQUIREMENTS...................................................2

TABLE OF CONTENTS...................................................................................................3

MAGNETEK DSD 412 DRIVE .......................................................................................4

WIRING .................................................................................................................................................................5

CONSTRUCTION ...............................................................................................................................................6

CONSTRUCTION CONNECTIONS............................................................................................................... 7

POWERING UP ..................................................................................................................................................8

MAGNETEK DSD412 SETUP .......................................................................................9

DRIVE POWER-UP SEQUENCE ............................................................................................................... 10

ABNORMAL DISPLAY CONDITIONS....................................................................................................... 10

FAN CHECK ........................................................................................................................................................11

VERIFY PARAMETERS .................................................................................................................................12

MAGNETEK DSD412 DRIVE SELF TUNE PROCEDURE............................... 13

SHUDDERING AT HIGH SPEED.................................................................................................................14

OPERATION.......................................................................................................................................................15

TROUBLESHOOTING......................................................................................................................................16

APPENDIX ......................................................................................................................... 17

MAGNETEK DSD 412 DRIVE

EQUIPMENT/SETTINGS VERIFICATION

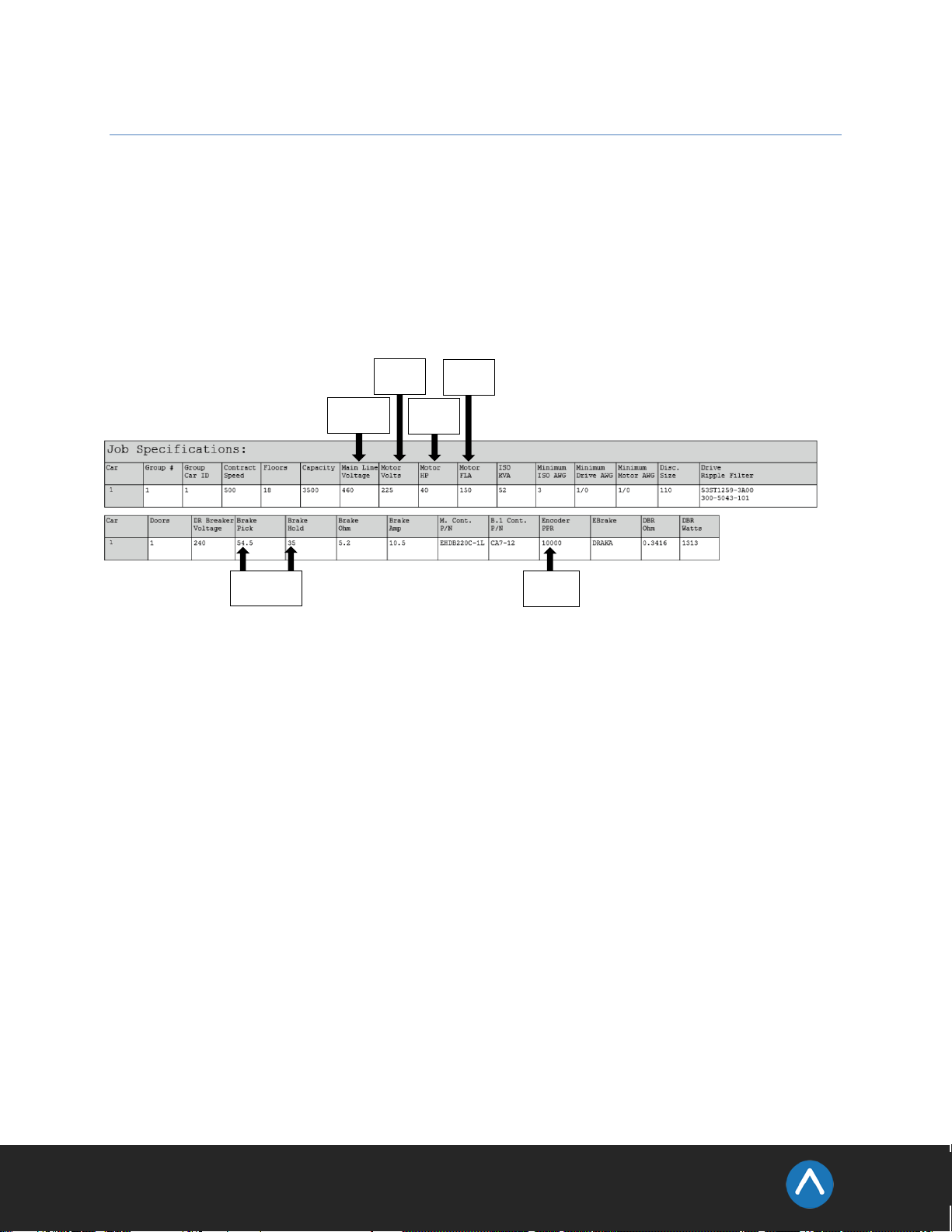

Verify that the Job Specification parameter table on the drawings “Sheet 1:

Getting Started” matches the actual equipment.

Below is a sample table showing the important values that will affect

operation.

Motor

Amps

Brake Volts

Pick/Hold

Encoder

PPR

Sample: Sheet 1: - Getting Started

Main Line

Volts

Motor

Volts

WIRING

(Check off box when complete)

** Refer to the Appendix for the following connections **

Power – (Sheet 3: Machine Room connections)

Connect main line power to terminal block L1/L2/L3.

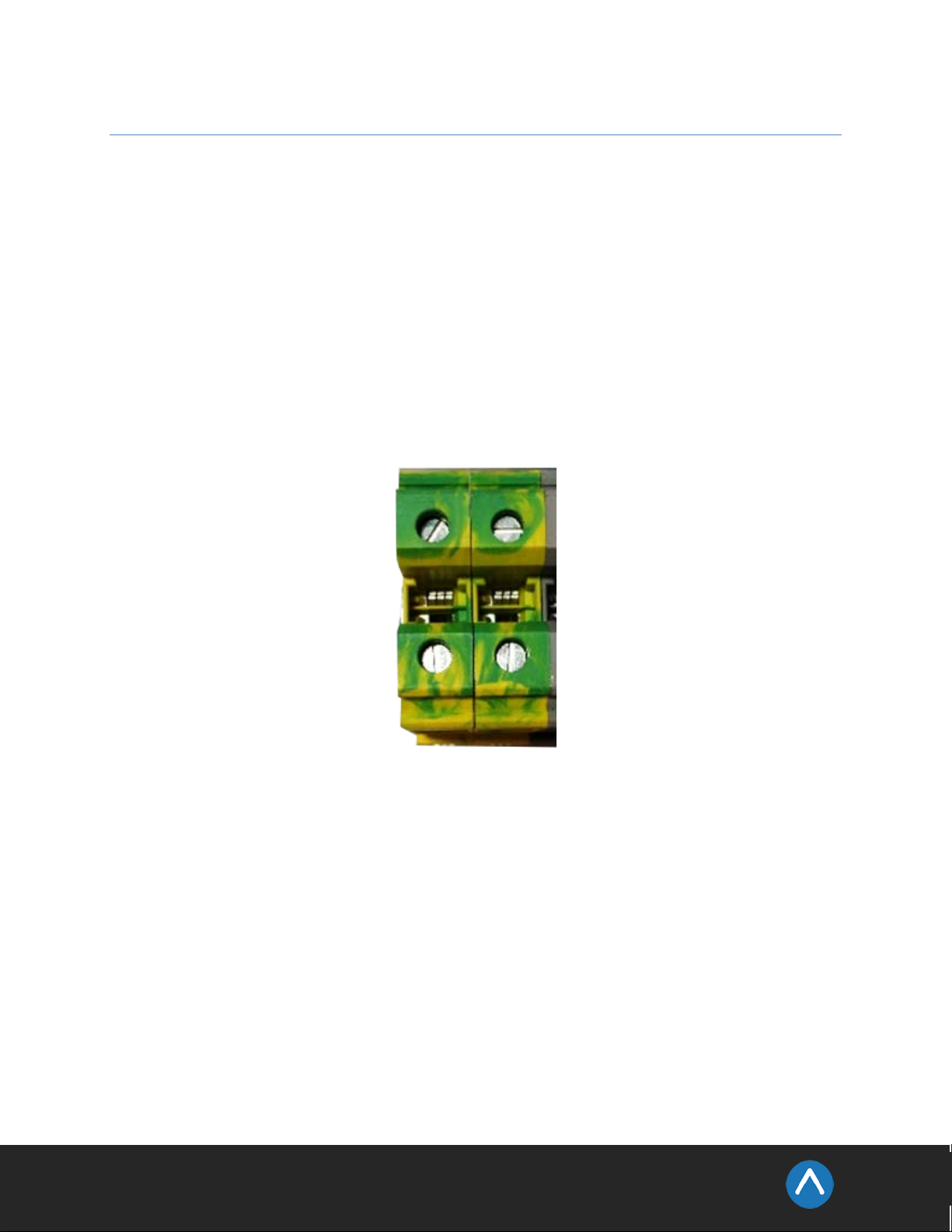

Connect the ground wire to the yellow/green terminal block next to

L1-L3.

Brake – (Sheet 5: Brakes)

Connect the main brake wiring to terminals K1 / K2 and the secondary

brake wiring (if equipped) to terminals J1 / J2 located on the terminal

block next to the M contactor.

Motor / Encoder – (Sheet 4: Drive and Motor)

Connect motor leads to the M contactor at T1/T2/T3.

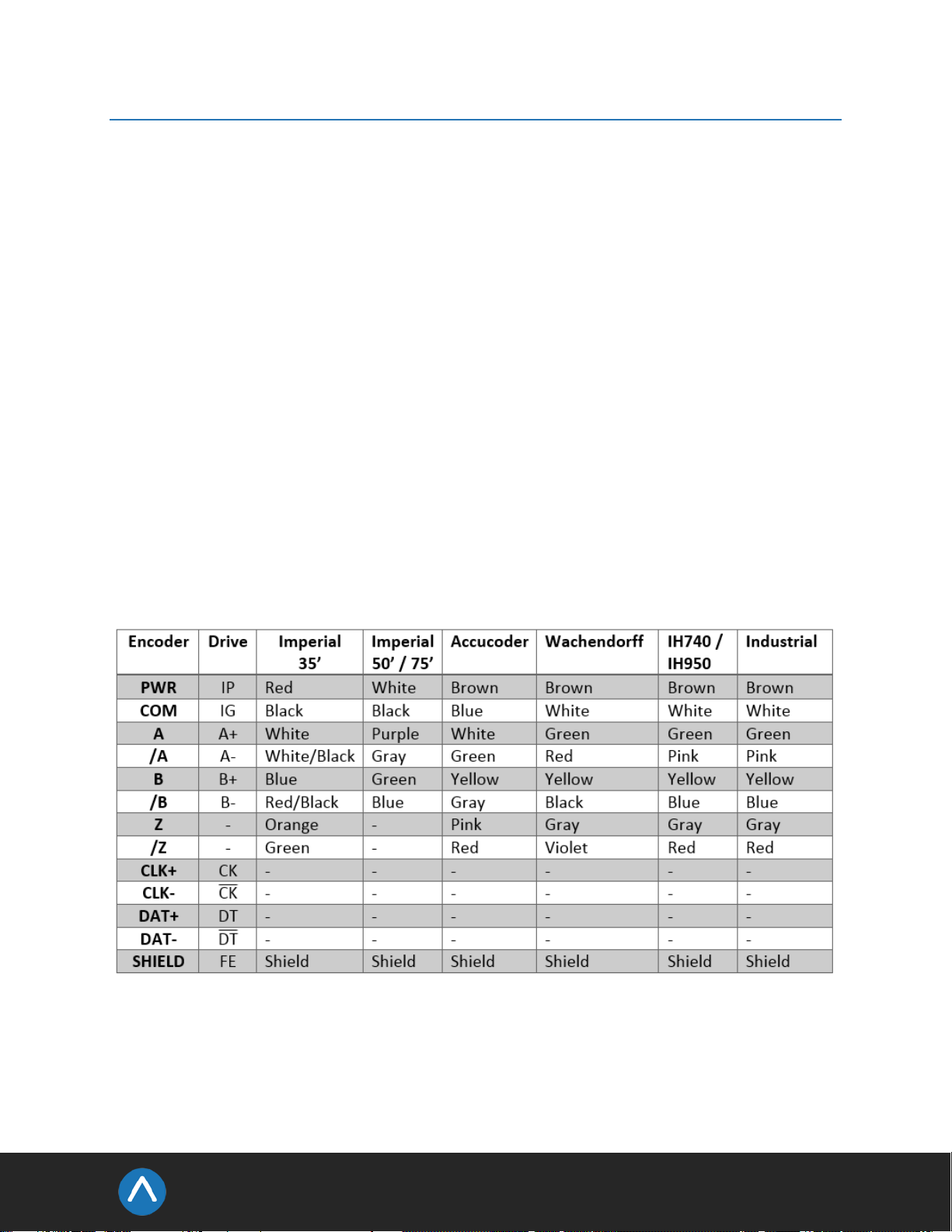

Connect the encoder cable to the TB1 encoder terminal block located

under the lower cover. The following table contains wiring

references for common encoders.

CONSTRUCTION

(Sheet 1: Construction)

The following instructions are from the job drawings: “Sheet 1 – Construction”.

Refer to the job’s specific drawings for connections.

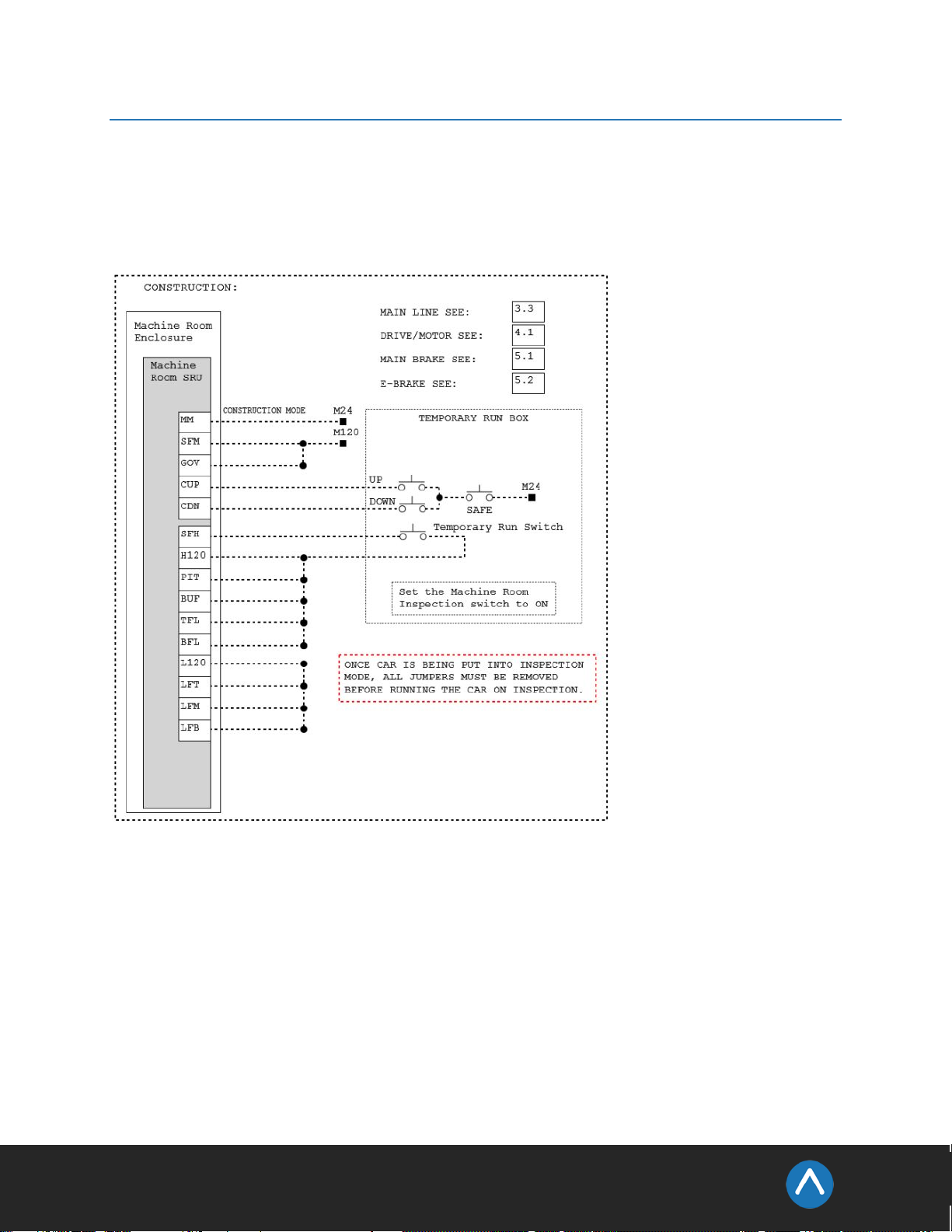

Construction Box from Sheet 1 – (Sample)

CONSTRUCTION CONNECTIONS

All Safety inputs are functional during construction mode on the “C4”

product. When these devices are installed they should be connected per

sheet 2 of the prints, even if still on construction mode. The following will

assume that none of these devices have been installed prior to beginning

on construction mode.

Connect a jumper from L120 to terminals LFT, LFM, LFB. Do the same for

LRT, LRM, and LRB if you have rear doors.

Connect a jumper from H120 to PIT, BUF, BFL, TFL, and SFH.

Connect M120 through your machine room run/stop switch and connect it

to SFM. A closed switch will indicate run; an open switch will indicate stop.

If no run/stop switch is being used just connect M120 to SFM.

Connect your run bug. Wire the up button to input CUP and the down to

input CDN. If no run bug is being used, leave the inputs unwired.

Connect a jumper from 24VDC to MM.

Verify the car door bypass and Hoistway bypass switches are in the off

position.

Place the inspection switch to “Inspection”.

POWERING UP

(Check off box when complete)

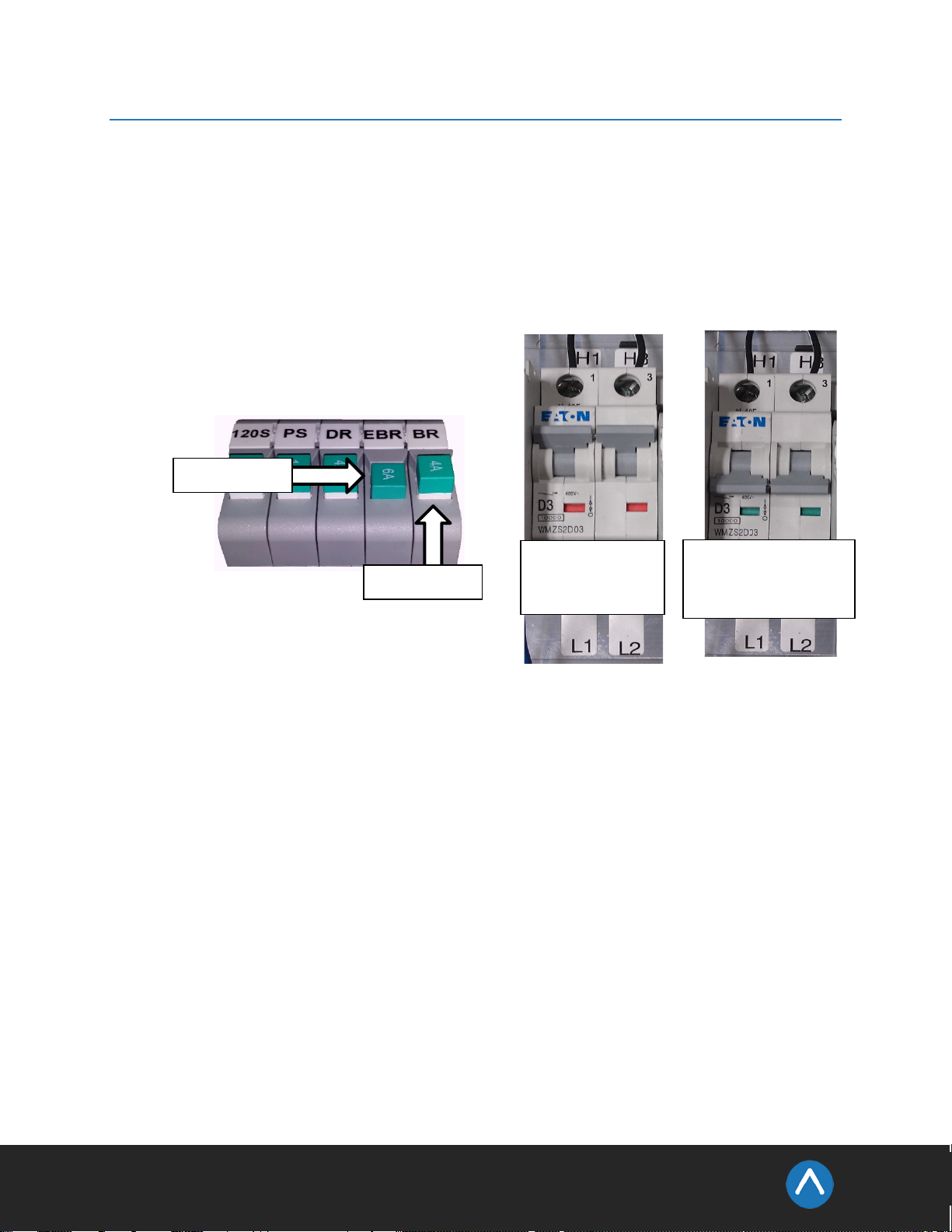

Apply external power by closing the main disconnect.

Close all the pushbutton breakers.

Verify that the LCD on the Smartrise board and the Magnetek Drive

come on.

Green in Window

OFF

Red in Window

Up = OFF

Down = ON

MAGNETEK DSD412 SETUP

Refer to the recommended connections shown in the connection diagrams.

Attach a voltmeter across the 115vac source for the control power supply at

A4TB3-1 & A4TB3-7.

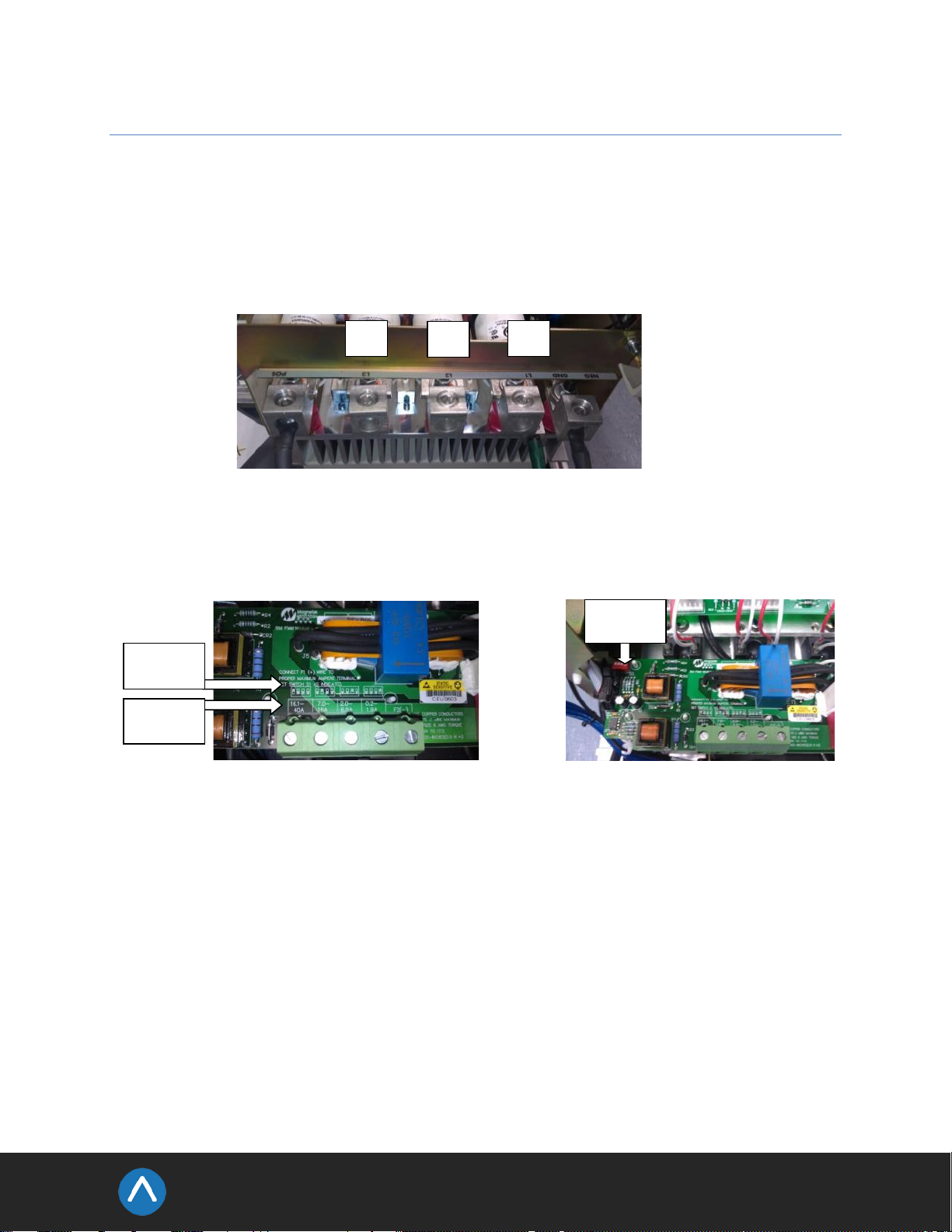

1. Attach L1, L2 & L3 to the corresponding terminals on the drive.

2. Connect the armature wiring to the terminal block according to the

amperage rating listed on the motor. Make sure to set the dipswitch to the

value that matches the amperage rating.

Dip Switch

Location

Amperage

Setting

Dip Switch

Setting

3. If you haven’t already done this, connect the encoder to TB1 using the color

codes provided by the manufacturer or the reference tables in the manual.

4. Apply the control and three-phase power and verify that the control power

is between 103vac and 126vac. Then press the RESET push button on the

front of the power cube, and observe the drive power-up sequence as

described below.

DRIVE POWER-UP SEQUENCE

The power up sequence can be observed by monitoring the Standard

Control/Display Unit (SCDU) on the front of the power cube.

1. First, all of the segments on the digital LED display and all of the LEDs will

come on for about 1 second.

2. Next, the LEDs and display should turn off. The drive will perform internal

checks. The SCDU will display 'tESt' while a self-test is being performed.

3. If the drive passes the self-test, then the SCDU will display 'P-UP'.

4. READY LED will light.

ABNORMAL DISPLAY CONDITIONS

Displays other than those mentioned above may occur. The following is a list of

abnormal display conditions that may occur, and the actions necessary to correct

the situation:

1. If no digits or LEDs light up, then check for proper voltage between the

115vac control power lines, or for blown 115vac control power fuses, or for

a defective Control Voltage Power Supply in the power cube.
