SMART-AVI DV-SW8-P Manuel utilisateur

DV-SW8-P

Quick Start Guide

A full Manual can be downloaded from

www.smartavi.com/DV-SW8-P/

TECHNICAL SPECIFICATIONS

VIDEO

Format DVI Dual Link; DVI Single-Link; VGA

Maximum Pixel Clock 165 MHz

Input Interface (8) DVI-I 29-pin

Output Interface (1) DVI-I 29-pin

Resolution

DVI Dual-Link: 2560 x 1600;

DVI Single-Link: 1920 x 1200;

VGA: 1920 x 1080

DCC 5 volts p-p (TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

AUDIO

Input (8) 3.5 mm Stereo Audio

Output (1) 3.5 mm Stereo Audio

Impedance 600 Ohm

Frequency Response 20 Hz to 20 kHz

Nominal Level 0-1.0 V

Common Mode Rejection at 60 dB

CONTROL

Front Panel Push Buttons with LED Indicators

RS-232 Via Control @ 9600 bps

OTHER

Power External 100-240 VAC/ 12VDC2A

@ 36W

Dimensions 17.0” W x 1.76” H x 8.69” D

Weight 6.3 lbs

Approvals UL, CE, ROHS Compliant

Operating Temperature +32 to +104°F (0 to +40°C)

Storage Temperature -4 to 140°F (-20 to +60°C)

Humidity Up to 80% (No Condensation)

WHAT’S IN THE BOX

PART NO. QTY DESCRIPTION

DV-SW8-P-S 1 8-Port DVI-I Dual Link Switch

with Audio

PS12VD2A-

WLLMNT 1 12V DC, 2A power adapter with

center-pin positive polarity.

1 Quick Start Guide

NOTICE

The information contained in this document is subject

to change without notice. SMART-AVI makes no war-

ranty of any kind with regard to this material, includ-

ing but not limited to, implied warranties of merchant-

ability and fitness for particular purpose. SMART-AVI

will not be liable for errors contained herein or for

incidental or consequential damages in connection

with the furnishing, performance or use of this materi-

al. No part of this document may be photocopied,

reproduced, or translated into another language with-

out prior written consent from SMART-AVI, Inc.

Toll Free: (800) AVI-2123

Phone: (702) 800-0005

2455 W. Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

smartavi.com

8 Port DVI-I Video

and Audio Switch

with Serial Control

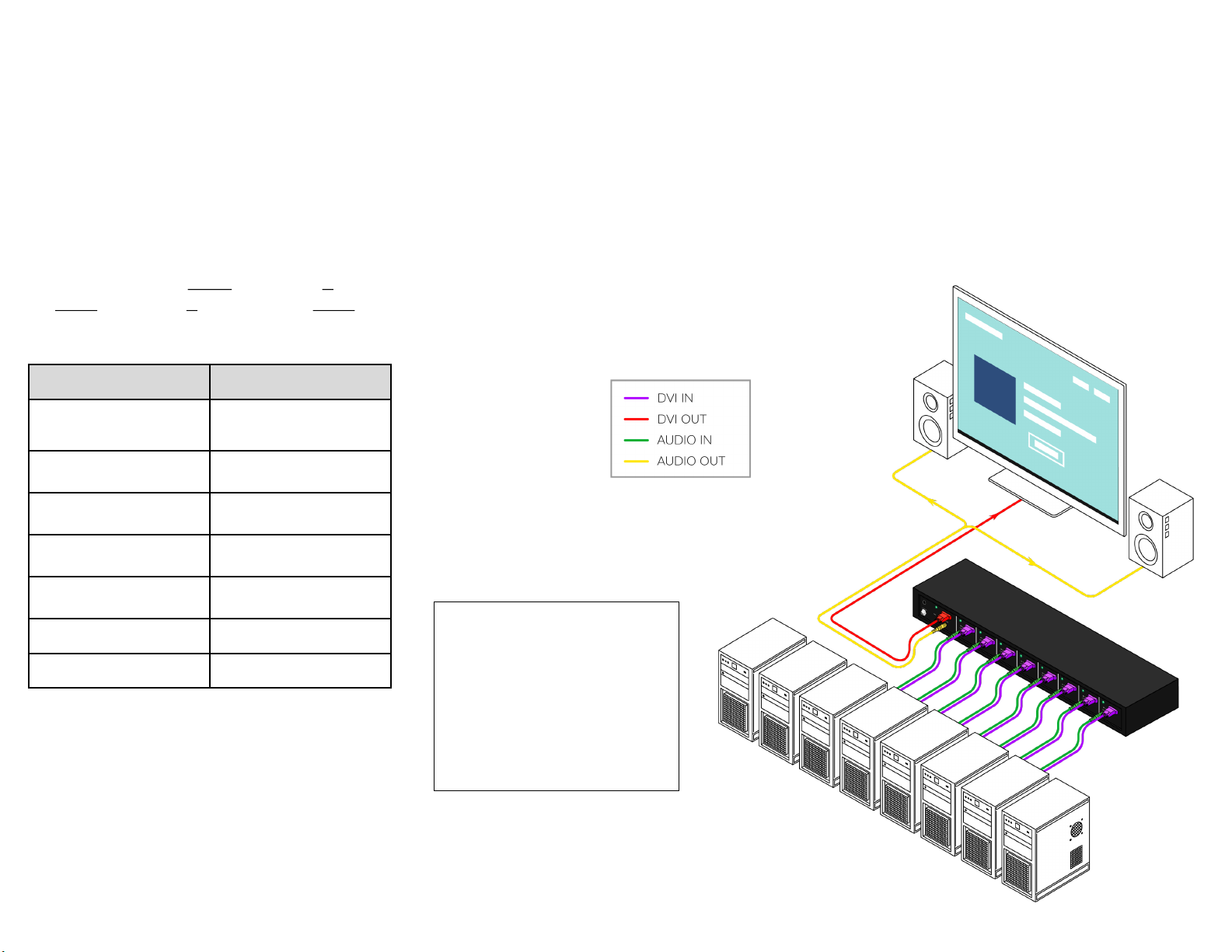

HARDWARE INSTALLATION

1. Ensure that power is turned off or disconnected from the unit and the computers.

2. Use DVI cables to connect the DVI output ports from each computer to the corresponding

DVI-I IN ports of the unit.

3. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of

the computers to the AUDIO IN ports of the unit.

4. Connect monitors to the DVI-I OUT console port of the unit using a DVI cable.

5. Optionally connect stereo speakers to the AUDIO OUT port of the unit.

6. Finally, power on the KVM by connecting a 12VDC power supply to the power connector, and

then turn on all the computers.

EDID LEARN

The Switch is designed to learn a connected

monitor’s EDID upon power up. In the event

of connecting a new monitor to the Switch, a

power re-cycle is required.

SYSTEM CONTROL

There are two ways to control the DV-SW8-P:

RS-232 Serial Commands, and Front Panel

Buttons.

The settings for the serial connection are as

follows: Baud rate: 9600; Data Bits: 8; Pari-

ty: None; Stop Bits: 1; Flow Control: None.

The following commands can be used:

Command RS-232

Switch Video

and Audio //m [port #] [ENTER]

Switch Audio Only //a [port #] [ENTER]

Switch Video Only //c [port #] [ENTER]

Learn EDID //e [port #] [ENTER]

Trigger Hotplug //h [port #] [ENTER]

Reset Software //r [port #] [ENTER]

Input Status //?? [port #] [ENTER]

VGA SUPPORT

To use the DV-SW8-P with a

VGA device, the monitor must

also support analog signals.

Once this is affirmed, you can

connect the VGA monitor and

PC to the DV-SW8-P using

passive VGA to DVI adapters.
