SMART-AVI DVN-16Pro Manuel utilisateur

16-Port DVI-D KVM Switch

with USB 2.0 and Audio

ACCESS AND CONTROL

16 COMPUTERS USING

ONLY ONE USB KEYBOARD,

USB MOUSE AND

DVI-D MONITOR

Quick Start Guide

VIDEO

Format DVI-D Single Link, DVI 1.0

Maximum Pixel Clock 165 MHz

Input Interface (16) DVI-D 29-pin

Output Interface (1) DVI-D 29-pin

Resolution Up to 1920 x 1200 @60Hz

DDC 5 volts p-p (TTL)

Input Equalization Automatic

Input Cable Length Up to 20 ft

Output Cable Length Up to 20 ft

AUDIO

Input Interface (16) 3.5 mm Stereo Audio

Output Interface (1) 3.5 mm Stereo Audio

Impedance 600 Ohm

Frequency Response 20 Hz to 20 kHz

Nominal Level 0-1.0 V

Common Mode Rejection at 60 dB

USB

Signal Type USB 2.0, 1.1, and 1.0

w/ internal hub

Input Interface (16) USB Type B

Output Interface (2) USB 1.1 Type A for KVM Devices;

(2) USB 2.0 Type A Transparent

CONTROL

Front Panel Tactile Switch,

with Seven Segment Display

RS-232 Via Control @ 9600 bps N,8,1,

No Flow Control

Hot Keys Via Keyboard

OTHER

Power External 100-240 VAC/ 5VDC4A

Dimensions 16.9” W x 3.5” H x 7“ D

Weight 5.1 lbs.

Approvals UL, CE, ROHS Compliant

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

Emulation Keyboard and Mouse

NOTICE

The information contained in this document is

subject to change without notice. SmartAVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

800.AVI.2131, 702.800.0005

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

SmartAVI.com

TECHNICAL SPECIFICATION

DVN-16PRO

WHAT’S IN THE BOX

PART NO. Q-TY DESCRIPTION

DVN-16PRO-S 1 16 Port DVI-D, USB 2.0,

Audio Switch

PS5VDC4A 1 PS5VD4A Power Supply

Quick Start Guide 1

ABOUT SFX

DVN-16Pro is a dedicated multi-platform KVM switch

capable of managing up to 16 different computers through

a single DVI-D monitor, USB keyboard & mouse, a single set

of speakers and USB 2.0 device sharing. USB emulation

technology utilized by DVN-16Pro enables immediate

hotkey source switching through a remote USB keyboard

and mouse. DVN-16Pro provides high resolutions of up

to 1920x1200 with zero pixel loss from TMDS signal

correction.

FEATURES

• Supports Mac, PC, Linux and Sun Mac OS, Sun OS,

Unix

• Supports High Resolution 1920x1200 60Hz WUXGA

• Uses universal DVI Single Link connectors

• Zero pixel loss with TMDS signal correction

• Supports all USB 2.0 Devices

• Control Sun, Mac or PC computers from a common

KVM console

• Compatible with all major software including Windows,

Linux, Mac OS, Sun OS, Unix

• Rack mountable in a standard 19 inch rack

• Flash upgradeable rmware

• Front panel keys for selecting users and channels

manually

• Supports USB keyboard and mouse

• Balanced stereo audio output

• RS-232 control for remote control

• Optional TCP/IP control

• Hot-key commands for quick channel selection.

• Independent (asynchronous) switching of KVM and

peripheral USB/audio ports. Users can listen to audio

from one computer while working on the other or scan

a document and save in another computer.

• Complete keyboard emulation for error free booting

• Superior video quality - 1920 x 1200 @ 60 Hz

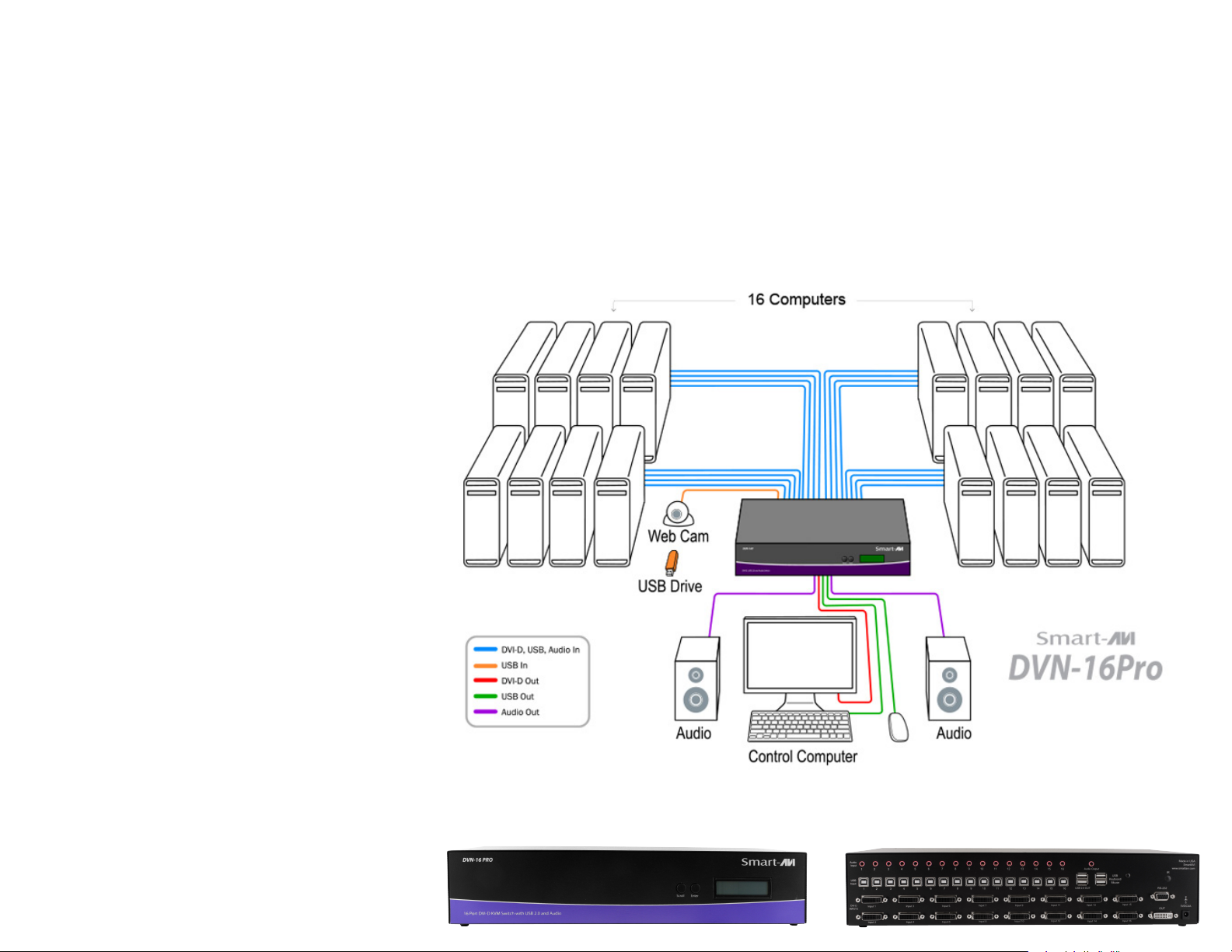

1. Ensure that power is disconnected from DVN-16Pro.

2. Connect the DVI cables, USB cables (male-A to male-B), and audio cables (Optionally) from the computers to the

respective ports on the DVN-16Pro.

3. Optionally connect RS-232 for control functions.

4. Connect the USB keyboard & mouse to the two USB ports labeled for keyboard & mouse.

5. Optionally connect USB peripherals to the 2 USB ports labeled USB 2.0.

6. Optionally connect the speakers to the Audio Out port.

7. Connect the display monitor to the DVI OUT connector on the DVN-16Pro.

8. Power on the DVN-16Pro.

DVN-16PRO FRONT DVN-16PRO BACK

HARDWARE INSTALLATION
