SMART-AVI HDX-XT Manuel utilisateur

Single Head HDMI,

USB 2.0 and Audio

KVM CAT5/6 Extender

EXTEND DIGITAL VIDEO

(SINGLE HEAD HDMI 4K20HZ),

USB 2.0, USB 1.1 KEYBOARD/

MOUSE AND AUDIO

UP TO 330 FT (100 M) OVER

A SINGLE CAT5E/6/6A

UNCOMPRESSED

Quick Start Guide

VIDEO

Format HDMI 2.0

Video Resolution Up to 3840 x 2160 @ 30 Hz

Video Bandwidth 275 MHz

Input Interface (TX) (2) HDMI (19-pin female)

Output Interface (RX) (2) HDMI (19-pin female)

DDC via AUX

Equalization Automatic

Input Cable Length Up to 15 ft.

Output Cable Length Up to 15 ft.

AUDIO

Format Stereo

Frequency 30KHz to 80KHz

Input Interface (TX) (1) 3.5mm (Female)

Output Interface (RX) (1) 3.5mm (Female)

USB

Signal Type USB 1.1 and USB 2.0

Input Interface (TX) (1) USB Type B (Female)

Output Interface (RX) (4) USB Type A (Female)

OTHER

Power External 100-240 VAC/5VDC3A

@ 15 W

Dimensions 11.9” W x 1.7” H x 2.9” D

Weight 1.75 lb (per unit)

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

NOTICE

The information contained in this document is

subject to change without notice. SmartAVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

800.AVI.2131, 702.800.0005

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

SmartAVI.com

TECHNICAL SPECIFICATION

HDX-XT

WHAT’S IN THE BOX

PART NO. Q-TY DESCRIPTION

HDX-XT-TX 1

Single Head HDMI, USB and

Audio CAT5/5e/6

Transmitter

HDX-XT-RX 1 Single Head HDMI, USB and

Audio CAT5/5e/6 Receiver

PS5VD3A-WMT 2 PS5VD3A Power Supply

Quick Start Guide 1

ABOUT HDX-XT-2P

The HDX-XT is an extender supporting Single Head HDMI

video signals at resolutions up to 4K/30Hz, with

bi-directional audio and fully-transparent USB 2.0

up to 330ft.

The HDX-XT is the rst extender on the market to feature

HDMI 4K/30Hz, USB 2.0, and full KVM extension on one

cohesive system. Its HDMI 4K (3840x2160 @ 30Hz) video

outputs are optimized for a HD monitor with

crystal-clear picture; excellent for detail-driven work.

The HDX-XT extends fully-transparent USB 2.0, supporting

keyboard, mouse, ash-drive, digital cameras, printer(s)

and a wide variety of other USB 2.0 devices!

FEATURES

• Extends Single Head HDMI 2.0, USB 2.0 and audio up

to 330 ft (100 m) from the source

• Supports up to 3840x2160 digital

video resolution @ 30Hz

• Uncrompressed Video

• Supports keyboard and mouse USB 1.1

• USB 2.0 Transparent

• Carries HDMI, USB 2.0 and Audio

Over a Single CAT 5e/6/6a

• DisplayPort Auxiliary Bypass

• Plug-and-Play Ready

1. Ensure that power is turned off or disconnected from the unit and the computers.

2. Use a HDMI cable to connect the HDMI output port from each computer to the corresponding HDMI IN ports of the unit.

3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit.

4. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the computers to the AUDIO IN

ports of the unit.

5. Connect a monitor to the HDMI OUT console port of the unit using a HDMI cable.

6. Connect a USB keyboard and mouse in the two USB console ports.

7. Optionally connect stereo speakers to the AUDIO OUT port of the unit.

8. Finally, power on the KVM by connecting a 5VDC power supply to the power connector, and then turn on all the

computers.

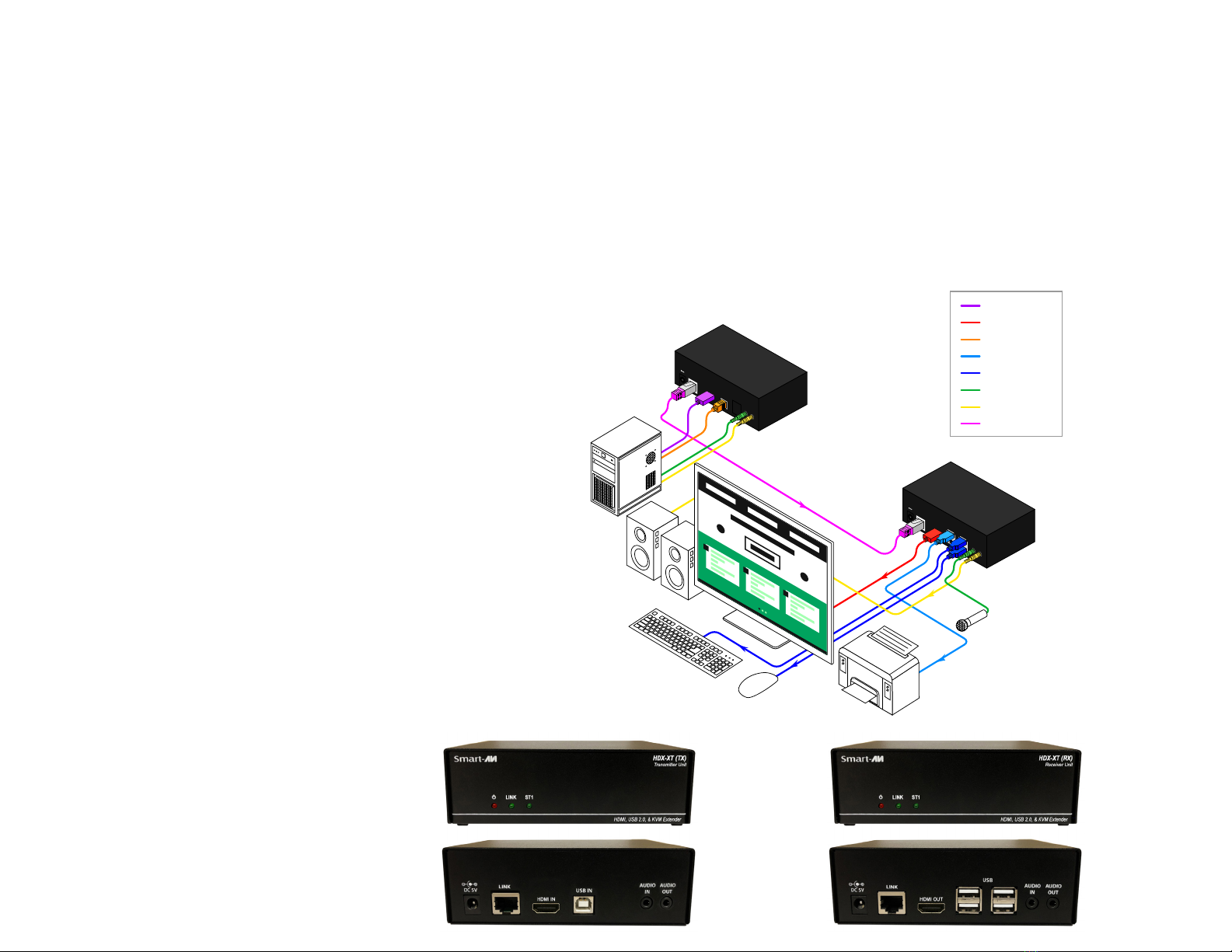

HARDWARE INSTALLATION

HDX-XT-TX

FRONT

HDX-XT-TX

BACK

HDX-XT-RX

BACK

HDX-XT-RX

FRONT

HDMI IN

HDMI OUT

USB IN

USB 2.0 OUT

USB K/M OUT

AUDIO IN

AUDIO OUT

CAT5/6

330 ft

DC5V USB IN

DPIN

LINK AUDIO

AUDIO

OUT

DC5V

DPOUT

LINK AUDIO

AUDIO

OUT

USB

HDX-XT-TX

HDX-XT-RX
