INTRODUCTION

The IF302 is a converter mainly intended to interface analog transmitters to a FOUNDATION™

fieldbus network. The IF302 receives up to three current signal typically 4-20 mA or 0-20 mA, and

makes them available to Fieldbus system. The digital technology used in the IF302 enables an easy

interface between the field and the control room and it has several interesting features that reduce

considerably the installation, operation and maintenance costs.

The IF302 is part of SMAR's complete 302 line of FOUNDATION™ fieldbus devices.

FOUNDATION™ fieldbus, is not only a replacement for 4-20 mA or intelligent/smart transmitter

protocols, it contains much more. FOUNDATION™ fieldbus is a complete system enabling distribution

of the control function on equipment in the field.

Some of the advantages of bi-directional digital communications are known from existing smart

transmitter protocols: Higher accuracy, multi-variable access, remote configuration and diagnostics,

and multi-dropping of several devices on a single pair of wires.

Those protocols were not intended to transfer control data, but maintenance information. Therefore

they were slow and not efficient enough to be used as control network.

The main requirements for Fieldbus were to overcome these problems. Closed loop control with

performance like a 4-20 mA system requires higher speed. Since higher speed means higher power

consumption, this clashes with the need for intrinsic safety. Therefore a moderately high

communication speed was selected, and the system was designed to have a minimum of

communication overhead. Using scheduling, the system controls variable sampling, algorithm

execution and communication to optimize the usage of the network, not loosing time. Thus, high

closed loop performance is achieved.

Using Fieldbus technology, with its capability to interconnect several devices, very large control

schemes can be constructed. In order to be user friendly the function block concept was introduced

(users of SMAR CD600 should be familiar with this, since it was implemented several years ago).

The user may now easily build complex control strategies. Another advantage is added flexibility;

the control strategy may be edited without having to rewire or change any hardware.

The IF302, like the rest of the 302 family, has several Function Blocks built in, like PID controller,

Input Selector, Arithmetic, Signal Characterizer and Flow Totalization. These useful blocks eliminate

the need for separate devices and reduce communication and therefore decreasing dead-time and

making the control tighter, not to mention the reduction in cost. Other function blocks are also

available, allowing flexibility in control strategy implementation.

The need for implementation of Fieldbus in small as well as large systems was considered when

developing the entire 302 line of Fieldbus devices. They have the common features of being able to

act as a master on the network and be configured locally using a magnetic tool, eliminating the need

for a configurator or console in many basic applications.

Get the best result of the IF302 by carefully reading these instructions.

This product is protected by US patent number 5,706,007.

KH524"⁄"Qrgtcvkqp"cpf"Ockpvgpcpeg"Kpuvtwevkqp"Ocpwcn"

KX"

NOTE

This Manual is compatible with version 3.XX, where 3 denote software version and XX software release. The

indication 3.XX means that this manual is compatible with any release of software version 3.

Waiver of responsibility

The contents of this manual abides by the hardware and software used on the current equipmen

version. Eventually there may occur divergencies between this manual and the equipment. The

information from this document are periodically reviewed and the necessary or identified corrections

will be included in the following editions. Suggestions for their improvement are welcome.

Warning

For more objectivity and clarity, this manual does not contain all the detailed information on the

product and, in addition, it does not cover every possible mounting, operation or maintenance

cases.

Before installing and utilizing the equipment, check if the model of the acquired equipment complies

with the technical requirements for the application. This checking is the user’s responsibility.

If the user needs more information, or on the event of specific problems not specified or treated in

this manual, the information should be sought from Smar. Furthermore, the user recognizes that the

contents of this manual by no means modify past or present agreements, confirmation or judicial

relationship, in whole or in part.

All of Smar’s obligation result from the purchasing agreement signed between the parties, which

includes the complete and sole valid warranty term. Contractual clauses related to the warranty are

not limited nor extended by virtue of the technical information contained in this manual.

Only qualified personnel are allowed to participate in the activities of mounting, electrical connection,

startup and maintenance of the equipment. Qualified personnel are understood to be the persons

familiar with the mounting, electrical connection, startup and operation of the equipment or othe

similar apparatus that are technically fit for their work. Smar provides specific training to instruct and

qualify such professionals. However, each country must comply with the local safety procedures,

legal provisions and regulations for the mounting and operation of electrical installations, as well as

with the laws and regulations on classified areas, such as intrinsic safety, explosion proof, increased

safety and instrumented safety systems, among others.

The user is responsible for the incorrect or inadequate handling of equipments run with pneumati

or hydraulic pressure or, still, subject to corrosive, aggressive or combustible products, since thei

utilization may cause severe bodily harm and/or material damages.

The field equipment referred to in this manual, when acquired for classified or hazardous areas, has

its certification void when having its parts replaced or interchanged without functional and approval

tests by Smar or any of Smar authorized dealers, which are the competent companies for certifying

that the equipment in its entirety meets the applicable standards and regulations. The same is true

when converting the equipment of a communication protocol to another. In this case, it is necessar

sending the equipment to Smar or any of its authorized dealer. Moreover, the certificates are

different and the user is responsible for their correct use.

Always respect the instructions provided in the Manual. Smar is not responsible for any losses

and/or damages resulting from the inadequate use of its equipments. It is the user’s responsibility to

know and apply the safety practices in his country.

Vcdng"qh"Eqpvgpvu"

TABLE OF CONTENTS

UGEVKQP"3"/"KPUVCNNCVKQP"0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"303"

GENERAL............................................................................................................................................................................1.1

MOUNTING..........................................................................................................................................................................1.1

ELECTRIC WIRING .............................................................................................................................................................1.1

TOPOLOGY AND NETWORK CONFIGURATION ..............................................................................................................1.3

INPUT WIRING ....................................................................................................................................................................1.5

UGEVKQP"4"/"QRGTCVKQP"000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"403"

FUNCTIONAL DESCRIPTION – ELECTRONICS ...............................................................................................................2.1

UGEVKQP"5"/"EQPHKIWTCVKQP"000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"503"

TRANSDUCER BLOCK .......................................................................................................................................................3.1

HOW TO CONFIGURE A TRANSDUCER BLOCK..............................................................................................................3.1

TERMINAL NUMBER ..........................................................................................................................................................3.1

PRIMARY VALUE STATUS.................................................................................................................................................3.2

CURRENT TRIM..................................................................................................................................................................3.2

VIA LOCAL ADJUSTMENT..................................................................................................................................................3.4

DISPLAY TRANSDUCER BLOCK .......................................................................................................................................3.5

DEFINITION OF PARAMETERS AND VALUES..................................................................................................................3.5

PROGRAMMING USING LOCAL ADJUSTMENT ...............................................................................................................3.8

J1 JUMPER CONNECTIONS ..............................................................................................................................................3.9

W1 JUMPER CONNECTIONS.............................................................................................................................................3.9

UGEVKQP"6"/"OCKPVGPCPEG"0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"603"

GENERAL............................................................................................................................................................................4.1

TROUBLESHOOTING .........................................................................................................................................................4.1

DISASSEMBLY PROCEDURE ............................................................................................................................................4.2

REASSEMBLE PROCEDURE .............................................................................................................................................4.2

BOARDS INTERCHANGEABILITY......................................................................................................................................4.2

EXPLODED VIEW ...............................................................................................................................................................4.3

ACCESSORIES ...................................................................................................................................................................4.3

SPARE PARTS LIST ...........................................................................................................................................................4.4

UGEVKQP"7"/"VGEJPKECN"EJCTCEVGTKUVKEU"0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"703"

ORDERING CODE ..............................................................................................................................................................5.2

CRRGPFKZ"C"/"EGTVKHKECVKQPU"KPHQTOCVKQP"000000000000000000000000000000000000000000000000000000000000000000000000000000000000"C03"

EUROPEAN DIRECTIVE INFORMATION...........................................................................................................................A.1

HAZARDOUS LOCATIONS GENERAL INFORMATION.....................................................................................................A.1

HAZARDOUS LOCATIONS APPROVALS ..........................................................................................................................A.2

CSA (CANADIAN STANDARDS ASSOCIATION)................................................................................................................................... A.2

FM APPROVALS (FACTORY MUTUAL)................................................................................................................................................. A.3

NEMKO (NORGES ELEKTRISKE MATERIELKONTROLL) ................................................................................................................... A.3

EXAM (BBG PRÜF - UND ZERTIFIZIER GMBH) ................................................................................................................................... A.3

CEPEL (CENTRO DE PESQUISA DE ENERGIA ELÉTRICA) ............................................................................................................... A.4

IDENTIFICATION PLATE CONTROL DRAWING................................................................................................................A.5

CONTROL DRAWING .........................................................................................................................................................A.7

CRRGPFKZ"D"⁄"UTH"⁄"UGTXKEG"TGSWGUV"HQTO"00000000000000000000000000000000000000000000000000000000000000000000000000000000000"D03"

RETURNING MATERIALS...................................................................................................................................................B.2

KH524"⁄"Qrgtcvkqp"cpf"Ockpvgpcpeg"Kpuvtwevkqp"Ocpwcn"

XK"

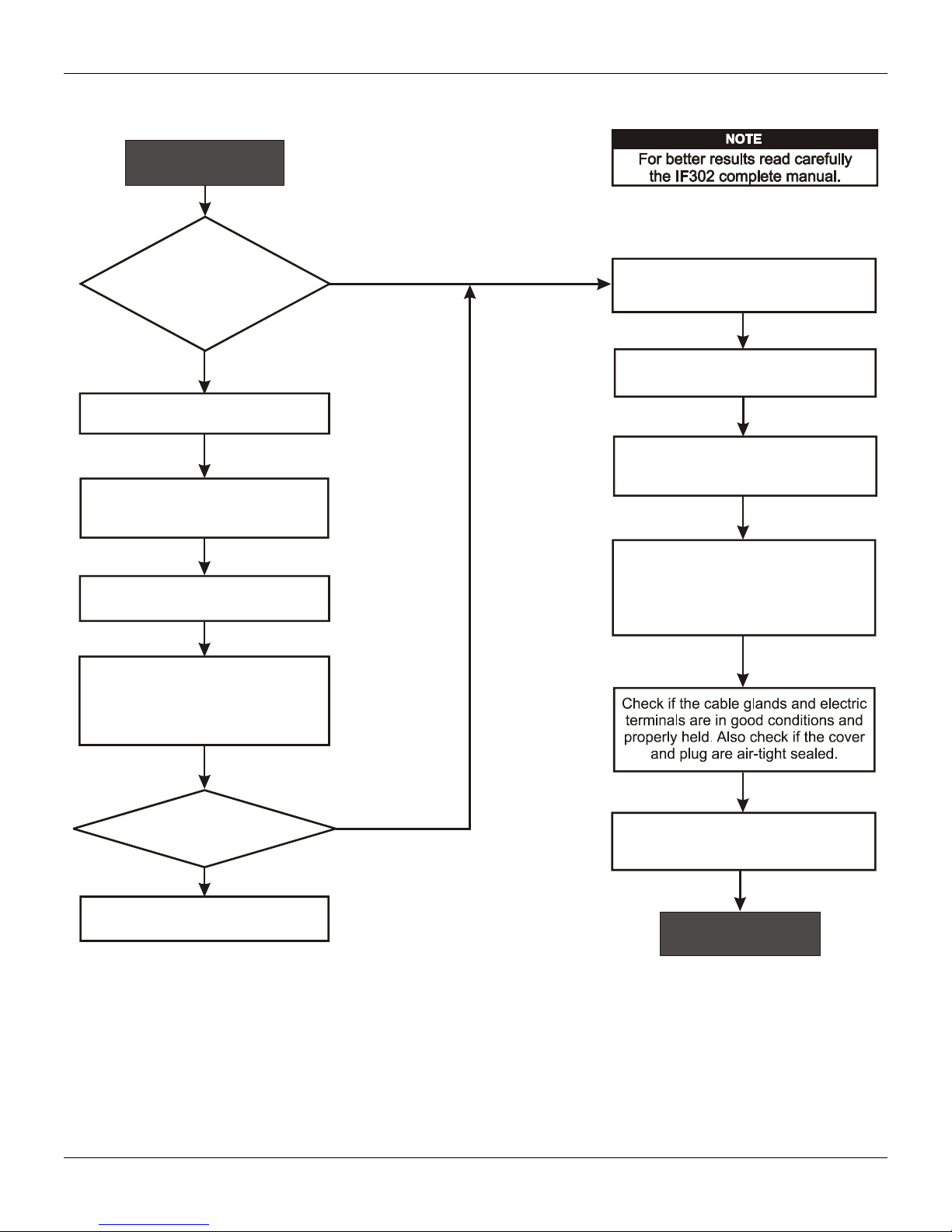

Kpuvcnncvkqp"Hnqyejctv"

XKK"

Kpuvcnncvkqp"Hnqyejctv"

Was the converter

configured on the bench

to match the application?

Configure the engineering unit.

Configure the terminal(s)

and input scale(s) .

(Section 3 - Calibration)

Configure the LCD reading.

(Section 3 - Configuration)

Simulate the value(s) in the 4 a

20 mA input and verify the

signal(s) in Fieldbus.

Start

Yes

Is the indication correct?

See section 4 - Maintenance

Install the converter on the field

following the instructions below.

Check the area classification

and its practices.

Install the (mechanically

and electrically) according to the

application after checking the best

position for the LCD

(Section 4 - Maintenance).

converter

Install the preferably

on wether-protected areas.

converter

Energize the properly.

IF302 needs a external power supply

for supply the equipment .

converter

4 - 20 mA

Yes

KH524"⁄"Qrgtcvkqp"cpf"Ockpvgpcpeg"Kpuvtwevkqp"Ocpwcn"

XKKK"

Section 1

1.1

INSTALLATION

General

NOTE

The installation carried out in hazardous areas should follow the recommendations of the IEC60079-14

standard.

The overall accuracy of measurement and control depends on several variables. Although the

converter has an outstanding performance, proper installation is essential, in order to maximize its

performance.

Among all factors, which may affect converter accuracy, environmental conditions are the most

difficult to control. There are, however, ways of reducing the effects of temperature, humidity and

vibration.

Locating the converter in areas protected from extreme environmental changes can improve the

converter performance.

In warm environments, the converter should be installed to avoid as much as possible, direct

exposure to the sun. Installation close to lines and vessels subjected to high temperatures should

also be avoided.

Use of sunshades or heat shields to protect the converter from external heat sources should be

considered, if necessary.

Humidity is fatal to electronic circuits. In areas subjected to high relative humidity, the O-rings for the

electronics cover must be correctly placed. Removal of the electronics cover in the field should be

reduced to the minimum necessary, since each time it is removed the circuits are exposed to the

humidity. The electronic circuit is protected by a humidity proof coating, but frequent exposures to

humidity may affect the protection provided. It is also important to keep the covers tightened in

place. Every time they are removed, the threads are exposed to corrosion, since painting cannot

protect these parts. Code-approved sealing methods on conduit entering the converter should be

employed.

Mounting

Using the bracket, the mounting may be done in several positions, as shown on Figure 1.3 -

Dimensional Drawing and Mounting Positions.

For better visibility, the digital indicator may be rotated in steps of 90(See Section 4 - Maintenance

Procedures).

Electric Wiring

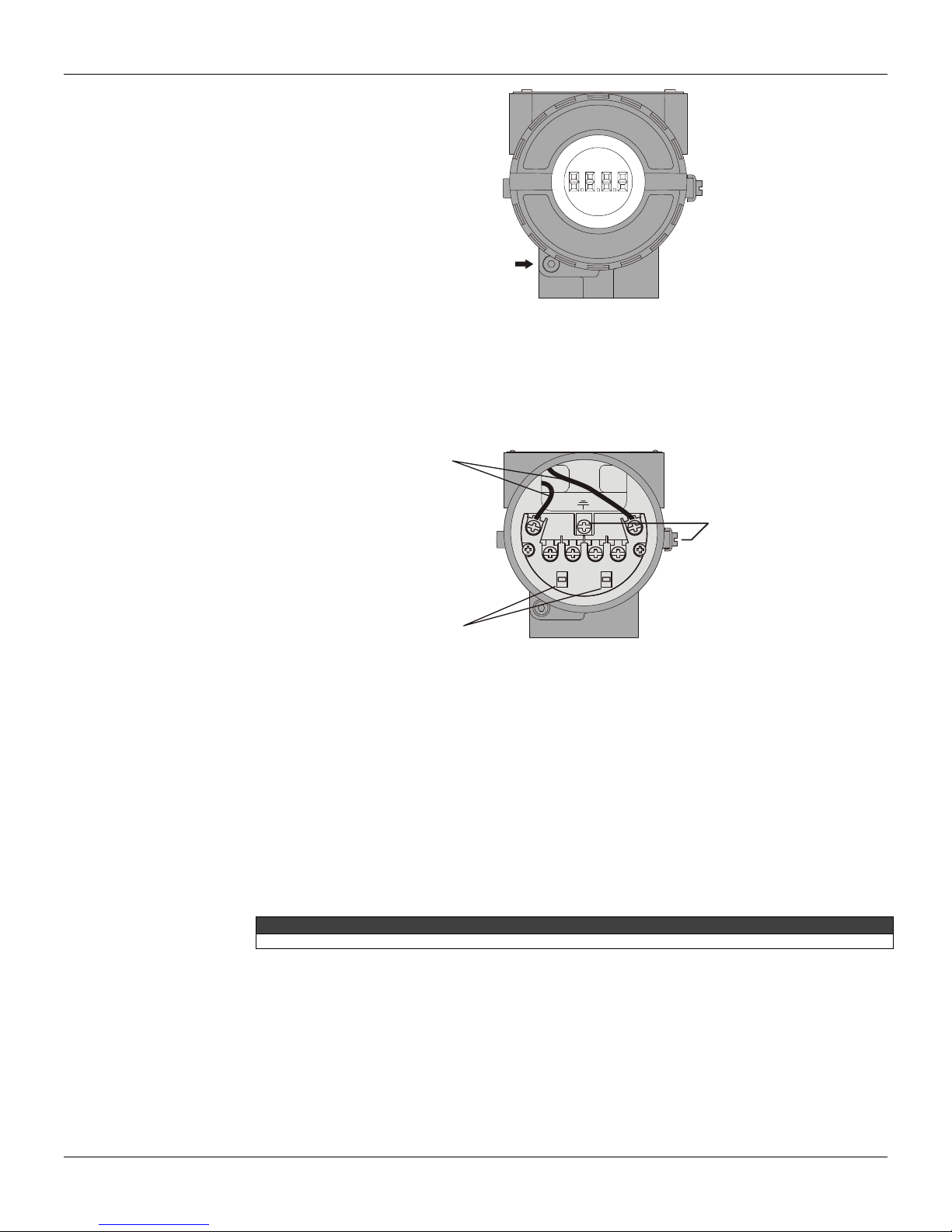

Access the wiring block by removing the Electrical Connection Cover. This cover can be locked

closed by the cover locking screw (See Figure 1.1 - Cover Locking). To release the cover, rotate the

locking screw clockwise.

Cable access to wiring connections is obtained by one of the two conduit outlets. Conduit threads

should be sealed by means of code-approved sealing methods. The unused outlet connection

should be plugged accordingly.

IF302 - Operation and Maintenance Instruction Manual

1.2

COVER

LOCKING

SCREW

Figure 1.1 - Cover Locking

For convenience there are three ground terminals: one inside the cover and two externals, located

close to the conduit entries.

The wiring block has screws, on which fork or ring type terminals can be fastened, see Figure 1.2 -

Terminal Block.

GROUND

TERMINA

POWE

SUPPLY

TERMINALS

COMUNICATION

TERMINALS

Figure 1.2 - Terminal Block

The IF302 uses the 31.25 kbit/s voltage mode option for the physical signaling. All other devices on

the same bus must use the same signaling. 12 to 16 devices can be connected in parallel along the

same pair of wires.

Various types of Fieldbus devices may be connected on the same bus.

The IF302 is powered via the bus. The limit for such devices is 16 for one bus (one segment) for

non-intrinsically safe requirement.

In hazardous area, the number of devices may be limited by intrinsically safe restrictions.

The IF302 is protected against reverse polarity, and can withstand ±35 VDC without damage.

NOTE

Please refer to the General Installation, Operation and Maintenance Manual for more details.

Table des matières

Autres manuels SMAR Convertisseur de média

SMAR

SMAR FP302 Guide d'installation

SMAR

SMAR FI302 Manuel

SMAR

SMAR FI303 Manuel

SMAR

SMAR HI302 Manuel utilisateur

SMAR

SMAR FI303 Guide d'installation

SMAR

SMAR if303 Manuel

SMAR

SMAR if303 Manuel

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
