Sloan SOLIS 8100 Series Manuel utilisateur

Code No. 0816641

Rev. 10 (05/23)

INSTALLATION INSTRUCTIONS FOR RETROFIT AND COMPLETE VALVE

INSTALLATION FOR SLOAN SOLIS®, SOLAR POWERED, SINGLE FLUSH

AND DUAL FLUSH WATER CLOSETS AND URINALS

SLOAN® LIMITED WARRANTY SUMMARY

Sloan Valve Company (“Sloan”), warrants its products against defects in materials and workmanship, excluding damage caused by matters beyond Sloan’s reasonable control. Instructions

for ﬁling claims can be found in the Limited Warranty which can be obtained at www.sloan.com or by requesting a free copy by telephone at 888.756.2614. Sloan will repair or replace your

defective product, or provide a refund, as your exclusive remedy. This is only a general summary of Sloan’s Limited Warranty so it is important to note that the speciﬁc terms, conditions,

limitations and exclusions, including the duration of warranty coverage for your particular Sloan product, are contained in the actual Sloan Limited Warranty. The Limited Warranty is subject

to applicable laws in your country, state, province or other jurisdiction—and disputes arising under the Limited Warranty are to be resolved by binding arbitration unless you provide Sloan

with an opt-out notice no later than 30 days after your purchase date. In case of a conﬂict with this summary, the terms and conditions set forth in the complete Limited Warranty will prevail.

Sloan SOLIS®Water Closet Models can be furnished for the following:

1.1 gpf / 4.2 Lpf High Efﬁciency Bowls

1.28 gpf/4.8 Lpf High Efﬁciency Bowls

1.6 gpf/6.0 Lpf For Low Consumption Bowls

1.6 / 1.1 gpf (6.0 / 4.2 Lpf) Dual Flush Models

Sloan SOLIS®Urinal Models can be furnished for the following:

0.125 gpf/0.5 Lpf For High Efﬁciency Urinals

0.25 gpf/0.9 Lpf For High Efﬁciency Urinals

0.5 gpf/1.9Lpf For High Efﬁciency Urinals

1.0 gpf/3.8 Lpf For Low Consumption Urinals

1.5 gpf/5.7 Lpf For Older Siphon Jet Urinals

Please take the time to read this manual to ensure proper product

installation and longevity. Also, please visit our website to

download our most recent documentation for this product.

Prior to installing the Sloan SOLIS®flushometer, install the items listed

below as illustrated in the rough-in diagram. (New installations only.)

• Closet or Urinal fixture

• Drain line

• Water supply line

IMPORTANT:

• INSTALL ALL PLUMBING IN ACCORDANCE WITH

APPLICABLE CODES AND REGULATIONS.

• WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN

ADEQUATE VOLUME OF WATER FOR EACH FIXTURE.

• WHEN INSTALLING A FLUSHOMETER, IT IS

IMPORTANT THAT THE FLUSH MODEL MATCHES THE

REQUIREMENTS OF THE PLUMBING FIXTURE.

• FLUSH ALL WATER LINES PRIOR TO MAKING

CONNECTIONS.

The Sloan SOLIS®is designed to operate with 15 to 80 PSI (104 to 551

kPa) of water pressure. THE MINIMUM PRESSURE REQUIRED

TO THE VALVE IS DETERMINED BY THE TYPE OF FIXTURE

SELECTED. Consult fixture manufacturer for pressure requirements.

Most water closets (1.6 gallon/6 liter or lower) require a minimum flowing

pressure of 25 psi (172 kPa); some manufacturers require a higher

minimum ﬂowing pressure.

PRIOR TO INSTALLING THE SLOAN SOLIS®FLUSHOMETER

• Slotted screwdriver to adjust control stop.

• Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth jawed

spud wrench for couplings.

• Strap wrench (supplied) to install Sloan SOLIS®to valve body.

• 7/64” hex wrench (supplied) to secure Sloan SOLIS®cover to base plate.

• 5/64” hex wrench to secure water Supply Flange.

TOOLS REQUIRED FOR INSTALLATION

8100 Series Complete Flushometer Models

8100 Series Sloan SOLIS®valves are complete flushometers

and ideal for new installations.

RESS Series Retroﬁt Conversion Kit Models

RESS Sloan SOLIS®Models are used to convert existing

Flushometers to Solar Powered, Sensor Activated.

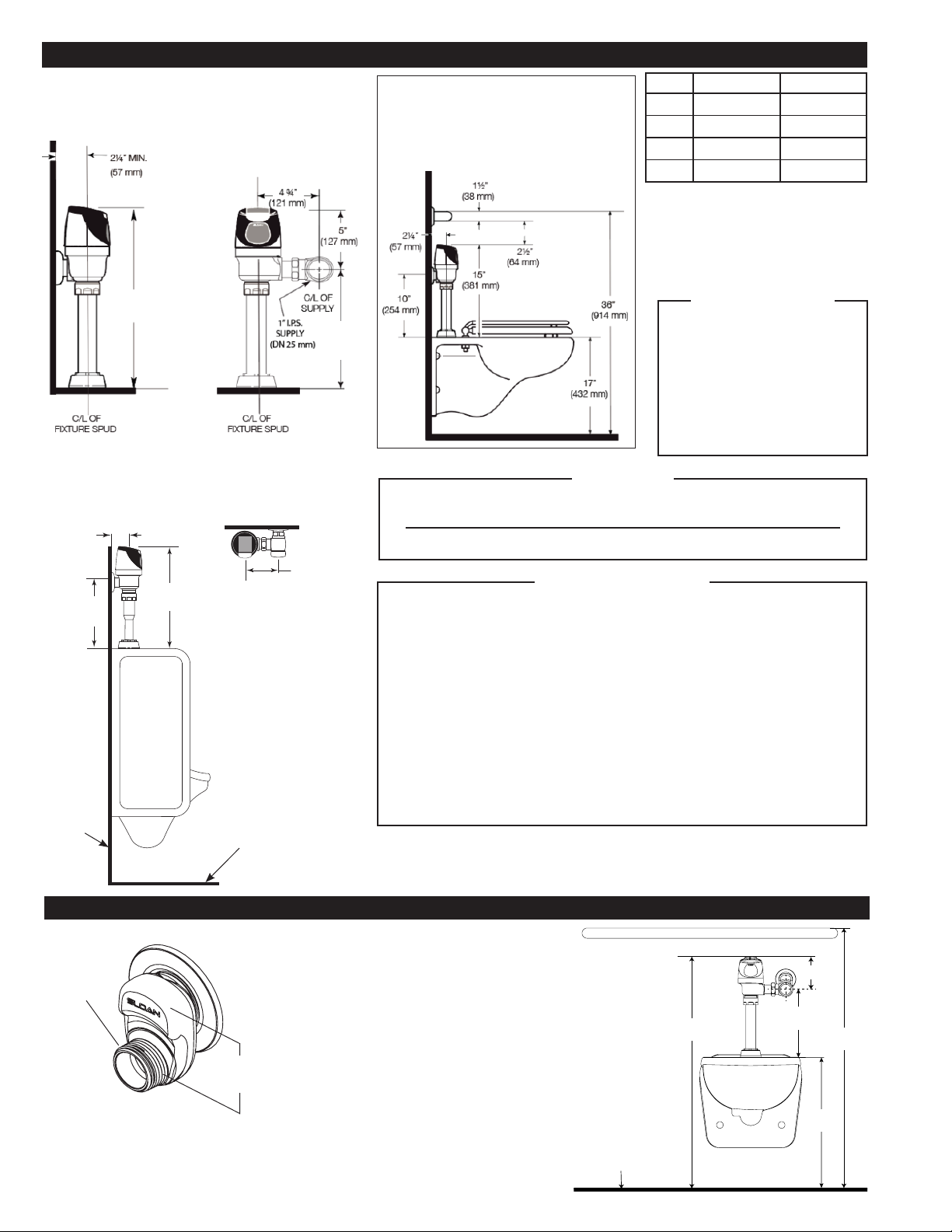

VALVE ROUGH-IN

2¼” (57 mm) MIN.

16½”

(419 mm)

C/L OF

FIXTURE

FINISHED

FLOOR

FINISHED

WALL

4¾”

(121 mm)

8180

1” I.P.S.

(25 mm DN)

SUPPLY

8186

¾” I.P.S.

(20 mm DN)

SUPPLY

11½”

(292 mm)

TYPICAL URINAL INSTALLATION

Models 8180 & 8186

Reference for RESS-U Retrofit

LAWS AND REGULATIONS PROHIBIT THE USE OF HIGHER FLUSHING

VOLUMES THAN LISTED ON FIXTURE OR FLUSHOMETER.

THE STRAP WRENCH PROVIDED WITH THE SOLIS®IS A CONVENIENCE TOOL

AND IS NOT TO BE USED TO REMOVE OR INSTALL THE FLUSHOMETER

COUPLINGS. USE STRAP WRENCH ONLY TO INSTALL THE SOLIS®LOCKING RING.

WITH THE EXCEPTION OF THE CONTROL STOP INLET, DO NOT USE PIPE

SEALANT OR PLUMBING GREASE ON ANY VALVE COMPONENT OR COUPLING!

THIS PRODUCT CONTAINS MECHANICAL AND/OR ELECTRICAL COMPONENTS

THAT ARE SUBJECT TO NORMAL WEAR. THESE COMPONENTS SHOULD BE

CHECKED ON A REGULAR BASIS AND REPLACED AS NEEDED TO MAINTAIN

THE VALVE’S PERFORMANCE.

NEVER OPEN CONTROL STOP TO WHERE THE FLOW FROM THE VALVE

EXCEEDS THE FLOW CAPABILITY OF THE FIXTURE. IN THE EVENT OF A

VALVE FAILURE, THE FIXTURE MUST BE ABLE TO ACCOMMODATE A

CONTINUOUS FLOW FROM THE VALVE.

!!! IMPORTANT !!!

Model “X” “Y”

8111†11½” (292 mm) 16½” (419 mm)

8113 16” (406 mm) 21” (533 mm)

8115‡24” (610 mm) 29” (737 mm)

8116‡27” (686 mm) 32” (813 mm)

PROTECT THE CHROME

OR SPECIAL FINISH OF

FLUSHOMETERS — DO NOT USE

TOOTHED TOOLS TO INSTALL

OR SERVICE THESE VALVES.

USE A SLOAN A-50 SUPER-

WRENCH™, SLOAN A-109 PLIER

WRENCH OR SMOOTH JAWED

SPUD WRENCH TO SECURE ALL

COUPLINGS. ALSO SEE “CARE

AND CLEANING” SECTION.

!!! IMPORTANT !!!

†For new installations, Sloan strongly

recommends the use of our Model 8111 which

has a shorter installation height.

‡Model 8115 & 8116 valves are designed for

installations where the water supply is roughed-

in 24” - 27” (610 mm - 686 mm) above the top

of the water closet.

When installing the Sloan SOLIS®Electronic

Flushometer in an ADA compliant stall: Per ADA

Guidelines (section 604.9.4) it is recommended that

the grab bars be split or shifted to the wide side of the

stall. For alternative installations, lower water supply

rough-in to 10” (254 mm), or use the H-1018-A 1-1/2”

offset adapter (not supplied) to lower the overall height.

The Sloan H-1018-A 1” NPT x 1-1/2” offset adapter

kit (sold separately) is designed to lower a SOLIS®

Flushometer 1-1/2” when the space above the top

of the Flushometer conﬂicts with grab bar clearance.

Mount the grab bar at the 36” (914 mm) maximum

allowed height (top of grab bar at 36”).

FIN. FLOOR

36”

(914 mm)

32½”

(825 mm)

5”

(127 mm)

10”

(254 mm)

17”

(432 mm)

ALTERNATIVE WATER CLOSET INSTALLATION WITH GRAB BAR

1½

(38 mm)

1” NP

WATER CLOSET INSTALLATION

Models 8111, 8113, 8115, 8116

Reference for RESS-C Retrofit

“X”

“Y”

Maximum adjustment of the Sloan Adjustable Tailpiece is ½” (13 mm) IN or OUT from the

standard 4¾” (121 mm) (

centerline of Flushometer to centerline of Control Stop

If roughing-in measurement exceeds 5¼” (133 mm), consult factory for longer tailpiece.

NOTE

FOR ADA GRAB BAR APPLICATIONS

For ADA grab Bar at 36”, use 10” rough-in

height or use H-1018-A Offset Adapter.

See the

Alternative Water Closet Installation

section below for additional information.

If you have questions about how to install your Sloan ﬂushometer,

consult your local Sloan Representative, or contact Sloan Technical Support at

1.888.SLOAN.14 (1.888.756.2614).

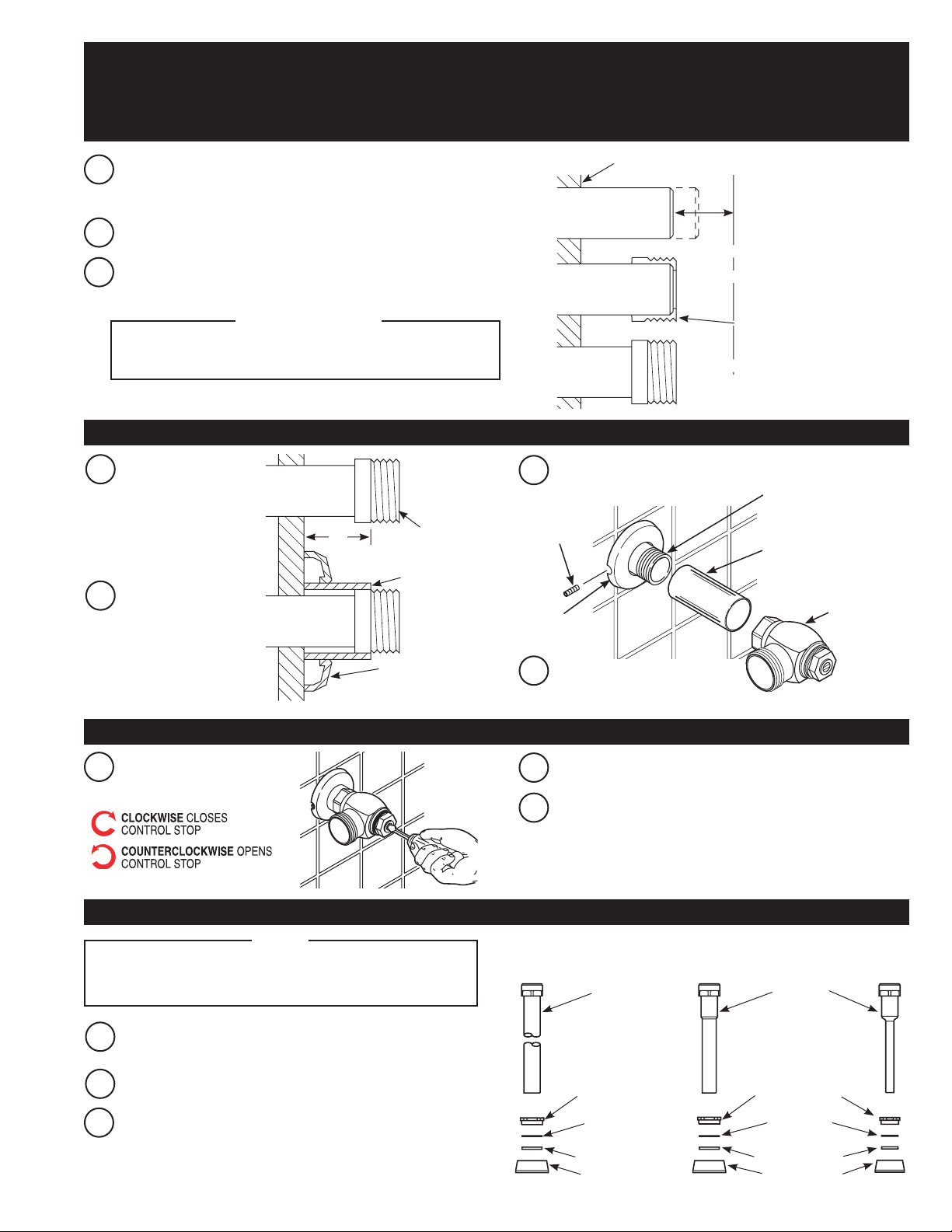

1 - FOR COMPLETE VALVE INSTALLATION, START HERE. FOR RESS

RETROFIT INSTALLATIONS, START AT STEP 6. INSTALL OPTIONAL

SWEAT SOLDER ADAPTER (ONLY IF YOUR SUPPLY PIPE DOES NOT

HAVE A MALE THREAD)

WATER SUPPLY PIPE

FINISHED WALL

1-1/4”

(32 mm)

C/L OF

FIXTURE

SPUD

SWEAT

SOLDER

ADAPTER

AMeasure from finished wall to C/L of Fixture Spud. Cut pipe 1¼”

(32 mm) shorter than this measurement. Chamfer O.D. and I.D. of

water supply pipe.

BSlide Threaded Adapter fully onto pipe.

CSweat solder the Adapter to pipe.

WITH THE EXCEPTION OF THE CONTROL STOP INLET,

DO NOT USE PIPE SEALANT OR PLUMBING GREASE ON

ANY VALVE COMPONENT OR COUPLING!

!!! IMPORTANT !!!

AOpen Control Stop.

CClose control stop.

BTurn on water supply to flush line of any debris or sediment.

BAK-CHEK®

CONTROL STOP

COVER TUBE

IRON PIPE NIPPLE OR

COPPER PIPE WITH SWEAT

SOLDER ADAPTER

SET SCREW

SUPPLY

FLANGE

WATER

SUPPLY PIPE

SWEAT

SOLDER ADAPTER

COVER TUBE

WALL

FLANGE

AMeasure from finished

wall to first thread of

adapter or threaded

supply pipe (dimension

“X”). Cut cover tube to

this length.

BSlide cover tube over

pipe. Slide wall flange

over cover tube until

against wall.

Thread control stop onto pipe.

Tighten with a wrench.

Tighten set screw with a 5/64”

hex wrench. DO NOT install vandal

resistant stop cap at this time.

“X”

2 - INSTALL COVER TUBE, WALL FLANGE AND CONTROL STOP TO SUPPLY PIPE

3 - FLUSH OUT SUPPLY LINE

VACUUM

BREAKER

TUBE

SPUD COUPLING

NYLON SLIP

GASKET

RUBBER GASKET

SPUD FLANGE

ASlide Spud Coupling, Nylon Slip Gasket, Rubber Gasket and Spud

Flange over Vacuum Breaker Tube.

BInsert Tube into Fixture Spud.

CHand tighten Spud Coupling onto Fixture Spud.

VACUUM

BREAKER

TUBE

SPUD COUPLING

NYLON SLIP

GASKET

RUBBER GASKET

SPUD FLANGE

MODELS

8110/8111,

8115, 8116

MODEL 8180 MODEL 8186

If cutting Vacuum Breaker Tube to size, note that Critical Line (C/L)

on Vacuum Breaker must typically be 6” (152 mm) above fixture.

Consult Code for details.

NOTE

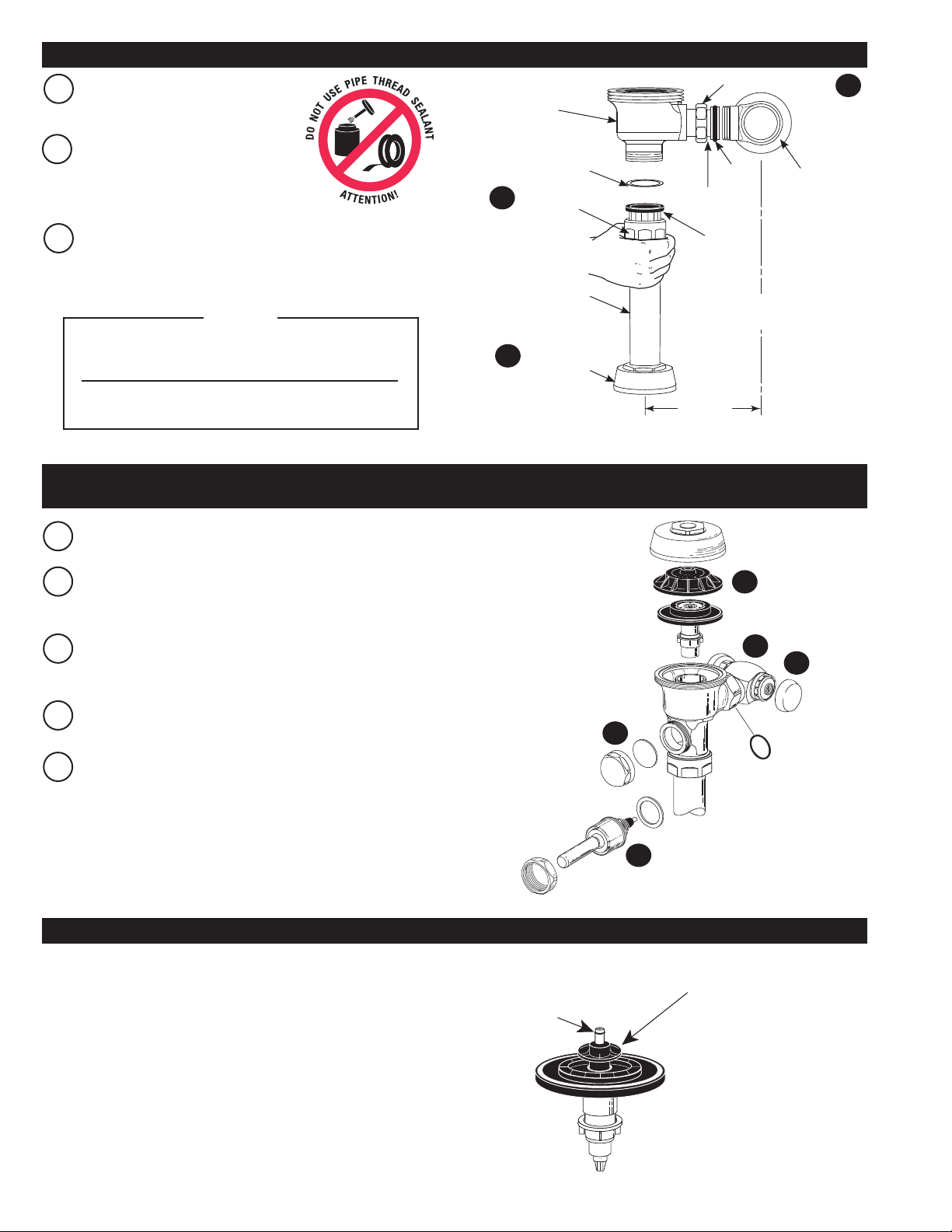

4 - INSTALL VACUUM BREAKER FLUSH CONNECTION

NOTE:

Use only Sloan

sweat adapter fully

inserted onto pipe.

CAlign flushometer body and securely tighten first the tailpiece

coupling (1), then the vacuum breaker coupling (2), and finally the

spud coupling (3). Use a wrench to tighten these couplings in the

order shown.

BAlign flushometer directly above the

vacuum breaker flush connection by

sliding the flushometer body IN or OUT

as needed. Tighten vacuum breaker

coupling by hand.

ALubricate tailpiece o-ring with water.

Insert adjustable tailpiece into control

stop. Tighten tailpiece coupling by hand.

Maximum adjustment of the Sloan Adjustable Tailpiece is

½” (13 mm) IN or OUT from the standard 4¾” (121 mm)

(centerline of Flushometer to centerline of Control Stop).

If roughing-in measurement exceeds 5¼” (133 mm),

consult factory for longer tailpiece.

NOTE

ARemove control stop cap.

CRemove outside and inside covers and old inside parts kit.

BTurn off water supply at control stop. Push valve handle

to relieve water pressure.

G-44 FRICTION RING

C/L

SUPPLY

ADJUSTABLE

TAILPIECE

C/L

FIXTURE

CONTROL STOP

O-RING

TAILPIECE COUPLING

VACUUM BREAKER

FLUSH CONNECTION

VACUUM

BREAKER

COUPLING

FLUSHOMETER

BODY

4-3/4”

(121 mm)

DRemove old handle assembly and gasket.

EInstall chrome handle cap with gasket to handle opening on

flushometer body. Tighten chrome handle cap securely.

NOTE: An extra H-553 tail o-ring is included (

in the bag with the handle

cap and gasket

) in the event leakage occurs if the valve is repositioned

during the installation of the new SOLIS®. Use only as needed.

H-553

TAIL O-RING

RESS SERIES

INSTALLATIONS ONLY

SPUD

COUPLING

VACUUM

BREAKER

REPAIR KIT

O-RING

The flush volume of the Sloan SOLIS®is controlled by the Regulator in the

flex tube diaphragm Kit. Regulators are identified by color.

NOTE: Never use more water than needed. Low Consumption water

closets and urinals will not function properly on excess water.

REGULATOR

(MUST BE INSTALLED

PAST O-RING)

5 - INSTALL FLUSHOMETER

6 - WHEN RETROFITTING AN EXISTING VALVE, START HERE. REMOVE COMPONENTS

FROM EXISTING FLUSHOMETER (RESS RETROFIT INSTALLATIONS ONLY)

7 - SLOAN SOLIS®FLUSH VOLUME (RESS RETROFIT INSTALLATIONS ONLY)

When installing a new Regulator on a Flex Tube Diaphragm, be sure to push

the Regulator past the O-ring when installing.

RESS SERIES

INSTALLATIONS ONLY

ARemove the tape located over solar panel.

DFor the first ten (10) minutes of operation, a visible light flashes in the

sensing window of the SOLIS®flushometer when a user is detected.

BRemove the tape located over sensor window.

AThread Locking Ring

onto Valve Body.

BUse Strap Wrench

provided to tightly secure

Locking Ring. Both

wrench and coupling

ring must be dry.

If retroﬁtting the Sloan SOLIS®onto a †Zurn®valve body, a special Locking Ring must

be used (identiﬁed by a machined groove around the ring).

Order the Sloan SOLIS®with the “Z” variation to receive the unit supplied with this Ring.

9 - TIGHTEN LOCKING RING

10 - REMOVE TAPE FROM SOLAR PANEL AND SENSOR WINDOW TO ACTIVATE

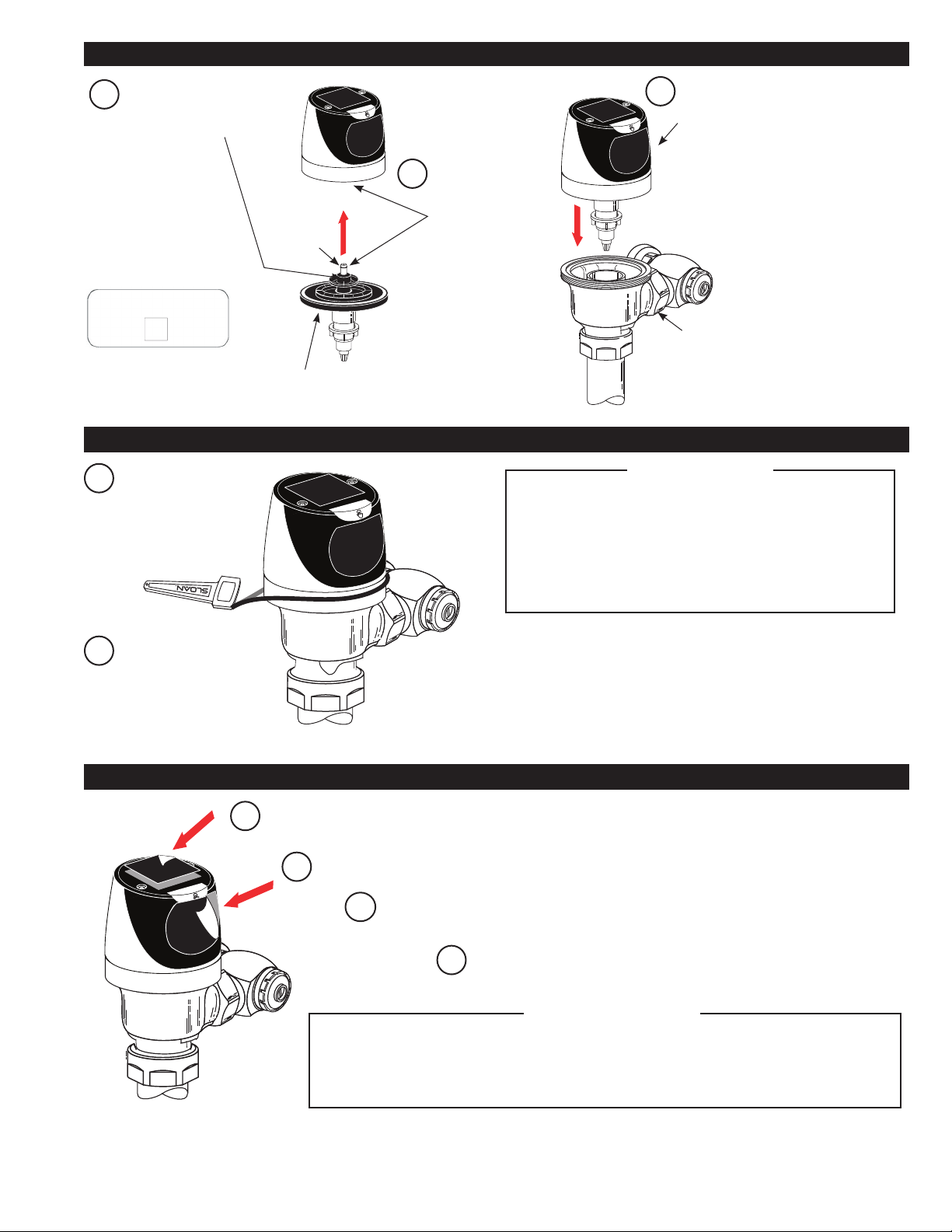

8 - ASSEMBLE FLEX TUBE DIAPHRAGM TO SOLIS ASSEMBLY

BInsert diaphragm

into the base of

the Sloan SOLIS®

Assembly. O-ring

must be fully

inserted into the

hole.

AMake sure Flush

Volume Regulator is

installed past O-ring.

VALVE

BODY

O-RING

FLEX TUBE

DIAPHRAGM

CPush diaphragm securely against

underside of Sloan SOLIS®Assembly.

Place entire Assembly onto the Valve Body.

NOTE: Sensor Lens must

face directly forward. Rotating

the Sensor to either side will

decrease the Sensor’s ability to

detect a target.

To facilitate installation, wet the

diaphragm assembly (on top or

completely).

THE LOCKING RING MUST BE INSTALLED DOWN PAST

THE VALVE BODY THREADS BY AT LEAST ONE THREAD.

IF DIFFICULTY IS EXPERIENCED INSTALLING THE

LOCKING RING, TURN THE LOCKING RING BACK AND

FORTH, EACH TIME WORKING IT FURTHER DOWN THE

THREADS. THE LOCKING RING WILL ACT AS A THREAD

CHASER IN THE EVENT THERE HAS BEEN A BUILD-UP OF

MATTER ON THE THREADS OF THE OLD VALVE BODY.

!!! IMPORTANT !!!

† The brands and/or products names referenced herein may be subject to trademark rights of their respective owners.

Use of the brands and names is for identiﬁcation purposes only and does not imply afﬁliation with or endorsement by Sloan.

The start-up routine will be 1 minute long and allows the sensors to adapt to the surrounding environment. It is VERY

IMPORTANT that no non-permanent targets (i.e. persons, buckets, covers, etc) are present at this time. The start-up

routine consists of a long (3 seconds) BLUE light ON, followed by slow BLUE light blinking in for 1 minute. At the end of

the routine the sensor will show ONE long (2 seconds) BLUE light ON for lithium battery or TWO long (2 seconds each)

BLUE light ON pulses for alkaline to complete the routine. Only at this time can the non-permanent objects be present.

!!! IMPORTANT !!!

For SOLIS -SMT:

Document the serial number

and token number on the

label at the back of the

SOLIS assembly by taking a

photo or writing it down.

IMPORTANT: Please note

location and restroom for

each serial number for future

importing to SC Argus Pro.

CStand clear from the sensor for (1) minute to allow the unit to start-up and calibrate to

the installed environment.

Serial # SRS-XXXXXXXXXXXX

Token # XXXXXXXXXX

When required, replace batteries with four (4)

new AA-Size batteries.

NOTE: Water does not have to be turned off

to replace batteries.

Loosen the two (2) Screws on top of unit.

Remove the complete cover assembly. Lift

the sensor module from its plate. Unplug the

solenoid connector from battery compartment

cover. Loosen the retaining screw on

battery compartment cover. Remove battery

compartment cover and old batteries.

Install four (4) new AA-Size batteries exactly as illustrated. Install battery

compartment cover and secure with retaining screw. Make certain that

battery compartment cover is fully compressed against gasket to provide

a seal; DO NOT overtighten. Plug the solenoid connector into the battery

compartment cover. Reinstall the sensor module onto the Plate. Reinstall the

complete cover assembly onto the plate. Tighten the two (2) screws on top

of the unit.

COVER

ASSEMBLY

SENSOR

MODULE

PLATE

BATTERY

COMPARTMENT

COVER

SOLENOID CONNECTOR RECEPTACLE

SENSOR

MODULE

RETAINING

SCREW

BATTERY REPLACEMENT

BStand in front of Sensor

for sixteen (16) seconds

CStep away from Sensor

and listen for “CLICK.”

ATest Sensor with Cover in place.

The Sloan SOLIS®has a factory set sensing range:

Water Closet Models - 22” to 42” (559 mm to 1067 mm)

Urinal Models - 15” to 30” (381 mm to 762 mm)

THE FACTORY SETTING SHOULD BE SATISFACTORY FOR MOST

INSTALLATIONS. IF A RANGE ADJUSTMENT IS REQUIRED, REFER TO

THE RANGE ADJUSTMENT INSTRUCTIONS.

1. A continuous, INVISIBLE light beam is emitted from the Sloan SOLIS®sensor.

2. As the user enters the beam’s effective range, 22 to 42 inches (559 mm to 1067 mm) for closet

installations and 15 to 30 inches (381 mm to 762 mm) for urinal installations, the beam is reﬂected

into the Scanner Window to activate the Output Circuit. Once activated, the Output Circuit continues

in a “hold” mode for as long as the user remains within the effective range of the sensor. For Dual

Flush models, if the user stays longer than 65 seconds, a full ﬂush will automatically initiate when the

user leaves. For Single Flush models, once the user steps away, a full ﬂush will automatically initiate.

3. For Dual Flush models, once a user is detected, if the user leaves in 65 seconds or less, a reduced ﬂush will automatically initiate. The circuit

automatically resets and is ready for the next user. For Single Flush models, when the user steps away, this initiates a full ﬂush. The circuit automatically

resets and is ready for the next user.

4. In addition to the above the Sloan SOLIS®urinal incorporates a standard deferred flushing mode feature that accommodates the high volume usage seen

in stadiums or similar high attendance facilities.

DInstall control stop cap onto control stop. For RESS retrofit applications, reuse stop cap from existing valve. In complete valve installations, a new stop

cap is provided. Follow the instructions packaged with the free spinning vandal resistant stop cap.

BActivate flushometer

by placing hand in

front of Sloan SOLIS®

Sensor Lens for ten

(16) seconds (

or press

override button

) and

then moving it away.

AOpen control Stop COUNTERCLOCKWISE at least ½ turn from

closed position.

CAdjust control stop after each flush until the rate of flow delivered

properly cleanses the fixture.

URINAL

CLOSET

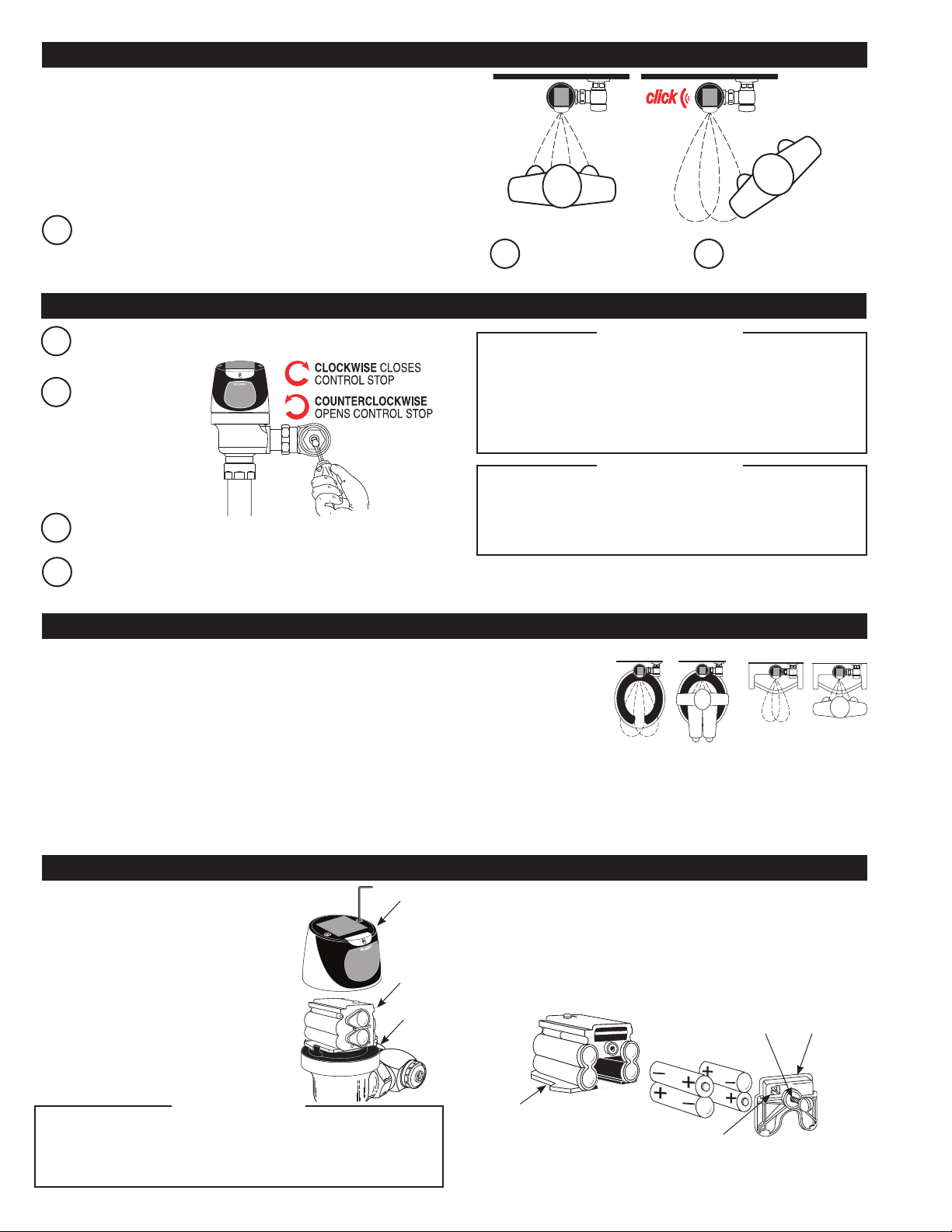

11 - TEST SENSOR OPERATION

12 - ADJUST CONTROL STOP AND INSTALL VANDAL RESISTANT STOP CAP

OPERATION

SLOAN FLUSHOMETERS ARE ENGINEERED FOR QUIET

OPERATION. EXCESSIVE WATER FLOW CREATES NOISE,

WHILE TOO LITTLE WATER FLOW MAY NOT SATISFY THE

NEEDS OF THE FIXTURE. PROPER ADJUSTMENT IS MADE

WHEN PLUMBING FIXTURE IS CLEANSED AFTER EACH

FLUSH WITHOUT SPLASHING WATER OUT FROM THE LIP

AND A QUIET FLUSHING CYCLE IS ACHIEVED.

!!! IMPORTANT !!!

THE CONTROL STOP SHOULD NEVER BE OPENED TO THE

POINT WHERE THE FLOW FROM THE VALVE EXCEEDS

THE FLOW CAPABILITY OF THE FIXTURE. IN THE EVENT

OF A VALVE FAILURE, THE FIXTURE MUST BE ABLE TO

ACCOMMODATE A CONTINUOUS FLOW FROM THE VALVE.

!!! IMPORTANT !!!

NEVER INSTALL MIXED BATTERY TYPES: (CARBON-ALKALINE-

LITHIUM) PRIMARY AND SECONDARY CELLS (NON-RECHARGEABLE VS

RECHARGEABLE). REPLACE ALL 4 BATTERIES AT THE SAME TIME WITH

FRESH BATTERIES. FAILURE ON THE ABOVE CAN REDUCE BATTERY

LIFE, CAUSE BATTERY LEAKAGE, AND RESULT IN PRODUCT DAMAGE.

!!! IMPORTANT !!!

DO NOT USE abrasive or chemical cleaners to clean flushometers as they may dull the luster and attack the chrome or special decorative finishes. Use

ONLY mild soap and water, then wipe dry with clean cloth or towel. DO NOT spray cleaner directly onto the ﬂushometer; instead, spray into a clean cloth

and then wipe down the ﬂushometer. While cleaning the bathroom tile, the flushometer should be protected from any splattering of cleaner. Acids and

cleaning fluids can discolor or remove chrome plating.

RANGE ADJUSTMENT (ADJUST ONLY IF NECESSARY)

CARE AND CLEANING

TROUBLESHOOTING GUIDE

LAWS AND REGULATIONS PROHIBIT THE USE OF HIGHER

FLUSHING VOLUMES THAN LISTED ON FIXTURE OR

FLUSHOMETER.

!!! IMPORTANT !!!

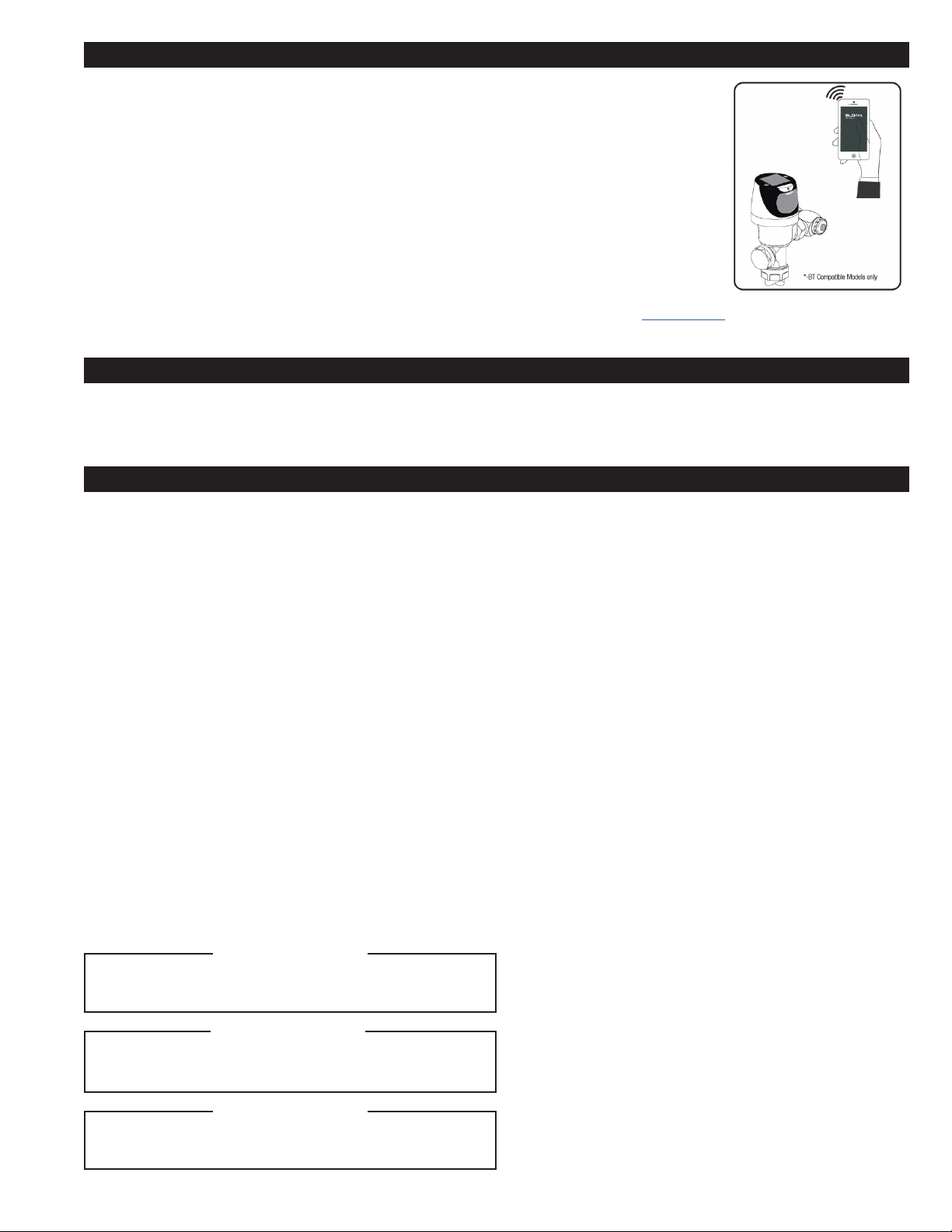

NOTE: For -BT models

only, to automatically

check battery strength,

troubleshoot, diagnose and

report ﬂushometer issues

with a wireless device, use

the Sloan Connect APP. The

APP is available free-of-

charge at the Apple iPhone

APP store for iOS devices

or the Google Play APP

store for Android devices.

For more information about

the APP and its capabilities

please visit www.sloan.com.

The Sloan SOLIS®has a factory set sensing range:

Water Closet Models - 22” to 42” (559 mm to 1067 mm)

Urinal Models - 15” to 30” (381 mm to 762 mm)

The factory setting should be satisfactory for most installations.

NOTE: Water DOES NOT have to be turned off to adjust range.

RANGE ADJUSTMENT PROCEDURE

For the ﬁrst ten (10) minutes of operation, a visible light ﬂashes in the sensing Window

of the Sloan SOLIS®ﬂushometer when a user is detected. This visible light feature can

be reactivated after ten (10) minutes by opening and closing the battery compartment

door. Check the range by stepping toward the unit until the light ﬂashes, indicating the

sensor’s maximum detection limit.

Always Determine the Sensing Range with Metal Cover and Lens Window On

Top of the Unit.

To recalibrate the sensor, touch and hold the override button for 30 seconds, once the

Blue LED blinks every second, and release. Stand at desired distance, LED should blink

once every 2 seconds for 30 seconds). The setting mode will run for one (1) minute.

1. Sensor Flashes Continuously Only When User Steps Within Range.

A. Unit in Start-Up mode; no problem. This feature is active for the ﬁrst ten

(10) minutes of operation.

2. Valve Does Not Flush; Sensor Not Picking Up User.

A. Range too short; increase the range.

3. Valve Does Not Flush; Sensor Picking Up Opposite Wall or Surface, or

Only Flushes When Someone Walks By. Light Flashes Continuously for

First 10 Minutes Even with No One in Front of the Sensor.

A. Range too long; shorten range.

4. Valve Does Not Flush Even After Adjustment.

A. Range Adjustment Potentiometer set at full “max” or full “min” setting. Re-

adjust Potentiometer away from full “max” or “min” setting.

B. Batteries completely used up; replace batteries.

C. Problem with Electronic Sensor Module; replace Electronic Sensor Module.

Try swapping module with working unit to test module function.

D. Are there audible clicks from the solenoid?

NO: check for solenoid plugged into module; possibly solenoid stuck in

closed position, replace solenoid.

YES: check solenoid for over-tightening, check to make sure locking ring

was secured properly.

E. Module is working, and solenoid clicking, loosen and re-tighten locking ring;

check diaphragm for perforations in diaphragm disc; replace.

5. Unit Flashes 4 Quick Times When User Steps Within Range.

A. Batteries low; replace batteries.

6. Valve Does Not Shut Off.

A. Bypass Oriﬁce in Diaphragm is clogged with dirt or debris, or Bypass

is clogged by an invisible gelatinous ﬁlm due to “over-treated” water.

Remove ﬂex tube diaphragm and wash under running water or

replace.

NOTE: SIZE OF ORIFICE IN THE BYPASS IS OF UTMOST

IMPORTANCE FOR THE PROPER METERING OF WATER BY THE

VALVE. DO NOT ENLARGE OR DAMAGE THIS ORIFICE. REPLACE

FLEX TUBE DIAPHRAGM IF CLEANING DOES NOT CORRECT THE

PROBLEM.

B. Dirt or debris fouling stem or ﬂex tube diaphragm. Remove ﬂex tube

diaphragm and wash under running water or replace.

C. O-ring on stem of ﬂex tube diaphragm is damaged or worn. Replace

O-ring if necessary EBV-83 O-Ring 1/8 X 1/4 X 1/16 (5325056).

D. Problem with electronic sensor module; replace sensor module. Try

swapping module with working unit to test module function

E. Are there audible clicks from the solenoid?

NO, possibly solenoid stuck open position, replace solenoid.

YES, check solenoid properly screwed into inside cover, check to

make sure locking ring was secured properly.

F. If module is working, and solenoid clicking, check diaphragm for

perforations in diaphragm disc; replace.

7. Not Enough Water to Fixture.

A. Wrong ﬂush volume regulator installed in ﬂex tube diaphragm kit.

Install the correct Regulator.

B. Wrong SOLIS®model installed; i.e., 1.0 gpf urinal installed on 3.5

gpf closet ﬁxture. Replace with proper Sloan SOLIS®model.

C. Enlarged by-pass in diaphragm. Replace ﬂex tube diaphragm.

D. Control Stop not adjusted properly. Readjust control stop.

E. Inadequate volume or pressure at supply. Increase water pressure or

supply (ﬂow) to valve. Consult factory for assistance.

8. Too Much Water to Fixture.

A. Wrong ﬂush volume regulator installed in ﬂex tube diaphragm Kit.

Install the correct regulator.

B. Control Stop not adjusted properly. Readjust Control Stop.

C. Wrong Sloan SOLIS®model installed; i.e., 3.5 gpf Model installed

on 1.0 or 1.5 gal. Urinal ﬁxture. Replace with proper Sloan SOLIS®

model.

D. Dirt in Diaphragm Bypass. Clean under running water or replace Flex

Tube Diaphragm.

NOTE: Troubleshooting also applies to the Sloan SOLIS Urinals.

WHEN SERVICING SOLENOID, ROTATING LOCKING RING,

SERVICING DIAPHRAGM, SERVICING VACUUM BREAKER OR

SPUD, TURN OFF WATER SUPPLY AT STOP.

!!! IMPORTANT !!!

-SMT models require SC Argus Portal equipment and subscription. Please contact your SC Argus Pro Sales Representative or Sloan

Technical Support. For Troubleshooting and Replacement of SOLIS -SMT units, please consult the SOLIS Repair Parts & Maintenance Guide.

MORE FREQUENT ROUTINE MAINTENANCE MAY BE

REQUIRED OF THE FLUSHOMETER DUE TO THE CHEMICAL

PROPERTIES OF RECLAIMED WATER.

!!! IMPORTANT !!!

SLOAN • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131

Phone: 1-800-982-5839 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • sloan.com

The information contained in this document is subject to change without notice.

ITEM # PART # DESCRIPTION

Items Included with RESS Retrofit and Complete Sloan SOLIS®Valves

1EBV-304-A* Cover/Sensor/Assembly - Closet SOLIS Electronic Single

EBV-320-A Cover/Sensor/Assembly (†Zurn®) - Closet SOLIS Single

EBV-306-A* Cover/Sensor/Assembly - Urinal SOLIS Single

EBV-321-A Cover/Sensor/Assembly (†Zurn®) - Urinal SOLIS Single

EBV-379-A* Cover/Sensor/Assembly - Closet SOLIS 1.1 gpf Single

WES-24-A* Cover/Sensor/Assembly - Closet SOLIS Dual

EBV-328-A* Cover/Sensor/Assembly - Urinal 0.25 gpf SOLIS Single

EBV-385-A* Cover/Sensor/Assembly - Urinal 0.125 gpf SOLIS Single

2EBV-309-A Cover Assembly - SOLIS Electronic Single Button Flush

EBV-311-A Cover Assembly - SOLIS Electronic Dual Flush

3EBV-14 Locking Ring

EBV-30 Locking Ring - for †Zurn®valves

4EBV-312-A-C Sensor Assembly SOLIS - Water Closet

EBV-312-A-U Sensor Assembly SOLIS - Urinal

EBV-388-A Module - SOLIS - 0.125 gpf Urinal

EBV-382-A Module - SOLIS - 1.1 gpf Single Button Flush

WES-33-A Module - SOLIS - Water Closet (Dual Flush)

5EBV-134 Cover Rest Plate

6EBV-145-A Inside Cover Assembly (includes solenoid)

7EBV-136-A Solenoid

8† † Flex Tube Diaphragm Assembly

9† † Flush Volume Regulator

10 EBV-1017-A Handle Cap

11 EBV-91 Range Adjustment Tool

12 EBV-22 Strap Wrench

13 EBV-137 7/64” Hex Wrench

ITEM # PART # DESCRIPTION

Items Included with Complete Sloan SOLIS®Valves Only

14 H-633-AA 1” (25 mm) Sweat Solder Kit

H-636-AA ¾” (19 mm) Sweat Solder Kit

15 H-700-A 1” (25 mm) Bak-Chek®Control Stop

H-700-A ¾” (19 mm) Bak-Chek®Control Stop

16 H-1010-A Vandal Resistant Stop Cap

17 EBV-36-A Valve Body

17A H-1015-A Flow Control (Not Shown) (Urinal 0.5, 0.25, 0.125 gpf)

18A V-600-AA 1½” (38 mm) x 10½” (229 mm) Vacuum Breaker

(Model 8110/8111)

V-600-AA 1½” (38 mm) x 15” (381 mm) Vacuum Breaker

(Model 8113)

V-600-AA 1½” (38 mm) x 23” (584 mm) Vacuum Breaker

(Model 8115)

V-600-AA 1½” (38 mm) x 26” (660 mm) Vacuum Breaker

(Model 8116)

18B V-600-A 3” (76 mm) Vacuum Breaker Assembly

18C V-600-AA 1¼” (32 mm) x 10½” (229 mm) Vacuum Breaker

(Model 8180)

18D V-600-AA ¾” (19 mm) x 10½” (229 mm) Vacuum Breaker

(Model 8186)

19 F-109 1½” (38 mm) Elbow Flush Connection

20A F-5-AT 1½” Spud Coupling Assembly (Water Closet Models)

20B F-5-AU 1¼” Spud Coupling Assembly (Model 8180)

20C F-5-AW ¾” Spud Coupling Assembly (Model 8186)

18A

18B 18D

20A

20B 20C

20A

18C

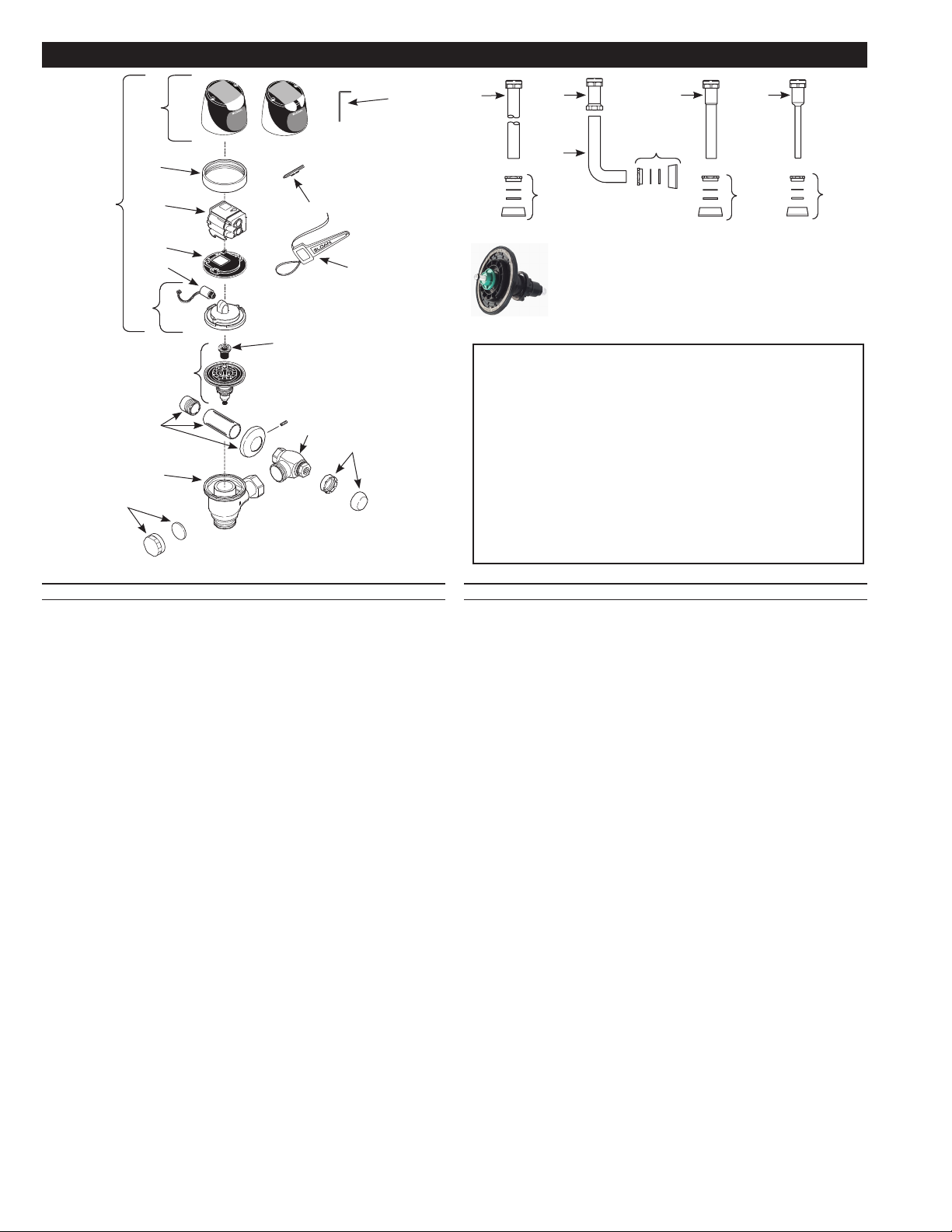

PARTS LIST

Sloan SOLIS®valve models feature Sloan’s exclusive flex tube

diaphragm for the ultimate in valve performance, reliability and

chloramines resistance.

FLEX TUBE DIAPHRAGM ASSEMBLY (#8)

FCC INFORMATION TO USERS

This equipment has been tested and found to comply with the limits for a class B

digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

† † Flow volume varies with valve model and desired ﬂush volume. Consult the Repair

Parts & Maintenance Guide for replacement part numbers.

*-BT Sloan Connected Product Models available.

For -SMT (

SC Argus models

) consult local Rep or contact Sloan Technical

Support. For Troubleshooting and Replacement of SOLIS -SMT units, please

consult the SOLIS Repair Parts & Maintenance Guide.

† The brands and/or products names referenced herein may be subject to trademark rights of their

respective owners. Use of the brands and names is for identiﬁcation purposes only and does not

imply afﬁliation with or endorsement by Sloan.

Manufactured in the U.S.A. by Sloan Valve Company under one or more of the following patents:

U.S. Patents: D598,975; D599,436; 7,124,997. Other Patents Pending. BAK-CHEK®, PARA-FLO®,

PERMEX®, TURBO-FLO®.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sloan Unité de contrôle

Sloan

Sloan G2 Optima Plus Manuel d'utilisation

Sloan

Sloan Optima ETF-80 Manuel utilisateur

Sloan

Sloan 152 ES-S TMO SWB Manuel utilisateur

Sloan

Sloan TRUFLUSH TRF 8900-CP Manuel utilisateur

Sloan

Sloan NAVAL 110 Manuel utilisateur

Sloan

Sloan Optima Plus EBV-500-A Manuel utilisateur

Sloan

Sloan 152 ES-S TMO SWB Manuel utilisateur

Sloan

Sloan G2 Optima Plus Manuel d'utilisation

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
