Installation Guide

For Pro DC External Electric Thruster Models

SXP35, SXP50

I M

5926

2023

25926 23 2023

SXP35 & SXP50

Sleipner Motor AS

P.O. Box 519, Arne Svendsensgt. 6-8

N-1612 Fredrikstad, Norway

MC_0020

Contents

The installer must read this document to ensure necessary familiarity with the product before installation.

Instructions in this document cannot be guaranteed to comply with all international and national regulations. It is the responsibility of the

installer to follow all applicable international and national regulations when installing Sleipner products.

The recommendations given in this document are guidelines ONLY, and Sleipner strongly recommends that advice is obtained from a person

familiar with the particular vessel and applicable regulations.

This document contains general installation instructions intended to support experienced installers. If you are not skilled in this type of work,

please contact professional installers for assistance.

If required by local regulation, electrical work must be done by a licensed professional.

Appropriate health and safety procedures must be followed during installation.

Faulty installation of Sleipner products will render all warranties given by Sleipner Motor AS.

Ensure appropriate access to Sleipner products during installation planning for service, inspection and component replacement.

MC_0038

Responsibility of the Installer

MC_0425

For thruster systems

• Do not install the thruster in a position where you need to cut a stiffener/ stringer/ support that may jeopardise the hull integrity without checking

with the boat builder this can be done safely.

• Paint the gear leg and propellers with anti-fouling. (NB: Do not paint the anodes, sealing, rubber ﬁ ttings or propeller shafts)

• There is only room for a thin coat of primer and two layers of anti-fouling between the tunnel and the props.

• Never run the thruster out of water without load.

MC_0440

General Installation Consideration and Precaution Guidelines

Installation Manual

Responsibility of the Installer................................................................................................................................................................... 3

General Installation Considerations and Precautions Guidelines ........................................................................................................... 3

Product Measurements ......................................................................................................................................................................... 5

Product Specications............................................................................................................................................................................ 7

Galvanic Isolation .................................................................................................................................................................................... 7

Positioning the stern SX Thruster........................................................................................................................................................... 8

Guide for Stern Thruster Cowls or Grids ................................................................................................................................................. 9

Propeller Installation............................................................................................................................................................................. 10

Tunnel Installation ................................................................................................................................................................................ 11

SX Spacer ............................................................................................................................................................................................. 12

Motor Installation ................................................................................................................................................................................... 13

Grids or Cowls assembly...................................................................................................................................................................... 15

Electrical Installation............................................................................................................................................................................. 16

Electrical Reference Guide.................................................................................................................................................................... 16

Control Box Installation........................................................................................................................................................................ 17

PPC Installation .................................................................................................................................................................................... 19

Manual Main Switch Wiring Diagram 12V S-Link SXP Thruster ........................................................................................................... 20

Automatic Main Switch Wiring Diagram 12V S-Link SXP Thruster ....................................................................................................... 21

S-Link System Description .................................................................................................................................................................... 22

Control Panel Installation ..................................................................................................................................................................... 23

Post-Installation Checklist ................................................................................................................................................................ 24

Service and Support........................................................................................................................................................................... 25

Product Spare Parts and Additional Resources.............................................................................................................................. 25

Warranty Statement............................................................................................................................................................................ 25

Patents.................................................................................................................................................................................................. 25

5926 23 2023

SXP35 & SXP50

The installer must read this document to ensure necessary familiarity with the product before installation.

Instructions in this document cannot be guaranteed to comply with all international and national regulations. It is the responsibility of the

installer to follow all applicable international and national regulations when installing Sleipner products.

The recommendations given in this document are guidelines ONLY, and Sleipner strongly recommends that advice is obtained from a person

familiar with the particular vessel and applicable regulations.

This document contains general installation instructions intended to support experienced installers. If you are not skilled in this type of work,

please contact professional installers for assistance.

If required by local regulation, electrical work must be done by a licensed professional.

Appropriate health and safety procedures must be followed during installation.

Faulty installation of Sleipner products will render all warranties given by Sleipner Motor AS.

Ensure appropriate access to Sleipner products during installation planning for service, inspection and component replacement.

MC_0038

Responsibility of the Installer

Failure to follow the considerations and precautions can cause serious injury, damage and will render all

warranties given by Sleipner Motor as VOID. MC_0411

MC_0425

For thruster systems

• Do not install the thruster in a position where you need to cut a stiffener/ stringer/ support that may jeopardise the hull integrity without checking

with the boat builder this can be done safely.

• Paint the gear leg and propellers with anti-fouling. (NB: Do not paint the anodes, sealing, rubber ﬁ ttings or propeller shafts)

• There is only room for a thin coat of primer and two layers of anti-fouling between the tunnel and the props.

• Never run the thruster out of water without load.

MC_0440

General Installation Consideration and Precaution Guidelines

MC_0427

For SX/P35 and SX/P50 thruster systems

• Ensure that the external thruster assembly does not disturb the water flow under the hull. At higher speeds, if the thruster is installed to

low it can cause damage to the thruster and/ or add additional drag and unwanted water splashing.

• The minimum tunnel depth from the water surface is 140mm (5,51‘) to the centre of tunnel diameter. Place the Thruster as deep as possible for

better performance and reduced noise.

• When installing the thruster ensure it does not foul existing equipment inside the boat like motor bedding etc.

• If able ensure that stern-drives/ trim-tabs do not interfere with the water flow from the thruster as this can reduce the thrust effectiveness

considerably. We recommend the use of our Sleipner cowls to enhance the performance and allow installation in shallow draft boats. Sleipner

cowls will also minimise the effect if stern-drives/ trim-tabs obstruct the thruster.

• Ensure there is enough space both inside and outside the transom of the boat and the thruster does not get in conflict with existing equipment

inside the boat like steerage links etc. (NB: It is possible to mount the tunnel offset from the boat’s centre line if necessary. Hydro pods can not be

installed on the transom)

• To avoid cable overheating do not install place the volt cables from the thruster to the control box near any heat sources. (NB: excluding SXP

thrusters)

• Do not lift the thruster by internal cable connections, main terminals.

• The thruster power supply circuit must include the recommended sized fuse and a battery isolation switch.

• The electric motor, components and cables must be mounted so they remain dry at all times.

• Do not use abrasive tools damaging the existing Epoxy coating when preparing for antifouling paint.

45926 23 2023

SXP35 & SXP50

MC_0239

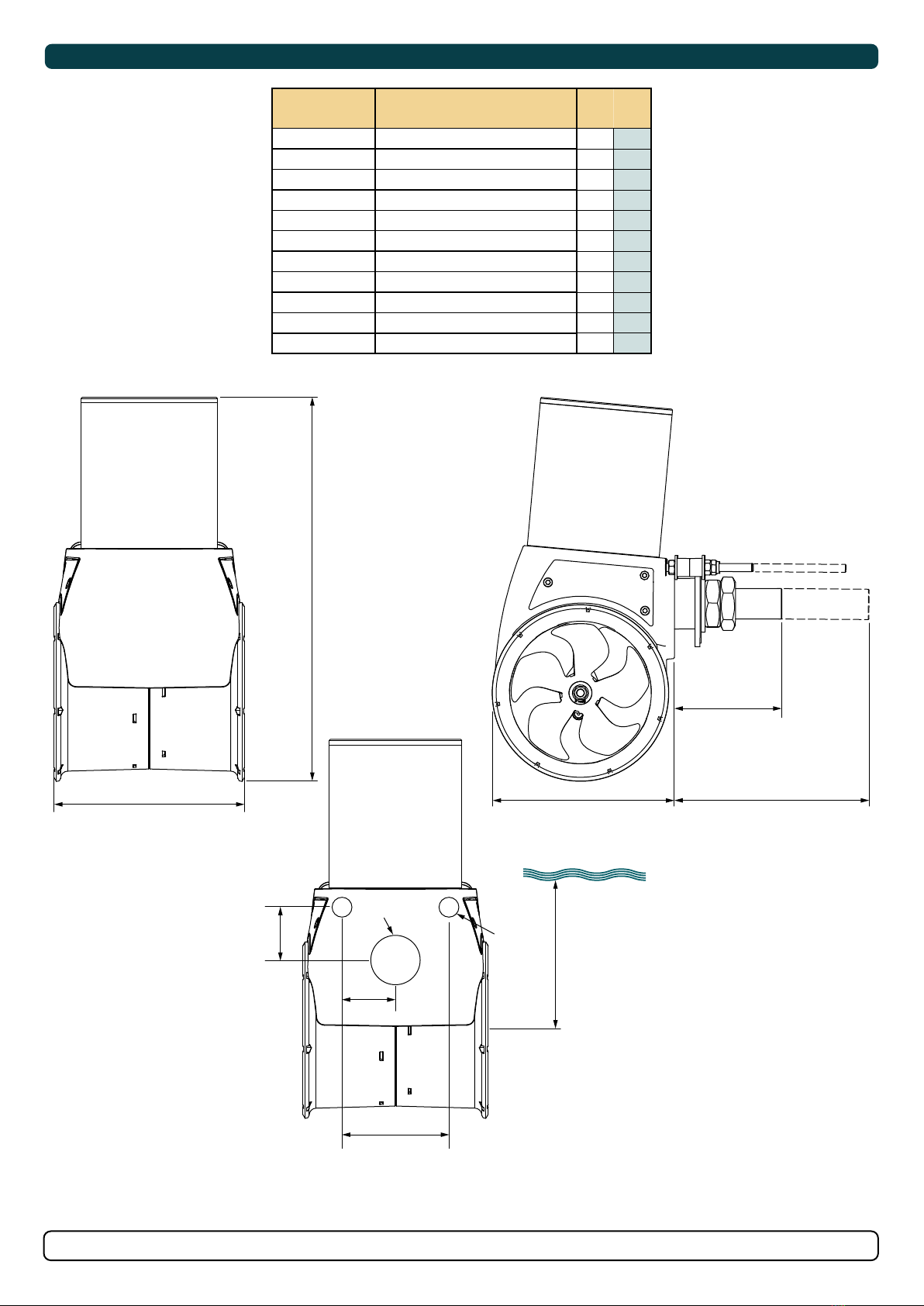

Product Measurements

Measurement

code Measurement description mm inch

H Motor Height 374 14.72

W Width 183 7.20

L Length 171 6.7

WD Minimum Water Depth 140 5.5

(a) Standard tube length 171 6.7

(b) Extended tube length for thicker hulls 276 10.9

(d) Support bolts diameter 18 0.7

(e) Height of support bolts from tube 35.8 1.4

(f) Distance of support bolts from tube 65 2.6

(g) Distance of support bolts 130 5.1

When installing an S-Link™ system connect ONLY original Sleipner S-Link™ products or other authorized control equipment directly to the S-Link™ bus.

Connecting non-authorized third-party equipment, it must always be connected through a Sleipner supplied interface product.

Any attempt to directly control or connect into the S-Link™ control system without a designated and approved interface will render all warranties and

responsibilities of all of the connected Sleipner products. If you are interfacing the S-Link™ bus by agreement with Sleipner through a designated

Sleipner supplied interface, you are still required to install at least one original Sleipner control panel to enable efﬁcient troubleshooting if necessary.

MC_0105

MC_0502

Lithium Batteries for proportional thrusters models

• If a lithium battery system is installed for supply of proportional thrusters, ensure the battery is designed for continuous supply of the required

thruster current. Under-rated battery management system can suddenly disconnect the load which may lead to dangerous situations. The

ﬁ rmware version of Proportional Power Controller (PPC) must be of version 1.033 or later if the PPC is to be connected to a lithium battery.

Operating the thruster outside speciﬁ ed ratings will void warranty.

MC_0440

General Installation Consideration and Precaution Guidelines

NEVER Disassemble any part of the Ignition Protected assembly. Tampering with the Ignition Protected assembly will cause it to lose this

safety feature. If there is a problem with your Ignition Protected motor, please contact your dealer. MC_0007

5926 23 2023

SXP35 & SXP50

MG_0110

(a)

(b)

(e)

(c)

(d)

(f)

(g)

* Extended tube for

thicker hull models

(Hull thickness >50mm to <150mm)

* Standard tube

(Hull thickness <50mm)

Water line

MC_0239

Product Measurements

Measurement

code Measurement description mm inch

H Motor Height 374 14.72

W Width 183 7.20

L Length 171 6.7

WD Minimum Water Depth 140 5.5

(a) Standard tube length 171 6.7

(b) Extended tube length for thicker hulls 276 10.9

(d) Support bolts diameter 18 0.7

(e) Height of support bolts from tube 35.8 1.4

(f) Distance of support bolts from tube 65 2.6

(g) Distance of support bolts 130 5.1

When installing an S-Link™ system connect ONLY original Sleipner S-Link™ products or other authorized control equipment directly to the S-Link™ bus.

Connecting non-authorized third-party equipment, it must always be connected through a Sleipner supplied interface product.

Any attempt to directly control or connect into the S-Link™ control system without a designated and approved interface will render all warranties and

responsibilities of all of the connected Sleipner products. If you are interfacing the S-Link™ bus by agreement with Sleipner through a designated

Sleipner supplied interface, you are still required to install at least one original Sleipner control panel to enable efﬁcient troubleshooting if necessary.

MC_0105

MC_0502

Lithium Batteries for proportional thrusters models

• If a lithium battery system is installed for supply of proportional thrusters, ensure the battery is designed for continuous supply of the required

thruster current. Under-rated battery management system can suddenly disconnect the load which may lead to dangerous situations. The

ﬁ rmware version of Proportional Power Controller (PPC) must be of version 1.033 or later if the PPC is to be connected to a lithium battery.

Operating the thruster outside speciﬁ ed ratings will void warranty.

MC_0440

General Installation Consideration and Precaution Guidelines

NEVER Disassemble any part of the Ignition Protected assembly. Tampering with the Ignition Protected assembly will cause it to lose this

safety feature. If there is a problem with your Ignition Protected motor, please contact your dealer. MC_0007

65926 23 2023

SXP35 & SXP50

MG_0132

121 mm

4’ 76”

187 mm

7’ 36”

170 mm

6’ 69”

136 mm

5’ 35”

190 mm

7’ 5”

110 mm

4’ 33”

Product Measurements

MG_0565

Metal hull, support or

frame for mounting the

SX thruster

Galvanic isolation will

prevent any current flow

to the SX thruster

Material to isolate the

contact area of the

surfaces fasteners

SX seawater resistant

aluminium frame

5926 23 2023

SXP35 & SXP50

MC_0149

Product Speciﬁ cations

Description SX35

SXP35

SX50

SXP50

Nominal Voltage 12V 12V

Thrust 12V 43 kg / 94 lbs 62 kg / 136 lbs

Thrust 10.5V 35 kg / 77 lbs 50 kg / 110 lbs

Maximum Operation Time S2 motor at 2 - 3 min. duty cycle at 20°c (ambient temperature) S2 motor at 2 - 3 min. duty cycle at 20°c (ambient temperature)

Power 1.8kw / 2hp 2.8kw / 3.75hp

Weight 15.3 kg / 33.73 lbs 15.3 kg / 33.73 lbs

Product SX35

SXP35

SX50

SXP50

Nominal voltage 12V 12V

Max current 250A 380A

Motor duty cycle Short time duty (S2) Short time duty (S2)

Max ambient temp 50ºc 50ºc

Min ambient temp -25ºc -25ºc

SX/P Thruster

SX/P Control Box

Galvanic Isolation MC_0483

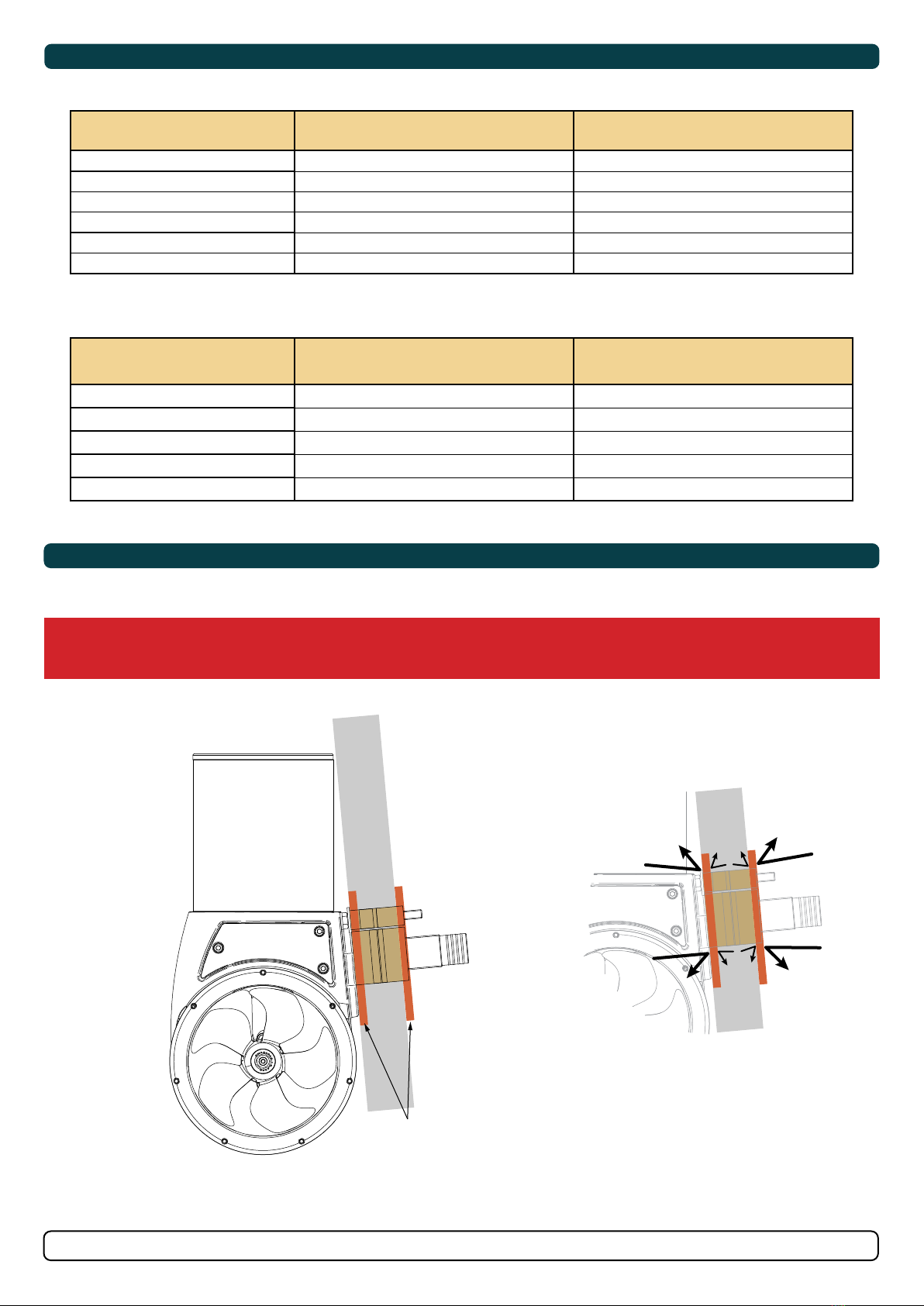

The SX models are produced with a seawater resistant aluminium frame. Without galvanic isolation from other electrical sources the SX seawater

resistant aluminium frame will act as an anode on the vessel. This will add considerable corrosion to the SX thruster frame.

WARRING

IF installing on any metal surface with contact to the SX seawater resistant aluminium frame or fasteners (vessel hull, supports or frames) the SX

thruster must include a galvanic isolation solution.

MG_0565

Metal hull, support or

frame for mounting the

SX thruster

Galvanic isolation will

prevent any current flow

to the SX thruster

Material to isolate the

contact area of the

surfaces fasteners

SX seawater resistant

aluminium frame

85926 23 2023

SXP35 & SXP50

MC_0072

Positioning the Stern SX Thruster

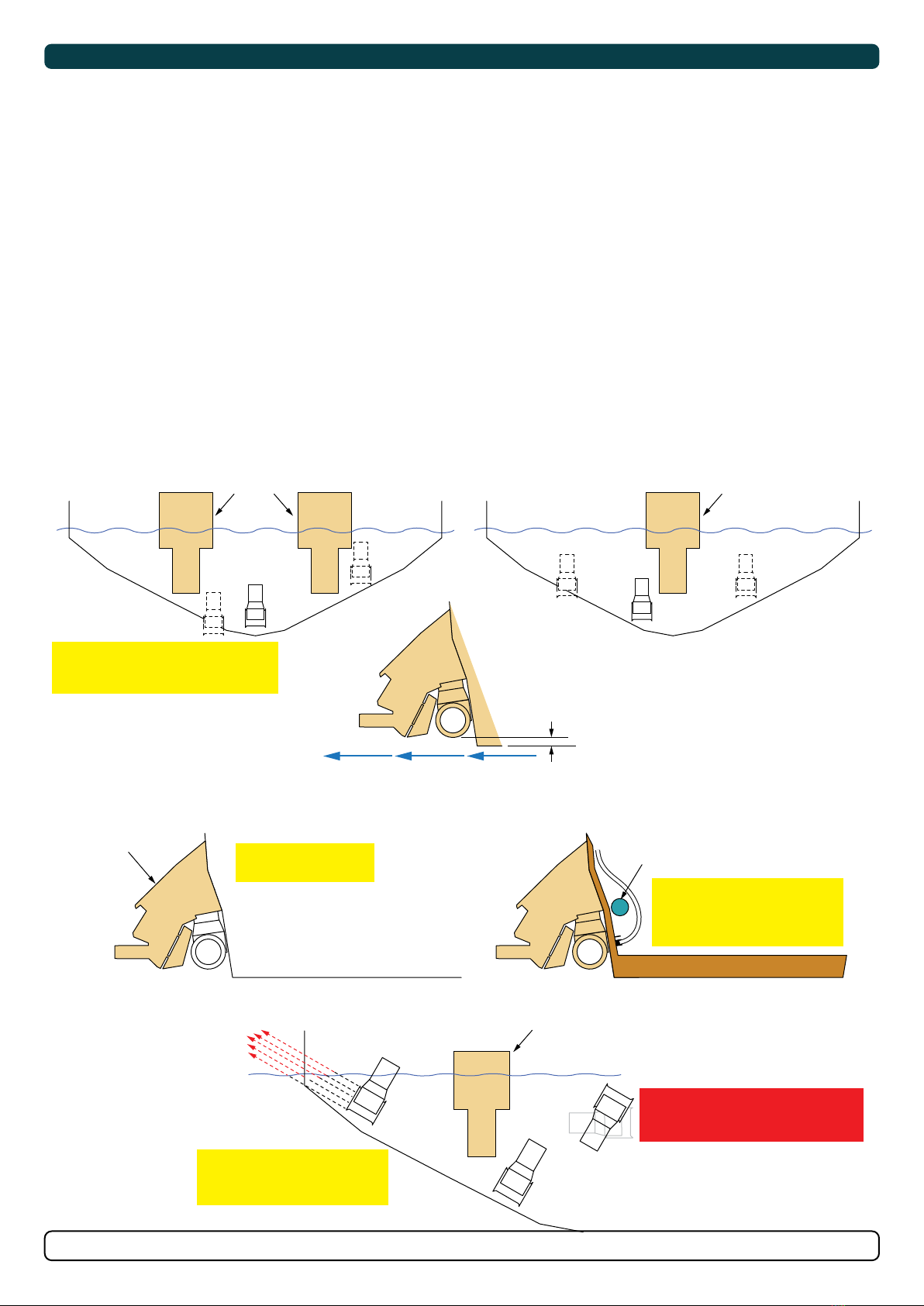

For best performance, the thruster must be installed as deep on the stern as possible but not disturb the natural water flow dynamic of the hull as the

vessel travels.

The thruster should be installed as deep under the waterline as possible for two reasons:

1. So it does not suck air from the surface which will reduce performance and increase noise levels.

2. To receive maximum efﬁ ciency in turning force.

The thruster must be installed to ensure the propulsion water flow must not be obstructed by other objects. Objects that obstruct the water flow from

the thruster will greatly reduce the thrust output.

Position

The thruster can be installed in multiple locations on the boat transom. Installing the thruster slightly off centre will not affect the overall effectiveness

of the thruster. Installing the thruster off centre may be required to avoid any obstructions externally or internally on the vessel.

Ensure that the external stern thruster assembly does not disturb the water flow under the hull. At higher speeds, if the thruster is installed to low can

cause damage to the thruster, additional drag and unwanted water splashing.

Alignment

The thruster can be installed at a slight angle if required for the water flow to avoid obstructions. These obstructions can include propellers systems,

trim tabs or the hull. The average force the thruster propels water is 5-7 meters per sec, therefore angled installations must be as deep as possible

under the water to minimise spray breaking beyond the water surface. (NB: install the thruster at an angle only if no other suitable location can be

found.)

MG_0109

Thruster tunnel is

clear from obstruction.

Ensure the attachment bolts and

wiring are not obstructing objects

internally in the boat such as

steering legs or motors

Steering Arm

Installing the thruster at an angle

close to the water line will blast

water beyond the water surface.

Do not install the SX thruster inverted

or at an angle over a reasonable level

to deliver appropriate thrust

Engine

The thruster can be installed in multiple

locations based on object obstructions

on the stern.







Engine

Water line Water line

Water line

Engine

Thruster assembly does not disturb

the water flow under the hull.

Water flow



5926 23 2023

SXP35 & SXP50

MC_0072

Positioning the Stern SX Thruster

For best performance, the thruster must be installed as deep on the stern as possible but not disturb the natural water flow dynamic of the hull as the

vessel travels.

The thruster should be installed as deep under the waterline as possible for two reasons:

1. So it does not suck air from the surface which will reduce performance and increase noise levels.

2. To receive maximum efﬁ ciency in turning force.

The thruster must be installed to ensure the propulsion water flow must not be obstructed by other objects. Objects that obstruct the water flow from

the thruster will greatly reduce the thrust output.

Position

The thruster can be installed in multiple locations on the boat transom. Installing the thruster slightly off centre will not affect the overall effectiveness

of the thruster. Installing the thruster off centre may be required to avoid any obstructions externally or internally on the vessel.

Ensure that the external stern thruster assembly does not disturb the water flow under the hull. At higher speeds, if the thruster is installed to low can

cause damage to the thruster, additional drag and unwanted water splashing.

Alignment

The thruster can be installed at a slight angle if required for the water flow to avoid obstructions. These obstructions can include propellers systems,

trim tabs or the hull. The average force the thruster propels water is 5-7 meters per sec, therefore angled installations must be as deep as possible

under the water to minimise spray breaking beyond the water surface. (NB: install the thruster at an angle only if no other suitable location can be

found.)

MG_0109

Thruster tunnel is

clear from obstruction.

Ensure the attachment bolts and

wiring are not obstructing objects

internally in the boat such as

steering legs or motors

Steering Arm

Installing the thruster at an angle

close to the water line will blast

water beyond the water surface.

Do not install the SX thruster inverted

or at an angle over a reasonable level

to deliver appropriate thrust

Engine

The thruster can be installed in multiple

locations based on object obstructions

on the stern.







Engine

Water line Water line

Water line

Engine

Thruster assembly does not disturb

the water flow under the hull.

Water flow



MC_0072

Guide for Stern Thruster Cowls or Grids

Installing a stern thruster cowl for stern thrusters that will allow installations in boats with shallow drafts or due to other obstructions on the stern.

These can include obstacles such as trim tabs, jets or surface drive propeller systems where shallow installation of a stern thruster is the only option.

Cowls:

Designed to aid in water redirection and reduce air entering the tunnel in shallow installations.

Grid’s:

Designed to protect the thruster from objects while in use.

MG_0017

Shallow installation

Cowl water flow redirection

An angled edge further

preventing air attraction into

the tunnel

Composite material with smooth

inner walls for optimal water flow

and strength

A standard sleipner stern thruster

tunnel with add-on cowls for

shallow installation

cowls to change the

water flow direction to

avoid obstructions on

the stern

cowls help prevent air

from the water surface

entering the tunnel in

shallow installations

Radius corners prevent

turbulence

Easy installation for easy

bolt-on ﬁtting

IMPORTANT

Angled cowls out of horizontal, must be

installed deeper to avoid air entry in the

thruster tunnel

Model # 90126 90080 90077 90136 90130 90220 90560

A (mm/ in) 528/ 20.8 681/ 26.6 823/ 32.4 850/ 33.5 1010/ 39.75 1208/ 47.6 1580/ 62.2

B (mm/ in) 166/ 6.5 172/ 6.8 243/ 9.6 260/ 10.2 330/ 13 393/ 15.5 515/ 20.3

C (mm/ in) 130/ 5.1 240/ 9.4

D (mm/ i n) 170/ 6.7 256/ 10.1 256/ 10.1 288/ 11.3 340/ 13.4 419/ 16.5 540/ 21.3

100mm

177mm

537mm

174mm

10 5926 23 2023

SXP35 & SXP50

Propeller Installation

1. Centre the drive pin and Insert the propeller onto the shaft spine. Rotate the propeller until the drive pin aligns with the internal slot in the

propeller.

2. Insert the washer to the end of the shaft spline. Tighten with the propeller lock-nut.

3. Apply anti fouling to the gear leg and propeller. Do not apply anti fouling to any rubber elements of the gear leg or anodes if applicable.

(NB: Ensure to paint under plastic covers.)

MC_0016

WARNING

Do not use abrasive tools damaging the existing Epoxy coating when preparing for antifouling paint.

MG_0478

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SLEIPNER MOTOR AS Moteur hors-bord

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS Side-Power 7 Hp Twin Mode d’emploi

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SAC240 Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SIDE-POWER SE-50/140 S Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SH100 Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SIDE POWER SRH 240 TC Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS Side-Power AC-750/513 I Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SE 50 S IP Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SAC240 Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SIDE-POWER SE 30/125 S IP Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SIDE-POWER SEP80 Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS Side-Power PPC 820 Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SEP-IP170 Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS ES 60/185 S Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SXP35POD Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SIDE-POWER SEP IP - 170 Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS Side-Power SEP80/185T Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SIDE-POWER SE-60/185 S2 Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SE 40 Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS Side-Power Manuel d'installation

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS PPC 840 Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SIDE-POWER SE IP 60/185 S Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS Side-power SP 30 S2i Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS SE 30 S IP Manuel utilisateur

SLEIPNER MOTOR AS

SLEIPNER MOTOR AS Side-Power SH 700/ 412 TC Manuel utilisateur

Manuels Moteur hors-bord populaires d'autres marques

Yamaha

Yamaha VF150 Manuel utilisateur

Sleipner

Sleipner SEP-IP30 Manuel utilisateur

Suzuki

Suzuki DF 40 Manuel utilisateur

SELVA MARINE

SELVA MARINE Corse Manuel utilisateur

TOHATSU

TOHATSU BFT 250A Manuel utilisateur

KONRAD

KONRAD Series 600B Manuel utilisateur

Mercury

Mercury 8 Bigfoot 4-Stroke Guide d'installation

Sleipner

Sleipner E-Vision Electric Thruster E300 Manuel utilisateur

Suzuki

Suzuki DF40A Manuel utilisateur

IST

IST 18.BF200D Manuel utilisateur

Side-Power

Side-Power SP 155 TC i Manuel utilisateur

Mercury

Mercury 40 FourStroke Manuel utilisateur

Quick

Quick BTR250 Manuel utilisateur

Yamaha

Yamaha VF90 Manuel utilisateur

Yamaha

Yamaha D150H Manuel utilisateur

Yanmar

Yanmar ZT350 series Manuel utilisateur

MotorGuide

MotorGuide X3-40 Manuel utilisateur

Mercury

Mercury 30 - 60 HP Manuel utilisateur
