5301 Operation description
Date: 2007-11-14
Author: Javy Huang

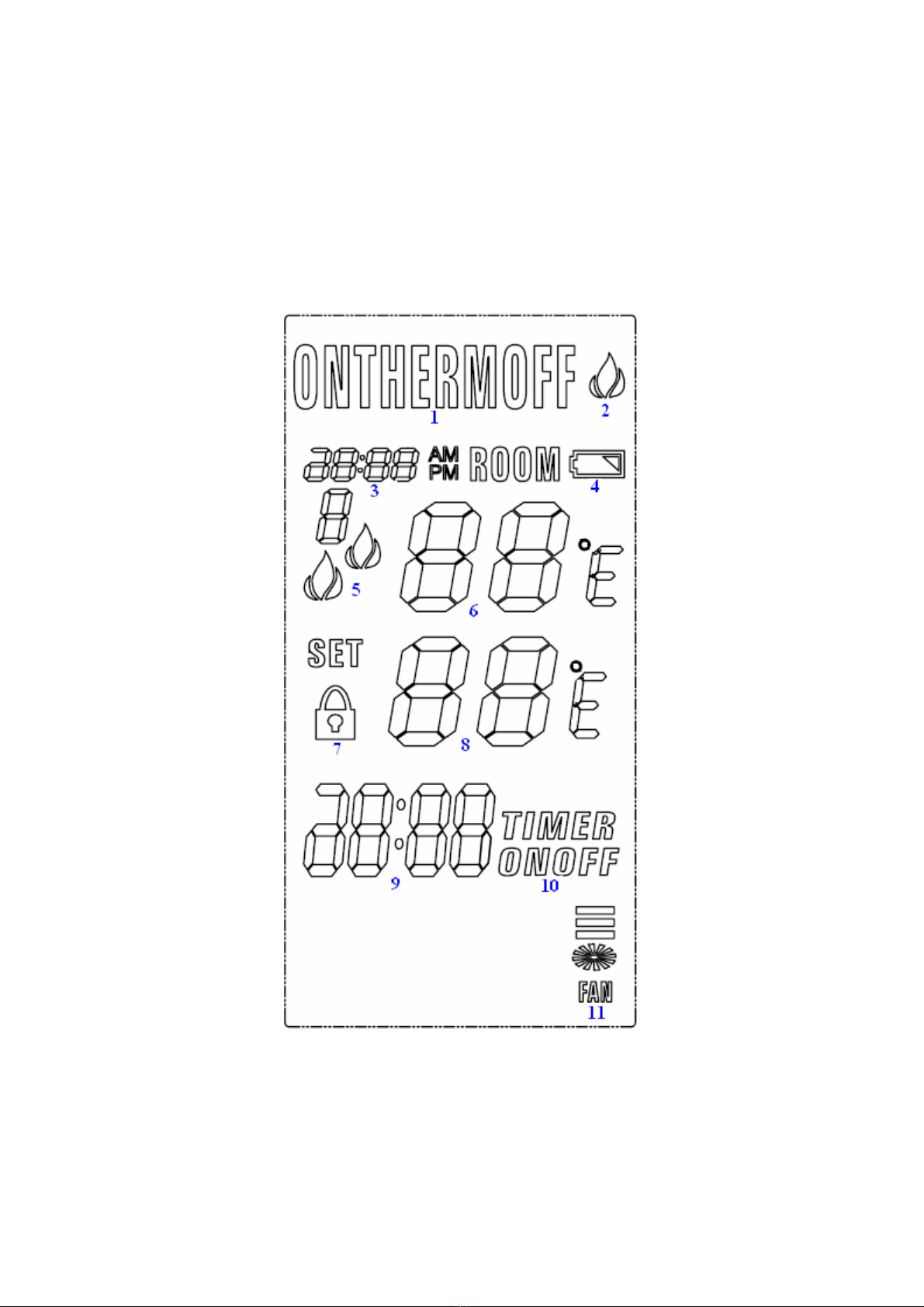

zLCD Diagram
zLCD Indicator:
1. ON / THERMO / OFF: Indicates operation MODE of system.
zON indicates the system is on, either manually or thermostatically.
zOFF indicates the entire system is turned off.
zTHERMO indicates the system will automatically cycle on/off,
depending on programmed.
2. System ON flame: Indicates whether system ON or not.
3. Clock: Indicates the current time in AM/PM.
4. Low Battery: Battery power is low. Replace batteries within two weeks.
5. Reserve Flame Icon : Reserved for providing multiple flame modulation
levels by providing a variable current output to specific modulation device.
6. ROOM °F OR °C: Indicates current room temperature.
7. Child Proof: Lock-out operation of the appliance.
8. SET °F OR °C: Appears the desired temperature to indicate setting room
temperature during the time of setting in the thermo operation.
9. Timer: Indicates time remaining before system shuts off, when
timer-programmed; 9-hour maximum setting.
10. Timer ON/OFF: Indicates whether timer activate or not.
11. Reserve Fan Icon : Reserved for providing multiple fan modulation levels
by providing a variable current output to specific modulation device.
1. Button Description:
1) Mode/Set or (Touch Panel Region): To operate
the system in the manual mode, ON/ ON THERMO/ THERMO OFF/ OFF.
2) Mode/Set: The Set is activate in Initial Setting mode or Timer Countdown
mode that is accept the setting.
3) UP/DOWN:
¾To adjust the values, Clock/ Timer/ Set Temperature/ Set Swing.
¾Setting °F / °C scale: Press and hold the UP button and the DOWN
button on the transmitter at the same time. Follow this same procedure
to change from °C back to °F . When changing between the °F and °C
scales, the temperature in the SET frame defaults to the lowest
temperature (45°F, or 6°C ). The highest SET temperature is
99°Fahrenheit (32°Celsius).
4) (Touch Panel Region):
¾To enable/ disable timer in TIMER Countdown mode activate.
¾Press and hold it for more than two seconds to enter the clock setting
and accept the clock setting to quit the clock setting mode.
5) Child Proof Lockout: To activate/disengage the child-proof lockout feature,
press and hold and “UP” buttons for 5 seconds, “ ” will
briefly appear/disappear on screen.
6) Swing Setting: Press the and “DOWN” buttons simultaneously
to enter Swing Setting mode.
zOperation Description:
1. Mode:
zON OPERATION: Press the “MODE” key into the ON mode. The
appliance flame will come on. During this time the screen will show
ON and System ON flame. The TIMER function will be activated.
zTHERMO OPERATION: Press the “MODE” key into the THERMO
mode. The transmitter will check the ROOM temperature and SET
temperature to decide the situation ON THERMO or THERMO OFF.
After 2 seconds the LCD screen will display the situation by
temperature detected that is comparing with the SWING temperature
scale.
zOFF OPERATION: Press the “MODE” key into the OFF mode. The
appliance flame will shut off. During this time the screen will show
OFF. The TIMER function will be shut down.
2. THERMOSTAT FUNCTION:
zSETTING DESIRED ROOM TEMPERATURE: This remote control
system can be thermostatically controlled when the transmitter is in the
THERMO mode. To set the THERMO MODE and DESIRED room
temperature, During the THERMO mode, Press “Up” / “DOWN” key
the LCD screen set numbers will increase / decrease between 45° and
99° Fahrenheit.
zTHERMO ON situation: During this mode the screen will display the
set flame/valve at the same time enable the TIMER function setting.
zTHERMO OFF situation: During the situation the TIMER function
will be shut down.
3. Setting Swing:
zTo change the temperature “SWING” setting (1-3), press the
TIMER/TIME and DOWN buttons simultaneously to display the
current “SWING” setting in the SET TEMP frame. The letter “S” will
display in the ROOM TEMP frame on the LCD screen.
zPress the UP or DOWN button to change the temperature differential
or “SWING” (1-3). See above for 1-3 “SWING” temperature valves.
zTo store the “swing number press the SET button or allow 15 seconds
to lapse, and the new “swing number” will be automatically
programmed.
4. Child Proof “Lock-out”:
zTo activate the “LOCK-OUT” feature, press and hold the UP and
TIMER/TIME buttons, together, for 5 seconds. The will appear
on the LCD screen.
zTo disengage the “LOCK-OUT”, press and hold the UP and TIMER
buttons, together for 5 seconds or more, and the will disappear
from the LCD screen and the transmitter will return to its normal
operating condition.

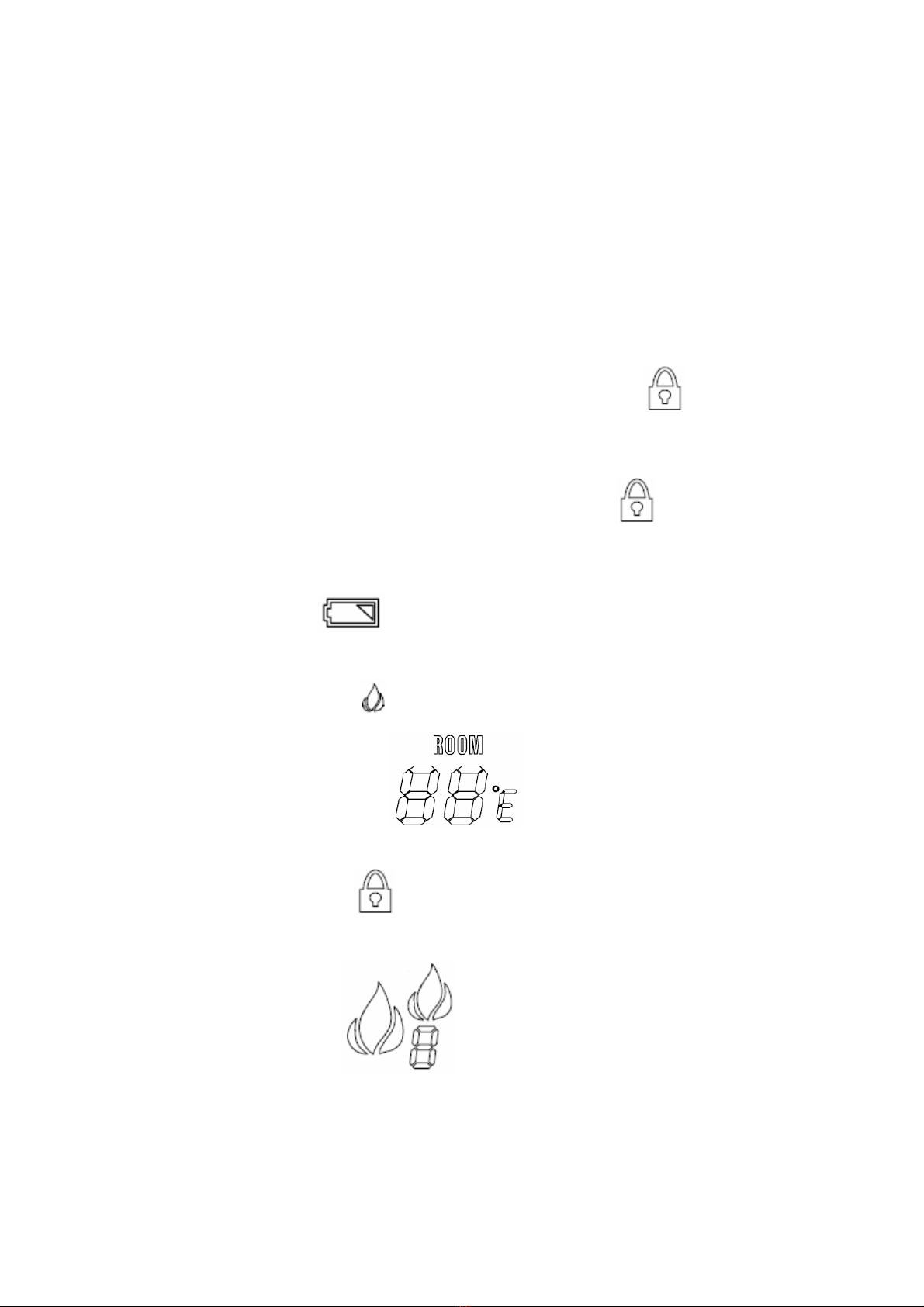

5. Low Battery ( ) will appear when battery power has dropped
significantly.
6. The System Icon ( ) will be showed if the system is ON.
7. The room temperature always shows on screen, which
range between 32 and 99 Fahrenheit.
8. The Child Proof ( ) will appear on screen if the “Lock-out” Feature is
activation.
9. The Flame icon ( ) , the main flame indicates burner/valve in
operation and additional flame is reserved for specific modulation device.
10. The Fan icon ( ) is reserved for specific modulation device.
zFurther Description
1) Radio Frequency range: 303.8MHZ
2) The remote receiver is SR 1001.
3) The remote controller effective distance is above 40 feet.
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
