Replace batteries once a year in the transmitter and

receiver for optimal performance.

If you have a Skytech remote that is not listed below,

you can call Skytech Systems at 1-888-672-8929 for

technical support between 8 AM and 5 PM (EST)

Monday thru Friday.

Remote Trouble Shooting for:

1001-A Series Remotes

3002 & 3002P Remotes

5001 & 5301 Remotes

RCAF-LMF/V Remotes

SKY-MRCK & MRCKTH Remotes

SKY-CON & SKY-CONTH Remotes

Remote Control Power Settings

TROUBLE SHOOTING FOR 1001-A SERIES REMOTES

1. Make sure new or good batteries are installed properly in the transmitter and receiver. Make sure that transmitter

is within the 20’ – 25’ range of the receiver.

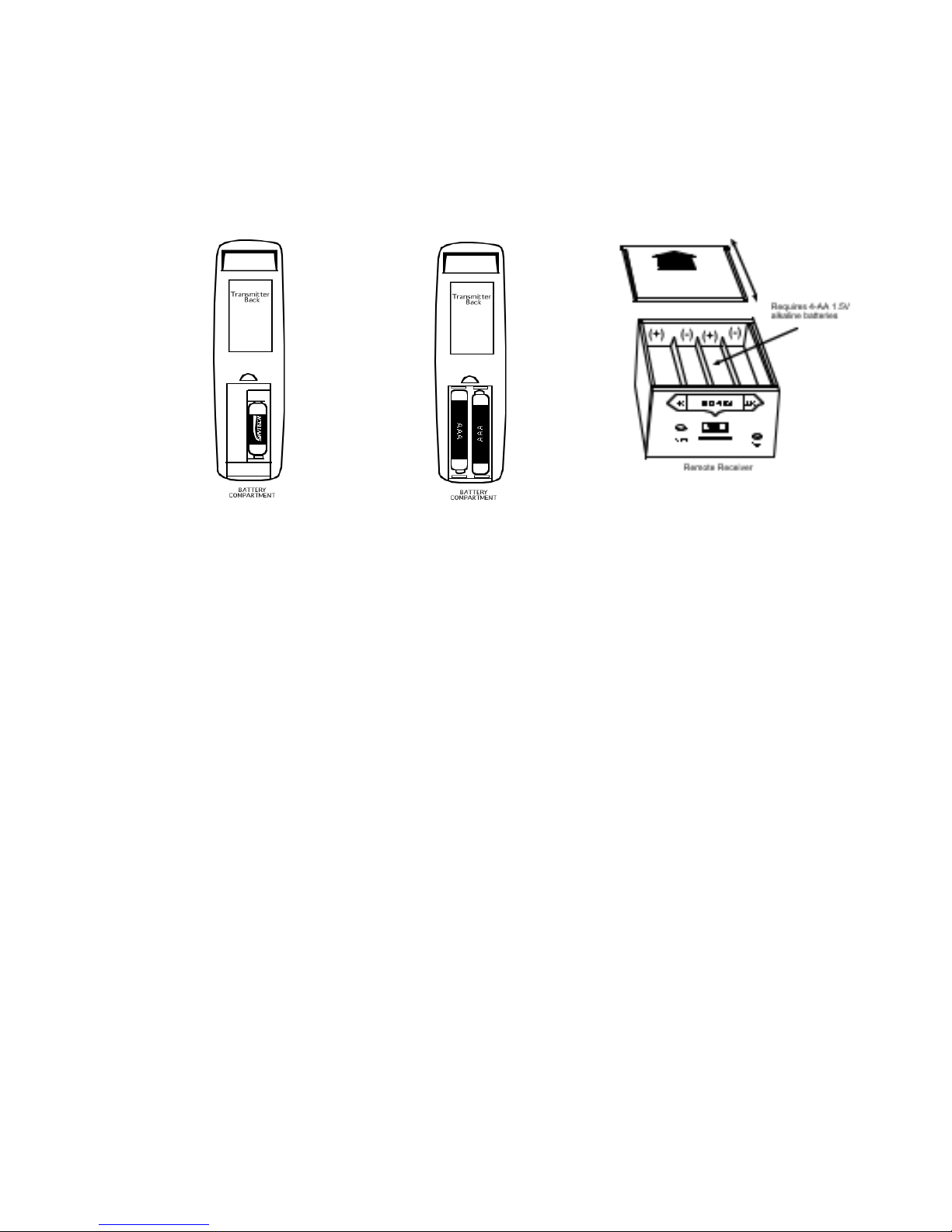

1001-A 1001T/LCD-A &1001TH-A 1001-A Series

Transmitter Battery location Transmitter Battery location Receiver Battery location

2. As a test, slide the button switch to the “ON” position of the receiver. (The burner should ignite.)

Does light:

•Move receiver switch back to the “REMOTE” position. Go to Step 3.

Doesn’t light:

•Check to see if the main gas supply is in “ON”,

•Is the Pilot lit?

•Valve knob in “ON” position,

•Check and make sure rocker switch ON FIREPLACE is in “REMOTE” or “OFF” position,

•If burner still doesn’t light go to Step 4.

3. Push the “ON” button on the transmitter, (you should hear a “BEEP” coming from the receiver) and the burner

should ignite.

If the burner doesn’t ignite:

•If no “BEEP” is heard push and hold “LEARN” button for 10 seconds on the face of the

receiver. Release, you should hear 3 “BEEPS”.

•Then press and release the “LEARN” button, you should hear a “BEEP”.

•Then push the “ON” button on the transmitter within 5 seconds; you should hear several

“BEEPS”.

4. If steps 2 and 3 do not work, then please call Skytech Systems, Inc @ 888.672.8929 for tech support.

Rev. 8/2007 Page 1

TROUBLE SHOOTING FOR 3002 & 3002P REMOTES

1. Make sure new or good batteries are installed properly in the transmitter and receiver. Make sure that transmitter

is within 20’ –25’ range of receiver

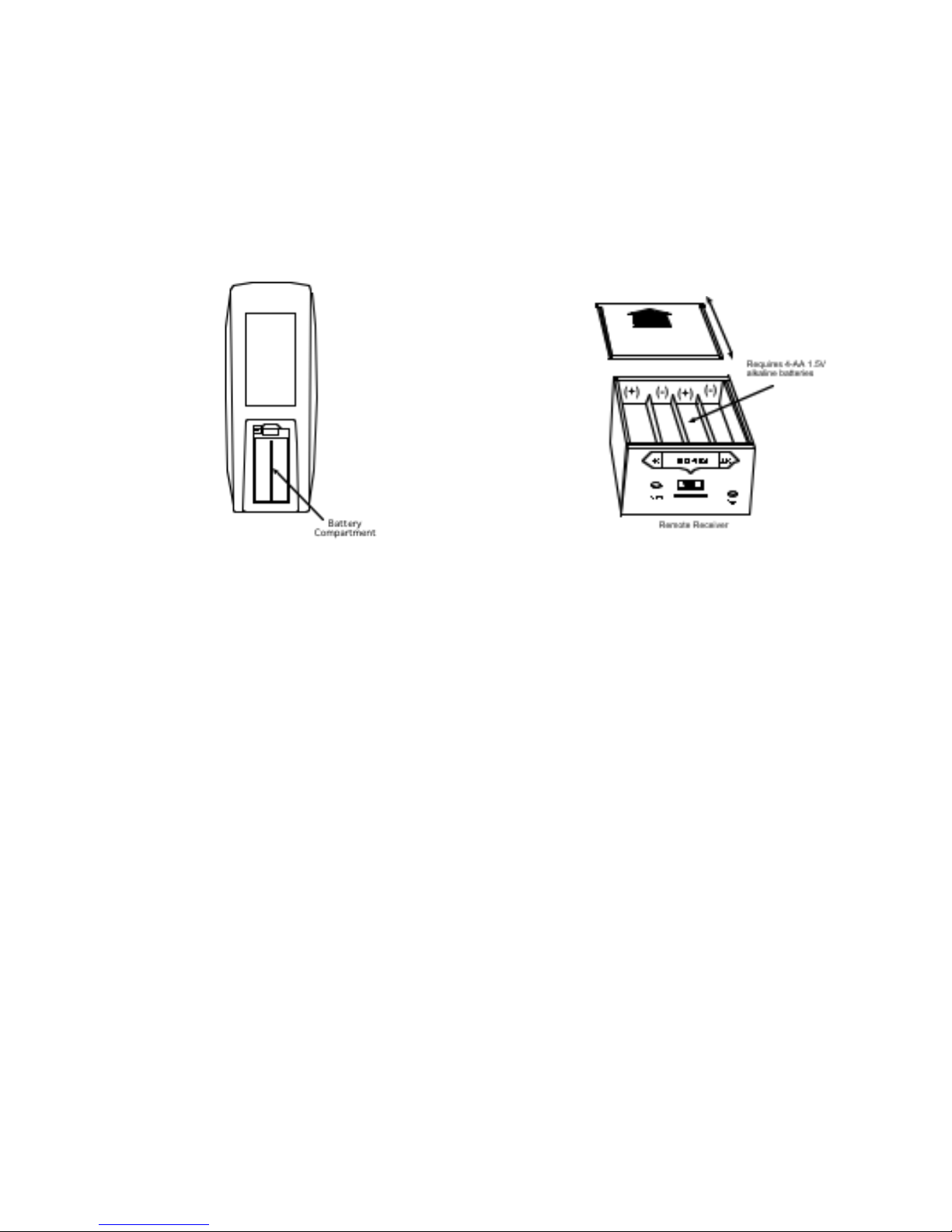

3002 Series 3002 Series

Transmitter Battery location Receiver Battery location

2. As a test, slide the button switch to the “ON” position of the receiver. (The burner should ignite.)

Does light:

•Move receiver switch back to the “REMOTE” position. Go to step 3.

Doesn’t light:

•Check to see if the main gas supply is in “ON”.

•Is the Pilot lit?

•Valve knob in “ON” position.

•Check and make sure rocker switch ON FIREPLACE is in “REMOTE” or “OFF” position.

•If burner still doesn’t light go to step 5.

3. Push the “ON” button on the transmitter, (you should hear a “BEEP” coming from the receiver) and the burner

should ignite.

If the burner doesn’t ignite:

•If no “BEEP” is heard push and hold “LEARN” button for 10 seconds on the face of the

receiver. Release, you should hear 3 “BEEPS”.

•Then press and release the “LEARN” button, you should hear a “BEEP”.

•Then push the “ON” button on the transmitter within 5 seconds; you should hear several

“BEEPS”.

4. If steps 2 and 3 do not work, then please call Skytech System, Inc. @ 888.672.8929 for tech support.

REV. 5/2010 Page 1

TROUBLE SHOOTING FOR 5001 & 5301 REMOTES

1. Make sure new or good batteries are installed properly in the transmitter and receiver. Make sure that transmitter

is within 20’ –25’ range of the receiver.

2. As a test, slide the button switch to the “ON” position of the receiver. (The burner should ignite.)

Does light:

•Move receiver switch back to the “REMOTE” position. Go to Step 3.

Doesn’t light:

•Check to see if the main gas supply is in “ON”,

•Is the Pilot lit?

•Valve knob in “ON” position,

•Check and make sure rocker switch ON FIREPLACE is in “REMOTE” or “OFF” position,

•If burner still doesn’t light go to Step 4.

3. Push the “MODE” button on the transmitter, (you should hear a “BEEP” coming from the receiver) and the

burner should ignite.

If the burner doesn’t ignite:

•If no “BEEP” is heard press and release the “LEARN” button on the face of the receiver.

•Then push the “MODE” button on the transmitter within 5 seconds; you should hear several

“BEEPS”.

4. If steps 2 and 3 do not work, then please call Skytech Systems, Inc @ 888.672.8929 for tech support.

Rev. 4/2008 Page 1

TROUBLE SHOOTING FOR RCAF-LMF/V

1. Make sure new or good batteries are installed properly in the transmitter and receiver. Make sure that transmitter

is within the 20’ –25’ range of the receiver.

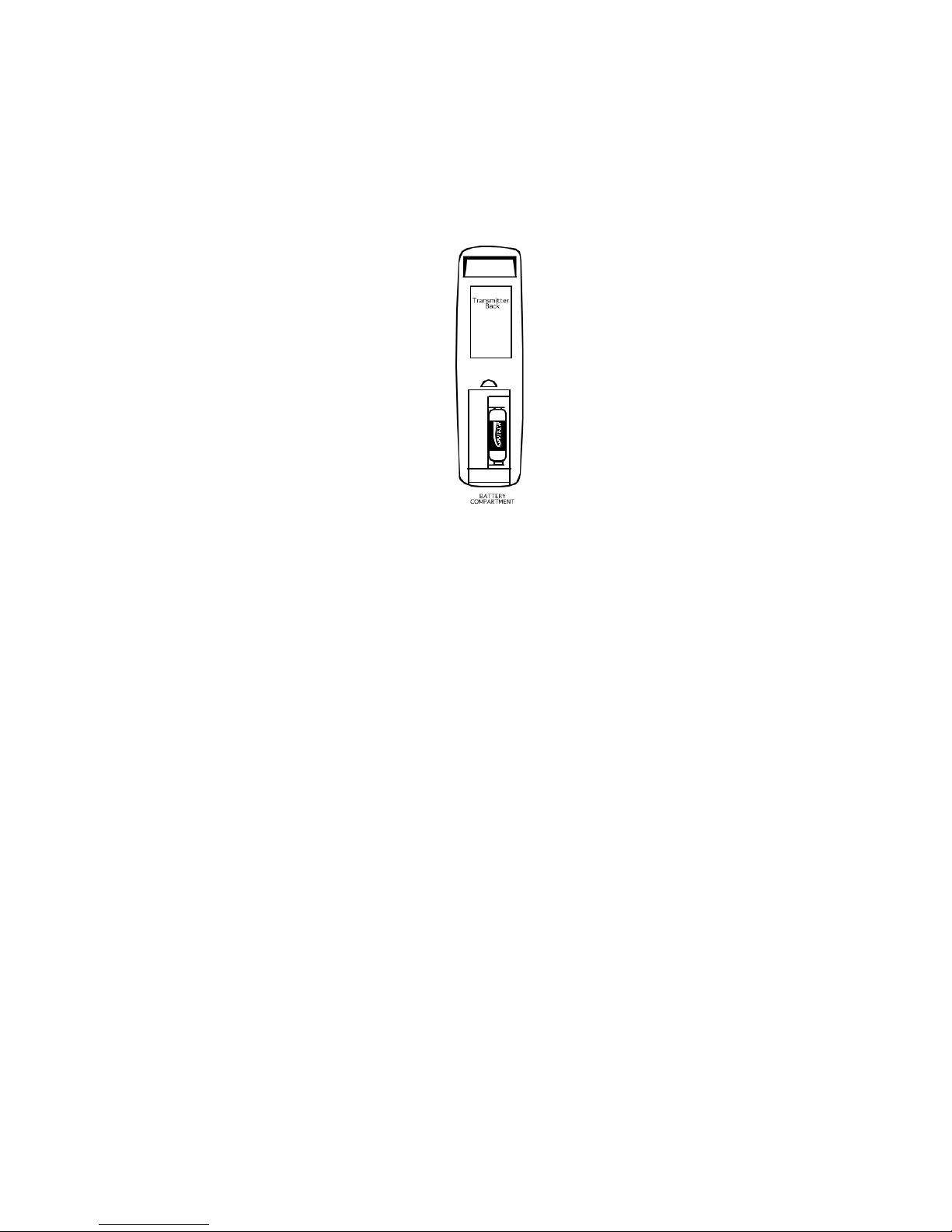

RCAF-LMF/V

Transmitter Battery Compartment

2. Check to make sure the transmitter is communicating with the receiver.

•If the receiver beeps when the “ON/HI” or “OFF or LO” buttons are depressed on the transmitter then

the transmitter is talking to the receiver.

•If the receiver does not beep when the “ON/HI” or “OFF/LO” buttons are depressed on the

transmitter, you will need to “LEARN” the transmitter and receiver.

“LEARN”:

•Press and release the “LEARN” button, you should hear a “BEEP”.

•Then push the “ON/OFF” button within 5 seconds; you should hear several “BEEPS”.

3. To check this unit for proper operation, check the following:

•To check the receiver use a multmeter and set it to DC volts, connect the leads to the outlet block on

the receiver, when you depress the “ON” or “OFF” buttons you should read about 6.4 DC volts Max.

If the voltage is less than 4.0 volts you should replace the receiver batteries.

4. Make sure that the receiver is not installed in or behind an enclosed metal chamber or door, or in an area that

exceeds 130 degrees F.

•This condition can cause the RF signal to get lost and not communicate with the receiver.

•This condition will also cause the working distance to be shorter than normal.

•Areas that exceed 130 degrees F will cause the battery life to be short and the heat will damage the

receiver. This is not a warranty condition.

5. If the valve isn’t opening or closing, check to see if you can open or close it with a 9-volt battery.

•Take the receiver wires off of the motor drive.

•Take your 9-volt battery and put your positive (+) to one terminal and your negative (-) to the other,

this should drive your motor HI or LOW. To go the other way, turn the battery the other way.

6. Contact Skytech Systems, Inc. customer service at 888.672.8929 if you need additional information.

Rev. 4/2011 Page 1

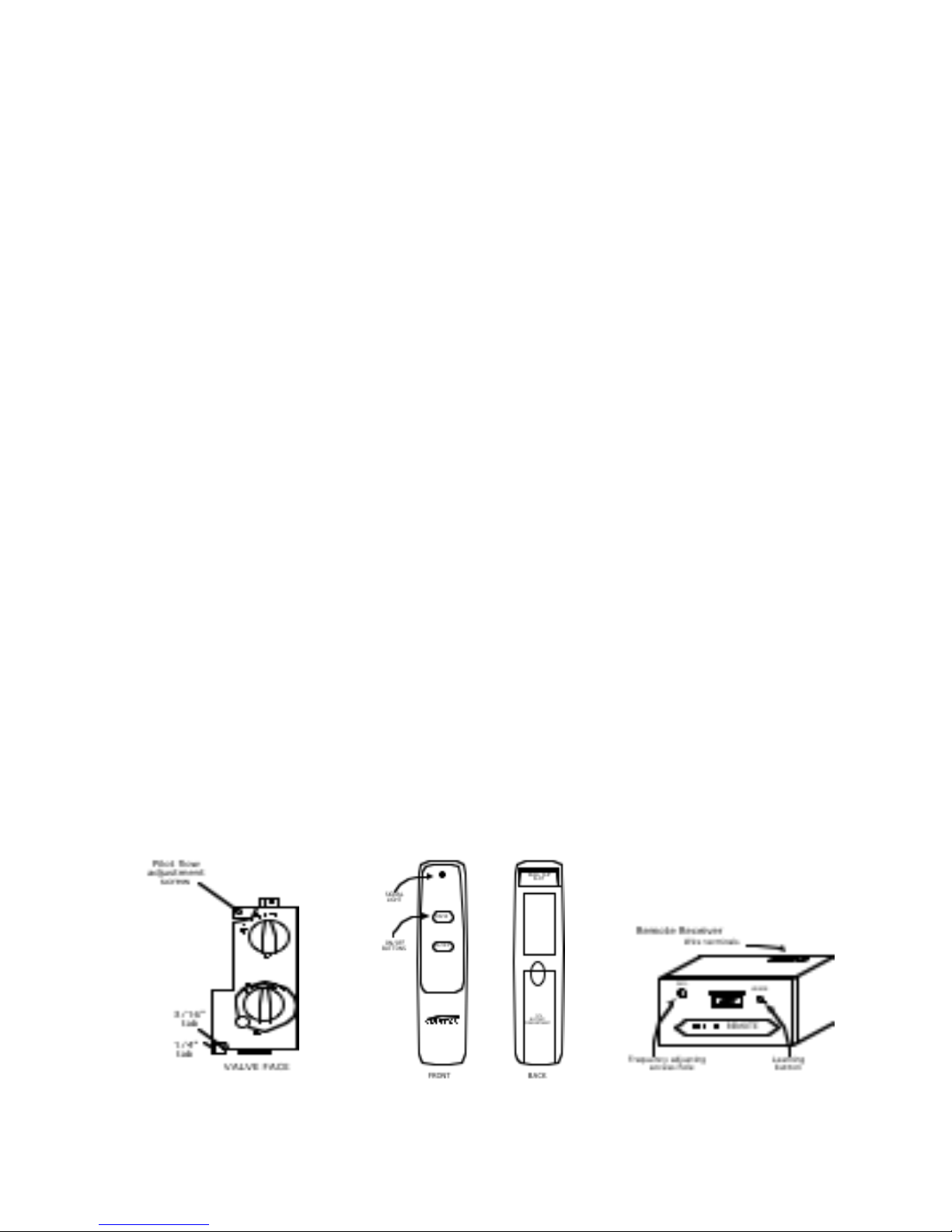

TROUBLE SHOOTING A SKY-MRCK & SKY-MRCKTH REMOTES

FOR OPERATING HI/LO SERVO MOTOR

1. Make sure batteries are installed properly in the transmitter and receiver. Make sure that transmitter is within 20’

– 25’ range of receiver.

2. Check to make sure the transmitter is communicating with the receiver.

•If the receiver beeps when the “ON/HI” or “OFF/LO” buttons are depressed on the transmitter then the

transmitter is talking to the receiver.

•If the receiver does not beep when the “ON/HI” or “OFF/LO” buttons are depressed on the transmitter,

you will need to “LEARN” the transmitter and receiver.

“LEARN”:

•Press and release the “LEARN” button, you should hear a “BEEP”.

•Then push the “ON/OFF” button within 5 seconds; you should hear several “BEEPS”.

3. To check this unit for proper operation, check the following.

•To check the receiver use a multmeter and set it to DC volts, connect the leads to the outlet block on the

receiver, when you depress the “ON/HI” or “OFF/LO” buttons you should read about 6.4 DC volts Max.

If the voltage is less then 4.0 volts you should replace the receiver batteries.

•If the transmitter is sending a good signal the LED will have a flicker. (Heart Beat) If the LED signal is

steady there is a problem with the transmitter.

4. Make sure that the receiver is not installed in or behind and enclosed metal chamber or door, or in an area that

exceeds 130 degrees F.

•This condition can cause the RF signal to get lost and not communicate with the receiver.

•The condition will also cause the working distance to be shorter than normal.

•Areas that exceed 130 degrees F will cause the battery life to be very short and the heat will damage the

receiver. This is not a warranty condition.

5. If the servomotor is not adjusting from HI/LOW check to see if you can move it with a 9-volt battery.

•Take the receiver wires out of the receiver.

•Take your 9-volt battery and put your positive (+) to one terminal and your negative (-) to the other, this

should drive your motor HI or LOW. To go the other way, turn the battery the other way.

6. Contact Skytech Systems, Inc. customer service at 888.672.8929 if you need additional information.

Rev. 8/2007 Page 1

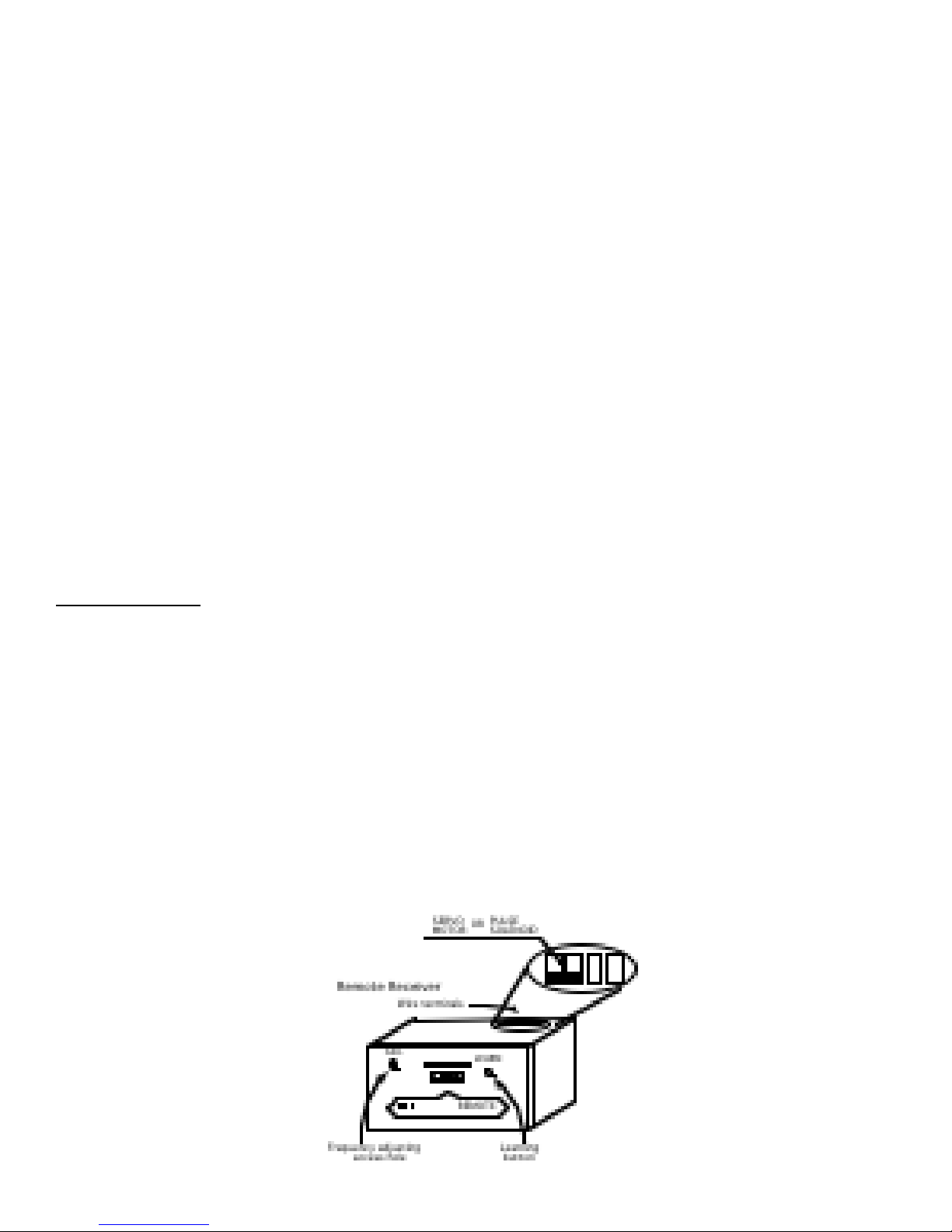

Remote Control Power Settings

(SKY-MRCK, SKY-MRCK-TH, SKY-CON, & SKY-CON-TH)

The electronics in this remote control system have the capability of powering two (2) different types of DC powered

components, they are as follows.

On the SKY-MRCK & SKY-MRCK-TH receivers come from the factory programmed to provide continuous DC voltage

(4.5 VDC to 6.0 VDC) to a gas valve with a servomotor when the OFF/Low or On/Hi buttons on the transmitter are

depressed. (This is referred to as the 1001SR Setting in the Power Setting section of the remote control section of the

installation instructions)

On the SKY-CON & SKY-CON-TH receivers come from the factory programmed to provide a pulse DC voltage (4.5

DCV to 6.0 DCV) to a gas valve that uses a latching relay or solenoids when the OFF or On buttons on the transmitter are

depressed. (This is referred to as the 1001P Setting in the Power Setting section of the remote control section of the

installation instructions)

If the receiver on the SKY-MRCK or SKY-MRCK-TH is set incorrectly set to the 1001P setting this will cause the

servomotor to only operate each time the transmitter button is depressed. (STOP/START/STOP/START)

If the receiver on the SKY-CON or SKY-CON-TH is set incorrectly set to the 1001SR setting this will cause the latching

relay-solenoid not to operate when the transmitter button is depressed.

POWER SETTING

To change the factory “power setting”, from the 1001SR to the 1001P setting, first load the RECEIVER with 4-AA

batteries as instructed in the REMOTE RECEIVER SECTION; that follows.

1. Slide the slide switch on receiver to the REMOTE position.

2. Push and hold in the LEARNING BUTTON on the front of the receiver. You will hear a continuous “beep

sound” for about three seconds. Continue to hold in the LEARN button, the “beep sound” will stop for about four

seconds and then a second “beep sound”, of a different pitch, will be heard. The conversion from the 1001SR

setting to1001P setting is complete.

3. To reprogram RECEIVER to the 1001SR setting, repeat process and receiver will reset to 1001SR setting.

4. The LEARN button is used to set the unique security code for your remote control system. The SECURITY

CODE is reset during the “power setting” process.

Rev. 8/2007 Page 1

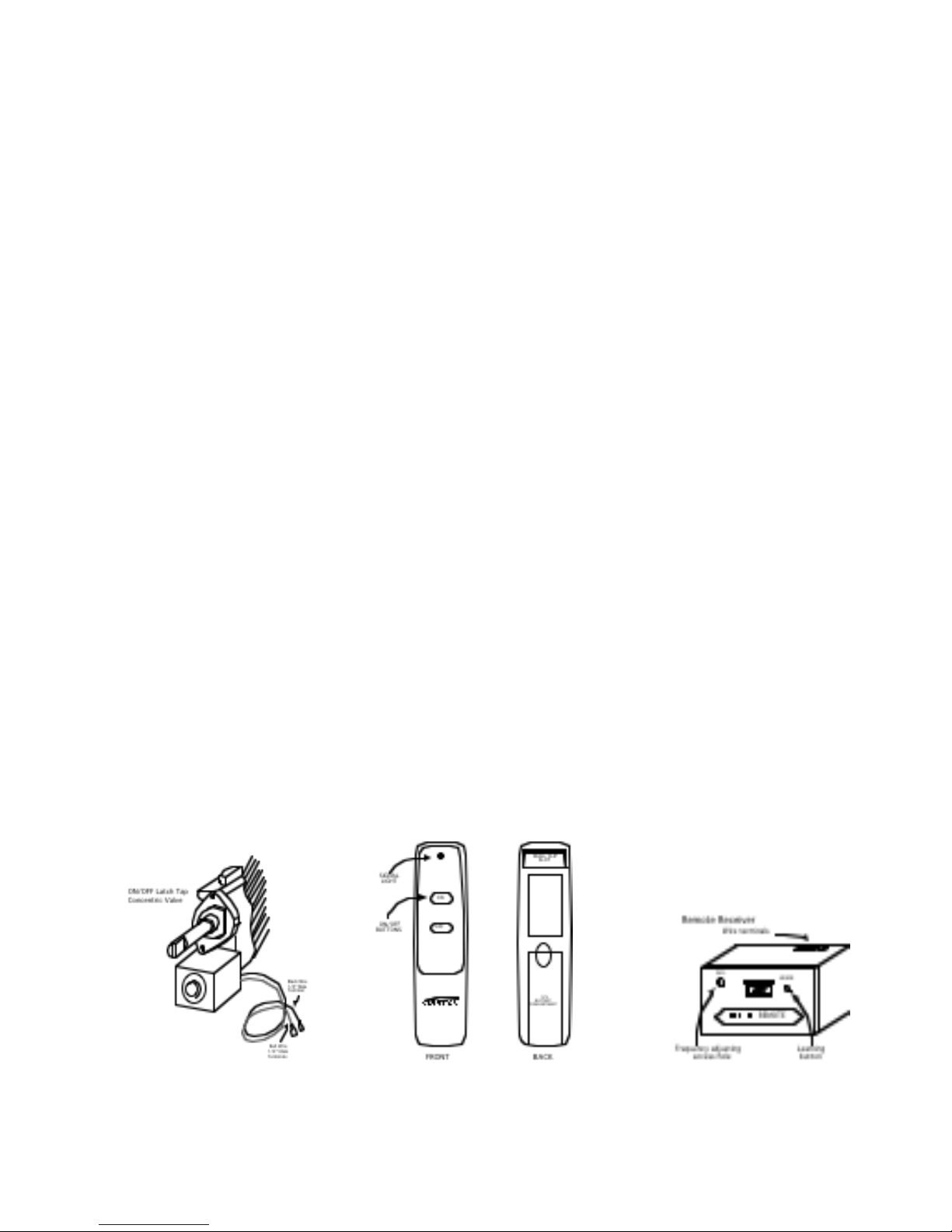

TROUBLE SHOOTING A SKY-CON & SKY-CONTH REMOTES

FOR OPERATING VALVES WITH ON/OFF LATCHING SOLENOIDS

1. Make sure batteries are installed properly in the transmitter and receiver. Make sure that the transmitter is within

the 20’ – 25’ range of the receiver.

2. Check to make sure the transmitter is communicating with the receiver.

•If the receiver beeps when the “ON/HI” or “OFF/LO” buttons are depressed on the transmitter then

the transmitter is talking to the receiver.

•If the receiver does not beep when the “ON/HI” or “OFF/LO” buttons are depressed on the

transmitter, you will need to “LEARN” the transmitter and receiver.

“LEARN”:

•Press and release the “LEARN” button, you should hear a “BEEP”.

•Then push the “ON/OFF” button within 5 seconds; you should hear several “BEEPS”.

2. To check this unit for proper operation, check the following:

•To check the receiver use a multmeter and set it to DC volts, connect the leads to the outlet block on

the receiver, when you depress the “ON/HI” or “OFF/LO” buttons you should read about 6.4 DC

volts Max. If the voltage is less than 4.0 volts you should replace the receiver batteries.

•If the transmitter is sending a good signal the LED will have a flicker. (Heart Beat) If the LED signal

is steady there is a problem with the transmitter.

3. Make sure that the receiver is not installed in or behind an enclosed metal chamber or door, or in an area that

exceeds 130 degrees F.

•This condition can cause the RF signal to get lost and not communicate with the receiver.

•This condition will also cause the working distance to be shorter than normal.

•Areas that exceed 130 degrees F will cause the battery life to be short and the heat will damage the

receiver. This is not a warranty condition.

4. If the valve isn’t opening or closing, check to see if you can open or close it with a 9-volt battery.

•Take the receiver wires off of the valve.

•Take your 9-volt battery and put your positive (+) to one terminal and your negative (-) to the other,

this should drive your motor HI or LOW. To go the other way, turn the battery the other way.

5. Contact Skytech Systems, Inc. customer service at 888.672.8929 if you need additional information.

Rev 8/2007 Page 1

Autres manuels pour 3002

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Skytech Télécommande

Skytech

Skytech RCAF-1035 Manuel de service

Skytech

Skytech 5001 Manuel utilisateur

Skytech

Skytech 4001TH Manuel utilisateur

Skytech

Skytech SKY-1001-TH-H Manuel utilisateur

Skytech

Skytech 3301 BE-1 Manuel utilisateur

Skytech

Skytech SKY MRCK-TH Manuel utilisateur

Skytech

Skytech 5310 Manuel utilisateur

Skytech

Skytech 4001-A TX Manuel utilisateur

Skytech

Skytech 1420TH-A Manuel utilisateur

Skytech

Skytech 3301P Manuel utilisateur

Skytech

Skytech SKY-6601 Manuel utilisateur

Skytech

Skytech 1001-A Manuel utilisateur

Skytech

Skytech 1001D-TX Manuel utilisateur

Skytech

Skytech Smart stat III Manuel utilisateur

Skytech

Skytech CON1001-1 Manuel du propriétaire

Skytech

Skytech 1001 BE Manuel utilisateur

Skytech

Skytech RCT-MLT III Manuel utilisateur

Skytech

Skytech 3301-FSCRF Manuel utilisateur

Skytech

Skytech Smart Batt III Manuel utilisateur

Skytech

Skytech 4001TH-A TX Manuel utilisateur

Skytech

Skytech 3301P BE Manuel utilisateur

Skytech

Skytech Smart Batt III Manuel du propriétaire

Skytech

Skytech 1001 BE Manuel utilisateur

Skytech

Skytech Smart Batt III Instructions d'installation

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
