Skytech 1315G Manuel utilisateur

This remote control system offers the user a 110-120 VAC powered multi-purpose remote control to be used with AC

powered products such as lamps, heaters, fans, electric replaces, lighting and pump motors used for decorative ponds/

waterfalls from up to 30 feet away.

MODEL: 1315G

INSTALLATION AND OPERATING INSTRUCTIONS

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS

DO NOT ATTEMPT TO INSTALL OR OPERATE

INTRODUCTION

OFF

On the back of all transmitters are code switches with pre-set codes from

the factory. The transmitter will operate with the receiver as is without

setting new codes. However if you are installing more than one 1315G

in a home a different code must be set to prevent interference another

transmitter. There are 255 set able security codes. Simply use a small

screwdriver to change the codes.

Skytech: 1315G REV 11-8-16 Page 1

The transmitter has ON and OFF functions that are activated by

pressing either button on the face of the transmitter. When a button on

the transmitter is pressed, a signal light on the transmitter

illuminates briey to verify that a signal has been sent. The

transmitter also has (2) code switches located on the back that will need

to be set before installation. Note: See Code Setting section.

The receiver plugs directly into a polarized 110-120 VAC grounded

receptacle. Then an AC powered appliance is plugged directly into the

receiver which is controlled by the transmitter (remote control). In

addition the receiver has an indicator light verifying power to the

receiver.

If an extension cord is required, only use a (Model 18SPT-3) cord

consisting with an appropriate temperature rating for the intended use.

Both ends of the extension cord must be grounded and

polarized. An extension cord can be purchased from your appliance

dealer.

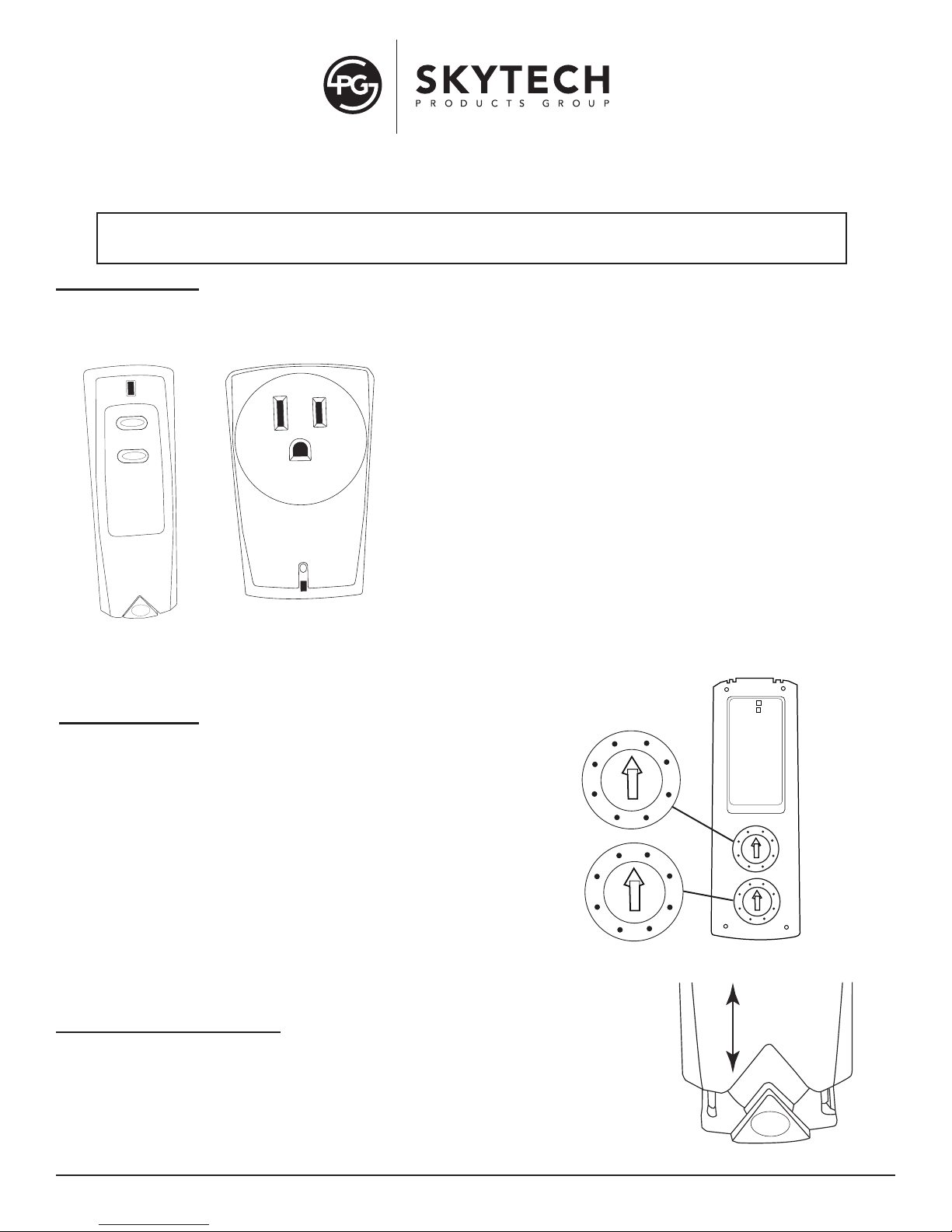

Receiver

Transmitter

CODE SETTING

MODEL NO:

Back of Transmitter

If you change codes, write code and room location below and keep for

future use.

Code ___________ ______________ Room

CR2032

BATTERY

SLIDE BOTTOM TAB

DOWN TO EXPOSE

BATTERY

BATTERY INSTALLATION

The transmitter operates on (1) 3-volt button cell lithium battery (included). Remove the

battery holder down by sliding the tab at the bottom of the transmitter down and out.

Install the battery with the + side up. Then slide the battery holder back into the

transmitter. See drawing at the right.

Battery Compartment

INSTALLATION

OFF

Reciever Transmitter

Power Source

Electrical Appliance

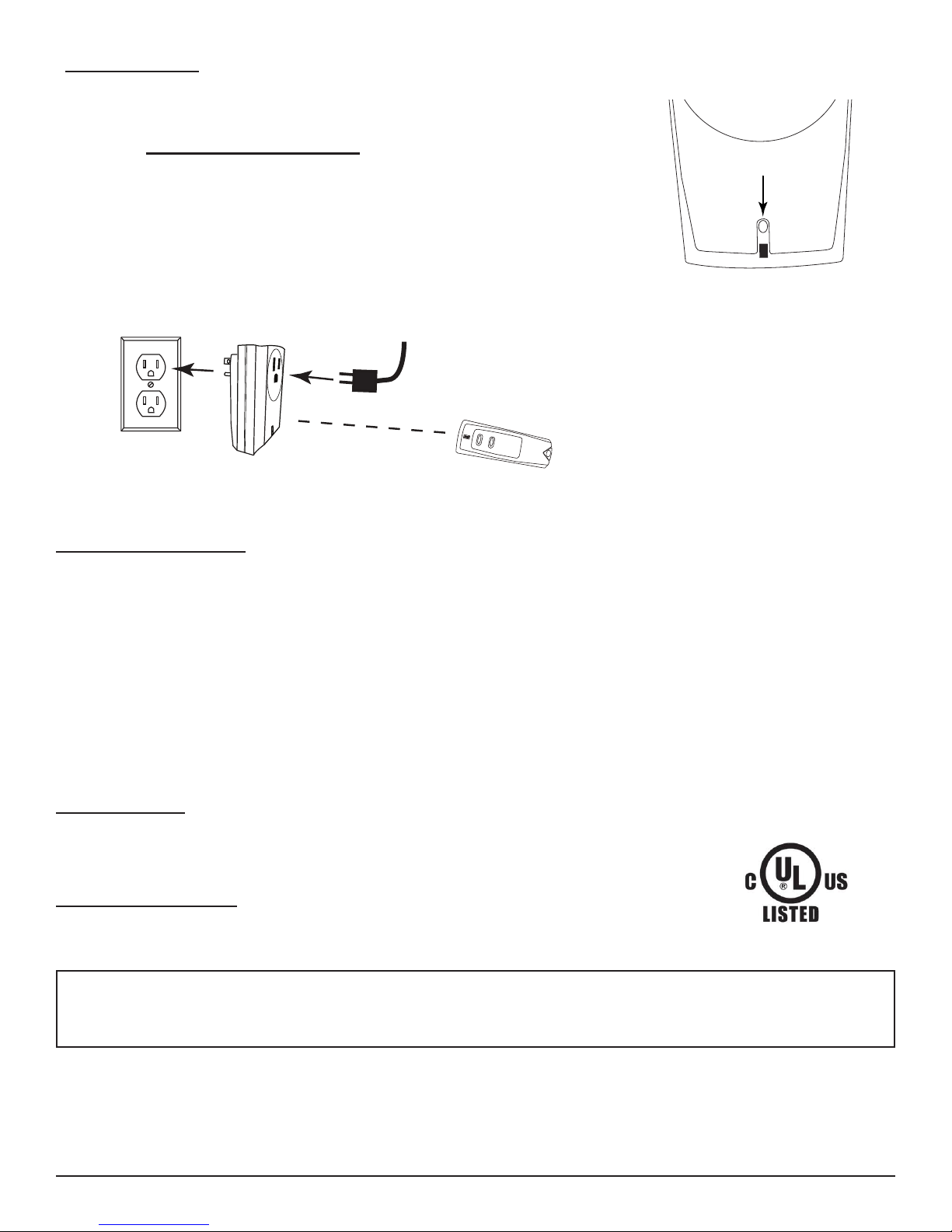

Installation is simple. Plug the receiver into a polarized 120 VAC grounded

receptacle/outlet. Plug your AC powered electrical appliance into the receptacle of the

receiver and turn the appliance switch ON. At the bottom of the receiver directly

above the indicator light is a recessed “learn” button. Use a toothpick, or pencil tip to

press the button in and release. Next press any button on the

transmitter and the receiver will “click” two times to conrm operation.

Once your AC electrical appliance is connected to the receiver, the remote is ready

to operate. To turn ON the appliance, press the ON button on the transmitter. To turn

OFF the appliance, press the OFF button on the transmitter.

Recessed Button

Press & Release Learn Button

Basic Installation

TROUBLESHOOTING

If you encounter problems with your 1315G, the problem may be with the electrical appliance itself, the remote or the

receiver. Review the electrical appliance manufacturer’s operation manual to make sure all connections are properly

made. Then check the operation of the remote in the following manner:

• Ensure the electrical appliance switch plugged into the receiver is turned ON.

• Make sure the the RECEIVER has power. Try another appliance you know that works or test with receiver

receptacle with a volt meter.

• Check the battery in the Transmitter to ensure it is installed with the (+) side up and has at least 3VDC.

• Check the code settings on the transmitter and ensure they were not change. If unsure of code setting then

re-learn the transmitter to the receiver by following the installation instructions above.

• Be sure RECEIVER and Transmitter are within 30-foot operating range.

• Keep RECEIVER from temperatures exceeding 130º F.

• If RECEIVER is installed in tightly enclosed metal surroundings, the operating distance will be shortened.

SPECIFICATIONS

BATTERIES: Transmitter 3V button cell (CR2032) FCC ID No.’s: transmitter – K9L 4001THTX

Operating Frequency: 433.92MHz Canadian ISC ID No.’s: transmitter –2439A 4001THTX

FOR INDOOR USE ONLY

Load Ratings: Resistive 15A (1800W), Motor 1/3HP, Tungsten Lamp 600W

Input: 120VAC/ 60Hz

Skytech: 1315G REV 11-8-16 Page 2

FCC REQUIREMENTS

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED

MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE

EQUIPMENT.

Skytech Products Group

9230 Conservation Way

Fort Wayne, IN 446809

888-672-8929

www.skytechpg.com

(APPLIANCE CONTROL)

44V2
