SkyLine SK GoIP Manuel utilisateur

China SKYLINE Technology Co.,Ltd.

SK GoIP

User

Manual

V1.6

GoIP User Manual

Office Address: Floor 6,Building 4,No.7 Lipu Street | Dafapu Community,Bantian Road |Longgang District,

shenzhen city | Guangdong,China

Content

Content................................................................................................................................................................. 2

About.................................................................................................................................................................... 4

Intro......................................................................................................................................................... 4

TECHNICAL PARAMETER.......................................................................................................................... 5

View......................................................................................................................................................... 7

Quick Start............................................................................................................................................................ 8

Insert SIM cards....................................................................................................................................... 9

Connect Device........................................................................................................................................ 9

Check Device IP........................................................................................................................................ 9

Log Into The Management Web.............................................................................................................. 9

Connect To Network.............................................................................................................................. 10

Connect To SIP Server............................................................................................................................ 11

How To................................................................................................................................................................11

How to change GoIP WAN default IP?.......................................................................................................11

How to Insert SIM cards?...........................................................................................................................13

How to make test VOIP calls?....................................................................................................................14

How to activate the SIMs locked?............................................................................................................. 15

GoIP Details........................................................................................................................................................ 16

Status Information................................................................................................................................. 16

Call status...........................................................................................................................................16

Device status......................................................................................................................................17

System status.....................................................................................................................................18

SMS statistics..................................................................................................................................... 19

InterCall Statistics.............................................................................................................................. 19

Gateway Settings................................................................................................................................... 20

http://www.chinaskyline.net Tel/Fax: 86-755-82435955

China SKYLINE Technology Co.,Ltd.

Network Setting.................................................................................................................................20

SIP Setting.......................................................................................................................................... 20

Port Setting........................................................................................................................................ 22

Base Station....................................................................................................................................... 23

Rules Setting...................................................................................................................................... 25

Mobile Setting................................................................................................................................... 27

SMS Setting........................................................................................................................................ 29

Automation........................................................................................................................................31

Simpool Setting..................................................................................................................................33

InterCall Setting................................................................................................................................. 34

Callback Setting................................................................................................................................. 36

CallWait Setting................................................................................................................................. 37

Call Dur Setting.................................................................................................................................. 38

Auto Recharge................................................................................................................................... 39

Status Notification............................................................................................................................. 40

System Settings......................................................................................................................................41

Codec................................................................................................................................................. 41

Network Debug..................................................................................................................................42

Log System......................................................................................................................................... 42

File Management............................................................................................................................... 43

User & Device.................................................................................................................................... 43

Update & Restore.............................................................................................................................. 44

Module Update..................................................................................................................................45

Save & Reboot................................................................................................................................... 45

Initialization....................................................................................................................................... 46

GoIP User Manual

About

Intro

SKYLINE INTERNATIONAL COMMUNICATION Co., Ltd. was founded in 2002.We have

70 employees, 15 departments and more than 10 production lines. More than 200

companies have established business with us, and they are from 40 different

countries.

Our company is a manufacturer of VoIP Gateways, GSM VoIP gateways, with well-

equipped testing equipment and strong technical force. With a wide range, good

quality, reasonable prices and stylish designs, our products are extensively used in

communication industry and other industries. Our products are widely recognized and

trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future

business relationships and achieving mutual success!

And we set up a new team for voice wholesale business two years ago. Currently there

are five departments with professional teammates for voice business--Carriers

Relations Dep, NOC Dep, Rate Dep, Billing & Finance Dep, customer Care Dep.

We are carrying more than Twenty Million minutes international outbound and inbound

traffic monthly and owning 200+ interconnections with Tier1 and Tier2 carriers.

We mainly focus on Asia and Africa destinations and have more than 20 direct routes

such as Pakistan, Vietnam ect.

We treat every partner as our best friend because we insist on sincerity, trust and

open-minded will be the key to the success for both parties. We sincerely welcome all

VOIP interconnection.

SK-GoIP Gateway is a multi-functional and high performance product, which is

designed with advanced embedded technology. SK-GoIP is able to process traditional

voice call service and internet data service. It adapt new hardware and software

structure, which supports up to 32/128 concurrent calls and perfectly support

G729a/b/e, G723.1, G.711 A/U law and iLBC codecs at the same time.

China SKYLINE Technology Co.,Ltd.

TECHNICAL PARAMETER

Features：Relay Encryption Solution(Fix IP Blocking)/Bandwidth Optimization/SIM

Rotating Automatically(Fix SIM Blocking)/Base Station Switch/SIM Hot

Plugging/Remote Control(Manage Device Anywhere)/Muti-Codec Support)/SMS

Receive & Send

Human Behavior

Channels: 32/128

SIP V2.0 RFC3261

RTP/RTCP RFC3551

Echo/Silence control

Caller Anonymous

Codecs: G729 a/b/e, G723, G711 A/U law, iLBC

SIP account: Management with Authentication

VOL control

PIN Code Management

AT, SMS, USSD

GSM PARAMETERS

GSM channels: 32 Channels

Network types: 850 / 900 / 1800 / 1900 MHz (quad-band)

Transmitter power: +33dBm (2W) 850/900MHz, +30dBm (1W) 1800/1900M

SIM card: 1 SIM per channel, Small plug-in, 3V

Antenna connector: SMA (female), Impedance 50 Ω

INTERFACES

Channel: 1 SIM per Channel

WAN: RJ-45

USB: Serial Port, Baud rate: 115200, 8, n, 1, n

ADMINISTRATION

User Management program via USB interface

Includes version update capabilities for firmware or management Software

Remote Control

Telnet, Console Echo

WCDMA PARAMETERS

Channels: 128 Channels

Network types: 850/1900 & 900/2100MHz

Antenna connector: SMA (female), Impedance 50 Ω

GoIP User Manual

CDMA PARAMETERS

CDMA channels: 128 Channels

Network types: 450/800/1900MHz

Antenna connector: SMA (female), Impedance 50 Ω

MAIN POWER

Power Input: 100-240V~50-60Hz 1.2A MAX

Power Output: 12V/5A

Internet

DHCP, DNS, PPPoE

IPv4, TCP, UDP

HTTP, FTP, TFTP, ARP, NTP

OTHER

Working Temperature: 0~+50℃

Working Moisture: 10 ~ 90 % RH

32/128 Channel 128 SIM cards/32/128 Channel 32/128 SIM cards

China SKYLINE Technology Co.,Ltd.

View

1, SIM slots: The 32/128 GoIP device can read 128 SIMs totally. It means the gateway

can support 32/128 calls concurrently (32/128 channels), and each channel can read 4

SIMs named A,B,C,D (This SIMs will rotate to avoid blocking).

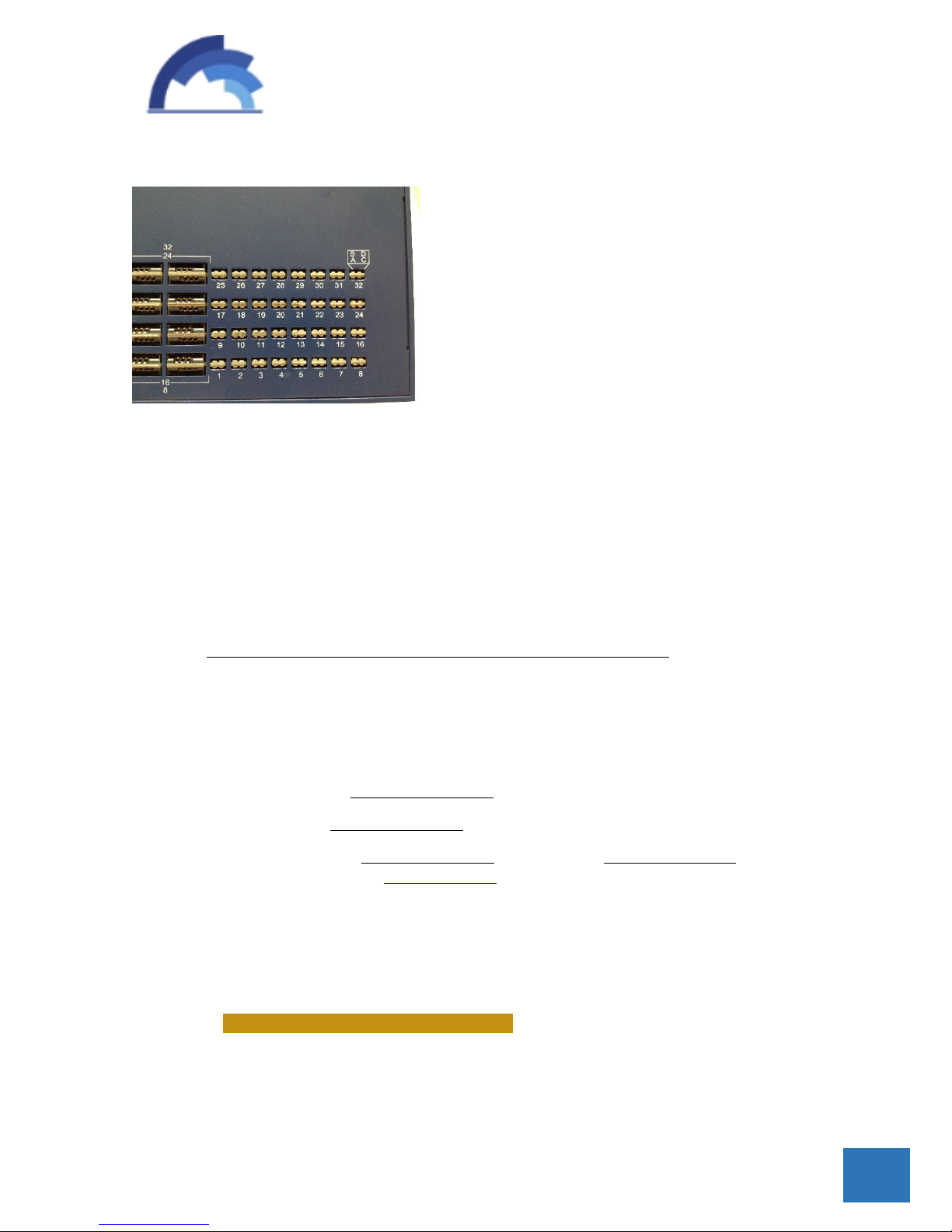

2, Channel number.

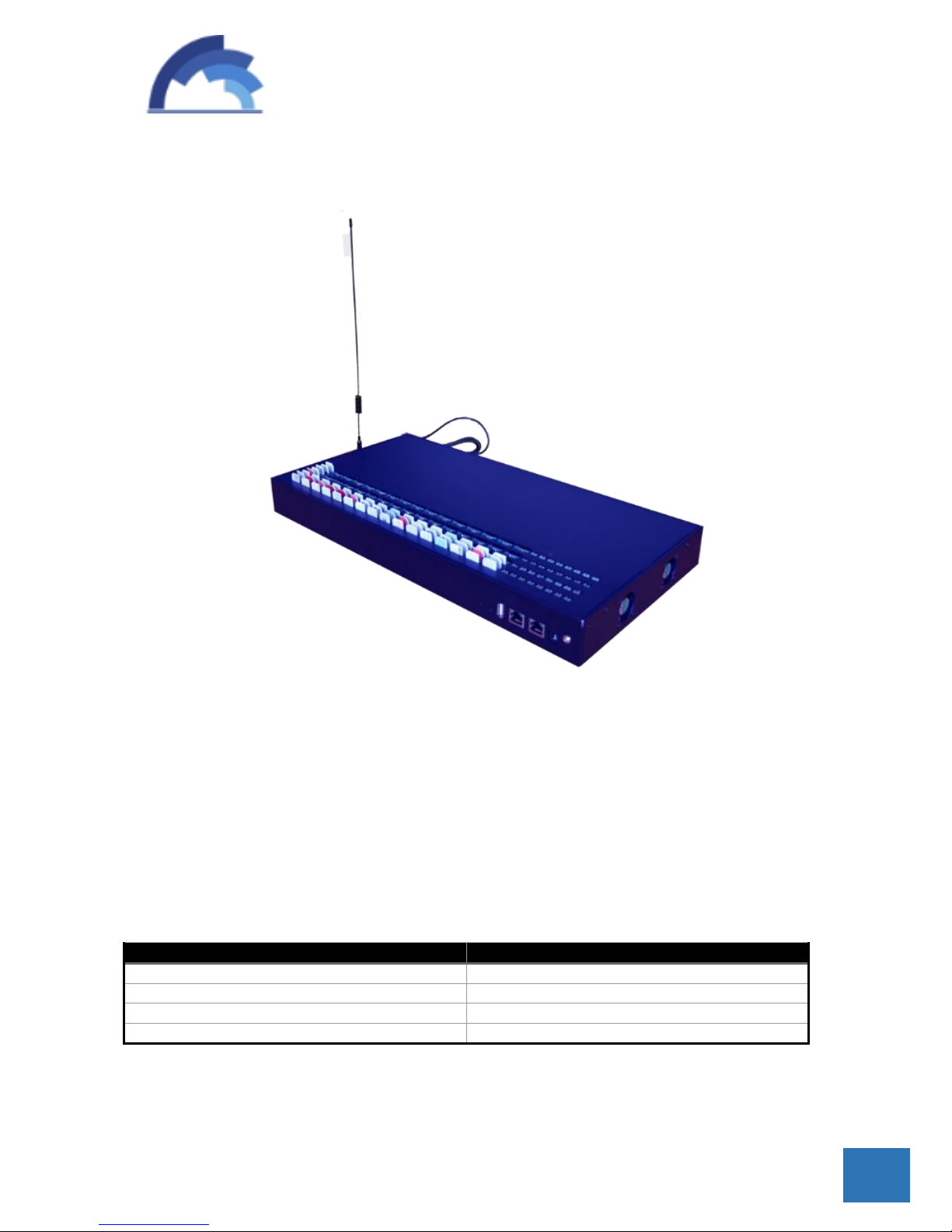

3, Channel LED: One channel include 4 LEDs for ABCD SIMs.

ACT

LED Status

Startup(Rebooting)

All ON

Fail mobile connection

Blink

Calling

Idle or No SIM

Off

4, Power LED.

GoIP User Manual

5, RESET: Restore the factory default (Press the button and hold on for more than 5s).

6, Power connector.

Input power: 100-240V ~ 50-60Hz 1.2A MAX

Output power: 12V/5A

7, LAN: Ethernet port.

100M/10M Adaptive

8, WAN: Ethernet port.

100M/10M Adaptive

The default WAN IP is 192.32/1288.1.10 .

9, CONSOLE: USB serial port.

Baud rate: 115200, 8.n.1.n

10, Antenna connector.

11, Cooling fans: Support 2 mode – ON & Automatic (When Control center detect the

CPU too hot, fans will be ON, otherwise it will OFF).

Working Temperature: 0 ~ +50

℃

Working Moisture: 10 ~ 90 % RH

Quick Start

China SKYLINE Technology Co.,Ltd.

Insert SIM cards

A/C: The chip side towards up.

B/D: The chip side towards down.

Connect Device

Connect the power adapter to keep power on, connect a RJ45 network cable from GoIP

WAN port to a router①LAN port (The router should be connected to internet).

①router: A device used for visiting internet, such as TP-Link, Tenda, D-Link

Check Device IP

The GoIP WAN default IP is 192.32/1288.1.10.

1, If the router LAN IP is 192.32/1288.1.1, the GoIP default IP will be OK.

2, If the router LAN IP is not 192.32/1288.1.1, for example 192.32/1288.0.1, the GoIP

default IP should be corrected. How to change it?

Log Into The Management Web

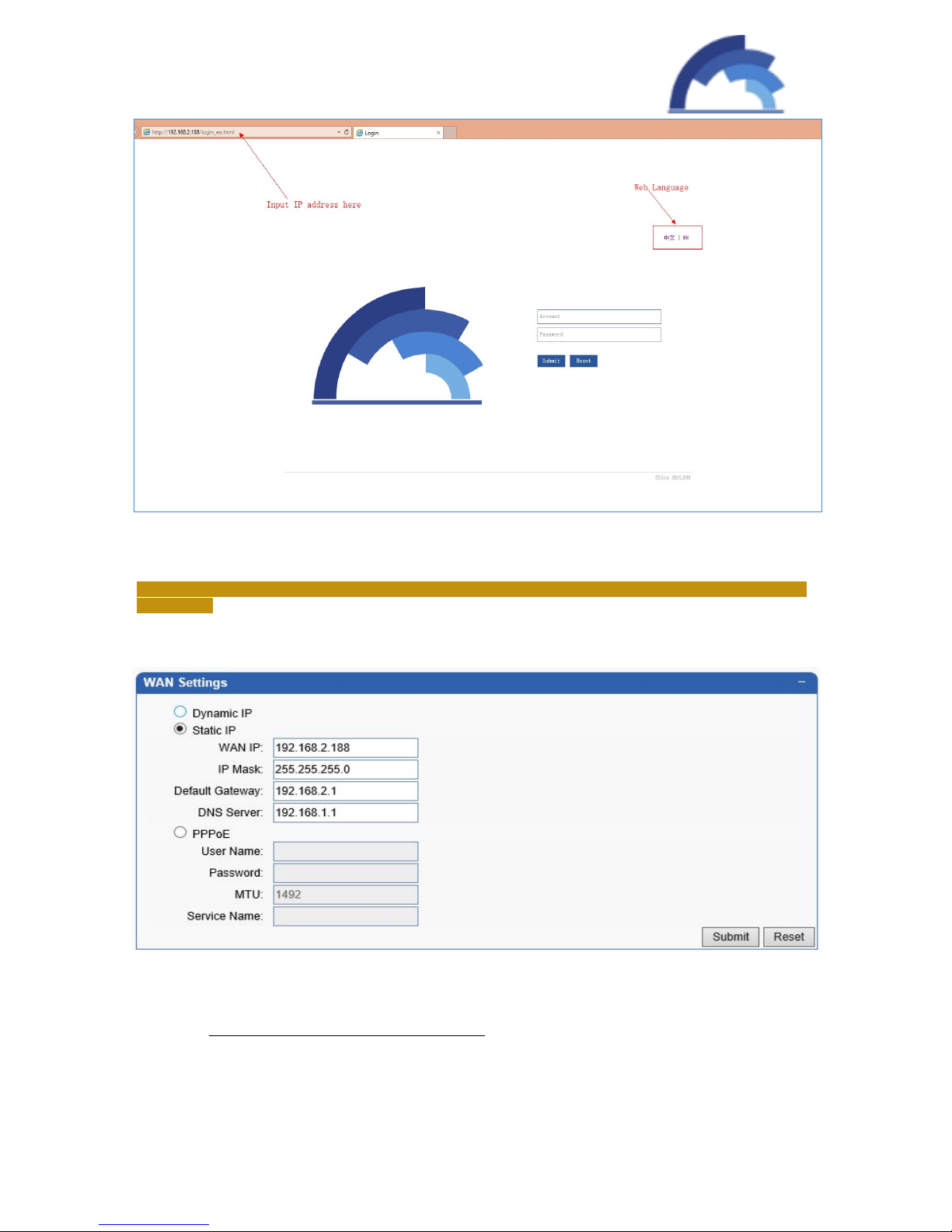

After retrieving the IP address, open browser (IE, Chrome, FireFox, Opera …), input

the IP address and the login web will return. The username & password will be needed

to log into. Default Account is root, password is root.

GoIP User Manual

When login successfully, the “Initial Setting” guide page will be help to make gateway

working more easily.

Actually, only IP address and SIP info are needed then the GoIP gateway can start to transfer

VOIP calls.

Connect To Network

Dynamic IP: DHCP②mode, get an IP address from the network router

automatically.

②DHCP: Dynamic host configuration protocol.

Static IP: set IP address manually.

1, The WAN IP should be in the segment of the router.
