Skylab WG217 Manuel utilisateur

SkylabM&CTechnologyCo.,Ltd.

WiFi Module

ModuleWG217

1/ WG217-DA-001,A/1



WiFiModule

Name:WiFiModule

ModelNO.:WG217

Revision:V1.05

RevisionHistory

Revision Description Approved Date

V1.01 InitialRelease GeorgeHe 2017.07.25

V1.02 UpdatePerformanceSpecification GeorgeHe 2017.11.21

V1.03 UpdatePerformanceSpecification GeorgeHe 2017.12.01

V1.04 UpdatePerformanceSpecification GeorgeHe 2017.12.13

V1.05 UpdateTopViewPhoto GeorgeHe 2018.01.09

Contents

1.

GeneralDescription.......................................................................................................................................3

SkylabM&CTechnologyCo.,Ltd.

WiFi Module

ModuleWG217

2/ WG217-DA-001,A/1

2.Applications.....................................................................................................................................................3

3.Features............................................................................................................................................................3

4.ApplicationBlockDiagram........................................................................................................................4

5.ModulePinoutandPinDescription.......................................................................................................4

6.PerformanceSpecification.........................................................................................................................4

7.ModulePinout................................................................................................................................................7

8.ElectricalCharacteristics..............................................................................................................................7 

9.PCBFootprintandDimensions................................................................................................................8

10.ManufacturingProcessRecommendations.......................................................................................9

11.ReferenceDesignSchematic..................................................................................................................9

12.ContactInformation.................................................................................................................................10

SkylabM&CTechnologyCo.,Ltd.

WiFi Module

ModuleWG217

3/ WG217-DA-001,A/1

1. GeneralDescription

WG217isahighlyintegratedUSBWi-Fi

modulewhichsupports433MbpsPHYrate.

ItiscompliantwithIEEE802.11acdraft

specification,offeringfeature-richwireless

connectivityandreliablethroughputfroman

extendeddistance.  

WG217isdesignedtosupportstandard

basedfeaturesintheareasofsecurity,

qualityofserviceandinternational

regulations,givingendusersthegreatest

performanceanytimeandinany

circumstance.

2.Applications

◆IPCamera

◆IPTV

◆IPDVD(InternetVODPlayer)

◆SetTopBox

◆HomeGateways

◆GamingConsoles

◆DVR

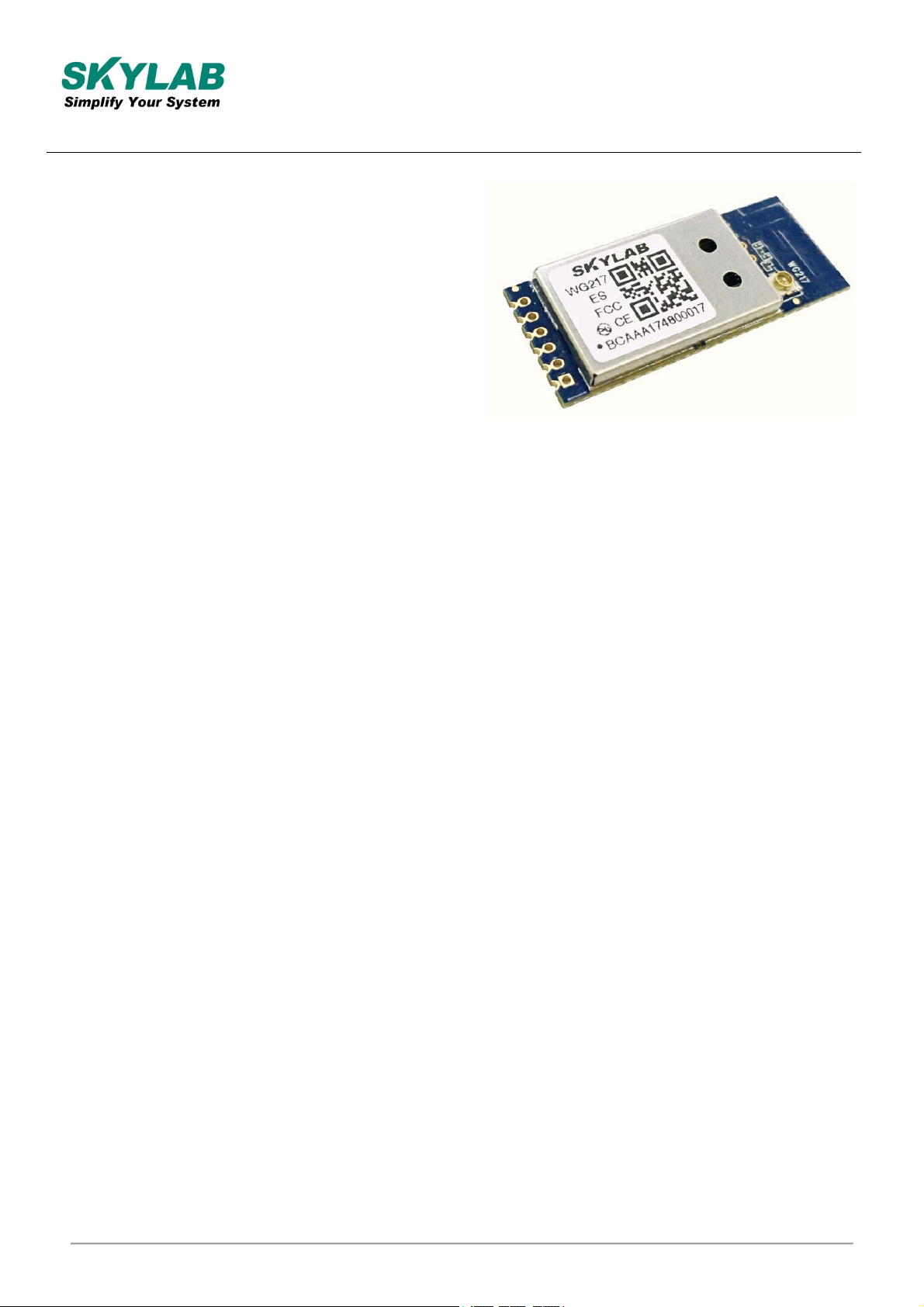

Figure1:WG217TopView



3.Features

◆IEEE802.11a/b/g/n/acWLANs

◆2.4G/5GITIRmode

◆Withsupportof433MbpsPHYrate

◆IEEE802.11eQoSEnhancement(WLAN)

◆USBLPM/SelectiveSuspendsupport

◆FullycompliancewithUSB2.0High-speed

mode.

◆IEEE802.11i(WPA,WPA2).Open,shared

key,andpair-wisekeyauthentication

services

◆SupportsforWindowsXP32/64,2000,Vista

32/64bit,Windows732/64bit,Linux,

Android

◆RoHScompliancemeets

nvironment-friendlyrequirement.

◆FCC,CEcompliance

◆36.0(L)x15.0(W)x3.2mmsmalldimension



SkylabM&CTechnologyCo.,Ltd.

WiFi Module

ModuleWG217

4/ WG217-DA-001,A/1

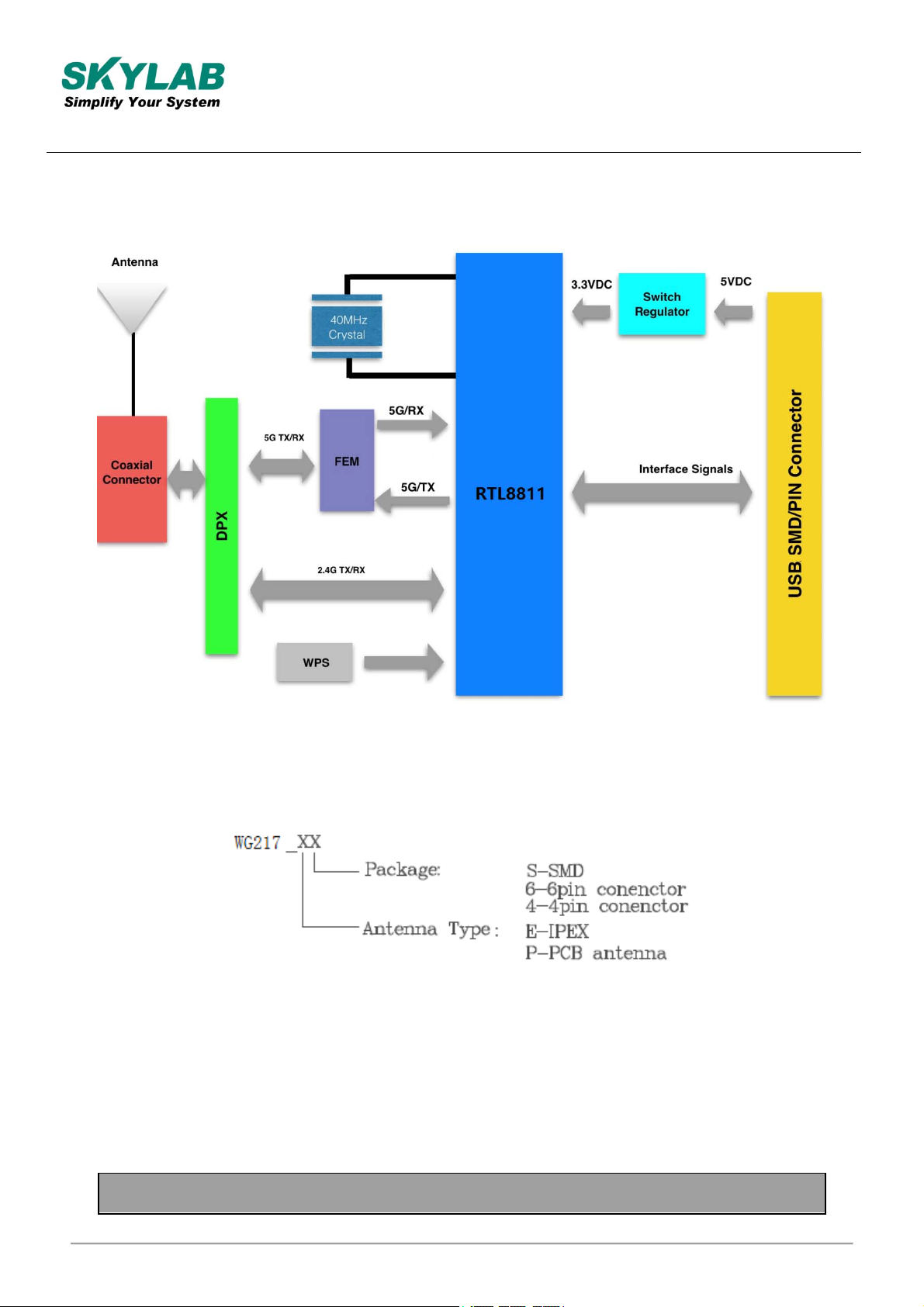

4.ApplicationBlockDiagram



Figure2:WG217BlockDiagram

5.ModulePinoutandPinDescription



6.PerformanceSpecification

HardwareFeatures

SkylabM&CTechnologyCo.,Ltd.

WiFi Module

ModuleWG217

5/ WG217-DA-001,A/1

Model WG217

ANTENNATYPE IPEXconnecterorPCBantenna

Voltage 3.5—5.5V

DIMENTIONS(W×

D) 36mm*15mm

WirelessFeatures

WIRELESS

STANDARDS IEEE802.11a/b/g/n/ac

FREQUENCY

RANGE 2.4/5GHz

DATARATES

IEEE802.11aStandardMode:6,9,12,18,24,36,48,54Mbps

IEEE802.11bStandardMode:1,2,5.5,11Mbps

IEEE802.11gStandardMode:6,9,12,18,24,36,48,54Mbps

IEEE802.11n/Draft2.0Mode:130Mbps@HT20

150Mbps@HT40

IEEE802.11acStandardMode:433Mbps@VHT80

2.4GRECEIVE

SENSITIVITY

HT40MCS15: -69dBm@10%PER(MCS7)

HT20MCS15: -72dBm@10%PER(MCS7)

54M: -74dBm@10%PER

11M:-89dBm@8%PER

5GRECEIVE

SENSITIVITY

VHT80MCS15:-59dBm@10%PER(MCS9)

HT40MCS15: -68dBm@10%PER(MCS7)

OFDM54M:-75dBm@10%PER

OFDM6M:-90dBm@8%PER

MODULATION

TECHNOLOGY

802.11Legacyb/g/n

DSSS(DBPSK,DQPSK,CCK)

OFDM(BPSK,QPSK,16-QAM,64-QAM)

SkylabM&CTechnologyCo.,Ltd.

WiFi Module

ModuleWG217

6/ WG217-DA-001,A/1

802.11ac

OFDM(256-QAM)

WIRELESS

SECURITY

SupportsWEP64/128,WPA,WPA2,TKIP,WAPI,andAES

hardwareencryption

5GHZTRANSMIT

POWER IEEE802.11ac:  11-14dBm@AC80MCS7

2.4GHZ

TRANSMIT

POWER



IEEE802.11n:   14-17dBm@HT40MCS7

14-17dBm@HT20MCS7

IEEE802.11g: 15-17dBm

IEEE802.11b: 16-20dBm

WORKMODE AP/Ad-Hoc/Infrastructuremode

Others

POWER

Consumption@25

°C

Status POWER 2.4G/mA 5G/mA

Transmission

HT40/MCS15 5.0V 150 160

Receiving

HT40/MCS15 5.0V 90 90

SYSTEM

REQUIREMENTS

Windows7(32/64bits),WindowsVista(32/64bits),

WindowsXP(32/64bits),Windows2000,Linux,Android

ENVIRONMENT

OperatingTemperature:-10℃~70℃

StorageTemperature:-40℃~125℃

OperatingHumidity:10%~90%non-condensing

StorageHumidity:5%~90%non-condensing



SkylabM&CTechnologyCo.,Ltd.

WiFi Module

ModuleWG217

7/ WG217-DA-001,A/1

7.ModulePinout 



8.ElectricalCharacteristics

Pin

No. Pinname I/O Description Remark

1 LED O LEDpin

2 GND G Ground

3 D+ I/O USBInterfaceDP

4 D- I/O USBInterfaceDM

5 VCC P ModulePowerSupply

6 WPS I WPSpin

7 NC

8 NC



SkylabM&CTechnologyCo.,Ltd.

WiFi Module

ModuleWG217

8/ WG217-DA-001,A/1

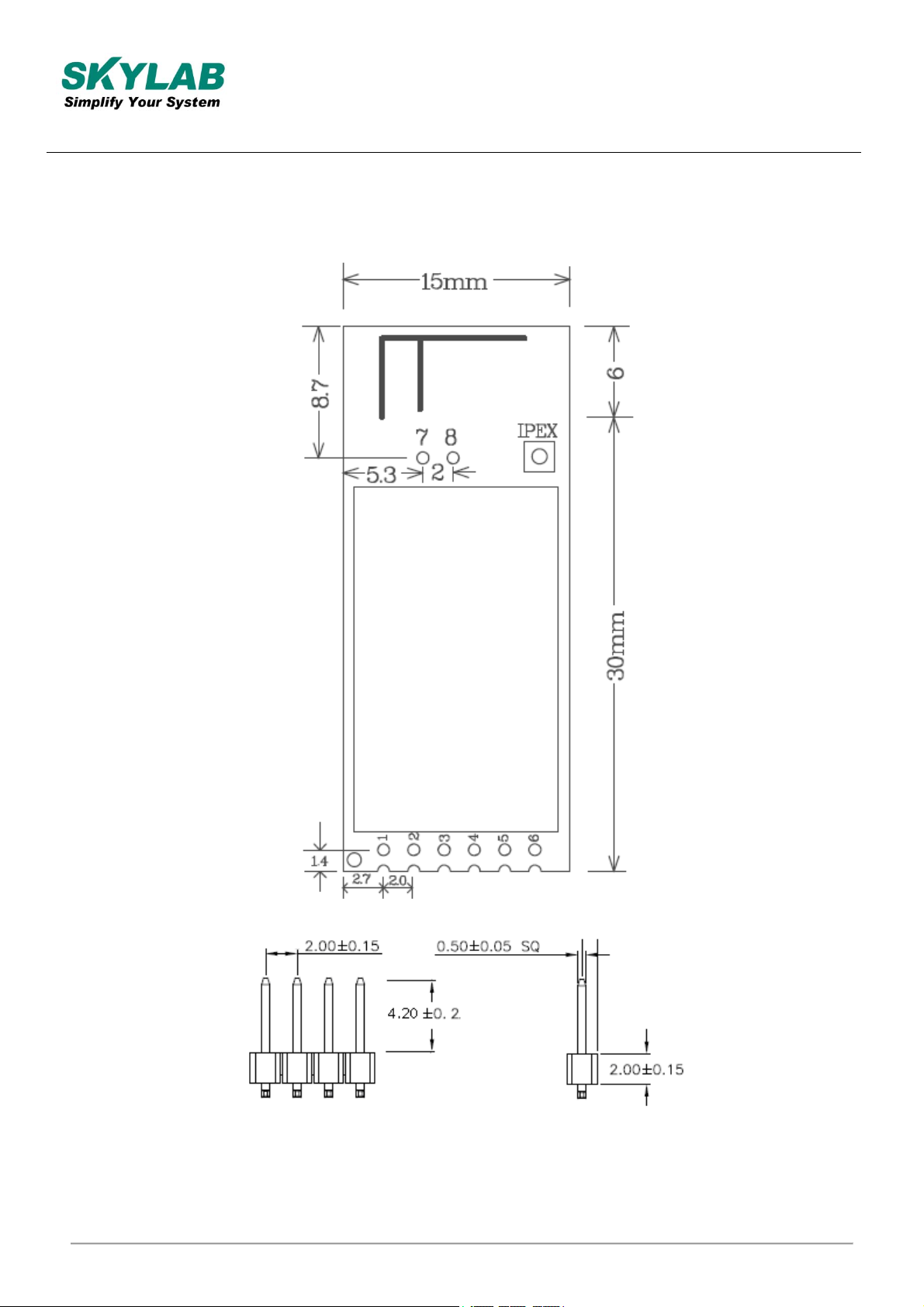

9.PCBFootprintandDimensions

SkylabM&CTechnologyCo.,Ltd.

 WiFi Module

ModuleWG217

9 /WG217-DA-001,A/1

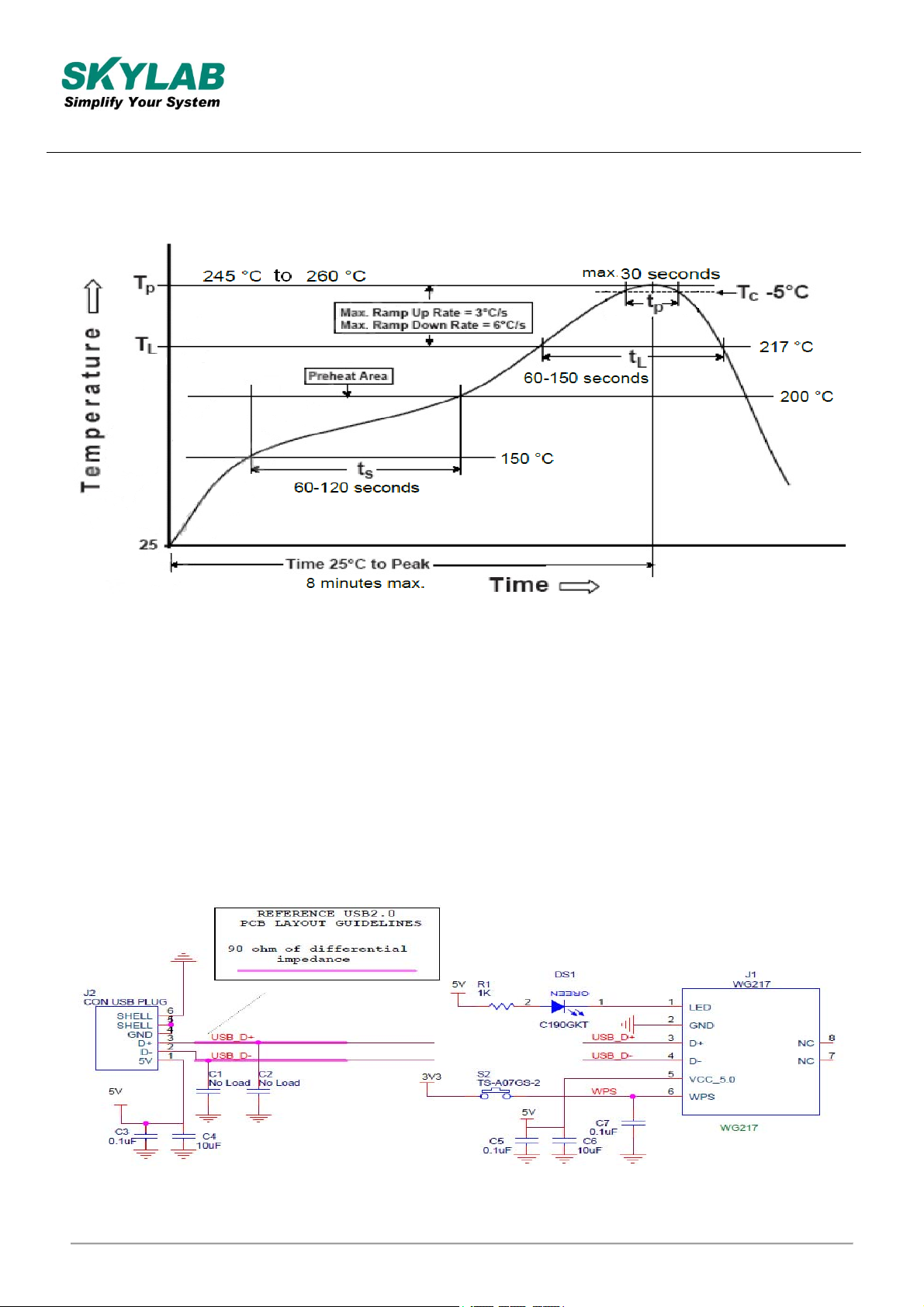

10.ManufacturingProcessRecommendations



WG217TypicalLeadfreeSolderingProfile

Note：Thefinalsolderingtemperaturechosenatthefactorydependsonadditionalexternal

factorslikechoiceofsolderingpaste，size，thicknessandpropertiesofthebaseboard，etc.

Exceedingthemaximumsolderingtemperatureintherecommendedsolderingprofilemay

permanentlydamagethemodule.



11.ReferenceDesignSchematic



SkylabM&CTechnologyCo.,Ltd.

WiFi Module

ModuleWG217

10 / 11WG217-DA-001,A/1

WARNING:

Herby,SkylabM&CTechnologyCo.,LtddeclaresthatthisUSBWIFImodule，WG217isin

compliancewiththeessentialrequirementsandotherrelevantprovisionsofDirective

2014/53/EU.  

UsetheWG217intheenvironmentwiththetemperaturebetween-10℃ and+70℃,

Thismodularmustbeinstalledandoperatedwithaminimumdistanceof20cmbetween

theradiatoranduserbody



12.ContactInformation

SkylabM&CTechnologyCo.,Ltd.

深圳市天工测控技术有限公司

Address:

Phone:86-75583408210（SalesSupport）

Phone:86-75583408510（TechnicalSupport）

Fax:86-755-83408560

E-Mail:[email protected](技术支持）

Website:ww

w.skylab.com.cnwww.skylabmodule.com

6/F, Building 9, Lijincheng park, Gongye East

Rd, Longhua St, Longhua District, Shenzhen

518109, China
