Layout of this Owner's Manual

(explanations)

This Owner's Manual has been systematically designed to make it easy for you to

search for and obtain the information you require.

Chapters, table of contents and subject index

The text of the Owner's manual is divided into relatively short sections which are

combined into easy-to-read chapters. The chapter you are reading at any particular

moment is always specified on the bottom right of the page.

The Table of contents is arranged according to the chapters and the detailed Sub-

ject index at the end of the Owner's Manual helps you to rapidly find the informa-

tion you are looking for.

Direction indications

All direction indications such as “left”, “right”, “front”, “rear” relate to the direction of

travel of the vehicle.

Measures

All values are expressed in metric units.

Explanation of symbols

Denotes a reference to a section with important information and safety

advice in a chapter.

Denotes the end of a section.

Denotes the continuation of a section on the next page.

Indicates situations where the vehicle must be stopped as soon as possi-

ble.

® Denotes a registered trademark.

Notes

WARNING

The most important notes are marked with the heading WARNING. These

WARNING notes draw your attention to a serious risk of accident or injury.

CAUTION

A Caution note draws your attention to the possibility of damage to your vehicle

(e.g. damage to gearbox), or points out general risks of an accident.

For the sake of the environment

An Environmental note draws your attention to environmental protection aspects.

This is where you will, for example, find tips aimed at reducing your fuel consump-

tion.

Note

A normal Note draws your attention to important information about the operation

of your vehicle.

Preface

You have opted for a ŠKODA – our sincere thanks for your confidence in us.

Your new ŠKODA offers you a vehicle featuring the most modern engineering and a wide range of equipment.

We recommend that you read this Owner's Manual carefully so that you can quickly familiarise yourself with

your vehicle and all that it has to offer.

If you have any questions about your vehicle, please contact a ŠKODA Service Partner.

National legal provisions take precedence over the information contained in the operating instructions.

We wish you much pleasure with your ŠKODA and pleasant motoring at all times.

Your ŠKODA AUTO a.s. (hereinafter referred to as ŠKODA) £

The on-board literature

The on-board literature for your vehicle consists of this “Owner's Manual” as well

as a “Service schedule” and the “Help on the road” brochure.

Depending on the vehicle model and equipment, other additional operating man-

uals and instructions may be provided (e.g. an operating manual for the radio).

If one of the publications listed above is missing, please contact a specialist ga-

rage.

The details given in the vehicle's technical documentation always take prece-

dence over the details in the Owner's Manual.

The Owner's Manual

These operating instructions describe all possible equipment variants without

identifying them as special equipment, model variants or market-dependent

equipment.

Consequently, this vehicle does not need to contain all of the equipment compo-

nents described in this Owner's manual.

The scope of equipment for your vehicle is described in the sales documentation

you were given when purchasing the car. For more information, contact your local

ŠKODA retailer.

The illustrations can differ in minor details from your vehicle; they are only inten-

ded for general information.

The Service schedule

contains:

›Vehicle data

›Service proof

›Confirmation of mobility warranty (only valid in certain countries)

›Important information on the warranty

The confirmations of the service work performed are one of the conditions for

possible warranty claims.

Please always present the Service Schedule when you take your car to a special-

ist garage.

If the Service Schedule is missing or worn, please contact the specialist garage

that regularly services your car. You will receive a duplicate, in which the previ-

ously carried out service work is confirmed.

The Help on the Road brochure

The Help on the Road brochure contains the most important telephone numbers

in individual countries as well as the addresses and telephone numbers of ŠKODA

importers.

Table of Contents

Abbreviations

Using the system

Cockpit 7

Overview 6

Instruments and Indicator Lights 8

Instrument Cluster 8

Multi-function display (onboard computer) 11

MAXI DOT (information display) 14

Indicator lights 17

Unlocking and locking 24

Vehicle key 24

Central locking system 25

Remote control 28

Anti-theft alarm system 29

Interior monitor and towing protection

monitoring 30

Boot lid 30

Electric power windows 31

Lights and Visibility 33

Lights 33

Interior light 37

Visibility 38

Windscreen wipers and washers 38

Rear window 41

Seats and Stowage 43

Front seats 43

Head restraints 45

Rear seats 46

Luggage compartment 47

Roof rack system 50

Cup holder 51

Cup holder in the centre console 51

Cup holder in the rear armrest 52

Ashtray 52

Cigarette lighter, 12-volt power socket 52

Storage compartments 53

Clothes hooks 57

Parking ticket holder 57

Heating and air conditioning system 58

Air outlet vents 59

Heating 59

Air conditioning system (manual air conditioning

system) 61

Climatronic (automatic air conditioning

system) 64

Starting-off and Driving 67

Starting and stopping the engine 67

Brakes and brake assist systems 69

Shifting 73

pedals 73

Parking aid 73

Cruise control system (CCS) 74

START/STOP 76

Automatic gearbox 78

Communication 83

Mobile phones and two-way radio systems 83

Universal telephone preinstallation GSM II 83

Voice control 86

Multimedia 88

Safety

Passive Safety 90

General information 90

Correct seated position 91

Seat belts 94

Airbag system 98

Description of the airbag system 98

Front airbags 99

Side airbags 100

Head airbags 101

Deactivating airbags 102

Transporting children safely 104

Child seat 104

Driving Tips

Driving and the Environment 108

The first 1 500 km 108

Catalytic converter 108

Economical and environmentally friendly

driving 109

Environmental compatibility 111

Driving abroad 112

Avoiding damage to your vehicle 112

Driving through water on the street 113

Towing a trailer 114

General Maintenance

Taking care of and cleaning the vehicle 116

Taking care of your vehicle 116

Inspecting and replenishing 123

Fuel 123

Engine compartment 125

Vehicle battery 132

Table of Contents

Wheels and Tyres 137

Tyres 137

Accessories, changes and replacement of parts 144

Introductory information 144

Changes and impairments of the airbag

system 144

Do-it-yourself

Do-it-yourself 145

First-aid kit and warning triangle 145

Fire extinguisher 145

Vehicle tool kit 145

Changing a wheel 146

Breakdown kit 149

Jump-starting 152

Towing the vehicle 153

Fuses and light bulbs 156

Fuses 156

Bulbs 159

Technical data

Technical data 164

Introductory information 164

Data on the vehicle data sticker and

identification plate 164

Dimensions 165

Specifications and engine oil capacity 166

Vehicle-specific details per engine type 167

Index

4Table of Contents

Abbreviations

Abbreviation Definition

rpm Engine revolutions per minute

ABS Anti-lock brake system

TCS Traction control

CO2 in g/km discharged quantity of carbon dioxide in grams per driven kilo-

meter

DSG Automatic double clutch gearbox

EDL Electronic differential lock

ESC Electronic Stability Control

HBA Hydraulic Brake Assist

HHC Hill Hold Control

kW Kilowatt, measuring unit for the engine output

MFD Multi-function display

N1 Panel van intended exclusively or mainly for the transporta-

tion of goods

Nm Newton meter, measuring unit for the engine torque

TDI CR Diesel engine with turbocharging and common rail injection

system

TSI Petrol engine with turbocharging and direct injection Ð

Abbreviations

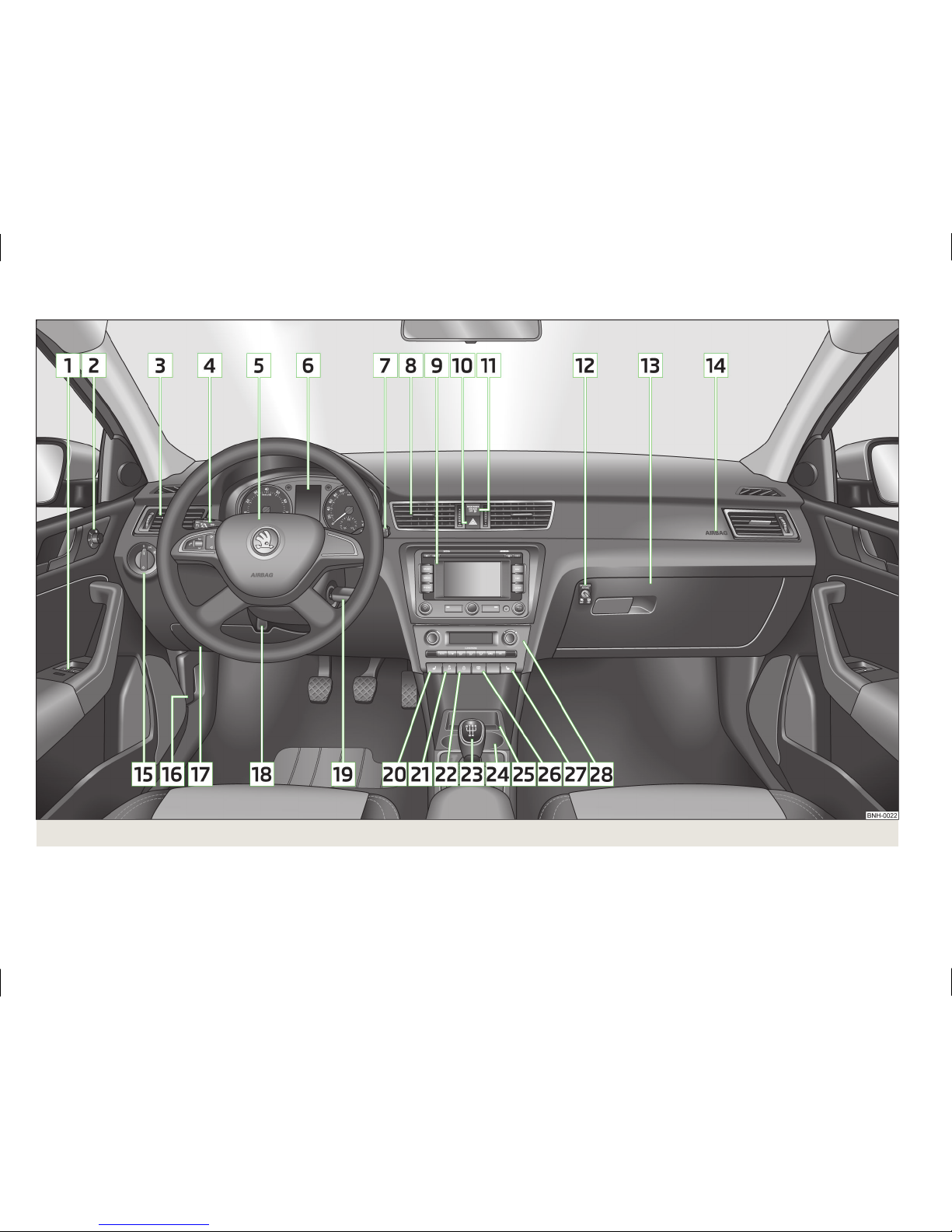

Fig. 1 Cockpit

6Using the system

Using the system

Cockpit

Overview

Electric windows 32

Electric exterior mirror adjustment 41

Air outlet vents 59

Lever for the multi-functional switch:

›Turn signal light, headlight and parking light, headlight flasher 35

›Speed regulating system 74

Steering wheel:

›With horn

›With driver’s front airbag 99

›With pushbuttons for radio, navigation system and mobile

phone 83

Instrument cluster: Instruments and indicator lights 8

Lever for the multi-functional switch:

›Multi-functional indicator 11

›Windshield wiper and wash system 39

Air outlet vents 59

Depending on equipment fitted:

›Radio

›Navigation system

Switch for hazard warning lights 36

Warning light for the deactivated front seat passenger airbag 102

Key-operated switch for the front seat passenger airbag 102

Storage compartment on the front passenger side 54

Front passenger airbag 99

Light switch and headlamp beam adjustment 33, 35

Bonnet release lever 127

Fuse box in the dashboard 157

Lever for adjusting the steering wheel 68

Ignition lock 69

Regulator for left seat heating 45

TCS switch 71

Central locking system 27

Depending on equipment fitted:

›Gearshift lever (manual gearbox) 73

›Selector lever (automatic gearbox) 79

Depending on equipment fitted:

›Cup holder 51

›Ashtray holder 52

Storage compartment 56

Switch for rear window heater 38

Regulator for right seat heating 45

Depending on equipment fitted:

›Operating controls for the heating 59

›Operating controls for the air conditioning system 61

›Operating controls for Climatronic 64

Note

The arrangement of the controls and switches and the location of some items on

right-hand drive models may differ from that shown in » Fig. 1. The symbols on

the controls and switches are the same as for left-hand drive models. Ð

Cockpit

Instruments and Indicator Lights

Instrument Cluster

äIntroduction

This chapter contains information on the following subjects:

Overview 8

Engine revolutions counter 9

Speedometer 9

Coolant Temperature Display 9

Fuel Gauge 9

Counter for distance driven 10

Service Interval Display 10

Digital clock 11

Recommended gear 11

WARNING

■Concentrate fully at all times on your driving! As the driver you are fully re-

sponsible for road safety.

■Never operate the controls in the instrument cluster while driving, only

when the vehicle is stationary! Ð

Overview

Fig. 2 Instrument cluster

First read and observe the introductory information and safety warn-

ings on page 8.

Engine revolutions counter » page 9

Display:

›With counter for distance driven » page 10

›With Service Interval Display » page 10

›With digital clock » page 11

›With Multi-functional display » page 11

›With Information display » page 14

Speedometer » page 9

Coolant temperature gauge » page 9

Button for display mode:

›Setting the hours/minutes

›Activating/deactivating the second speed in mph or km/h

›Service intervals - Display of the number of days and kilometres remaining

until the next Inspection Service

Button for:

›Reset trip counter for the distance driven

›Reset service interval display

›Set hours/minutes

›Activate/deactivate display mode

Fuel gauge » page 9 Ð

8Using the system

Autres manuels pour 2014 Rapid Spaceback

Table des matières

Autres manuels Skoda Automobile

Skoda

Skoda Octavia III 2013 Manuel d'instructions

Skoda

Skoda KODIAQ Manuel utilisateur

Skoda

Skoda 2009 Yeti Manuel utilisateur

Skoda

Skoda Octavia III 2013 Manuel utilisateur

Skoda

Skoda 2014 Fabia Manuel utilisateur

Skoda

Skoda ROOMSTER - TECHNICAL CHANGES 05-2010 Guide de configuration

Skoda

Skoda OCTAVIA Manuel d'instructions

Skoda

Skoda Octavia II 2004 Manuel d'instructions

Skoda

Skoda OCTAVIA Manuel utilisateur

Skoda

Skoda PRAKTIK - ANNEXE 207 Manuel utilisateur

Skoda

Skoda OCTAVIA Manuel d'instructions

Skoda

Skoda OCTAVIA TOUR - Manuel utilisateur

Skoda

Skoda Superb 2005 Manuel utilisateur

Skoda

Skoda YETI - ANNEXE 791 Manuel utilisateur

Skoda

Skoda 2014 Rapid Spaceback Manuel utilisateur

Skoda

Skoda 2000 Fabia Manuel utilisateur

Skoda

Skoda 2009 Yeti Manuel utilisateur

Skoda

Skoda OCTAVIA Manuel utilisateur

Skoda

Skoda FABIA 2021 Manuel utilisateur

Skoda

Skoda KODIAQ 2017 Manuel d'instructions

Skoda

Skoda 2009 Yeti Manuel utilisateur

Skoda

Skoda OCTAVIA Manuel utilisateur

Skoda

Skoda OCTAVIA - 2010 Manuel utilisateur

Skoda

Skoda Octavia1999 Manuel utilisateur

Manuels Automobile populaires d'autres marques

Toyota

Toyota 2000 Tundra Manuel utilisateur

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur
