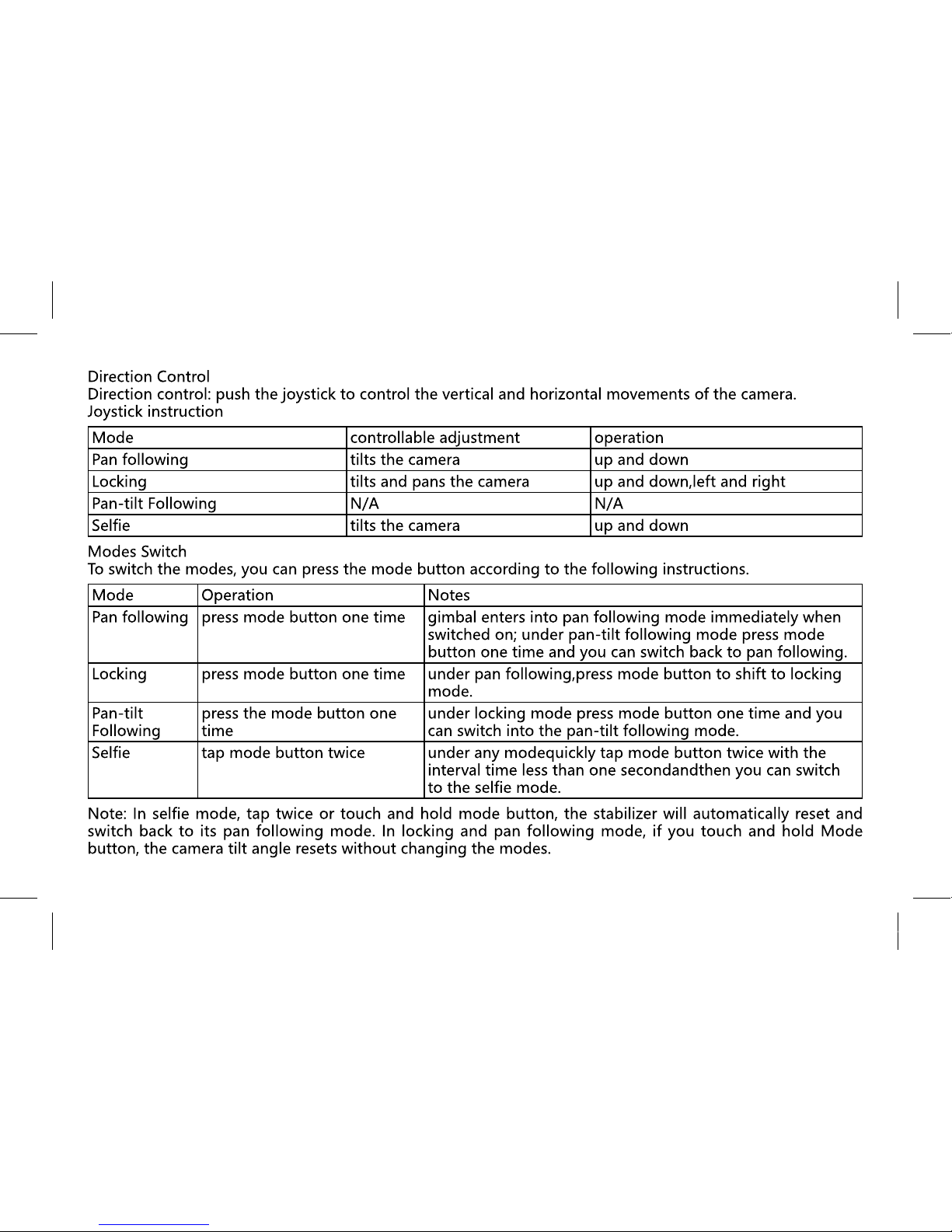

Direction Control
Direction control: push the joystick to control the vertical and horizontal movements of the camera.
Joystick instruction
Mode controllable adjustment operation
Pan following tilts the camera up and down
Locking tilts and pans the camera up and down,left and right
Pan-tilt Following N/A N/A
Selfie tilts the camera up and down
Modes Switch
To switch the modes, you can press the mode button according to the following instructions.
Mode Operation Notes
Pan following press mode button one time gimbal enters into pan following mode immediately when
switched on; under pan-tilt following mode press mode
button one time and you can switch back to pan following.
Locking press mode button one time under pan following,press mode button to shift to locking
mode.
Pan-tilt
Following
press the mode button one
time
under locking mode press mode button one time and you
can switch into the pan-tilt following mode.
Selfie tap mode button twice under any modequickly tap mode button twice with the
interval time less than one secondandthen you can switch
to the selfie mode.
Note: In selfie mode, tap twice or touch and hold mode button, the stabilizer will automatically reset and
switch back to its pan following mode. In locking and pan following mode, if you touch and hold Mode
button, the camera tilt angle resets without changing the modes.
手持云台说明书转曲.indd 5 2017/10/21 9:35:46
.6.
手持云台说明书转曲.indd 6 2017/10/21 9:35:46
.7.

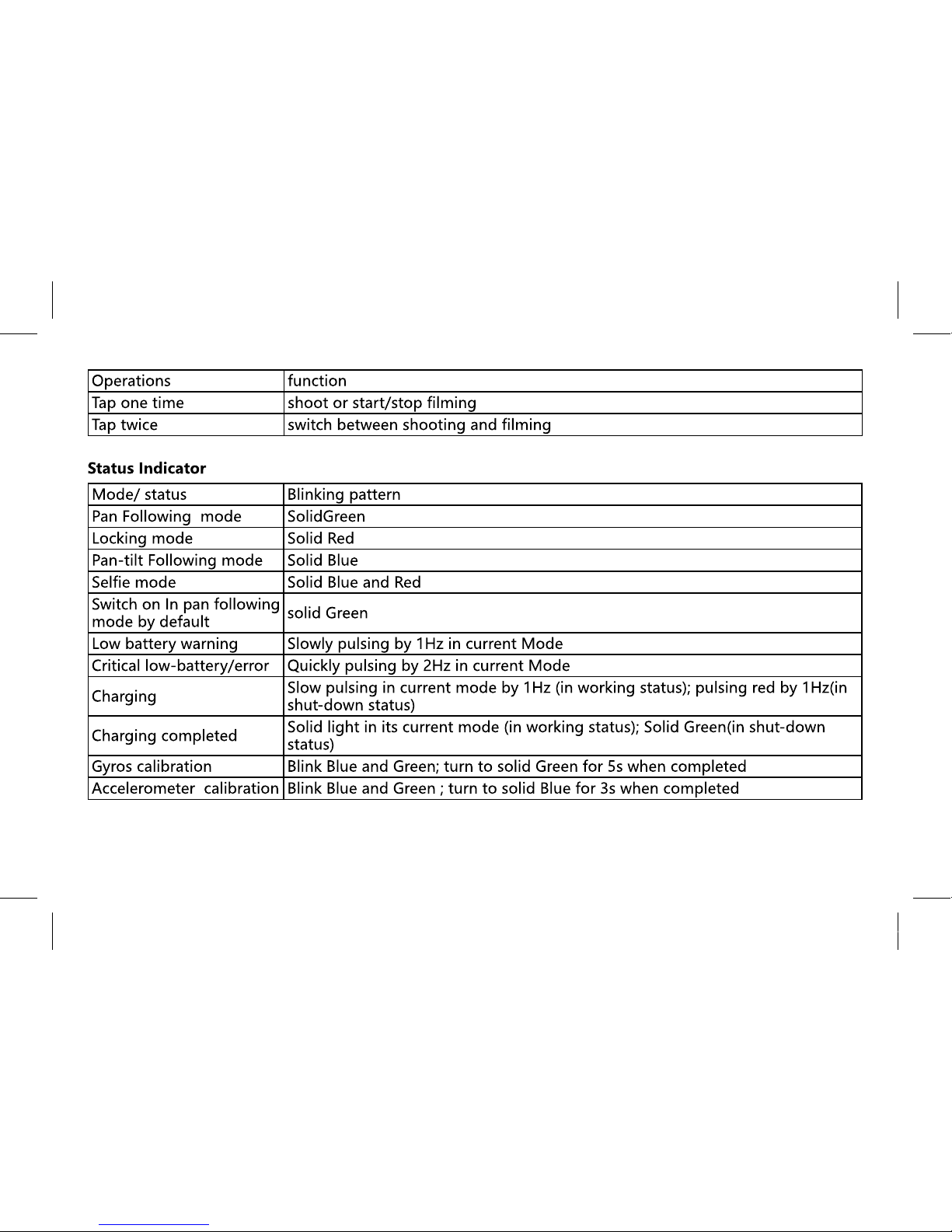

Operations function
Tap one time shoot or start/stop filming
Tap twice switch between shooting and filming
Status Indicator
Mode/ status Blinking pattern
Pan Following mode SolidGreen
Locking mode Solid Red
Pan-tilt Following mode Solid Blue
Selfie mode Solid Blue and Red
Switch on In pan following
mode by default solid Green
Low battery warning Slowly pulsing by 1Hz in current Mode
Critical low-battery/error Quickly pulsing by 2Hz in current Mode
Charging Slow pulsing in current mode by 1Hz (in working status); pulsing red by 1Hz(in
shut-down status)
Charging completed Solid light in its current mode (in working status); Solid Green(in shut-down
status)
Gyros calibration Blink Blue and Green; turn to solid Green for 5s when completed
Accelerometer calibration Blink Blue and Green ; turn to solid Blue for 3s when completed
