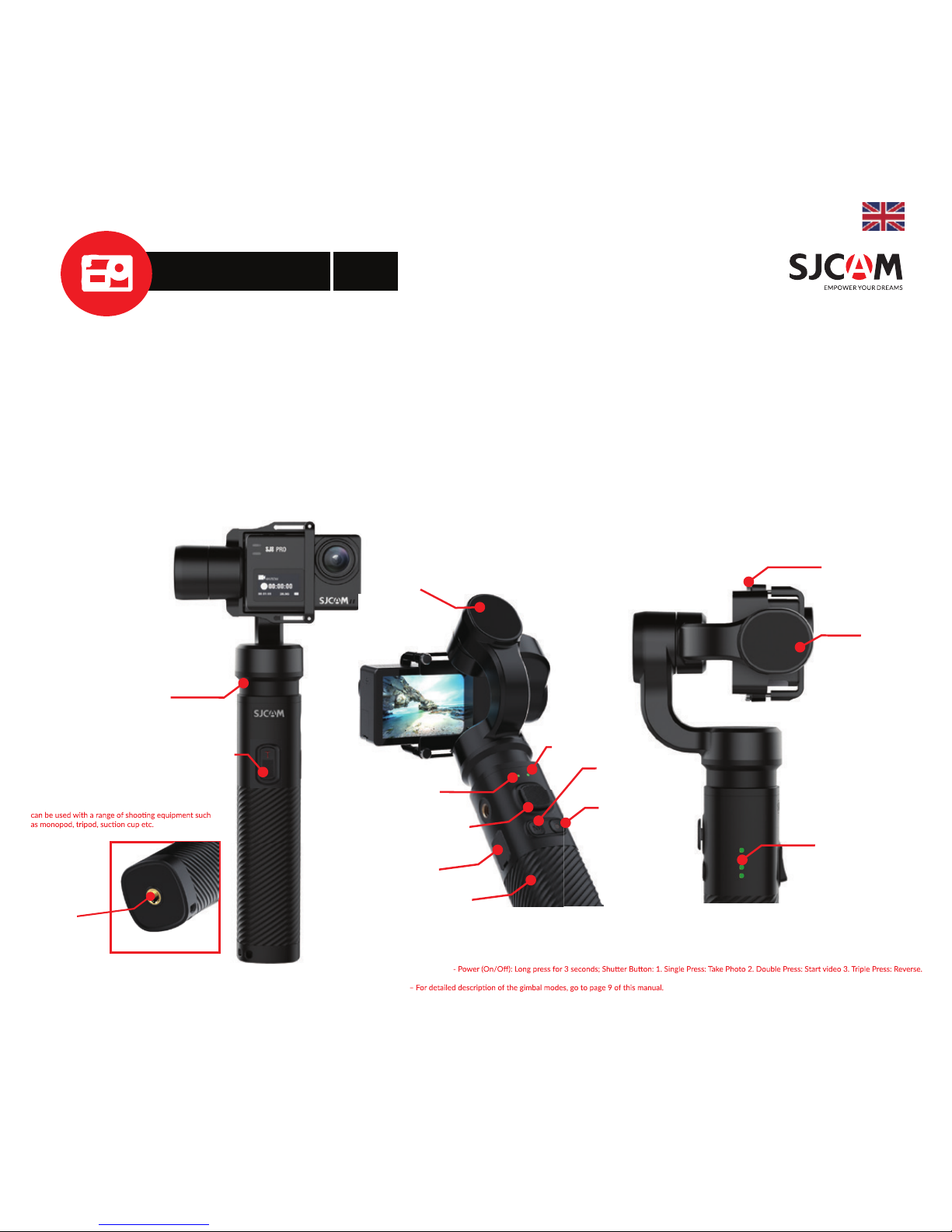

GIMBAL 2 - DESCRIPTION
BLUETOOTH LIGHT
JOYSTICK
POWER INDICATOR
LIGHT
TRIGGER BUTTON**
THUMB SCREW
TILT MOTOR
PAN MOTOR
ROLL MOTOR
HANDLE
(BATTERY INSIDE)
CHARGING PORT
SCREW
HOLE
SJ-Gimbal 2 has a 1/4 inch universal screw hole which
MODE
BUTTON***
MODE LIGHT
* POWER / SHUTTER BUTTON
**TRIGGER BUTTON - 1. Long Press: Quick lock; 2. Double Press: Re-center.
***MODE BUTTON
LONG PRESS FOR 3
SECONDS TO POWER
ON/OFF
CLICK TO
PAUSE/CONTINUE
DOUBLE CLICK TO
SWITCH SHOOTING
MODES (VIDEO AND
STILL)
T
GIMBAL 2
p. 3
www.sjcam.com
SPECIFICATIONS
COMPATIBLE WITH: Compable with most of SJCAM cameras and other branded acon cameras,
gimbal control is available for SJ8PRO、SJ8plus、SJ8Air、SJ7.SJ6
MATERIAL: COMPOSITE MATERIAL
WEIGHT: 370G
COLOR: BLACK
TILT ROTATE RANGE: 320°
ROLL ROTATE RANGE: 320°
PAN ROTATE RANGE: 640°
ANGLE VIBRATION RANGE: ±0.01°
WORKING VOLTAGE: 3.2V~4.0V
BATTERY: LI-ION, 2600mAh
BATTERY RUNTIME: 6 HOURS
by this way it can support camera charging and using around 2-2.5 hours
CHARGING CONNECTOR: TYPE-C
Stand alone endurance me can achieve 6 hours. It can also connect with cameras directly for external
power supply. by this way it can support camera charging and using around 2-2.5 hours.
thus give you pleasant experience.
GIMBAL 2
p. 4
www.sjcam.com
SUPERB ENDURANCE
GIMBAL 2 p. 5
www.sjcam.com

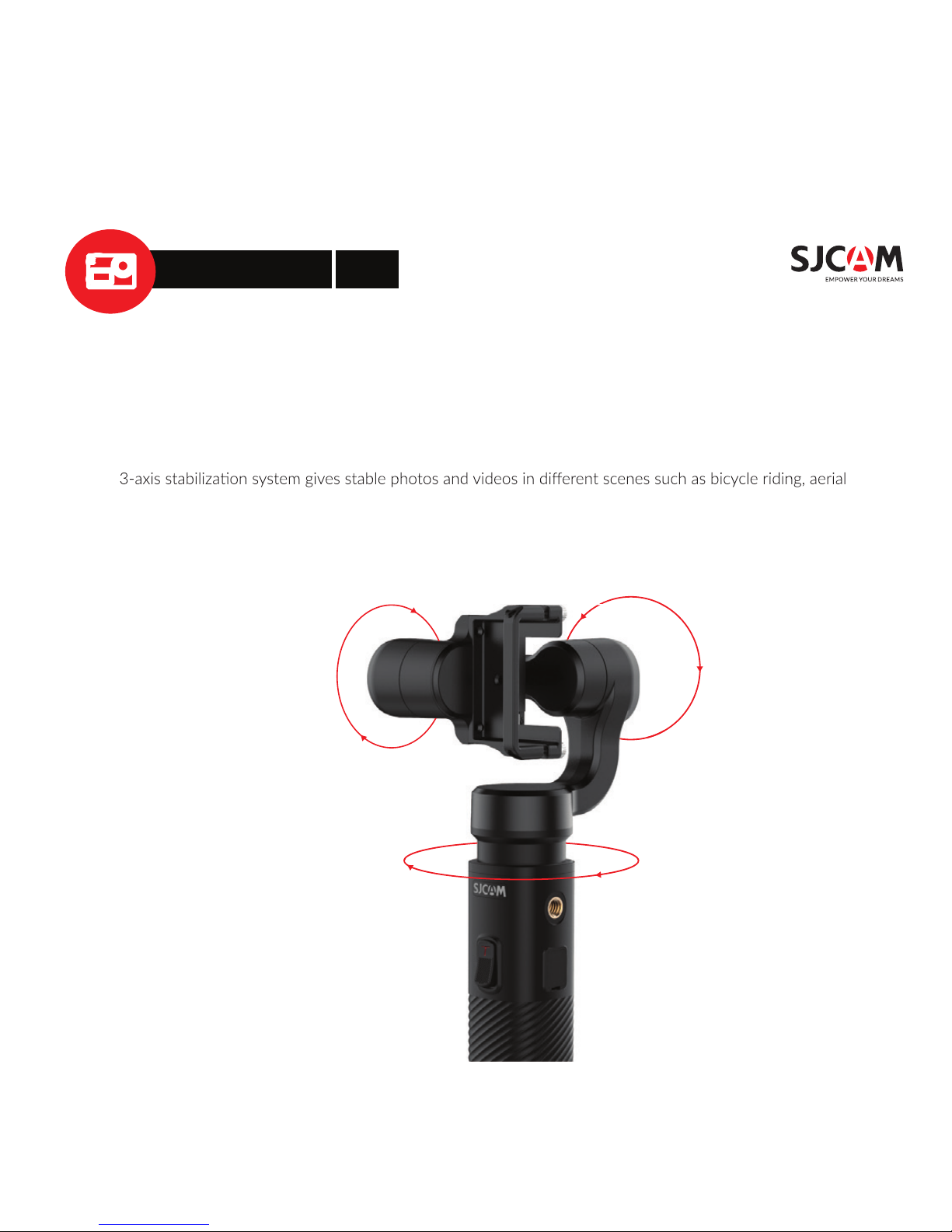

3 AXIS STABILIZATION
Rolling 320º
Panning 640º
Tilting 320º
photography or running.
T
GIMBAL 2 p. 6
www.sjcam.com
TIMELAPSE PHOTOGRAPHY
GIMBAL 2 p. 7
www.sjcam.com

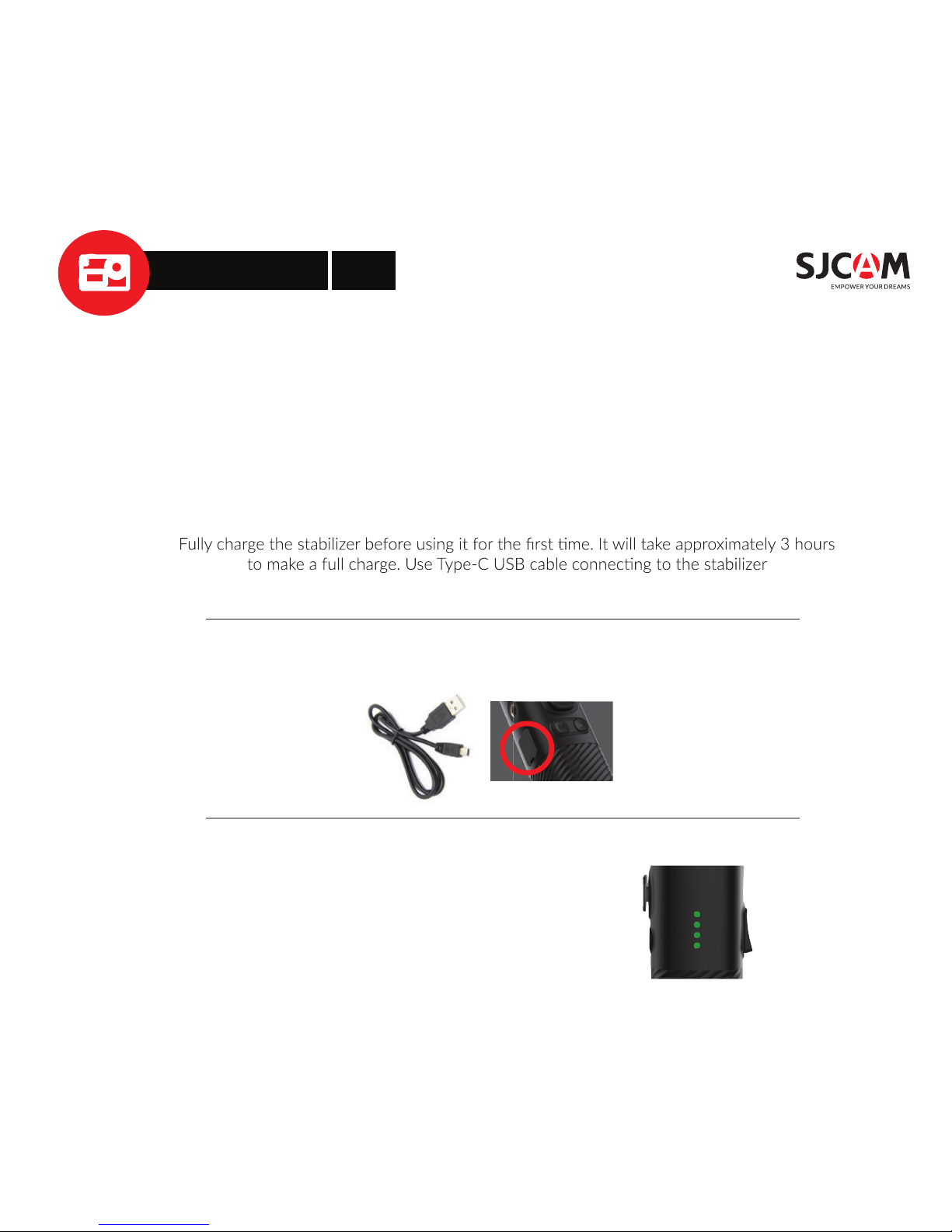

STABILIZER CHARGING &
ACTION CAMERA CHARGING
charging port through wall charger (or other power sources).
Type C USB Port: Charging the gimbal
4 Led lights indicators
4 Led lights on means power is 100%
3 Led lights on means power is 75%
2 Led lights on means power is 50%
1 Led lights on means power is 25%
Indicator Light Fast Flashing: Charging status
Indicator Light Solid: Fully charged status
CAMER
GIMBAL 2 p. 8
www.sjcam.com

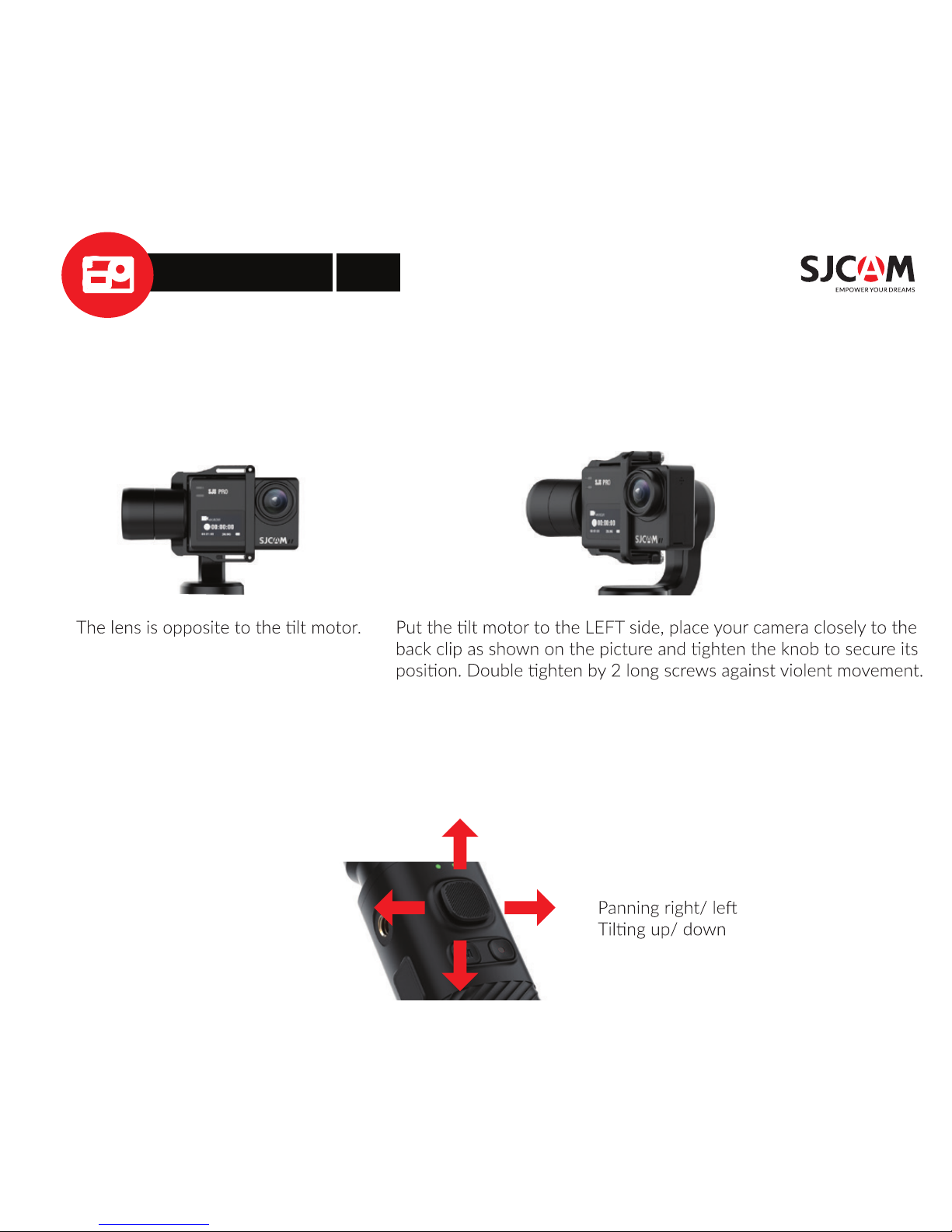

A INSTALLATION
OPERATION INSTRUCTION
JOYSTICK
