Sirio Antenne New Vector 4000 Manuel utilisateur

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 06/03/2009 - Cod. ID041, pag. 4/4

HI-QUALITY ANTENNAS MADE IN ITALY

MOUNTING INSTRUCTIONSMOUNTING INSTRUCTIONS

1310mm

Insert the top section with

the cage (21) at L3 (see

tuning table for

frequency) and lock it

using the M4x4 hexagon

socket set screw cup

point (22) and 2mm

hexagonal key (23).

Pull out the 5 sections of

telescopic aluminium

whip (24) and lock them

using the 3.9x9.5mm

phillips tapping screws

(25).

Insert the fully assembled

telescopic whip into the

second section of tube

(10) and lock they using

the 3.9x9.5mm phillips

tapping screws (25).

7788

991010

1111 1212

UHF female connector

Finally mount the

antenna on the mast

using M6 washer (7), M6

spring lock washer (8),

M6 hexagonal nut (9),

steel bracket (26 & 27)

and M6x240mm U-bolt

(28).

Insert the aluminium tube

10x1400 (19) into the

assembled cone tubes

13x1400 (17). Pull out the

top tube for 1310 mm and lock

it using the 3.9x12.7mm

phillips tapping screws (14).

Mount the 4 pcs of the

aluminum ring (20) and

lock them using M5x16

hexagon head screw (3),

M5 washer (4) and M5

hexagonal nut (5).

HI-QUALITY ANTENNAS MADE IN ITALY

ID041, pag.1/4

NEW VECTOR 4000NEW VECTOR 4000

27...28.5 MHz CB & 10m band Base Station Antenna

3/4 lBase station antenna working on CB and 10m band.

Made of telescopic anti-corodal aluminium tubes. Its long and

robust whip allows perfect performances and very good

connections at long distances too.

DESCRIPTIONDESCRIPTION

SPECIFICATIONSSPECIFICATIONS

TECHNICAL DATA

Electrical Data

Type

Frequency range

Impedance

Radiation ( H-plane)

Polarization

Gain

Bandwidth @ SWR £ 2)

SWR @ res. freq.

Max Power

Feed system

Connector

Mechanical Data

Materials

Wind resistance

Length (approx.)

Weigth (approx.)

Mounting Mast

: 3/4 lCoaxial J-pole

: 27...28.5 MHz tunable

: 50 W

: 360°omnidirectional

: Vertical

: 2 dBd, 4.15 dBi

: ³1400 KHz (120 channel)

: £ 1.2

: 1000 Watts continuous

3000 Watts short time

: Gamma match

: UHF-female

: Aluminium, Steel, Brass, Nylon

: 130 Km/h

: 8480 mm

: 4700 gr

: Æ35-42 mm

12 14

ID041, pag.3/4

HI-QUALITY ANTENNAS MADE IN ITALY

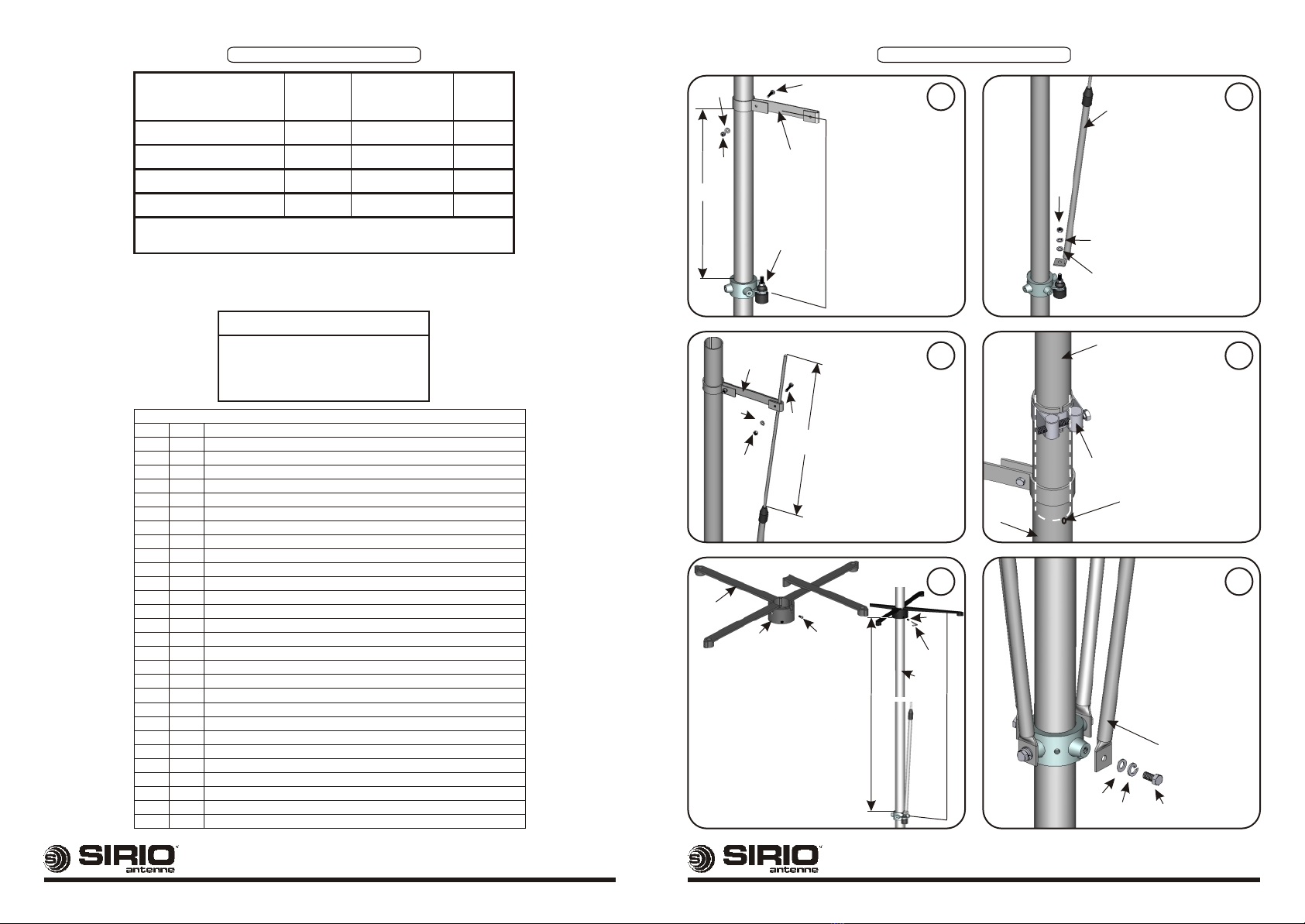

MOUNTING INSTRUCTIONSMOUNTING INSTRUCTIONS

Mount the aluminium

bracket (1) at distance L1

from the top edge of

bottom aluminium ring

(see tuning table for

frequency). Verify the real

alignement to the bracket

(1) and the connector (2).

Lock the bracket using

M5x16

(3), M5 washer

(4) and M5 hexagonal nut

(5).

hexagon head

screws

Mount the gamma match

(6) on the connector and

lock it using M6 washer (7),

M6 spring lock washer (8)

and M6 hexagonal nut (9).

Pull out the aluminium

bar of gamma match at

distance L2 from the

plastic cap (see tuning

table for frequency) and

lock it with the aluminium

bracket (1) using M5x16

hexagon head screw (3),

M5 washer (4) and M5

hexagonal nut (5).

Insert the second section

on the aluminium tube (10)

into the first section tube

(2) and lock them using the

enclosed hose clamp (11).

Mount the plastic ring (12) on the

second aluminium tube (10) at

1340 mm from the bottom

aluminium ring. Insert the plastic

arms (13) and lock them using

the 3.9x12.7mm phillips

tapping screws (14). Lock the

plastic ring (12) using the M6x10

hexagon socket set screw cup

point (15) and 3mm hexagonal

key (16). Verify that the plastic

arms (13) are aligned with

bottom hole on aluminium ring.

to align

Mount the cone made of

aluminium tubes

13x1400 (17) on the

bottom aluminium ring

using M6x12 hexagon

head screws (18), M6

washer (7) and M6 spring

lock washers (8).

1340mm

17 x 4 pcs

to align

1122

3344

5566

Insert limit punching

ID041, pag.2/4

HI-QUALITY ANTENNAS MADE IN ITALY

Parts List

Description

aluminium bracket

Æ33.5x37x1400mm alu. tube with connector first section

M5x16 hexagon head screws

M5 washer

M5 hexagonal nuts

gamma match assembly

M6 washer

M6 spring lock washer

M6 hexagonal nuts

Æ30.5x33x1400mm alu. tube second section

Æ36-39mm hose clamp

Plastic fixing ring

Plastic arms

Æ 3.9x12.7 tapping screws

M6x10 hexagon socket set screw

3mm hexagonal key

Æ11x13x1400mm alu. tube (cone bottom side)

M6x12 hexagon head screws

Æ8x10x1400mm alu. tube (cone top side)

aluminium ring section

top section with cage

M4x4 hexagon socket set screw cup point

2mm hexagonal key

5 sections telescopic aluminium whip

Æ3.9x9.5 tapping screws

30x65mm steel “V” bracket

30x65mm steel “flat” bracket

M6x240mm U-bolt

Pos

Q.ty

TUNING TABLETUNING TABLE

n. 1 tape rules (meter)

n. 1 screwdriver cross point

n. 1 10mm open key

n. 2 8mm open key

*For the best tuning, please adjust only the gamma match L2 with an

SWR-Meter, about indicated range.

Freq.

(MHz)

Ch.19 CB 27.185

27.5

28.0

10m band 28.5

(mm)

930

890

870

840

630 640

620 630

623 633

618 628

(mm)

730

640

440

300

Mounting needed tools:

REMARK: use a good coax cable like RG-8 or RG-213 as short as possible

to get the best performance and we recommend to mount your antenna as

far as possible from metall roofs, walls, power lines and other antennas.

L2*

(mm)
