Simplicity 3544 Guide de configuration

Rev. 09/2002

TP 400-3544-00-AT-SMA

ATTACHMENT

ILLUSTRATED

PARTS LIST

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

ATTACHMENT

Mfg. No. Description

1694304 Turbo - 38”, 44” & 50” Mower

TP 400-3544-00-AT-SMA

Turbo - 38”, 44”& 50”Mower

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986208

See Mounting Kit

38" Broadmoor,

Trim Corner

36 33

The above parts group applies to the following Mfg. Nos.:

1694304 Turbo - 38”, 44” & 50” Mower

TP 400-3544-00-AT-SMA

Turbo - 38”, 44”& 50”Mower

1 1931333 7 CARRIAGE BOLT, 5/16-18 x 3/4

2 1665982 4 RETAINER, Bearing

3 108202 2 BEARING

4 1933988 6 PUSH NUT, 3/8

5 1930641 10 NUT, Hex, Flange Lock, 1/4-20

6 1925003 1 CAPSCREW, Hex, Taptite, 1/4-20 x 1/2

7 1724441 1 FAN HOUSING (Includes Ref. No. 9)

8 1927557 6 NUT, Flange, Whizlock, 5/16-18

9 1700259 1 DECAL, Danger, Blower

10 1931317 4 CARRIAGE BOLT, 1/4-20 x 3/4

11 1960256 2 CAPSCREW, Washer Head, Plastite, 1/4-18 x 5/8

12 1705267 1 COVER, Bottom

13 1706631 1 FAN ASSEMBLY, 5 Blade

14 1706465 1 PLATE ASSEMBLY

15 1931355 1 CARRIAGE BOLT, 3/8-16 x 2-1/4

16 1678435 1 BELT STOP

17 1924874 1 WASHER, Flat

18 1917356 1 WASHER, Spring Lock, 5/16

19 1917372 1 NUT, Hex, 5/16

20 1924009 2 CAPSCREW, Hex Head, 1/4-20 x 7/8

21 1668500 1 BRACKET, Anchor, Spring

22 1716853 1 SPRING, Tension

23 1920415 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4

24 1924940 3 WASHER, Plain

25 154534 1 IDLER PULLEY ASSEMBLY

26 1933263 1 WASHER, Flat

27 1960251 2 NUT, Hex, Jam, Center Lock, 3/8-16

28 1676833 2 SPACER

29 1706284 1 LEVER ASSEMBLY, Turbo (Includes Ref. Nos. 30 &31)

30 1704314 1 FITTING, Grease

31 1676148 2 BUSHING

32 1924361 1 WASHER, Flat

33 1706634 1 PULLEY, Driven

34 1960619 2 SETSCREW, Hex, Socket Head, 5/16-18 x 5/16

35 960403 1 KEY, Woodruff, Modified

36 1921959 4 CAPSCREW, Hex Head, 1/4-20 x 5/8

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1694304 Turbo - 38”, 44” & 50” Mower

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

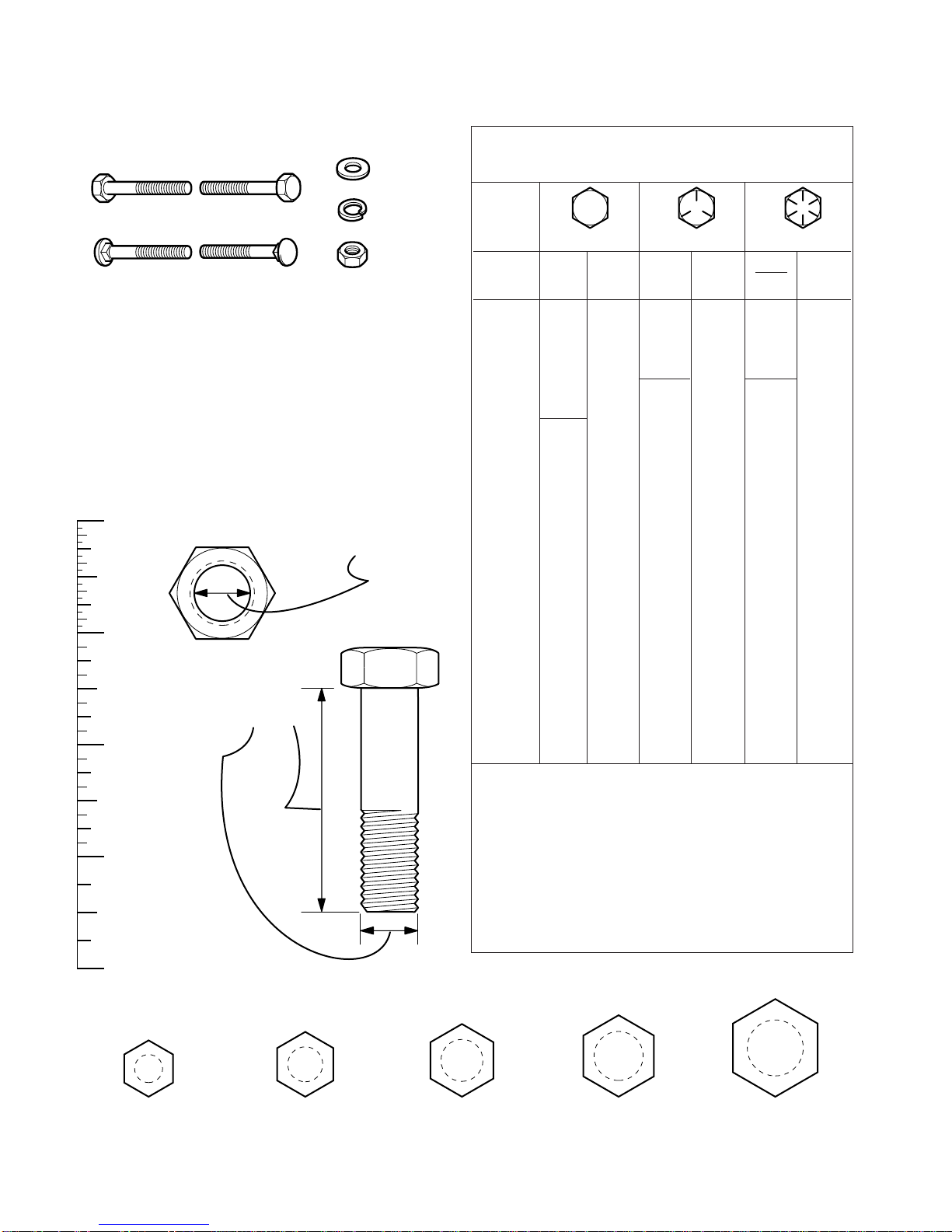

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

01/4 3/4

1/2 11/4 3/4

1/2 21/4 3/4

1/2 31/4 3/4

1/2 4
