SimCom SIM300 Manuel utilisateur

SIM300 User Manual

Document Name: SIM300 User Guide

Version: 1.00

Date: 2006-6-18

DocId: SIM300 User Guide_V1.00

Status: Release

General Notes

Simcom offers this information as a service to its customers, to support application and

engineering efforts that use Simcom products. The information provided is based upon

requirements specifically provided to Simcom by the customers. Simcom has not

undertaken any independent search for additional relevant information, including any

information that may be in the customer’s possession. Furthermore, system validation of

this Simcom product within a larger electronic system remains the responsibility of the

customer or the customer’s system integrator. All specifications supplied herein are

subject to change.

This document contains proprietary technical information which is the property of

SIMCOM Limited., copying of this document and giving it to others and the using or

communication of the contents thereof, are forbidden without express authority.

of a patent or the registration of a utility model or design. All specification supplied

herein are subject to change without notice at any time.

Contents

1 SIM300 EVB and accessories................................................................................................4

1.1SIM300 EVB................................................................................................................4

1.2 accessories...................................................................................................................5

2 EVB and accessory equipment...............................................................................................5

3 Operation................................................................................................................................6

3.1 Tune up procedure.......................................................................................................6

3.2 Setup the phone call....................................................................................................6

3.3 GPRS start-up ...........................................................................................................12

4 AT command ........................................................................................................................12

5 FCC Requirements...............................................................................................................12

6 FCC RF exposure requirements...........................................................................................13

1 SIM300 EVB and accessories

1.1SIM300 EVB

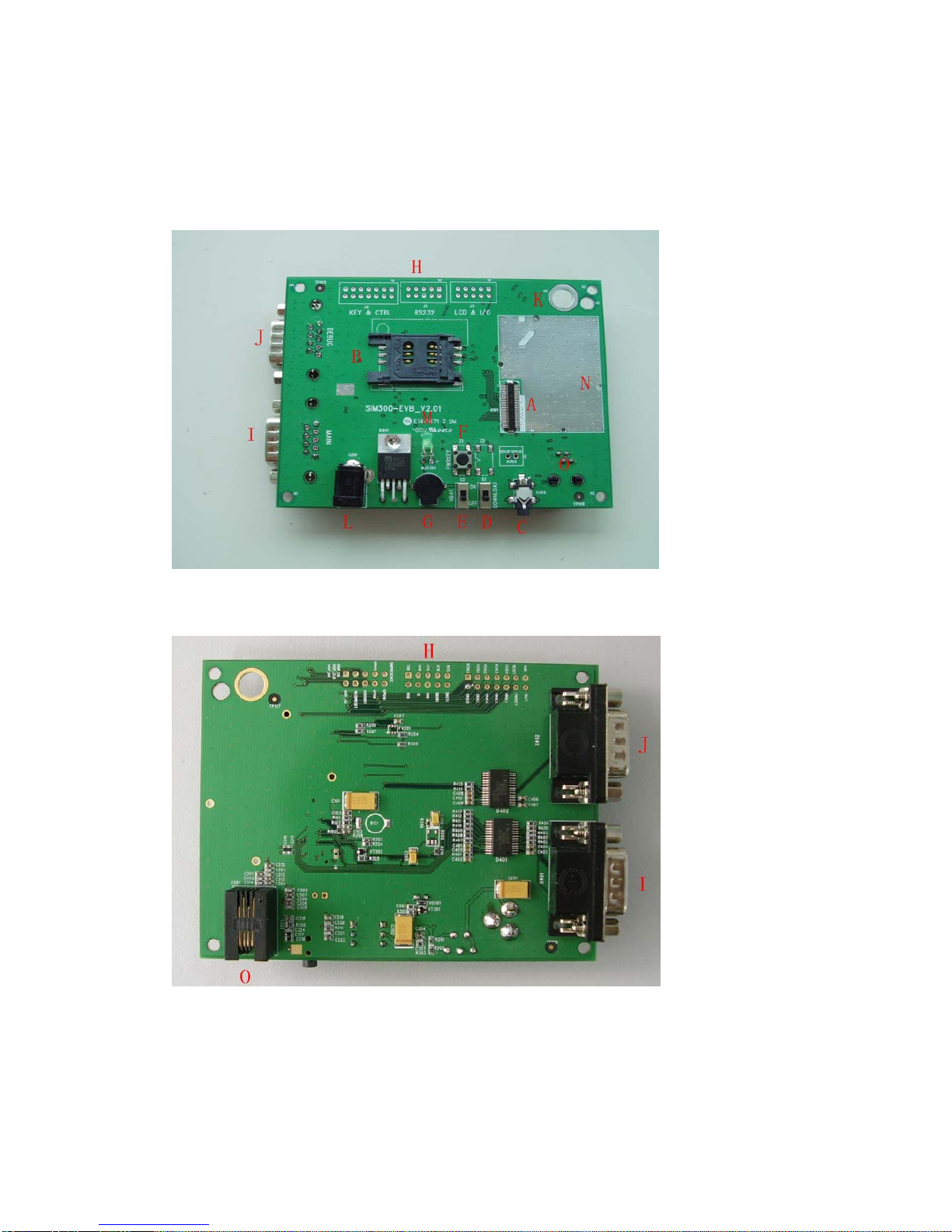

Figure1：EVBTOPview

Figure2：EVBBOTTOMview

A: SIM300 module interface

B: SIM card interface

C: headset interface

D: Download switch, turn on or off download function

E: VBAT switch, switch the voltage source from the adaptor or external battery

F: PWRKEY key, turn on or turn off SIM300

G: buzzer

H: expand port, such as keypad port, main and debug serial port, display port

I: MAIN serial port for downloading, AT command transmitting, data exchanging

J: DEBUG serial port

K: hole for fixing the antenna

L: source adapter interface

M: light

N: hole for fixing the SIM300

O: headphones interface

1.2 accessories

A: antenna

B: antenna transmit line

C: headset

D: 5V DC source adapter

E: serial port line

2 EVB and accessory equipment

At normal circumstance, the EVB and its accessory are equipped as the nether figure：

Figure3：EVBandaccessoryequipment

3 Operation

Firstly，please equip the module and accessories as the figure 3：

3.1 Tune up procedure

1）switching the S1 switch to off state, S2 switch to ON state；

2) Press the PWRKEY button for about 1 second, then the LED glint，and the module is tuning

up successfully；

3.2 Setup the phone call

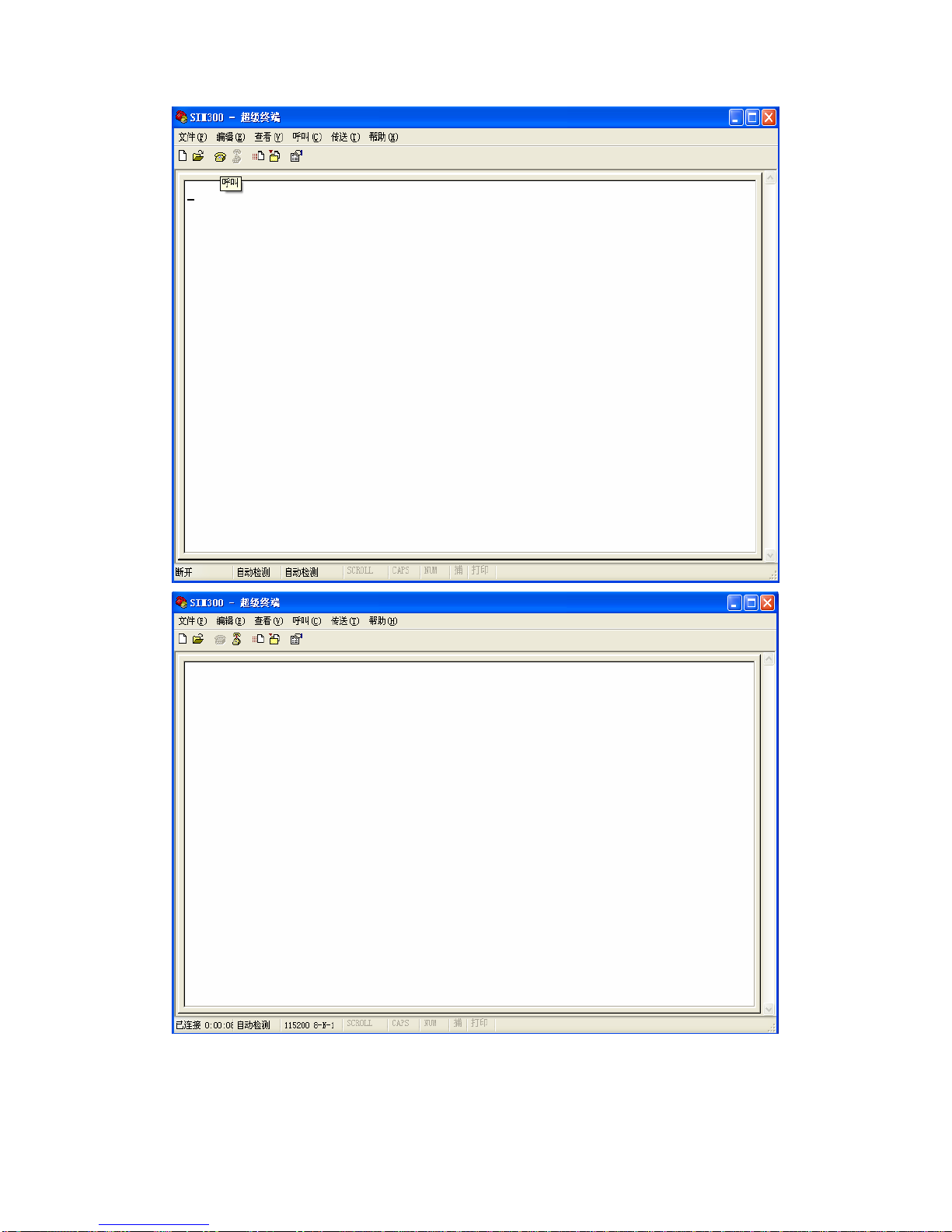

Please setup a HyperTerminal(AT command windows) step by step：

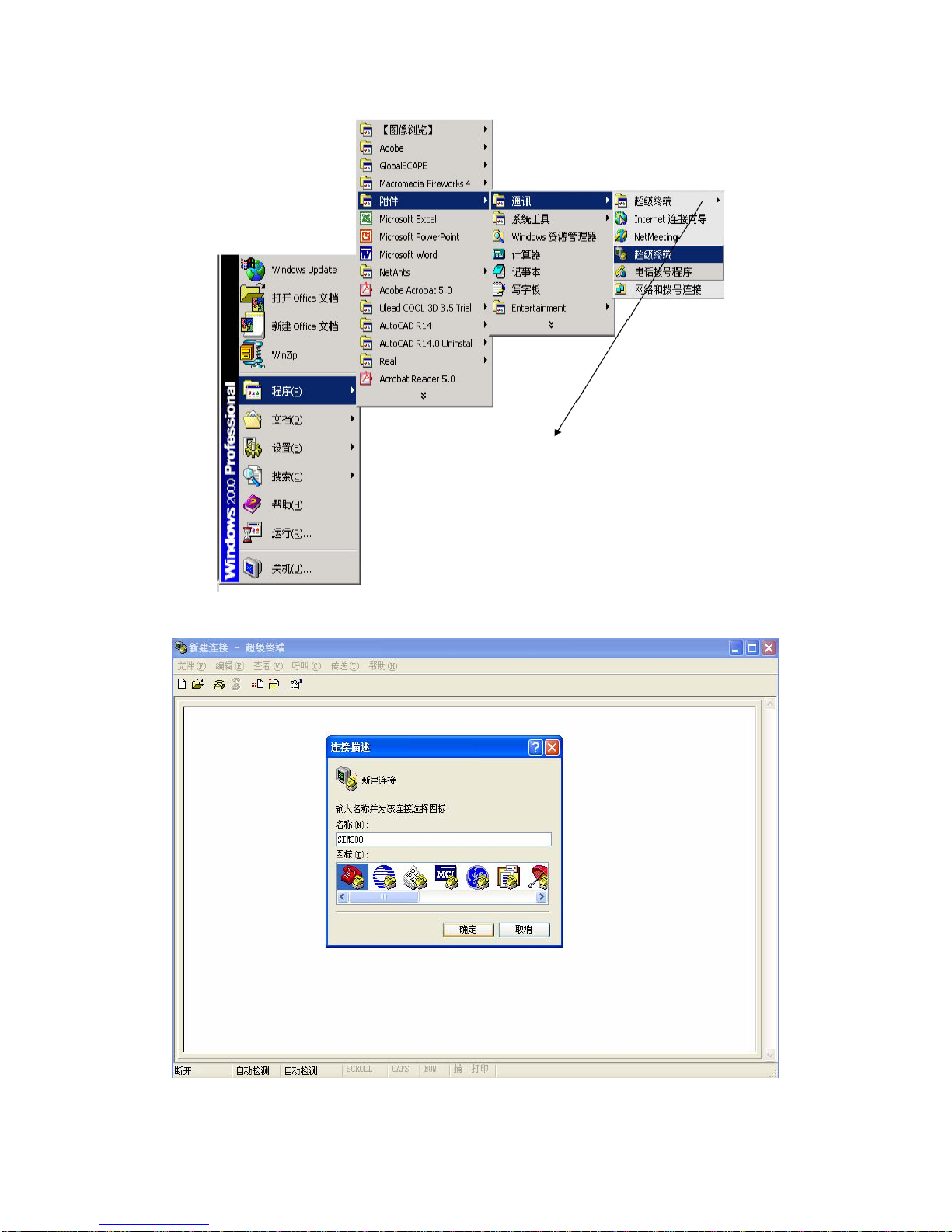

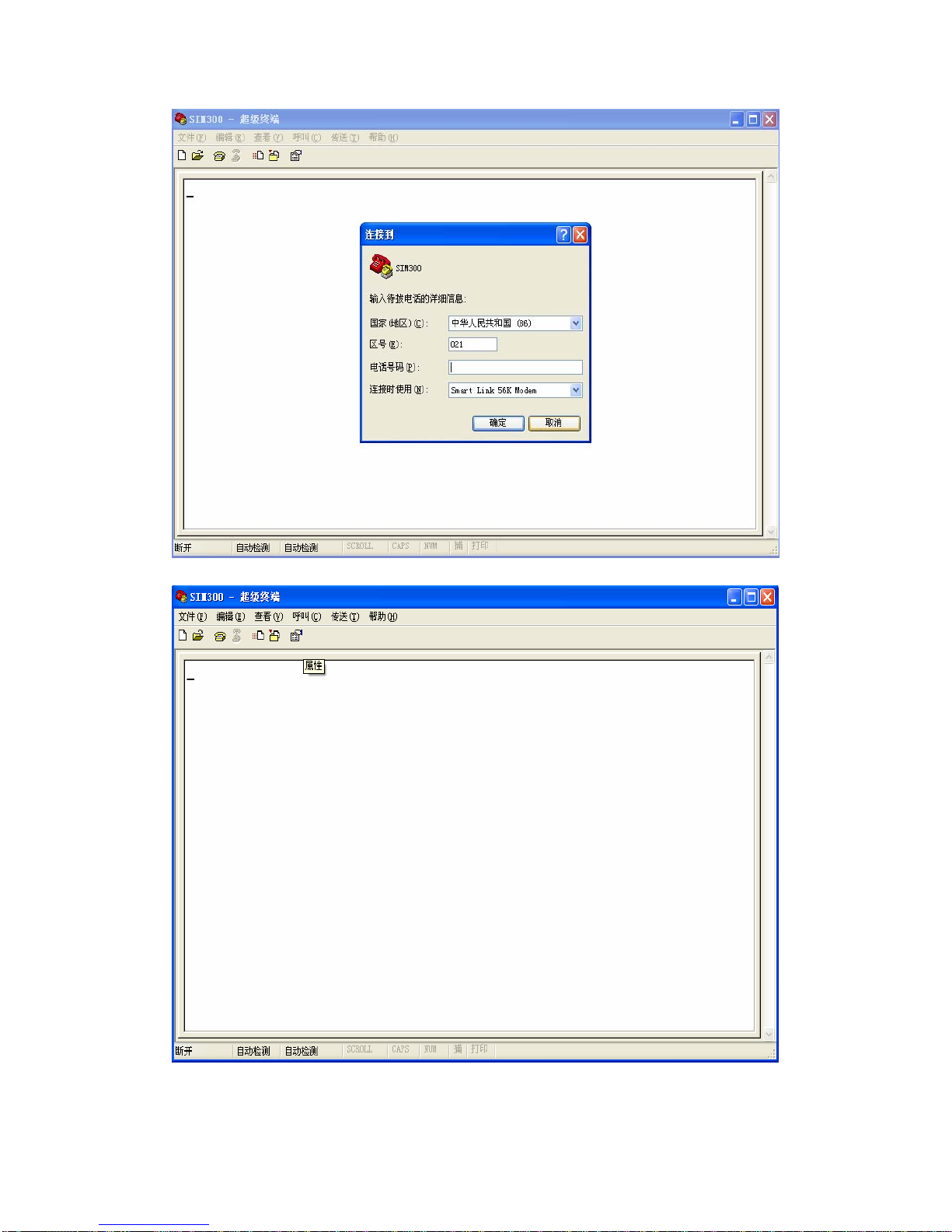

Step1，setup the HyperTerminal connect：

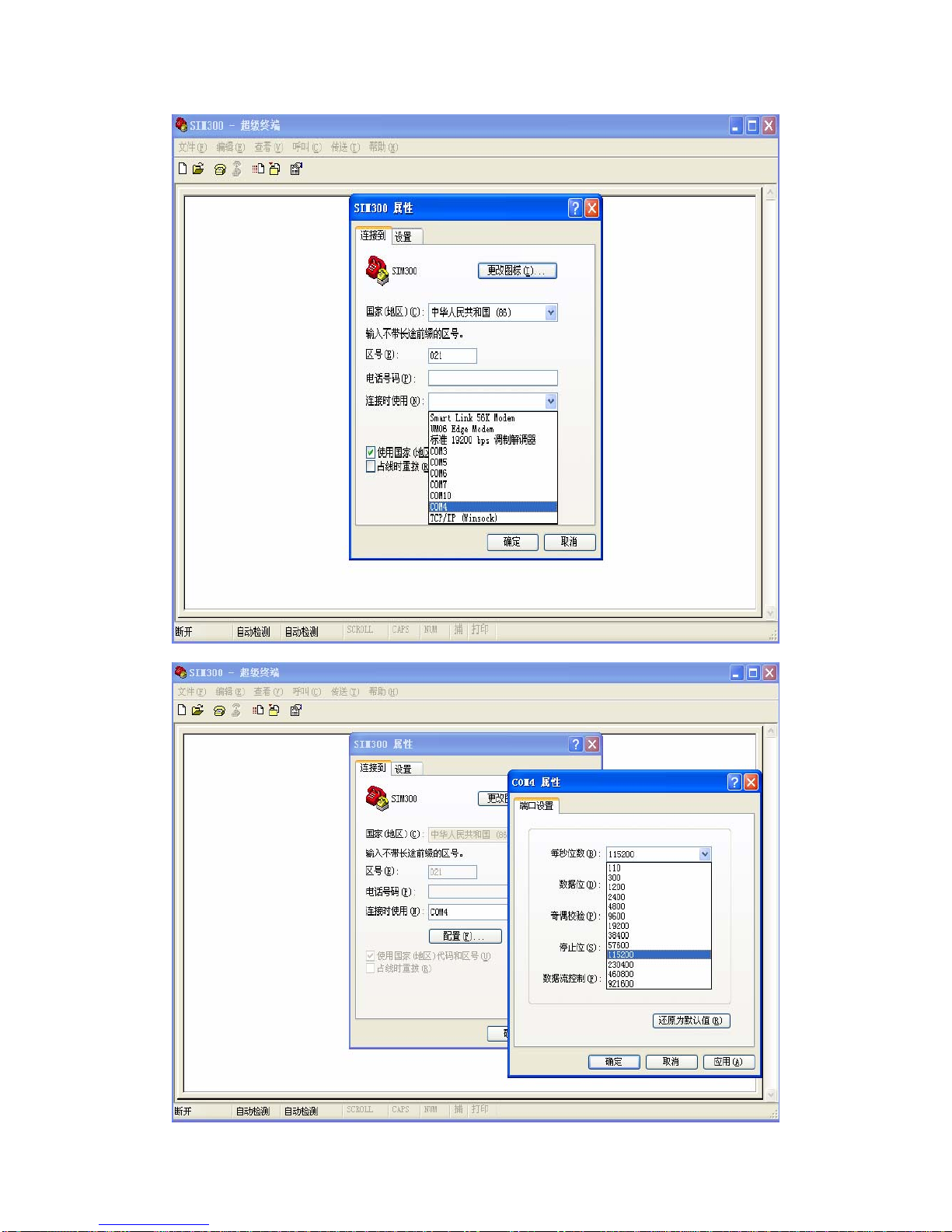

Step 2：Parameter setting（set the PC serial port and band rate）

Step 3：power on the module and key in theAT command：

1）power on the module；

2）key in the “AT”and enter，if the “OK” is feedback，it indicates that the module connecting
