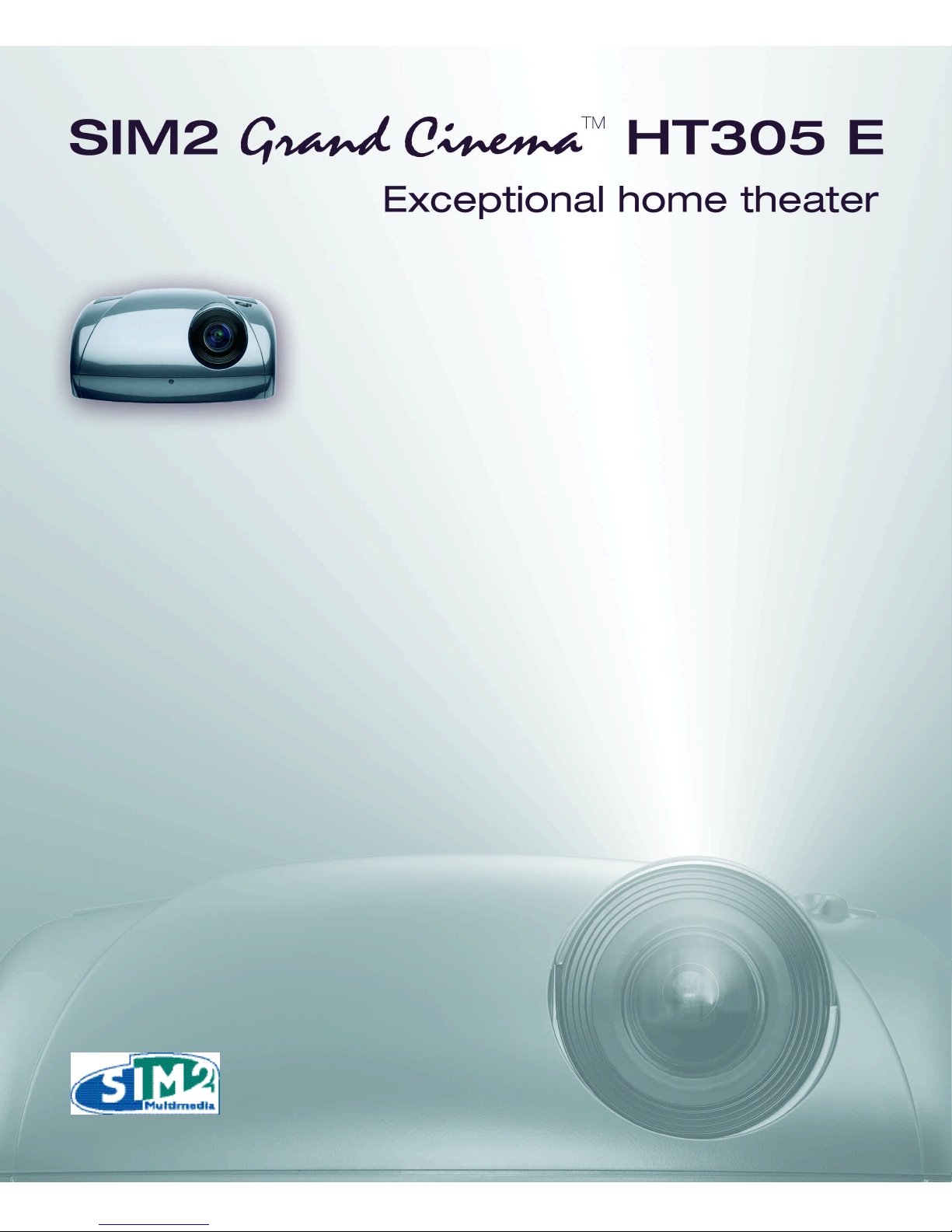

Sim2 Grand Cinema HT305 E Manuel utilisateur

SIM2’s Grand Cinema™ series is the pinnacle of technical excellence in home theater

projector design. Combining, as it does; a light engine with superior glass optics, the best

processing electronics and a wealth of design experience gained in the home theater

projector market, to create the truly exceptional products within this range.

The Grand Cinema™ HT305E builds on the performance of its illustrious award-winning

predecessor: the HT300E, with improved image quality and increased light output,

through the use of upgraded electronics and a more powerful 150W lamp.

The DarkChip3™ DLP® chipset from Texas Instruments is utilized in this HD ready

projector, which, in partnership with SIM2’s patented Alpha Path™ light engine, produces

a contrast ration of >3500:1.

The many benefits of the DarkChip3™ – better contrast, finer pixel structure and improved

motion - are fully exploited by the Grand Cinema™ HT305E, resulting in exceptional

picture quality.

The Grand Cinema™ HT305E features a wide selection of inputs – Component Video,

Video, S-Video, PC and HDMI™ - and is compatible with all video and graphic standards

including HDTV. HDMI™ is a purely digital connection that transmits the uncompressed

bitstream directly from the source through to the display, for a more accurate image.

The Grand Cinema™ HT305E projector is available in Gun Metal gloss cabinet finish.

k e y p o i n t s

•HD Ready

•Based on HD2+ DarkChip3™ DMD

chip (1280x720 pixels)

•Contrast ratio >3500:1

•SIM2 proprietary Alpha Path™ sealed

light engine

•Superior glass optics

•Long-throw ratio 1.8-2.4:1 lens

•Live Colors Management™ software

•Vertical lens shift (optical)

•Vertical and Horizontal digital keystone

adjustment

•Future-proof digital input: HDMI™-

HDCP compliant

•150W lamp, 6000 hours lamp life (*)

•Built-in deinterlacer and video

enhancement

Headquarters:

SIM2 MULTIMEDIA S.p.A.

Viale Lino Zanussi, 11

33170 Pordenone - Italy

Tel. +39.0434.383234

Telefax +39.0434.383260

E-mail: [email protected]

Germany

SIM2 DEUTSCHLAND GmbH

ArndStr. 34-36

D-60325 Frankfurt Am Main

Tel. 0800.8007462

Telefax 0800.9007462

E-mail: [email protected]

UK:

SIM2 UK LTD

Steinway House, Worth Farm

Little Horsted, Nr. Uckfield

East Sussex TN22 5TT

Tel. +44.01825.750850

Telefax +44.01825.750851

USA:

SIM2 USA INC.

10108 USA Today Way

Miramar, FL 33025

Tel. +1.954.442.2999

Telefax +1.954.442.2998

E-mail: [email protected]

Due to constant product development, specifications and design might be subject to change without notice. HT305E, August 2006

LIGHT ENGINE

DLP® type: 1 chip DMD (HD2+ DarkChip3™)

Resolution: 1280 x 720 pixels

Lens: High quality, high resolution improved

optics for higher contrast and black level with

both motorized zoom and focus adj.

Lamp power & life time*: 150W 6000 hours

INSTALLATION

Throw ratio: 1.8 - 2.4:1 (16:9 mode)

Lens shift: V+/-8°

Digital keystone adjustment: V+/-18°; H+/-10°

Picture size (inches diagonal): 50-250

Aspect ratio: 4:3, 16:9 Anamorphic,

LetterBox, panoramic, pixel to pixel + 3

custom-user adjustments

ELECTRONICS

Horiz. & Vert. scan freq.: 15-80kHz - 48-100Hz

Video standards (autom. selected): PAL B, G, H,

I, M, N, 60; SECAM; NTSC 3,58 & 4,43

HDTV ATSC standards and graphic

resolutions: USA 480p, 720p, 1080i, 60Hz;

EU 576p, 1080i 50Hz.; VGA, SVGA, XGA,

SXGA, UXGA

On-board video processing

Contrast ratio (Full ON/ Full OFF): >3500:1

Special adjustments: noise reduction,

overscan, Live Colors Management

INPUTS/OUTPUTS

1 x Composite Video (RCA)

1 x S-Video (mini Din 4 pin)

1 x RGBs/YCrCb (4x RCA)

1 x RGBHV (D-Sub 15 pin)

1 x RS232 (D-Sub 9 pin)

1 x HDMI™-HDCP

1 x OUT digital audio (Toslink)

2 x OUT 12V 100mA on Jack connectors

GENERAL SPECIFICATIONS

Software control: upgradable via RS232 serial

interface

Power consumption & Mains voltage range:

200W max; 100-240Vac ±10% (48/62Hz)

Weight: 5.8Kg (12.8 lbs )

Dimensions (WxHxD): 350x173x318 mm

(13.8”x6.8”x12.5”)

SUPPLIED ACCESSORIES

Installation and User Manual

AC power cords (EU, UK & USA) 6.6 ft (2m)

Backlit Remote control and batteries

The DLP® logo and DLP® medallion are trademarks of Texas

Instruments.

(*) Lamp life: the hours quoted have been measured in a lab

under strict test conditions. Lamp life varies depending on

usage conditions and the surrounding environment. The

measured lamp life cannot be guaranteed and is not protected

by warranty
